Precision connctor,2.4mm male for QTB330P cable,Clamp type,to 50GHz

Name: Precision connctor,2.4mm male for QTB330P cable,Clamp type,to 50GHz
Brand: QUONTEK
SKU: 50G-24M-B330P-CL
Price: 15.00 USD
Availability: InStock

50G-24M-B330P-CL

6.6g/Pc,Signal package.

Message

Send

$??.00

Have chosenThere are no options selected.

Order After Login

Add To Cart Successfully!

SEND INQUIRY

Precision connctor,2.4mm male for QTB330P cable,Clamp type,to 50GHz

Precision connctor,2.4mm male for QTB330P cable,Clamp type,to 50GHz

50G-24M-B330P-CL

Precision connctor,2.4mm male for QTB330P cable,Clamp type,to 50GHz

6.6g/Pc,Signal package.

You need login check price / Register to be our client

Item No. 50G-24M-B330P-CL

MOQ 10 Piece
Product size 25.5 x 9 x 8 cm

Product weight 6.6 kg
CTN. Spec 11*11*5 cm / 50

G.W/N.W 0.5 / 0.5 kg

Tag Precision connctor 2.4mm male for QTB330P cable Clamp type to 50GHz

Choice

Color classification / size

Add to Cart

Inquiry

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Description Product Manual Inquiry

USER MAUNAL

Quick Details Packaging & Delivery

Packaging & Delivery

Single package size:: 25.5 x 9 x 8 cm

Single gross weight:: 6.6 kg

Packing size:: 11 x 11 x 5 cm

Packing gross weight:: 0.5 kg

Packing net weight:: 0.5 kg

Packing quantity:: 50 Piece

Precision connctor,2.4mm male for QTB330P cable,Clamp type,to 50GHz
P/N: 50G-24M-B330P-CL
Applications • military and defense applications • research & development labs • field RF testing • environmental and temperature test chambers		Download datasheet
Technical Data
Electrical Data
Impedance		50 Ω
Interface frequency (max.)		DC to 50GHz
VSWR		≤1.25(@50GHz),
Dielectric Withstanding Voltage		750V rms, 50Hz
PIM		NA
Mechanical Data
Number of mating(cycles)		≥500
Center contact retention force		6lbs min
Coupling proof torque		15 in-lbs min
Coupling nut retention force		60lbs min
Interface		To meet 2.4MM Type
Weight		6.6g/Pc
Environmental Data
Operating Temperature(°C)		-55 to 155
Salt spray test		48H
2002/95/EC (RoHS) compliant
Connector Data
Piece Parts	Material	Surface Plating
Centre contact	BeCu	50u” Gold
Outer contact	Na	Na
C-Ring	BeCu	Na
Body/Nut	Stainless steel	Passivation
Insulator	PEEK or PEI	Na
Sealing gasket	Na	Na

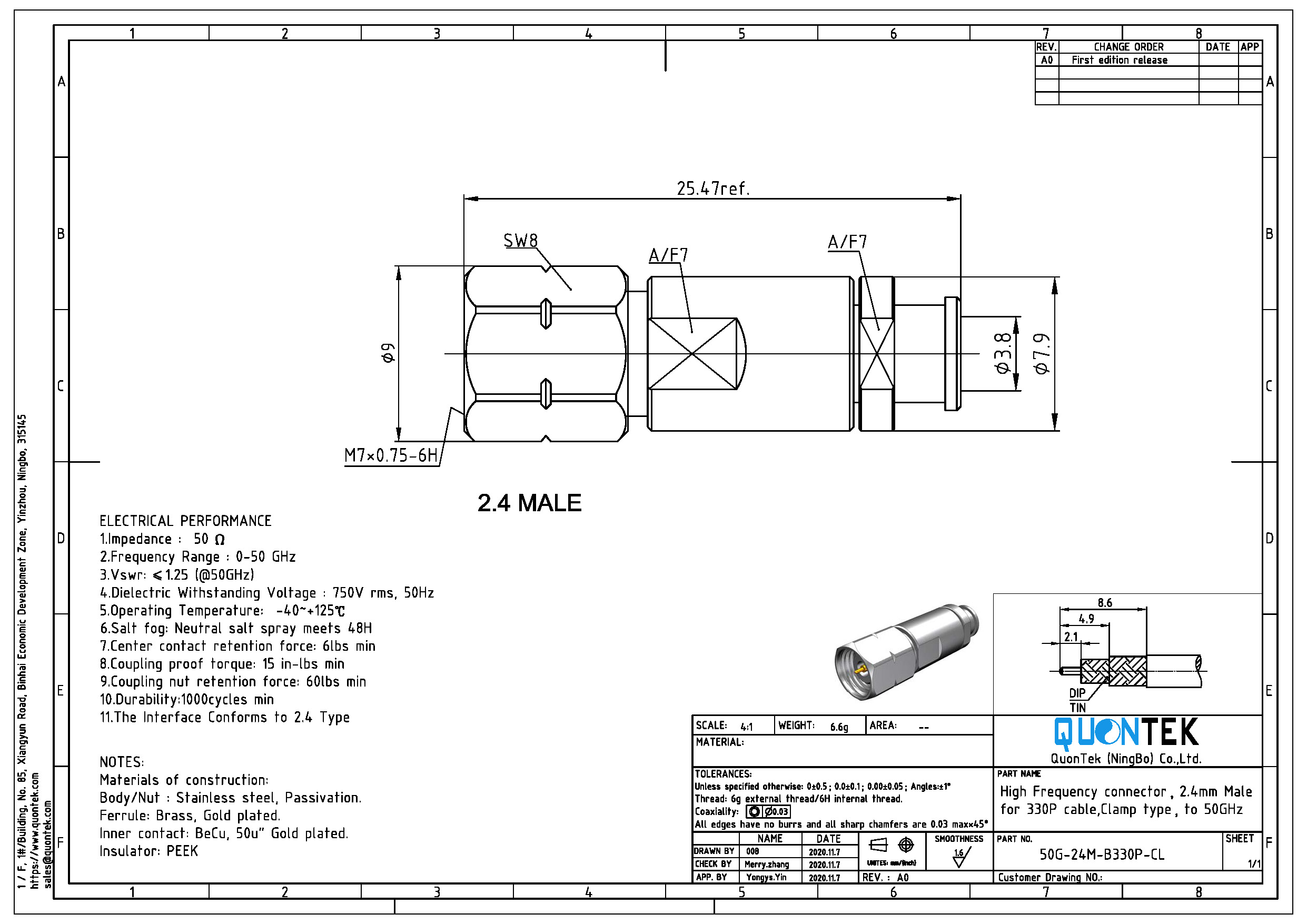

Outline Drawing

50G-24M-B330P-CL 2.4 male coaxial connector has an interface type of QT330P and a 50 Ohm impedance. Quontek 2.4 male connector uses shield/contact clamp/solder as an attachment method. Our male 2.4 coaxial connector provides a minimum frequency of DC and a maximum frequency of 50 GHz.

The Quontek 2.4 male coaxial connector has a PEI dielectric type and a VSWR of 1.25. The Quontek 2.4 coaxial connector has a passivated stainless steel body. Our 50G-24M-B330P-CL 2.4 connector uses beryllium copper contact. This 2.4 male coaxial RF connector is RoHS and REACH compliant.

Certificate

QUONTEK painstaking research of the IEC/ISO/SGS/ROHS and other international and domestic standards, and in accordance with these standards preparing their own more stringent corporate standards.


Packing&Shipping

Packing Details:1. PE bag/box + Carton: 100 pieces/bag+200 pieces/box standard packing or as your request
2. Carton size:17*17*7(CM) / 35*35*22 (CM)

Shipping Methods:
1. Samples and Small quantity order FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air
3. FCL: Airport/Seaport/Railway Station receiving Lead Time: 1-7 working days for samples; 15-21 working days for mass

Precautions: To ensure that the product is fully adapted, please confirm the datasheet and
related technical parameters before placing the order.
