Cable assembly,SSMA female to SMP female witn QTB220 cable,to 6GHz,L=xxm
P/N: SSMAFFM-B220-SMPF-L
Applications • Product testing. • Engineering transfer. • Communication transmission.			Download datasheet
Technical Data
Electrical Data
Impedance			50 Ω
Interface frequency (max.)			DC to 12GHz
VSWR			≤1.15(@6GHz)
Insert Loss			Depend on cable
Dielectric Withstanding Voltage			750V rms, 50Hz
Mechanical phase			Na
Amplitude stability			Na
PIM			Na
Mechanical Data
Number of mating(cycles)			≥1000
Interface			To meet SSMA & SMP Type
Weight			XXg/Pc
Environmental Data
Operating Temperature(°C)			-40 to 85
Salt spray test			48H
2002/95/EC (RoHS) compliant
Connector Data
Piece Parts		Material	Surface Plating
Centre contact		BeCu	Gold
C-Ring		BeCu	Gold
Body/Nut		Brass/BeCu	Gold
Insulator		PTFE	Na
Sealing gasket		Na	Na
Cable Data

No.	Item	Material		Diameter（mm）
1	Inner conductor	Solid silver plated copper		0.51
2	Dielectric	LD PTFE		1.37
3	Outer conductor	Silver plated copper tape winding		1.50
4	Outer shield	Silver plated copper		1.81
5	Jacket	Gray FEP		2.20
Cable Electrical，Mechanical and Environmental Data
1	Impedance(ohm)			50
2	Velocity(%)			82
3	Operation frequency(GHz)			83
4	Time delay(ns/m)			4.06
5	Capacitance(pF/m)			81.4
6	Inductance(uH/m)			0.20
7	Dielectric breakdown Voltage(V,AC 50/60Hz,1 min)			500
8	Screening Effectiveness(dB)			-90
9	Peak power(kW)			0.63
10	Mechanical phase(°)			na
11	Amplitude stability(dB)			na
12	Operating temp.(℃)			-55 to 165
13	Storage temp.(℃)			-55 to 165
14	Min. bend radius, static(mm)			15
15	Min. bend radius, repeated(mm)			36
16	Weight (g/m)			18
17	RoHS			Compliant
Cable Attention & Average power
Attenuation Max @ 25℃				Average power@ 25℃ for cable, at sea level
Frequency（GHz）	dB/100m		dB/100Ft	Watts(max)
1	63.11		19.24	55
2	90.11		27.47	39
3	111.16		33.89	31
4	129.13		39.37	26
6	159.75		48.70	22
8	186.01		56.71	19
12	231.01		70.43	15
18	287.72		87.72	12
24	336.89		102.71	11
26.5	355.86		108.49	10
40	448.13		136.59	8
Other frequency point attenuation			dB/100 m=K1sqrt(FMHz)+K2FMHz
K1=1.9500000; K2=0.00145000
Phase map

Connector Outline Drawing

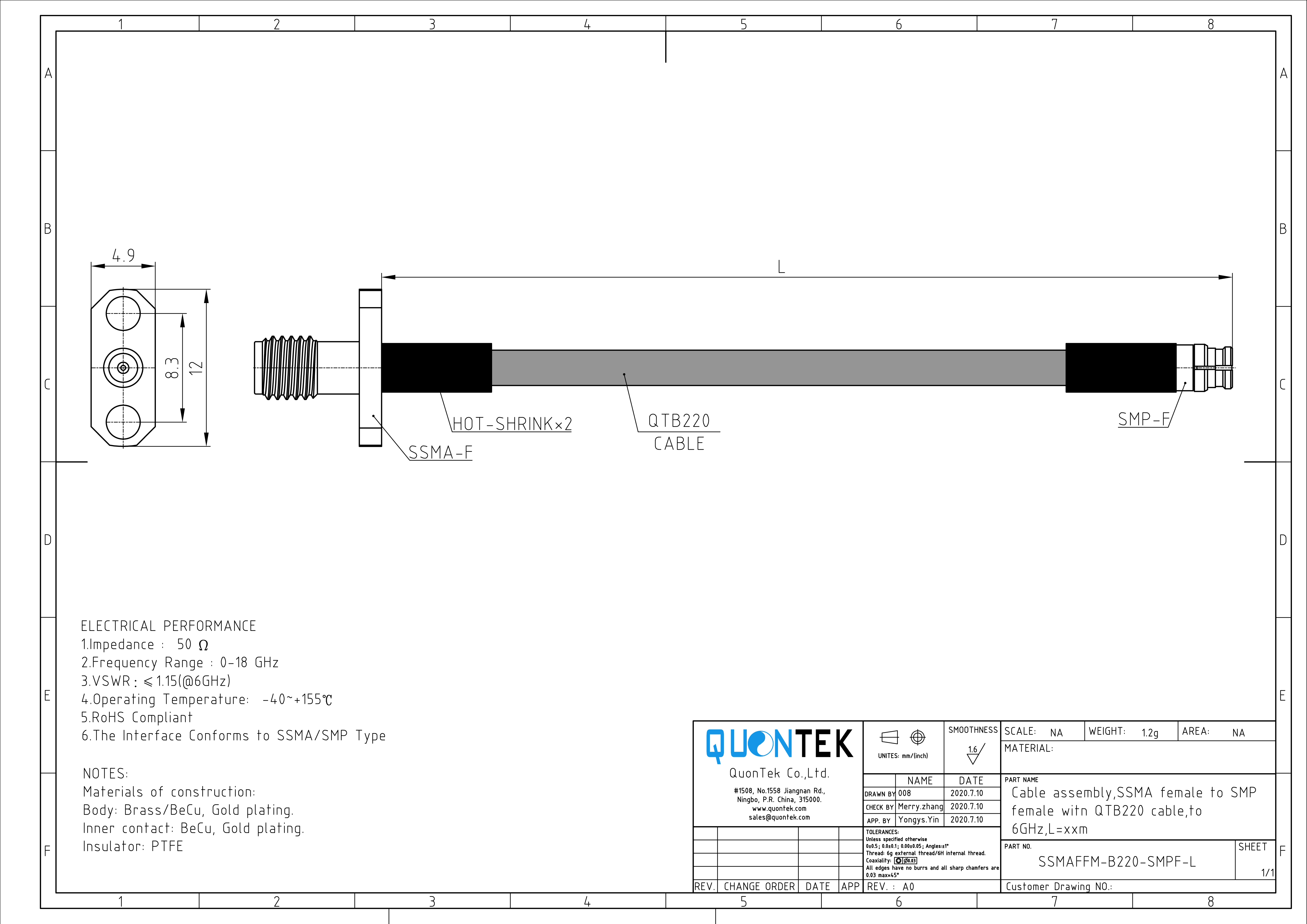

Cable Assembly Outline Drawing
