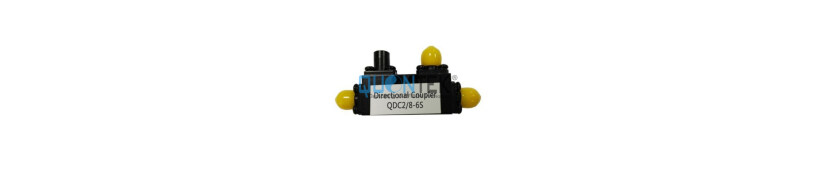

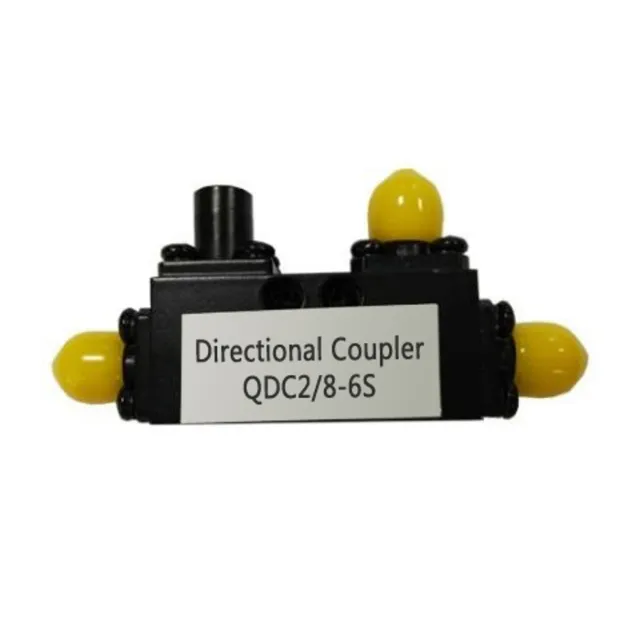

Directional Coupler Coupler

Directional Couplers
Quontek offers a wide range of Microwave RF directional couplers 6 dB 10 dB 20 dB and 30 dB covering the frequency range of 500 MHz to 67 GHz. All directional couplers are designed using stripline techniques and with specifications that exceed commercial applications. Microwave Directional couplers are used in a wide range of applications. Sampling incident and reflected power levels, line monitoring power level, power measurement, instrumentation power monitoring, RF test equipments, receivers and transmitters.

Application

• PCS GSM. LTE 5G
• Power measurement
• Line monitoring power level
• Sampling incident and reflected power levels

Features

• Octave and multioctave designs up to 67 GHz
• Low mainline loss
• High directivity
• Stripline designs
