2.4mm series 18GHz / 40GHz / 67GHz RF Connectors

Description

QUONTEK 2.40mm connectors – high reliability and outstanding repeatability – are designed for precision test & measurement applications up to 50 GHz. With 50 Ω impedance and 2.40 mm outer conductor, they are intermateable with many other 2.40 mm series connectors such as APC-2.40, OS-50, HP-2.40 and V connectors.

A wide range of 2.40mm cable and PCB connectors, adaptors and interchangeable port connectors is available as well as test & measurement accessories. These include RPC-2.40 calibration kits, test cables and measurement equipment.

Features

• Impedance 50 Ω

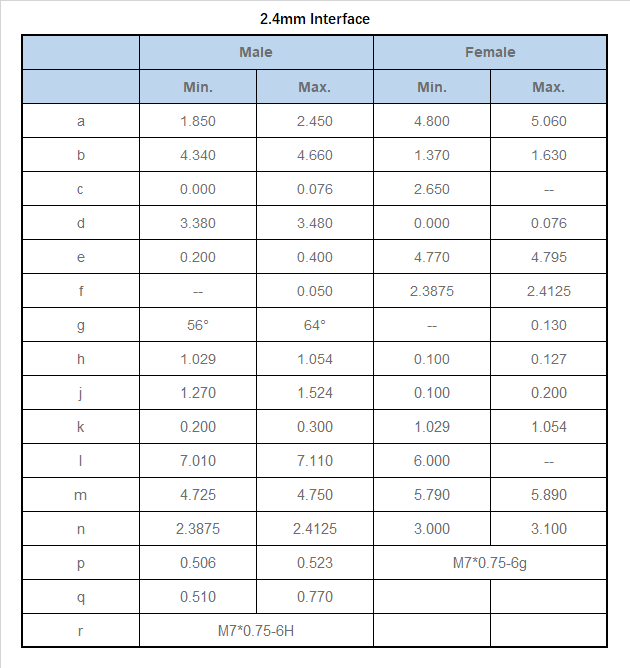

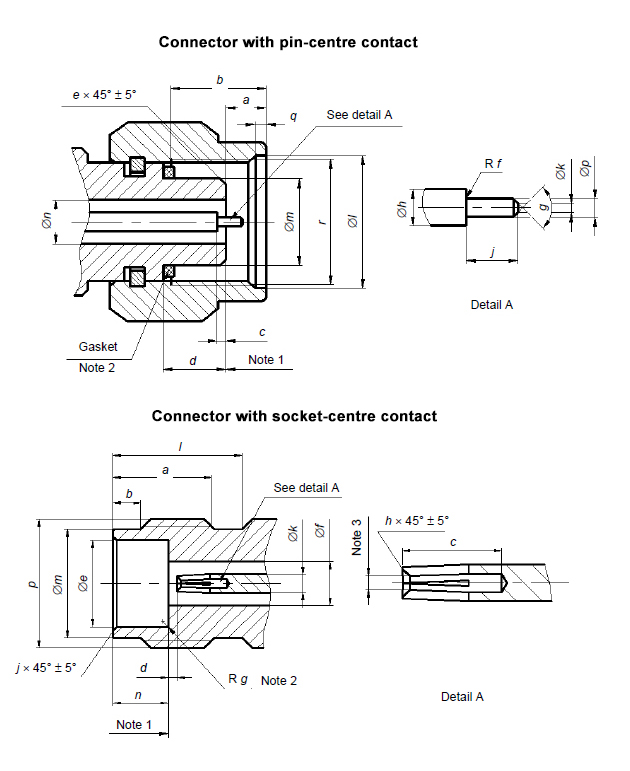

• Interface according to IEC 60169-40
• Frequency range DC up to 50 GHz
• Return loss > 23 dB @ DC – 50 GHz
• Mating cycles > 500
• Air dielectric with PEEK bead
• Stainless steel outer contact
