2.2-5 type Low PIM Connectors

Description

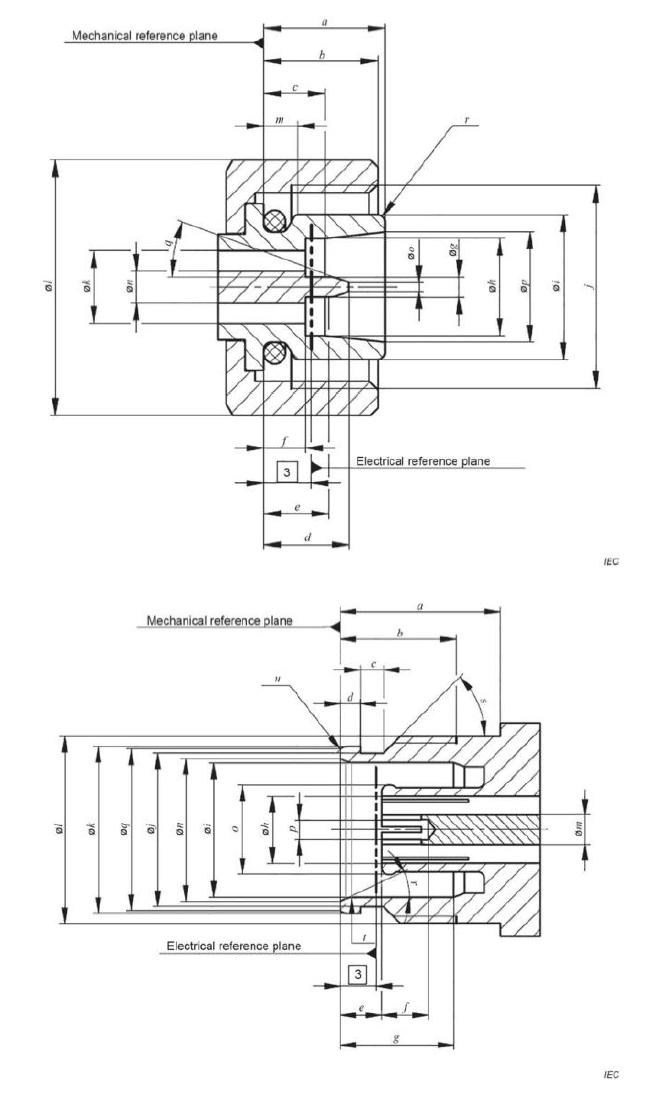

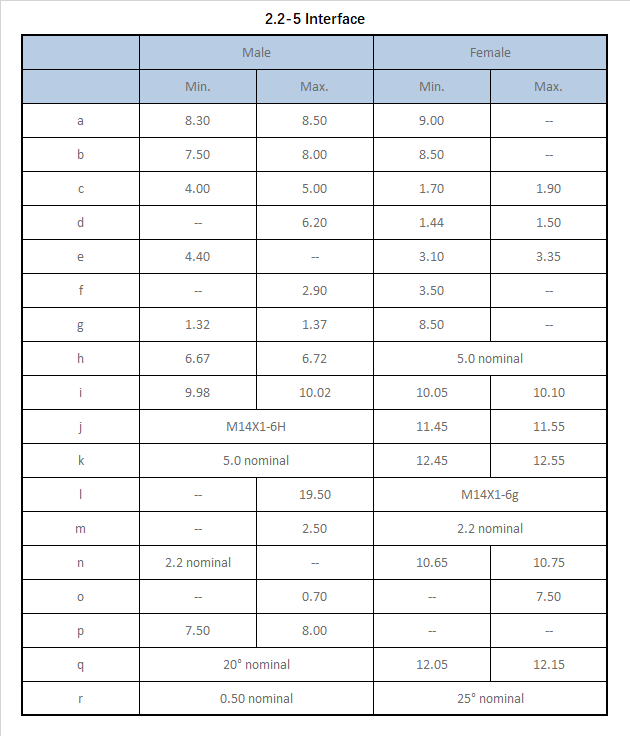

The 2.2-5 RF coaxial connector is a compact, high-performance 50Ω interconnect system standardized per IEC 61169-66. As a miniaturized evolution of the 4.3-10 interface, it reduces footprint by approximately 53% while retaining excellent electrical and mechanical stability. It supports low-loss RF cables up to 1/2 inch and delivers reliable signal transmission with outstanding passive intermodulation (PIM) performance. Available in threaded and push‑pull coupling versions, it enables blind‑mate installation and is widely used in compact high‑frequency RF systems.

Applications

Small cells, micro base stations, and macro base station RF modules

Distributed Antenna Systems (DAS) and in‑building coverage

4G/5G mobile communication equipment and radio units

Broadcast and microwave transmission systems

Compact RF test instruments and dense panel assemblies

Outdoor and harsh‑environment RF connections

Features

Standardized 50Ω impedance, frequency range up to 6 GHz (high‑performance version to 20 GHz)

Ultra‑compact design, 53% smaller than 4.3-10 connectors for high‑density layout

Excellent low PIM performance (typically ≤ −160 dBc @ 2×43 dBm)

Supports up to 1/2” low‑loss RF cables and high power capacity

Threaded / push‑pull coupling options with blind‑mate capability

IP68 waterproof rating when mated for outdoor reliability

Rugged construction, stable performance over ≥100 mating cycles

Wide operating temperature range for harsh environments
