1.0-2.3 Connector Standard Connectors

Description

QUONTEK coaxial "inserts" 1.0/2.3 are suitable for the insertion of mixed layout connectors DIN 41612.These inserts feature a slide-on coupling mechanism, which ensures a short connect-disconnect time. Impedance accuracy, fast and easy assembly as well as high reproducibility due to the full crimp cable entry are typical characteristics of these QUONTEK connectors. The 1.0/2.3 inserts are suitable for applications up to 4 GHz.

Features

• Frequency range up to 4 GHz

• Excellent return loss

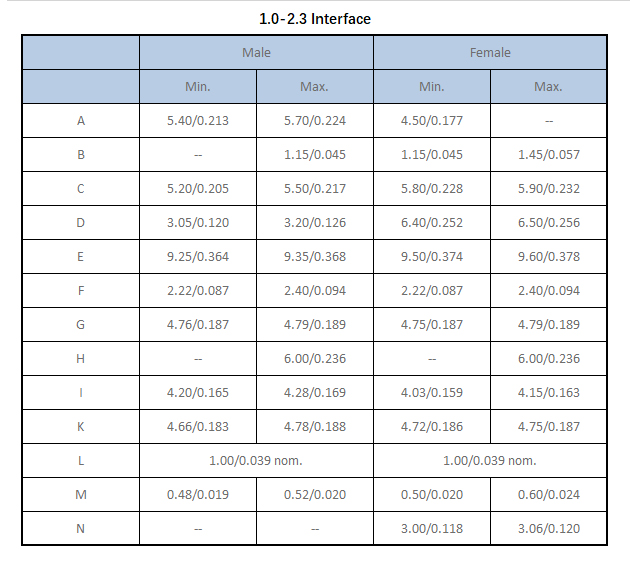

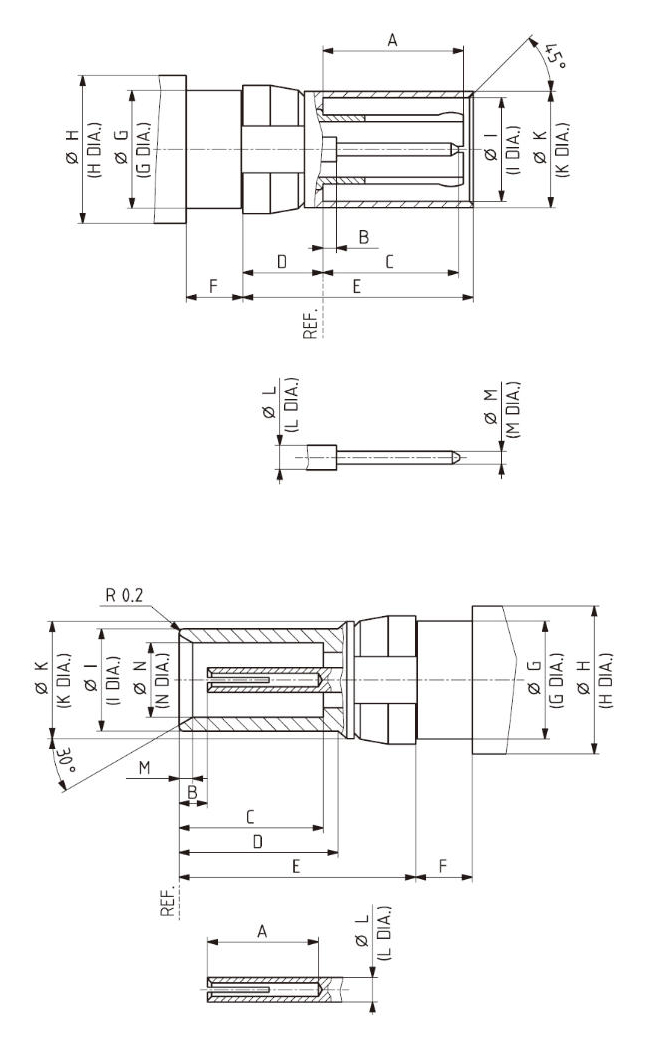

• The 1.0/2.3 interface dimensions conform to the following standards:

International: IEC 61169-29

USA: MIL-PRF-39012 1.0/2.3

Interface MIL-STD-348

Germany: DIN41626/2
