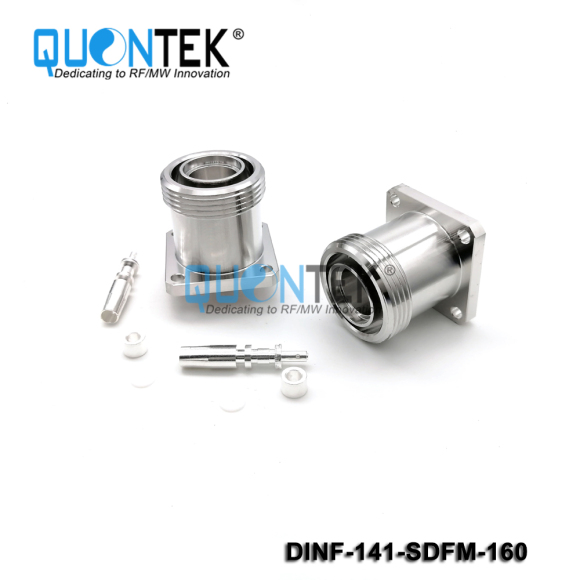

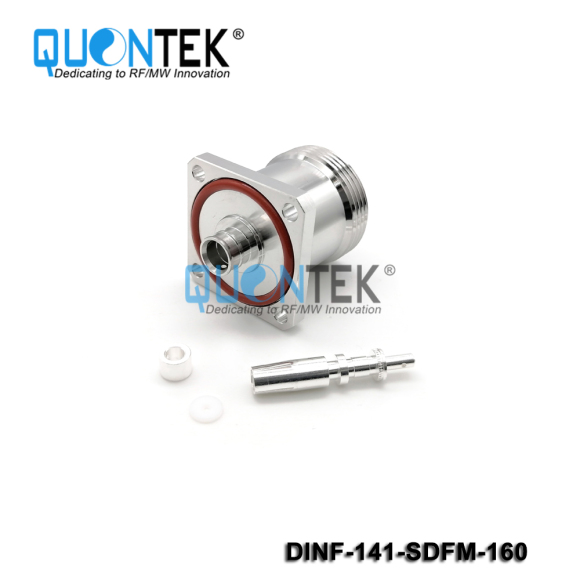

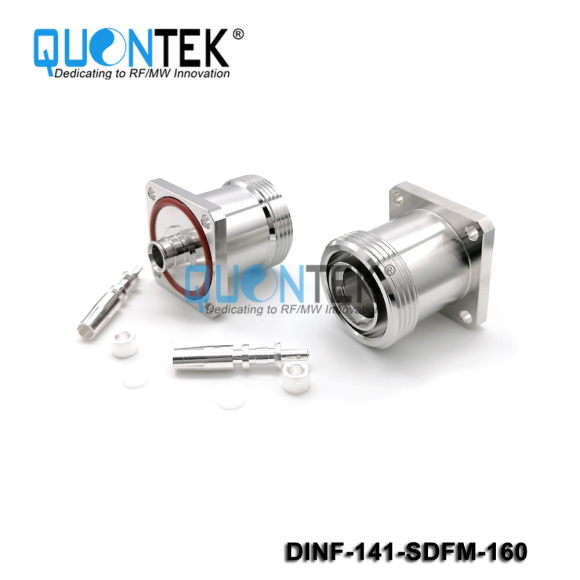

DIN(7-16) type Low PIM Connectors

Description

QUONTEK 7/16 connectors are mechanically very rugged coaxial connectors with screw lock. They have a characteristic impedance of 50 Ω and are applicable with excellent electrical properties up to 7.5 GHz.

Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications.

Features

• Frequency range up to 7.5GHz

• Excellent return loss

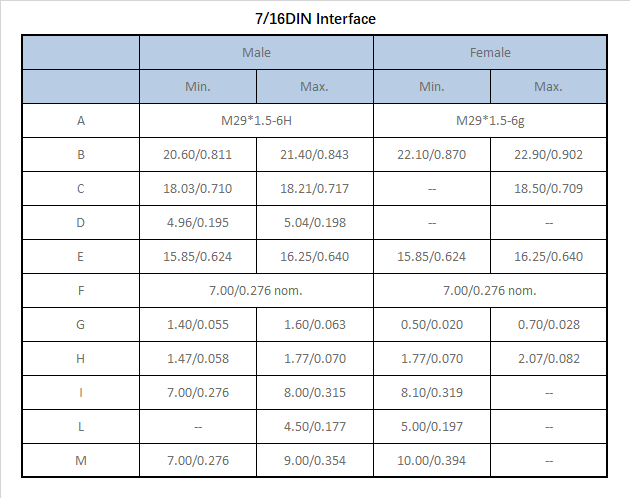

• The DIN(7/16) interface dimensions conform to the following standards:

International: IEC 61169-4

USA: MIL-PRF-39012 DIN

Interface MIL-STD-348

Europe: CECC22190
