3.5mm series 18GHz / 40GHz / 67GHz RF Connectors

Description

QUONTEK 3.5mm connectors are precision connectors for use in microwave applications up to 26.5 GHz. They are especially suitable for use with semi-rigid cables and microwave components. They are intermate able with SMA and 2.92 mm connectors. Due to an air dielectric interface and

the more durable construction a superior repeatability further enhances the performance.

Features

• Frequency range up to 26.5 GHz

• Excellent return loss

• Intermate able with SMA and 2.92mm

• The 3.5mm interface dimensions conform to the following standards:

International: IEC 61169-23

Europe: CECC 22110

USA: MIL-PRF-39012 3.5mm

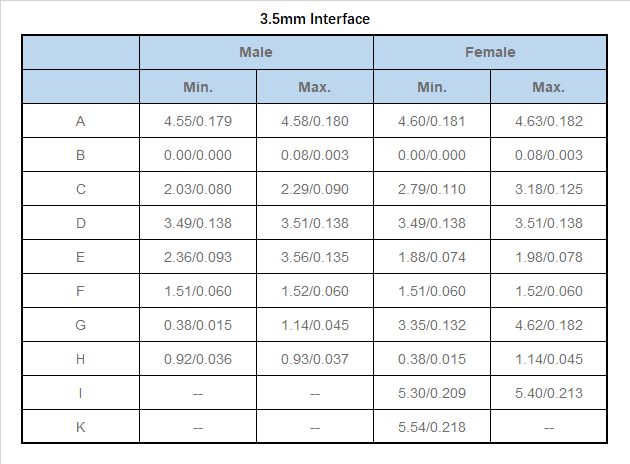

Interface MIL-STD-348/310
