SMA type Low PIM Connectors

Description

QUONTEK SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for QUONTEK SMA connectors, as in telecom, test+measurement, instruments, avionics, etc.

Features

• Frequency range up to 18 GHz, extended frequency version up to 26.5 GHz

• Excellent return loss

• Intermate able with PC3.5 and SK

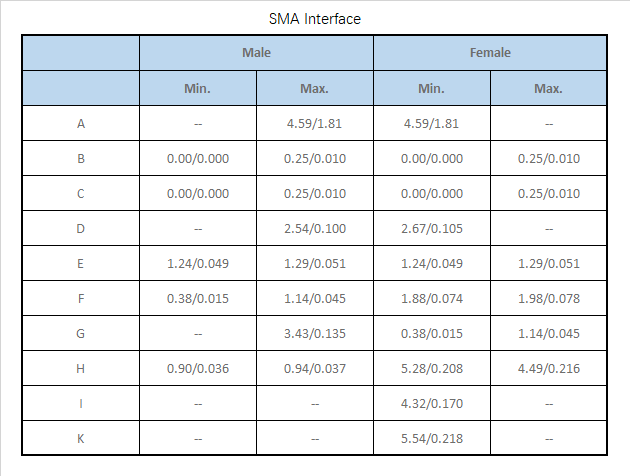

• The SMA (subminiature A) interface dimensions conform to the following standards:

International: IEC 61169-15

Europe: CECC 22110

USA: MIL-PRF-39012 SMA

Interface MIL-STD-348/310
