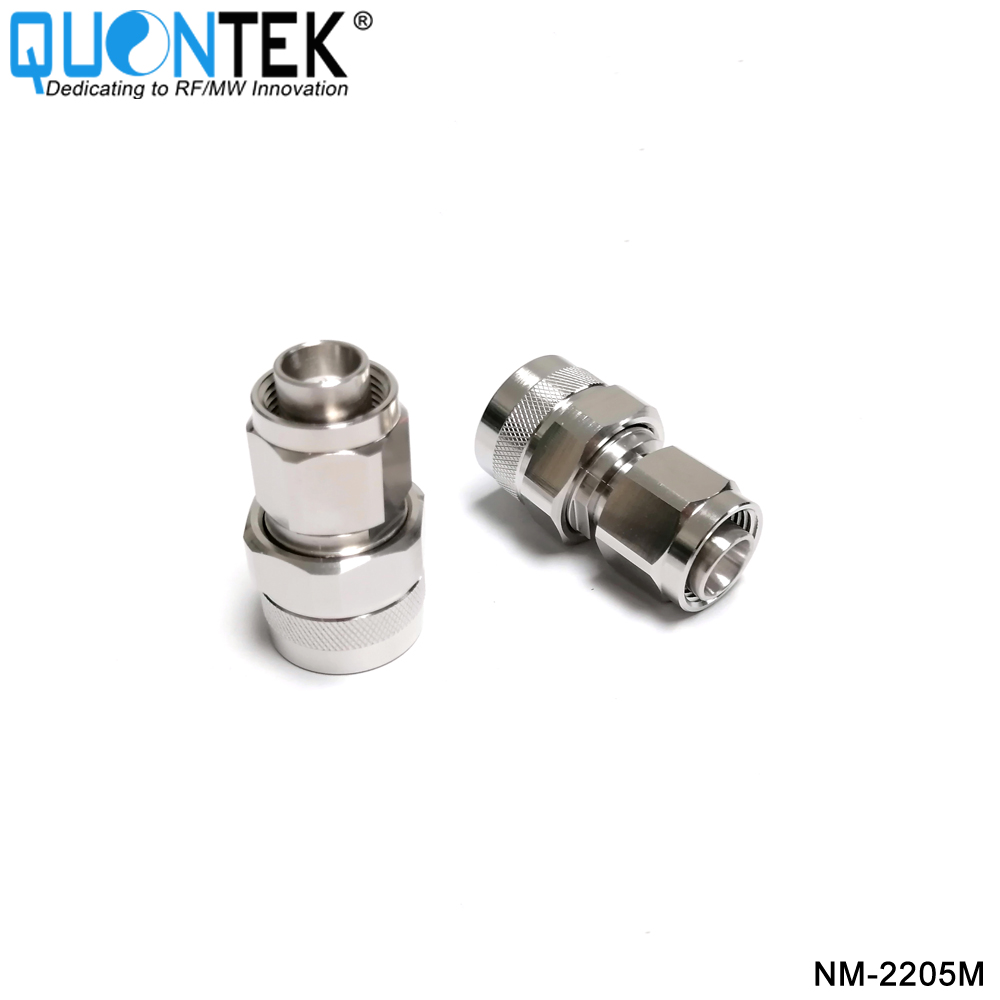

Low PIM Adapter,2205 type to N type

Name: Low PIM Adapter,2205 type to N type
Brand: QUONTEK
SKU: NF-2205M-160
Availability: InStock

N-2205

28.6g/Pc, Singal Package.

Message

Send

$??.00

Have chosenThere are no options selected.

Order After Login

Add To Cart Successfully!

SEND INQUIRY

Low PIM Adapter,2205 type to N type

N-2205

28.6g/Pc, Singal Package.

You need login check price / Register to be our client

Item No. NF-2205M-160
Product size 3.42 x 1.58 x 1.58 cm

Product weight 0.03 kg
CTN. Spec 11*11*5 cm / 20

G.W/N.W 0.5 / 0.5 kg

Tag Low PIM Adapter 2205 to N

Choice

Color classification / size

Add to Cart

Inquiry

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Description Product Manual Inquiry

USER MAUNAL

Quick Details Packaging & Delivery

Packaging & Delivery

Single package size:: 3.42 x 1.58 x 1.58 cm

Single gross weight:: 0.03 kg

Packing size:: 11 x 11 x 5 cm

Packing gross weight:: 0.5 kg

Packing net weight:: 0.5 kg

Packing quantity:: 20 Piece

Low PIM adapter,N female to 2.2-5 male ,-160dBc
P/N: NF-2205M-160
Applications • Product testing. • Engineering transfer. • Communication transmission. • Intermodulation test		Download datasheet
Technical Data
Electrical Data
Impedance		50 Ω
Interface frequency (max.)		DC to 8GHz
VSWR		≤1.15(@3GHz),≤1.25(@3-6GHz)
Dielectric Withstanding Voltage		750V rms, 50Hz
PIM		≤-160dBc
Mechanical Data
Number of mating(cycles)		≥500
Interface		To meet 2.2-5 & N Type
Weight		28.6g/Pc
Environmental Data
Operating Temperature(°C)		-40 to 155
Salt spray test		48H
2002/95/EC (RoHS) compliant
Connector Data
Piece Parts	Material	Surface Plating
Centre contact	BeCu	Silver
C-Ring	Bronze	Na
Body/Nut	Brass	Tri-Metal
Insulator	PTFE	Na
Sealing gasket	Silicone rubber	Na
Outline Drawing

2.2-5 to N adapter NF-2205M-160 is one of over 40,000 available RF, microwave and millimeter wave components from Quontek. Our 2.2-5 to N adapter is a between-series coaxial adapter design. This 50 Ohm 2.2-5 to N adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 8 GHz, with Low PIM -160dBc.

2.2-5 male to N female adapter is one of the many RF components that ship same day as they are ordered. NF-2205M-160 male 2.2-5 to female N adapter has a straight body. This Quontek straight 2.2-5 to N coax adapter is a between-line RF adapter.
