Standard RF Cable Assembly- SMA male to SMA R/A male with EF316D Cable，

P/N: SMAM-EF316D-SMAMRA-L

Applications

• Product testing.
• Engineering transfer.
• Communication transmission.
• Intermodulation test


Download datasheet
Technical Data
  Electrical Data
Impedance50 Ω
Interface frequency (max.)DC to 6GHz

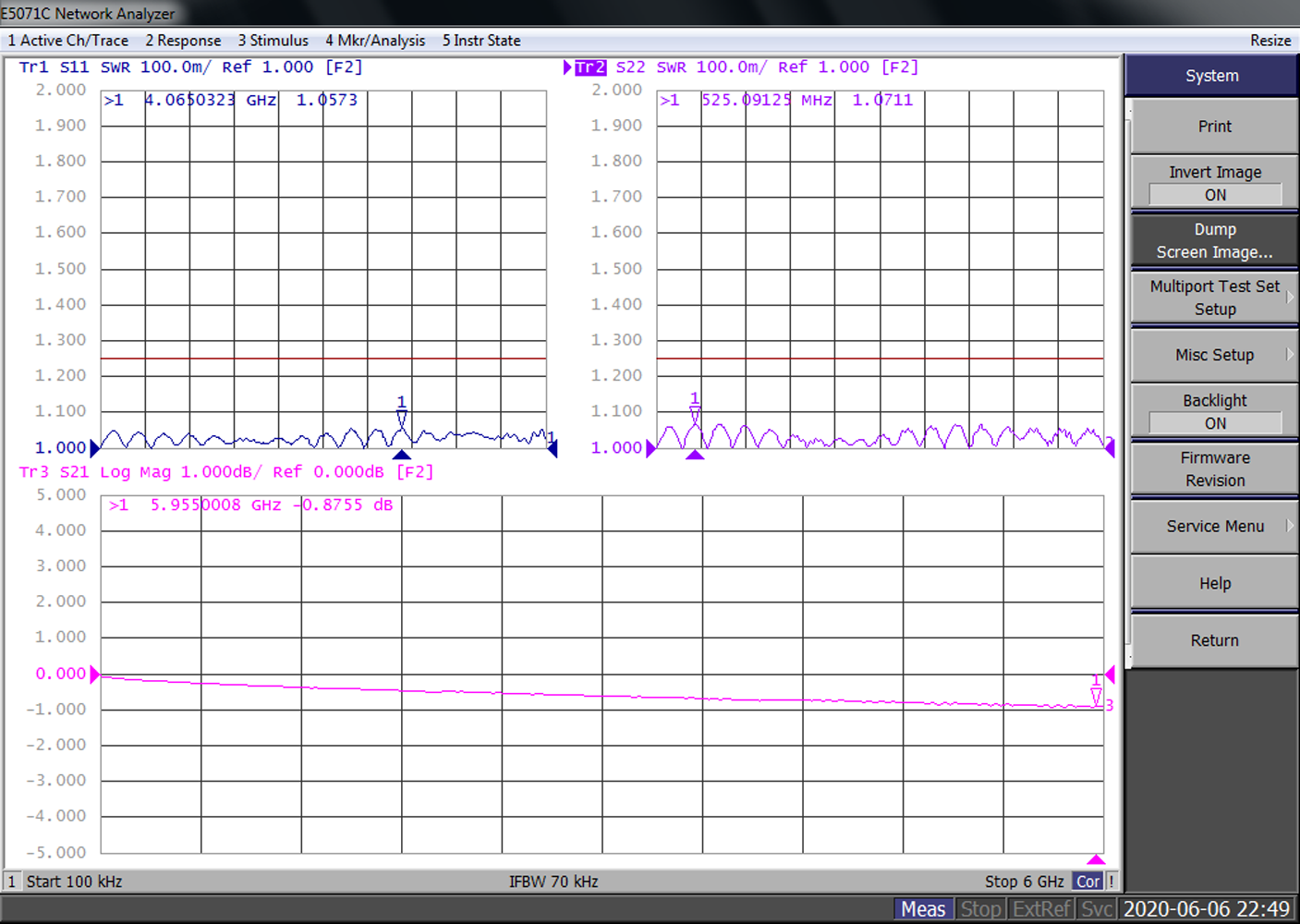

VSWR≤1.22(@6GHz)
Insert Loss1.05*L*dB/m+0.1*√f（See below cable Attenuation）
Dielectric Withstanding Voltage500V rms, 50Hz
Mechanical phaseNA
Amplitude stabilityNA
PIMNA
  Mechanical Data
Number of mating(cycles)≥500
InterfaceTo meet SMA Type
WeightXX g/Pc
  Environmental Data
Operating Temperature(°C)-40 to 80
Salt spray test48H
2002/95/EC (RoHS) compliant
DIN male Connector Data
Piece PartsMaterialSurface Plating
Centre contactBrassGold
C-RingBeCuNa
BodyBrassGold
NutBrassGold
InsulatorPTFENa
Sealing gasketSilicone rubberNa
Cable Data (See HuberSuhner cable: ENVIROFLEX_316_D：)



No.ItemMaterialDiameter（mm）
1Inner conductorSteel, Copper+Silver plated0.54
2DielectricSPEX (Crosslink Foam PE)1.53
3Outer conductorCopper, Silver plated1.99
4Outer conductorCopper, Silver plated2.44
5JacketBlack/bl line3.16
 Cable Electrical，Mechanical and Environmental Data
1 Impedance(ohm)50
2 Velocity(%)70
3 Operation frequency(GHz)6
4 Time delay(ns/m)4.72
5 Capacitance(pF/m)94.5
6 Inductance(uH/m)/
7 Dielectric breakdown Voltage(V,AC 50/60Hz,1 min)1300
8 Screening Effectiveness(dB)-70
9 Peak power(kW)/
10 Mechanical phase(°)7°/GHz
11 Amplitude stability(dB)na
12 Operating temp.(℃)-40 to 105
13 Storage temp.(℃)-20 to 60
14 Min. bend radius, static(mm)5
15 Min. bend radius, repeated(mm)30
16 Weight (g/m)/
17 RoHSCompliant
 Cable Attention & Average power
Attenuation Max @ 25℃Average power@ 25℃ for cable, at sea level
Frequency（GHz）  dB/100mdB/100FtWatts(max)
1.0089.527.3110
2.00134.240.978
3.00171.552.364
4.00205.062.555
5.00236.172.049
6.00265.480.945
Other frequency point attenuation dB/100 m=K1*sqrt(FMHz)+K2*FMHz
 K1=XXXXX;  k2=XXXXXX
DIN male Connector Outline Drawing

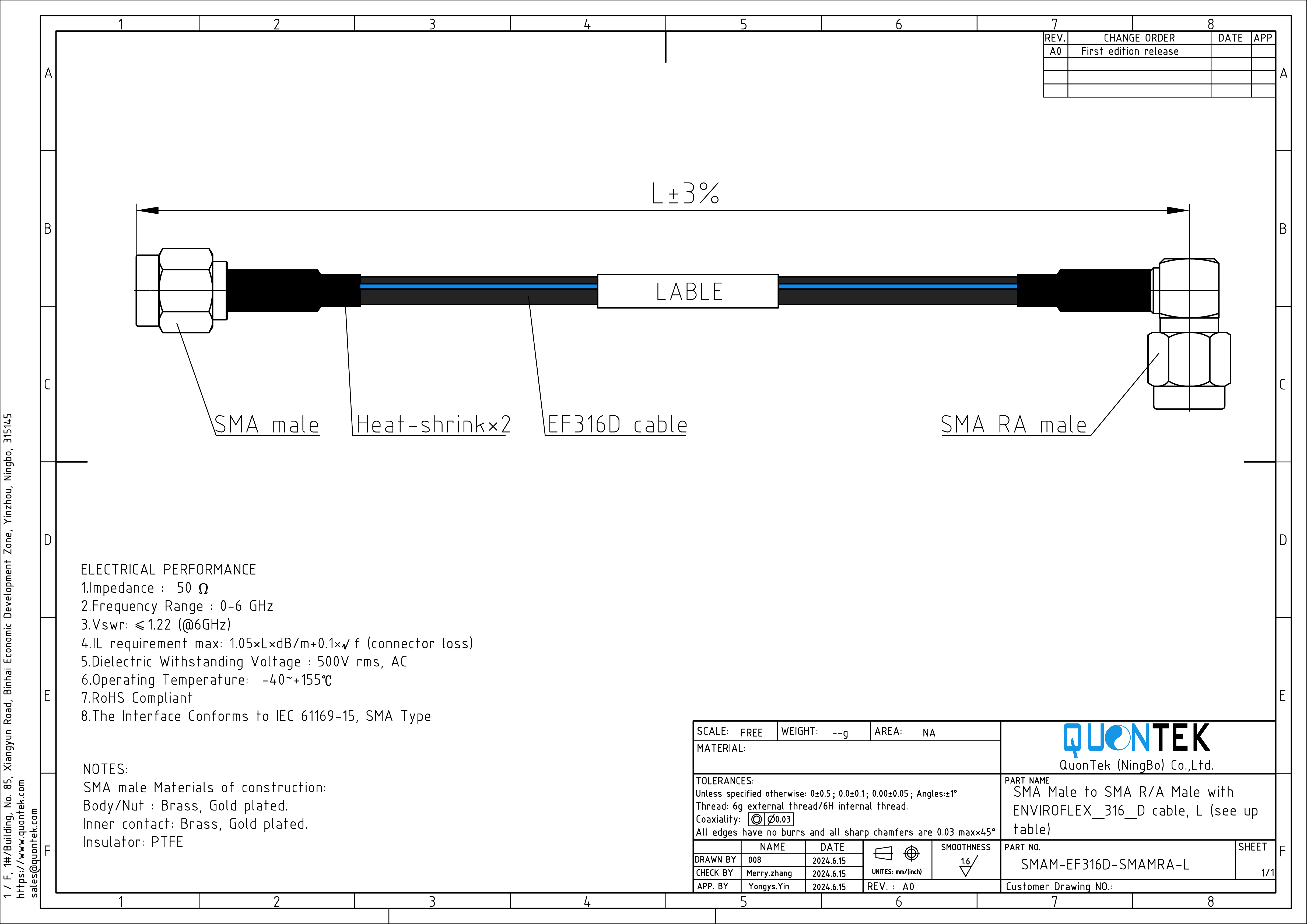

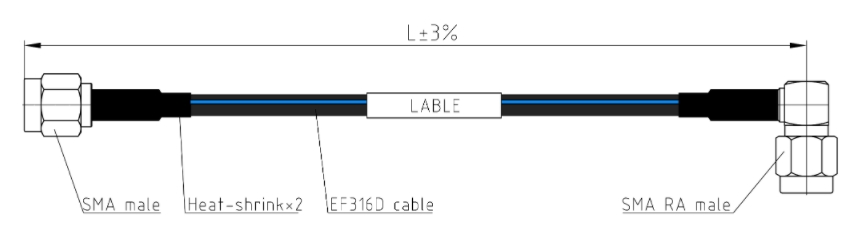

Cable Assembly Outline DrawingOutline Drawing









SMAM-EF316D-SMAMRA-L is a type SMA Male  to SMA R/A Male  cable using ENVIROFLEX_316_D coax. This QUONTEK SMA Male  to SMA R/A Male cable assembly use a 50 Ohm type SMA for connector 1 and a 50 Ohm SMA for connector 2.   SMA type to SMA coaxial cable assembly uses straight coax cable connector.

Our type male SMA to R/A male SMA cable assembly uses a flexible cable type that is 50 Ohm. SMAM-EF316D-SMAMRA-L SMA type male  to SMA R/A male  cable assembly is constructed with ENVIROFLEX_316_D coax. And can reach the 6GHz frequency,
