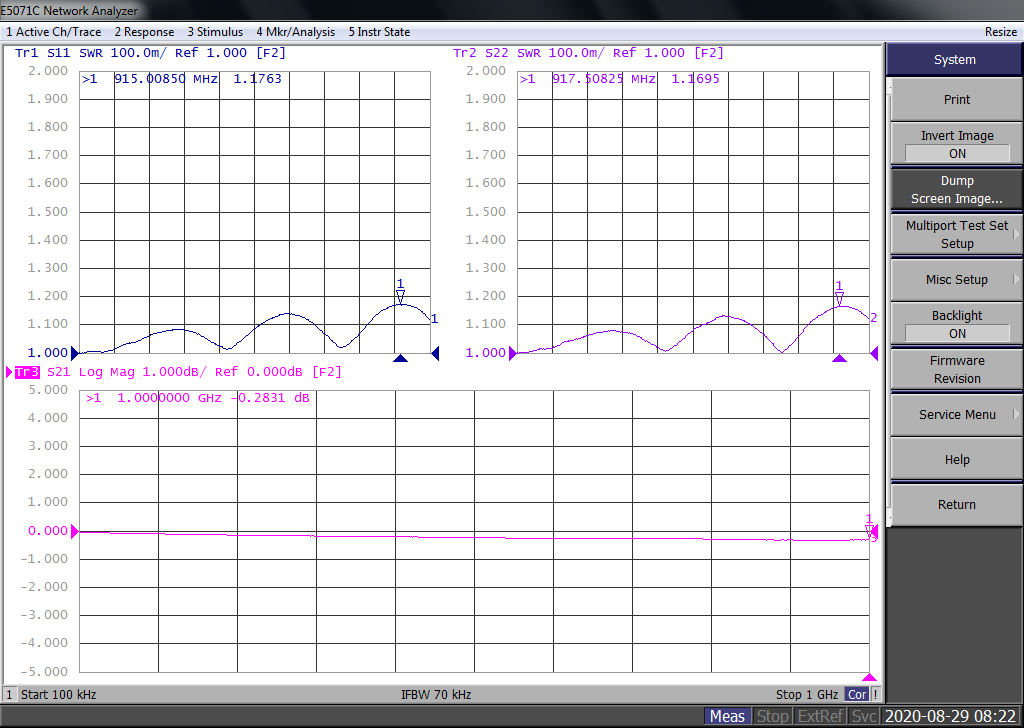

Standard Cable assembly,BNC female bulkhead mounted to SMA R/A Male | |||
| P/N: BNCFBH-RG58-SMAMRA-L | |||
Applications • Product testing. |  |  Download datasheet | |
| Technical Data | |||
| Electrical Data | |||
| Impedance | 50 Ω | ||
| Interface frequency (max.) | DC to 100KHz | ||
| VSWR | ≤1.3 | ||
| Insert Loss | 1.1*L*dB/m+0.1*√f（See below cable Attenuation） | ||
| Dielectric Withstanding Voltage | 750V rms,50Hz | ||
| Mechanical phase | NA | ||
| Amplitude stability | NA | ||
| PIM | -155dBc | ||
| Mechanical Data | |||
| Number of mating(cycles) | ≥500 | ||
| Interface | To meet SMA Type | ||
| Weight | XX g/Pc | ||
| Environmental Data | |||
| Operating Temperature(°C) | -40 to 85 | ||
| Salt spray test | 48H | ||
| 2002/95/EC (RoHS) compliant | |||
| DIN male Connector Data | |||
| Piece Parts | Material | Surface Plating | |
| Body | Brass | Nickel | |
| Inner cotact | Bronze | Gold | |
| Insulator | PTFE | Na | |
| Cable Data | |||
| |||
| No. | Item | Material | Diameter（mm） |
| 1 | Inner conductor | Silver plated copper | 19*0.18 |
| 2 | Dielectric | PTFE | 2.95 |
| 3 | Outer conductor | Tin soaked copper braid | 3.45 |
| 4 | Jacket | Black LSZH | 4.95 |
| Cable Electrical，Mechanical and Environmental Data | |||
| 1 | Impedance(ohm) | 50 | |
| 2 | Velocity(%) | 66 | |
| 3 | Operation frequency(GHz) | 12.4 | |
| 4 | Time delay(ns/m) | / | |
| 5 | Capacitance(pF/m) | 101.05 | |
| 6 | Inductance(uH/m) | / | |
| 7 | Dielectric breakdown Voltage(V,AC 50/60Hz,1 min) | 1900 | |
| 8 | Screening Effectiveness(dB) | -90 | |
| 9 | Peak power(kW) | / | |
| 10 | Mechanical phase(°) | na | |
| 11 | Amplitude stability(dB) | -90 | |
| 12 | Operating temp.(℃) | -40 to 80 | |
| 13 | Storage temp.(℃) | -20 to 75 | |
| 14 | Min. bend radius, static(mm) | / | |
| 15 | Min. bend radius, repeated(mm) | 25 | |
| 16 | Weight (g/m) | / | |
| 17 | RoHS | Compliant | |
| Cable Attention & Average power | |||
| Attenuation Max @ 25℃ | Average power@ 25℃ for cable, at sea level | ||
| Frequency（GHz） | dB/100m | dB/100Ft | Watts(max) |
| 0.1 | 15.1 | 4.6 | / |
| 0.4 | 30.8 | 9.4 | / |
| 1.0 | 50.2 | 15.3 | / |
| Other frequency point attenuation | dB/100 m=K1*sqrt(FMHz)+K2*FMHz | ||
| K1=1.1226085; k2=0.0040000 | |||
| DIN male Connector Outline Drawing | |||
  | |||

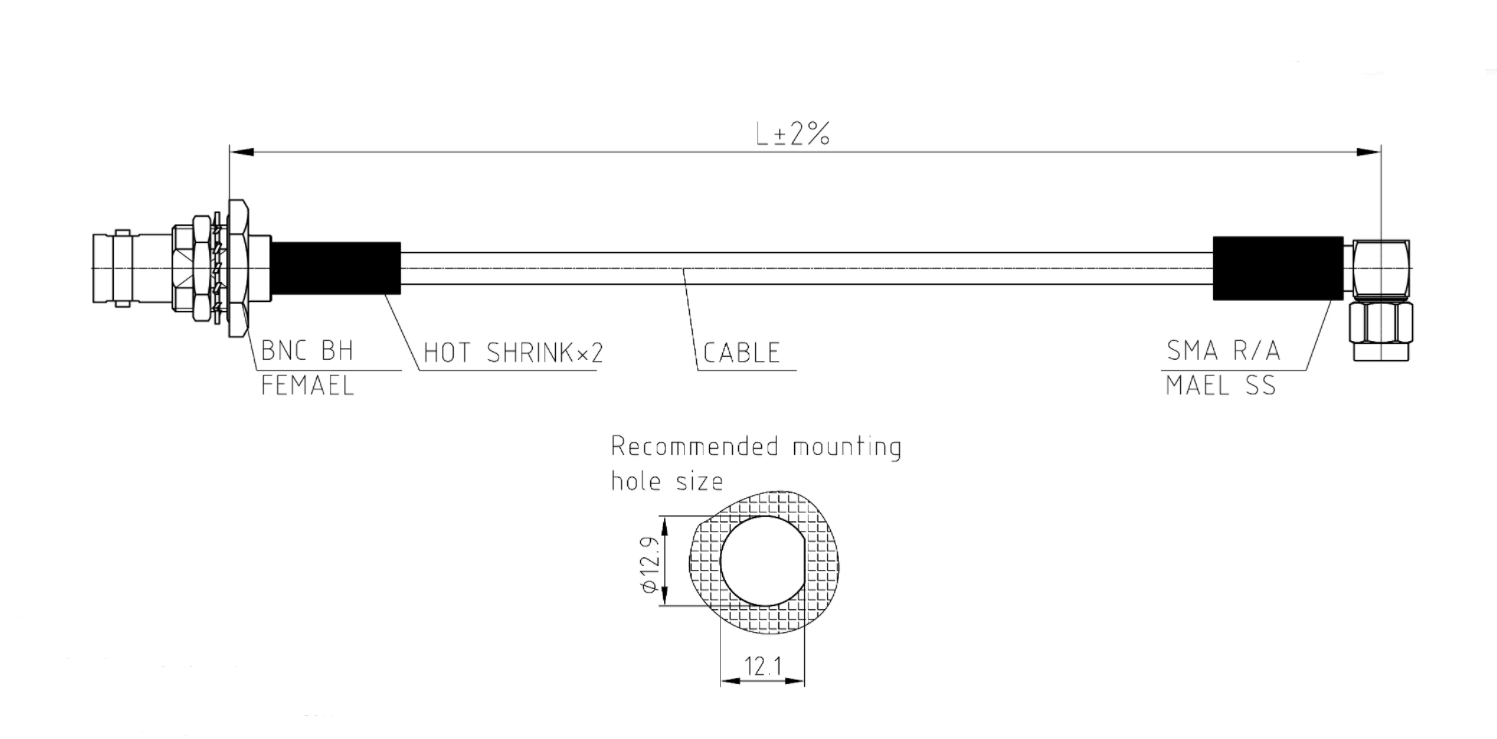

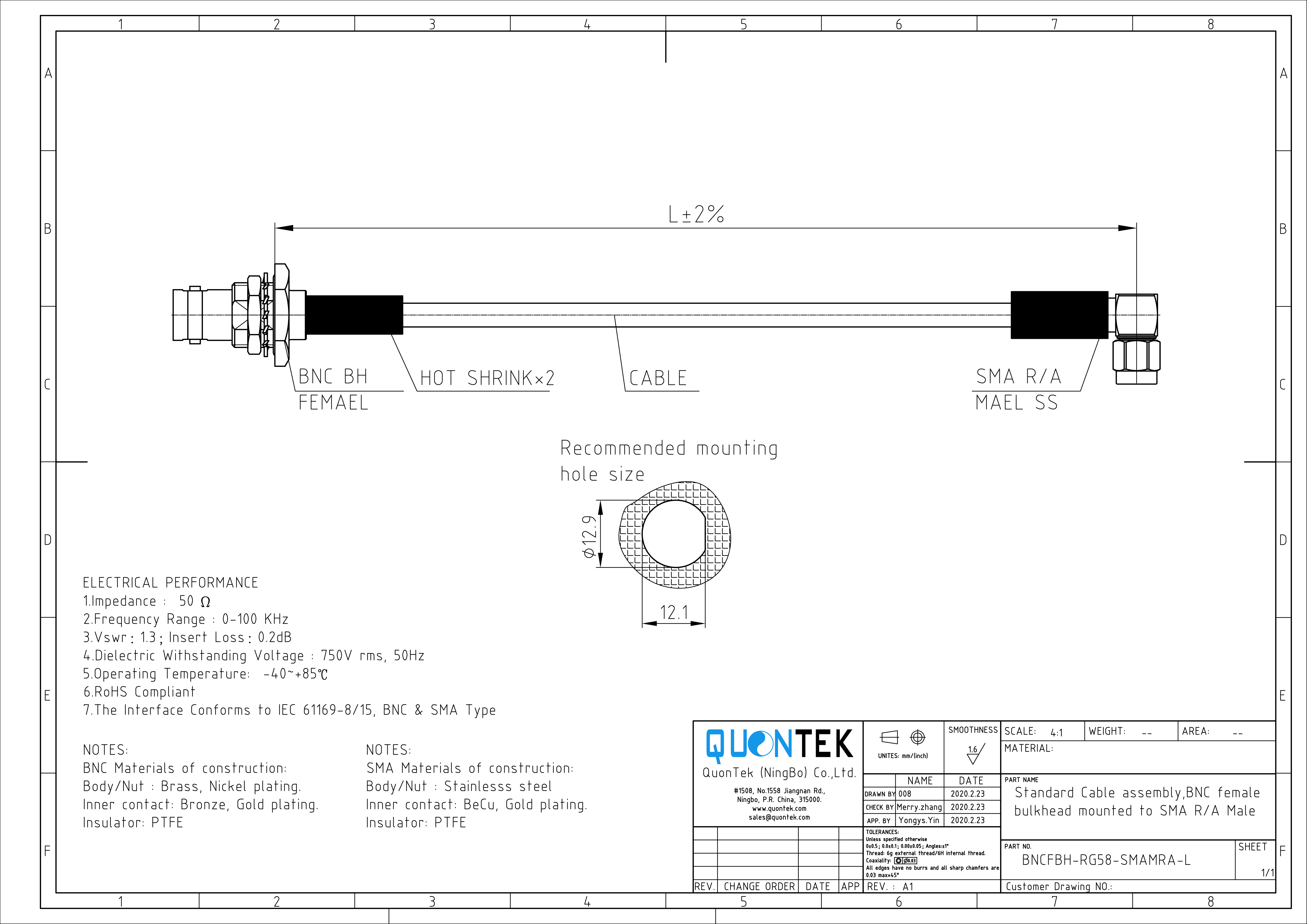

| Cable Assembly Outline DrawingOutline Drawing | |||
| |||
