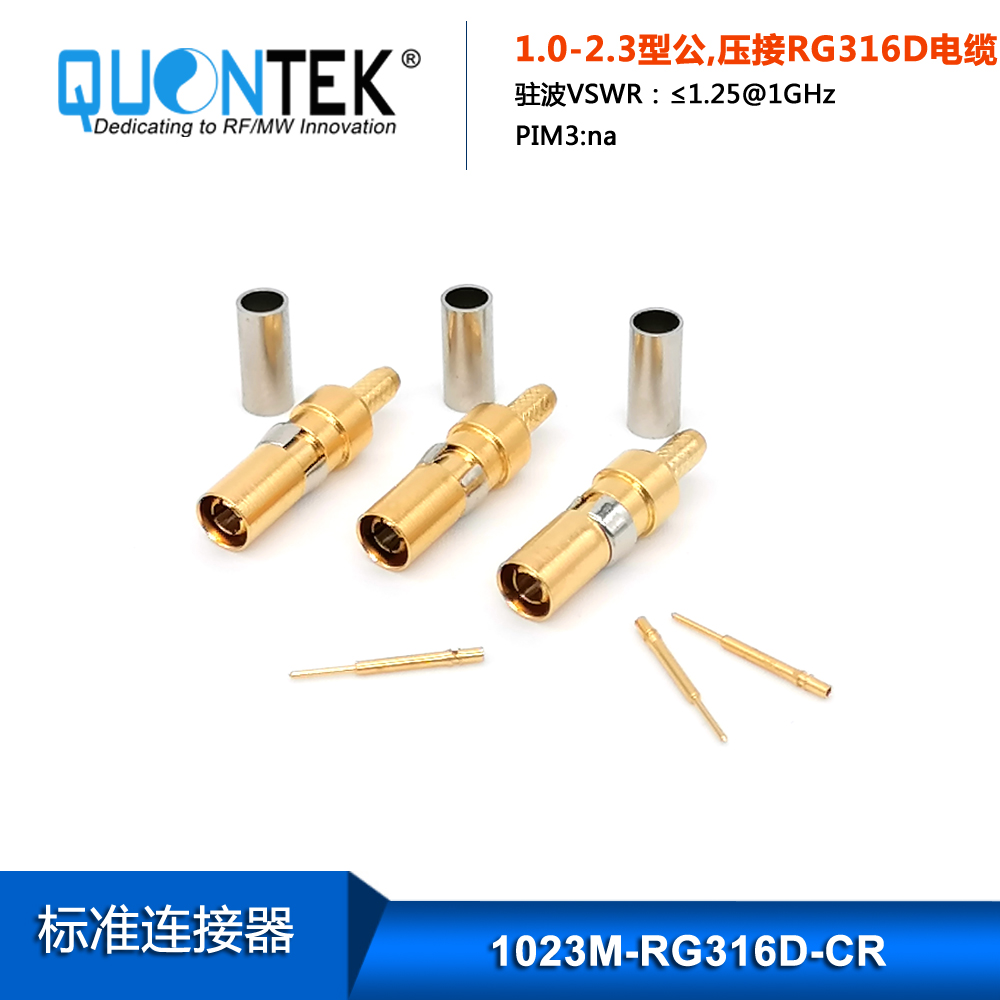

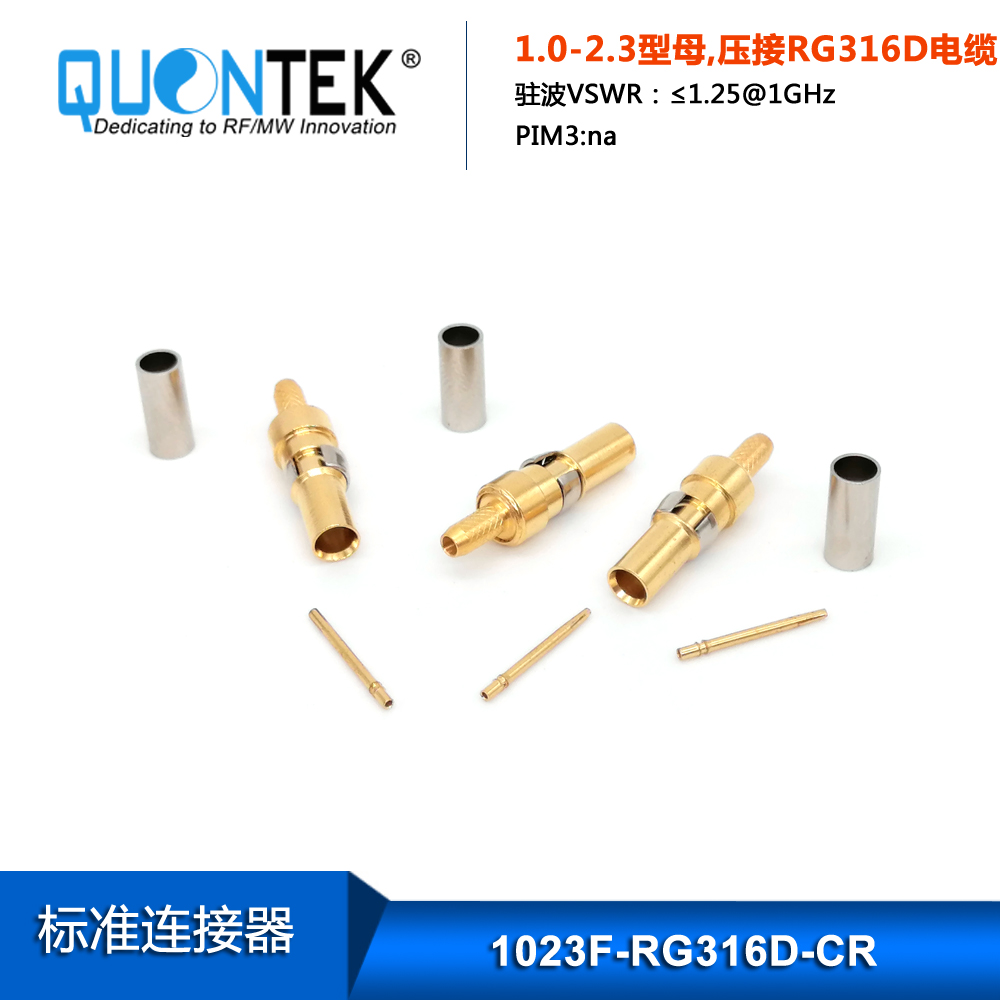

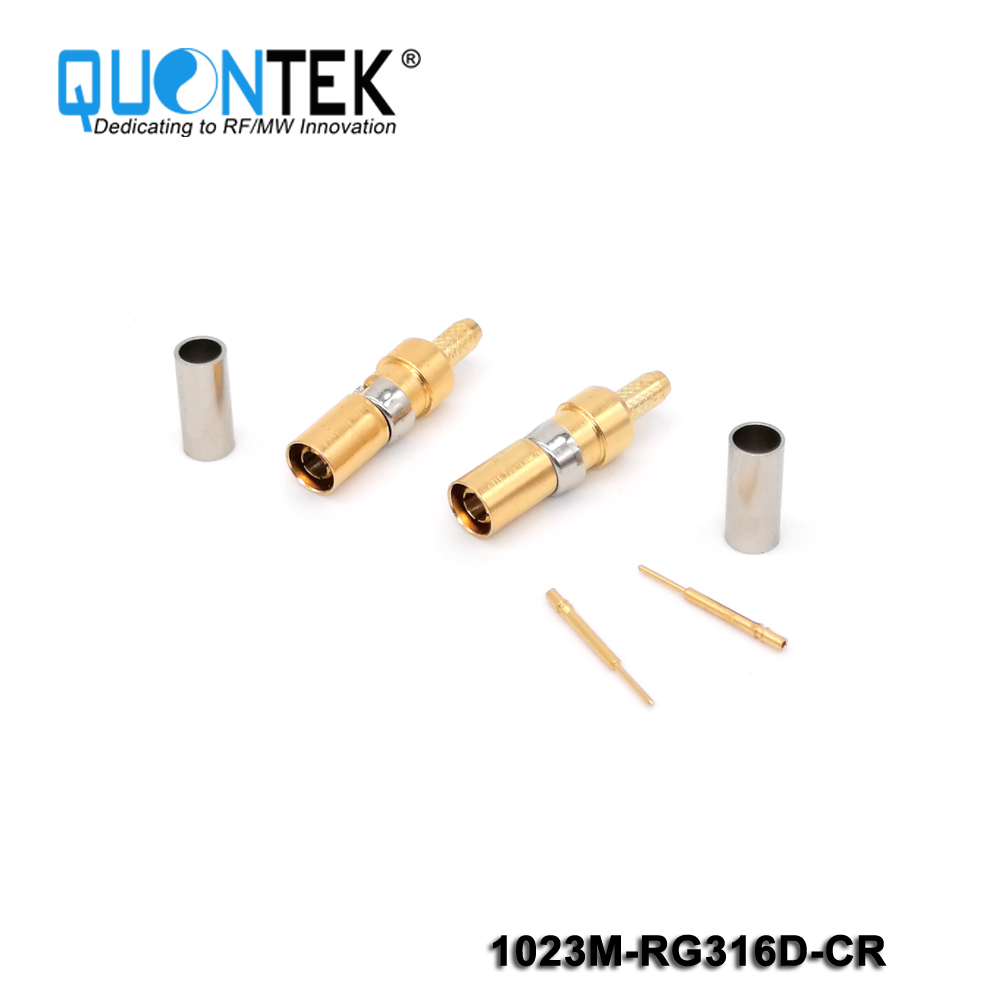

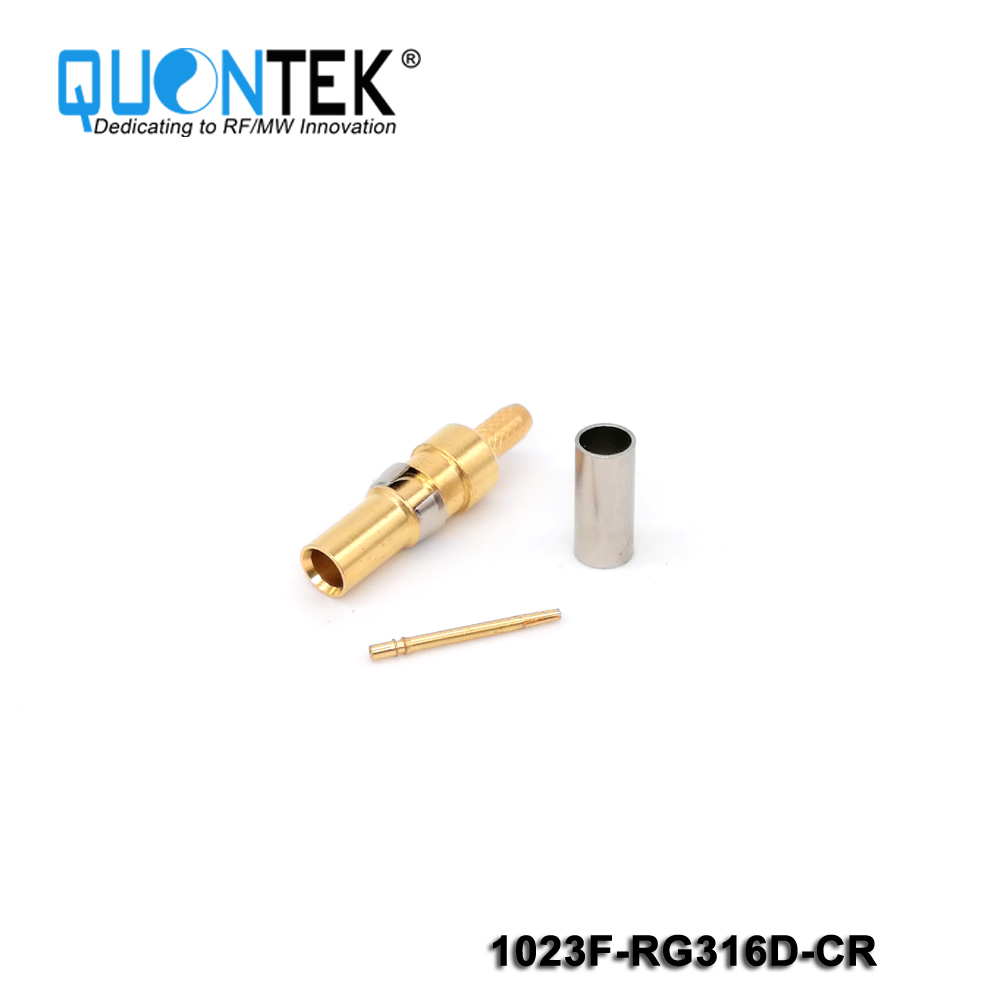

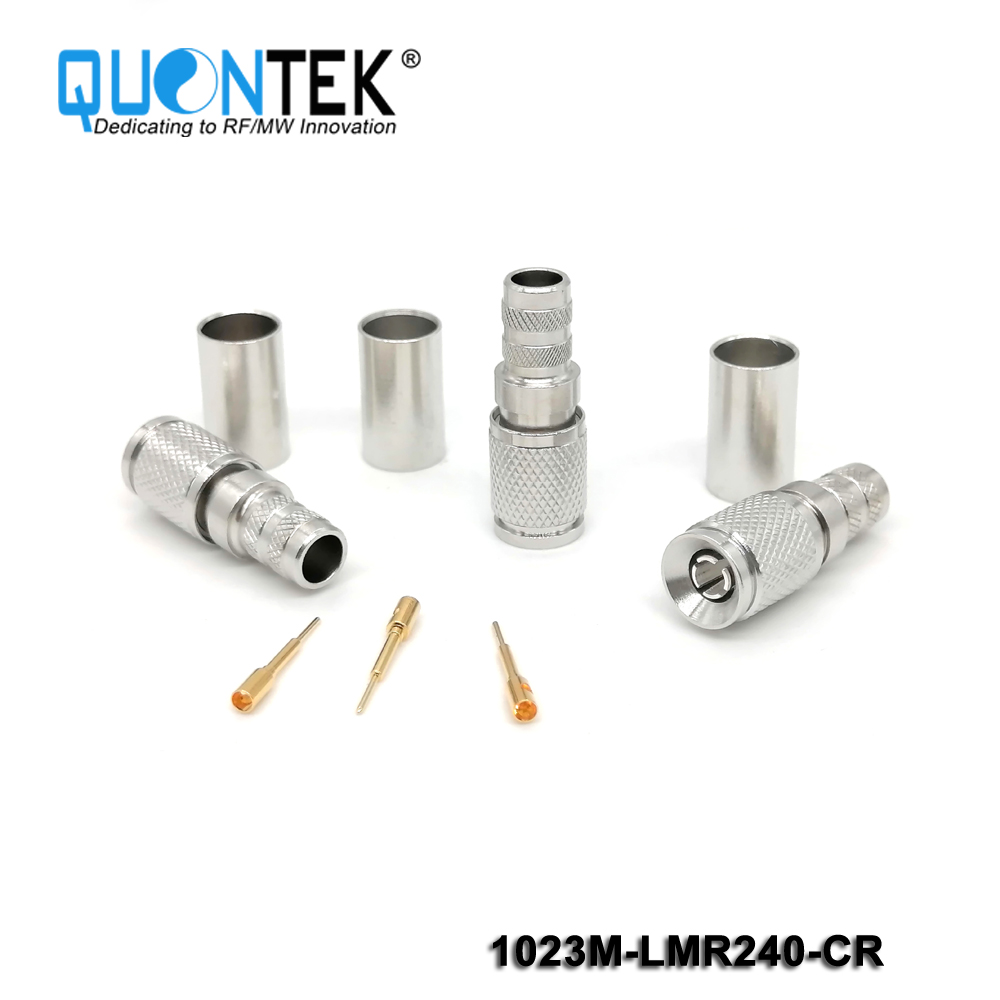

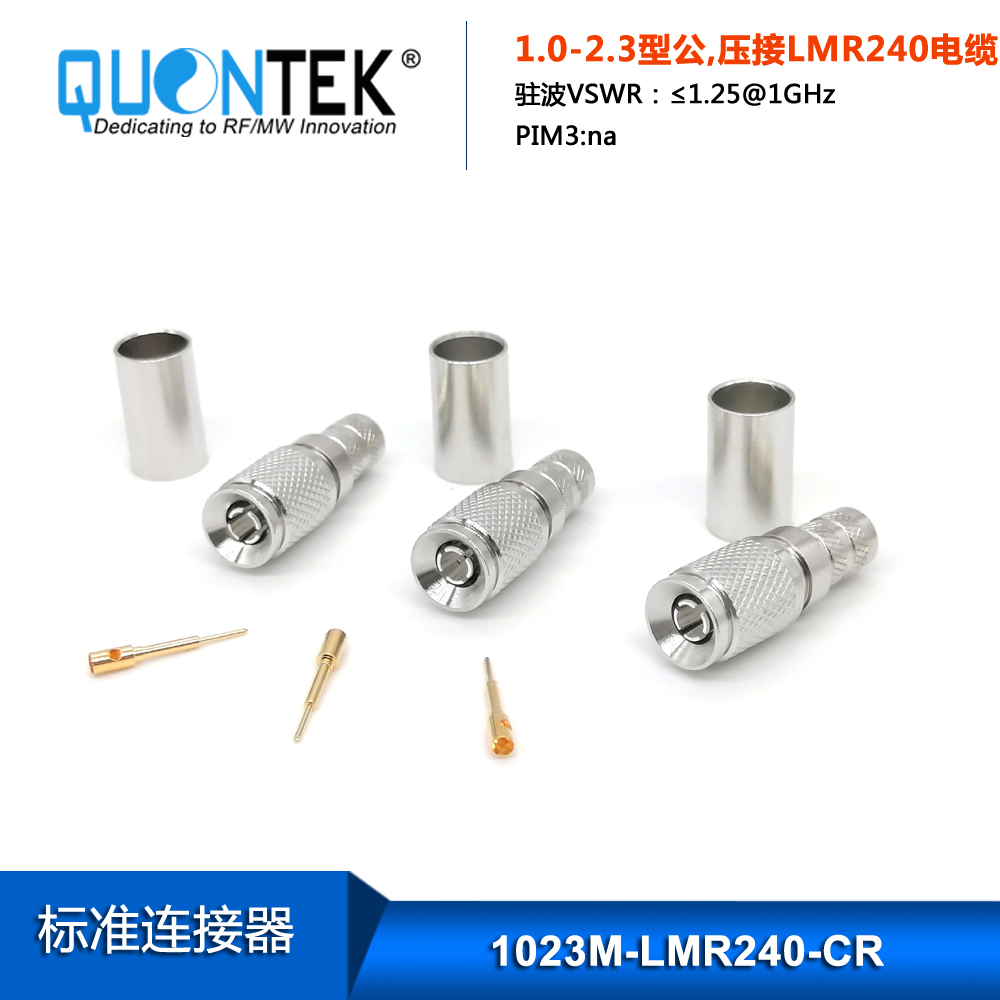

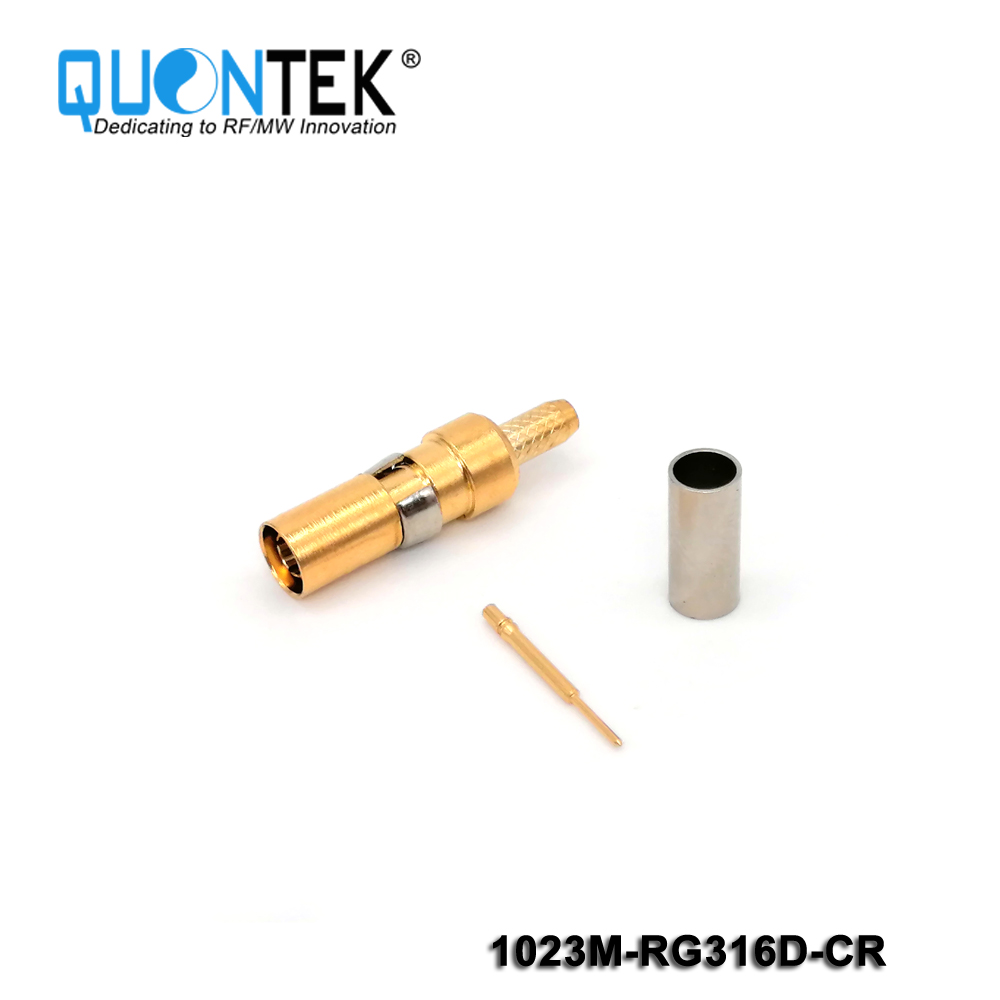

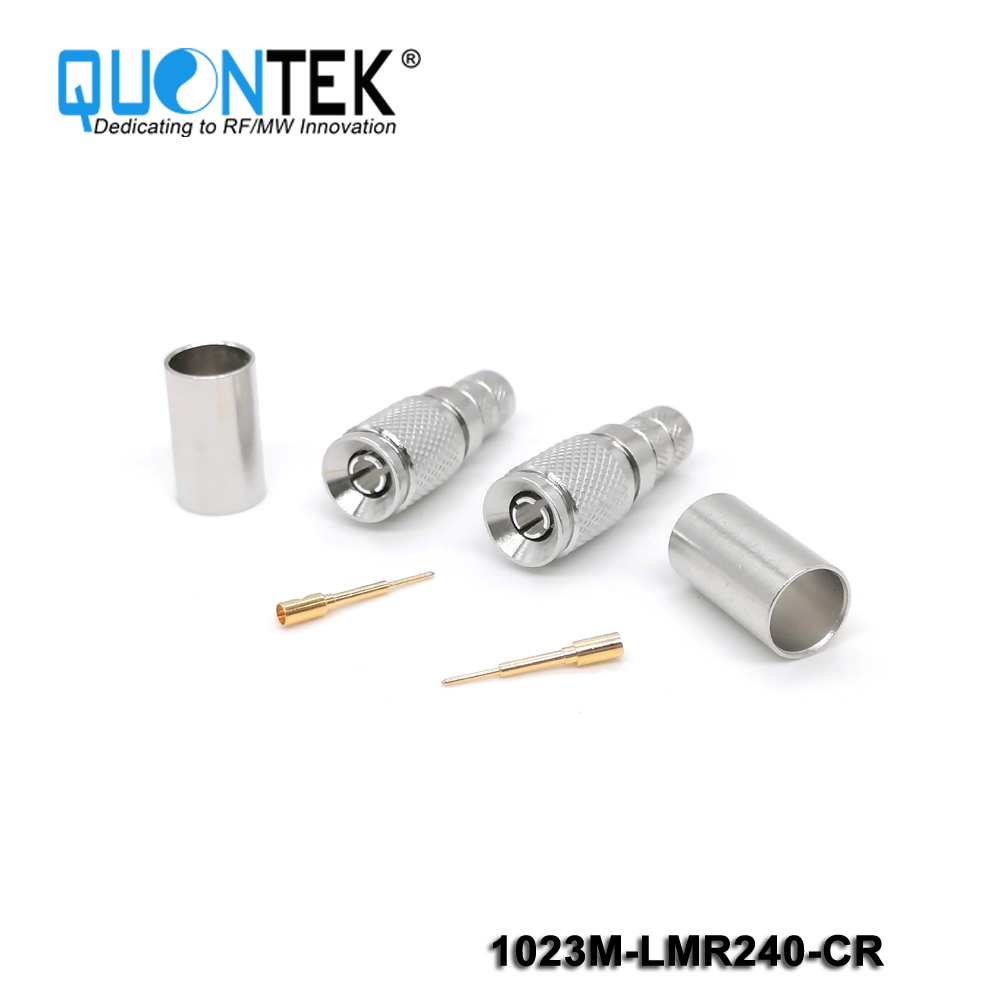

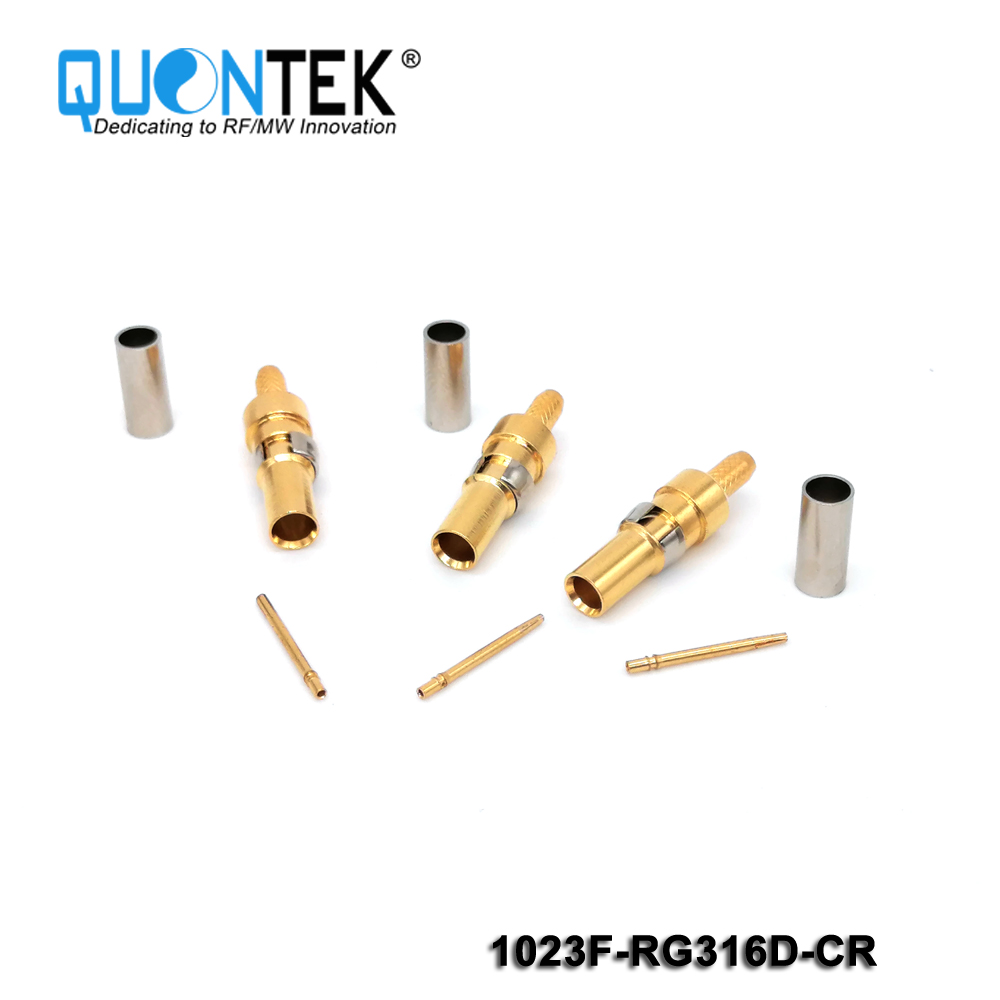

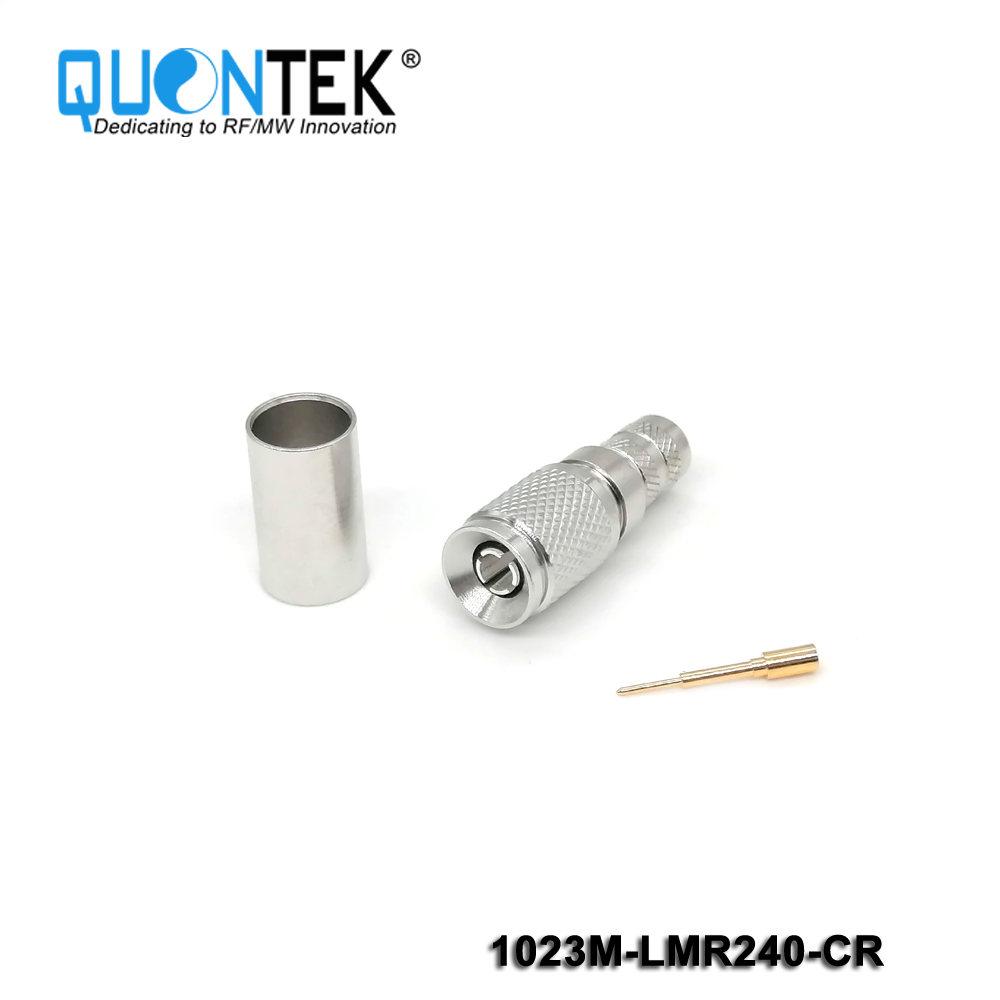

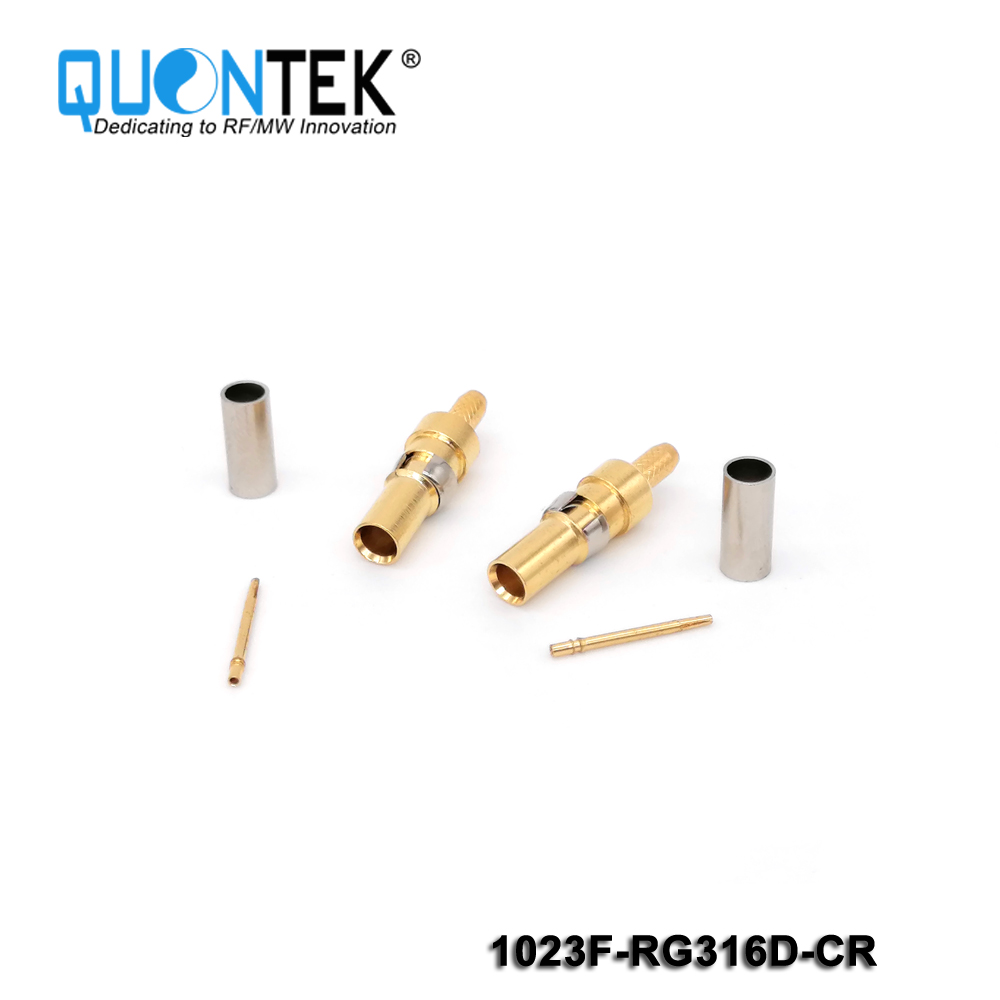

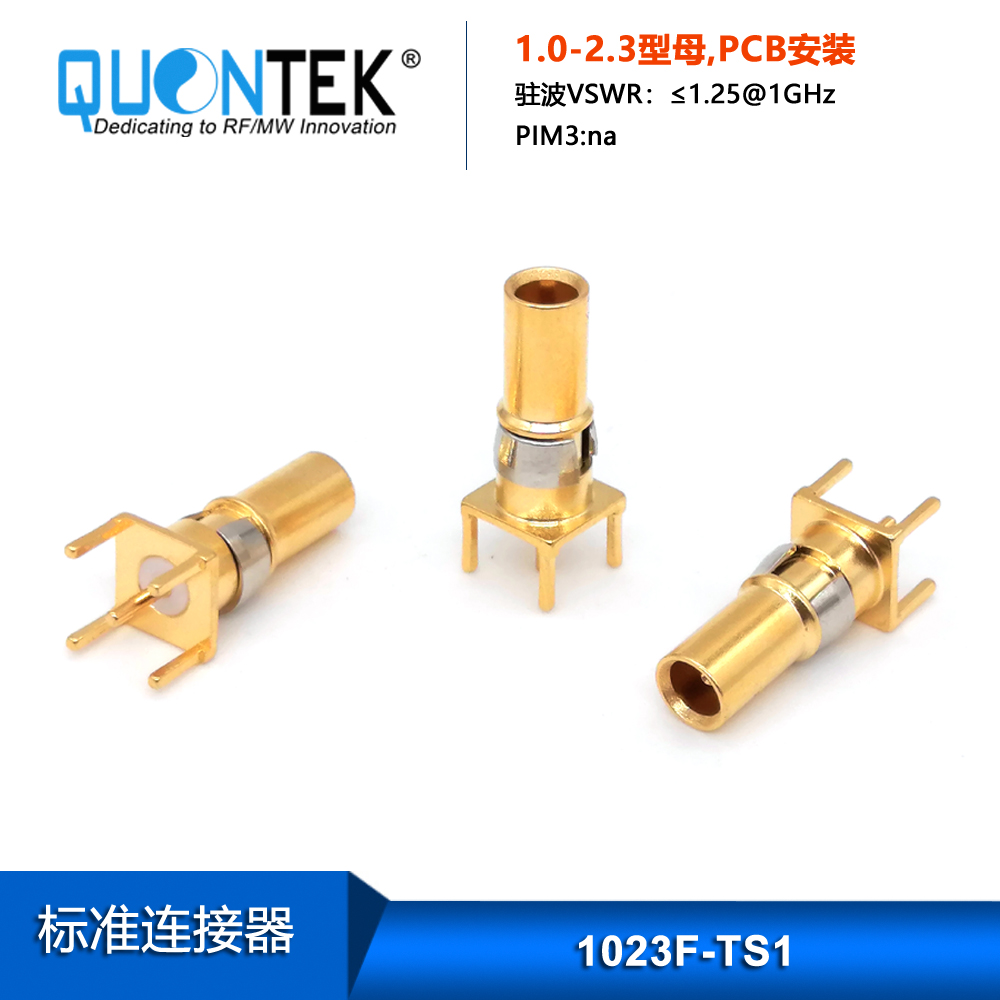

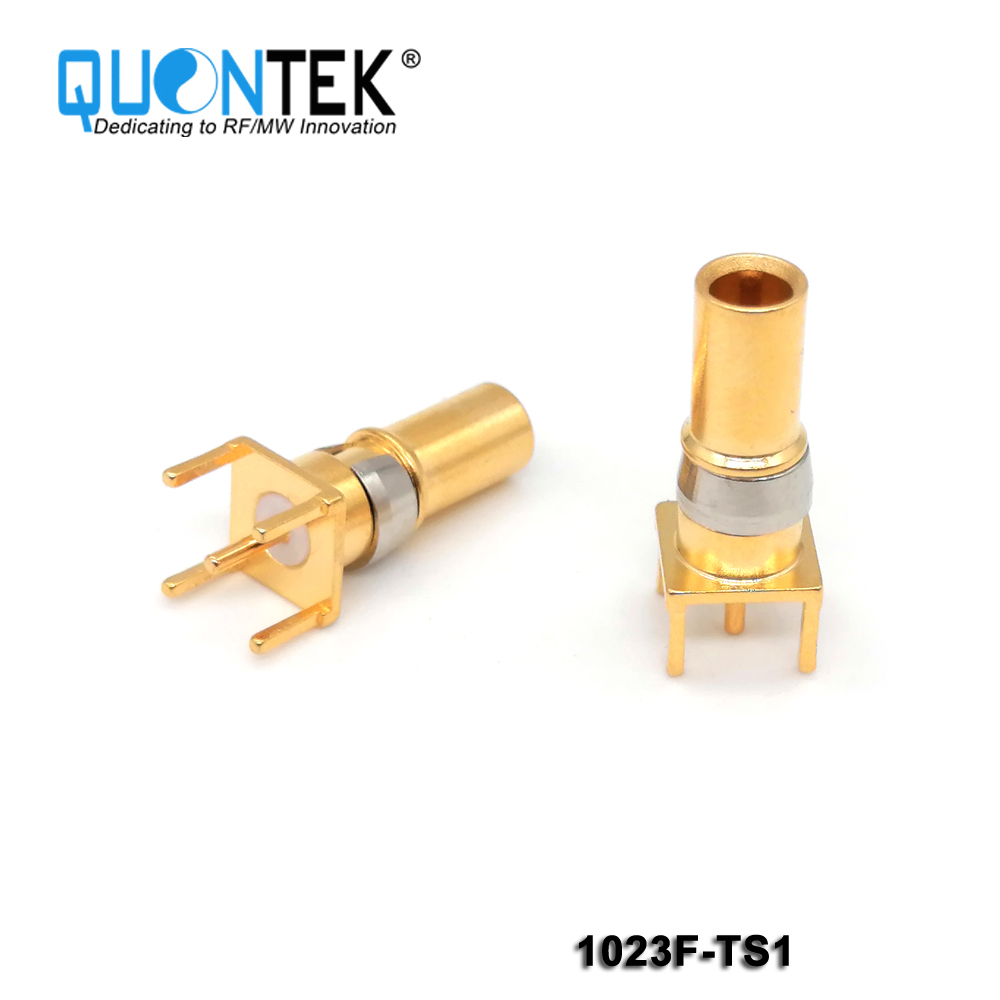

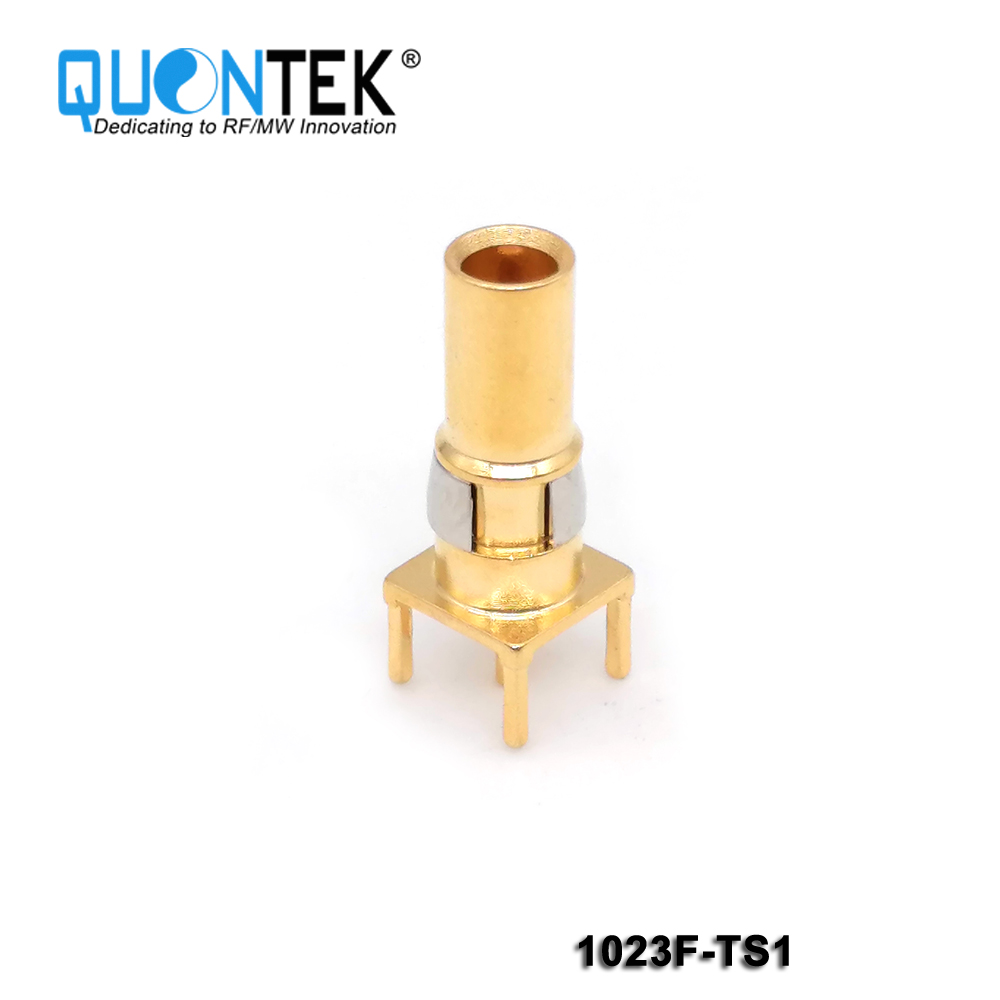

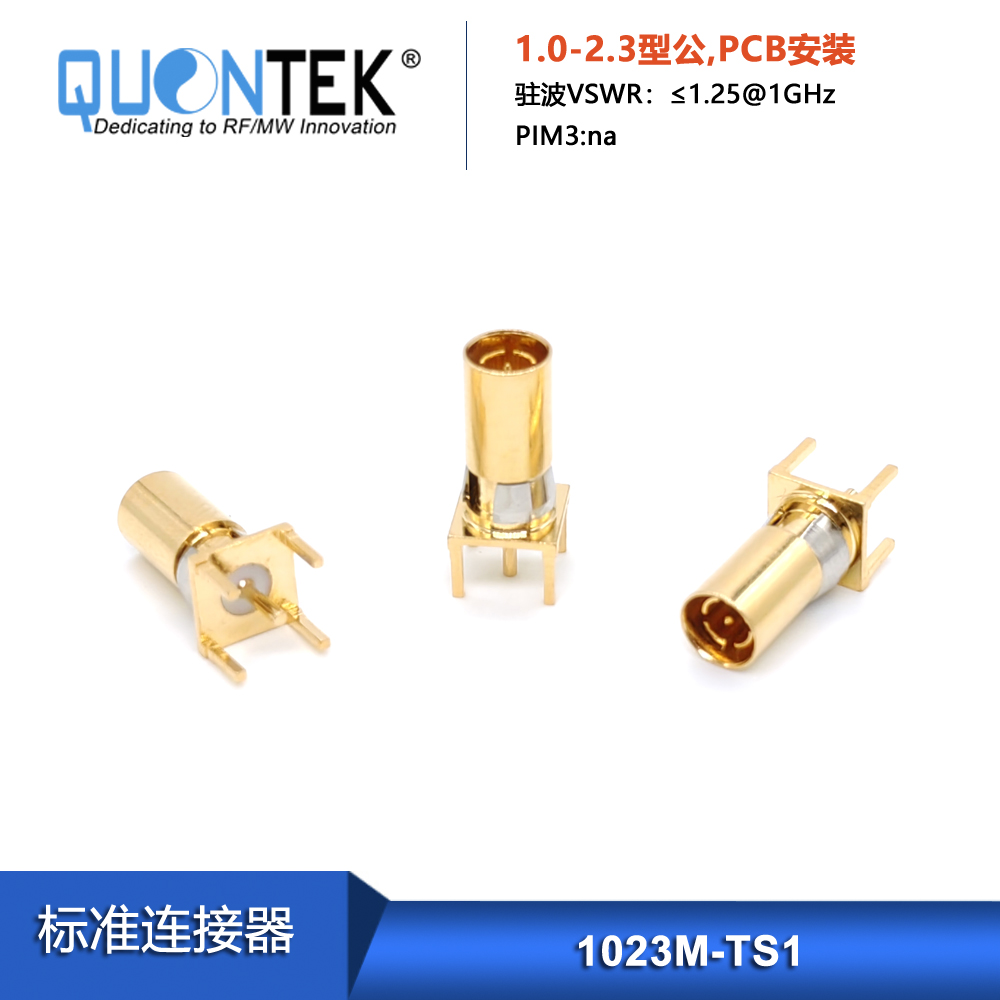

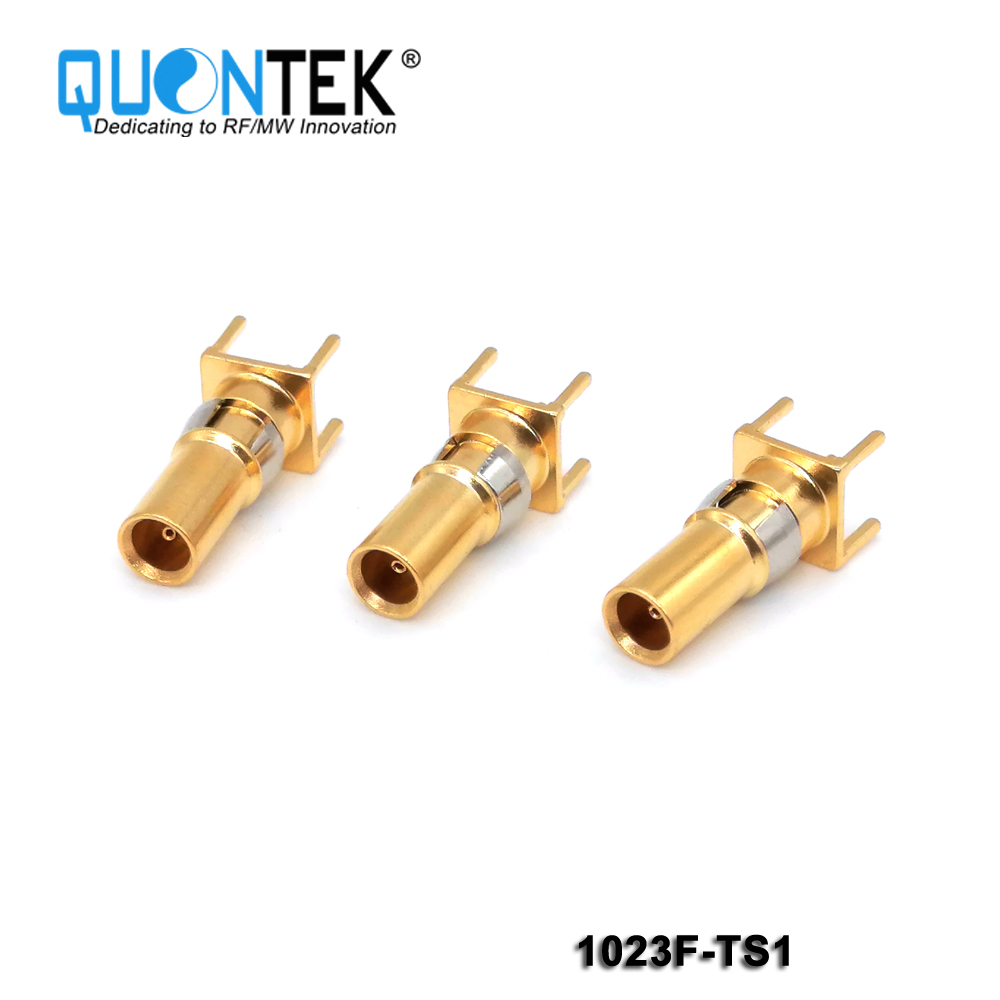

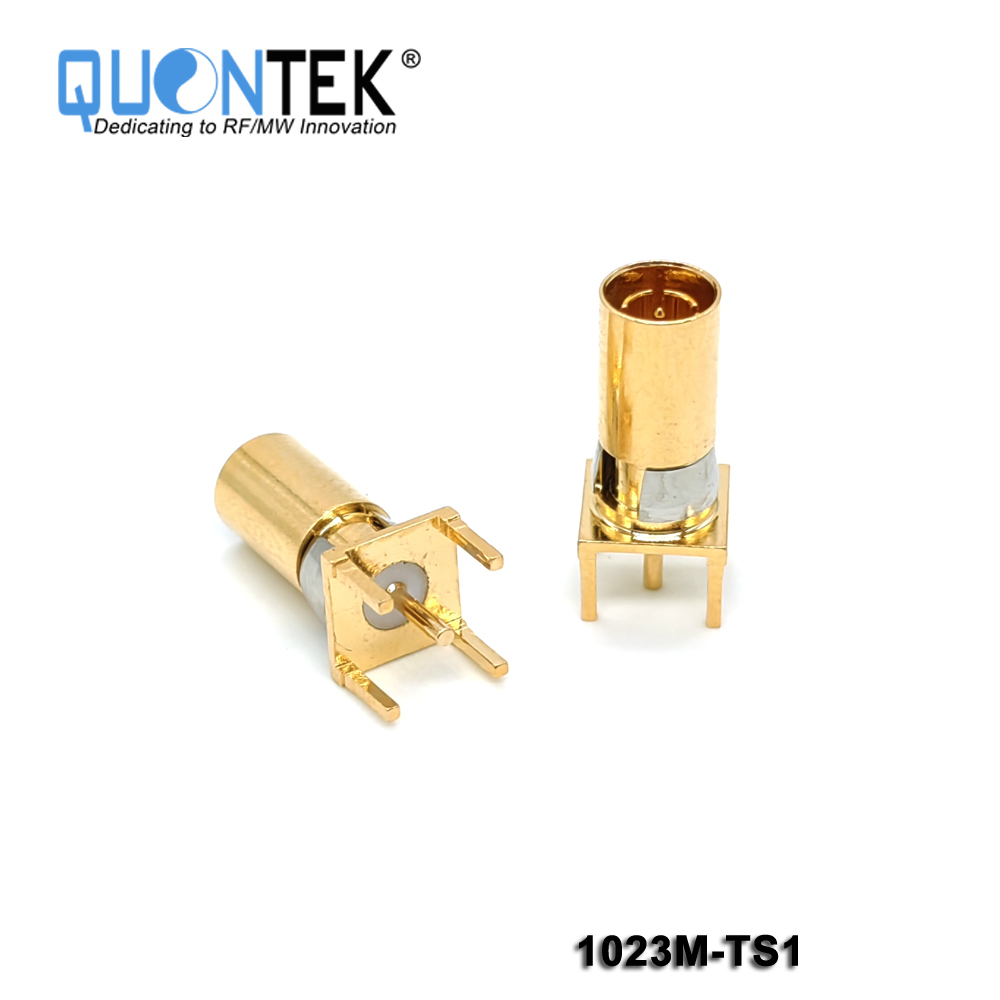

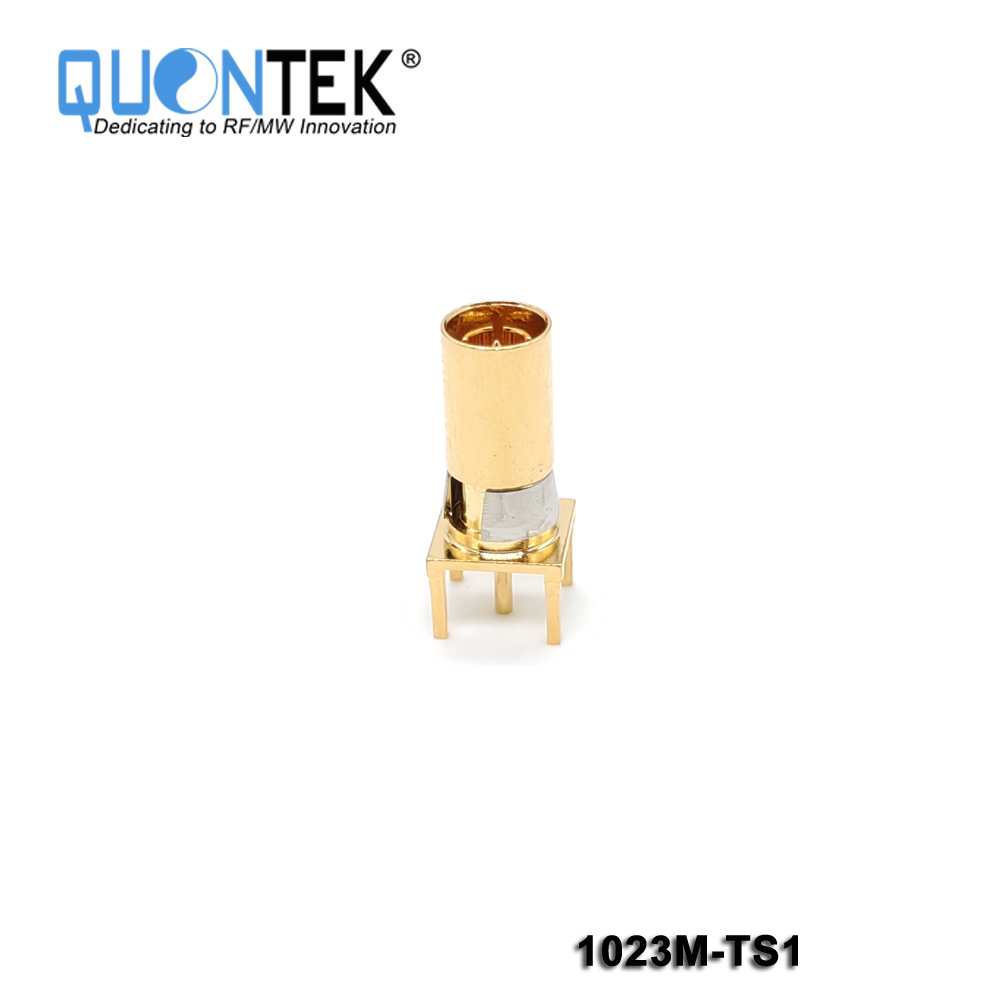

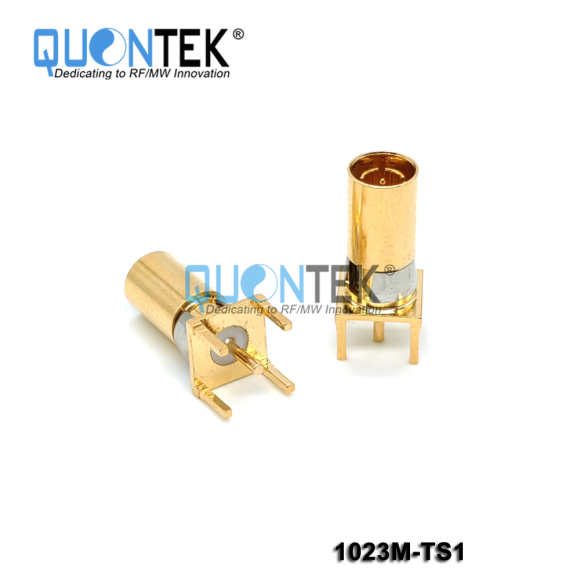

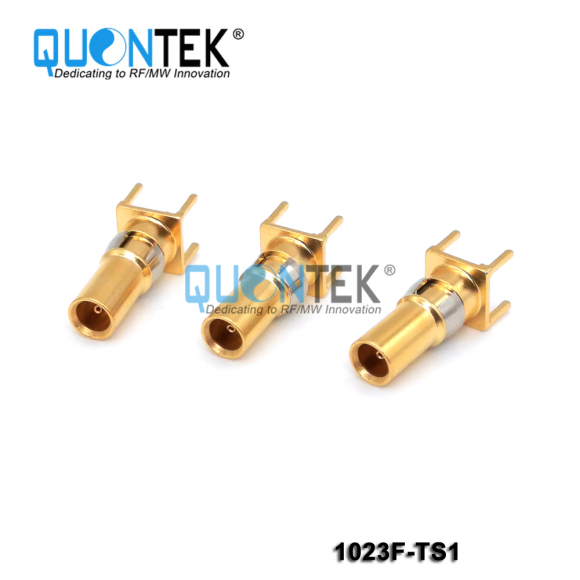

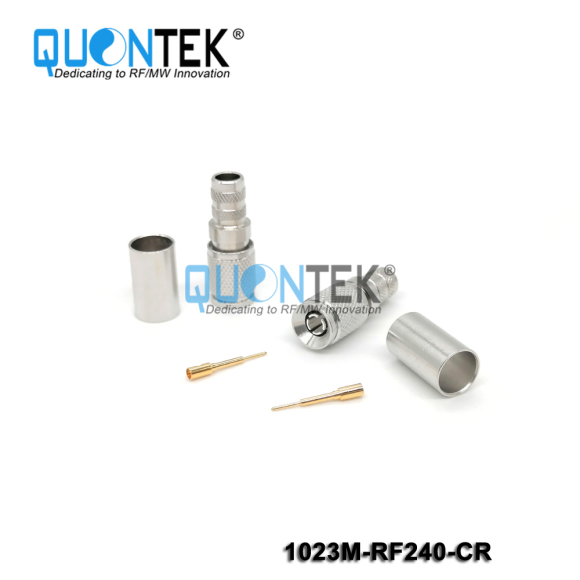

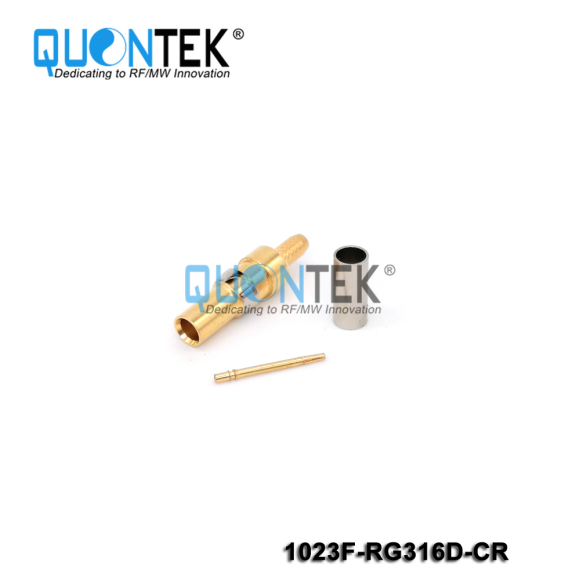

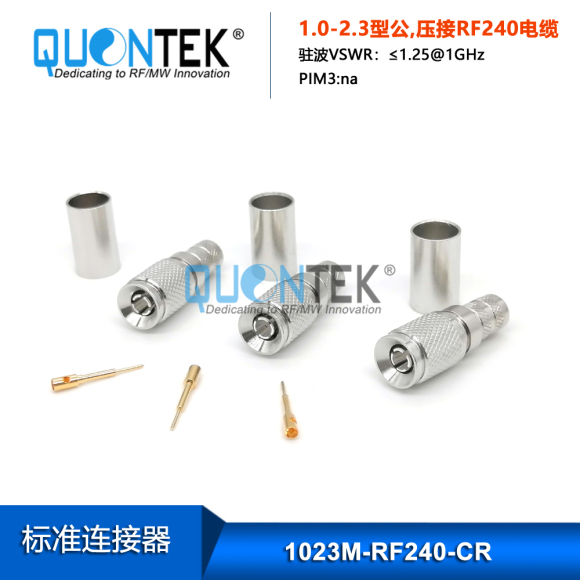

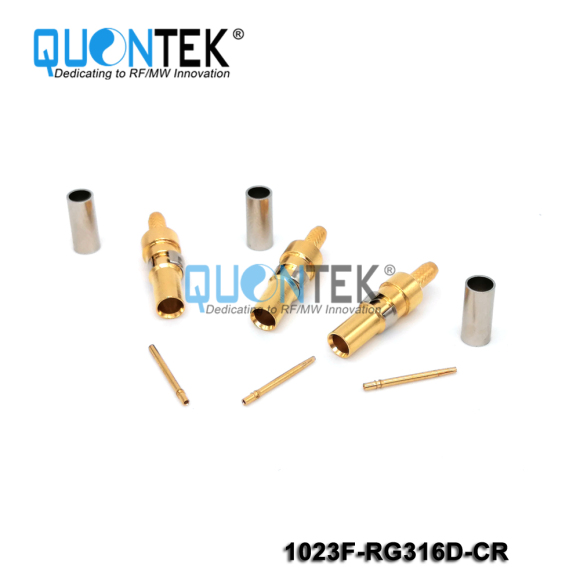

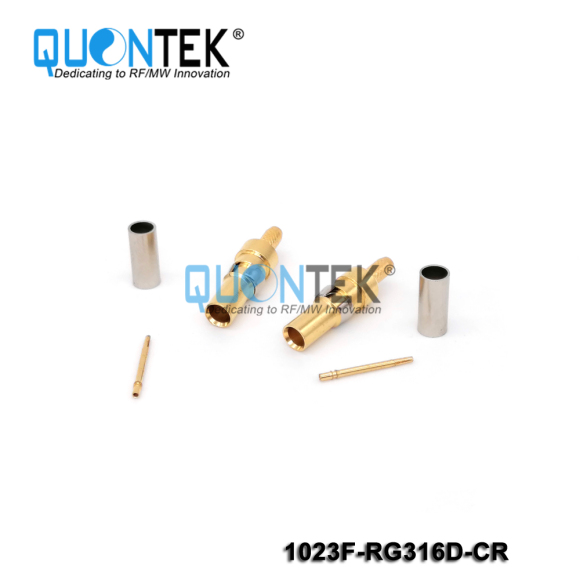

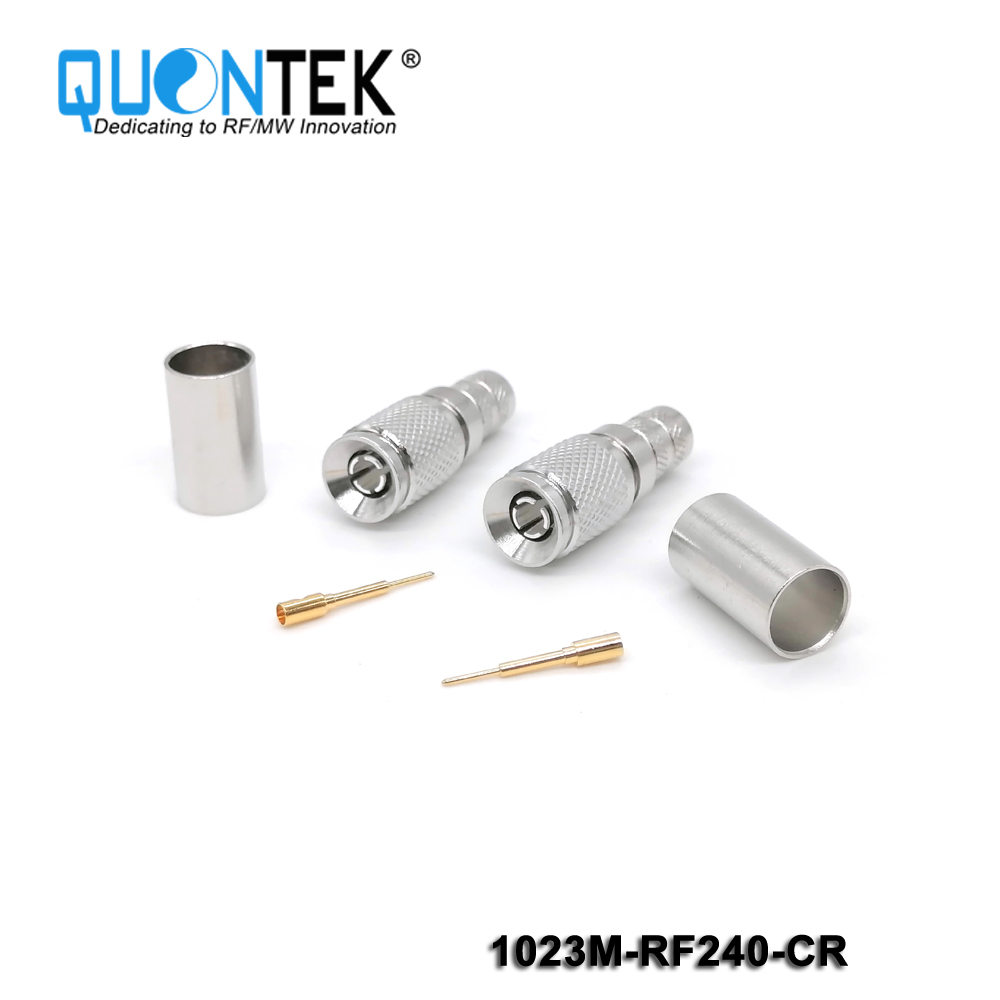

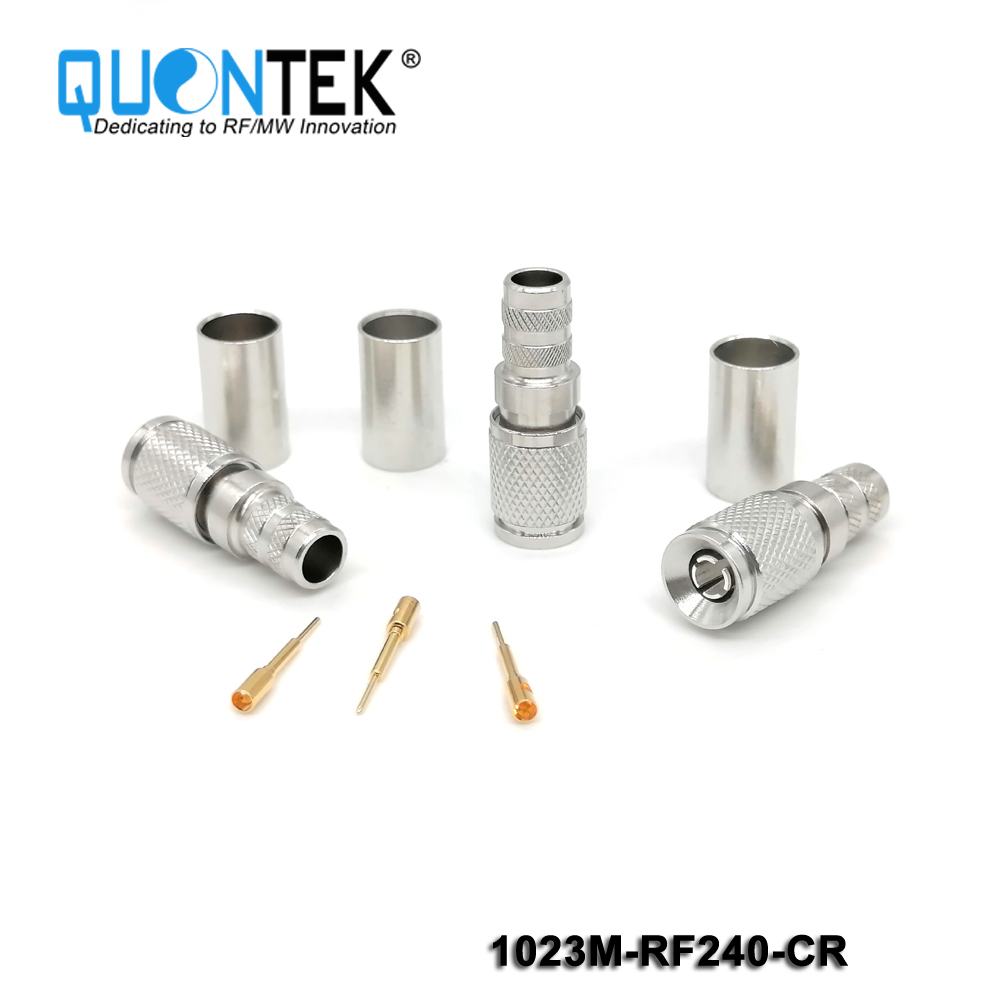

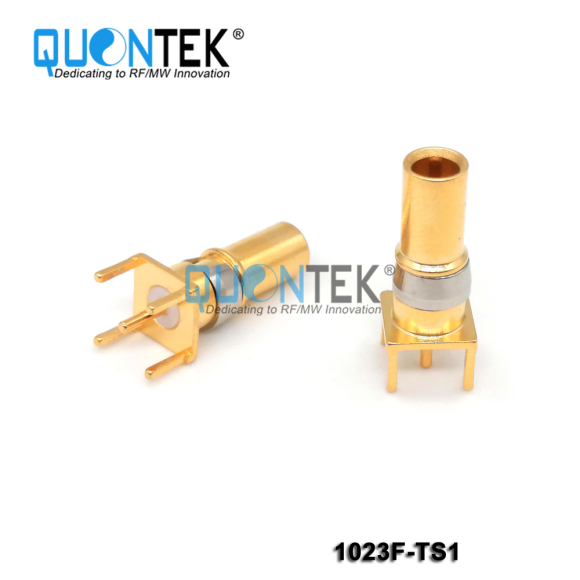

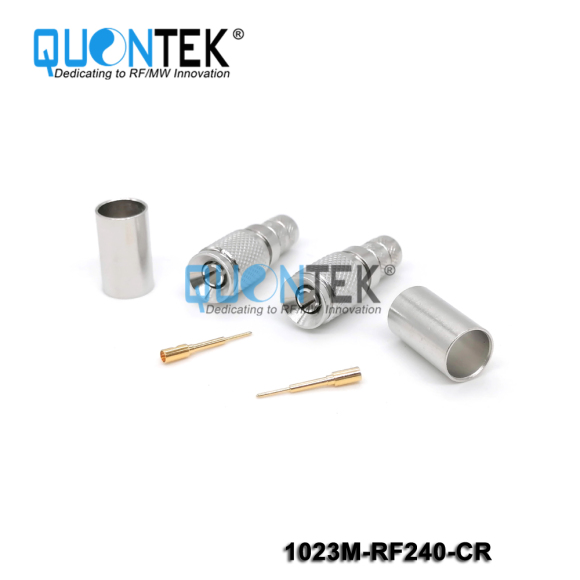

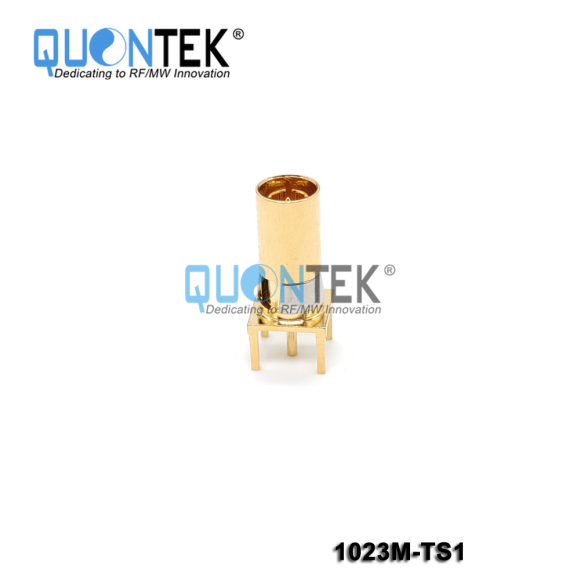

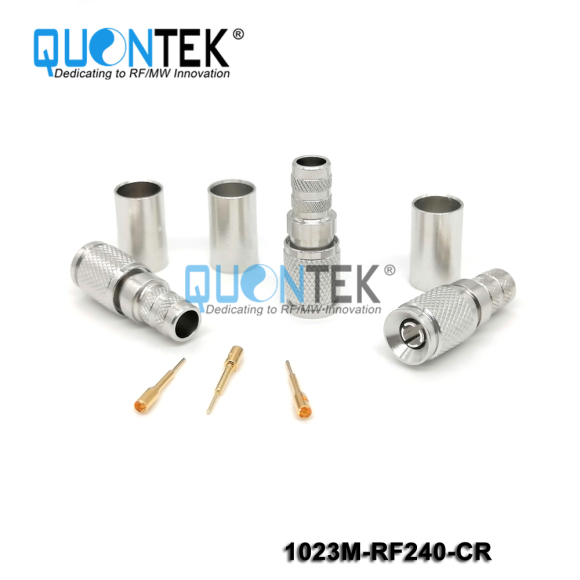

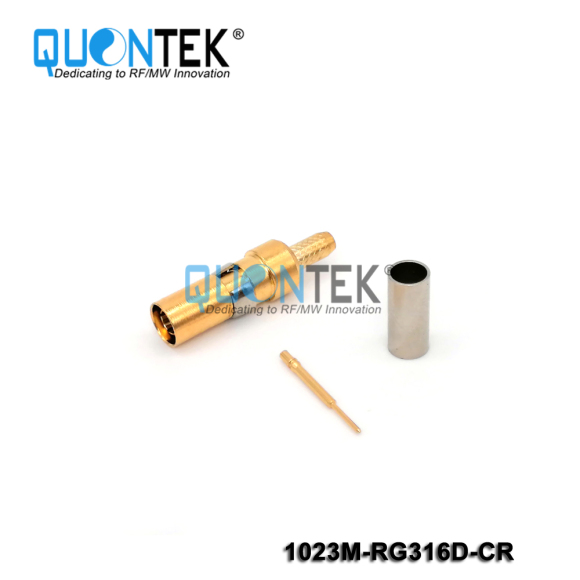

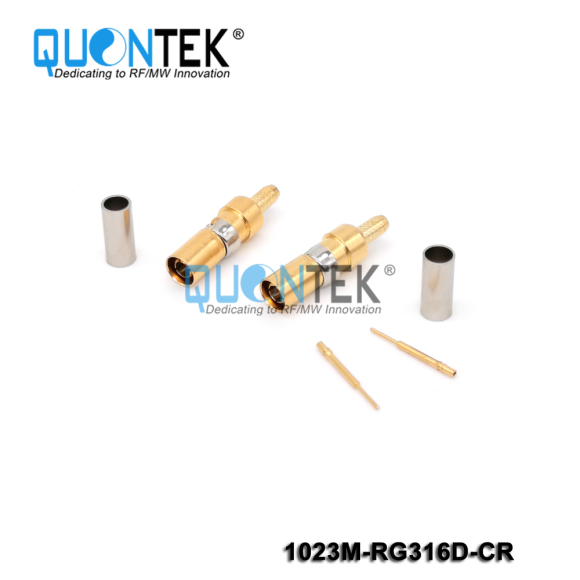

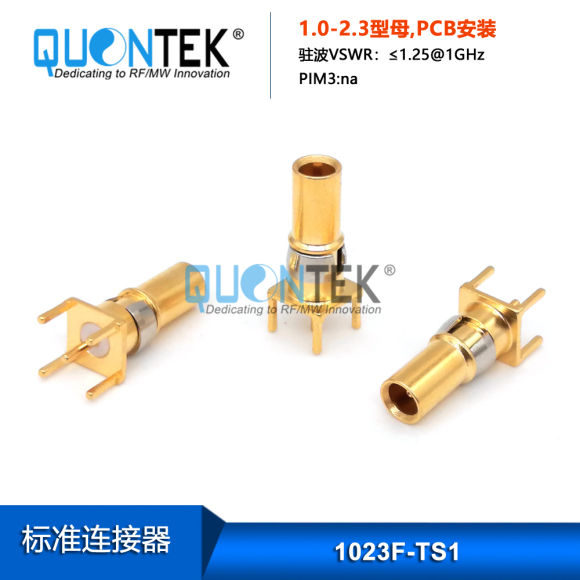

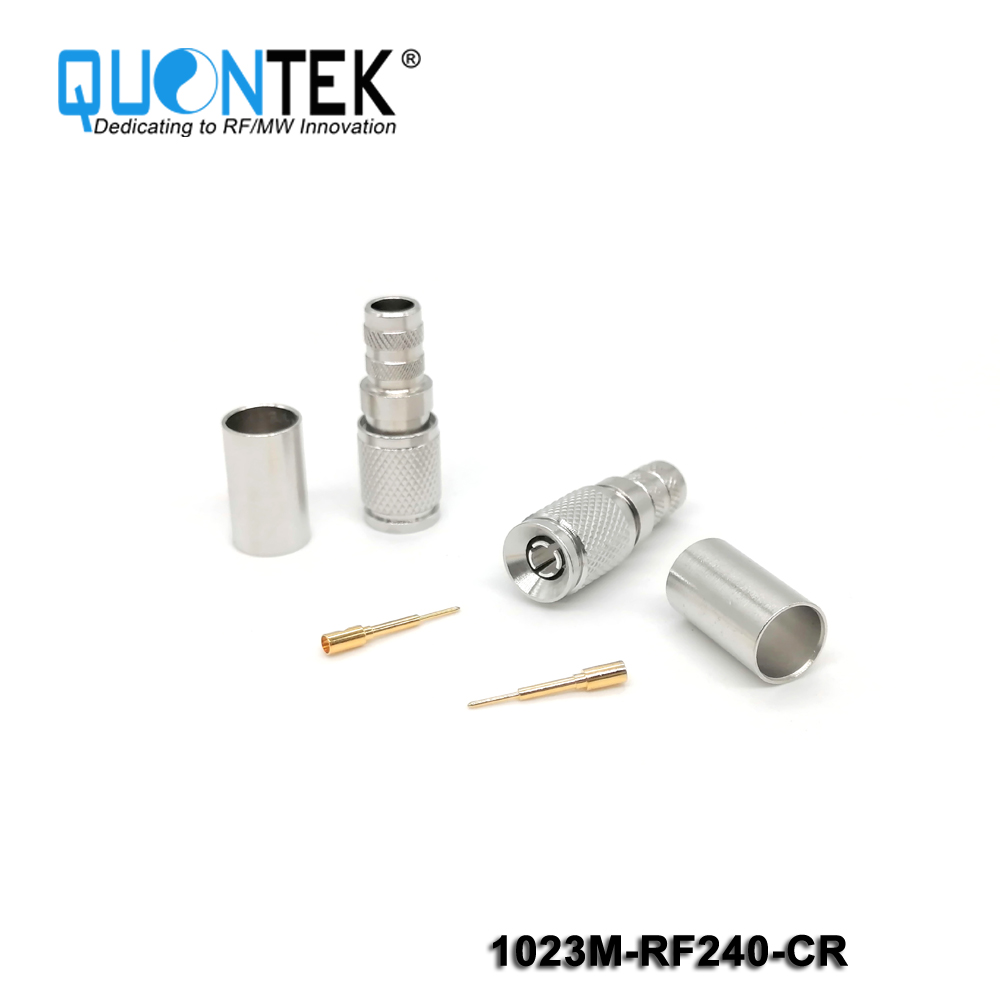

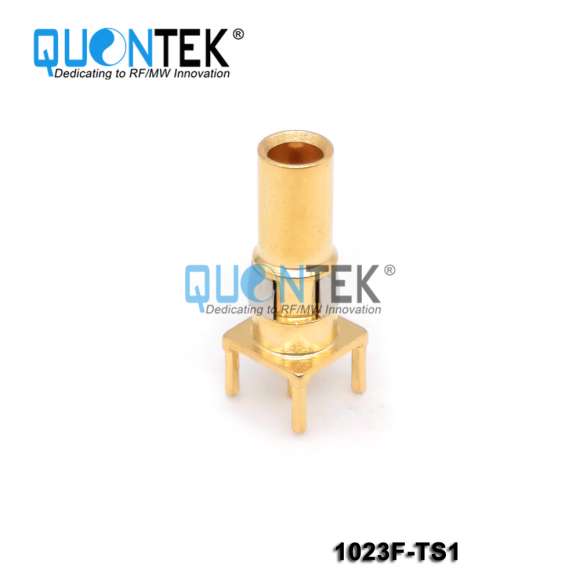

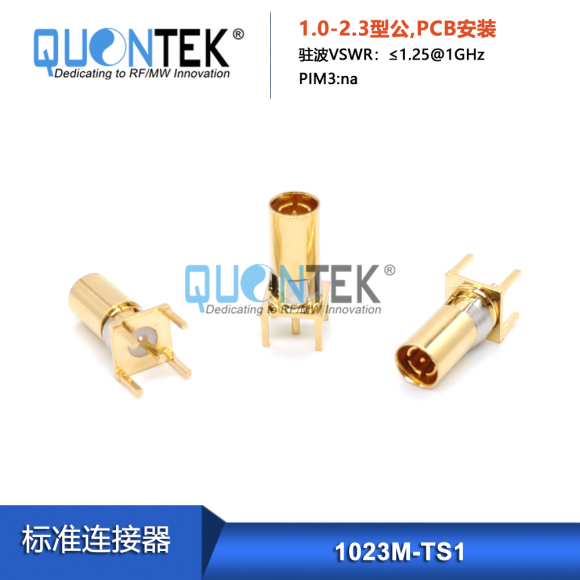

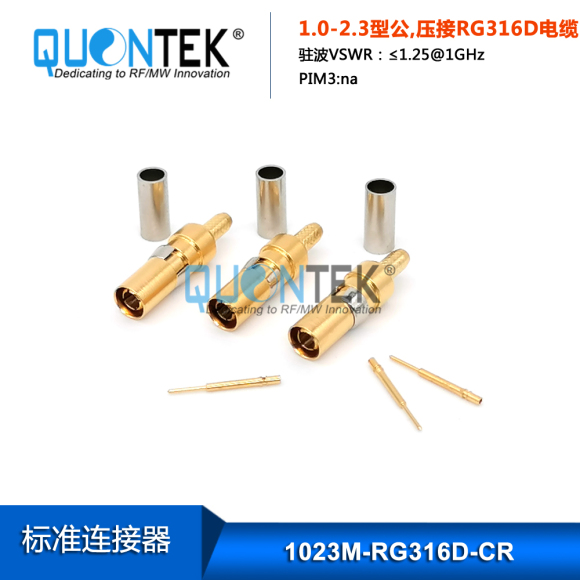

1.0-2.3 type Connectors

Description

QUONTEK coaxial "inserts" 1.0/2.3 are suitable for the insertion of mixed layout connectors DIN 41612.These inserts feature a slide-on coupling mechanism, which ensures a short connect-disconnect time. Impedance accuracy, fast and easy assembly as well as high reproducibility due to the full crimp cable entry are typical characteristics of these QUONTEK connectors. The 1.0/2.3 inserts are suitable for applications up to 4 GHz.

Features

• Frequency range up to 4 GHz

• Excellent return loss

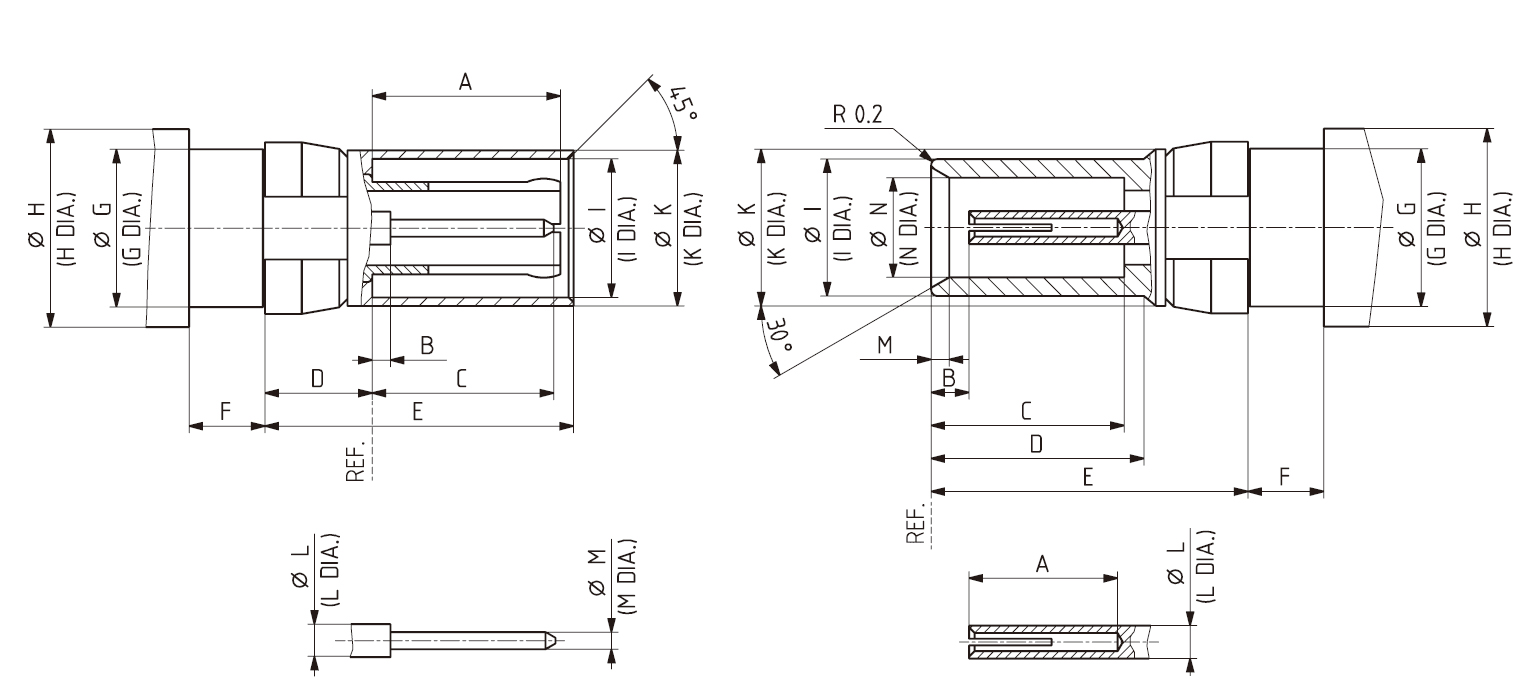

• The 1.0/2.3 interface dimensions conform to the following standards:

International: IEC 61169-29

USA: MIL-PRF-39012 1.0/2.3

Interface MIL-STD-348

Germany: DIN41626/2



Male

Female



Min.

Max.

Min.

Max.

A

5.40/0.213

5.70/0.224

4.50/0.177

--

B

--

1.15/0.045

1.15/0.045

1.45/0.057

C

5.20/0.205

5.50/0.217

5.80/0.228

5.90/0.232

D

3.05/0.120

3.20/0.126

6.40/0.252

6.50/0.256

E

9.25/0.364

9.35/0.368

9.50/0.374

9.60/0.378

F

2.22/0.087

2.40/0.094

2.22/0.087

2.40/0.094

G

4.76/0.187

4.79/0.189

4.75/0.187

4.79/0.189

H

--

6.00/0.236

--

6.00/0.236

I

4.20/0.165

4.28/0.169

4.03/0.159

4.15/0.163

K

4.66/0.183

4.78/0.188

4.72/0.186

4.75/0.187

L

1.00/0.039 nom.

1.00/0.039 nom.

M

0.48/0.019

0.52/0.020

0.50/0.020

0.60/0.024

N

--

--

3.00/0.118

3.06/0.120
