SSMA type Connectors
Description

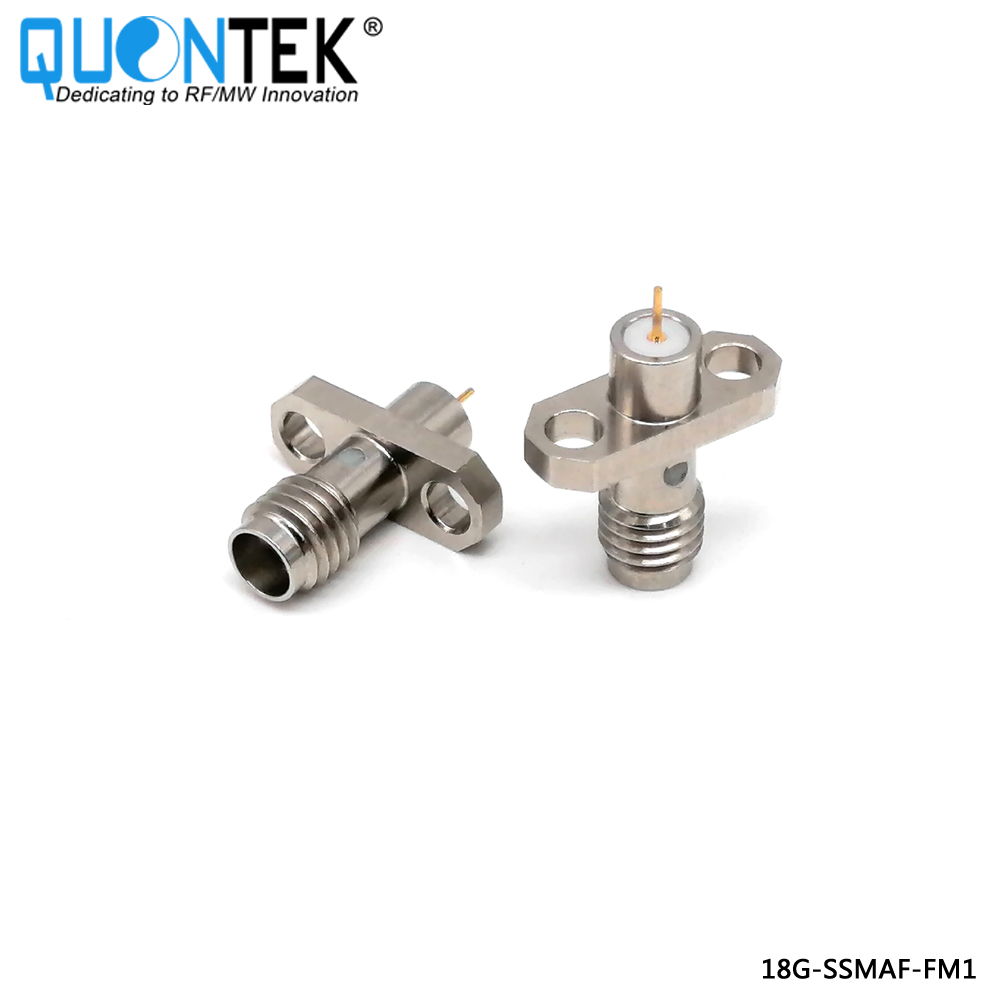

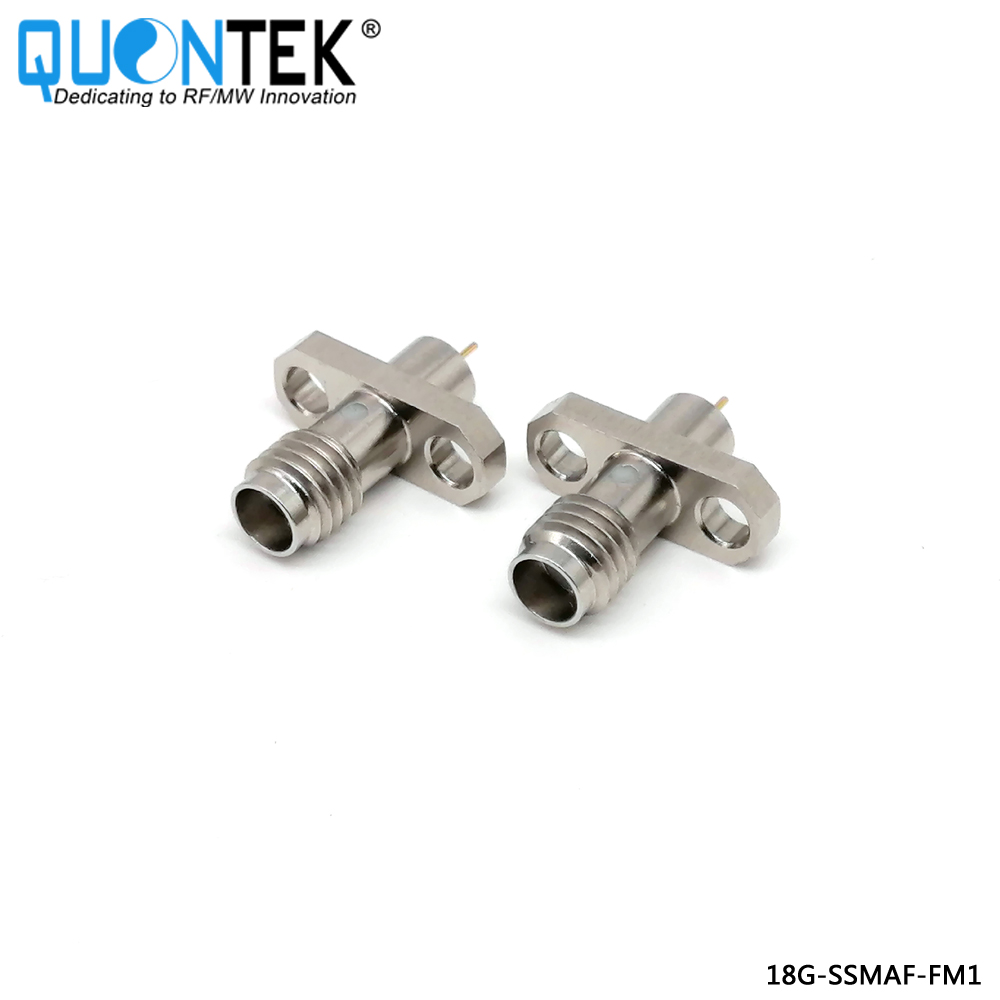

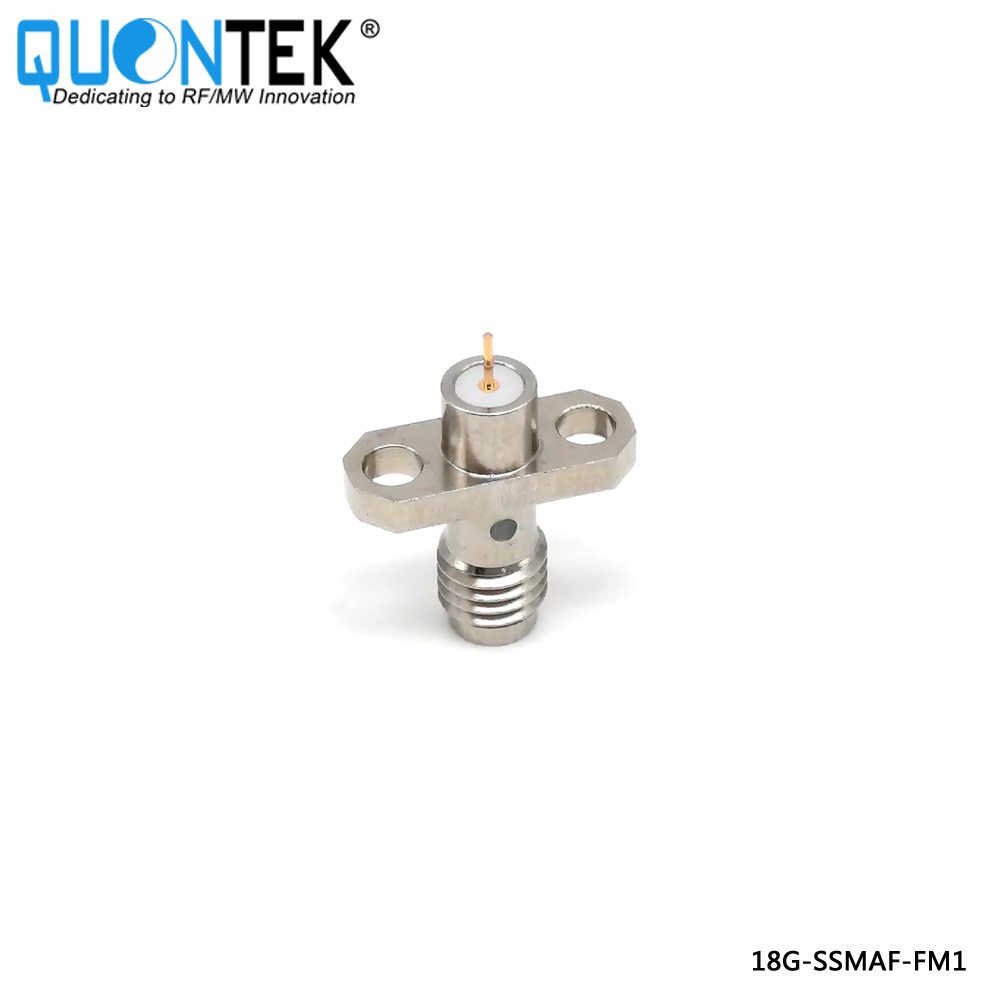

QUONTEK SSMA connectors are subminiature precisionstainless steel connectors for microwave applications.
The SSMA is 30 % smaller than SMA and its standard frequency range is DC to 40 GHz and the extended frequency version operates up to 60 GHz. There is a wide variety of applications for SSMA connectors in telecom, test and measurement, instruments,avionics and defense.
SSMA connectors conform to MIL-PRF-39012 and MIL-STD-348 requirements.
Features
• Frequency range up to 40 GHz
• Excellent return loss
• The SSMA interface dimensions conform to the following standards:
International: IEC 61169-18
USA: MIL-PRF-39012 SSMA

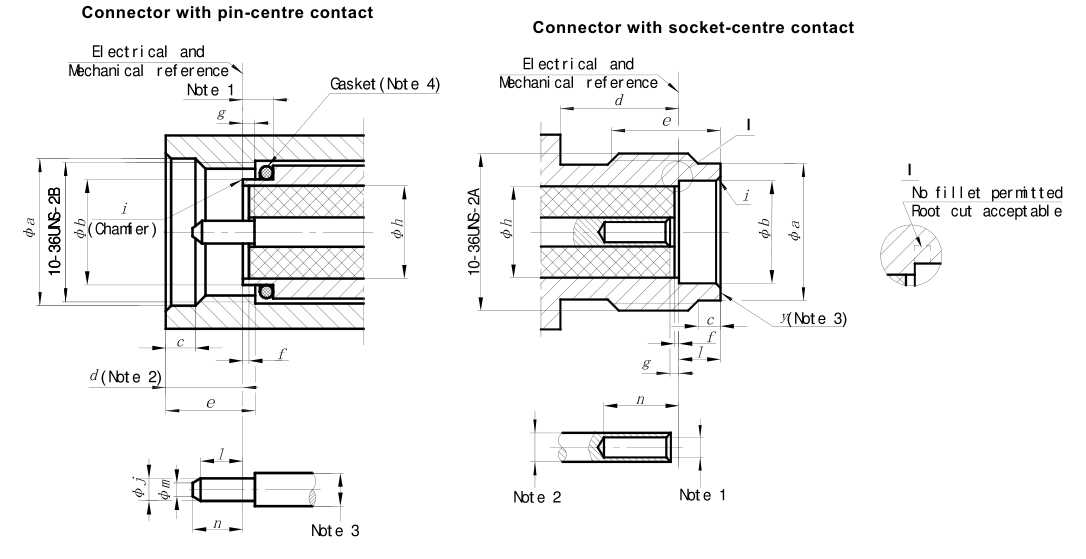

Interface MIL-STD-348
| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | 4.98/0.196 | -- | 3.89/0.153 | 4.06/0.160 |
B | 3.15/0.124 | 3.22/0.1268 | 3.231/0.1272 | 3.300/0.1300 |
C | 0.38/0.015 | 1.14/0.045 | 0.38/0.015 | 1.14/0.045 |
D | -- | 3.43/0.135 | 3.91/0.154 | -- |
E | 2.54/0.100 | -- | 4.32/0.170 | -- |
F | 0.00/0.000 | 0.18/0.007 | 0.00/0.000 | 0.18/0.007 |
G | 0.00/0.000 | 0.25/0.010 | 0.00/0.000 | 0.25/0.010 |
H | 2.79/0.110 nom. | 2.79/0.110 nom. | ||
I | 0.08/0.003*45° | 0.08/0.003*45° | ||
J | 0.495/0.0195 | 0.528/0.0208 | -- | -- |
L | 1.00/0.039 | -- | 1.88/0.074 | 1.98/0.078 |
M | -- | 0.25/0.010 | -- | -- |
N | -- | 1.65/0.065 | 2.92/0.115 | -- |
