QMA type Connectors
Description

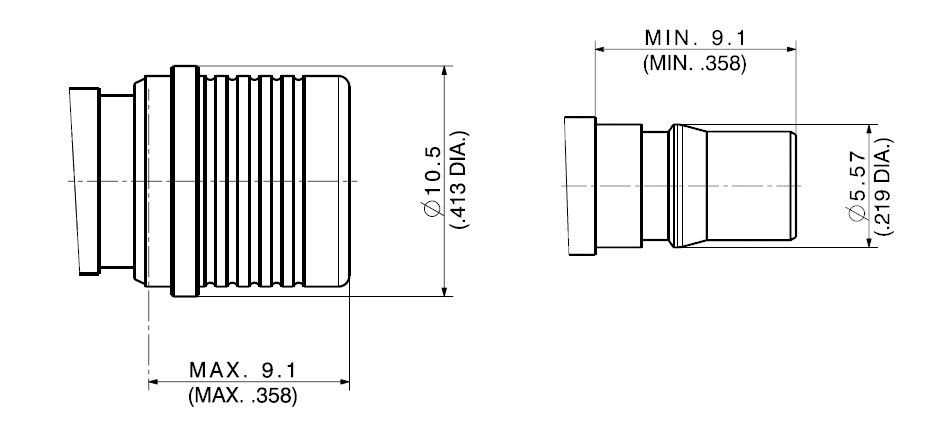

QUONTEK QMA coaxial connectors are according to IEC61169-50 standard and available with 50 Ω impedance. The frequency range extends to 18 GHz, depending on the connector and cable type. However most of the QMA connectors are return loss optimised for frequencies up to 6 GHz. The interface is based on the SMA dimension but instead of a threaded coupling mechanism a new snap-lock mechanism is used.
The QMA interface has a very similar performance to the SMA, but in addition it offers an easier, faster and safer coupling operation, helping customers to save significantly time during production. The packaging density of QMA is increased compared to SMA connectors thanks to the fact that
no torque spanner is required to fasten the coupling nut.
QMA is not intermateable with SMA.
Features
• Easy to mate
• 10 times faster than with threaded SMA
• Increased reliability
• No torque or tooling required
• 360° rotatable interface
• Easy routing of cable assembly without mechanical stress or electrical performance degradation
• Higher packing density
• Size equivalent to SMA, but space saving as there is no need for wrench clearance
• Excellent electrical performance
• Consistent VSWR performance enables to replace standard SMA
• Return loss optimised DC to 6 GHz

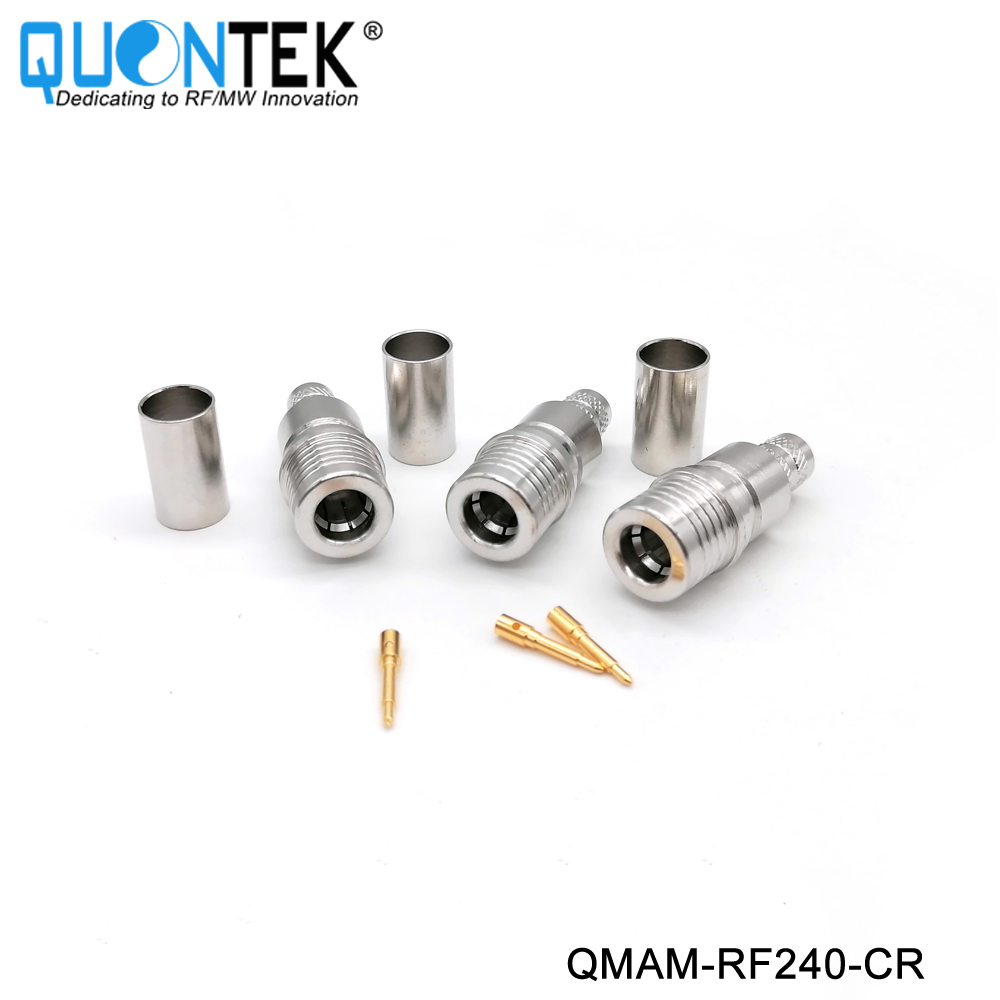

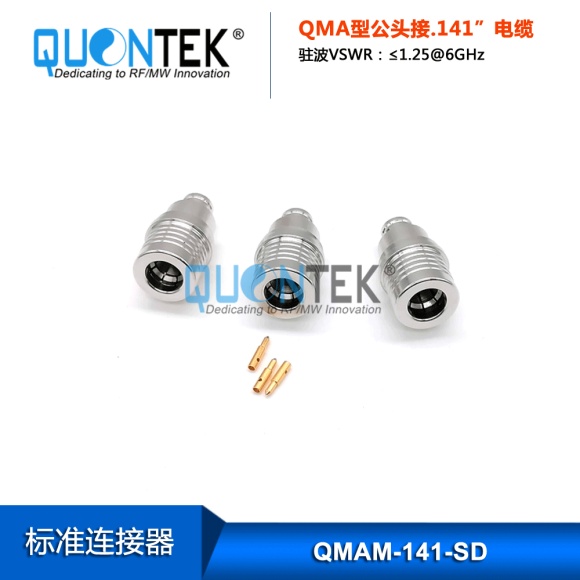

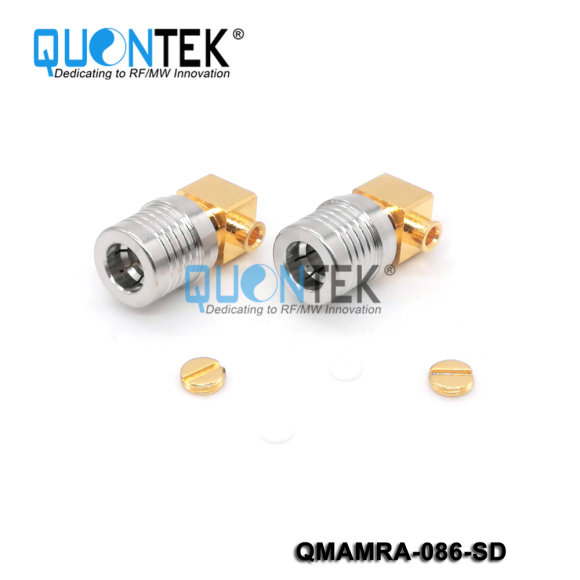

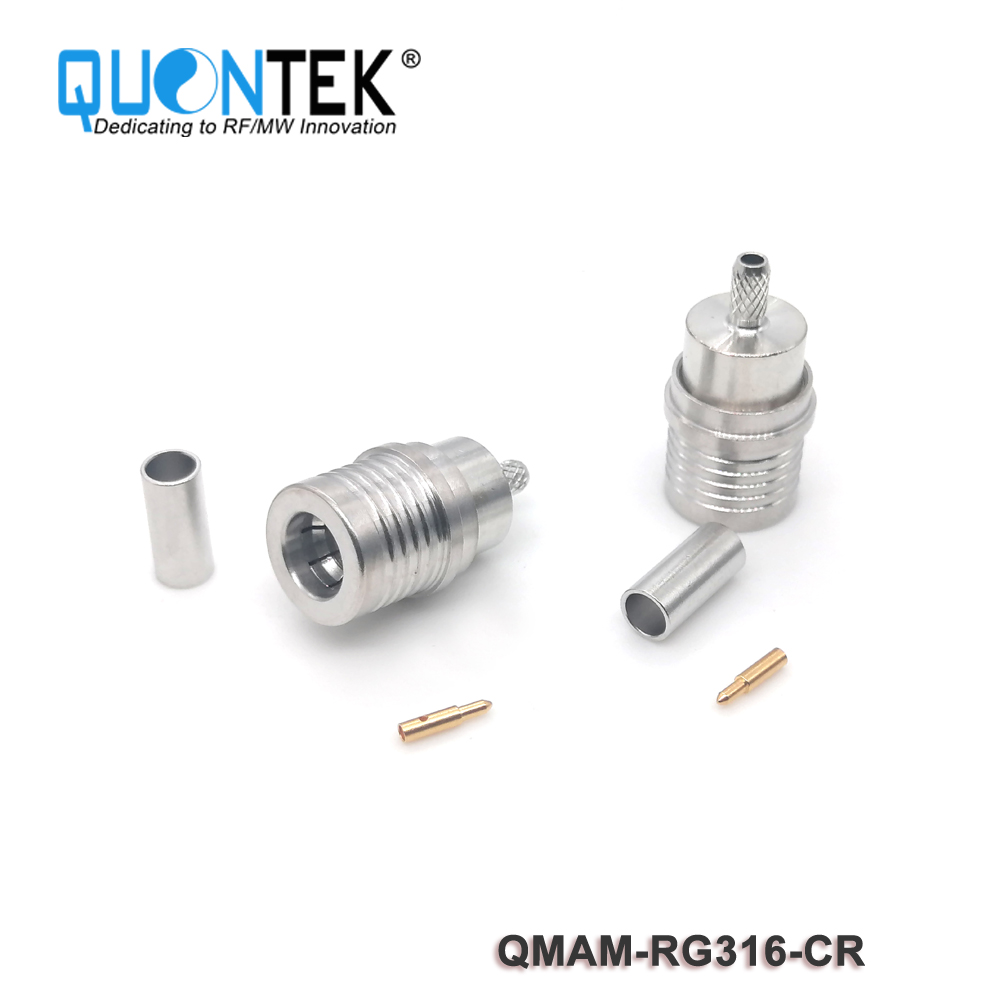

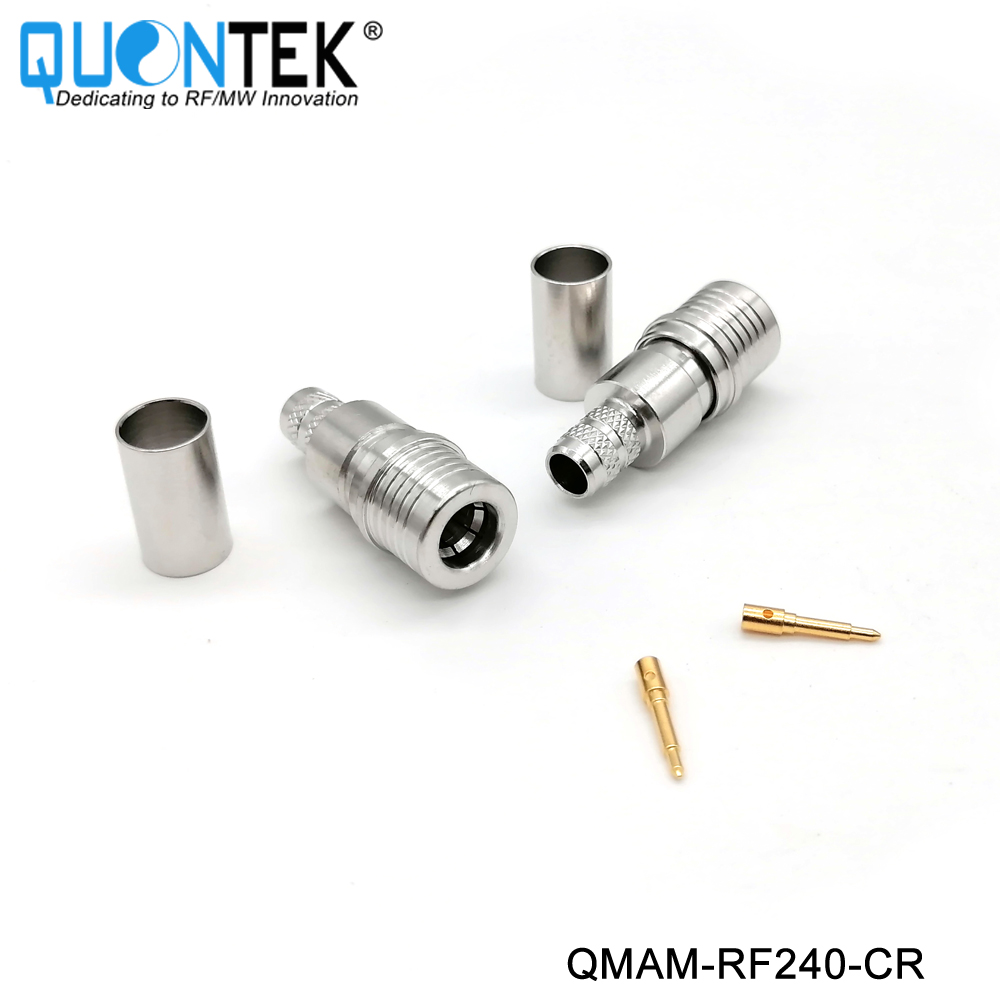

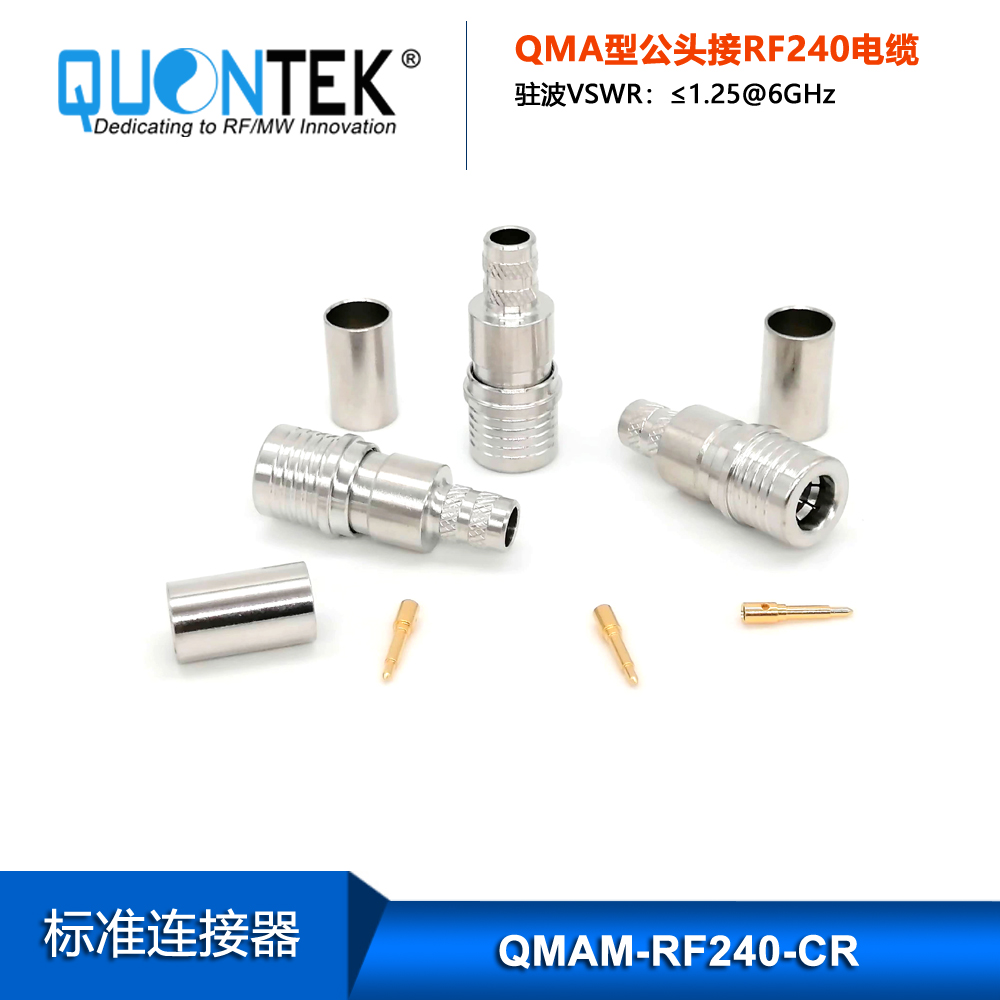

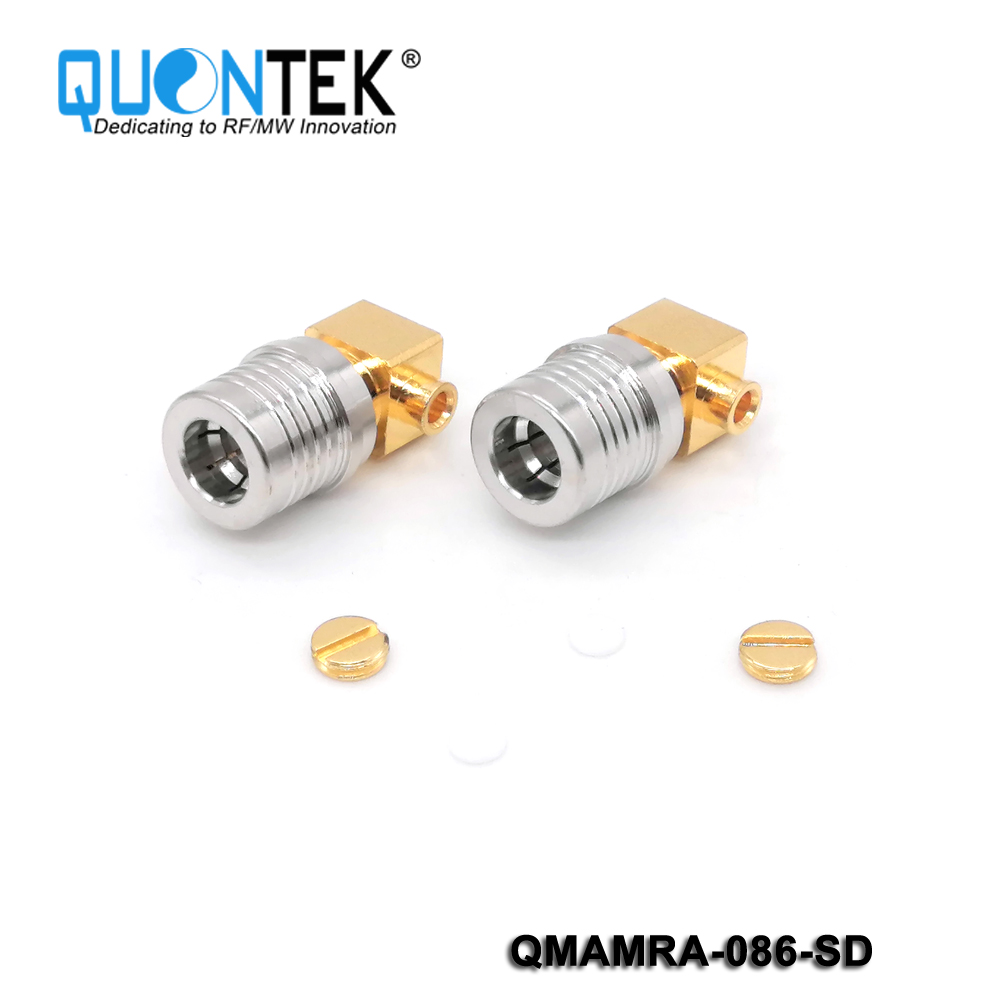

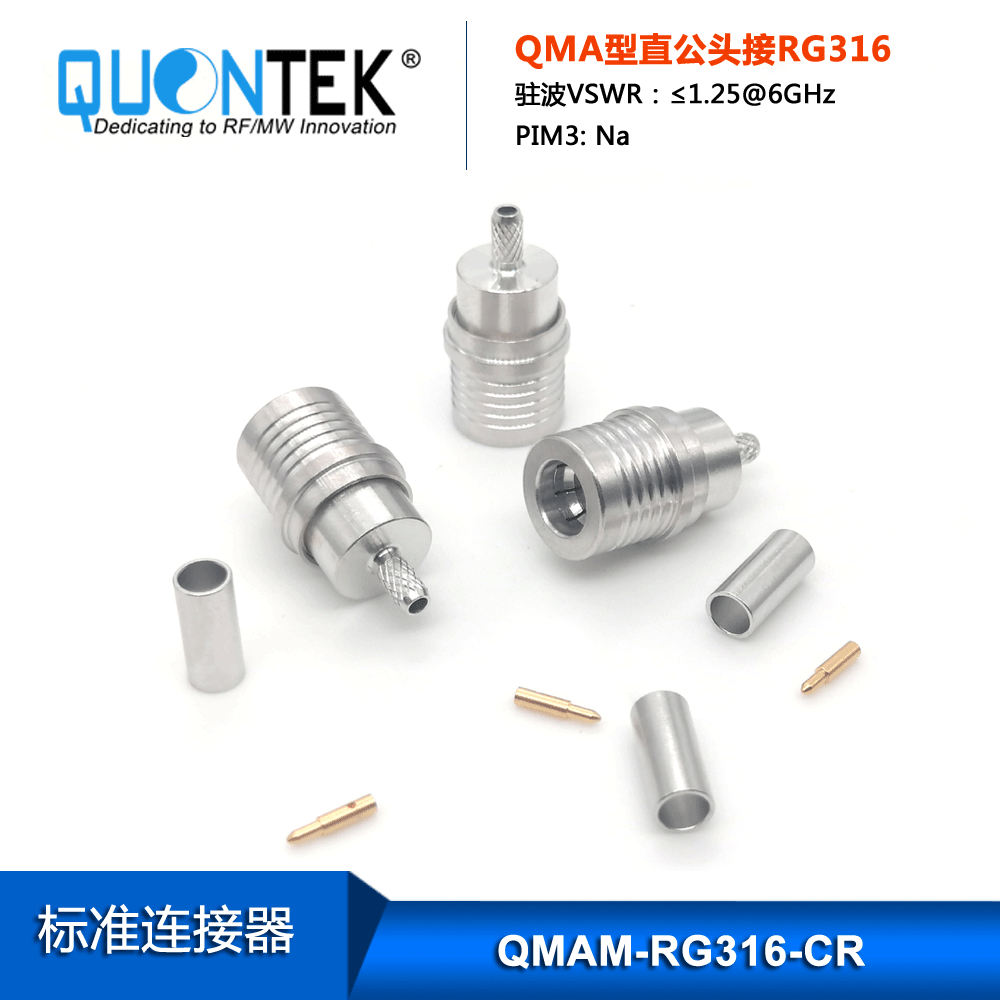

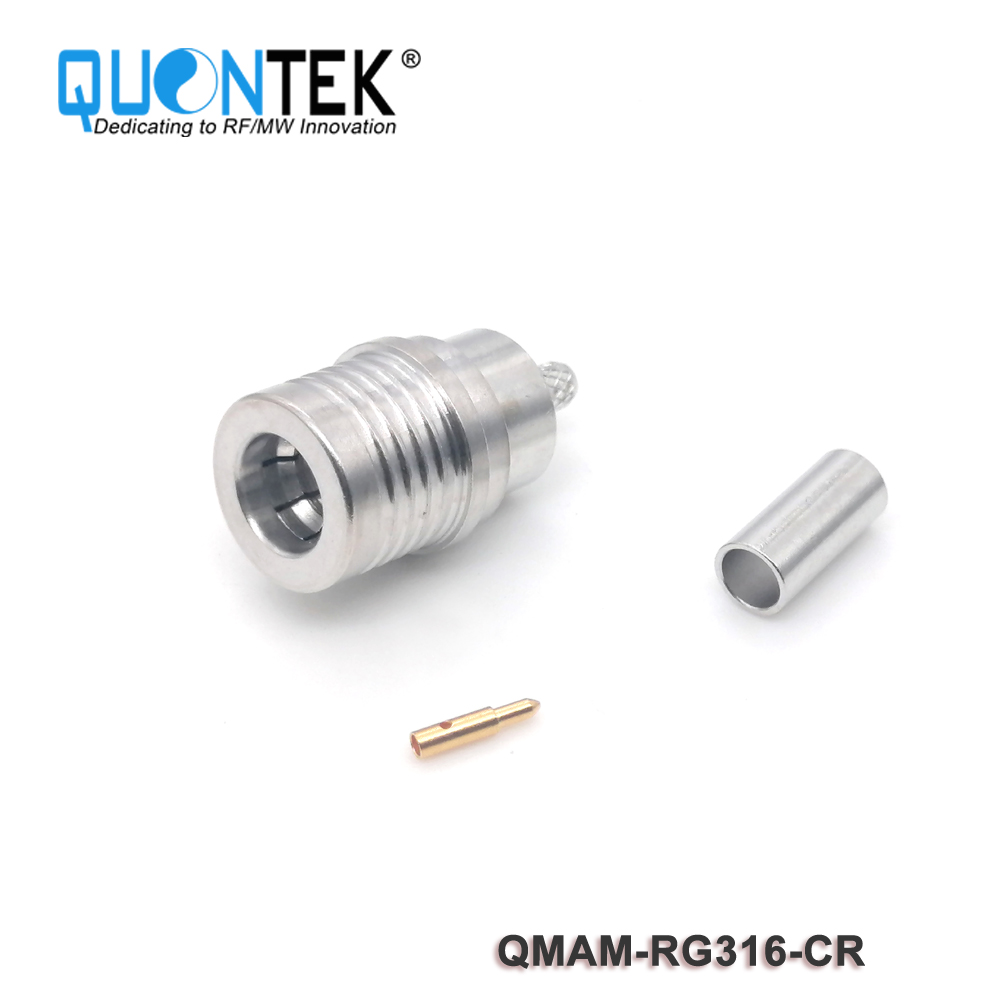

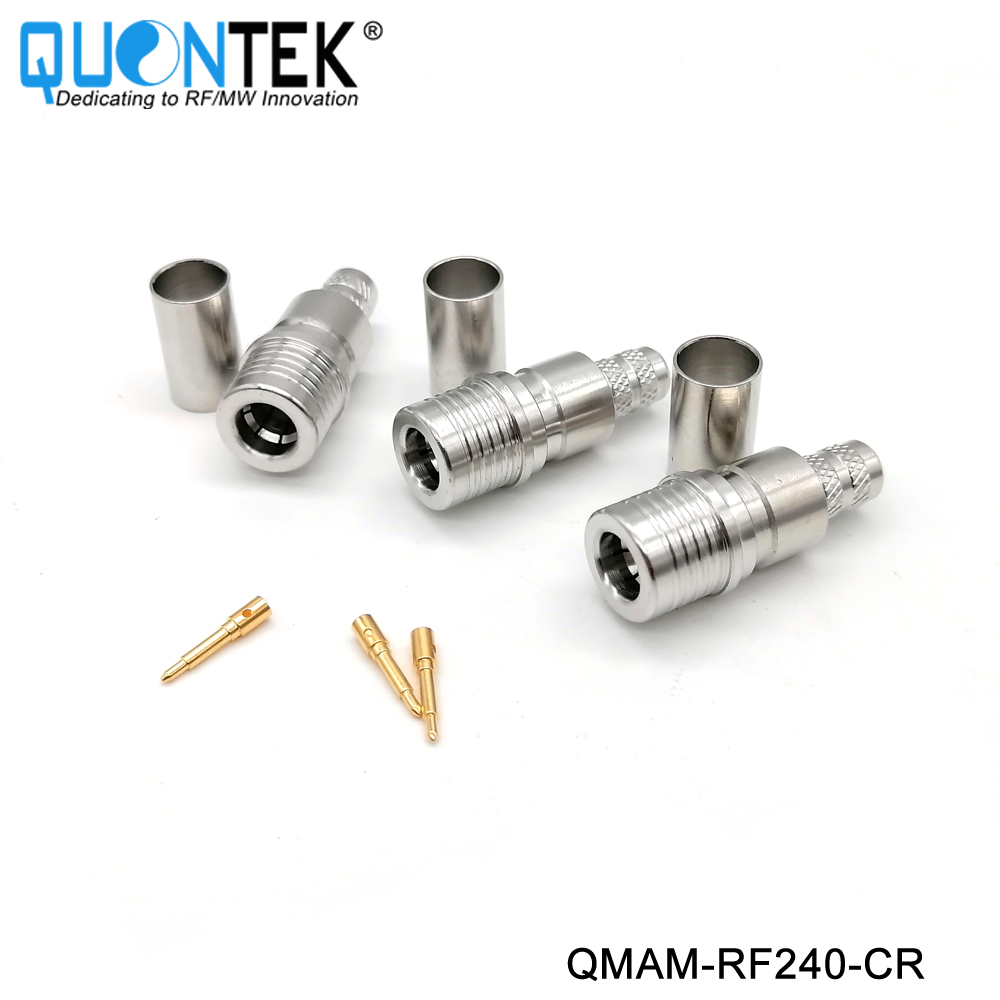

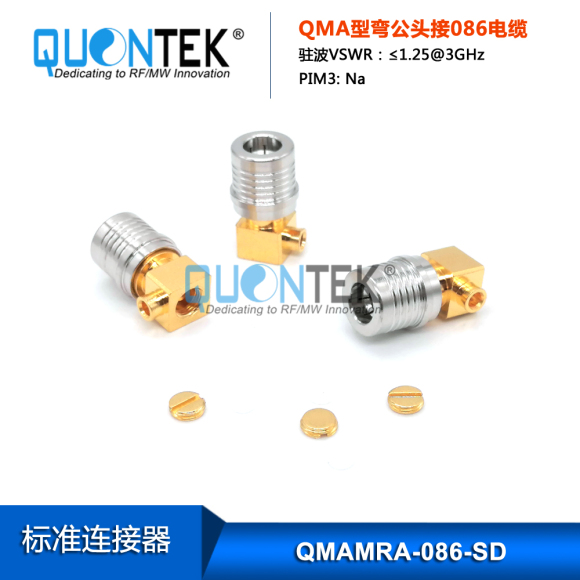

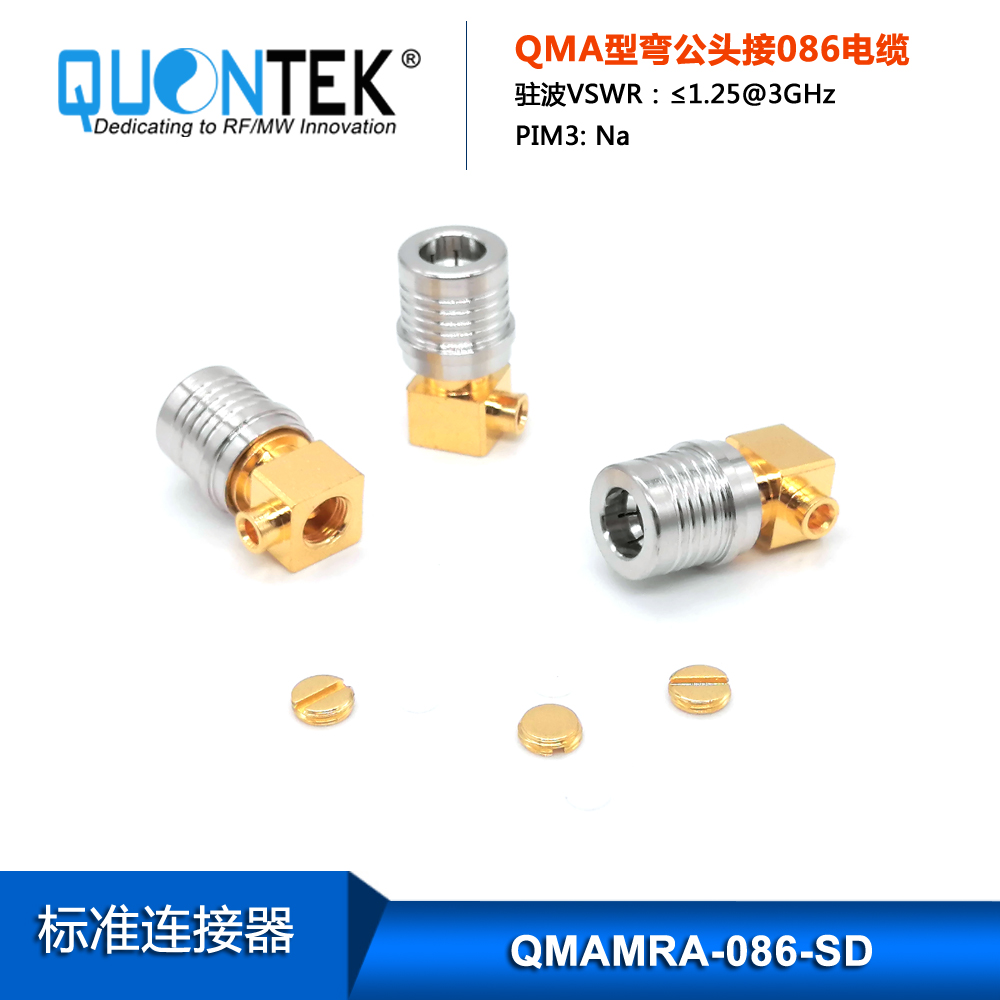

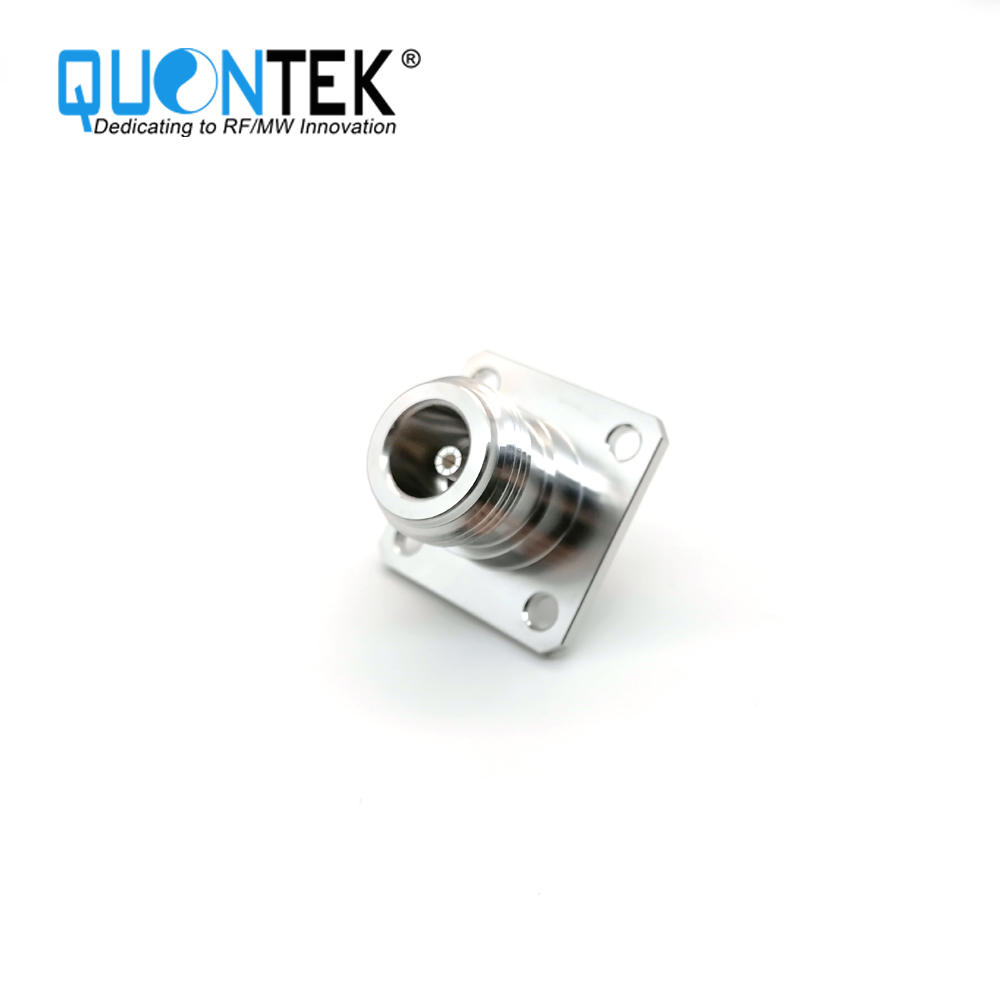

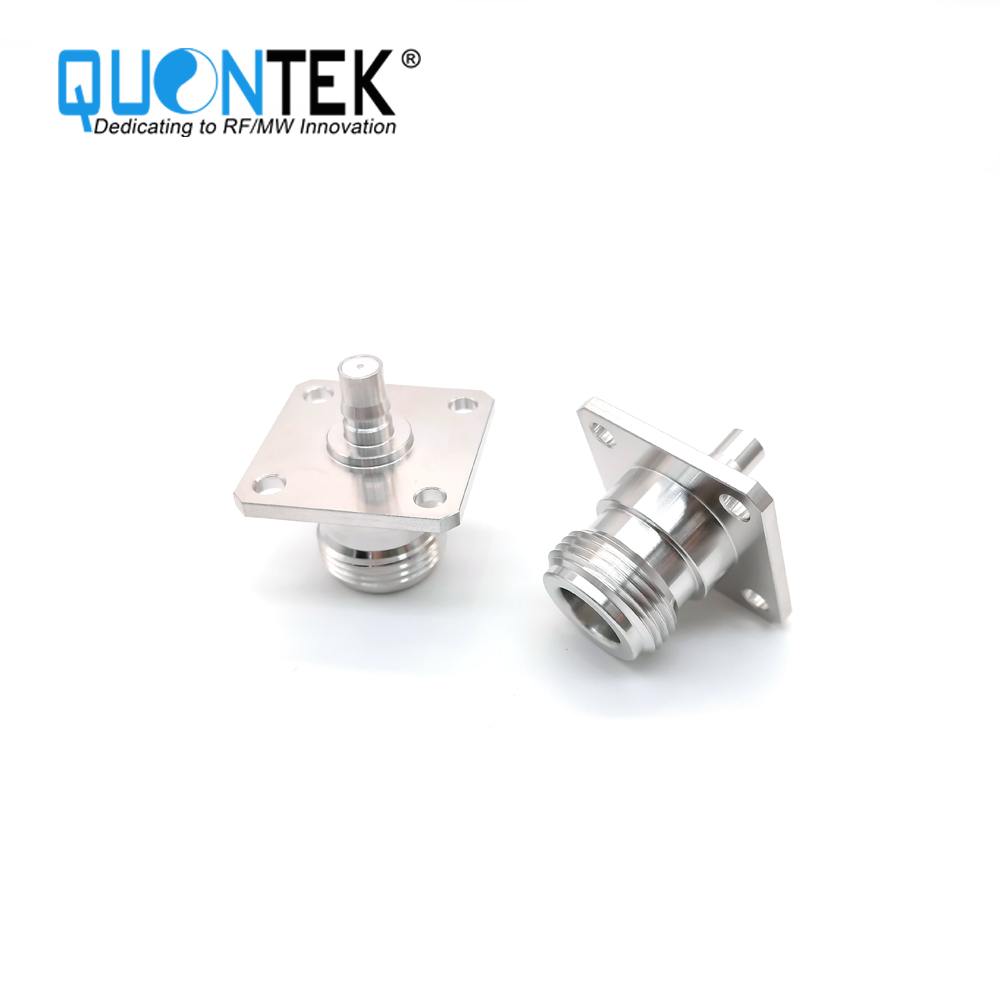

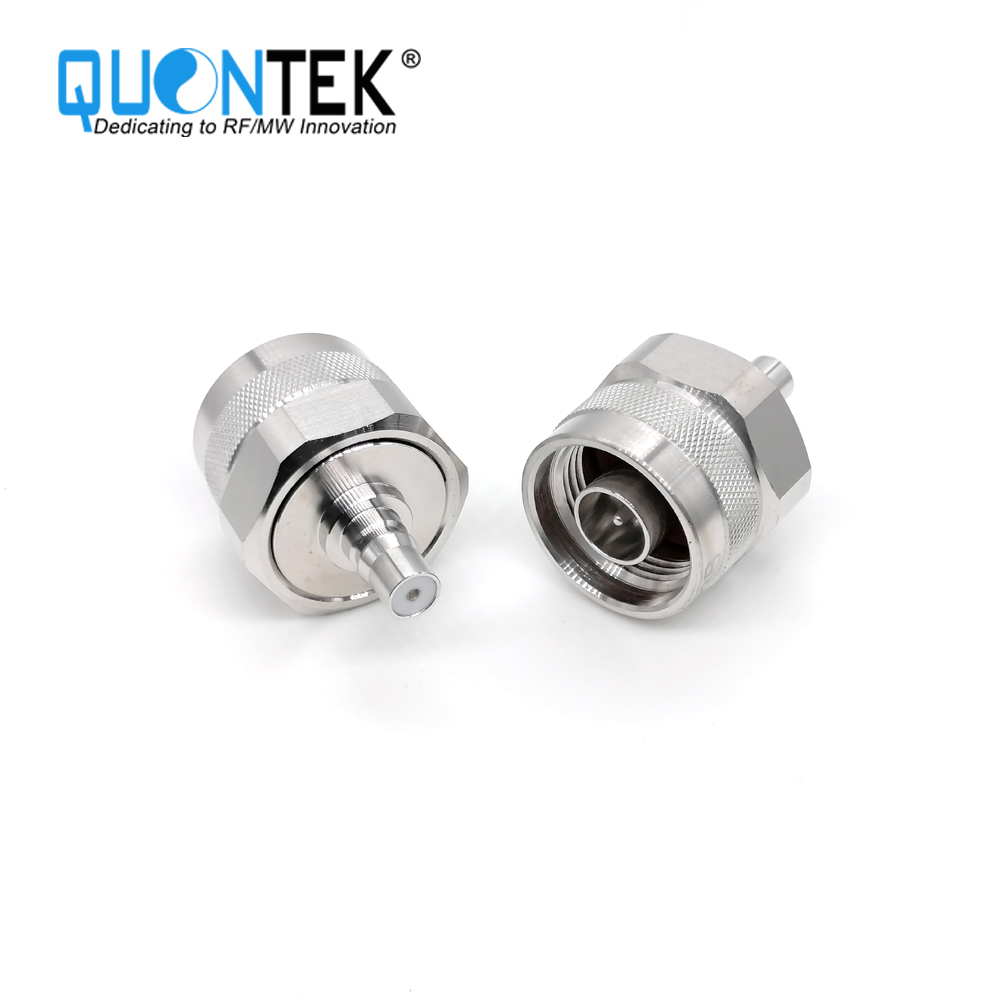

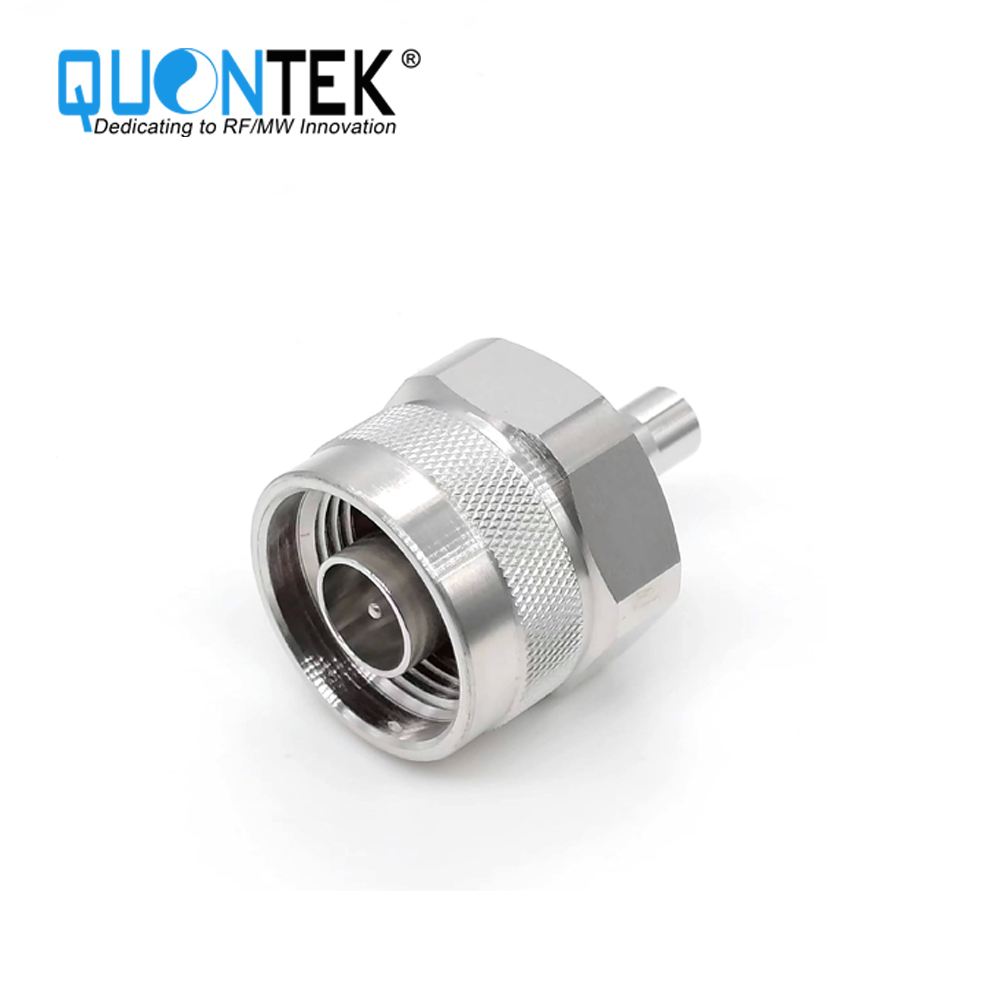

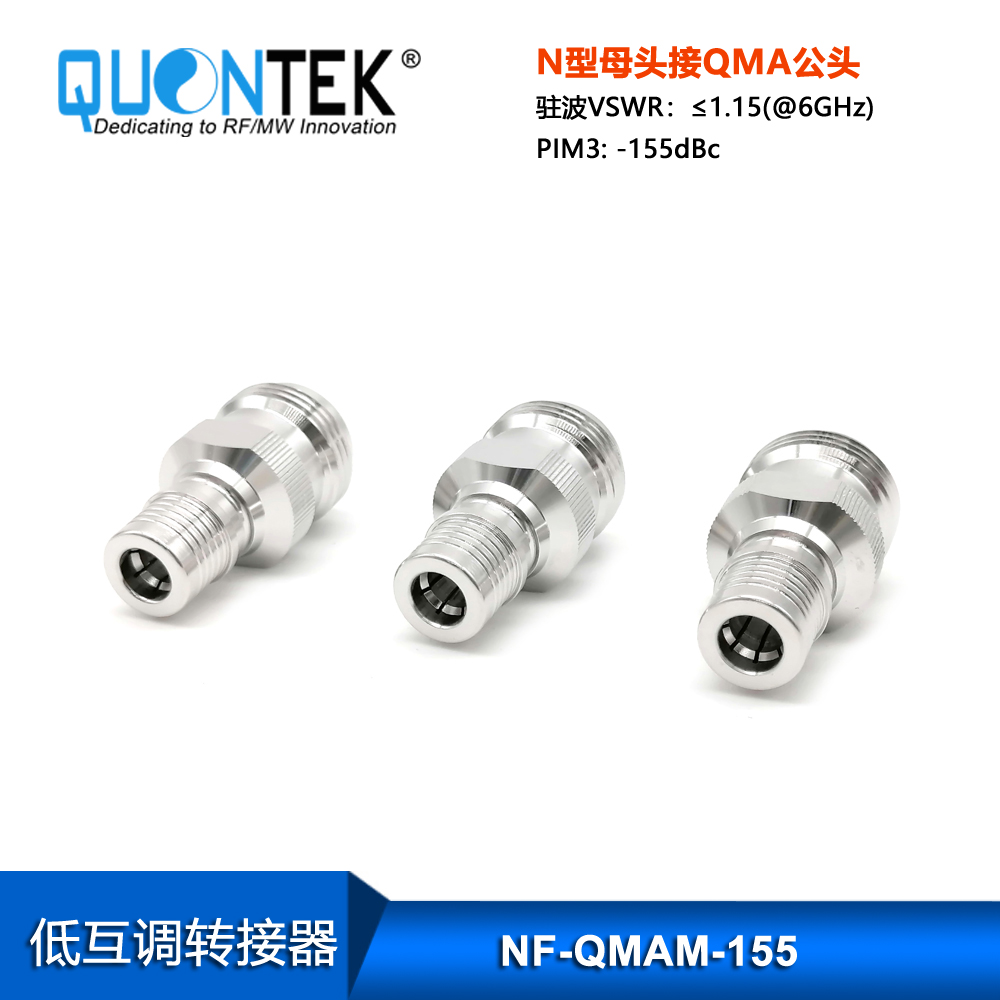

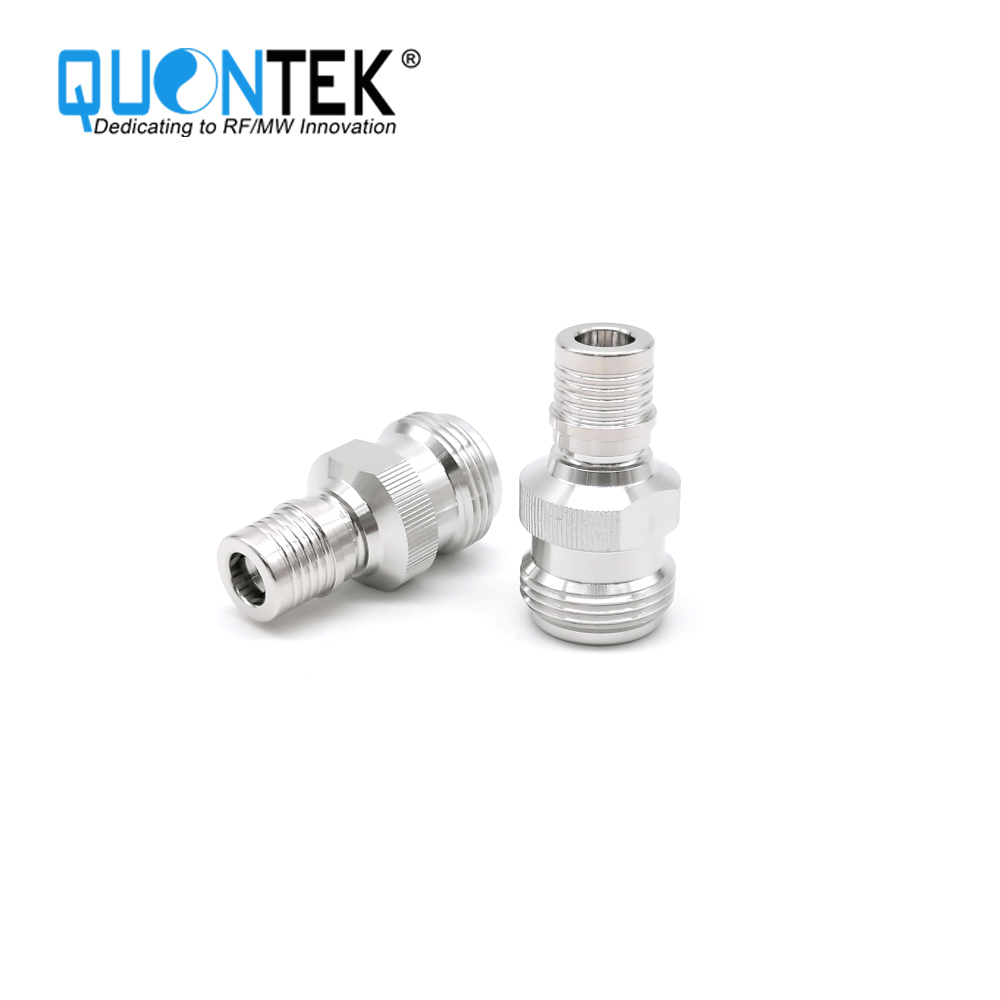

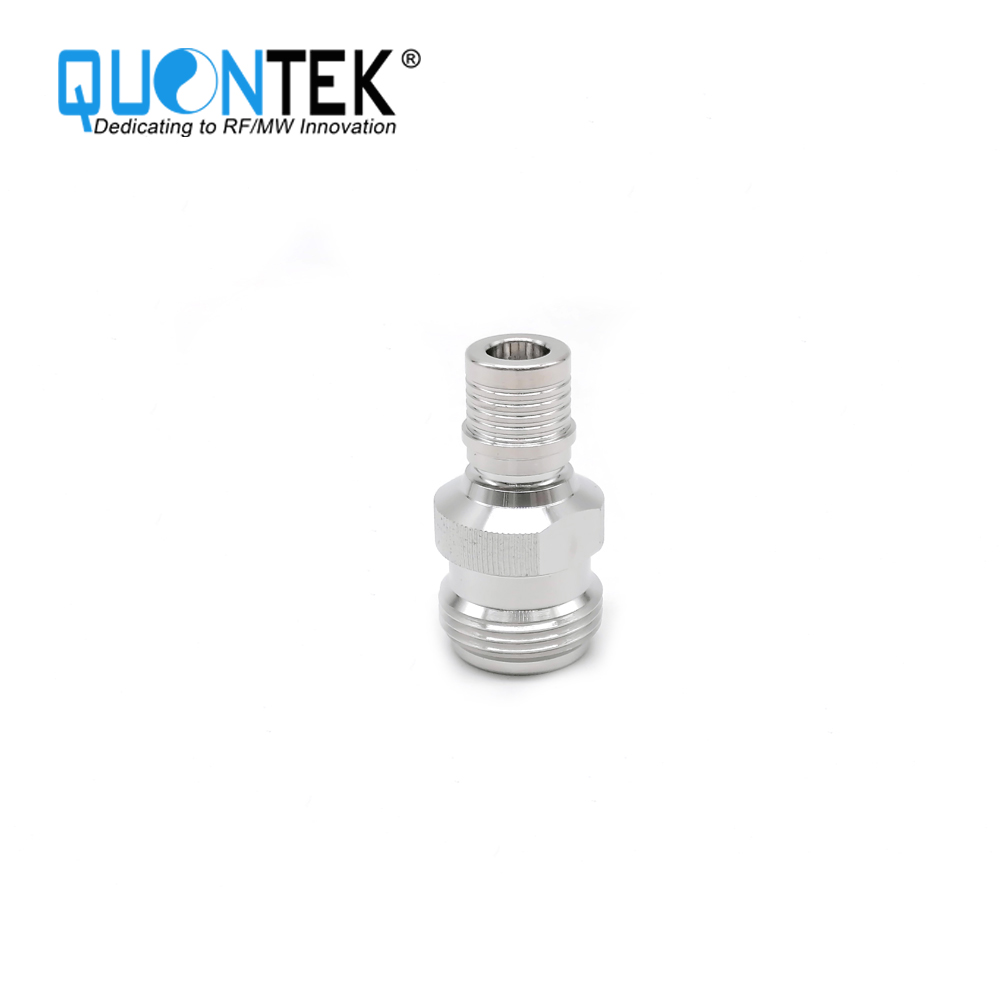

Low PIM Adapter,N Female to QMA Female,Flange mounted

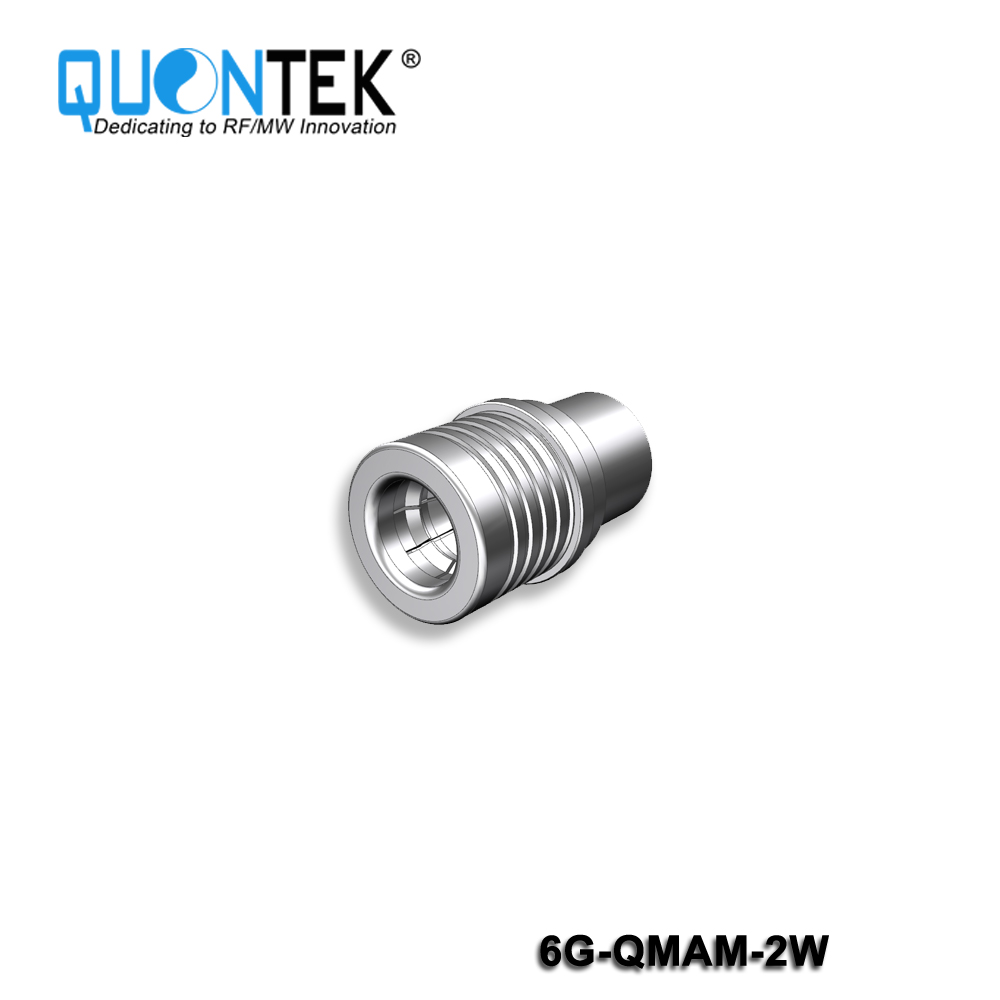

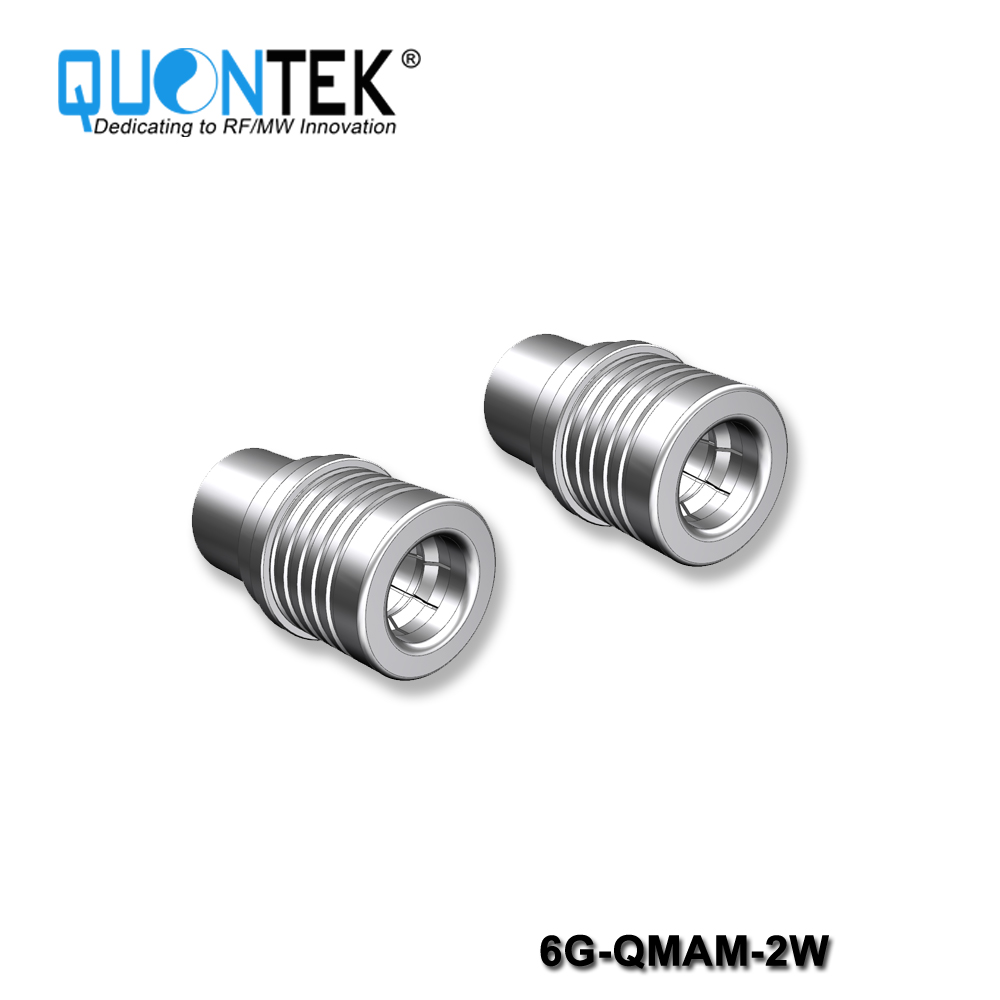

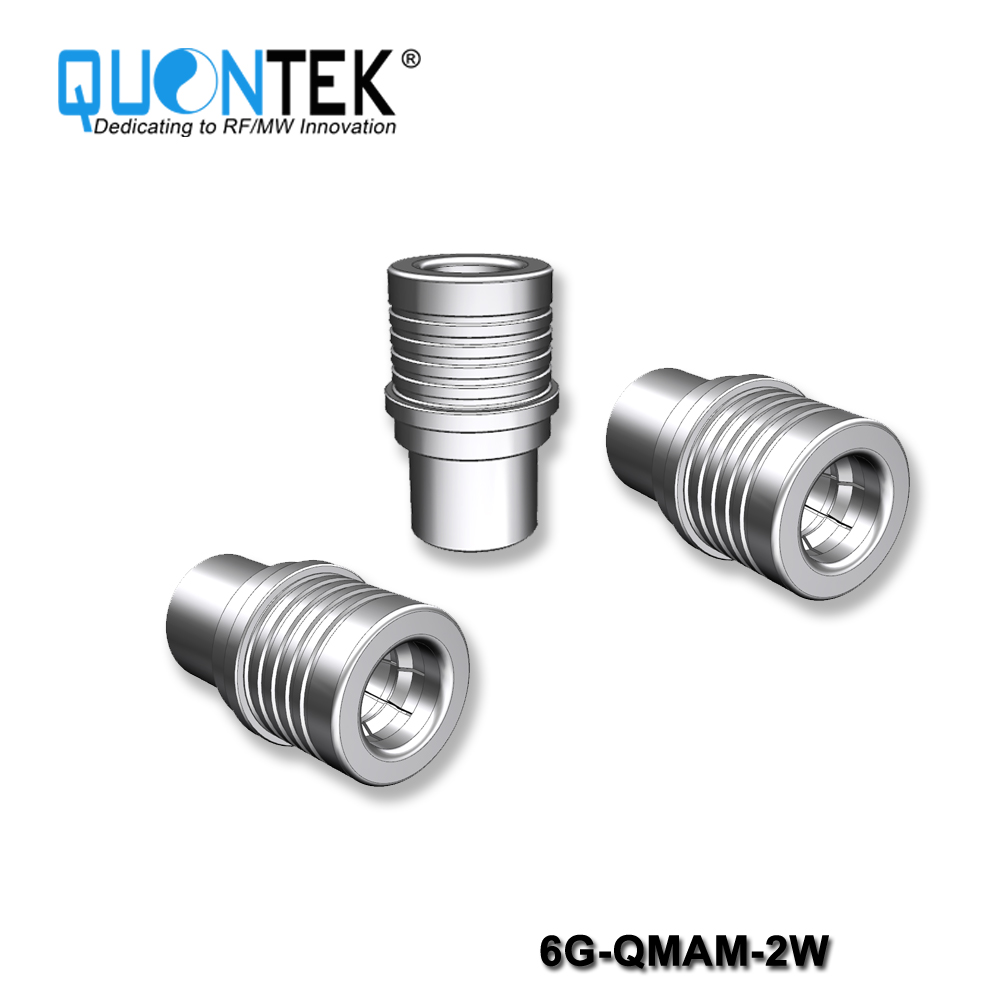

RF Termimation, QMA male 50 ohm load,2w,6GHz

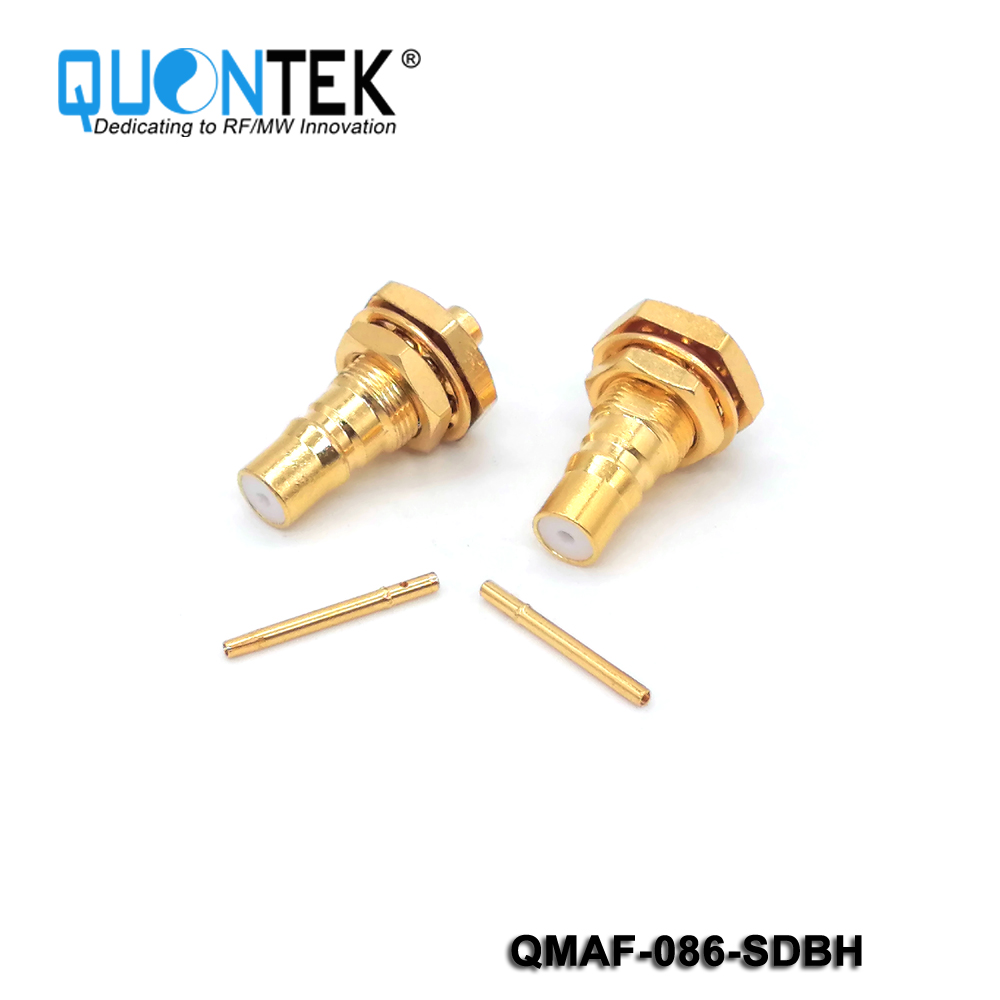

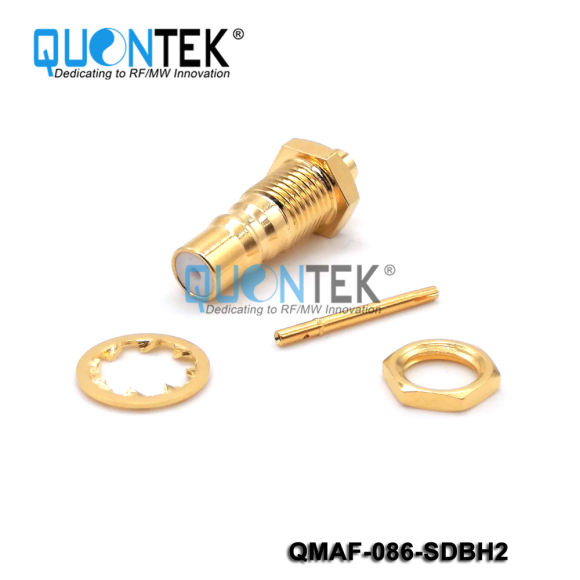

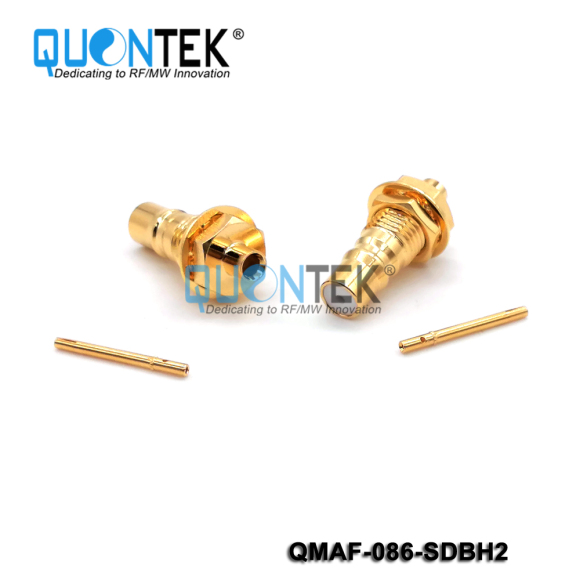

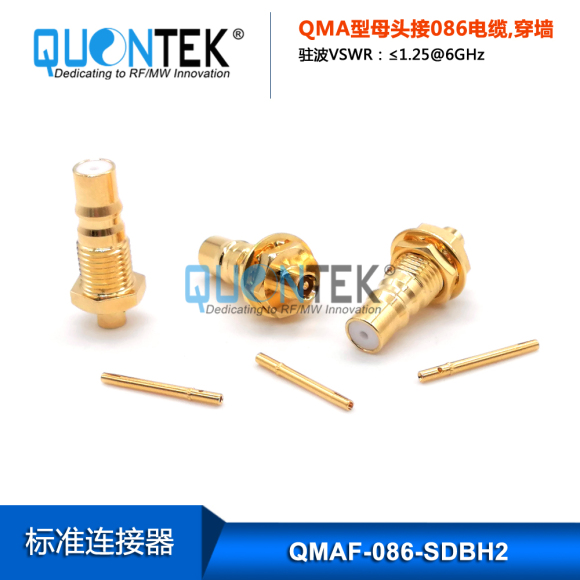

Standard Connector, QMA Female for .086 cable,solder type type

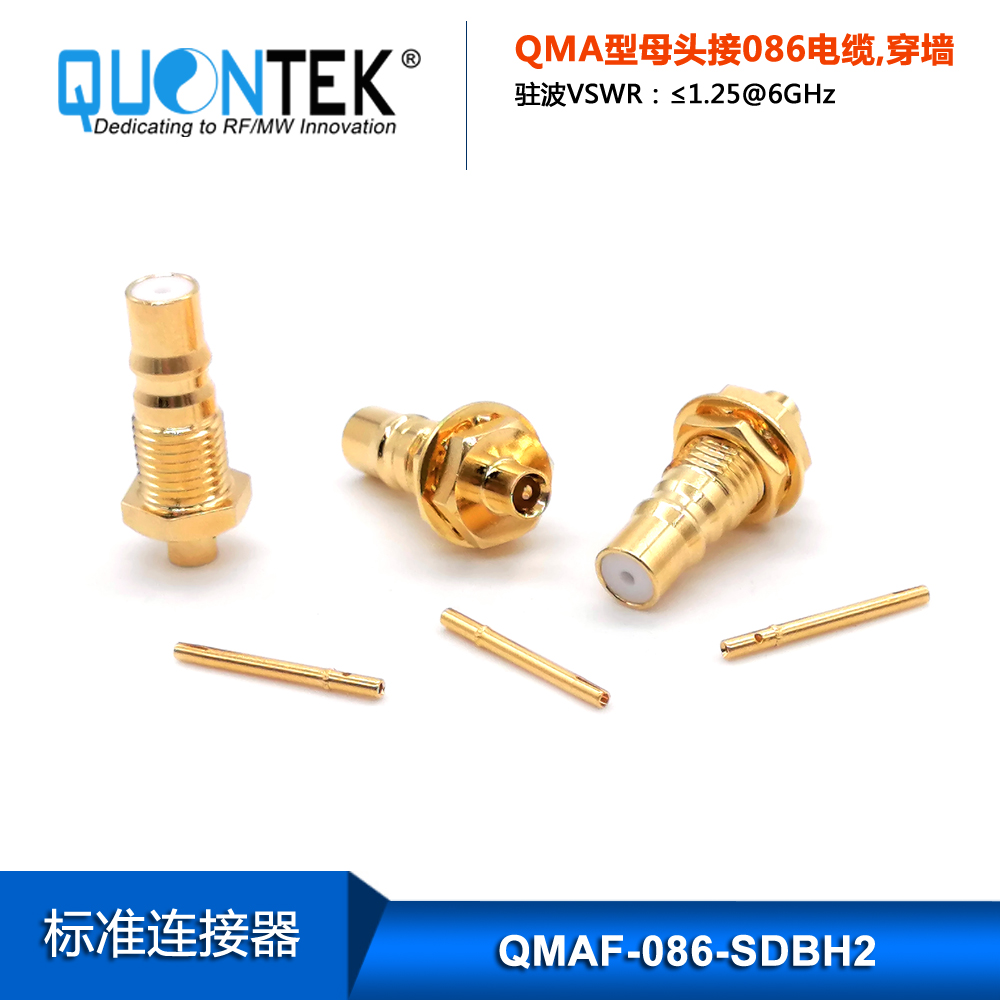

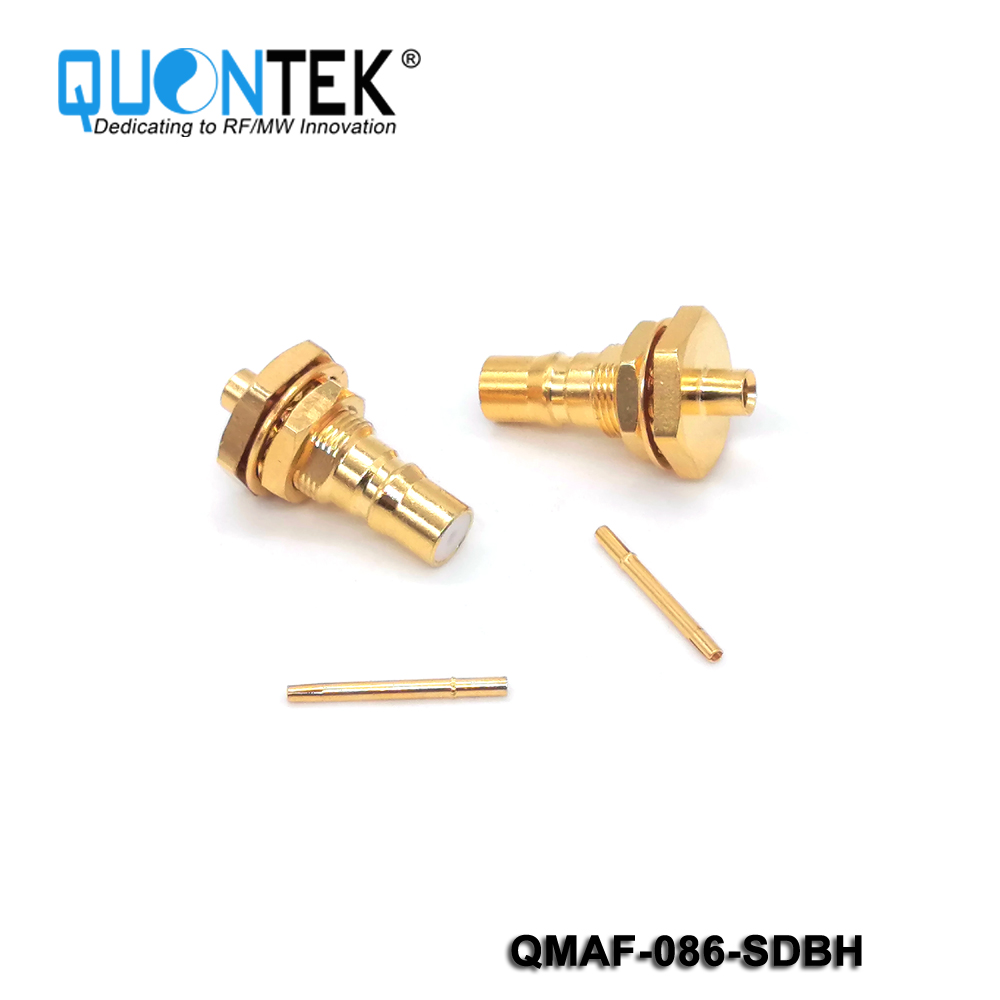

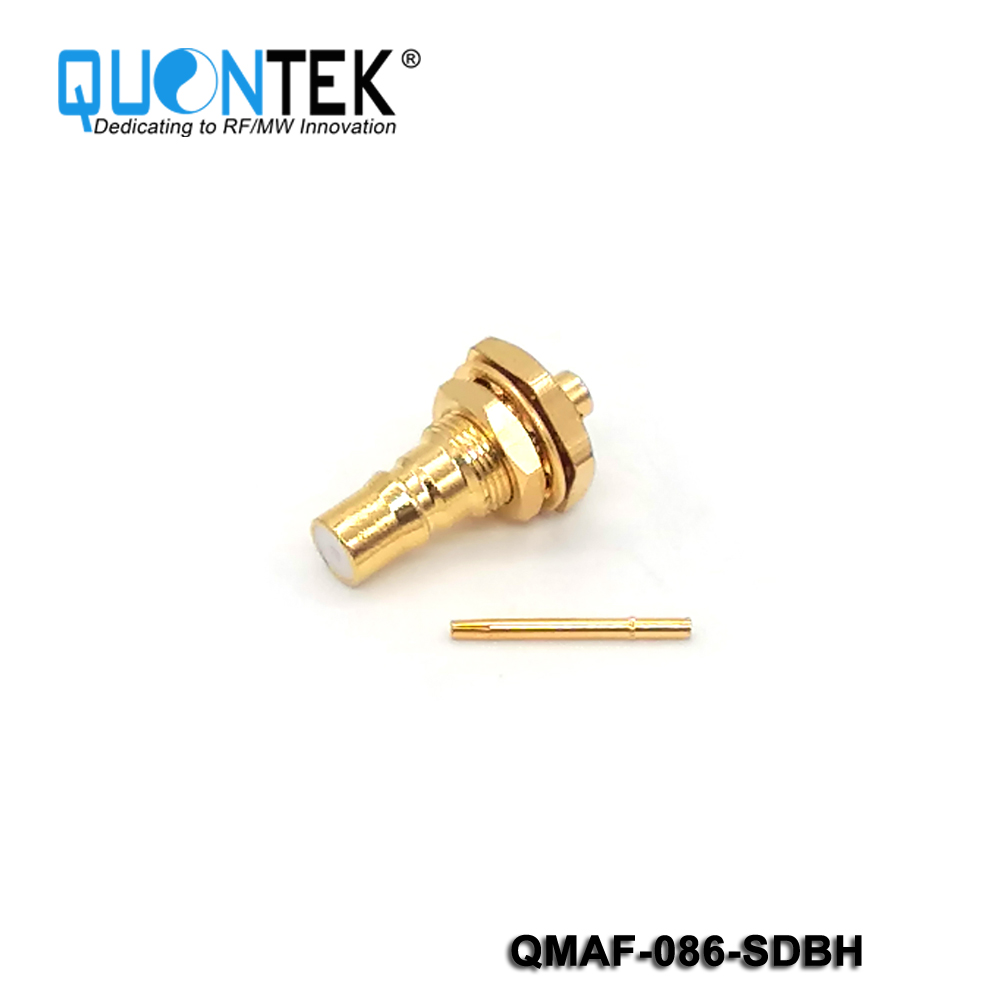

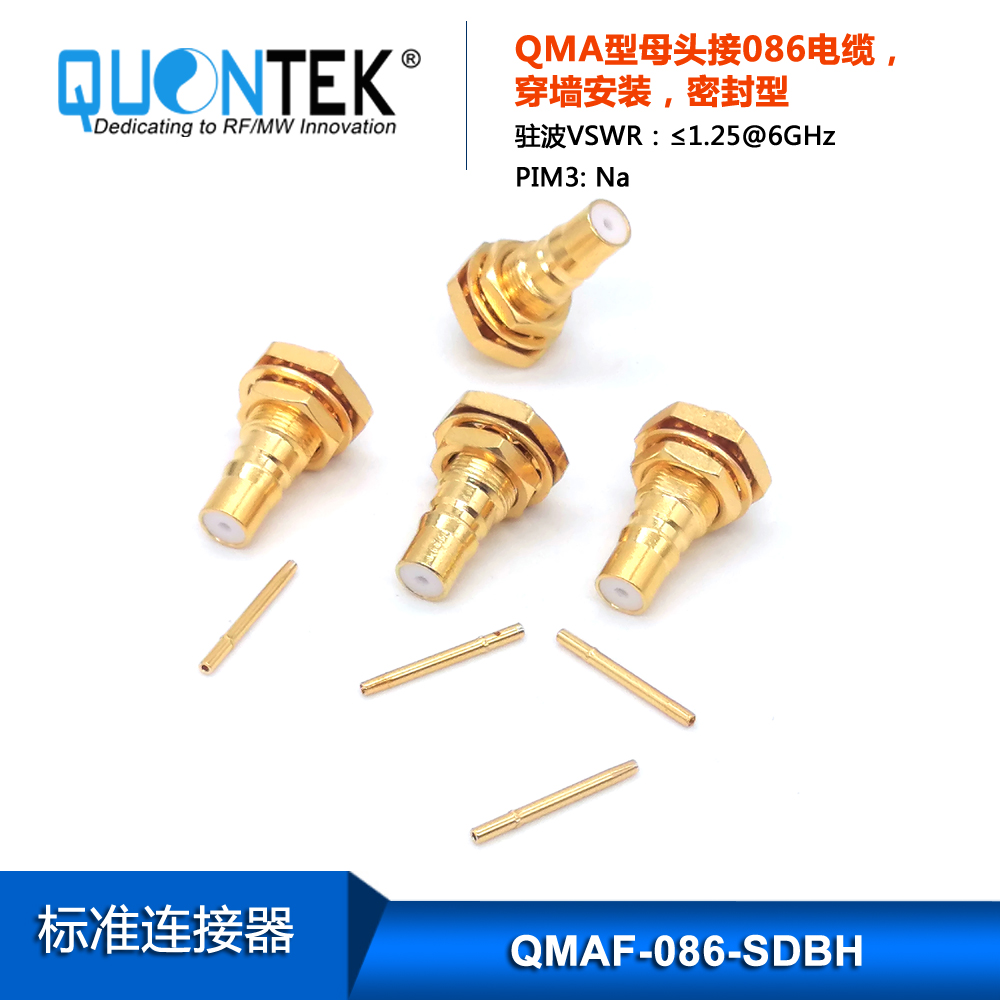

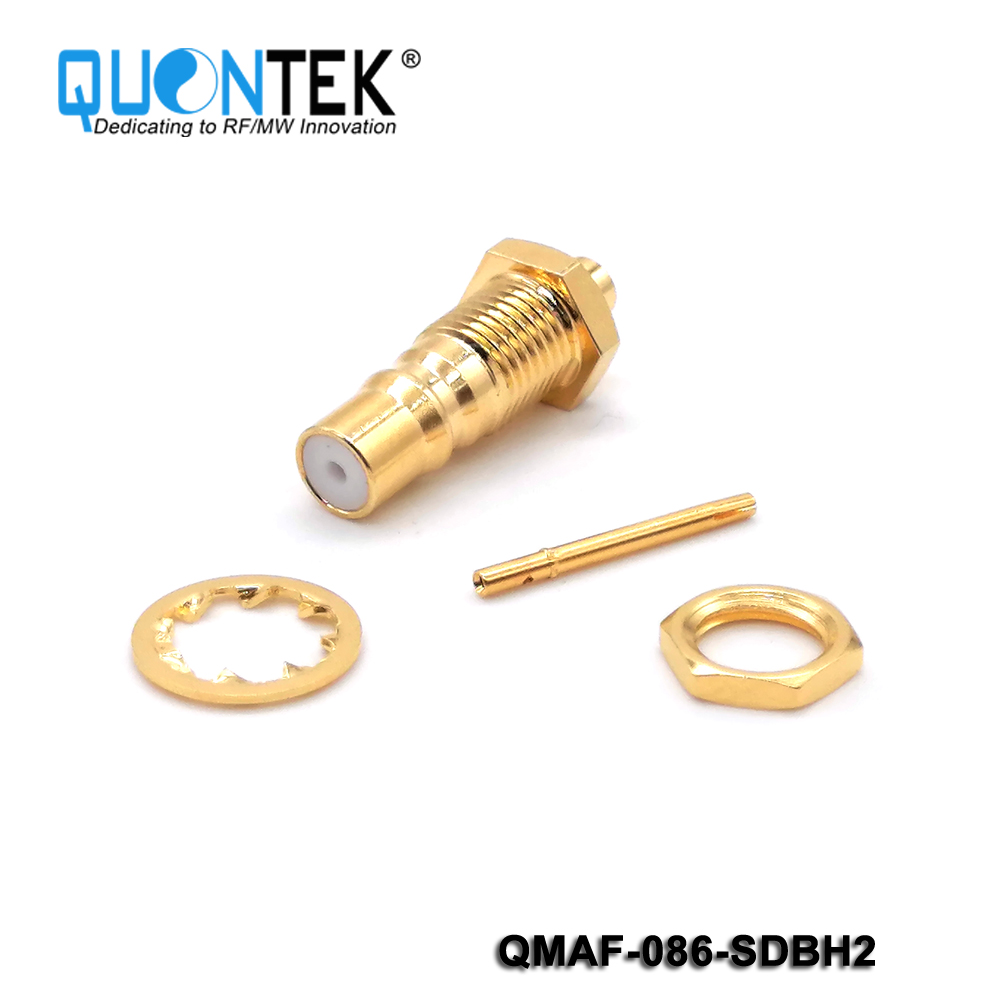

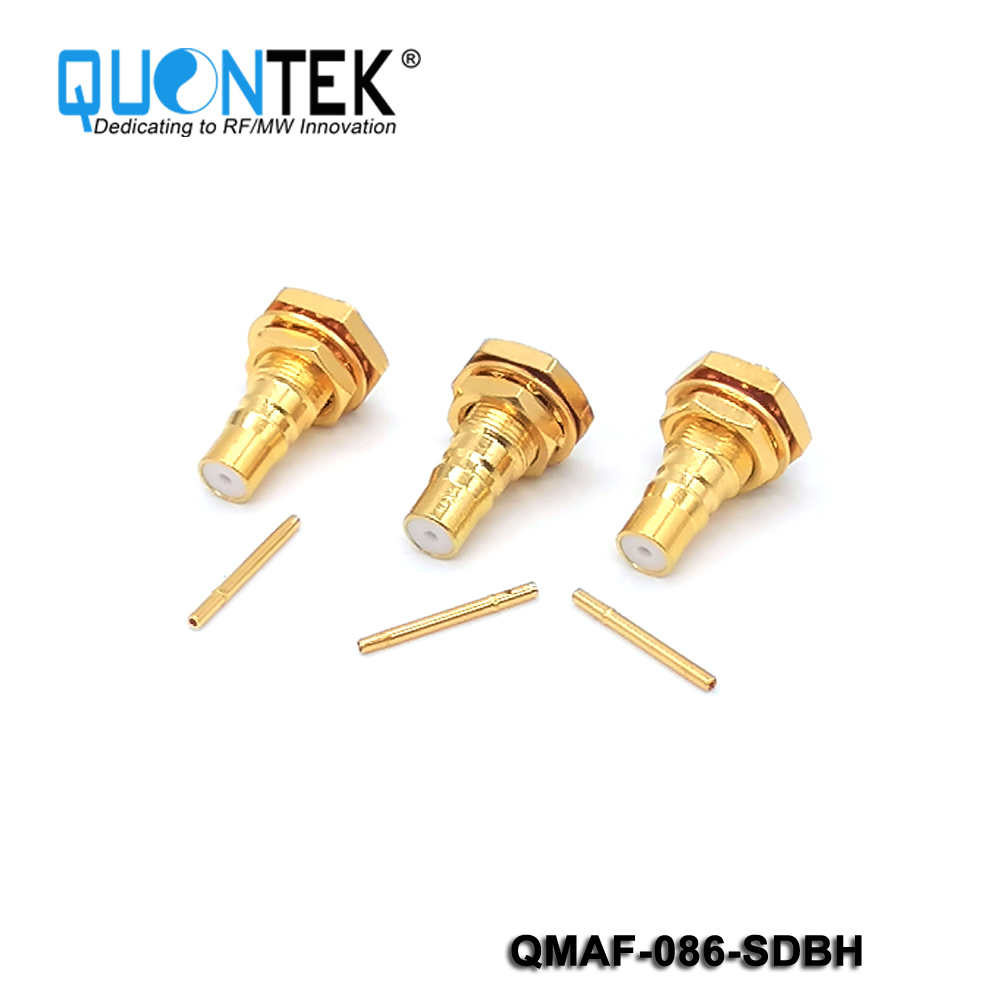

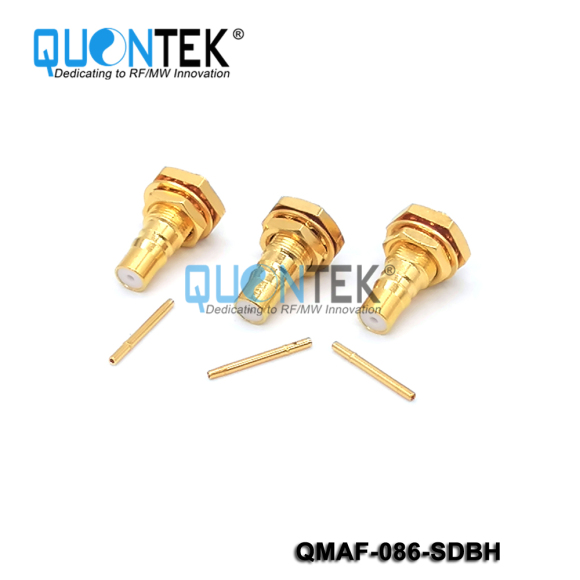

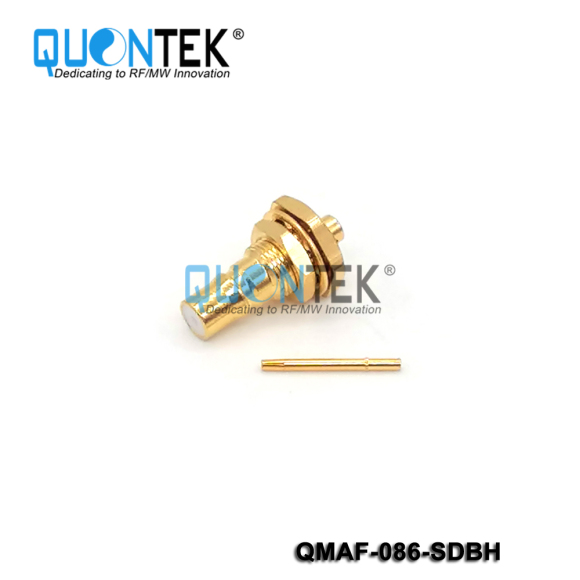

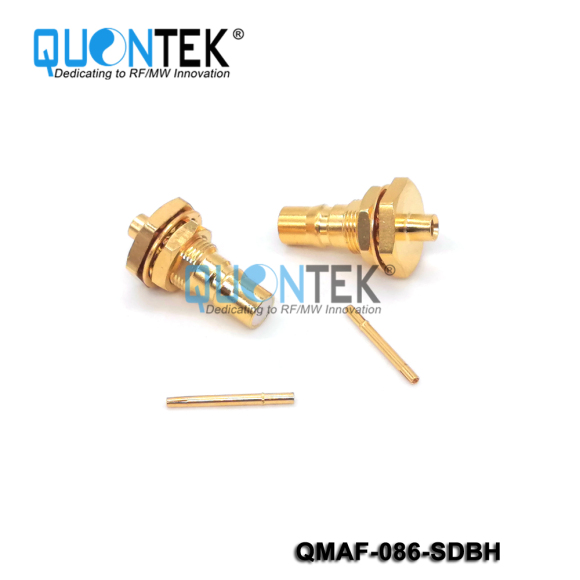

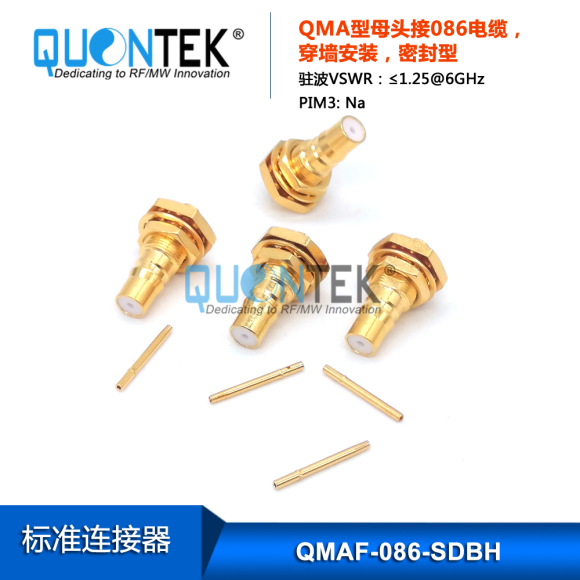

Standard Connector, QMA Female for .086 cable,solder type,Bulkhead mounted

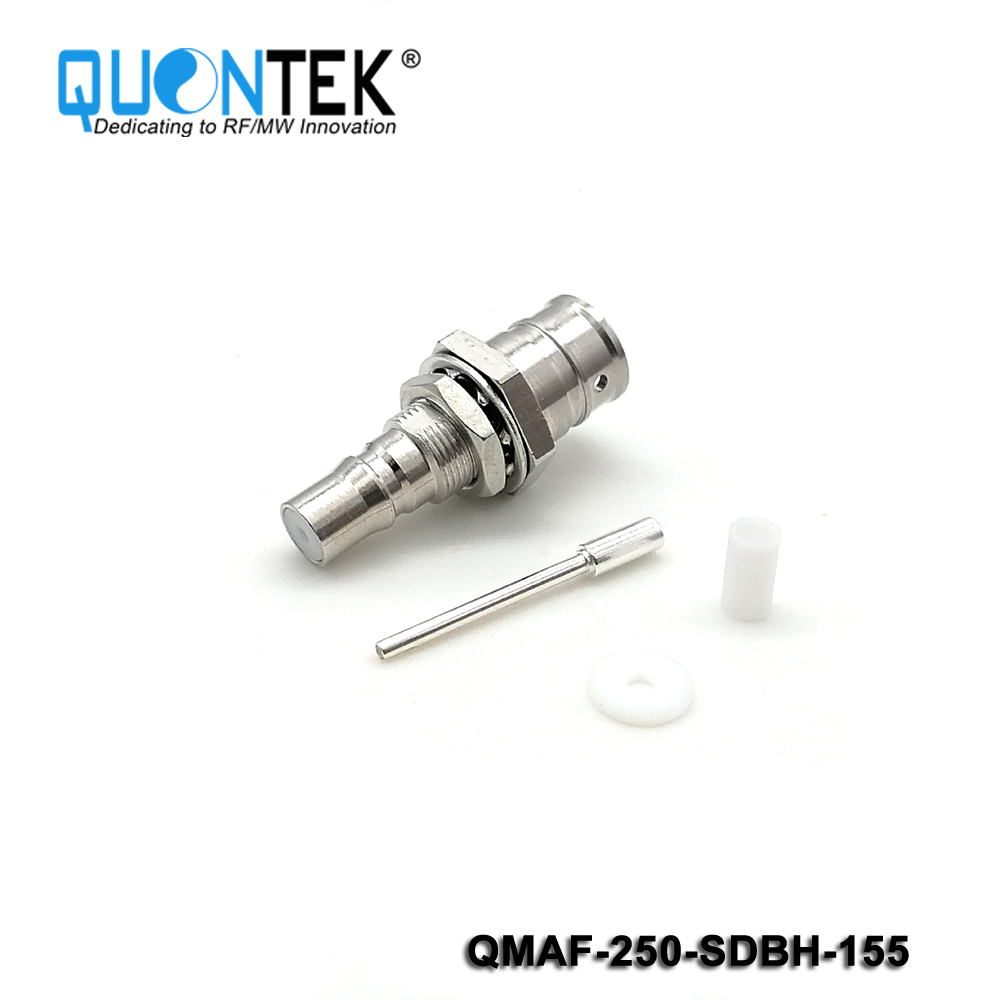

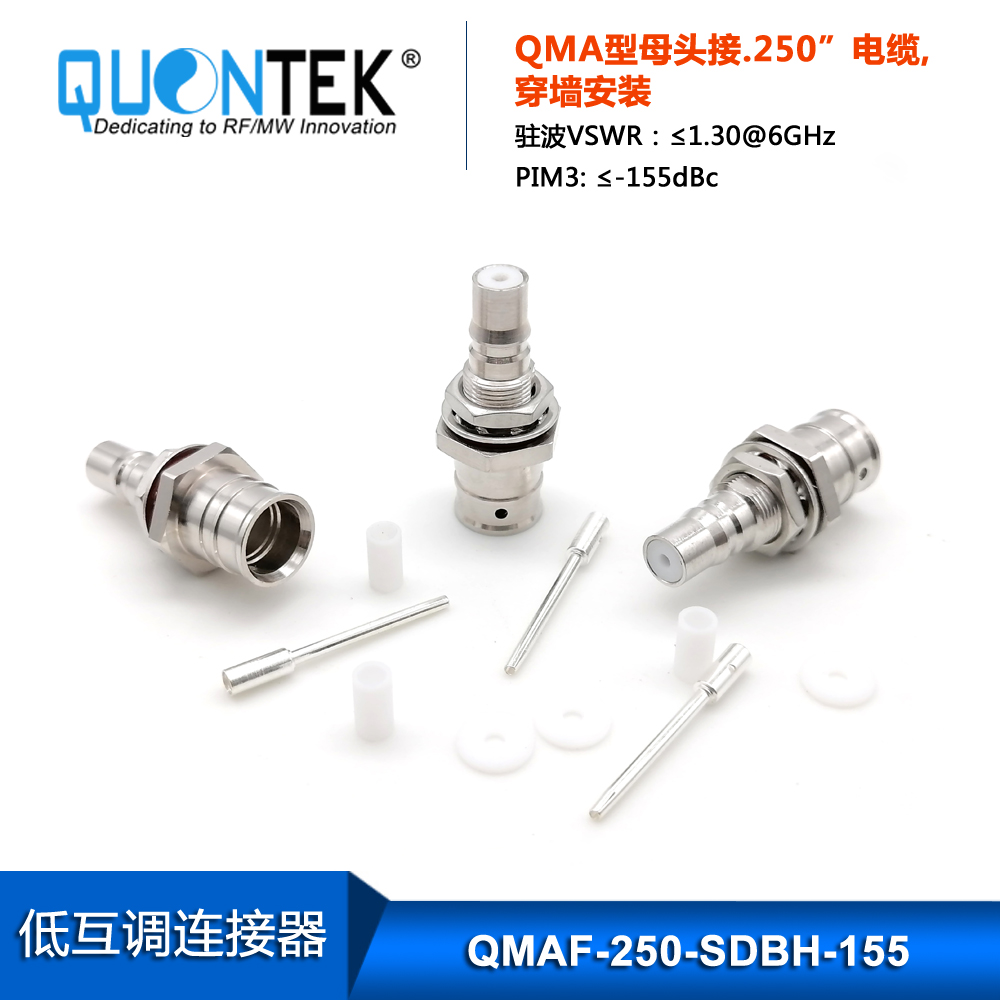

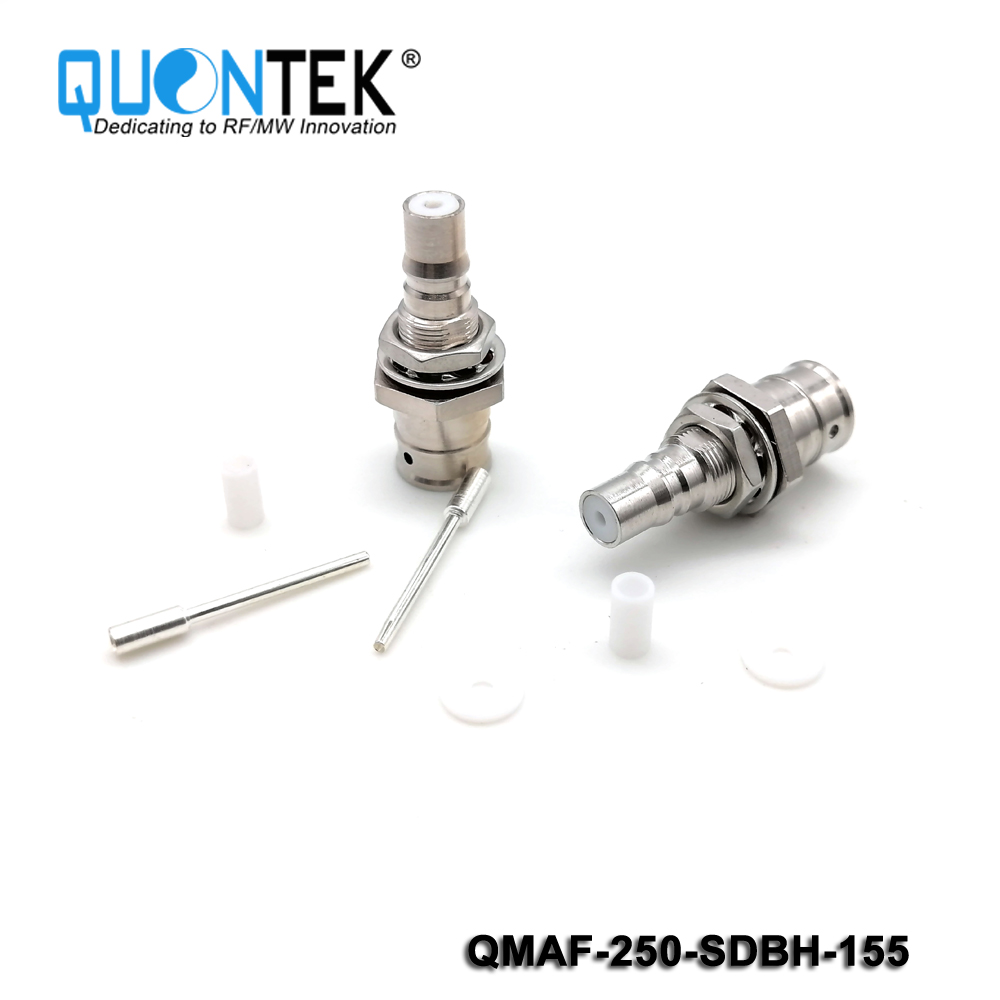

Low PIM Connector,QMA female for 250/RG401 cable,Bulkhead mounted,solder type

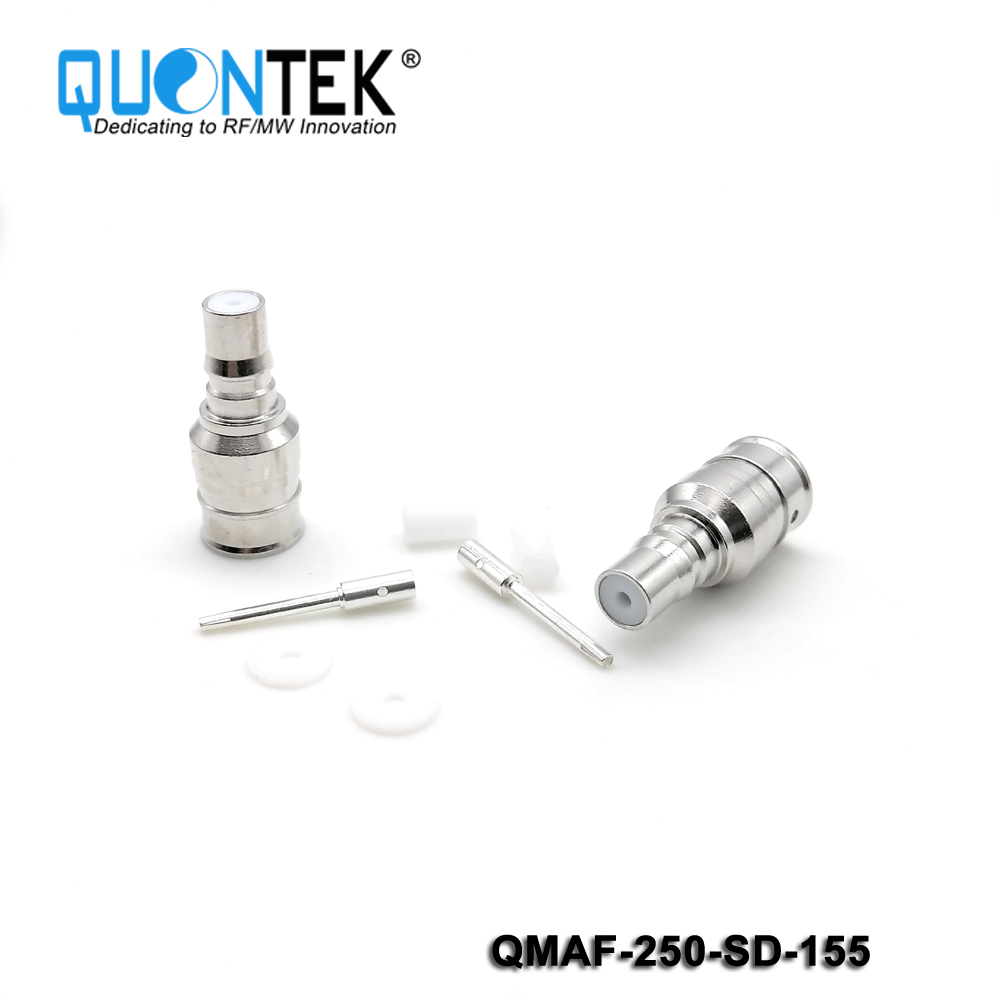

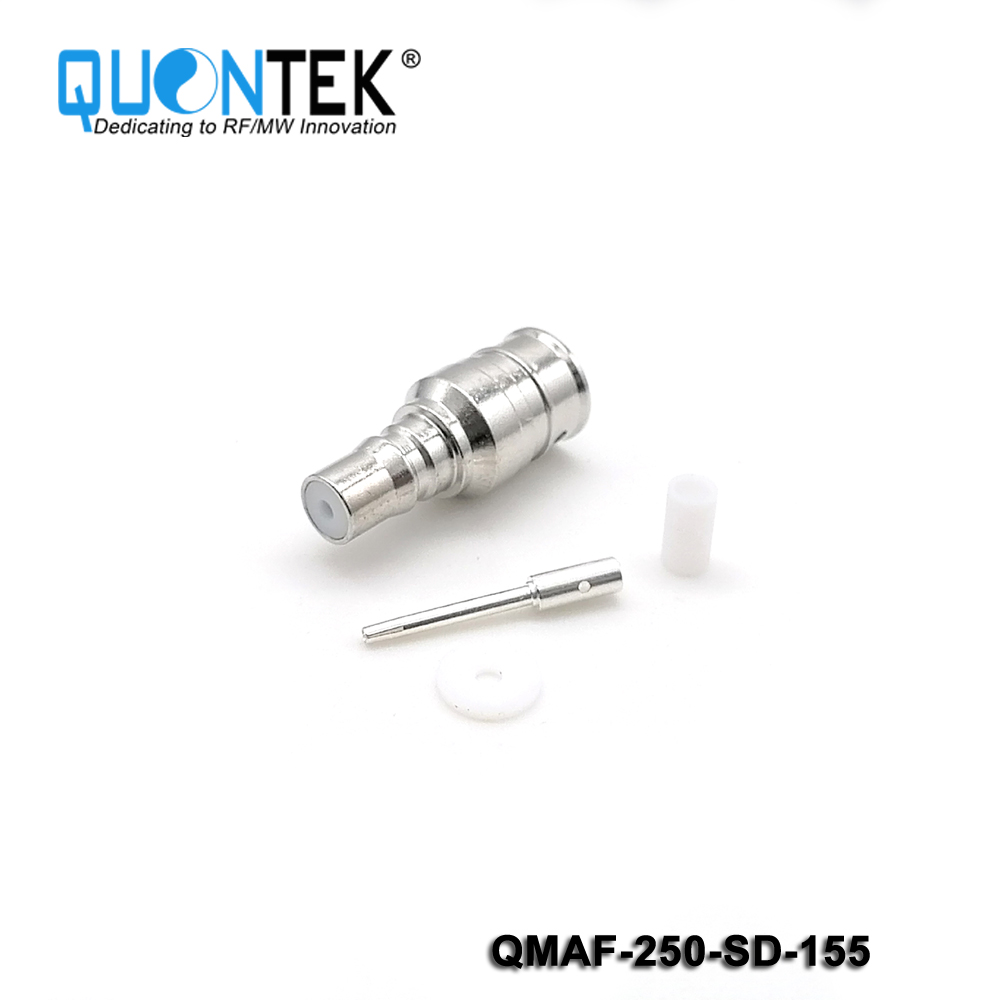

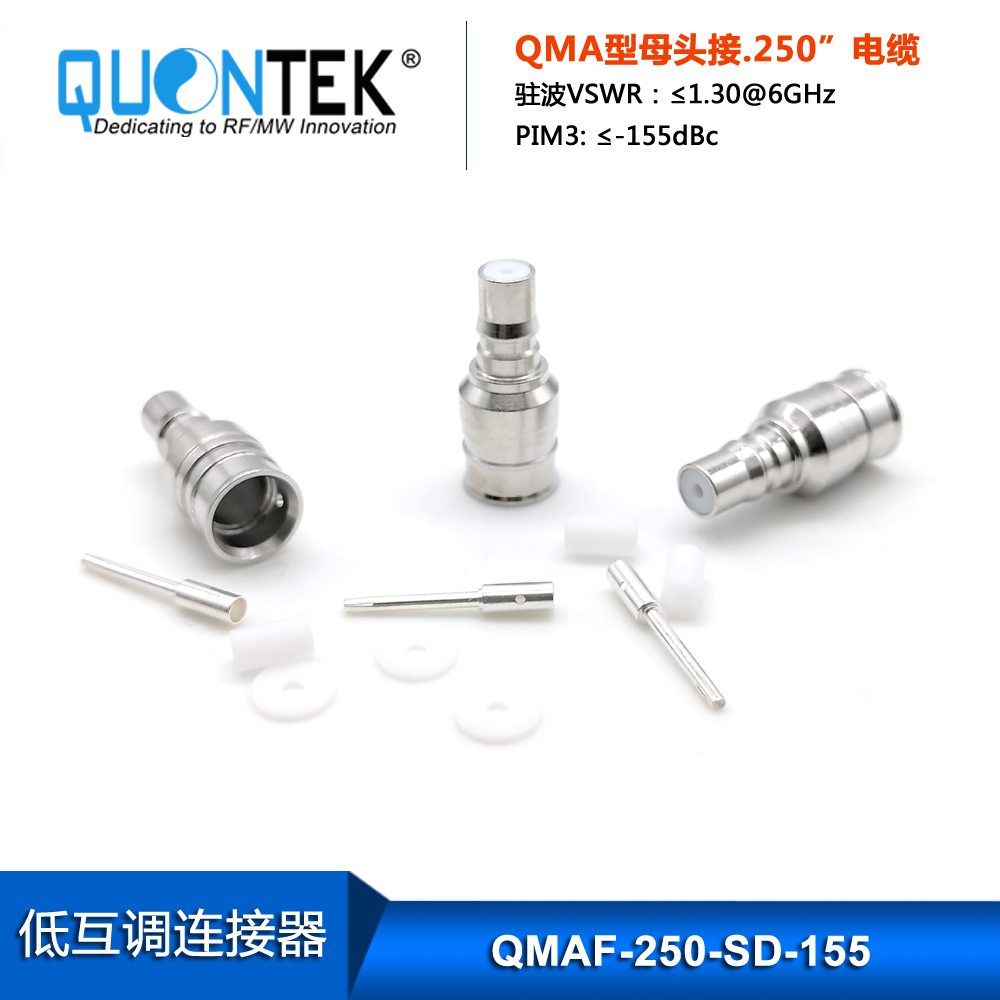

Low PIM Connector,QMA female for 250/RG401 cable,solder type

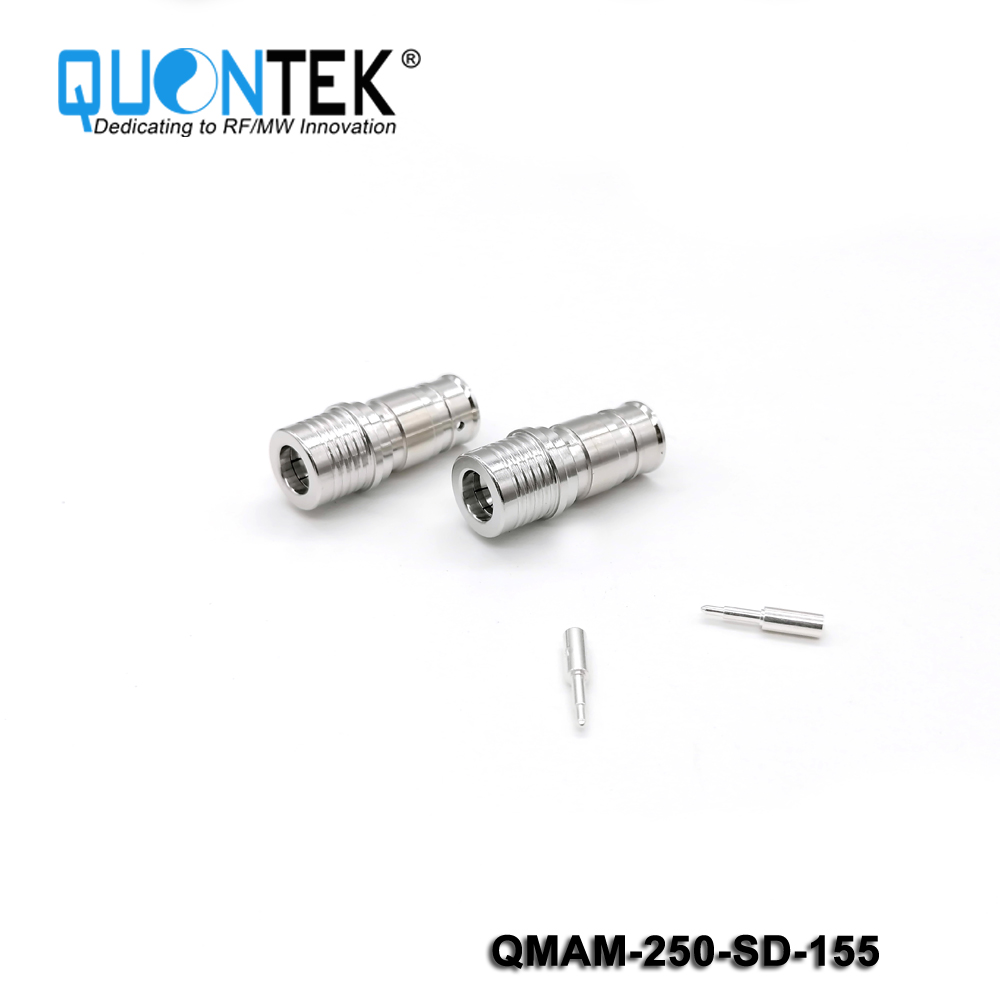

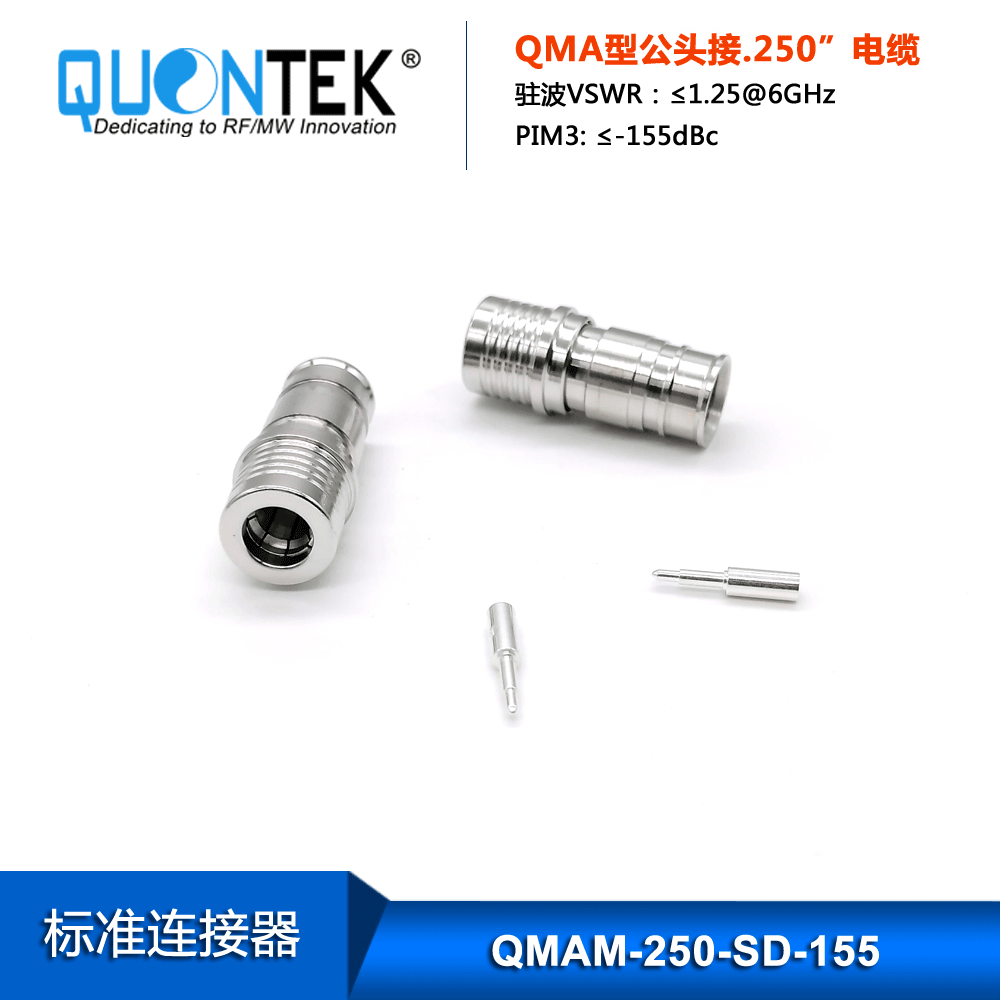

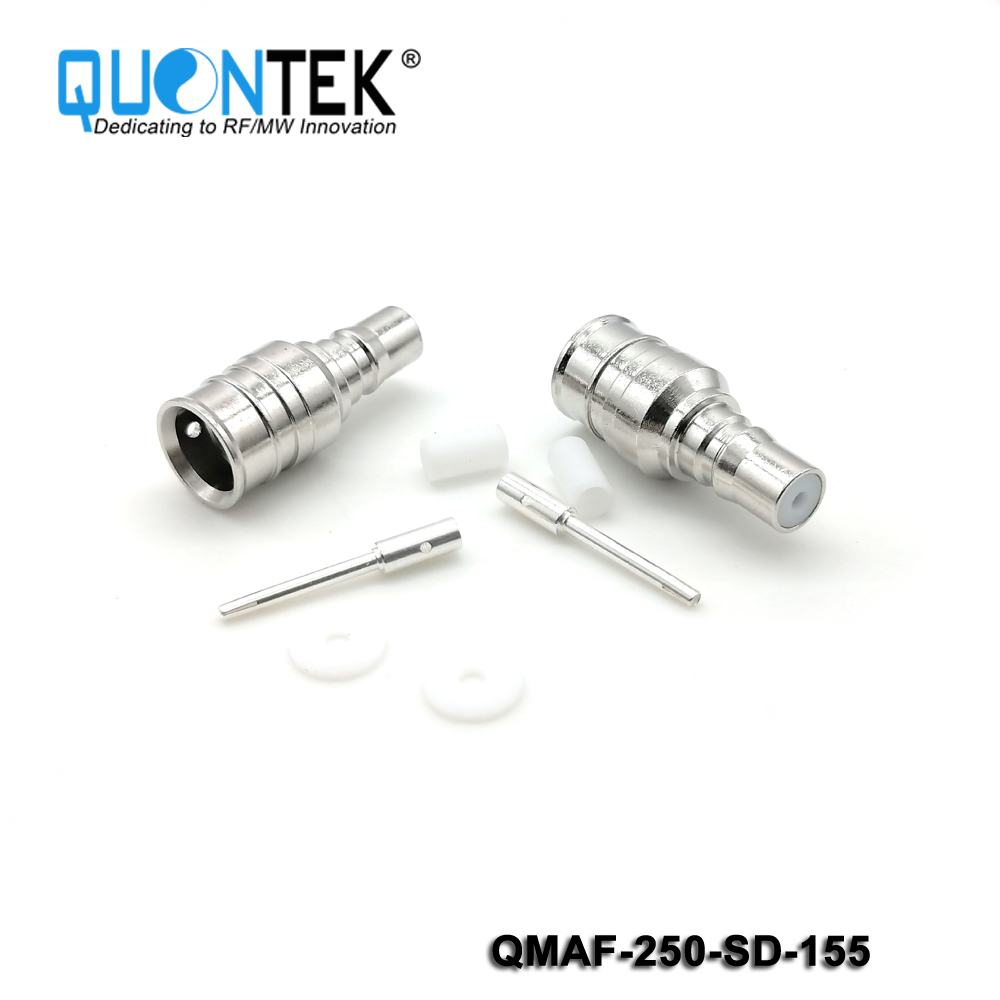

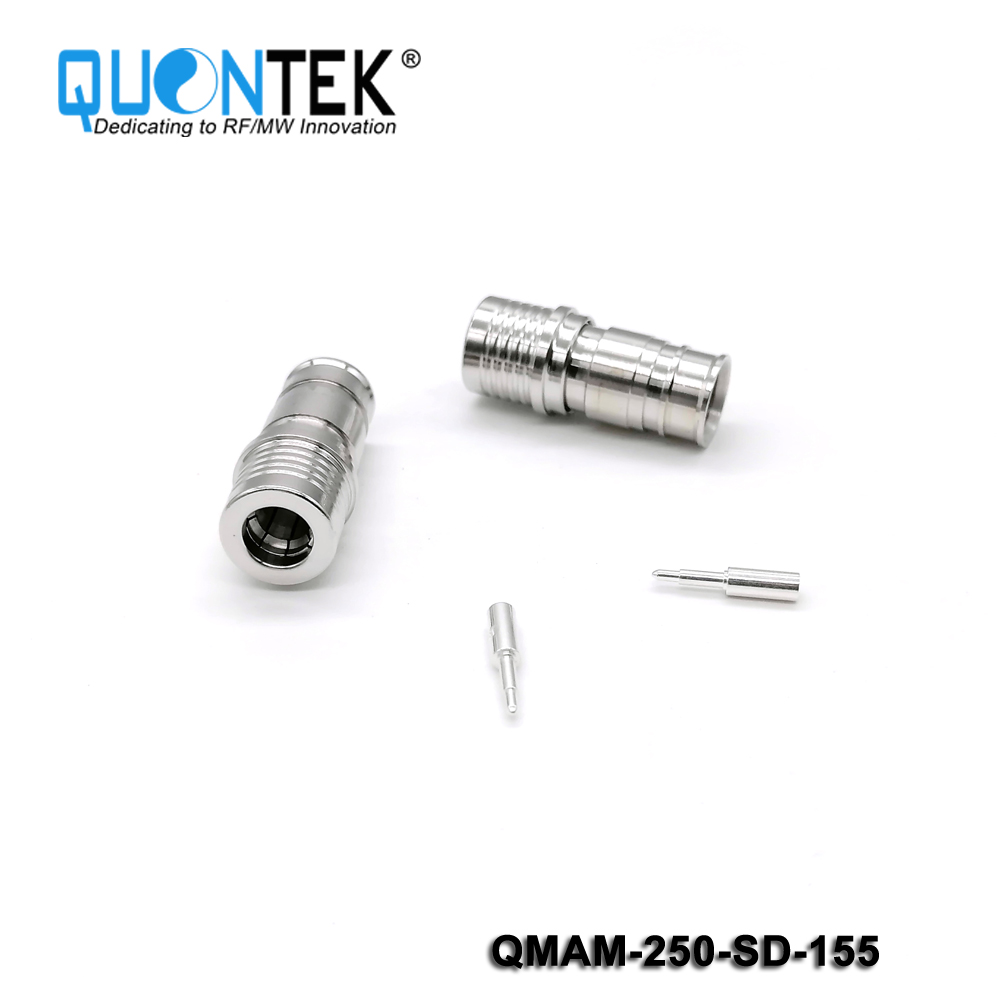

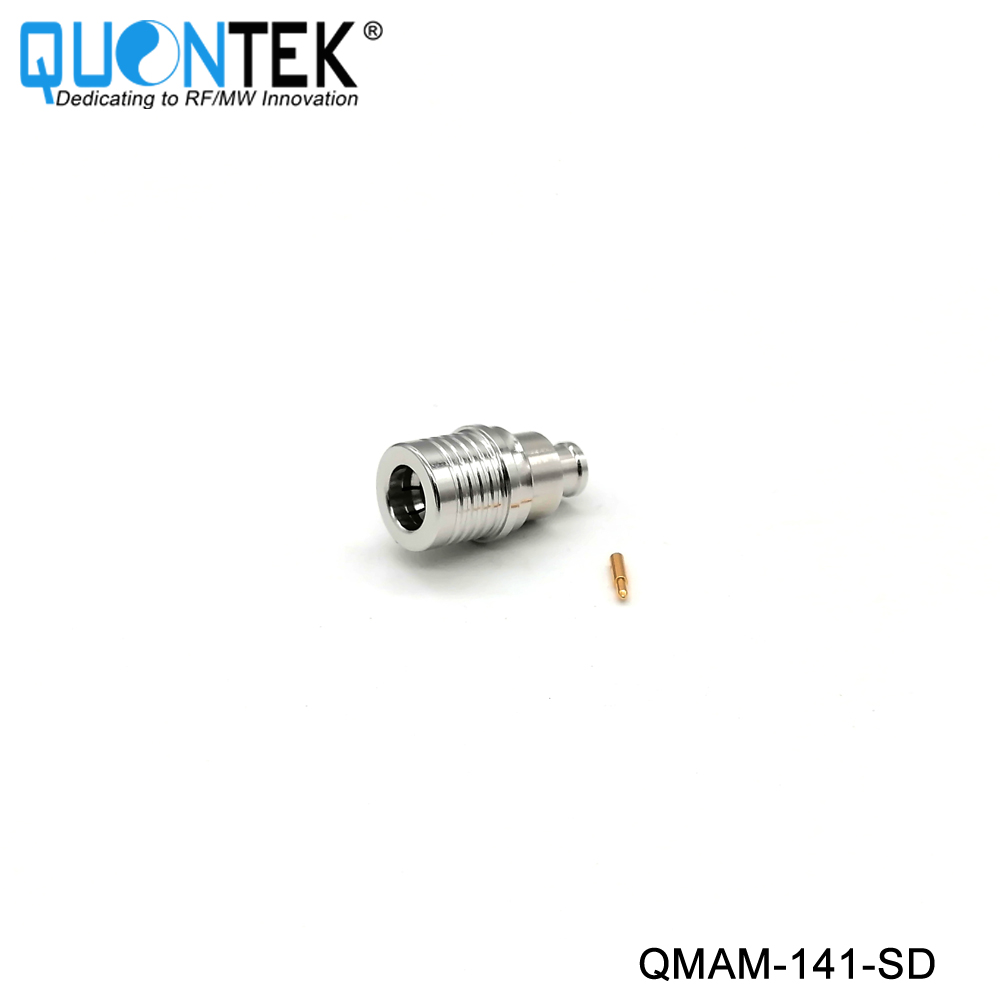

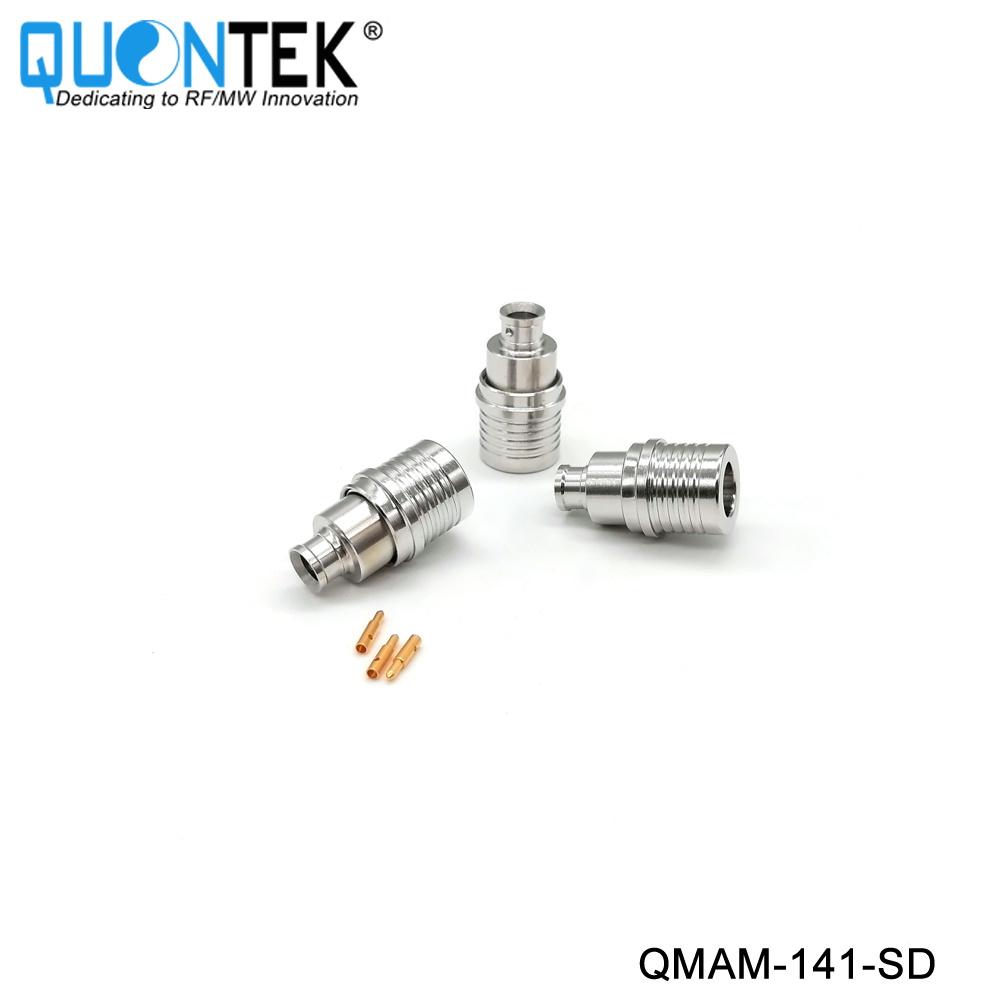

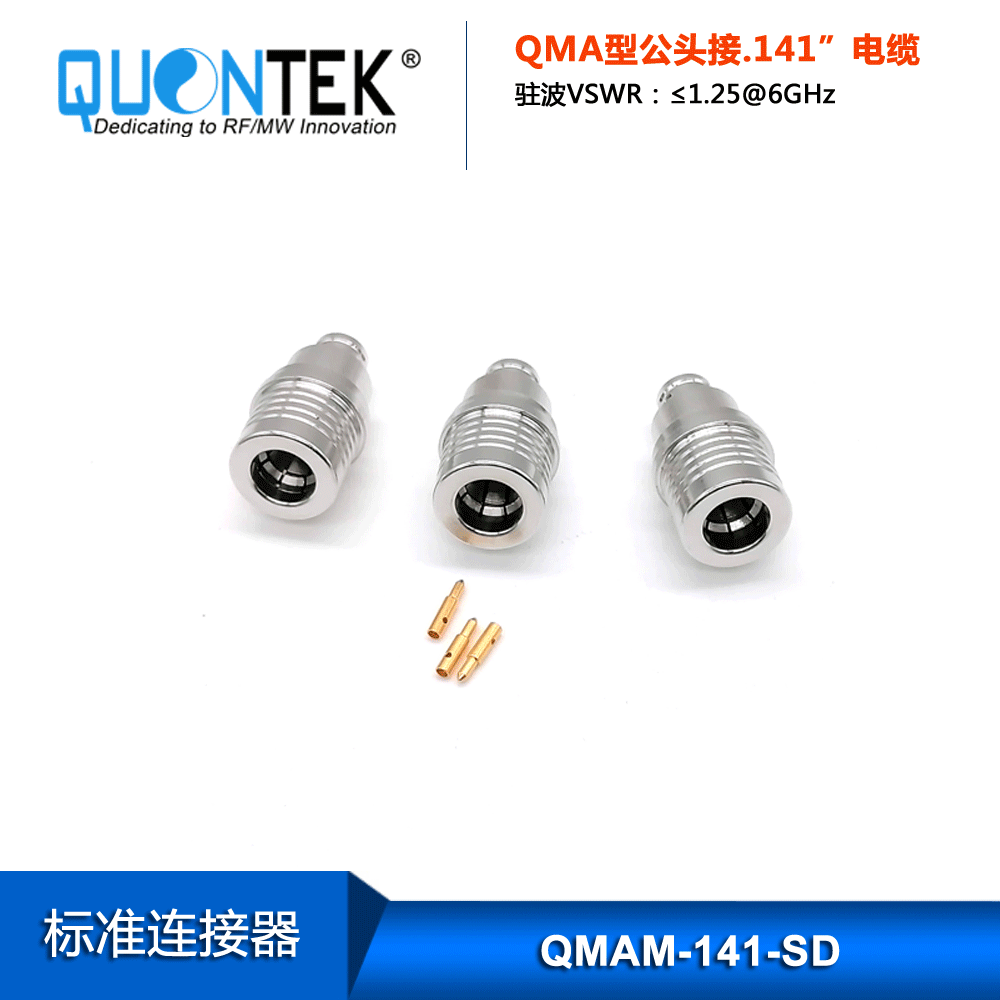

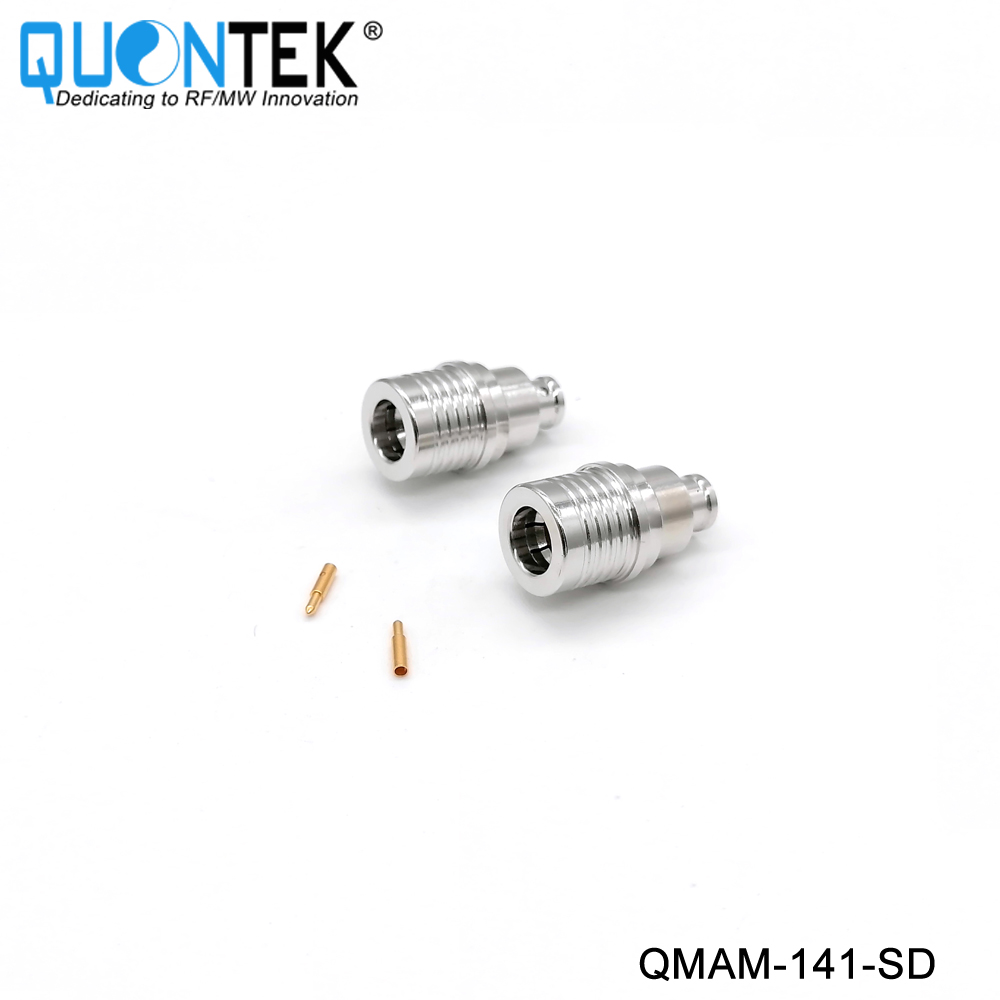

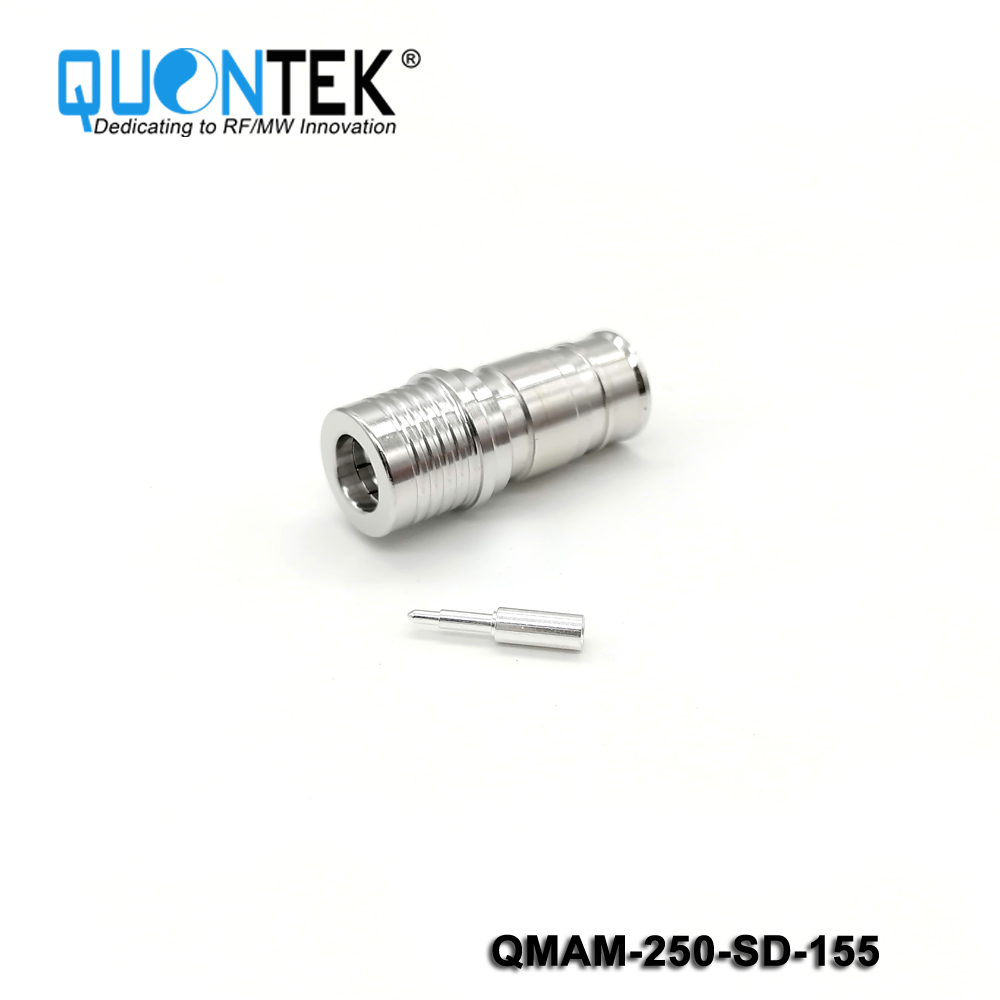

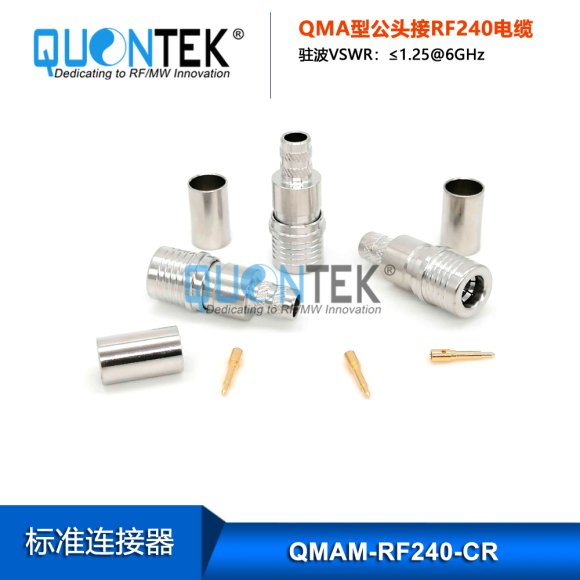

Standard Connector,QMA male for 250 cable,Solder type

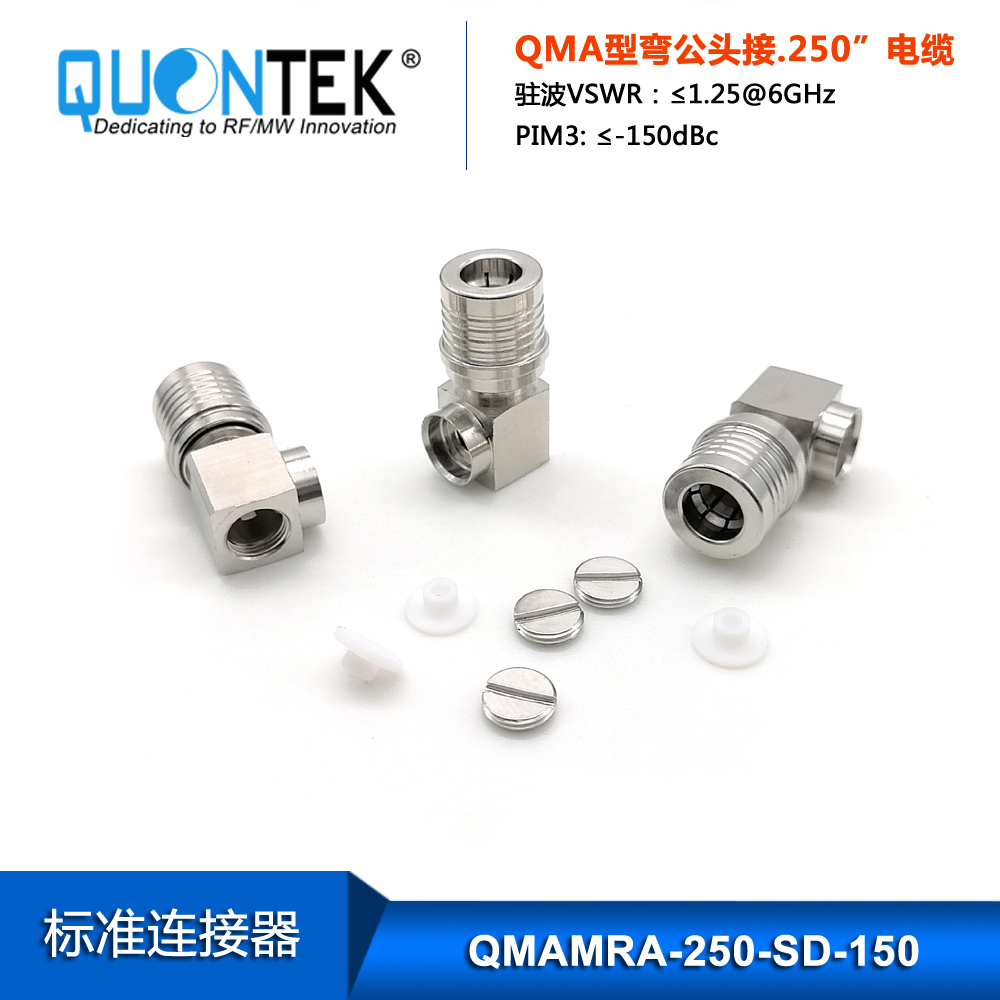

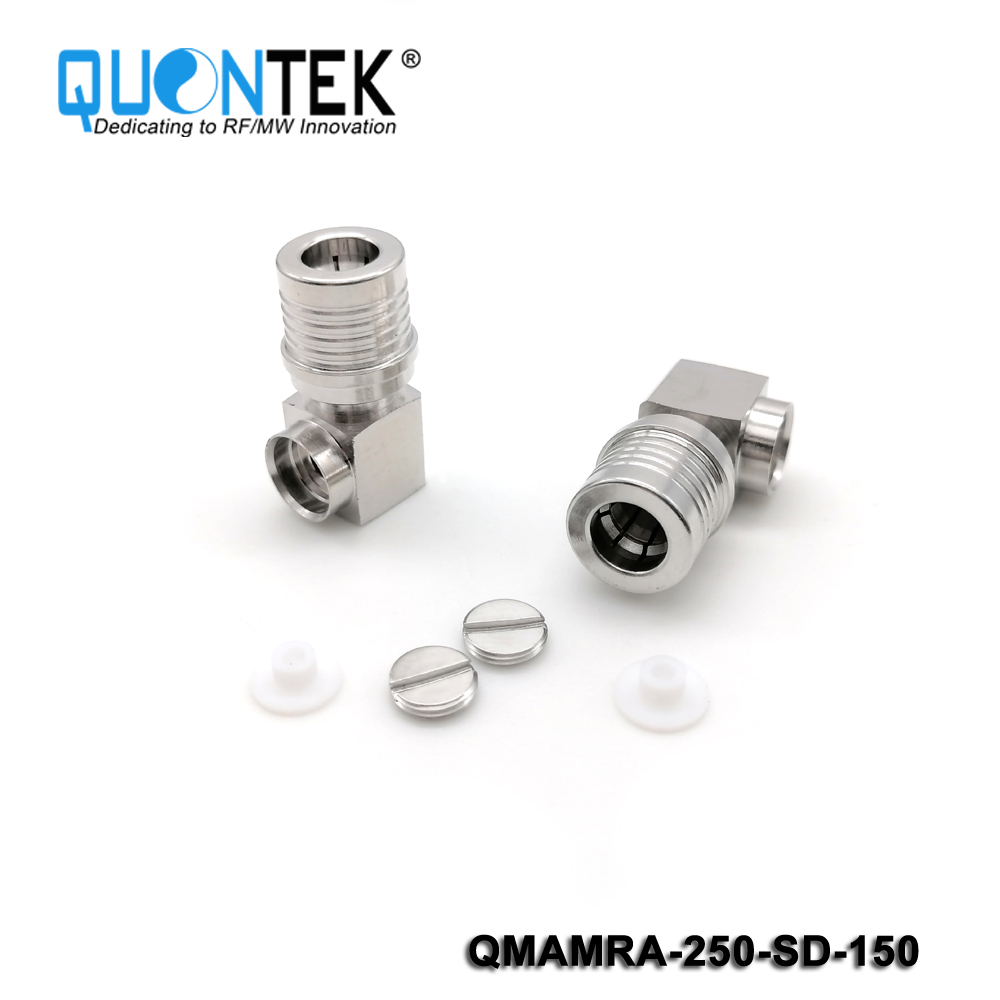

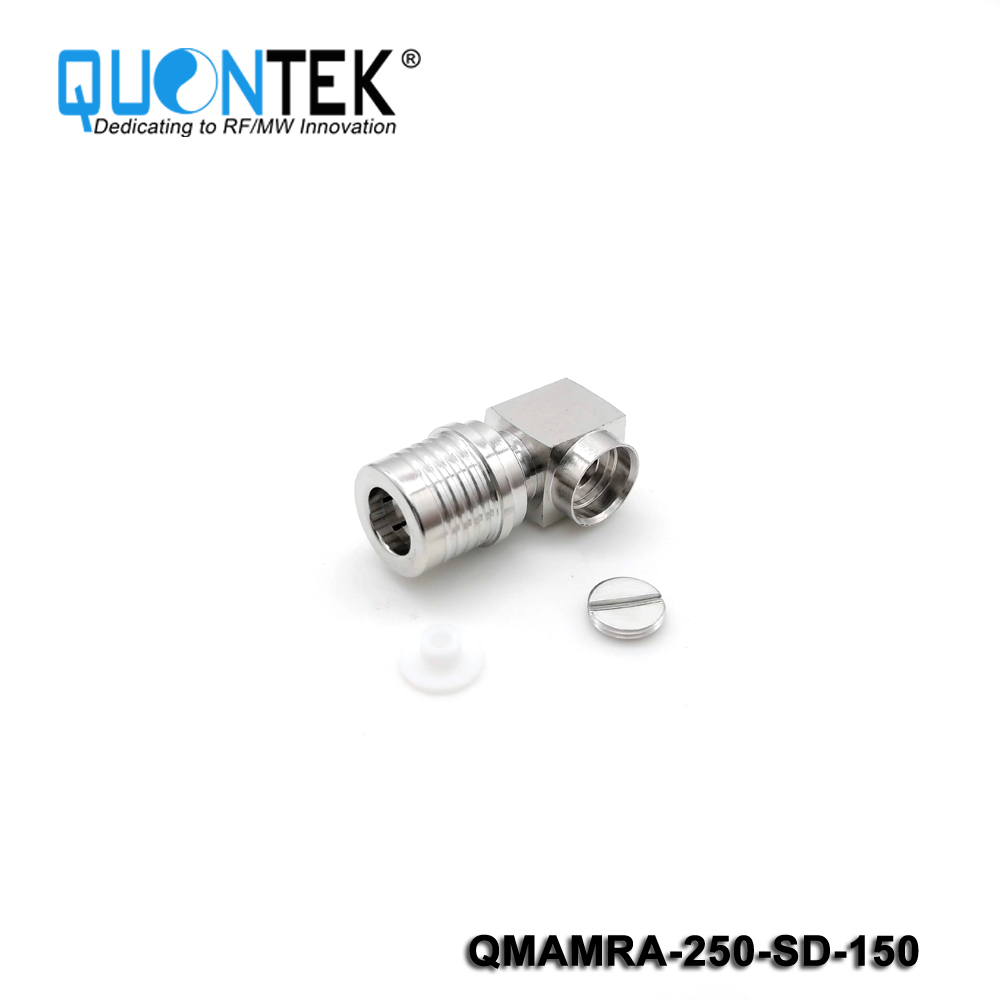

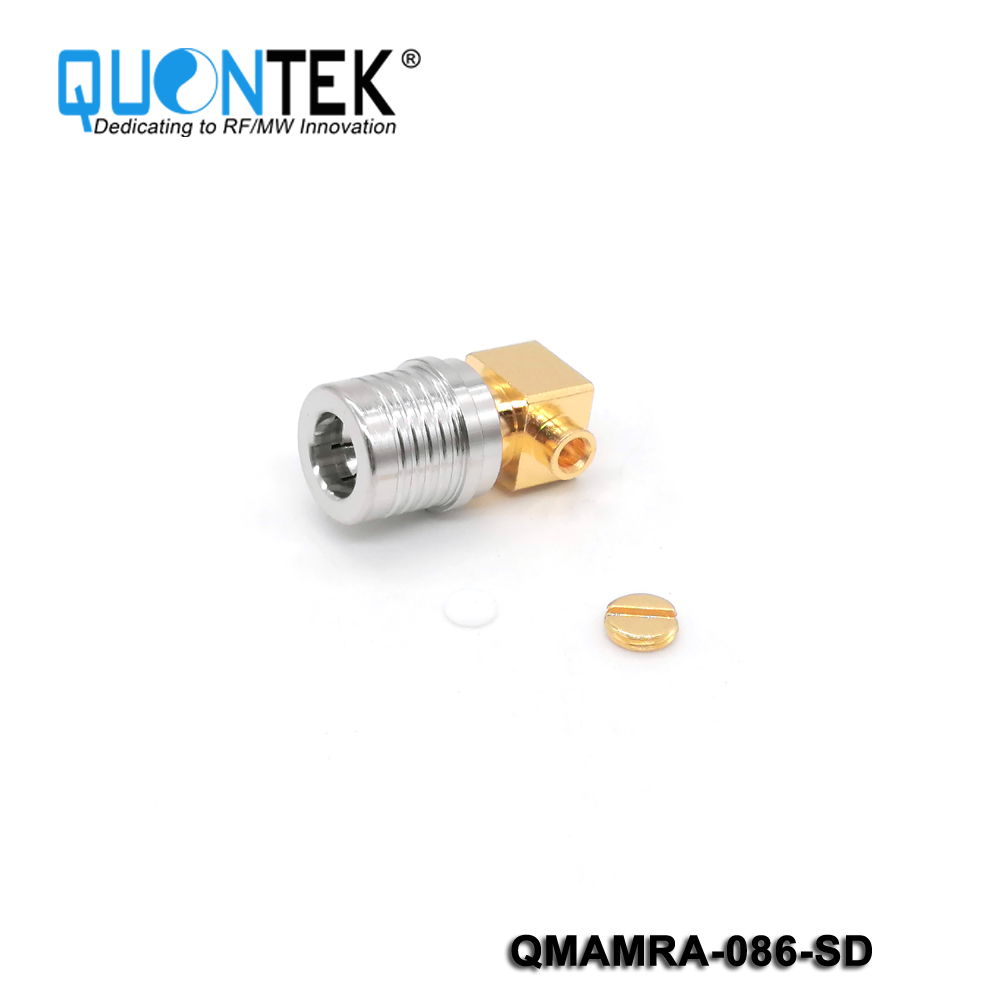

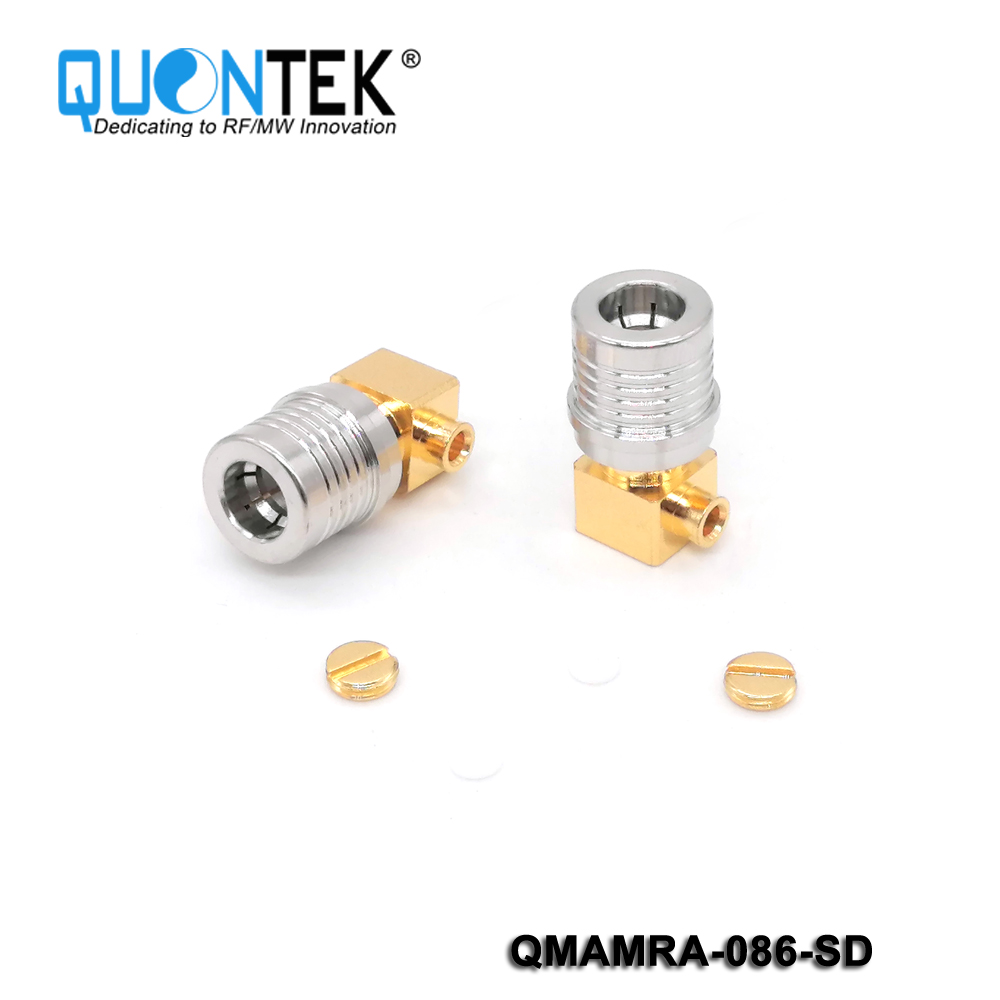

Standard Connector,QMA RA male for 250 cable,Solder type

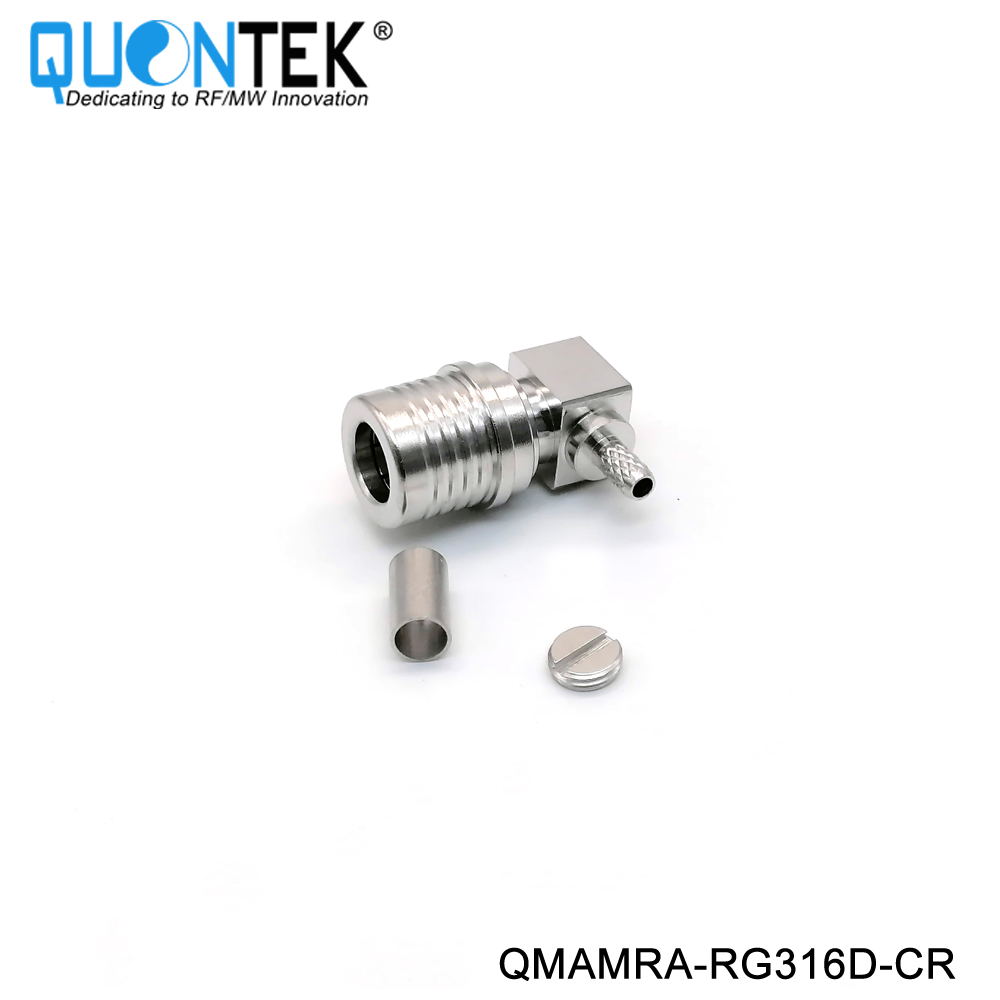

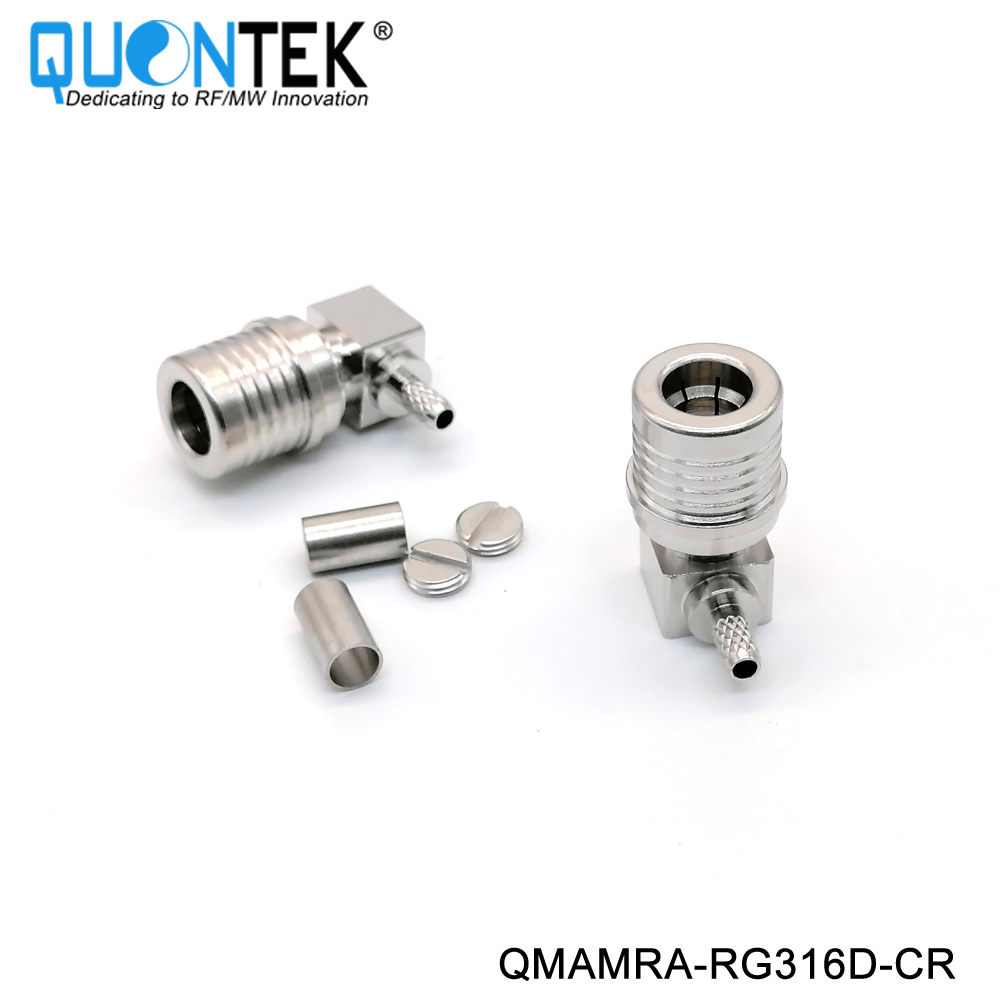

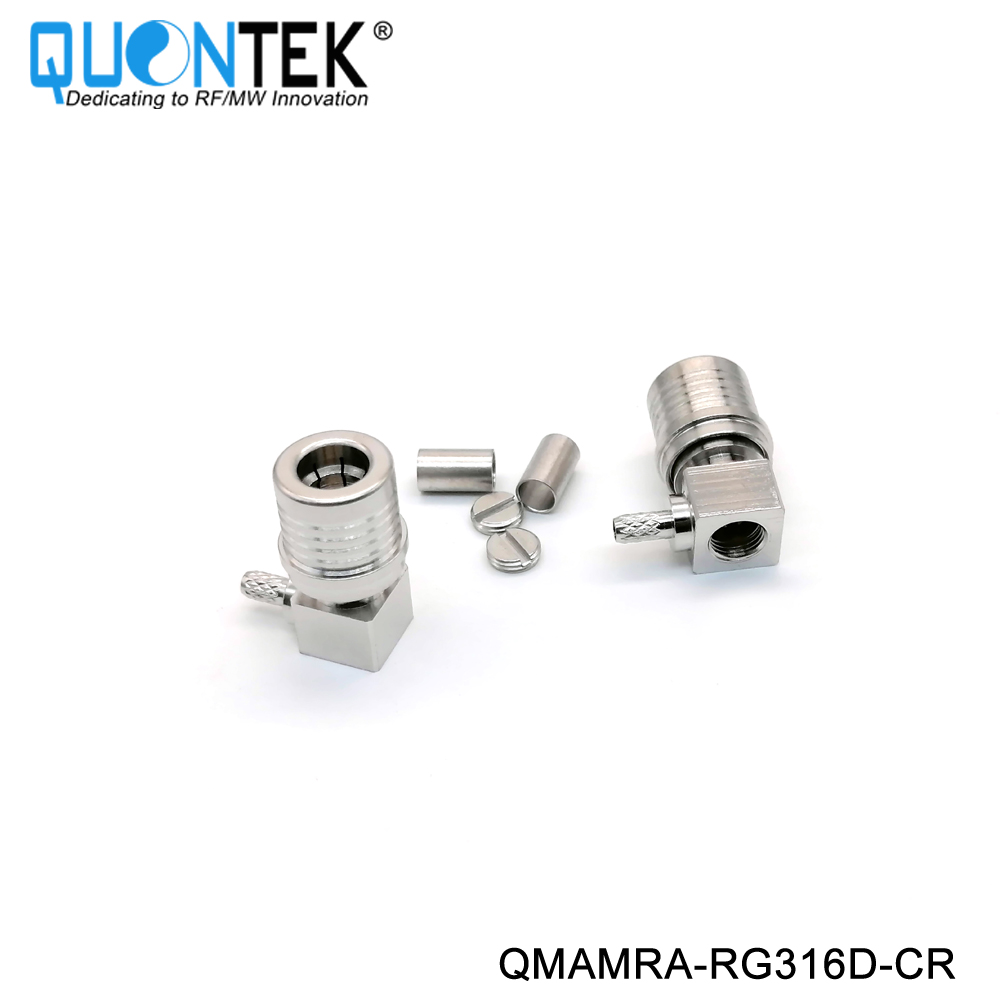

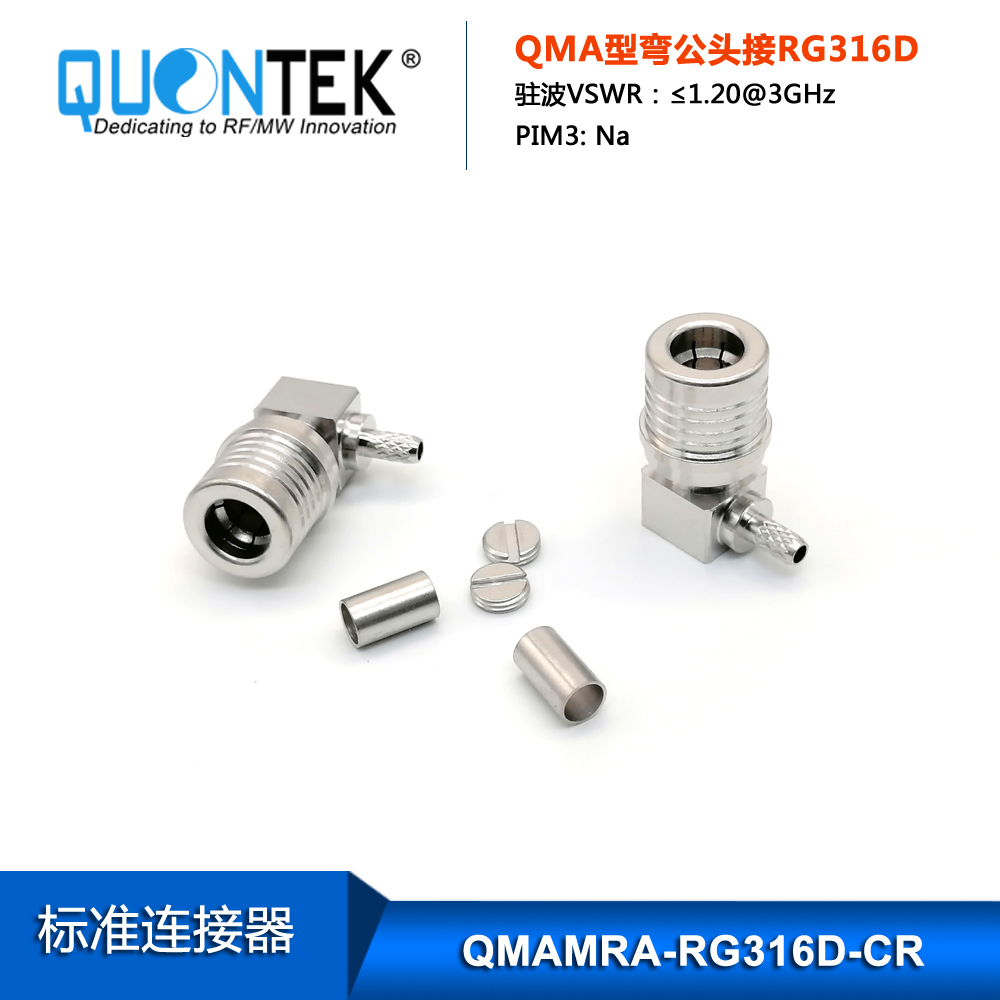

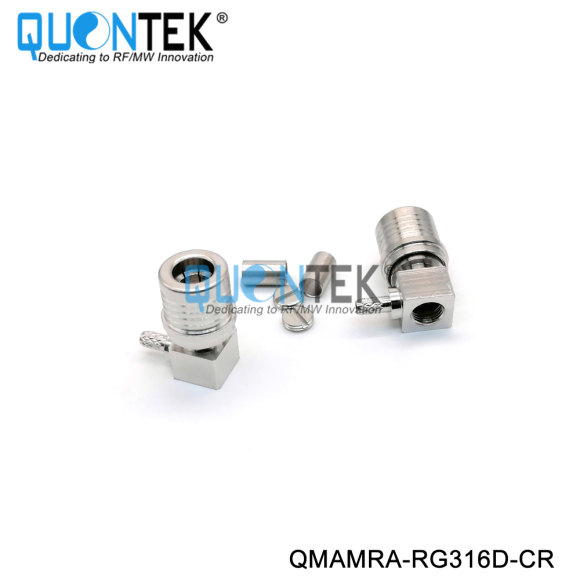

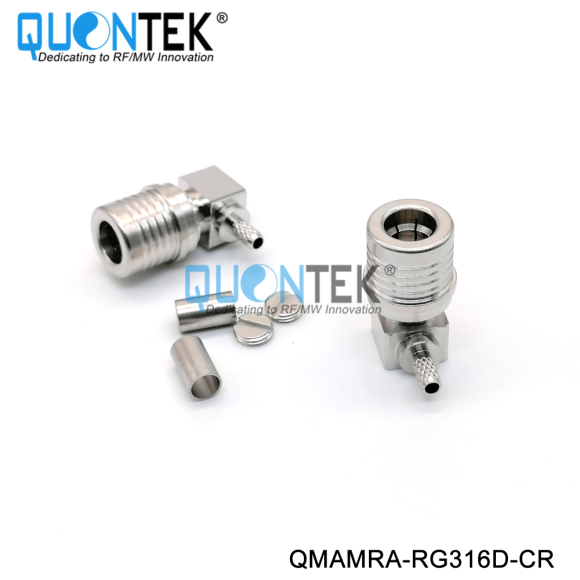

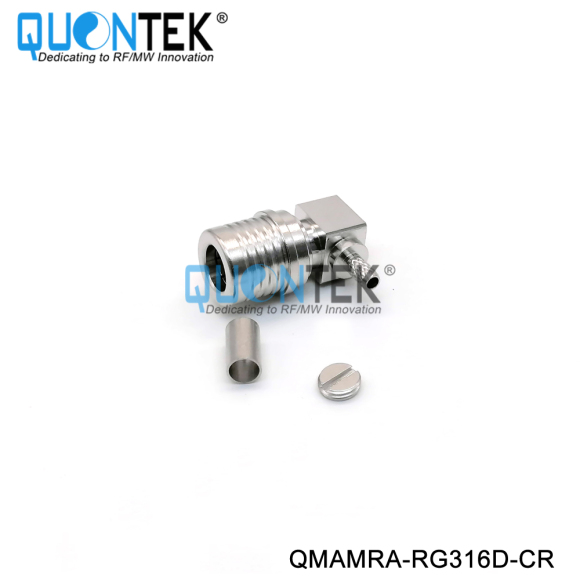

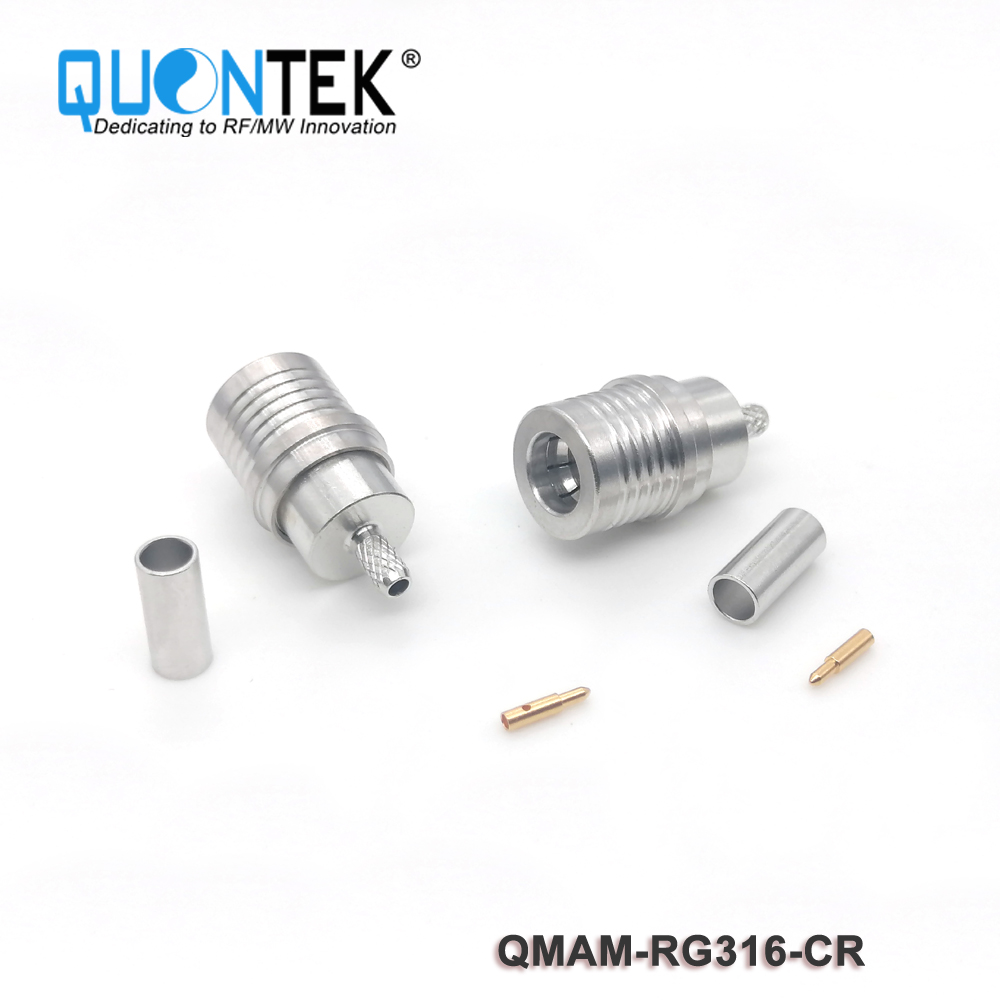

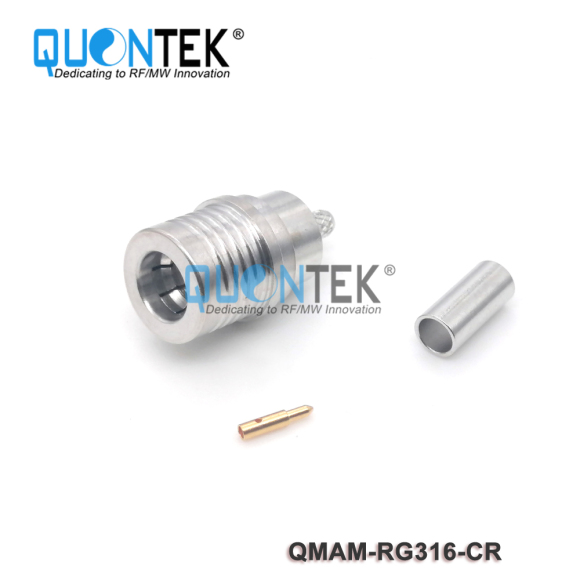

Standard Connector,QMA RA male for RG316D cable,crimp type
