SMPM/SSMP/GPPO type Connectors

Description

QUONTEK SMPM connectors offer remarkable miniaturisation and performance for RF applications up to 65 GHz.

QUONTEK SMPM connectors are IEC61169-60 qualified for defence and space flight applications.

QUONTEK also offers the unique bend-to-the-end microbend style cable connectors.

Along with a large portfolio of different SMPM PCB mount connectors that have been designed with optimised PCB trace launch geometries to offer a complete interconnect design solution from «wire-to-trace».

Features

• Frequency range up to 65 GHz

• Excellent return loss

• The SMPM interface dimensions conform to the following standards:

International: IEC 61169-60

Europe: CECC 22140

USA: MIL-PRF-31031 SMPM

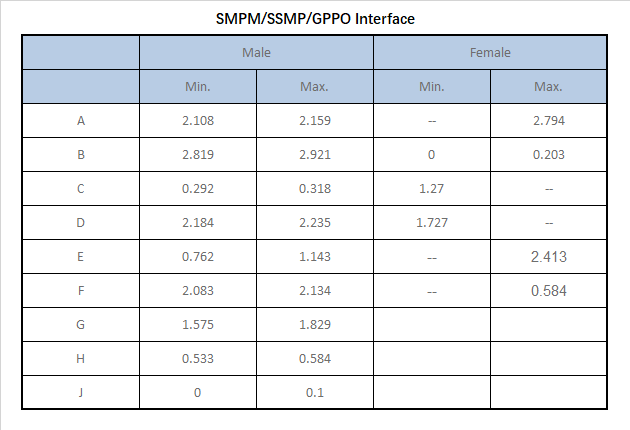

Interface MIL-STD-348



Male

Female



Min.

Max.

Min.

Max.

A

2.108

2.159

--

2.794

B

2.819

2.921

0.000

0.203

C

0.292

0.318

1.270

--

D

2.184

2.235

1.727

--

E

0.762

1.143

--

2.413

F

2.083

2.134

--

0.584

G

1.575

1.829





H

0.533

0.584





J

0.000

0.100
