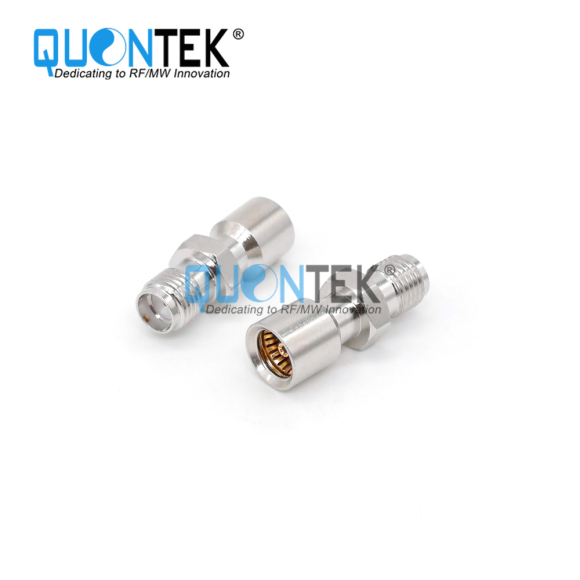

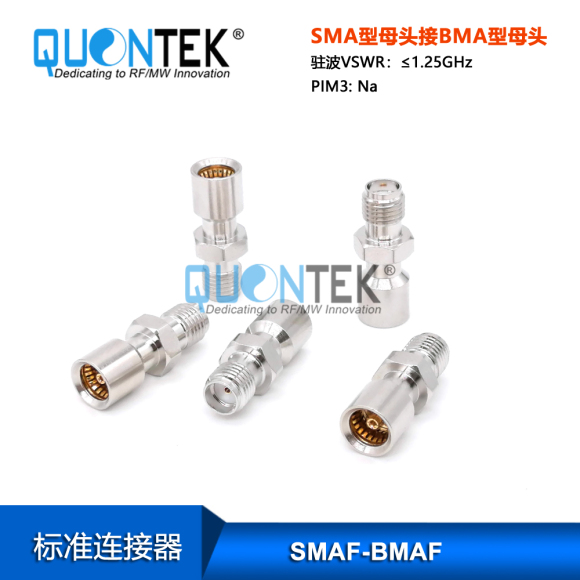

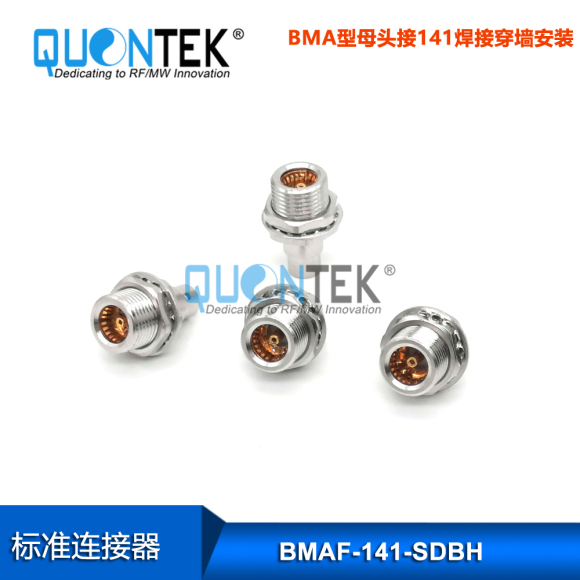

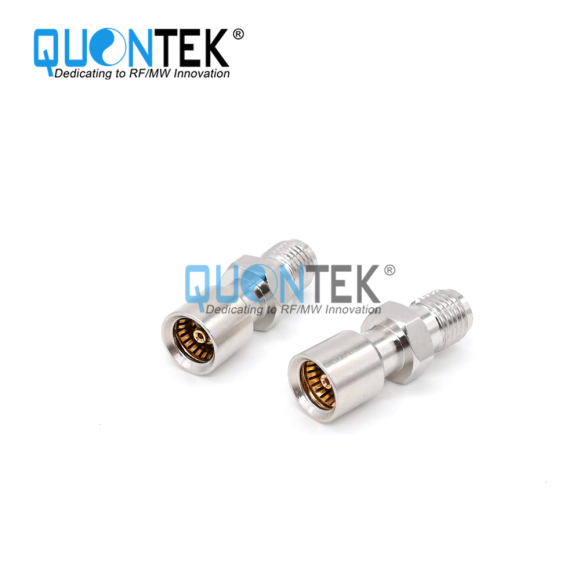

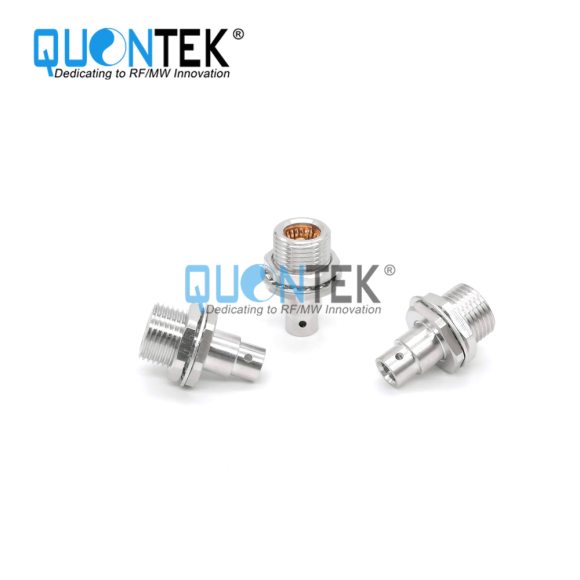

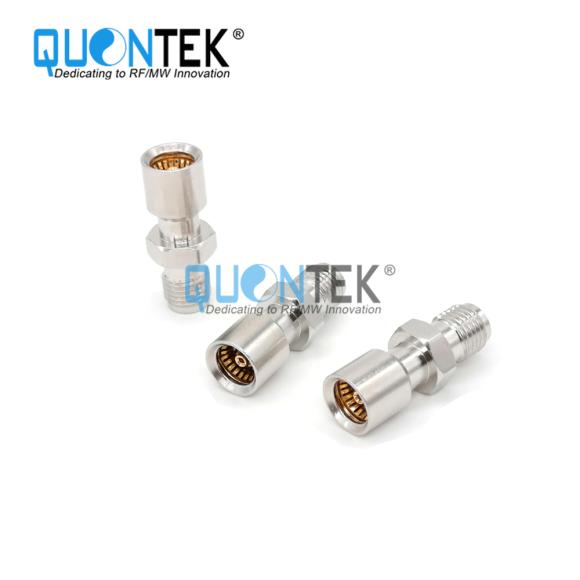

BMA type Connectors
Description
QUNOTEK BMA blind mate connectors open up special dimensions in microwave applications up to 18 GHz.
QUNOTEK offers a range of "floating" connector configurations with certain axial or radial misalignment taken out by the outer contact of the jacks.
The BMA series presents an outstanding range of products featuring high reliability and ease of assembly.
Features
• Frequency range up to 18 GHz
• Excellent return loss
• The BMA interface dimensions conform to the following standards:
International: IEC 61169-33
Europe: CECC 22110
USA: MIL-PRF-39012 BMA
Interface MIL-STD-348/321

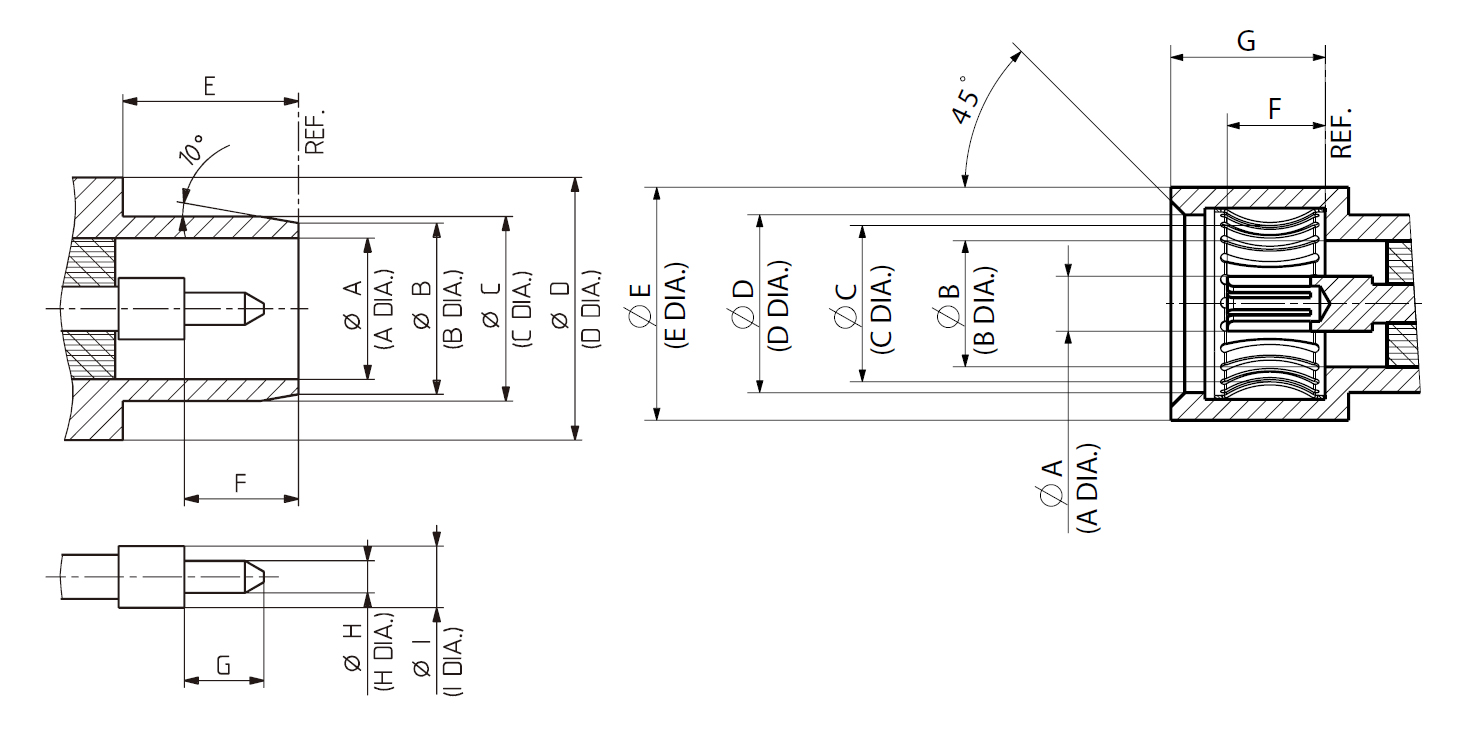

| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | 4.09/0.161 nom. | 1.78/0.070 nom. | ||
B | 4.88/0.192 nom. | 4.09/0.161 nom. | ||
C | 5.31/0.209 | 5.35/0.211 | -- | 5.08/0.200 |
D | 7.62/0.300 nom. | 5.71/0.225 | -- | |
E | 5.03/0.198 | -- | 7.37/0.290 | -- |
F | 3.25/0.128 | -- | 3.05/0.120 | 3.23/0.127 |
G | 2.29/0.090 nom. | -- | 5.03/0.198 | |
H | 0.90/0.035 | 0.94/0.037 |
|
|
I | 1.78/0.070 nom. |
|
| |

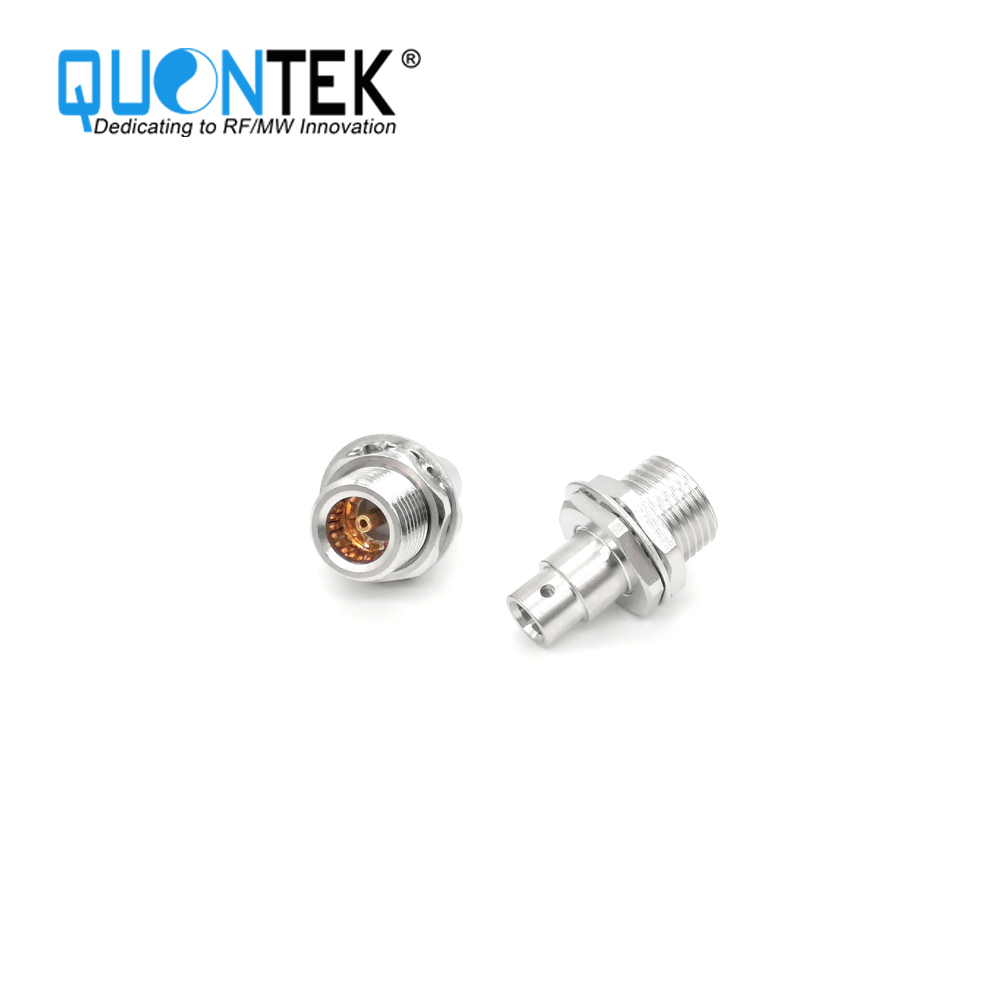

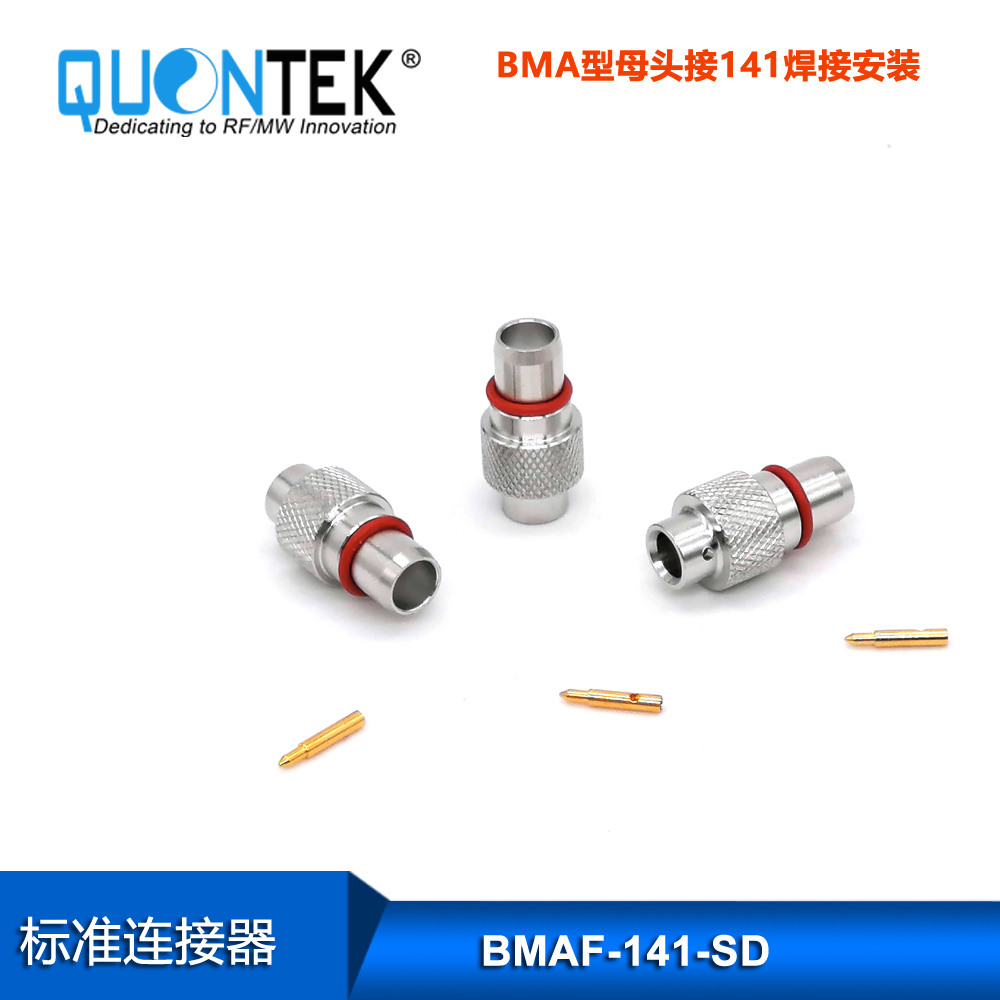

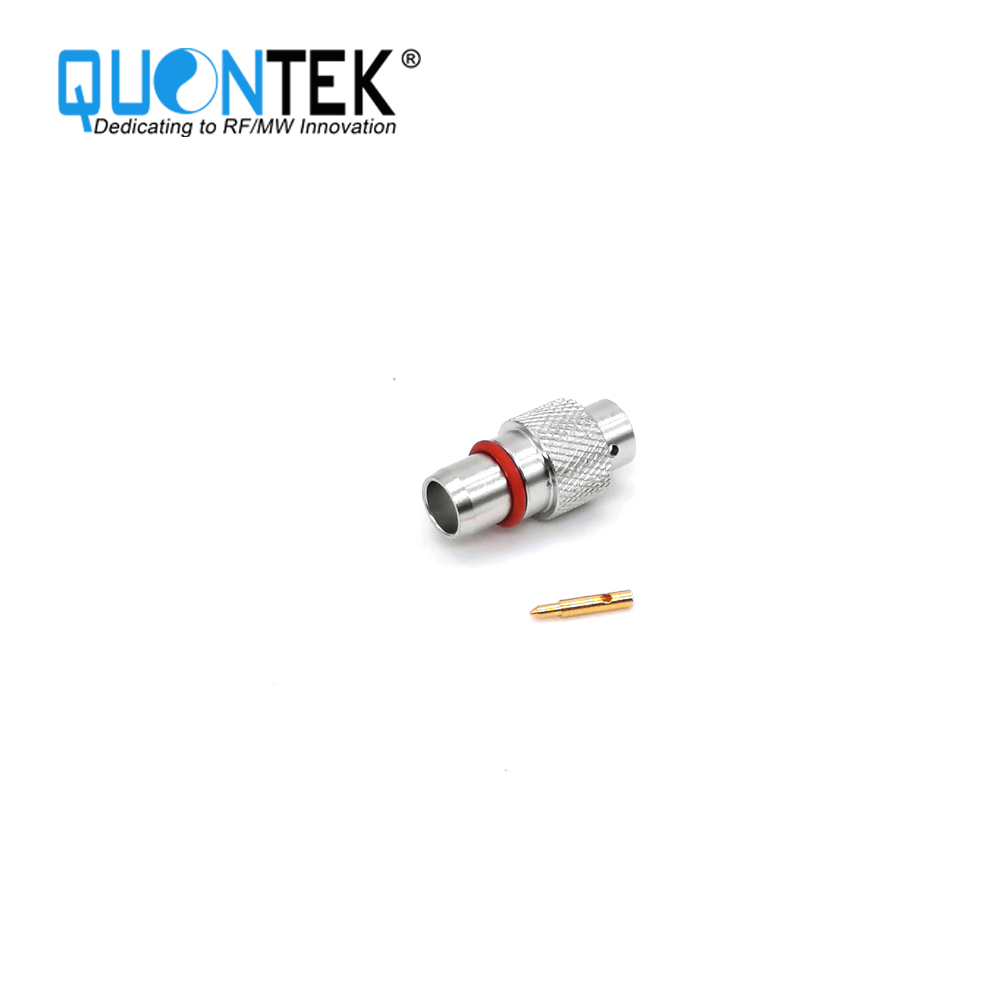

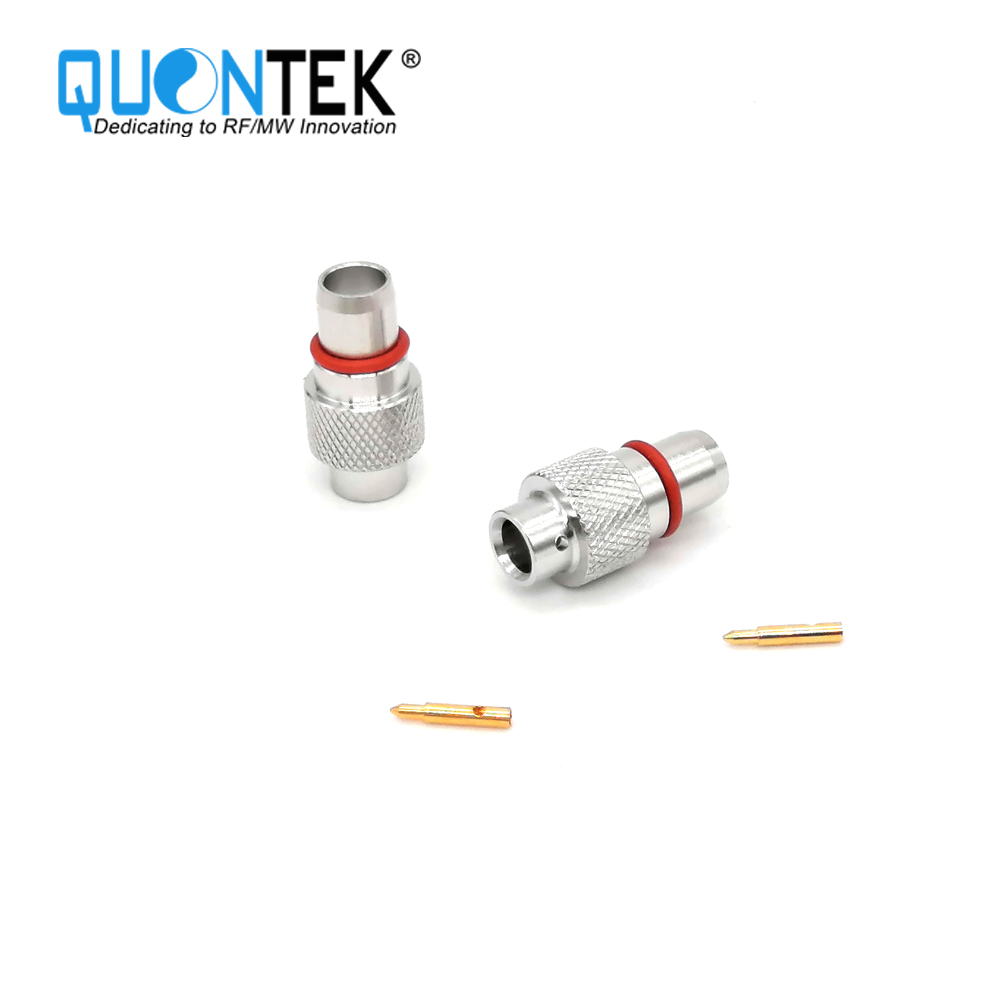

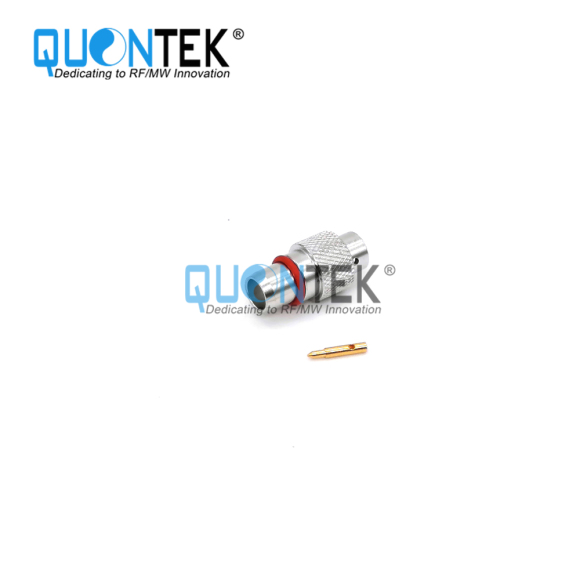

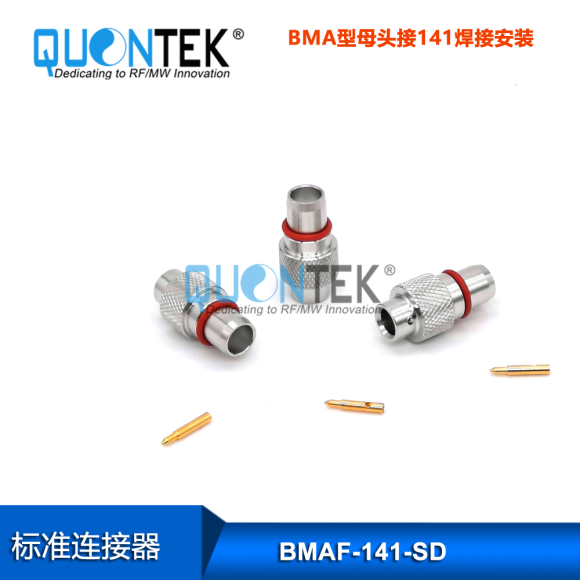

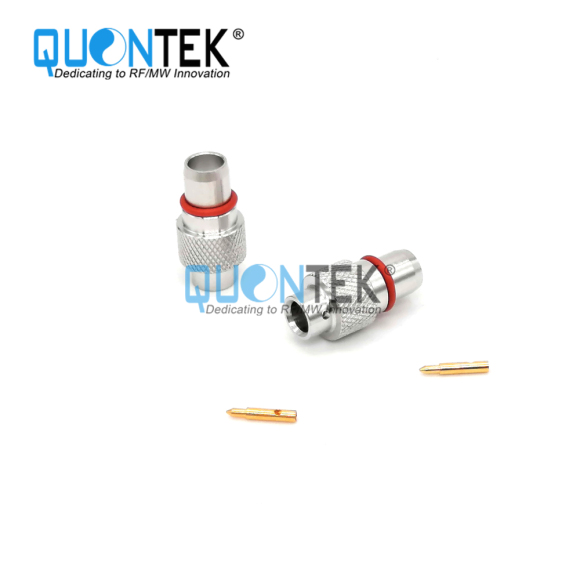

Standard Connctor,BMA male for .141"cable,Solder type

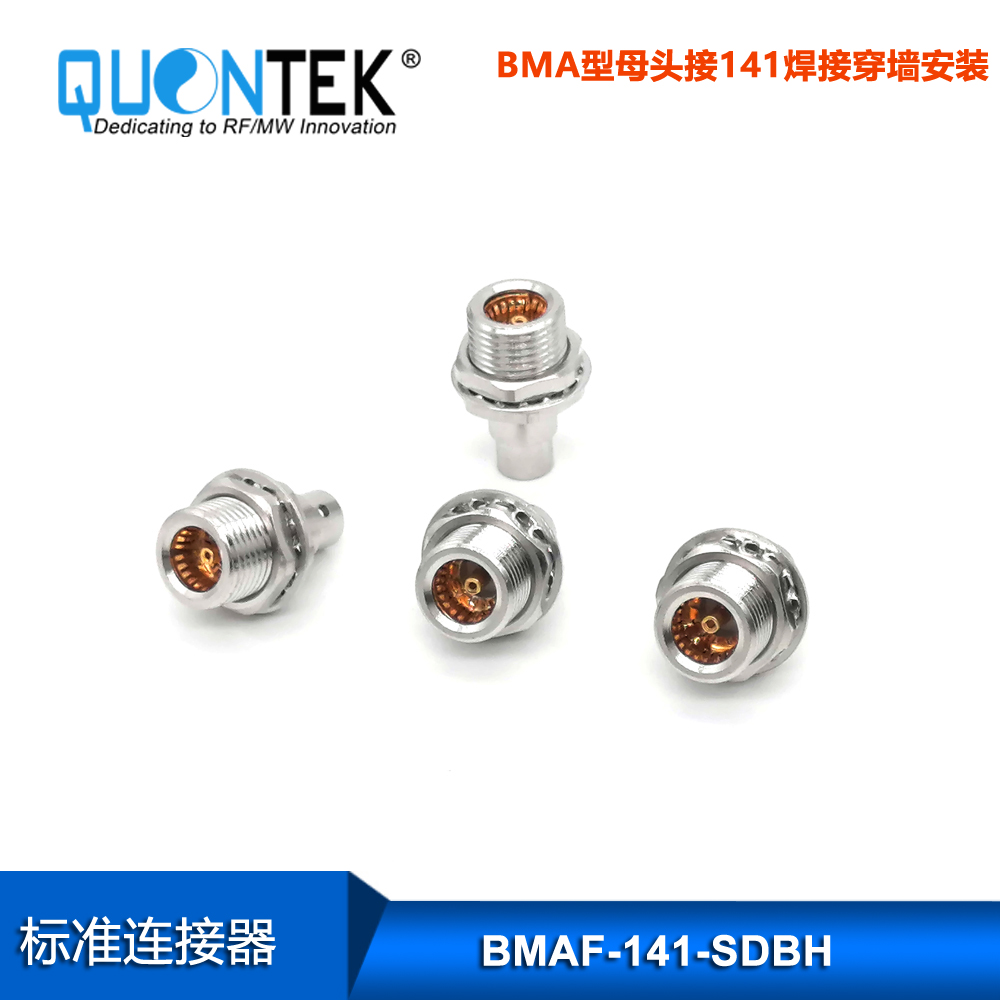

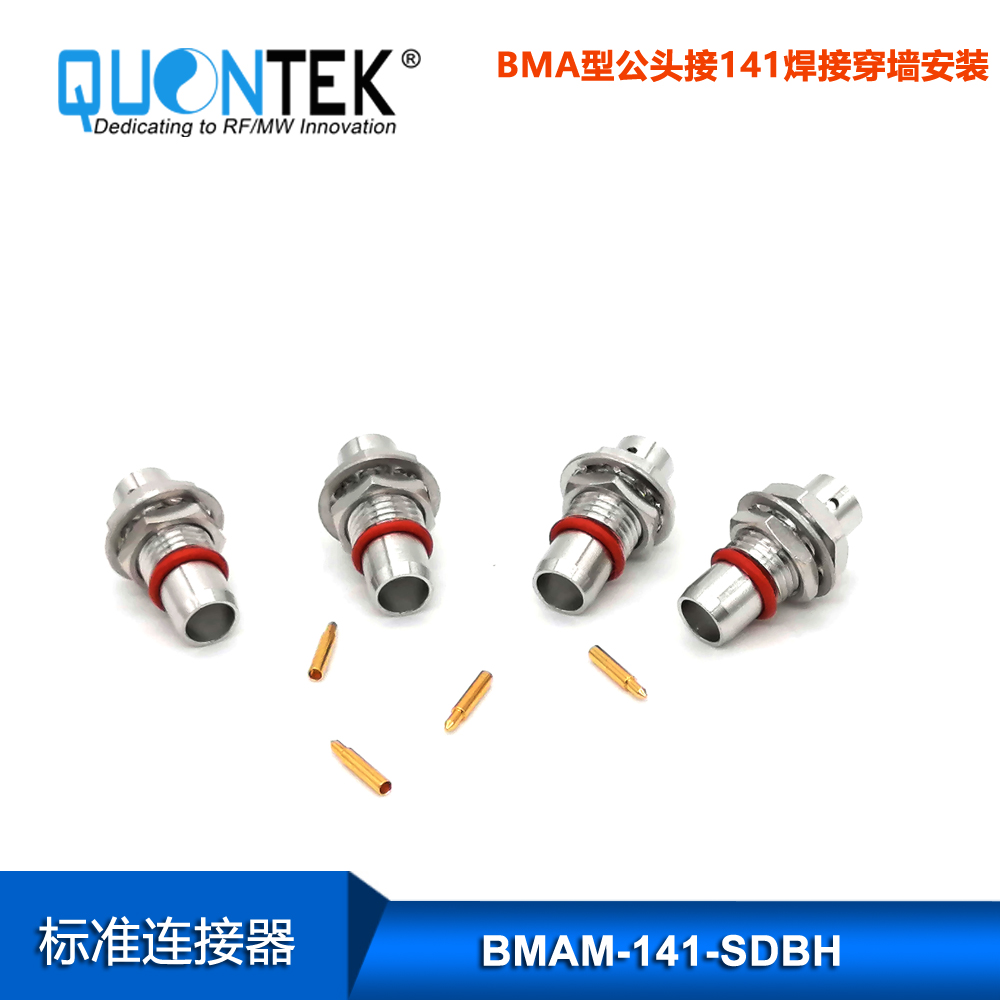

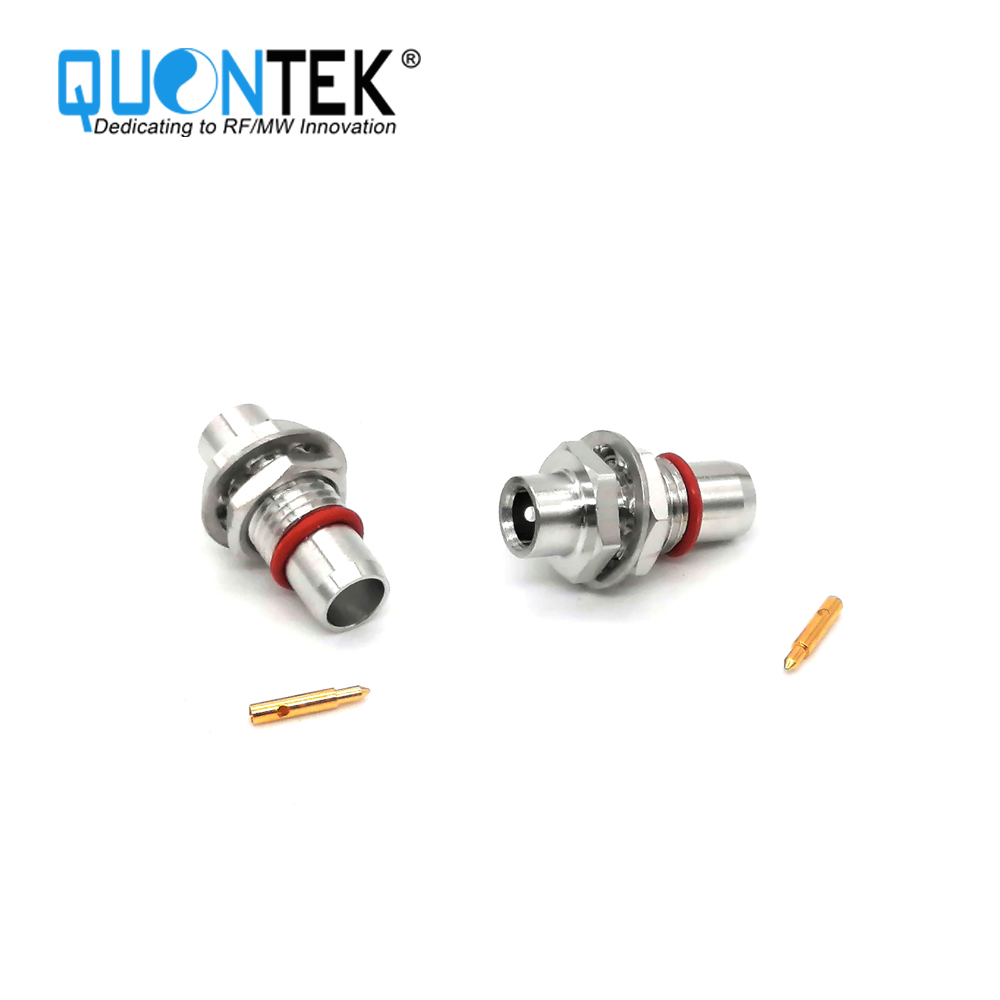

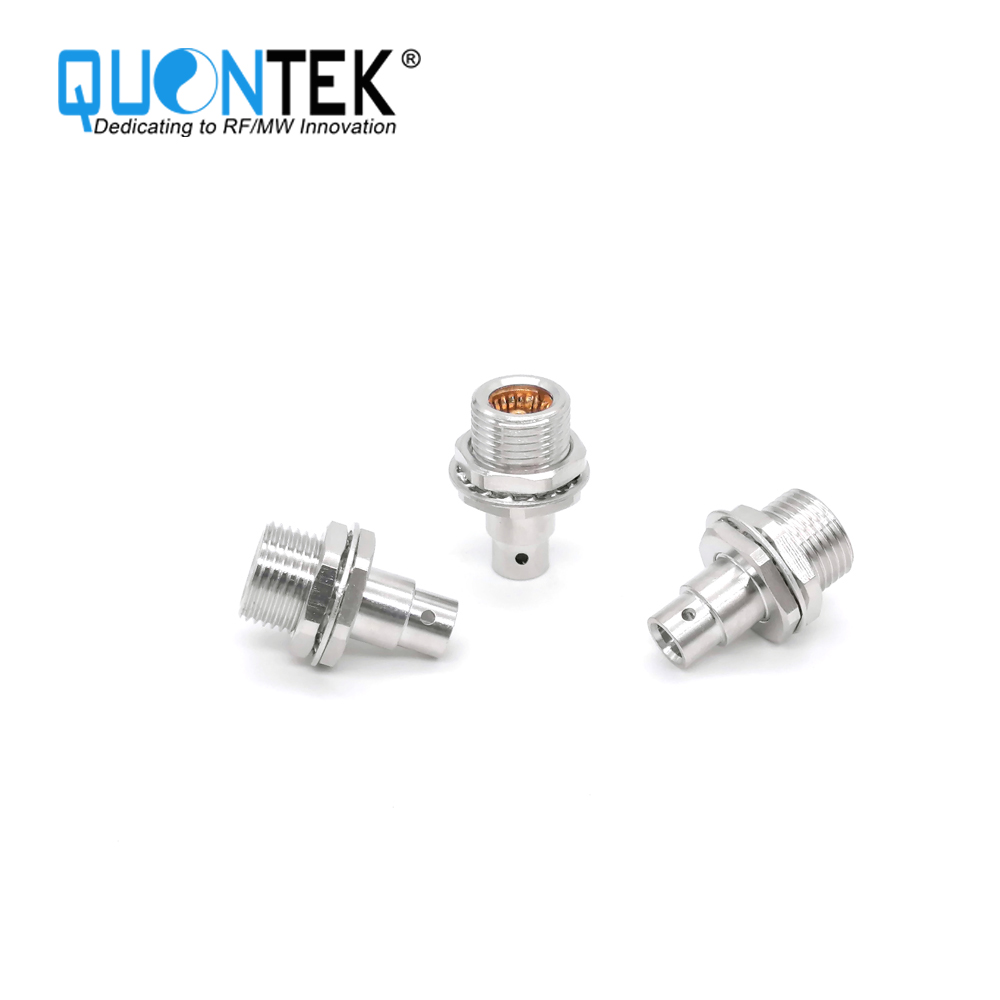

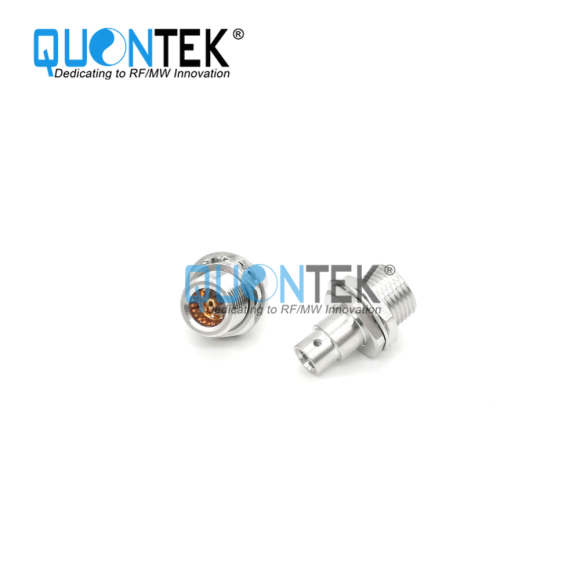

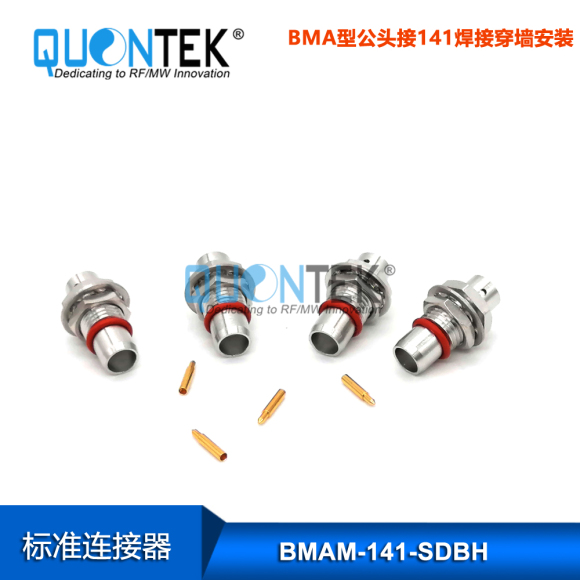

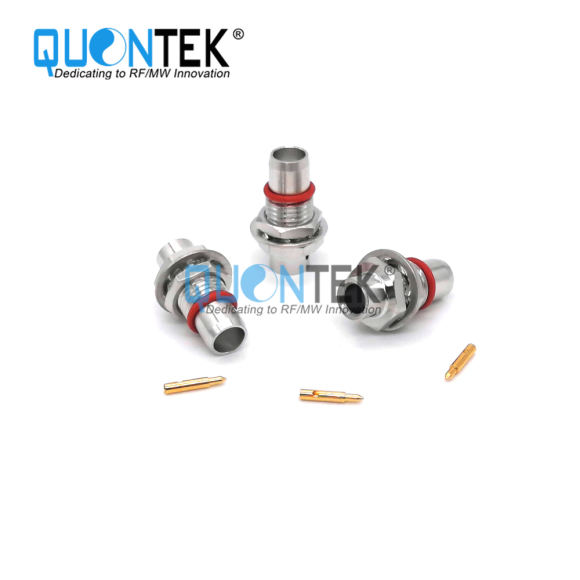

Standard Connctor,BMA male for .141"cable,Solder type,Bulkhead mounted

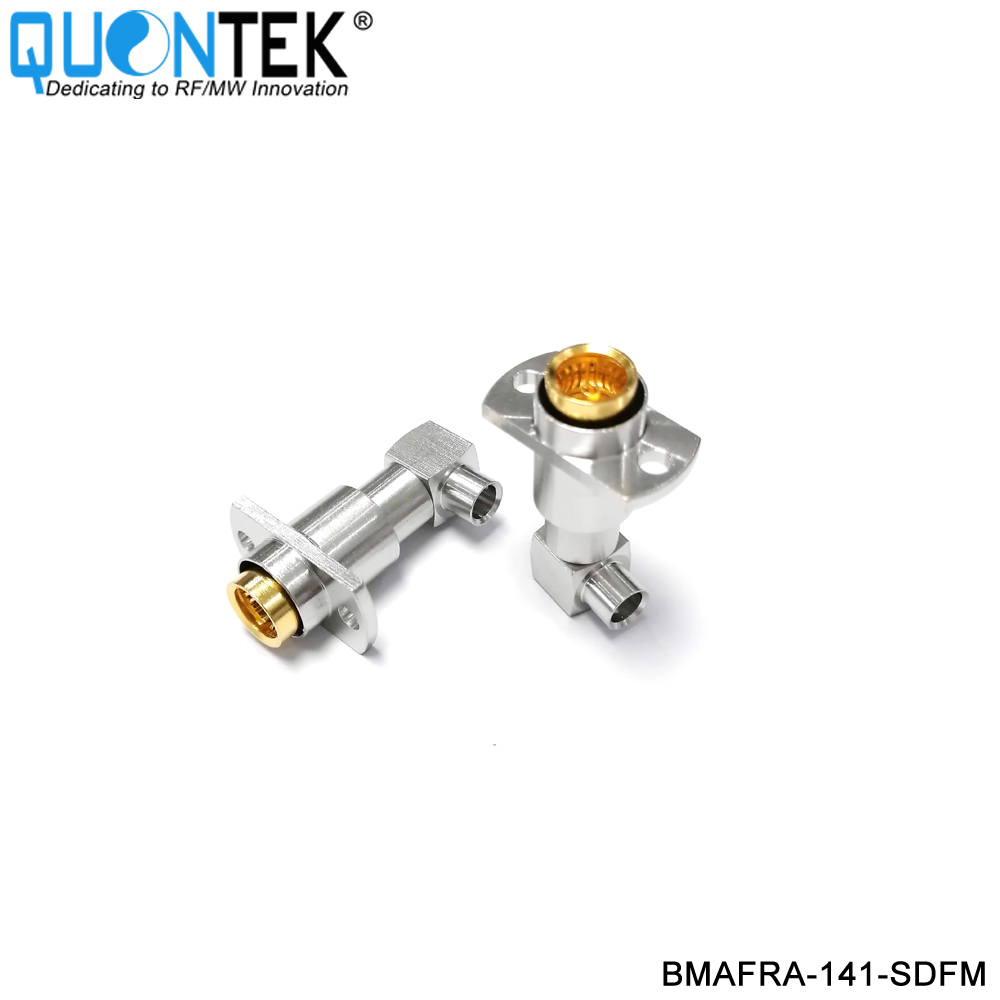

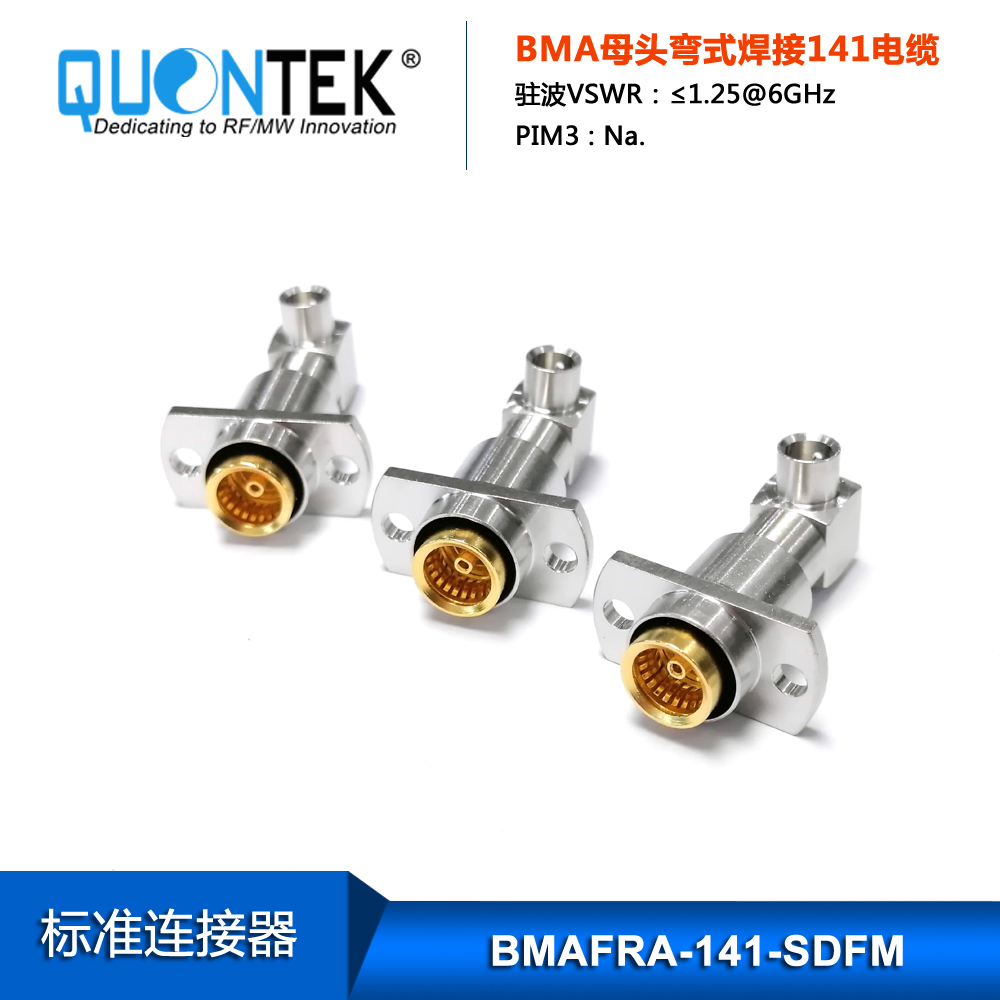

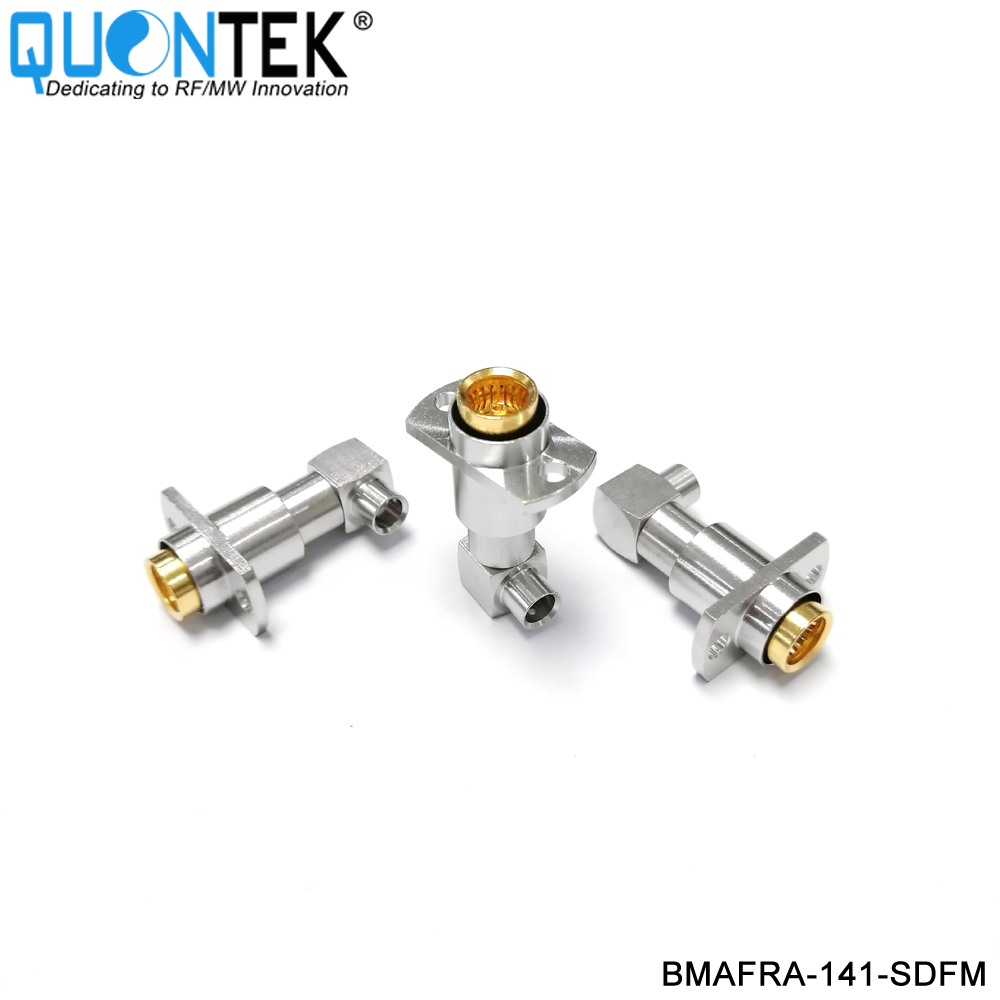

Standard Connector,BMA R/A female,.141" Cable,Solder type
