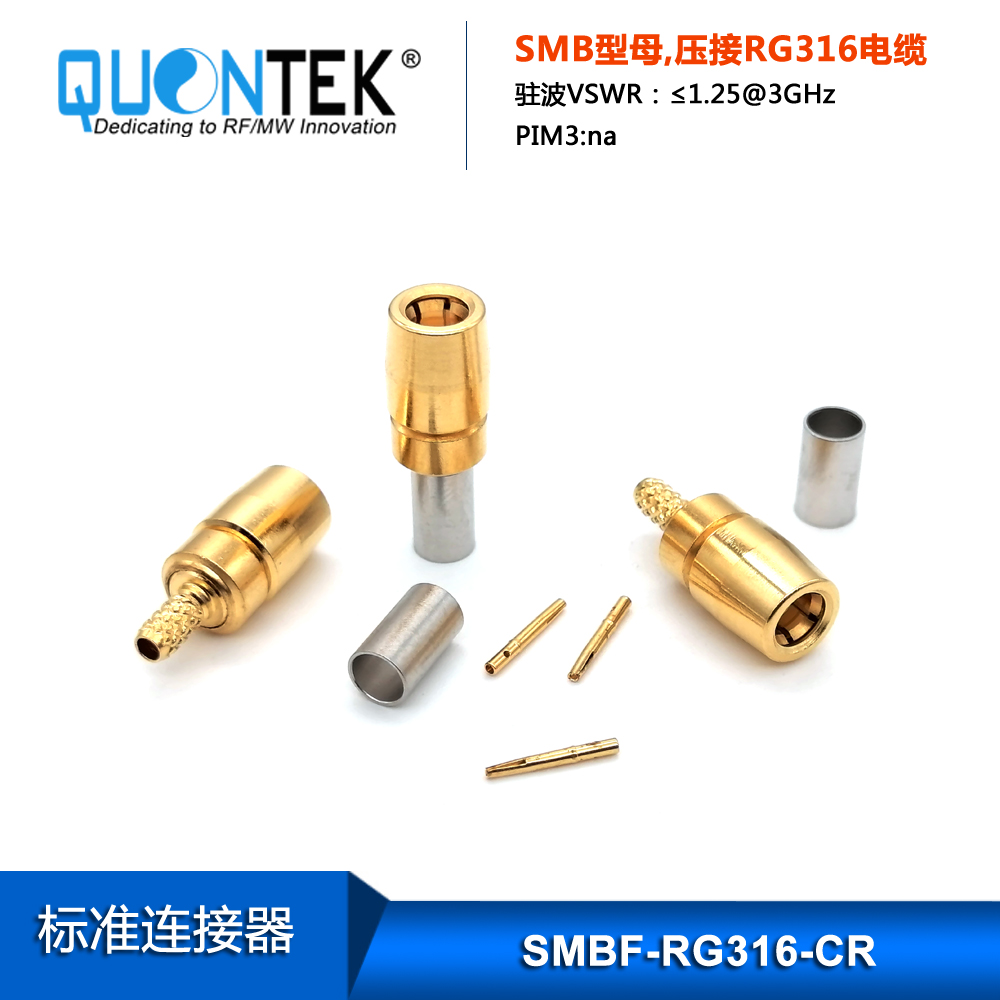

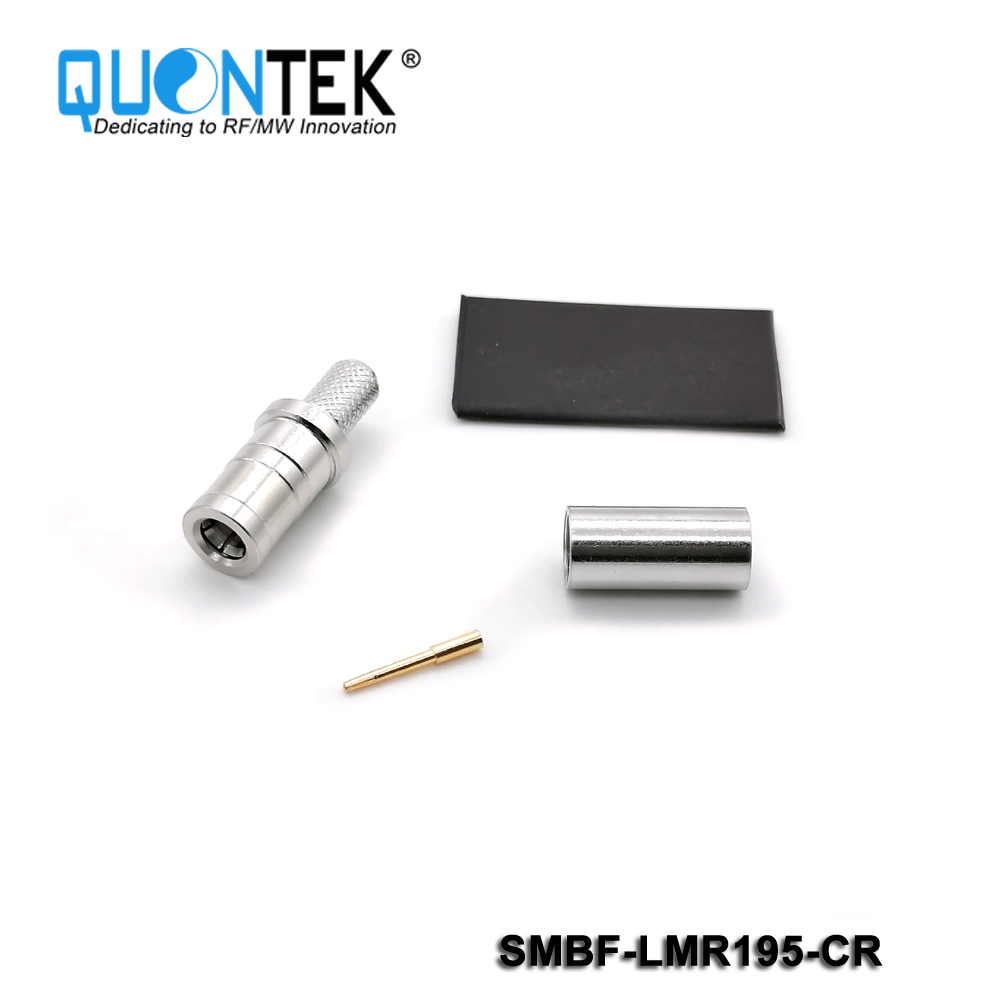

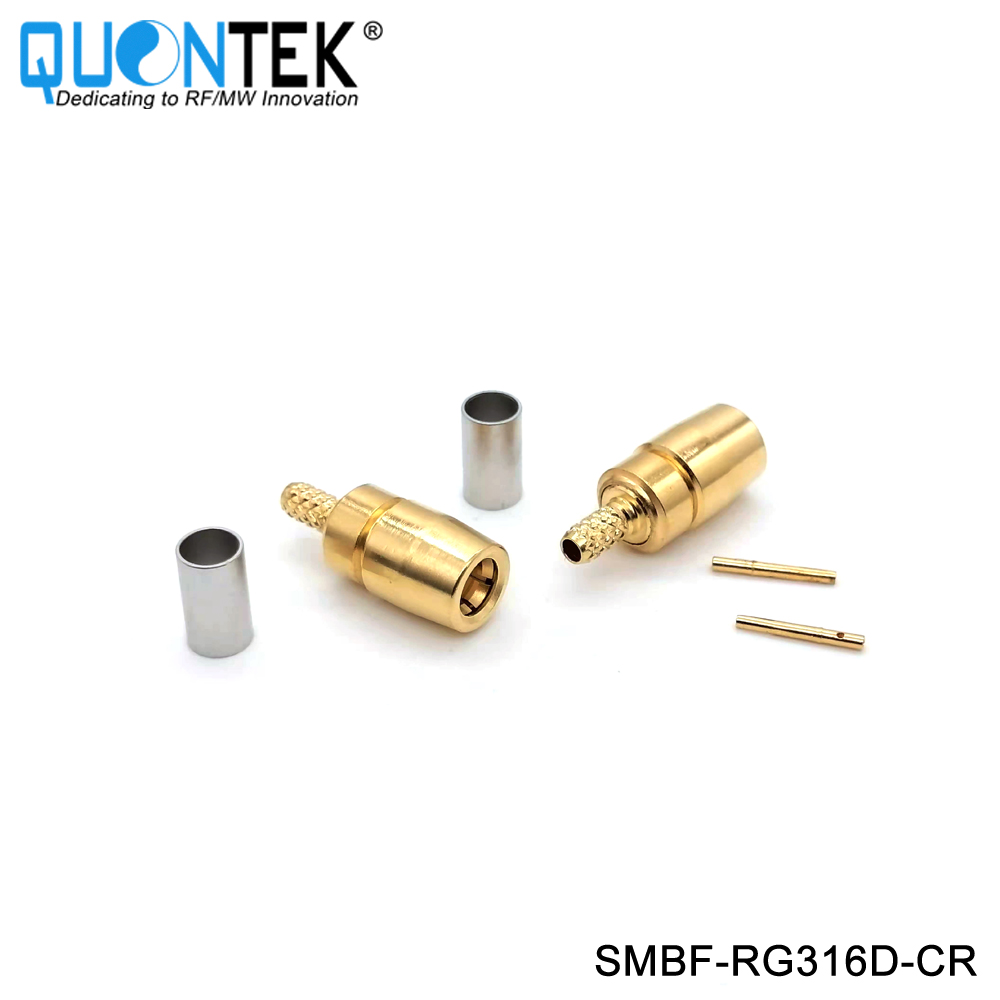

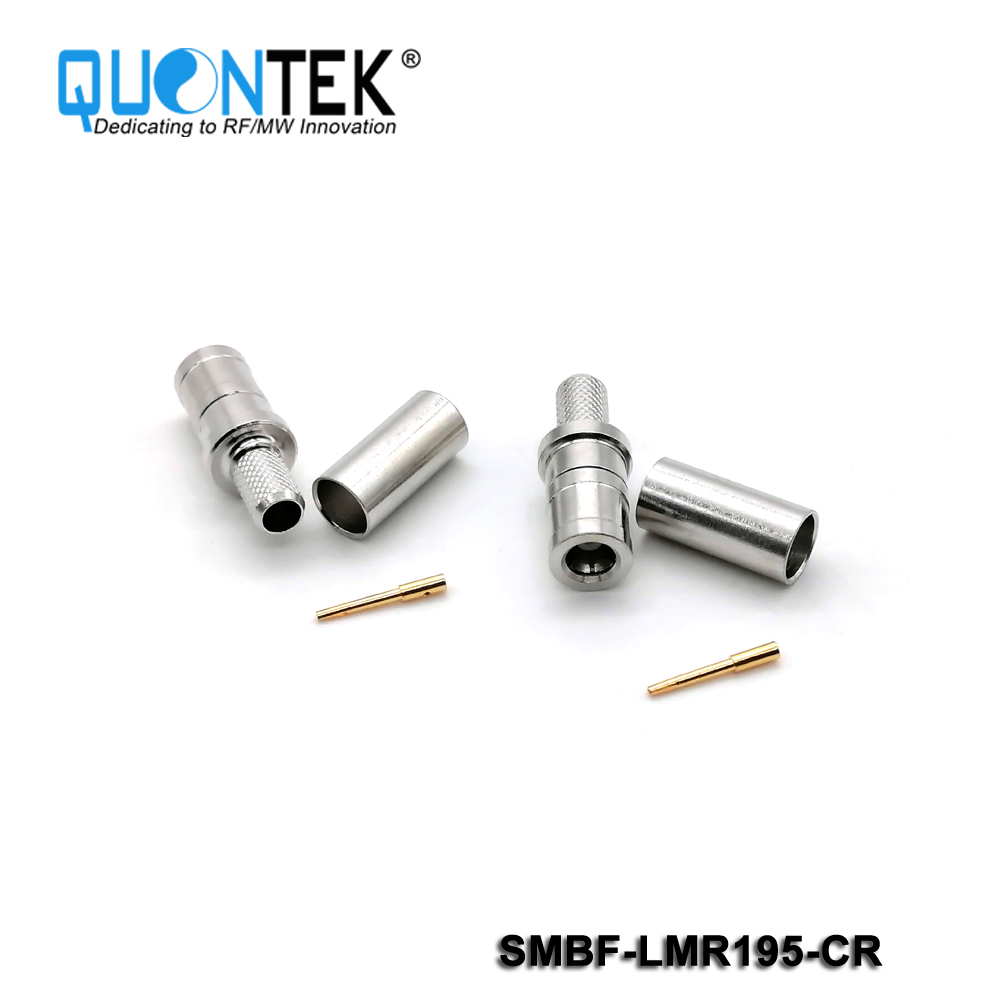

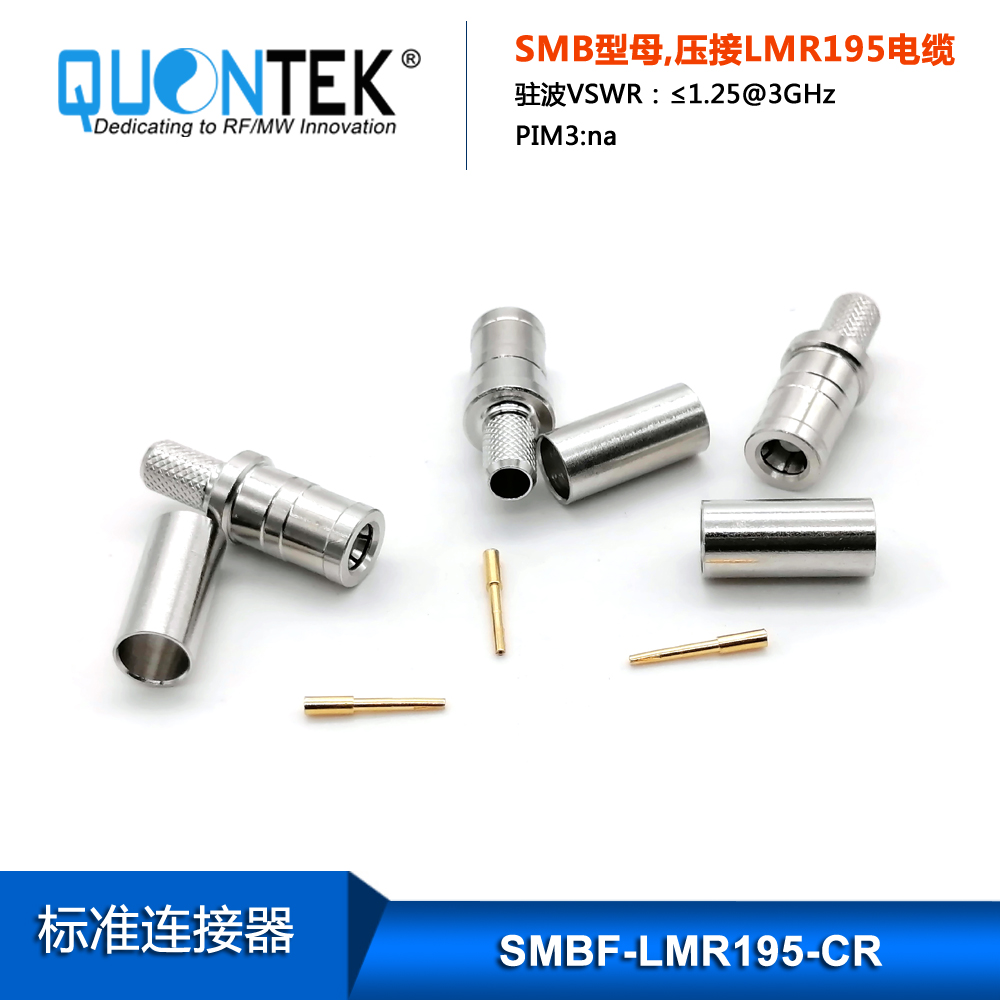

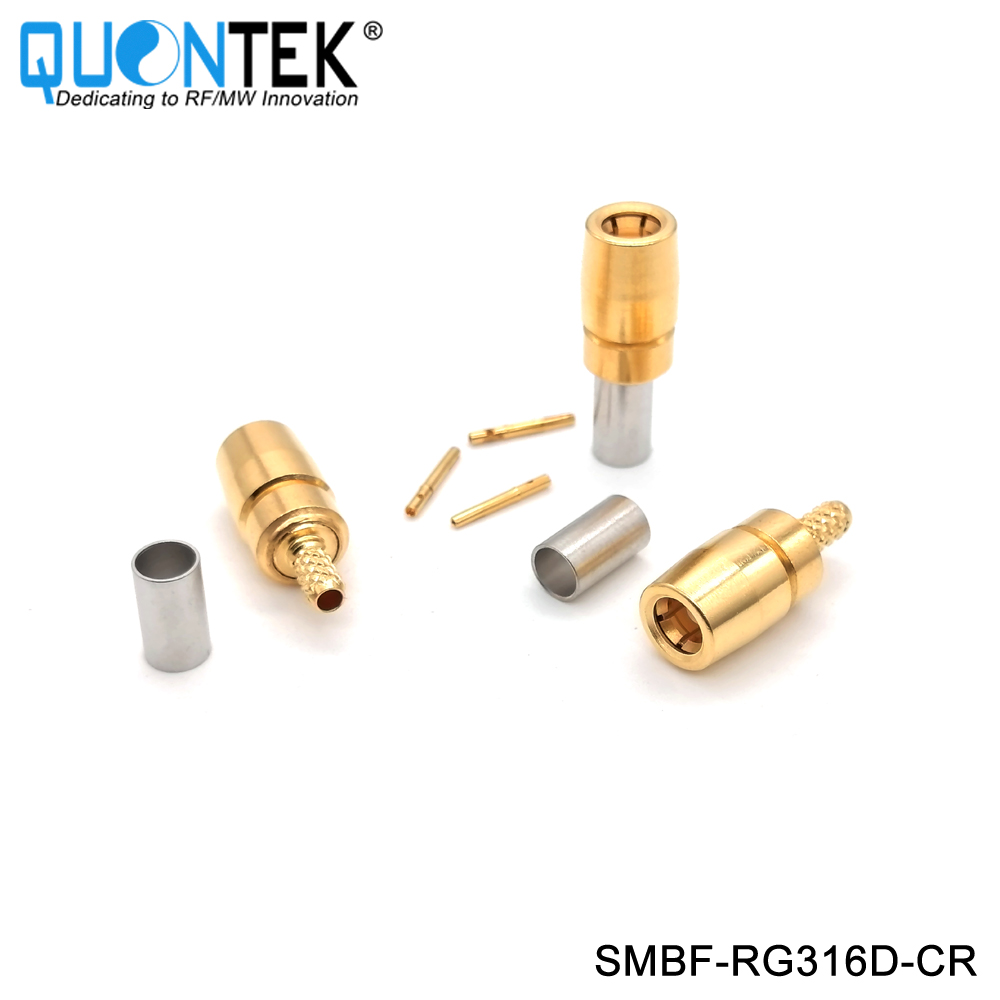

SMB type Connectors

Description

TheQUONTEK subminiature connectors series SMB and SMC have the same basic design. They only differ with regard to their coupling mechanism. QUONTEK SMB subminiature connectors are suitable for applications from DC up to 4 GHz.

Features

• Frequency range up to 4 GHz

• Excellent return loss

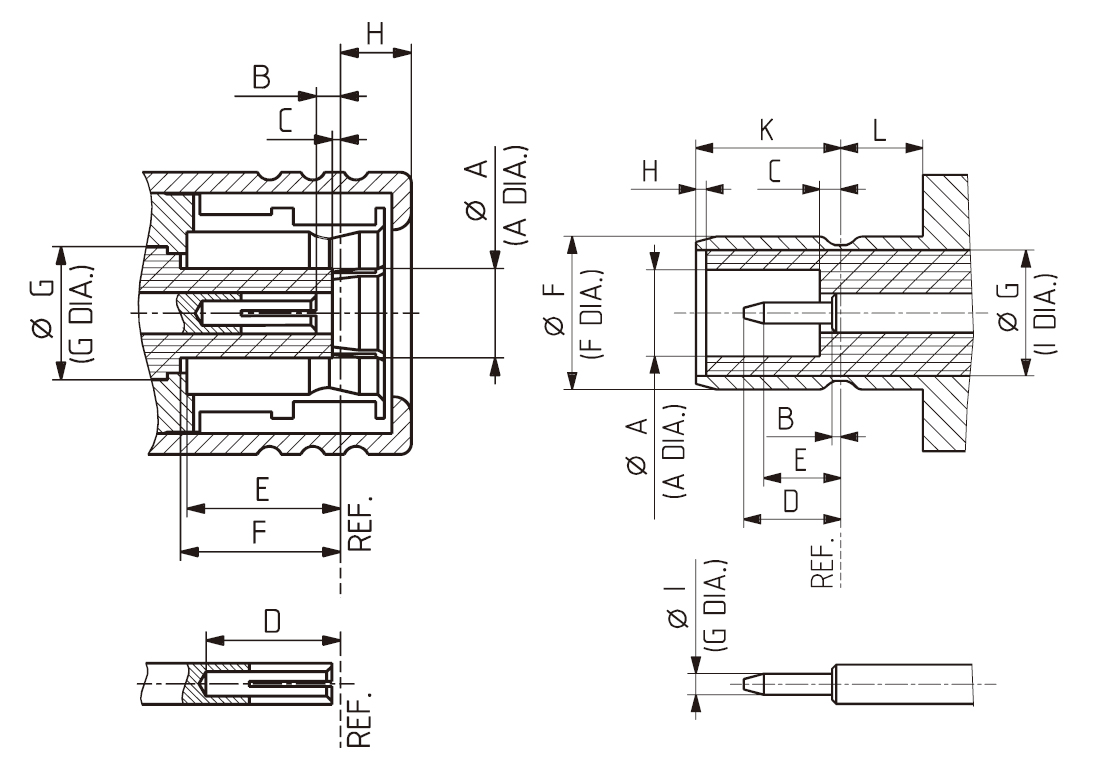

• The SMB interface dimensions conform to the following standards:

International: IEC 61169-10

Europe: CECC 22130

USA: MIL-PRF-39012 SMB

Interface MIL-STD-348



Male

Female



Min.

Max.

Min.

Max.

A

--

2.06/0.081

2.08/0.082

--

B

0.18/0.007

0.94/0.037

--

0.18/0.007

C

0.18/0.007

--

--

0.18/0.007

D

2.97/0.117

--

--

2.97/0.117

E

3.58/0.141

--

1.32/0.052

--

F

3.58/0.141

--

3.66/0.144

3.71/0.146

G

3.05/0.120 nom.

3.05/0.120 nom.

H

--

1.63/0.064

0.00/0.000

--

I

--

--

0.48/0.019

0.53/0.021

K

--

--

3.33/0.131

3.58/0.141

L

--

--

1.65/0.065

--
