1.85mm type Connectors
Description
QUONTEK 1.85mm connectors are precision connectors for use in microwave applications up to 67 GHz. The connectors features best electrical performance, excellent mechanical stability as well as extreme reliability. They are particularly well suited for semi-rigid, semi-flexible and flexible microwave cables. 1.85mm is intermateable with 2.4mm.
Features
• Frequency range up to 67 GHz
• Excellent return loss
• Intermate able with 2.4mm
• The 1.85mm interface dimensions conform to the following standards:
International: IEC 61169-32
Europe: CECC 22110
USA: MIL-PRF-39012 1.85
Interface MIL-STD-348/310

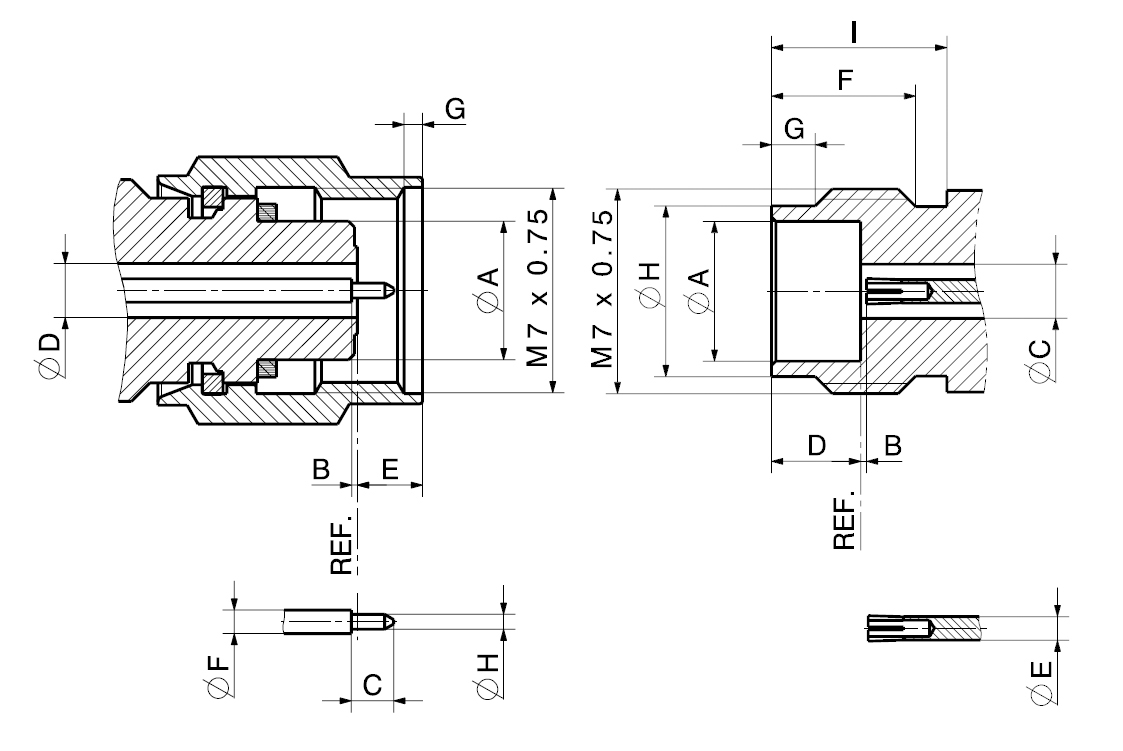

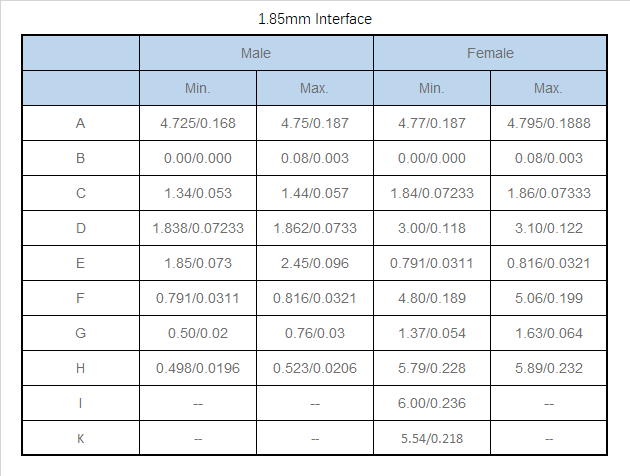

| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | 4.725/0.168 | 4.75/0.187 | 4.77/0.187 | 4.795/0.1888 |
B | 0.00/0.000 | 0.08/0.003 | 0.00/0.000 | 0.08/0.003 |
C | 1.34/0.053 | 1.44/0.057 | 1.84/0.07233 | 1.86/0.07333 |
D | 1.838/0.07233 | 1.862/0.0733 | 3.00/0.118 | 3.10/0.122 |
E | 1.85/0.073 | 2.45/0.096 | 0.791/0.0311 | 0.816/0.0321 |
F | 0.791/0.0311 | 0.816/0.0321 | 4.80/0.189 | 5.06/0.199 |
G | 0.50/0.02 | 0.76/0.03 | 1.37/0.054 | 1.63/0.064 |
H | 0.498/0.0196 | 0.523/0.0206 | 5.79/0.228 | 5.89/0.232 |
I | -- | -- | 6.00/0.236 | -- |

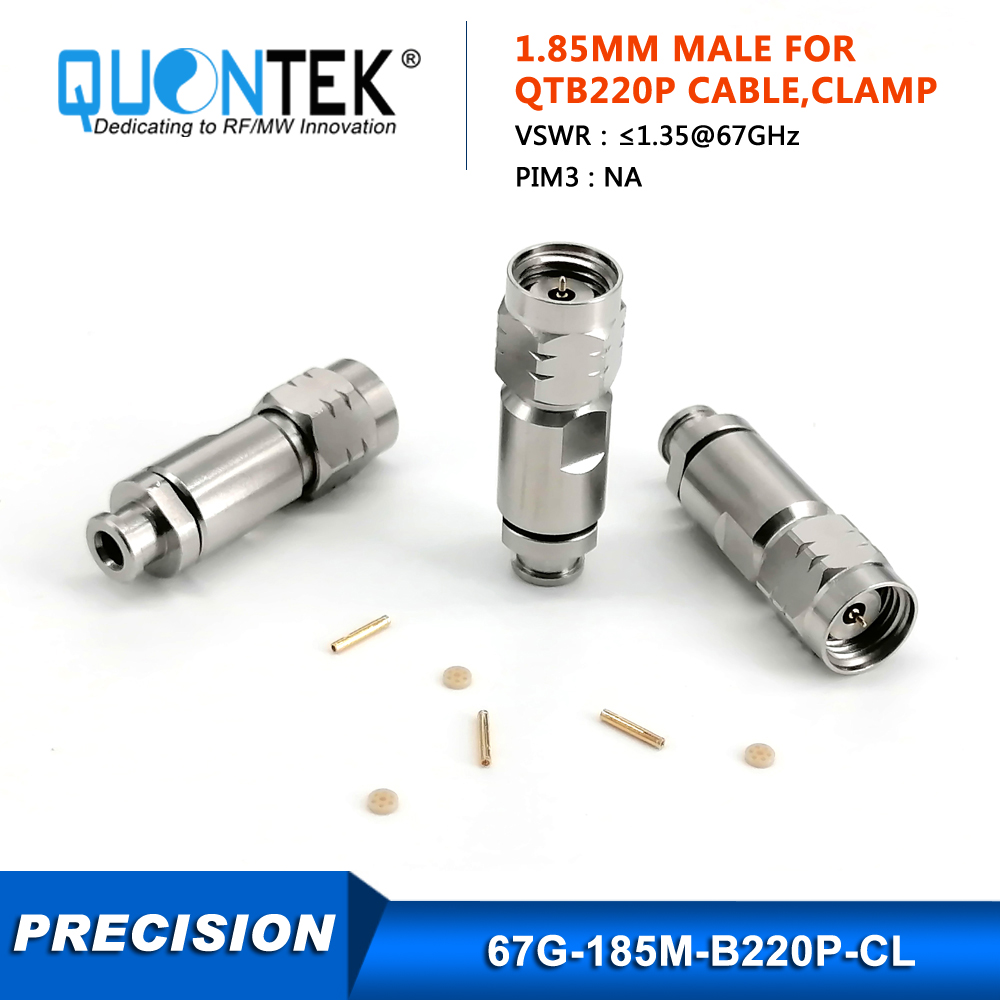

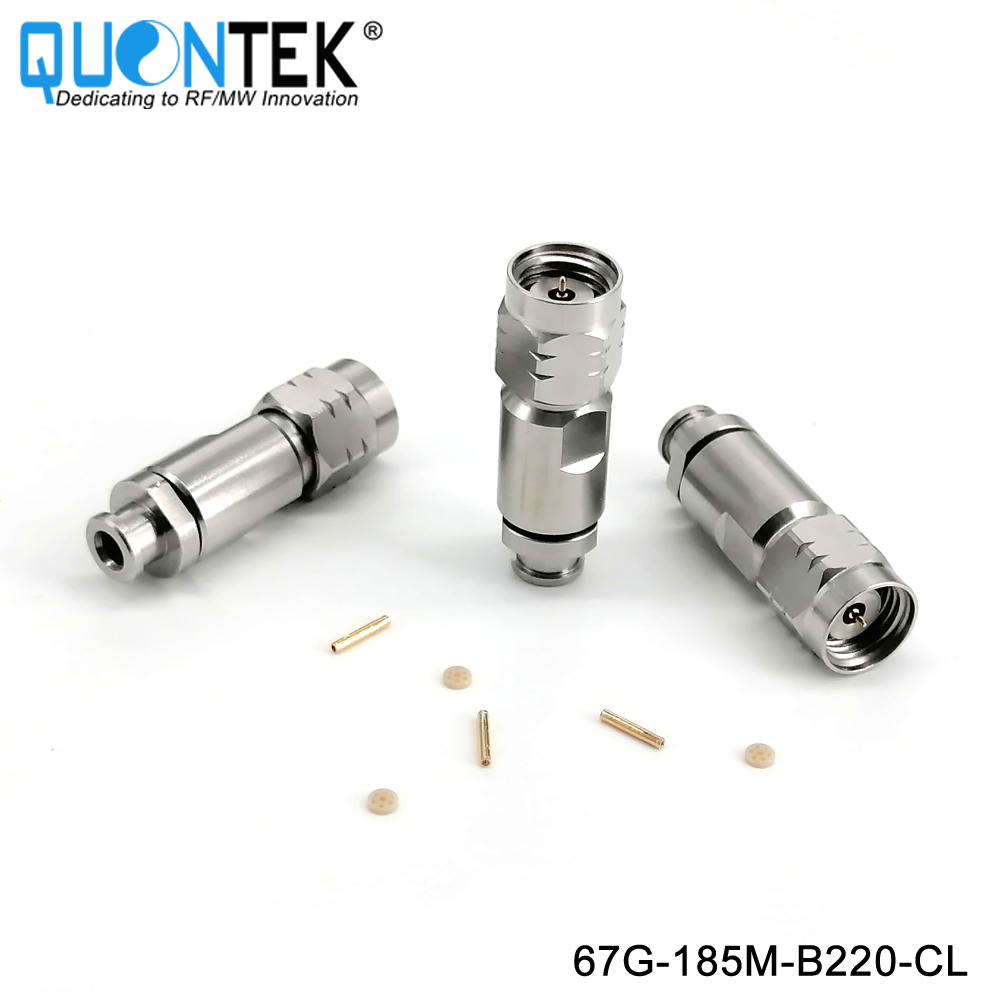

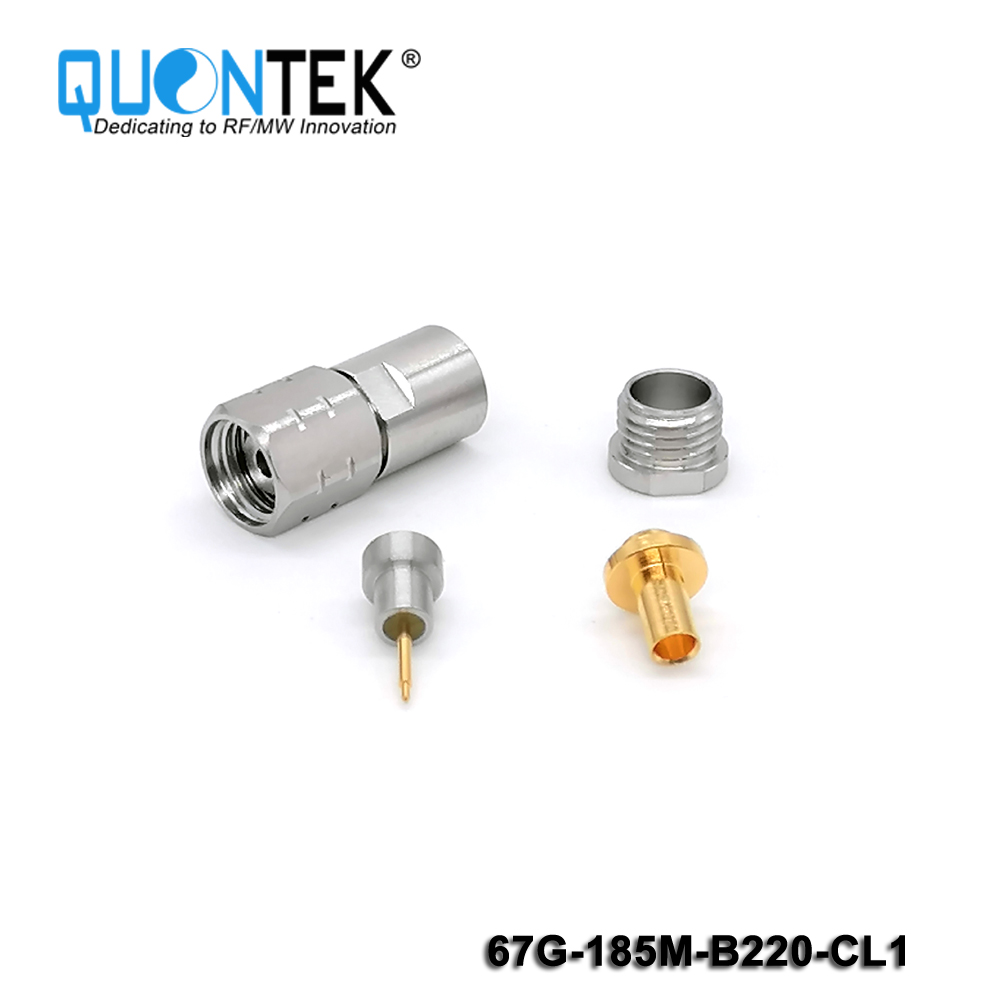

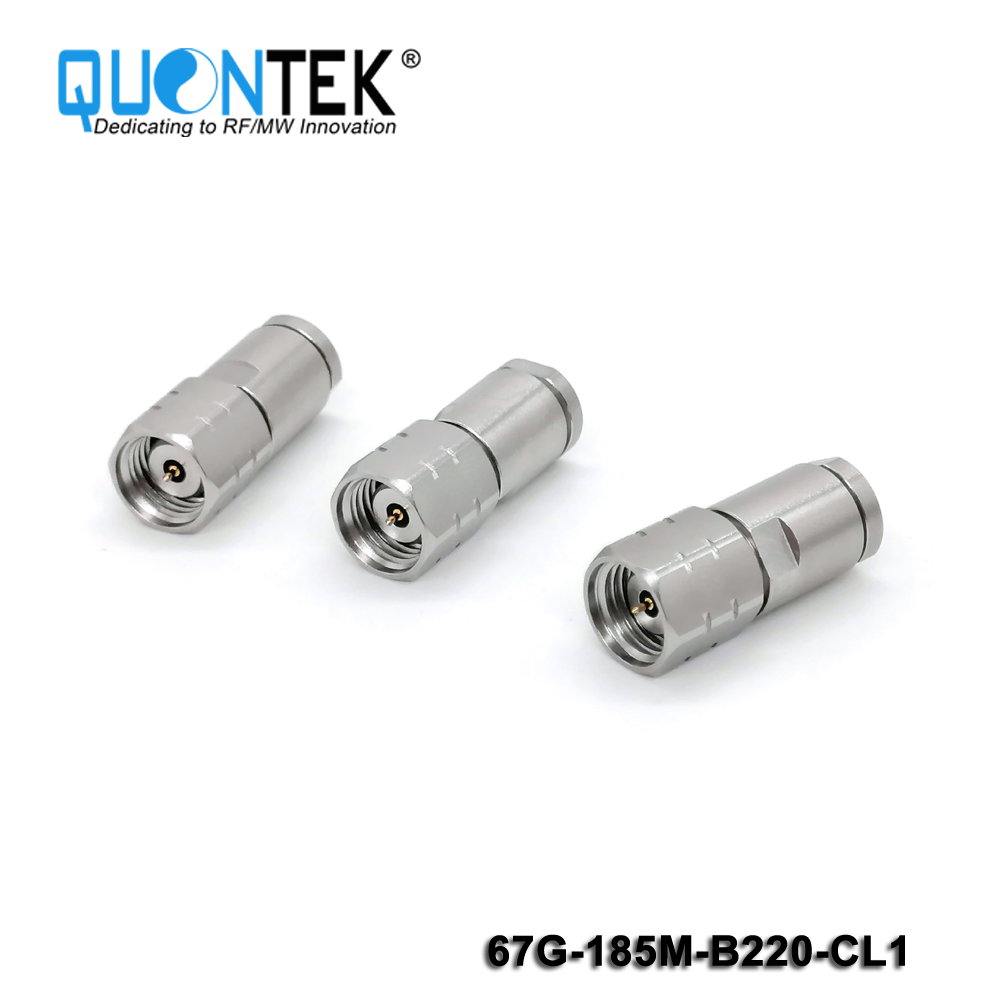

Precision Connector,1.85mm male for QTB220 cable,to 67GHz

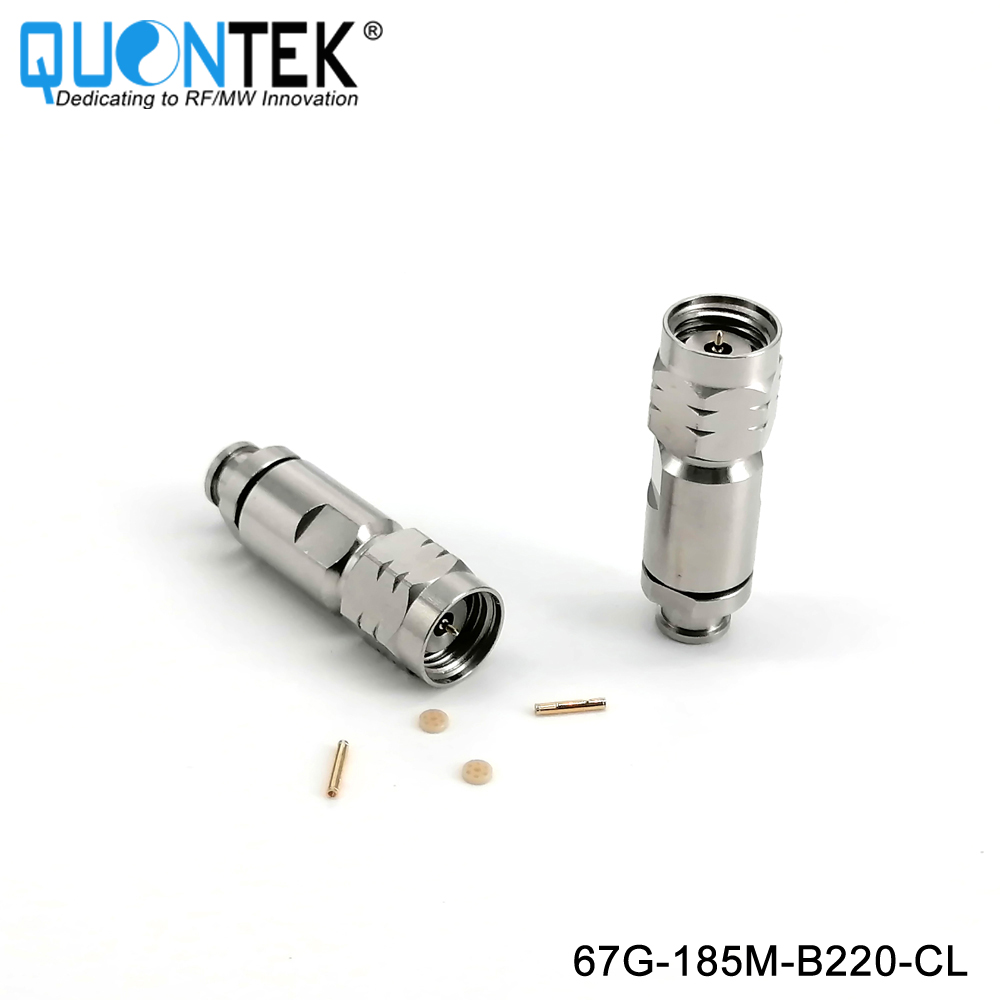

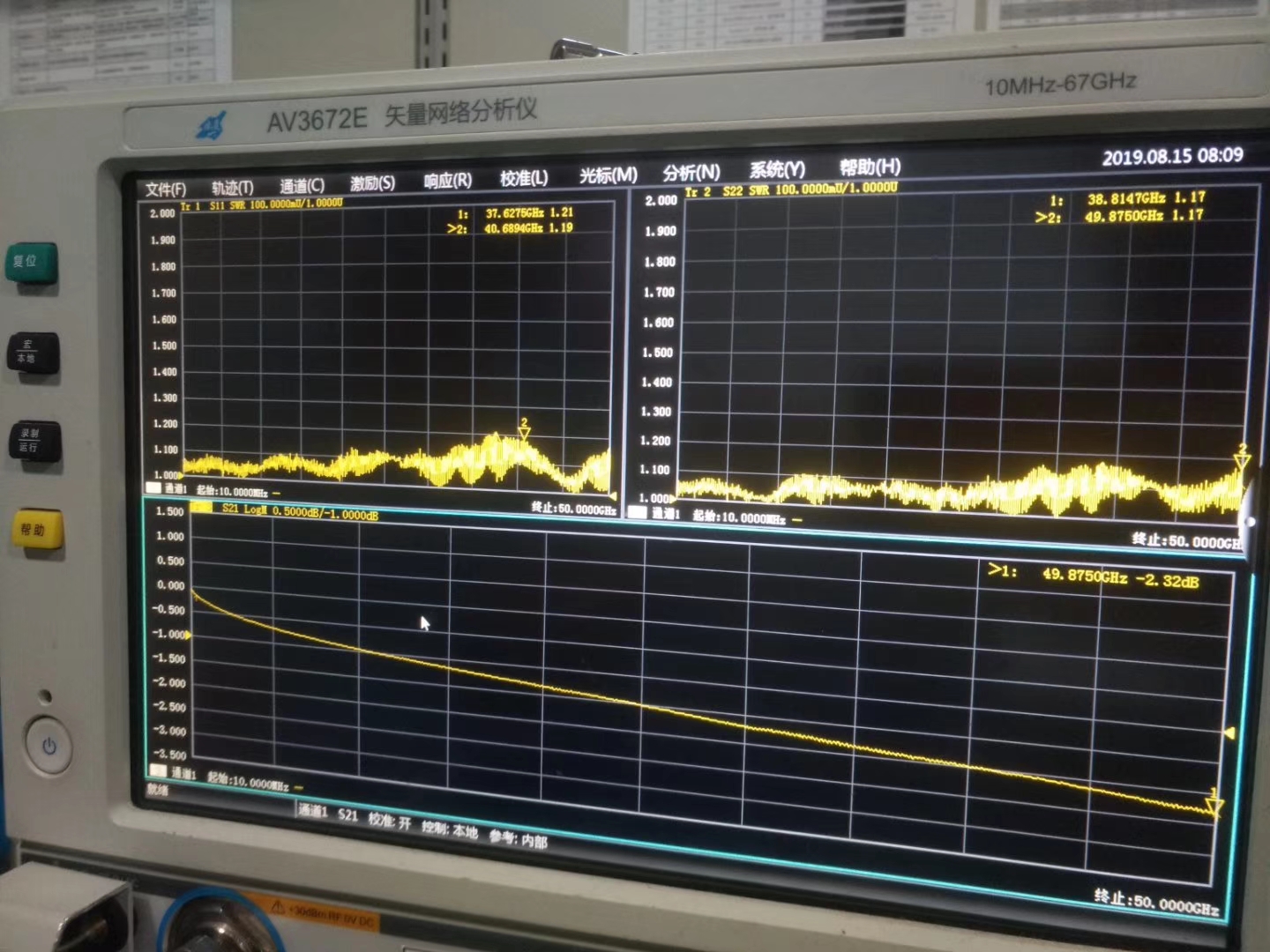

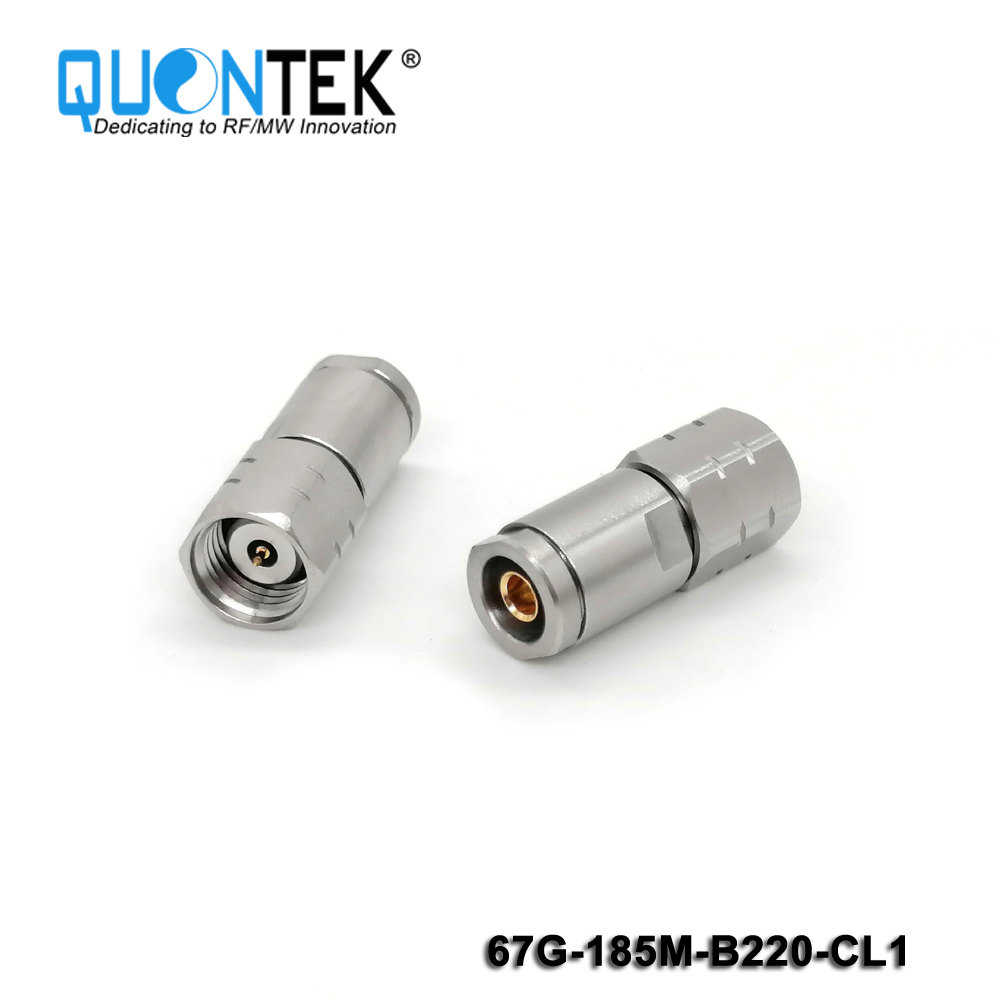

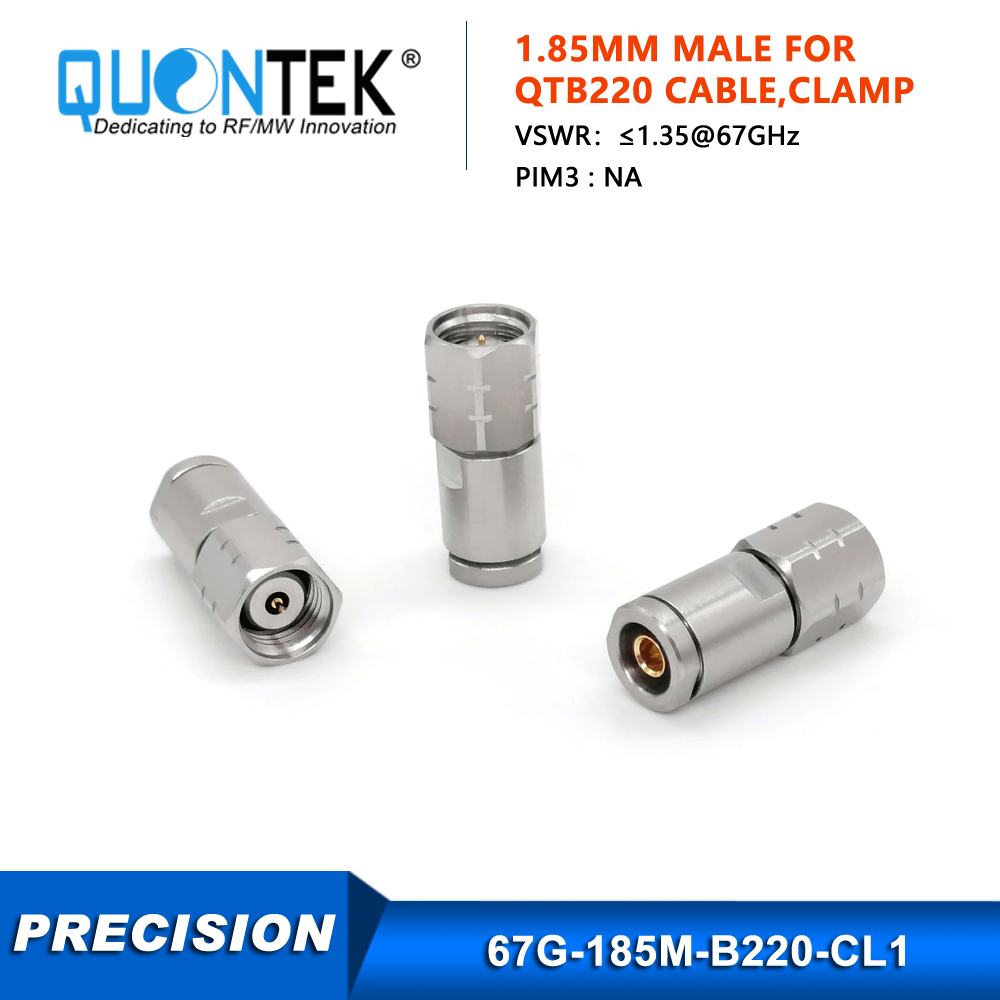

Precision Connector,1.85mm male for QTB220 cable,to 67GHz

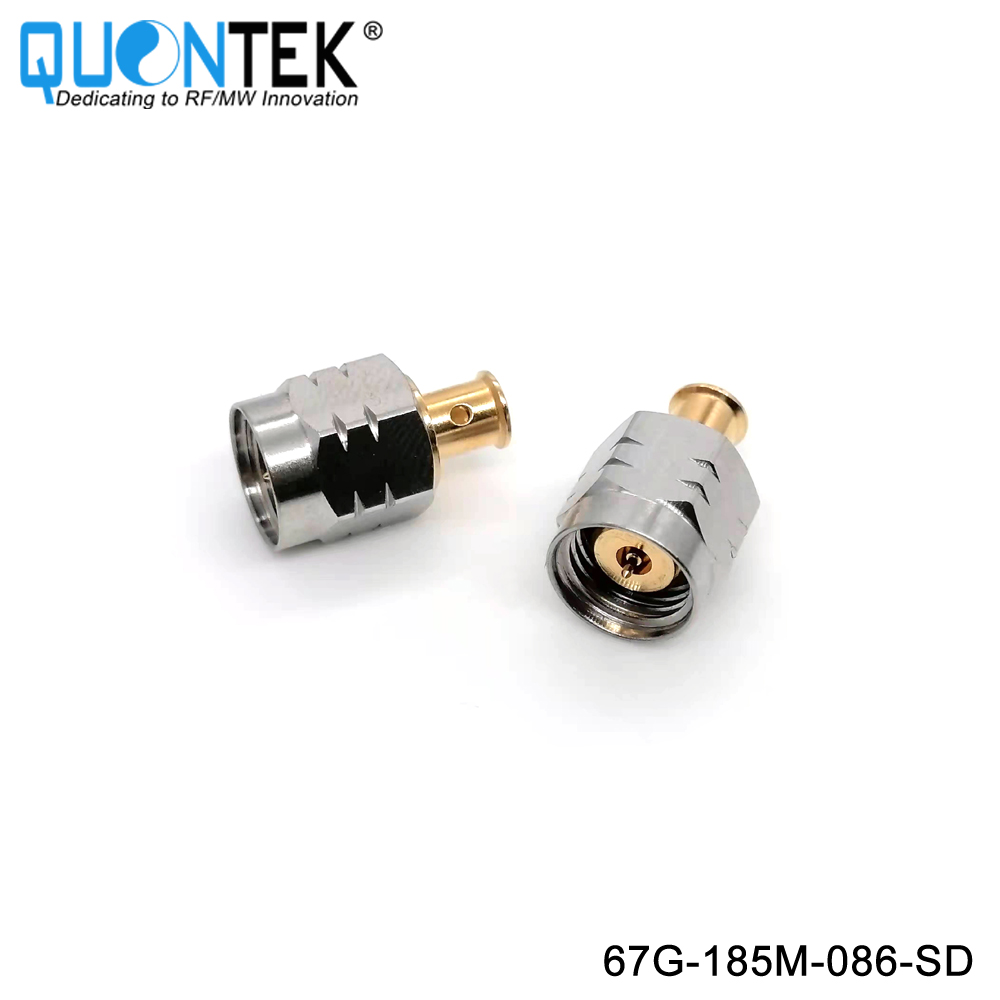

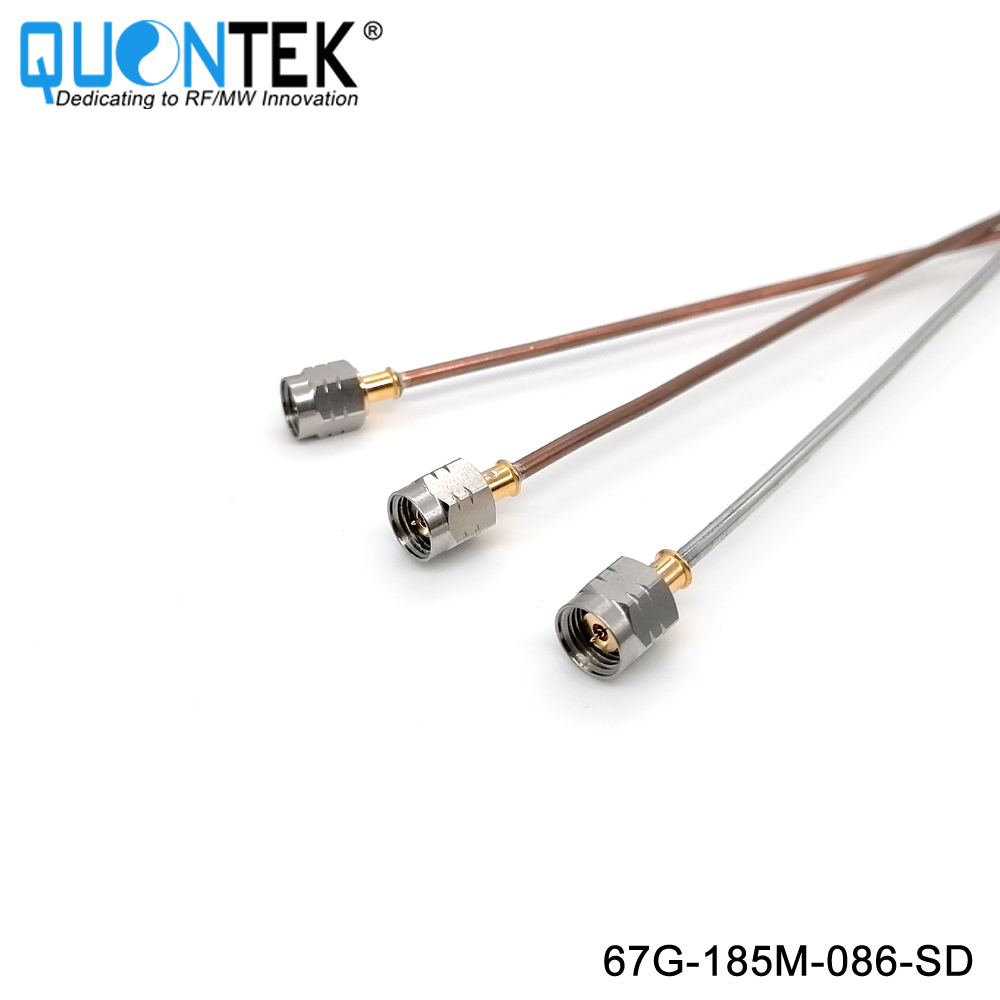

Precision Connector,1.85mm male for RG405/.086" cable,solder type,to 67GHz

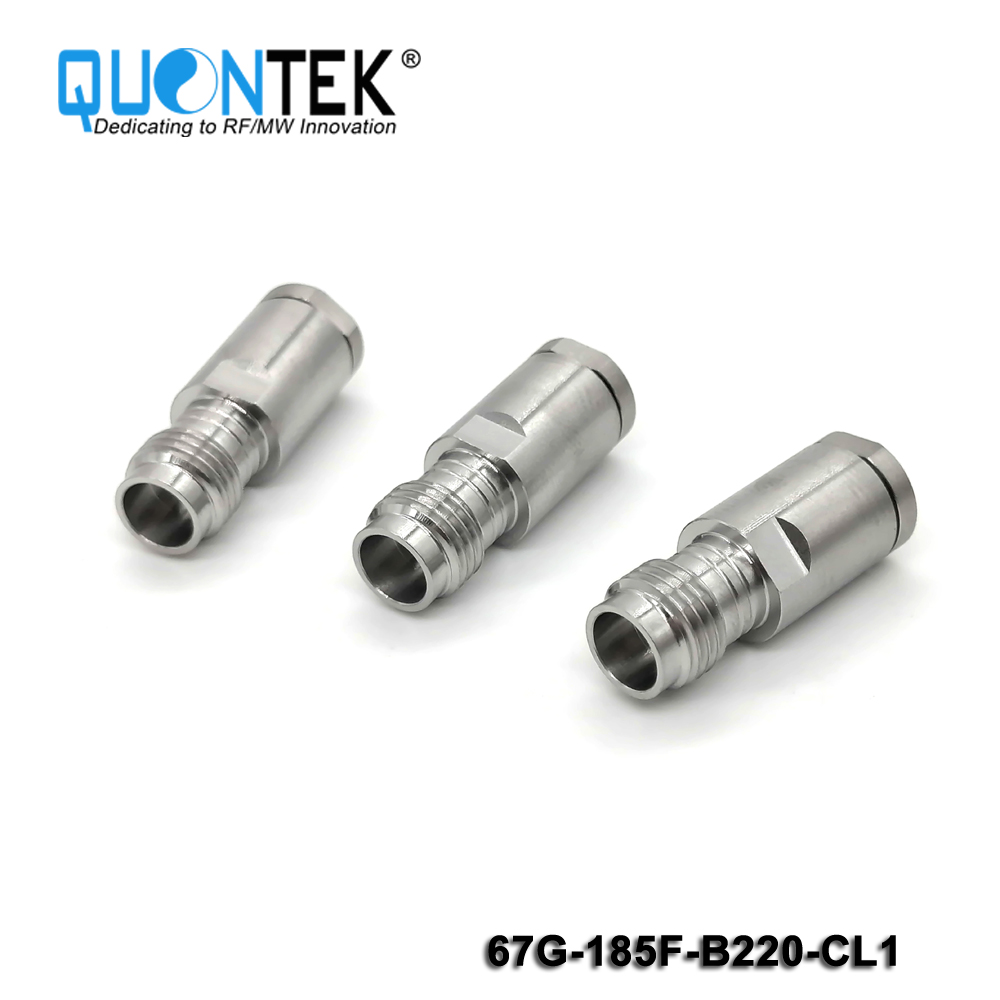

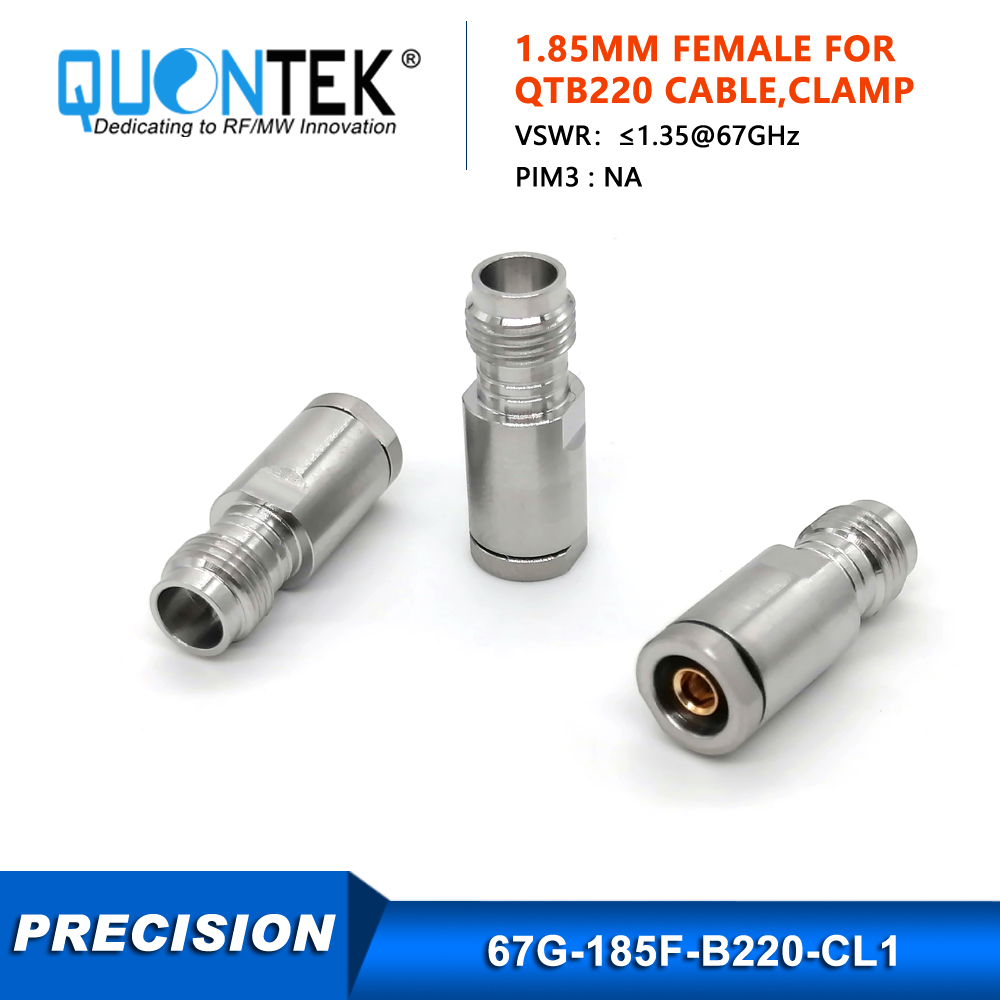

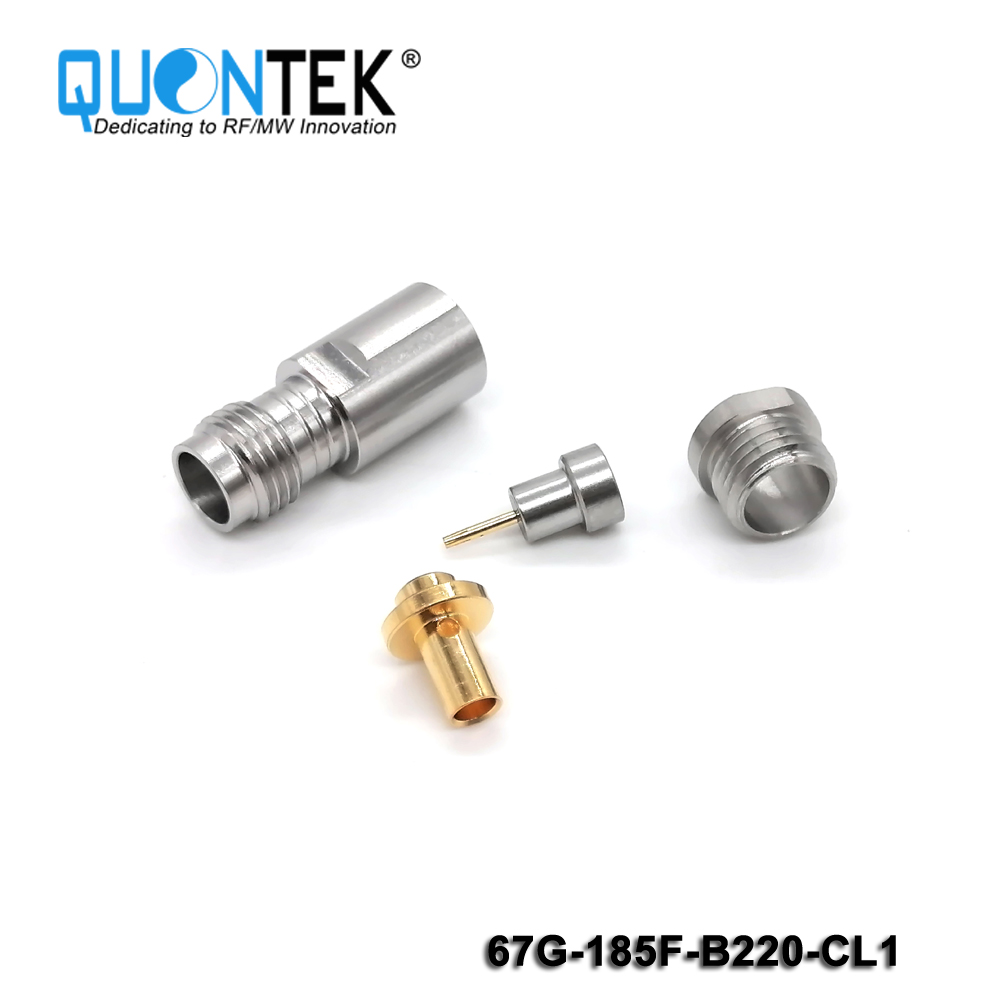

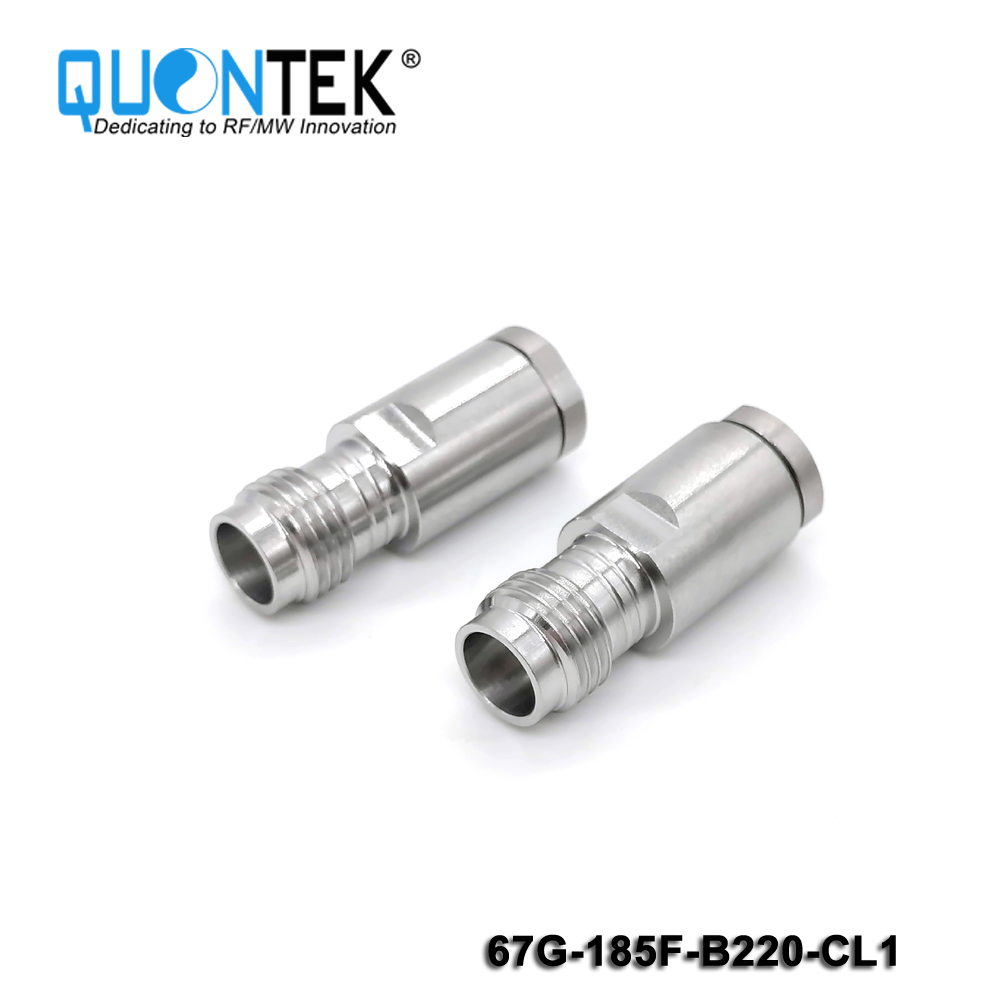

Precision Connector,1.85mm female for QTB220 cable,to 67GHz
A0.jpeg?x-oss-process=image/watermark,image_Z2xvYmFsZS9pbWFnZS9VU19Mb3NfQW5nZWxlcy83ODAvb3NzL2xvZ28vMGMwZDRmMTUxNWNhYjc2ZGRjNGM3YjBmMjkxY2I5MmYuLnBuZw,g_center/resize,m_pad,h_580,w_580)

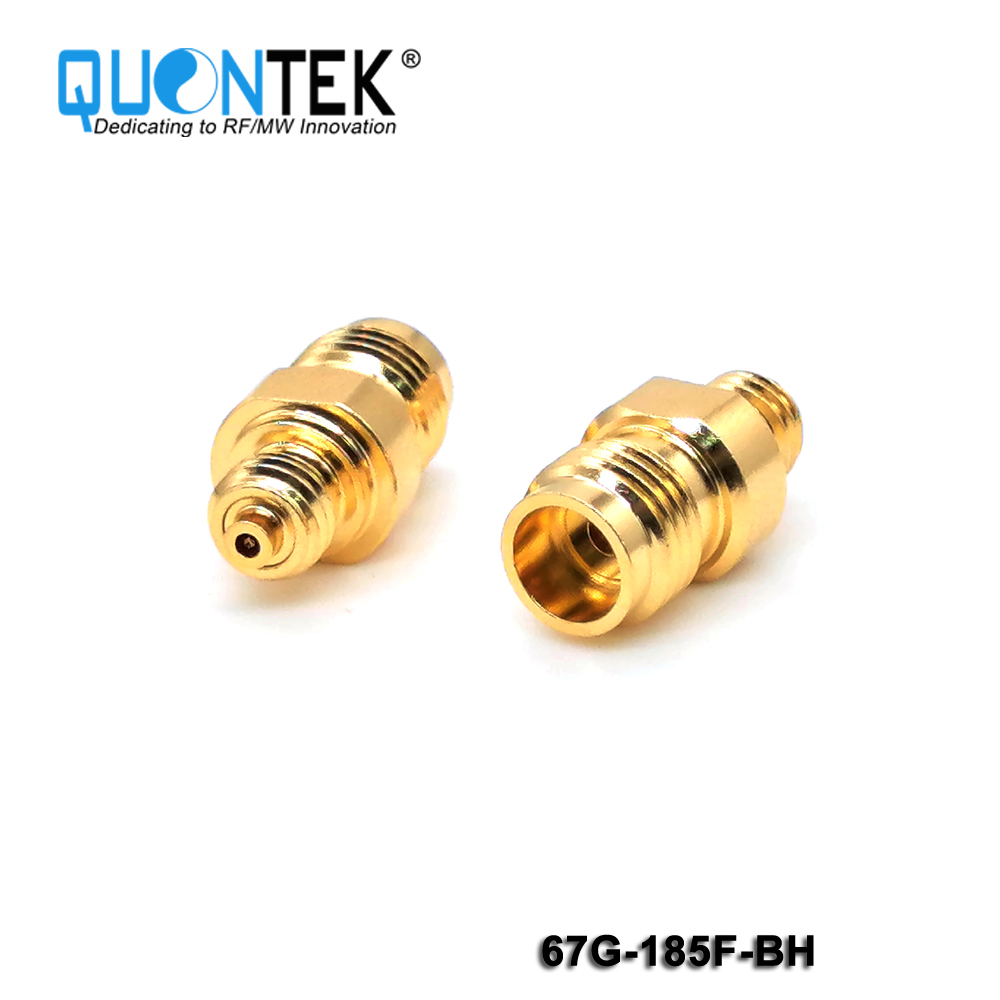

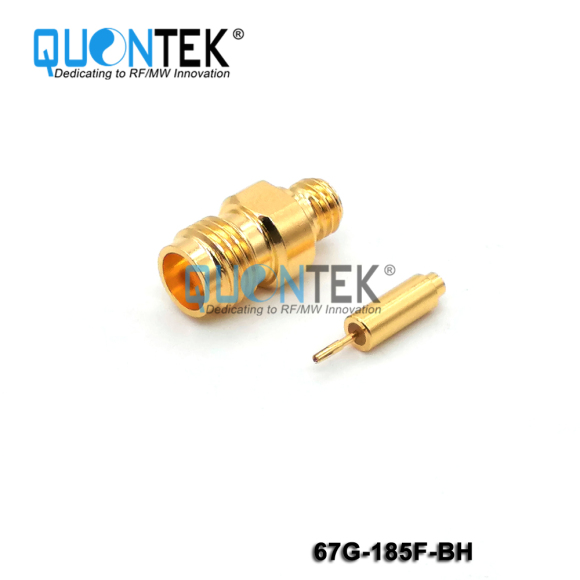

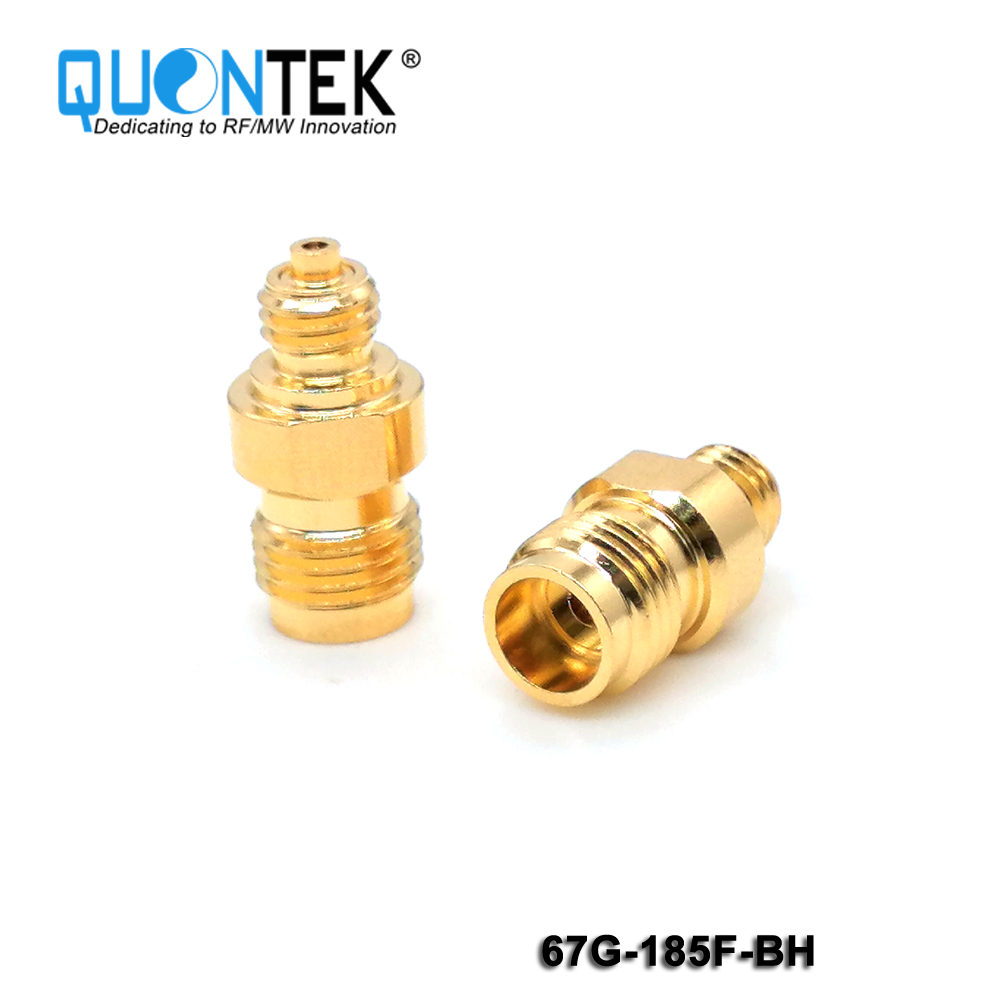

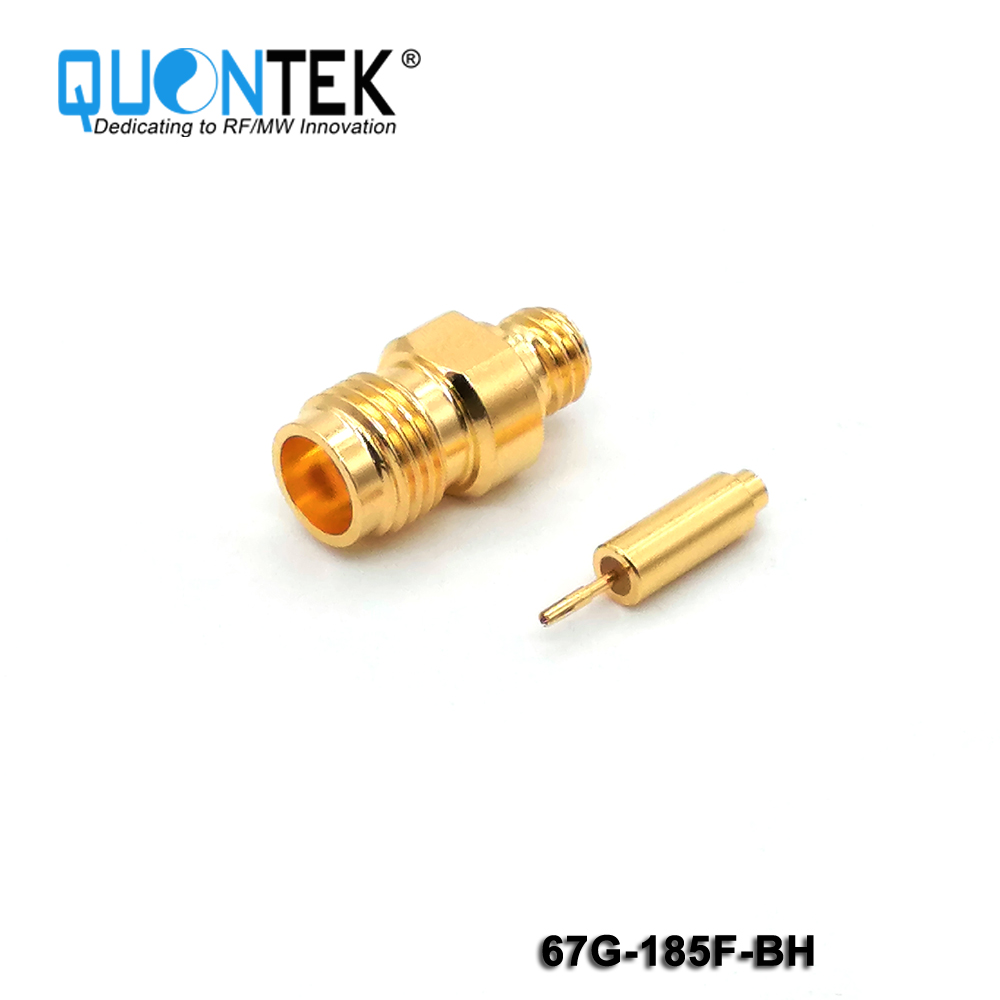

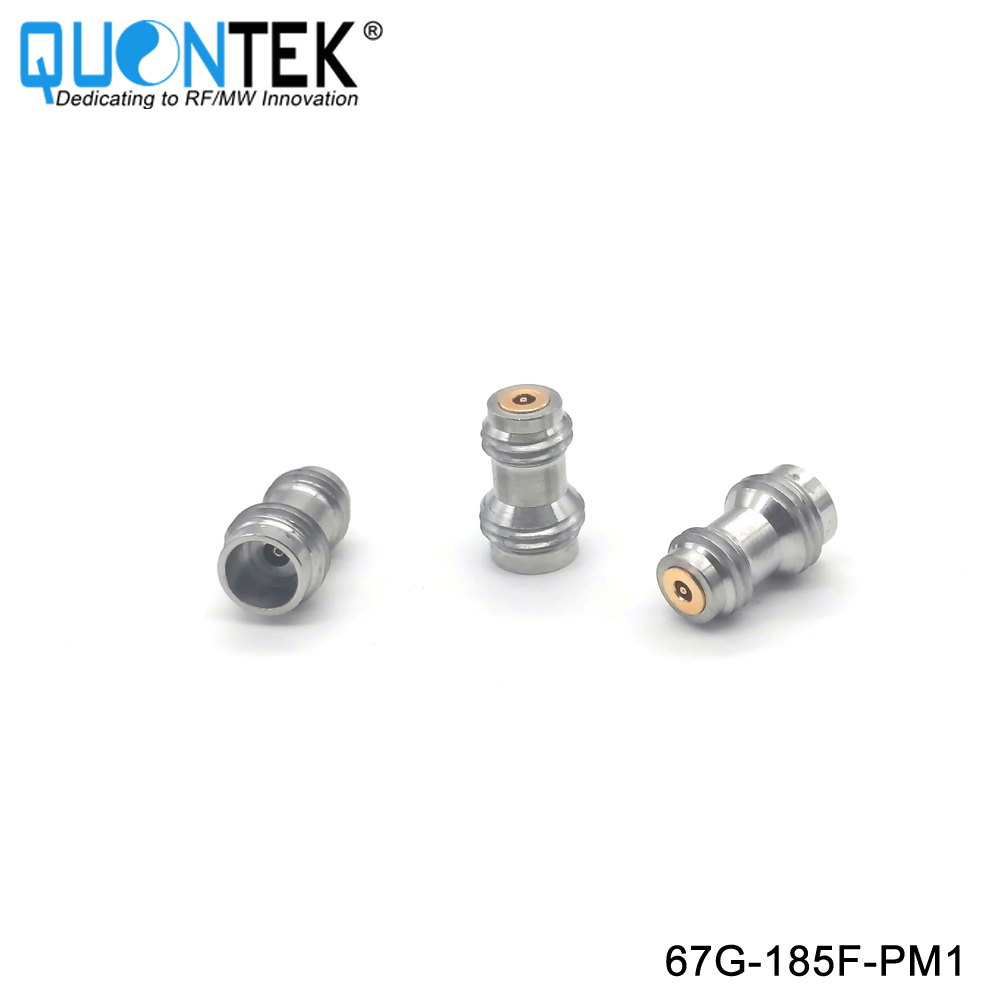

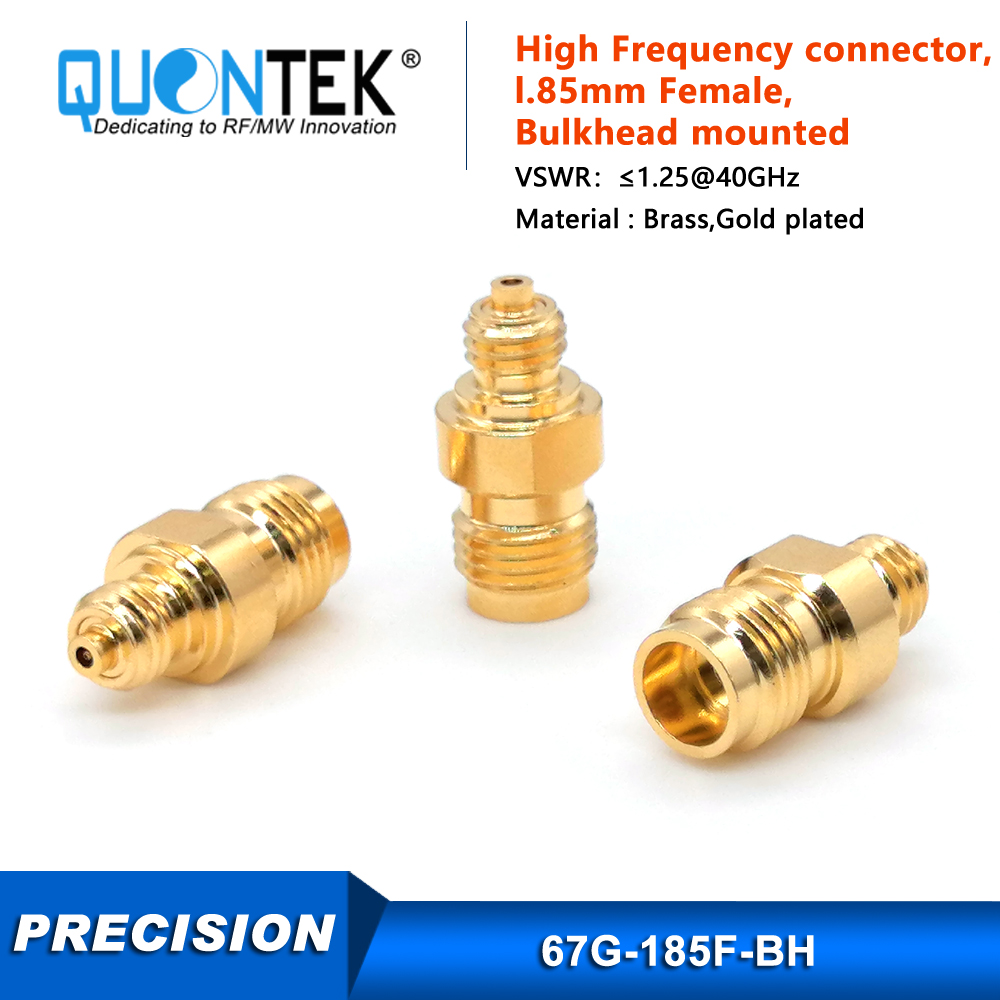

Precision Connector,1.85mm female for Bulkhead mounted,to 67GHz
