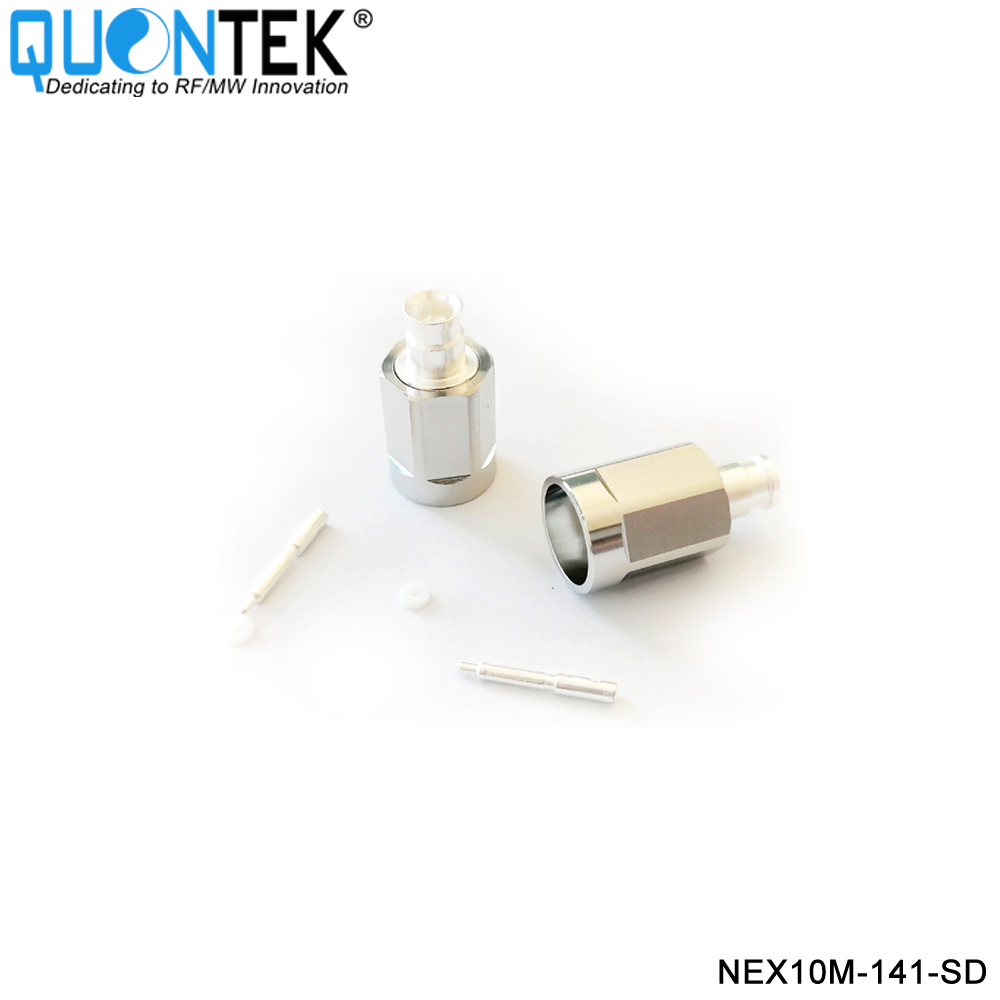

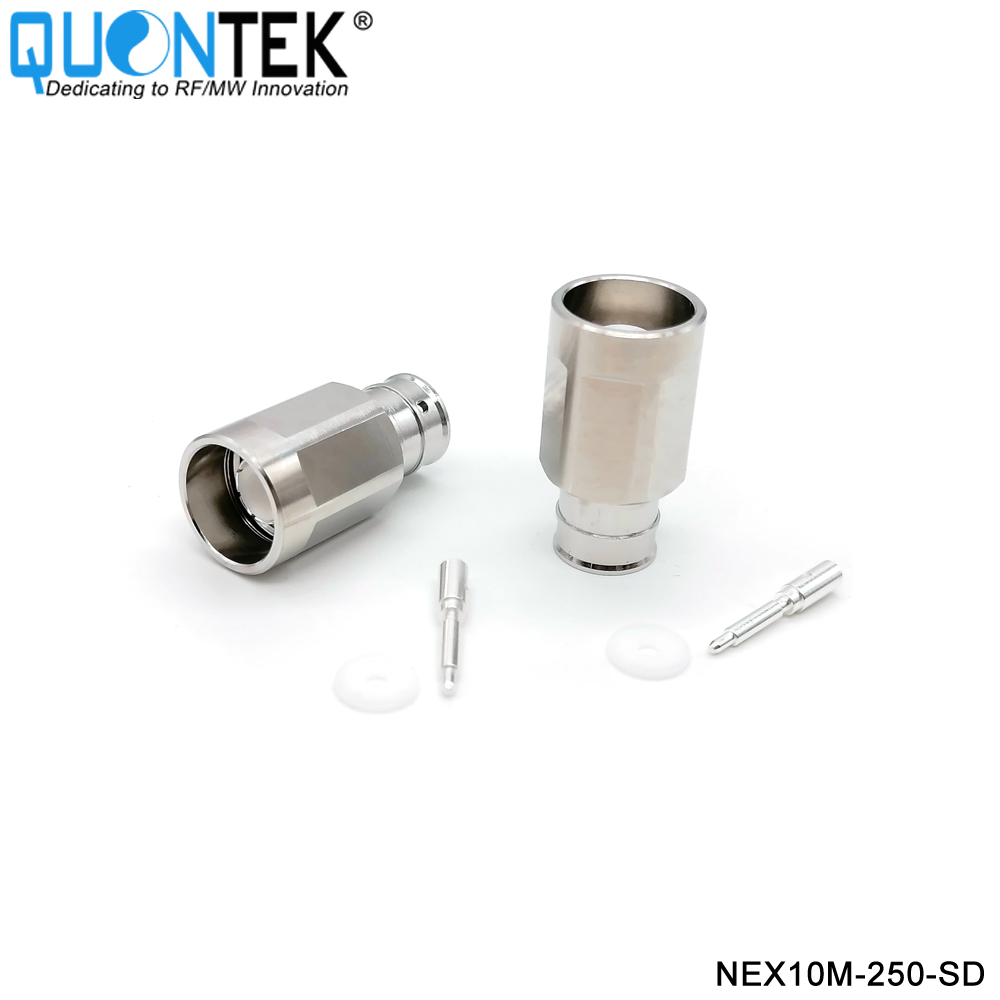

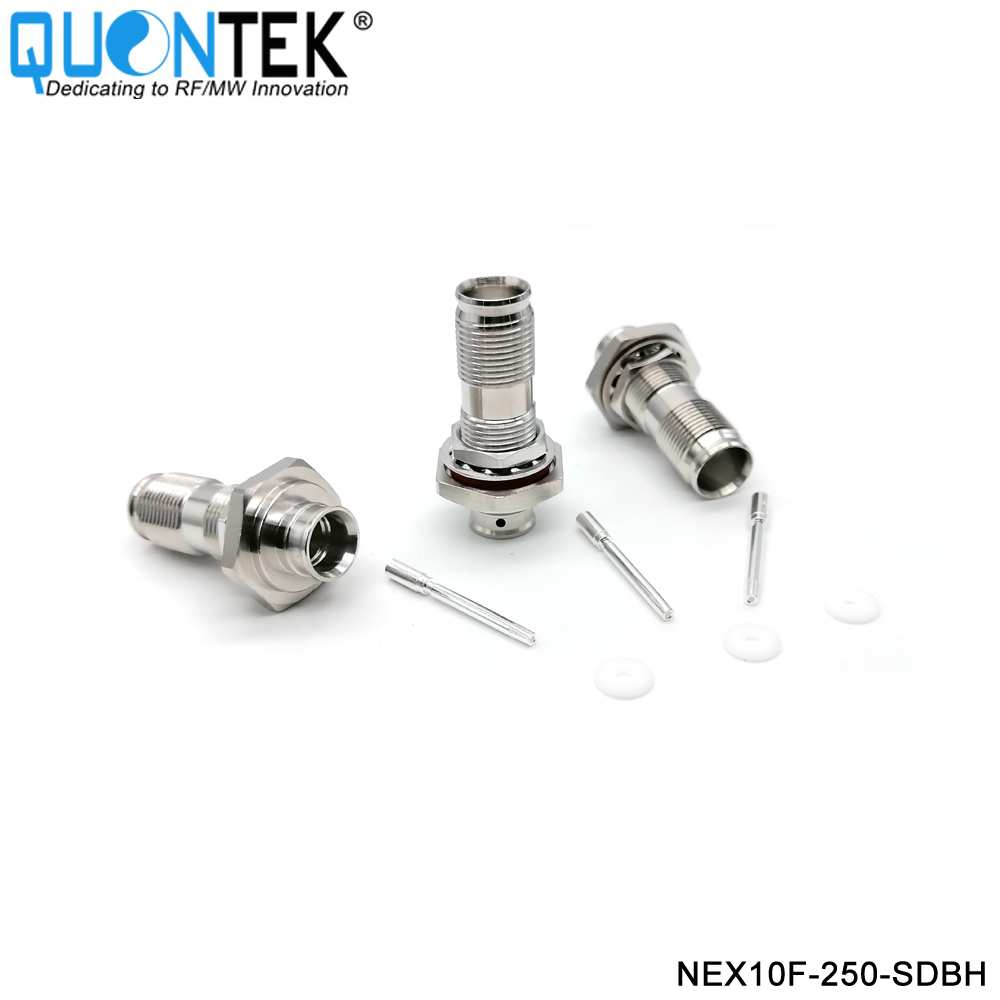

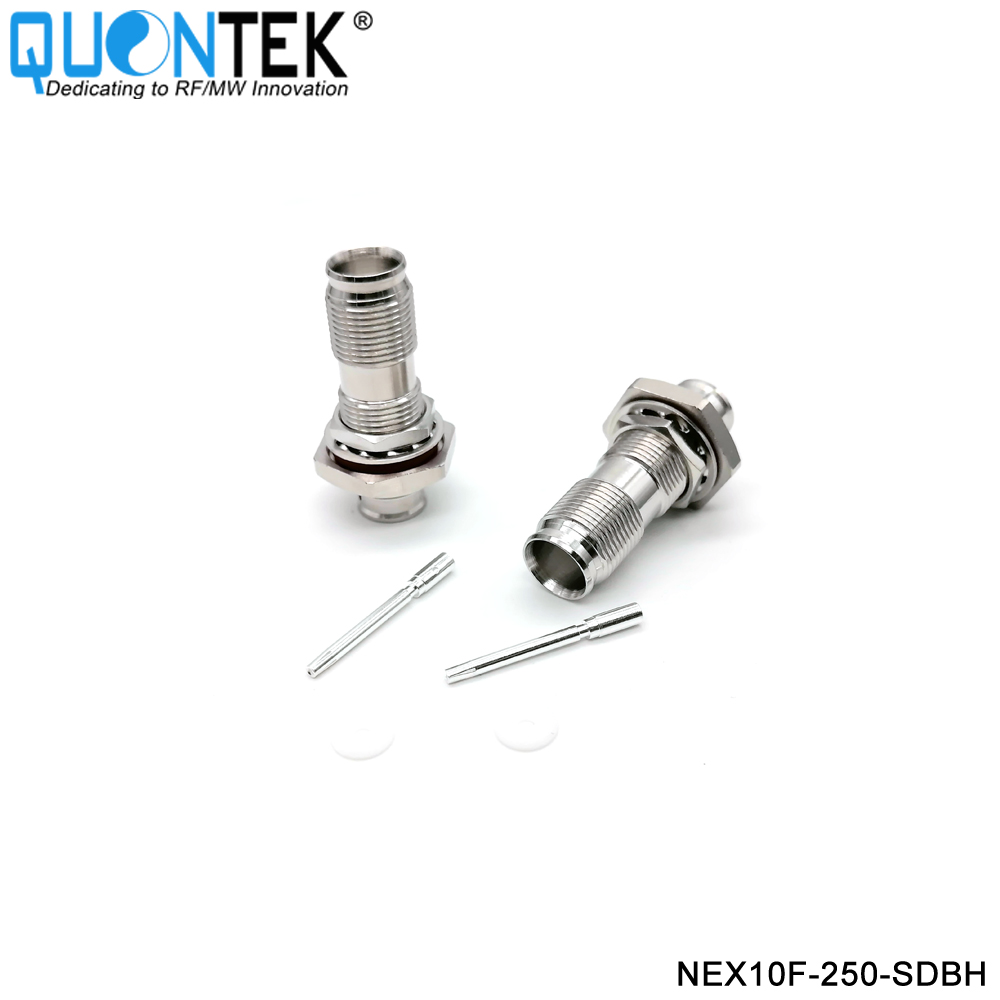

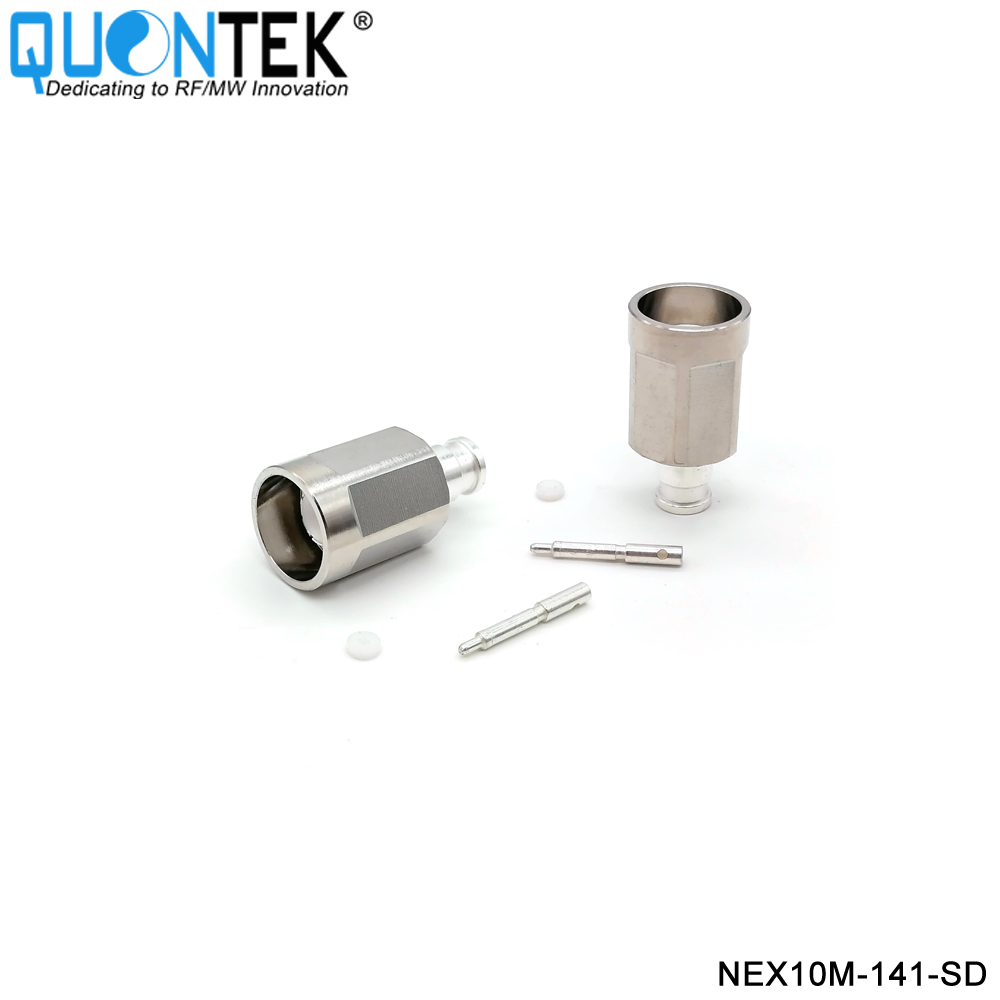

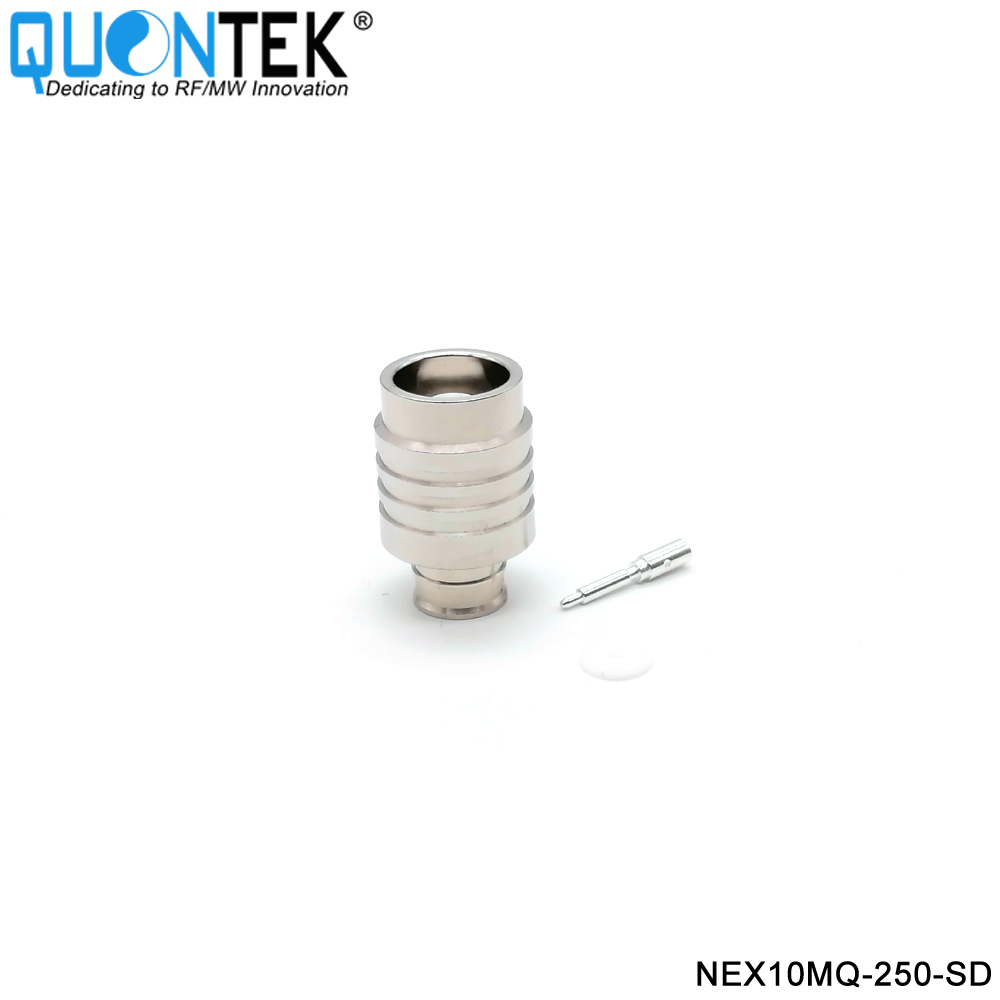

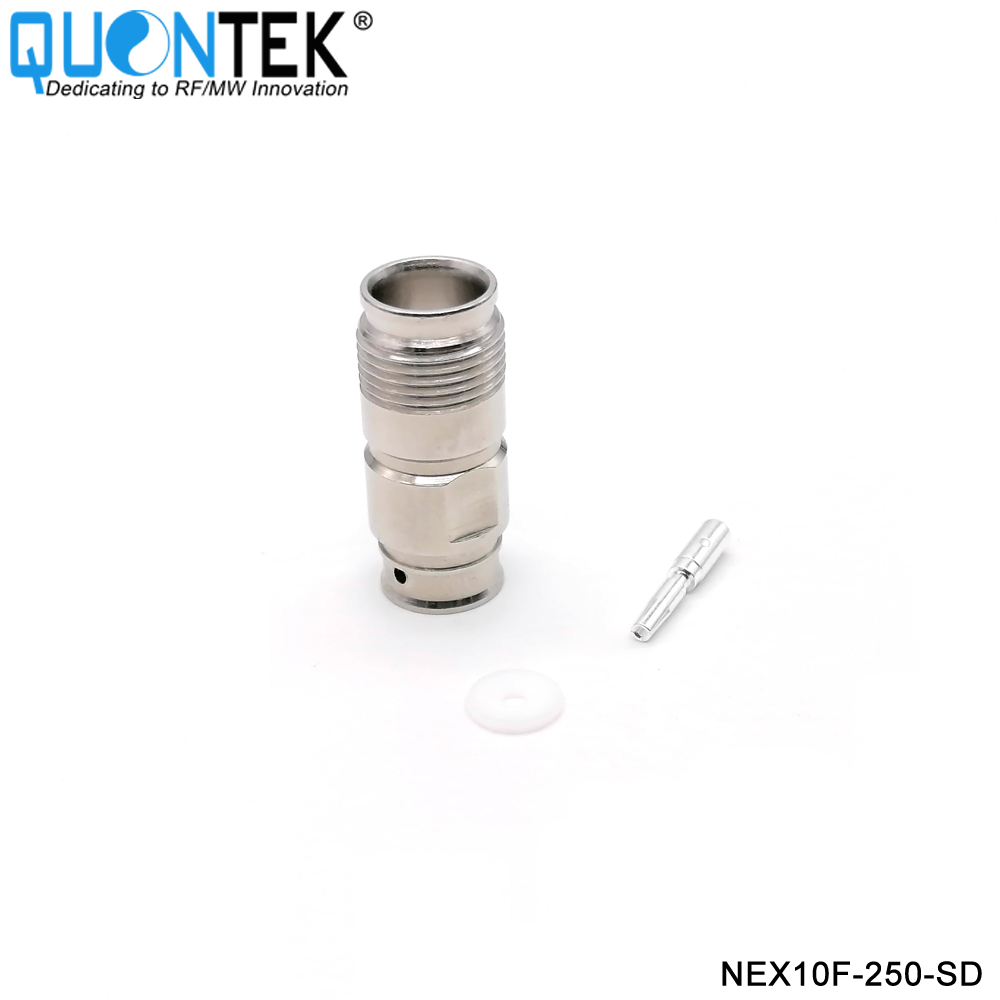

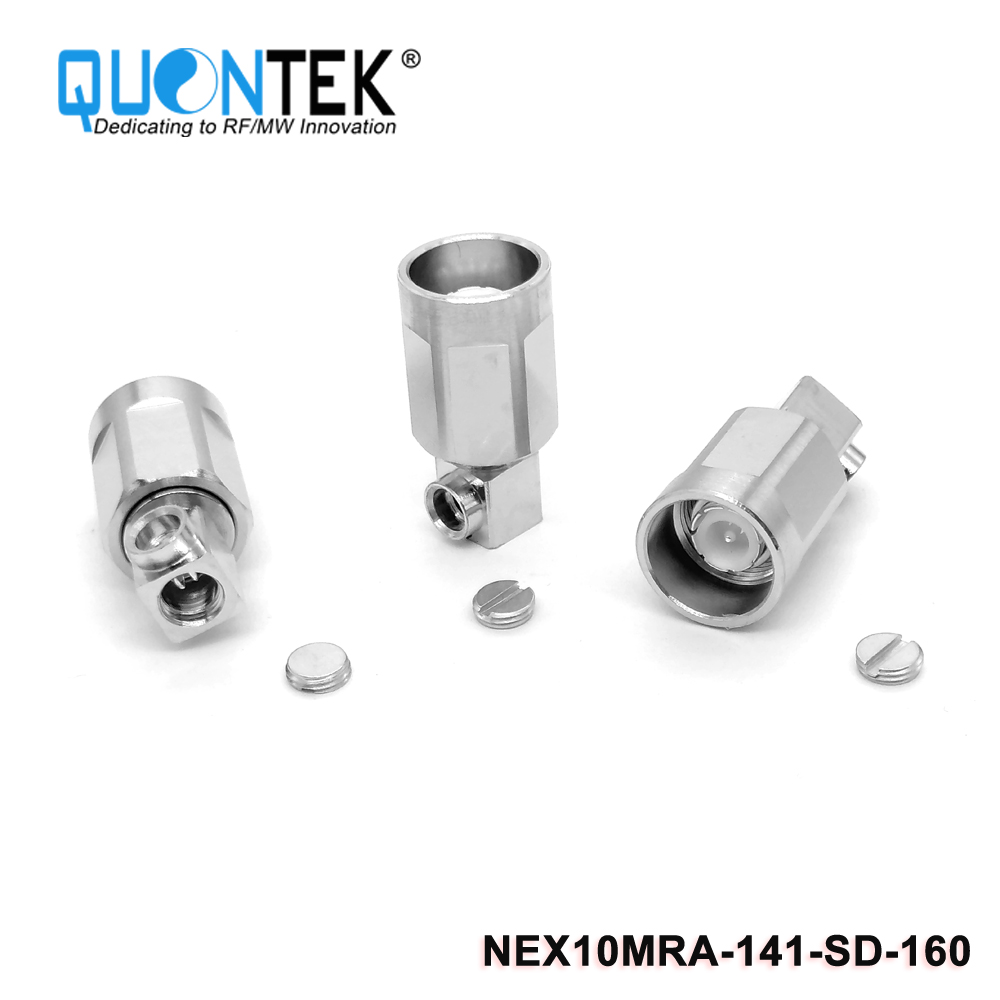

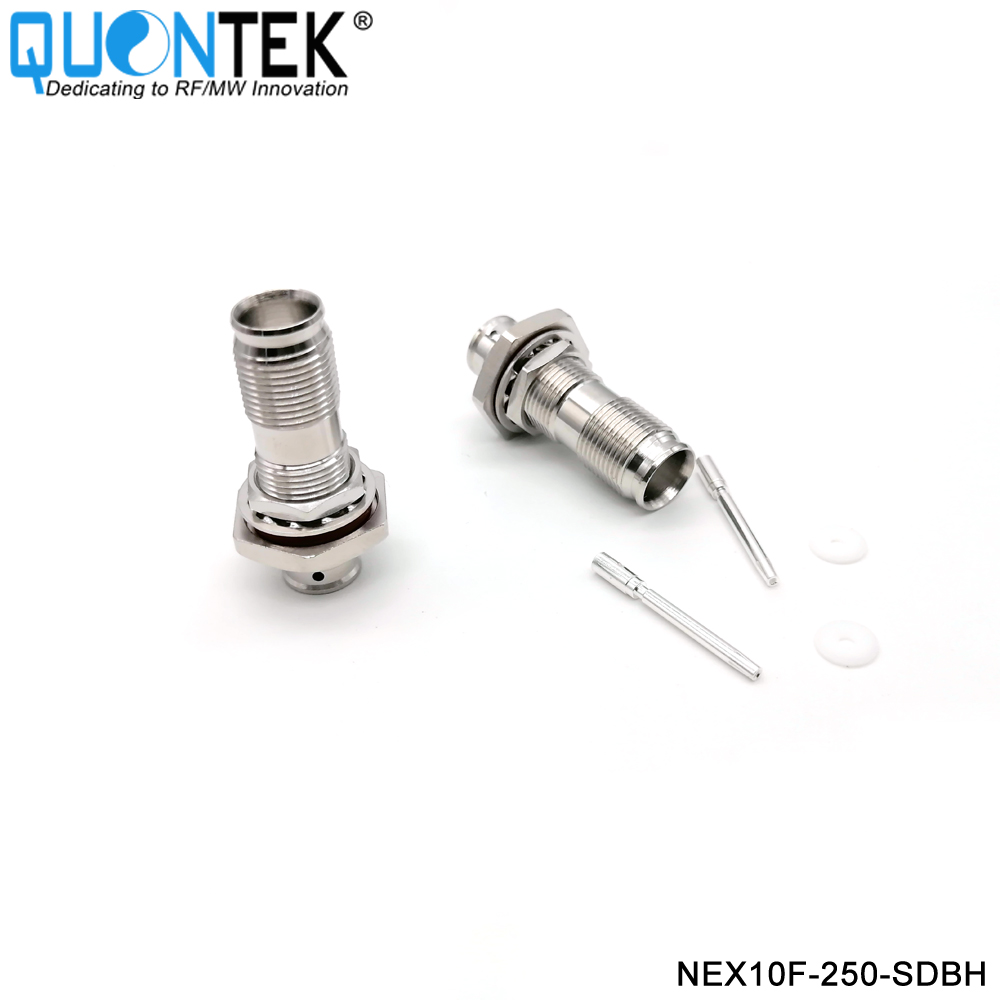

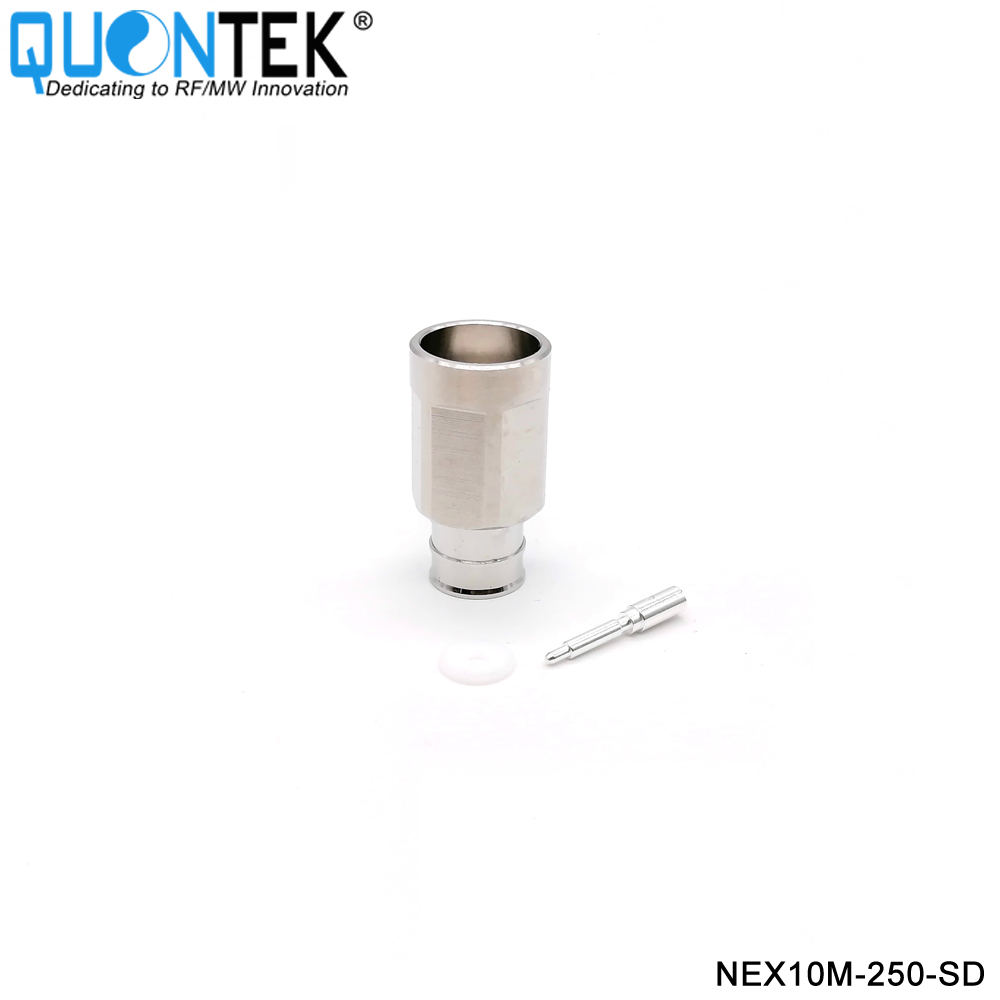

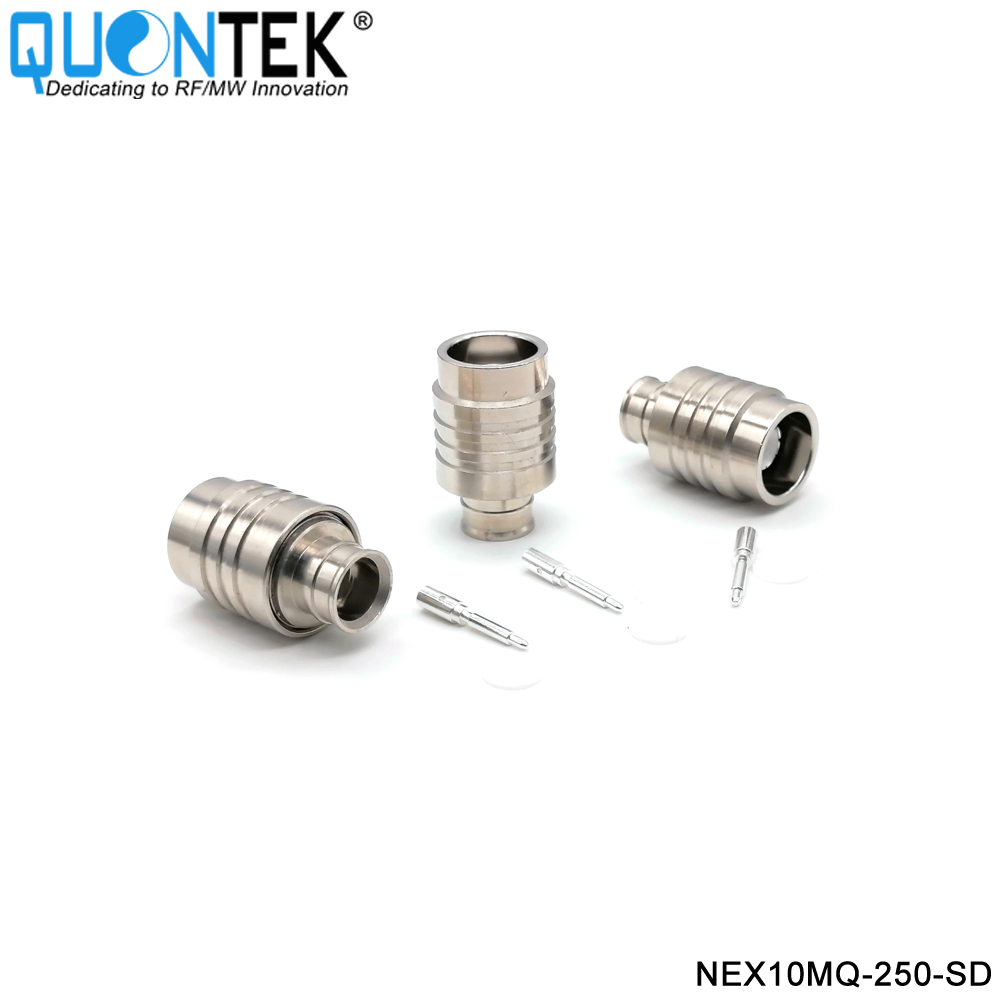

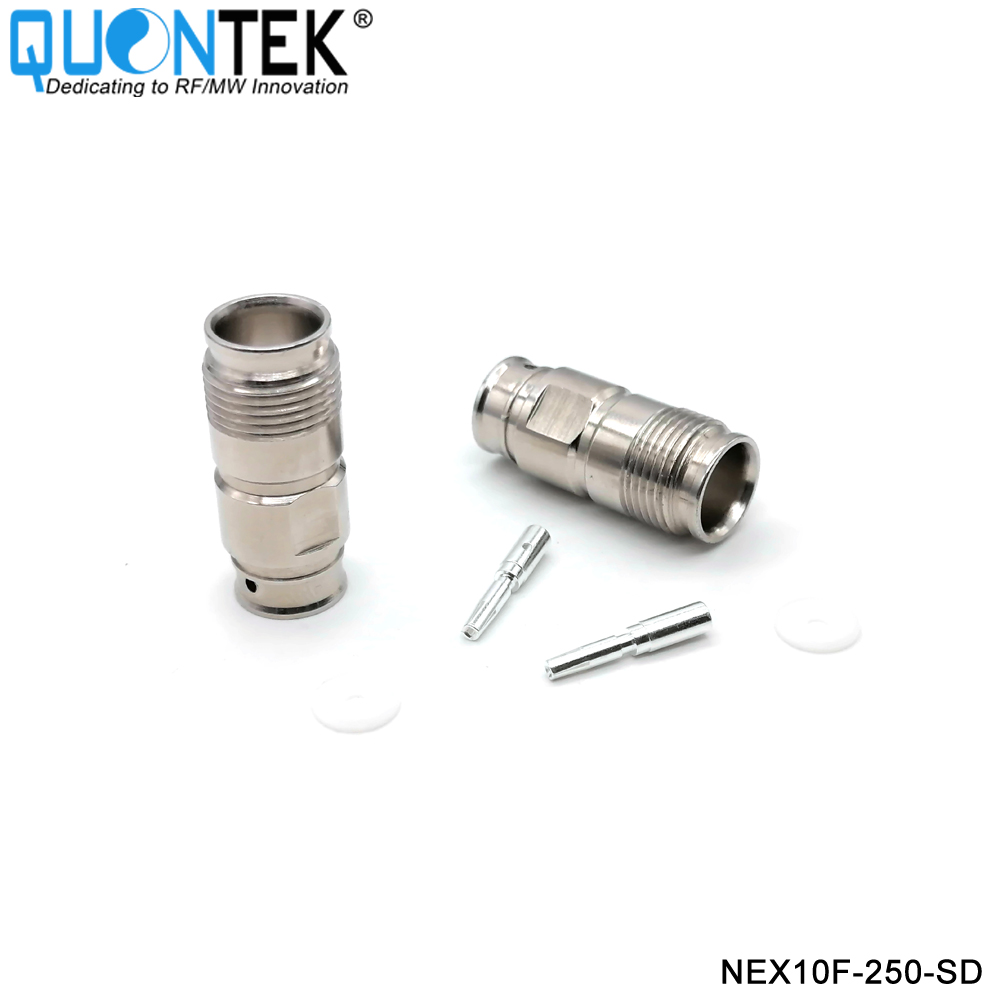

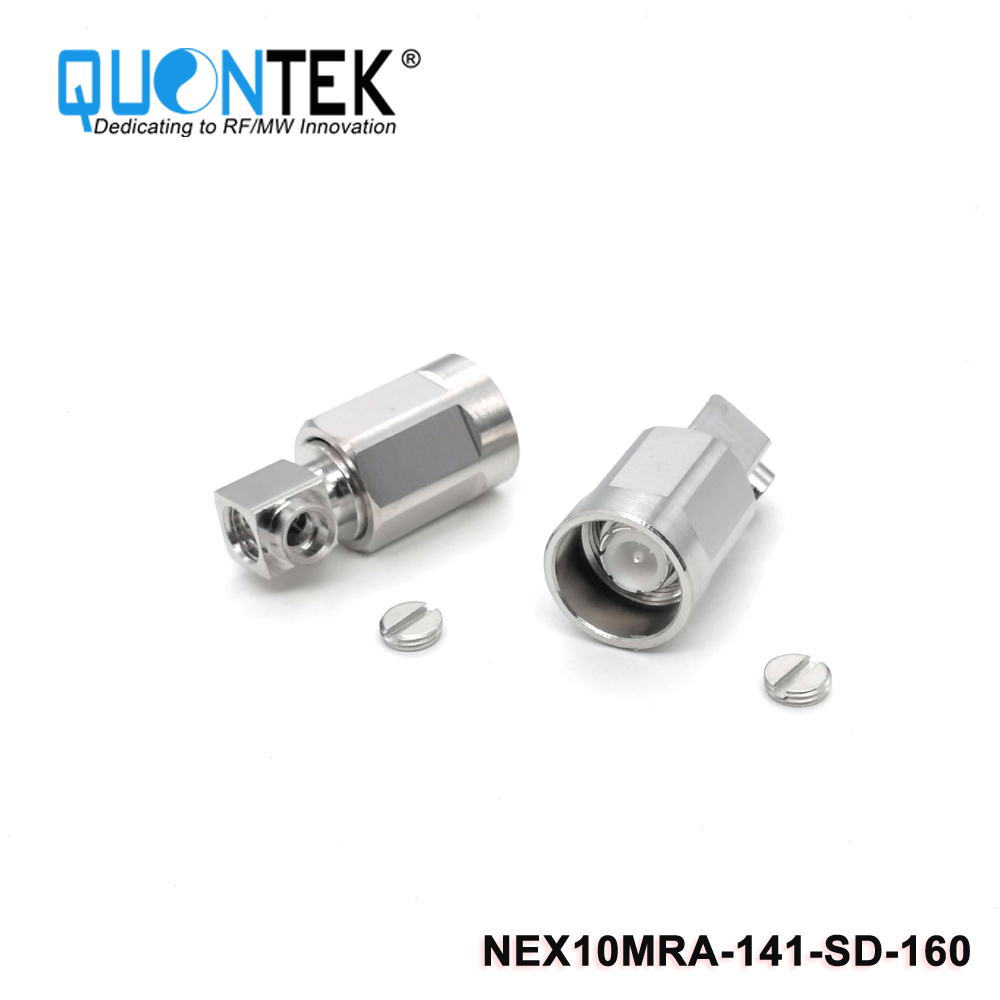

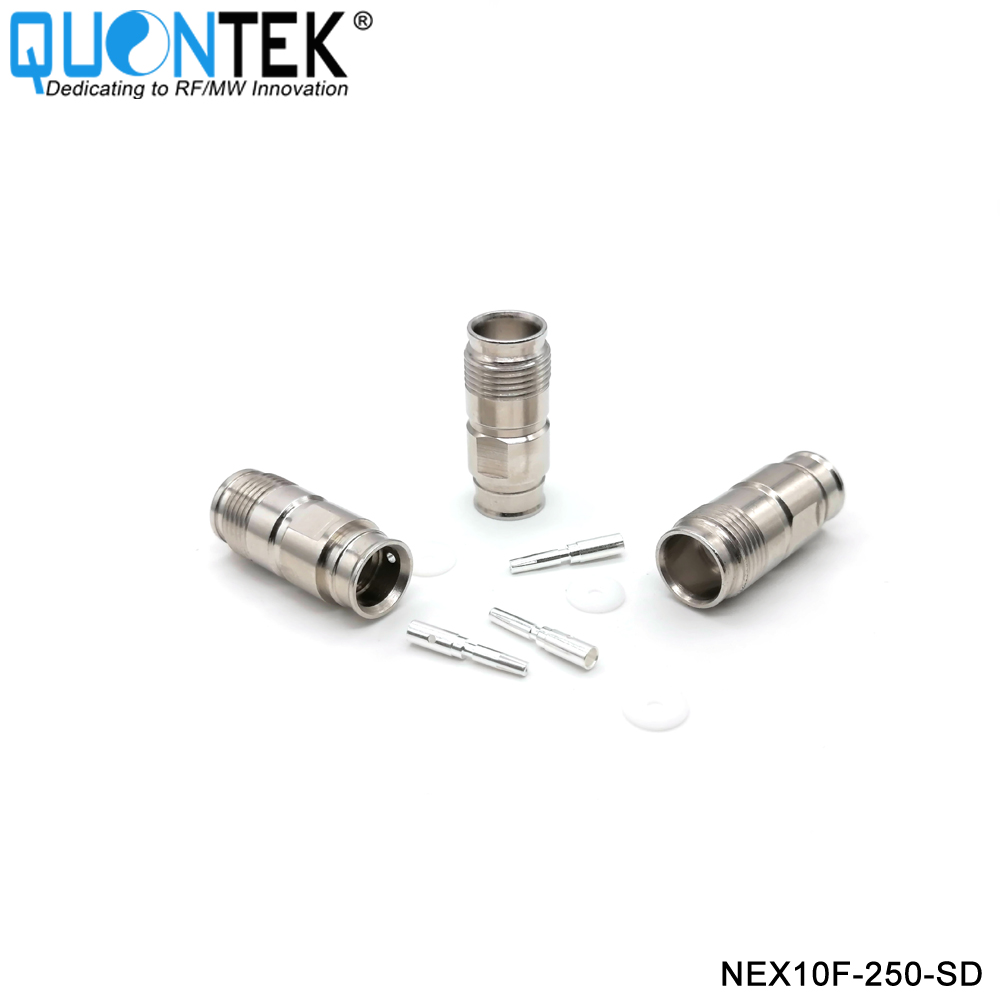

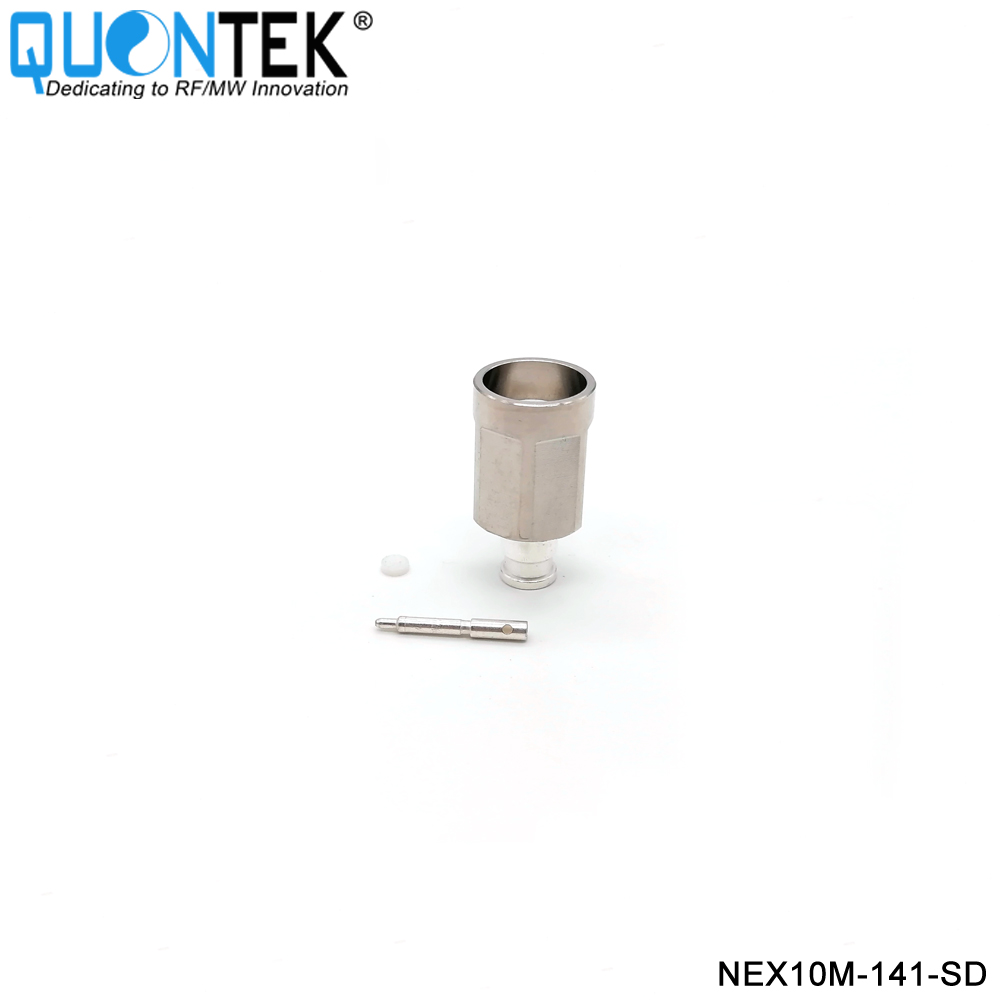

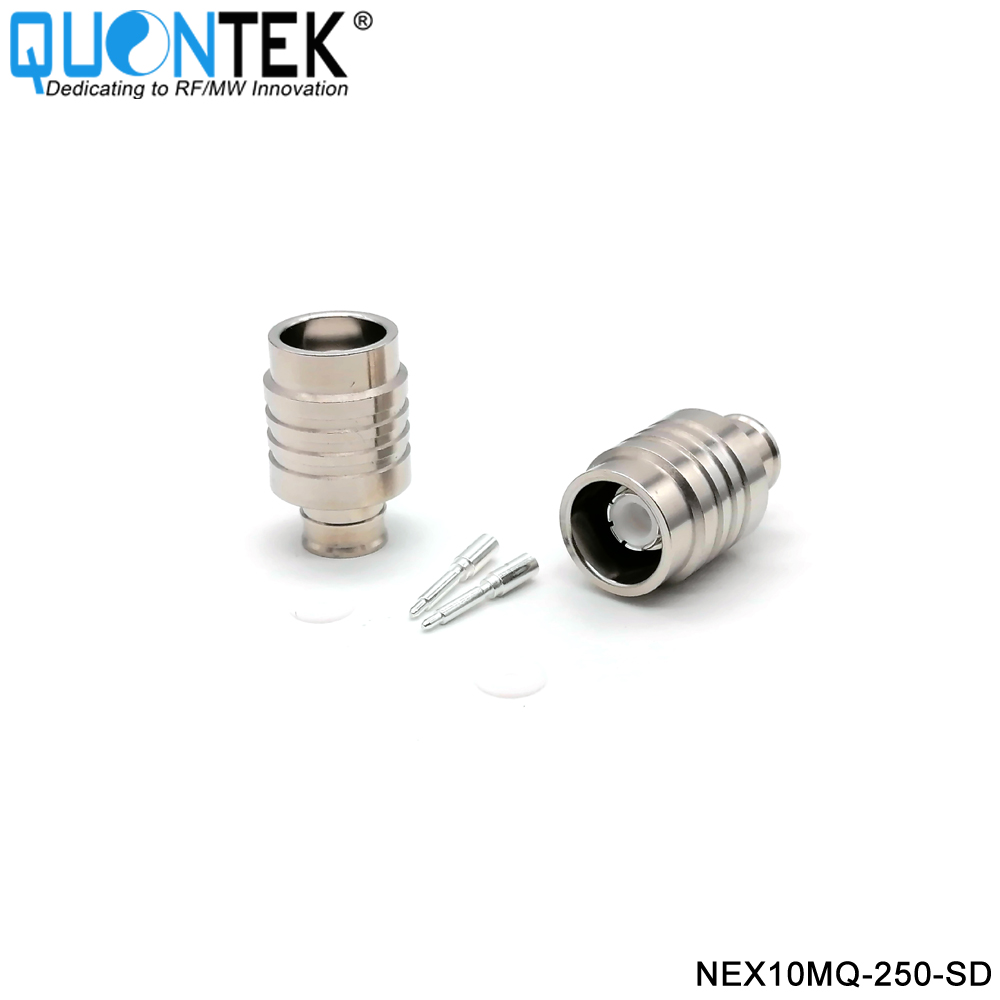

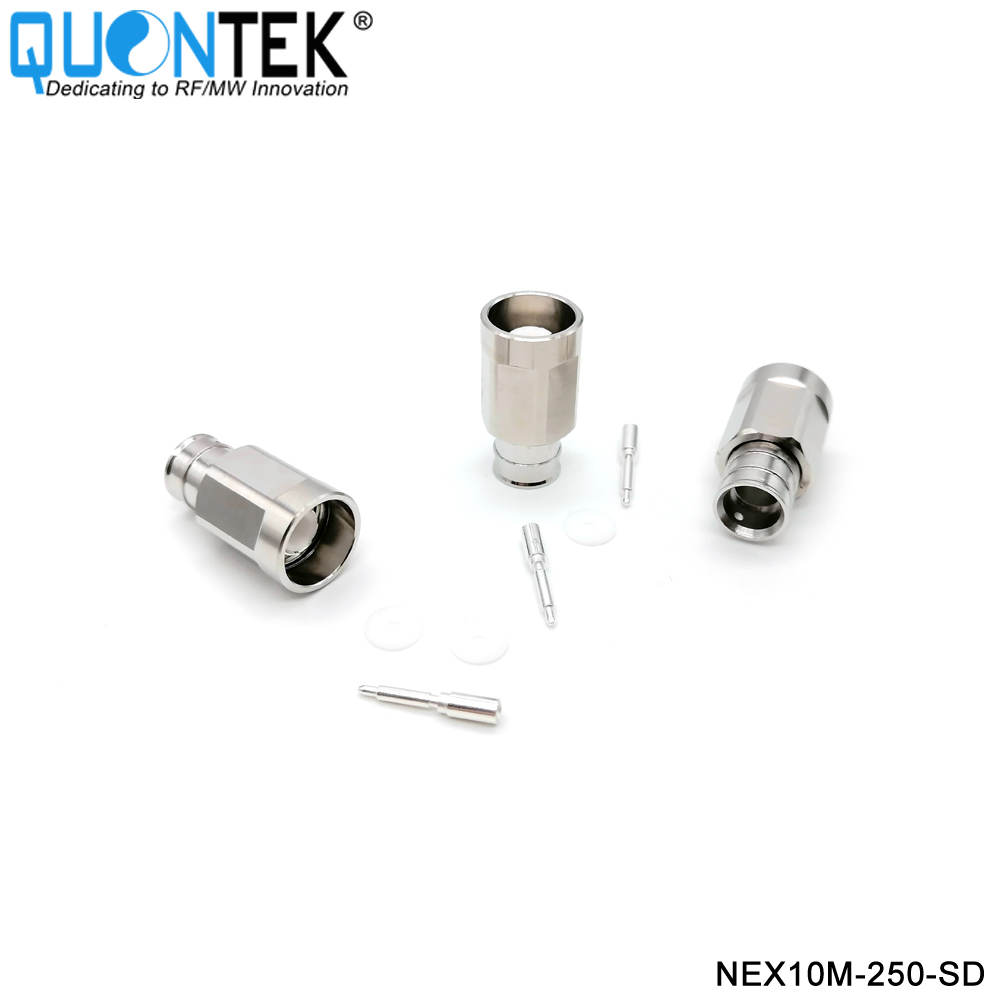

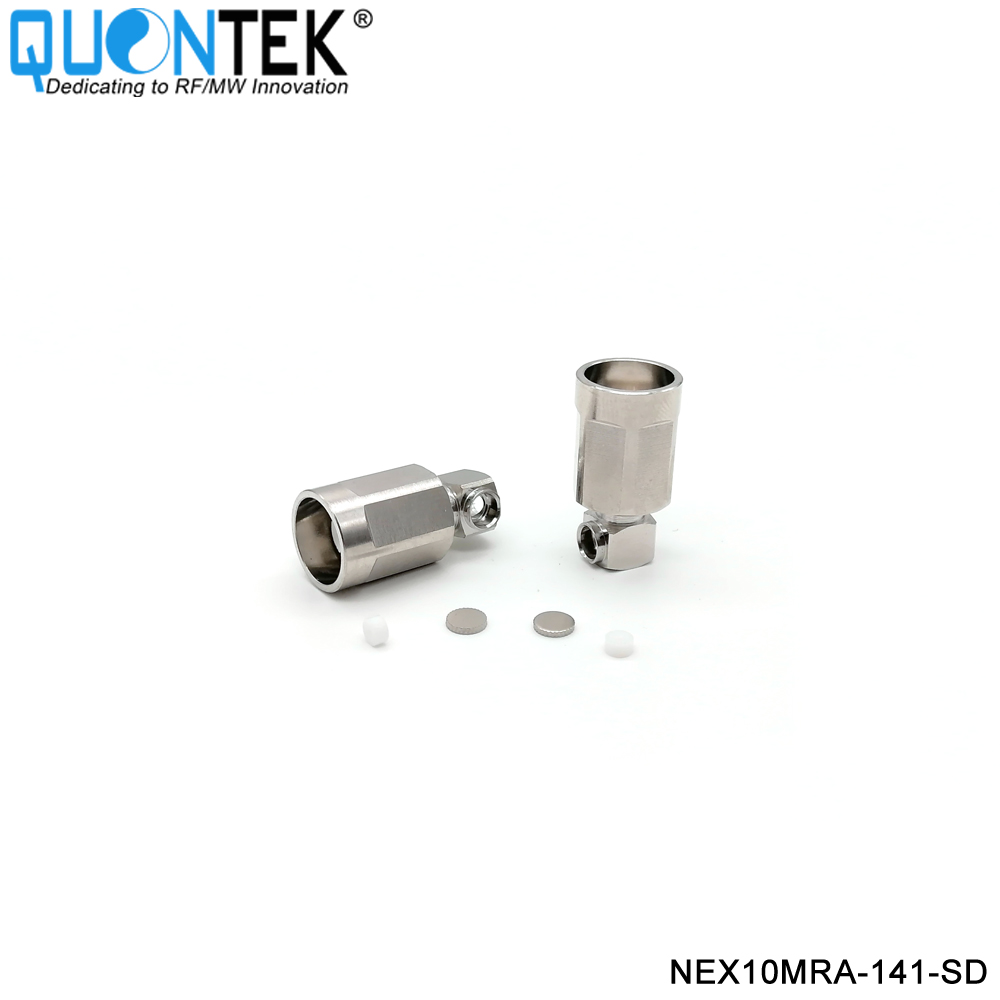

NEX10 type Connectors
Description
NEX10 interface offers very low PIM performance together with a robust design and small size. Another key feature of NEX10 is the separation of the electrical contact from the
mechanical contact area, which yields a low PIM and high return loss performance independent of the coupling mechanism or applied torque. This characteristic also gives the possibility of offering the connector plug with screw and quick-lock designs, thus simplifying the installation effort while guaranteeing a very high electrical performance for all coupling mechanisms.
Applications
NEX10 is the ideal candidate for applications requiring PIM stability and robustness in a small size such as remote radios, distributed antenna systems (DAS), small cells and in-building
architecture:
• In small cell applications,
• In low power base stations,
• In multi-operator/multiband DAS,
• Blind mate for panel-to-panel and test and measurement
Features
• Frequency range up to 6 GHz
• Excellent return loss
• The NEX10 interface dimensions conform to the following standards:
International: IEC 61169-71
USA: MIL-PRF-39012 NEX10

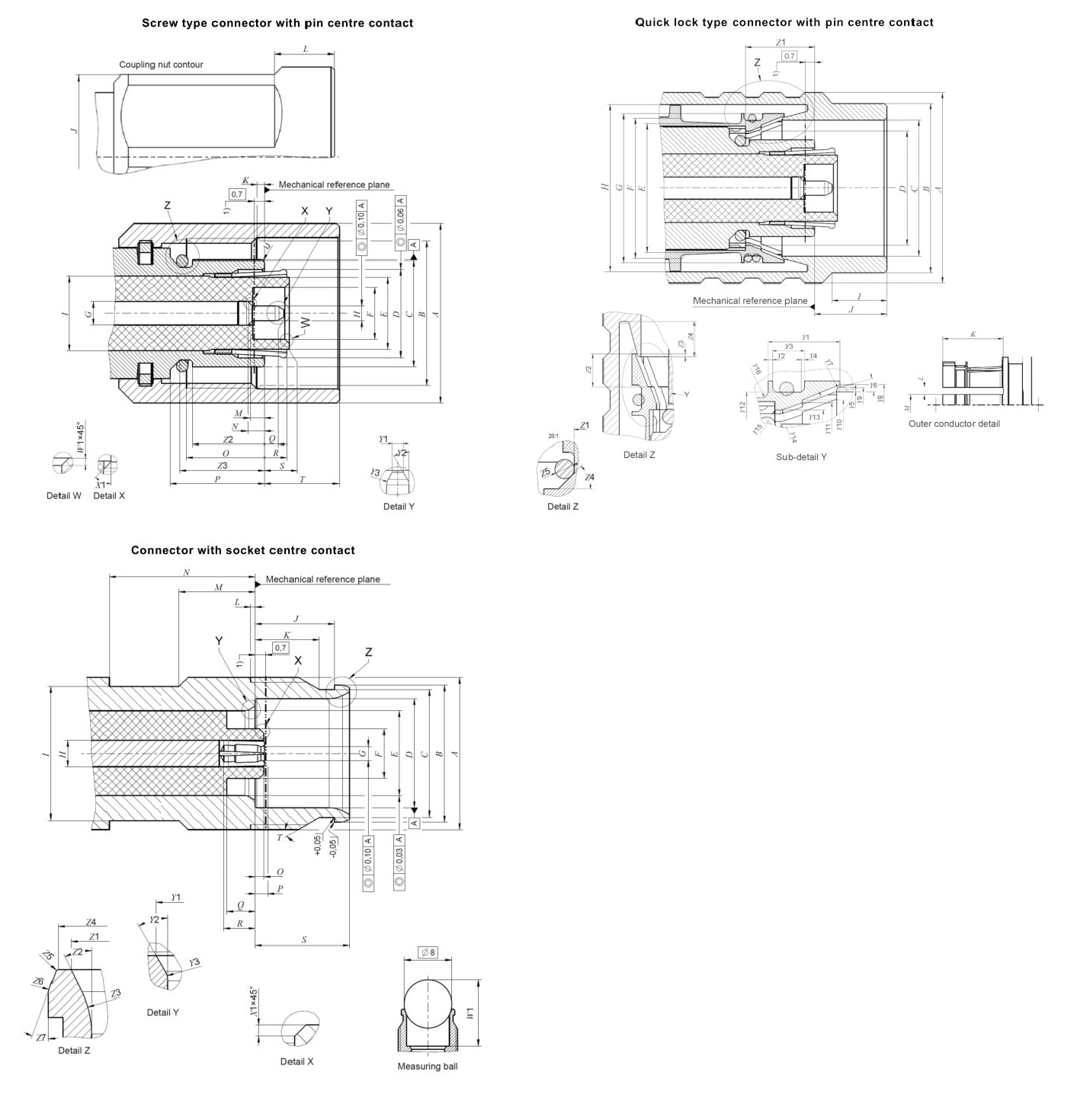

Interface MIL-STD-348
| Male(Screw type) | Male(Quick-lock type) | Female | |||
| Min. | Max. | Min. | Max. | Min. | Max. |
A | 11.85 | -- | -- | 14.0 | M10*0.75 | |
B | M10*0.75 | 12.4 | 12.6 | 8.97 | 9.03 | |
C | 7.11 | 7.15 | 10.02 | 10.06 | 8.37 | 8.43 |
D | 5.85 | 6.1 | 8.37 | 8.43 | 7.17 | 7.21 |
E | 4.9 nom. | 9.48 | 9.52 | 5.57 | 5.63 | |
F | 3.45 | 3.55 | 9.78 | 9.82 | 3.23 | 3.33 |
G | 1.53 | 1.59 | 10.97 | 11.03 | -- | 0.84 |
H | 0.975 | 1.025 | 12.32 | 12.38 | 1.74 nom. | |
I | 5.0 nom. | 3.70 | 4.30 | 8.75 | 8.85 | |

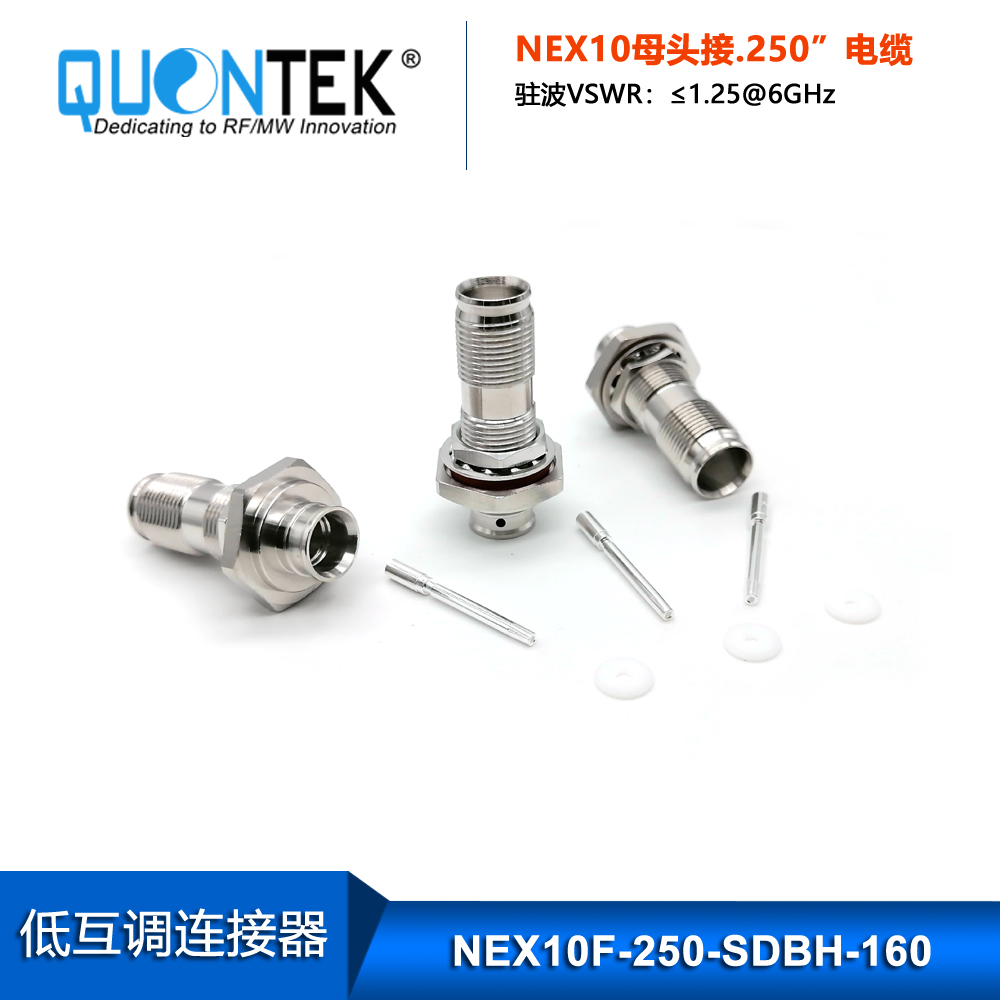

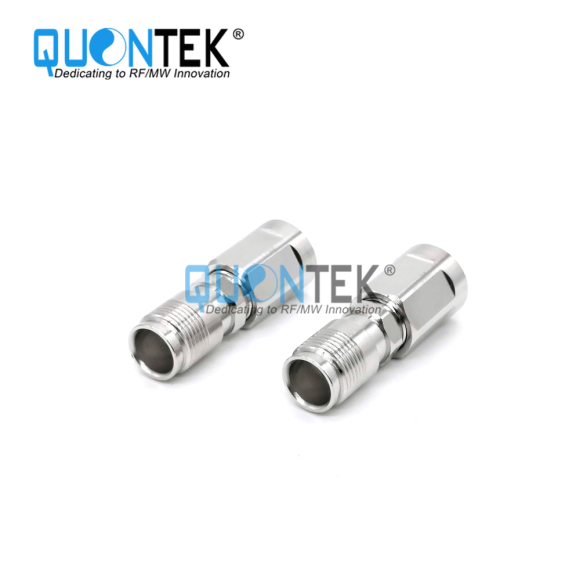

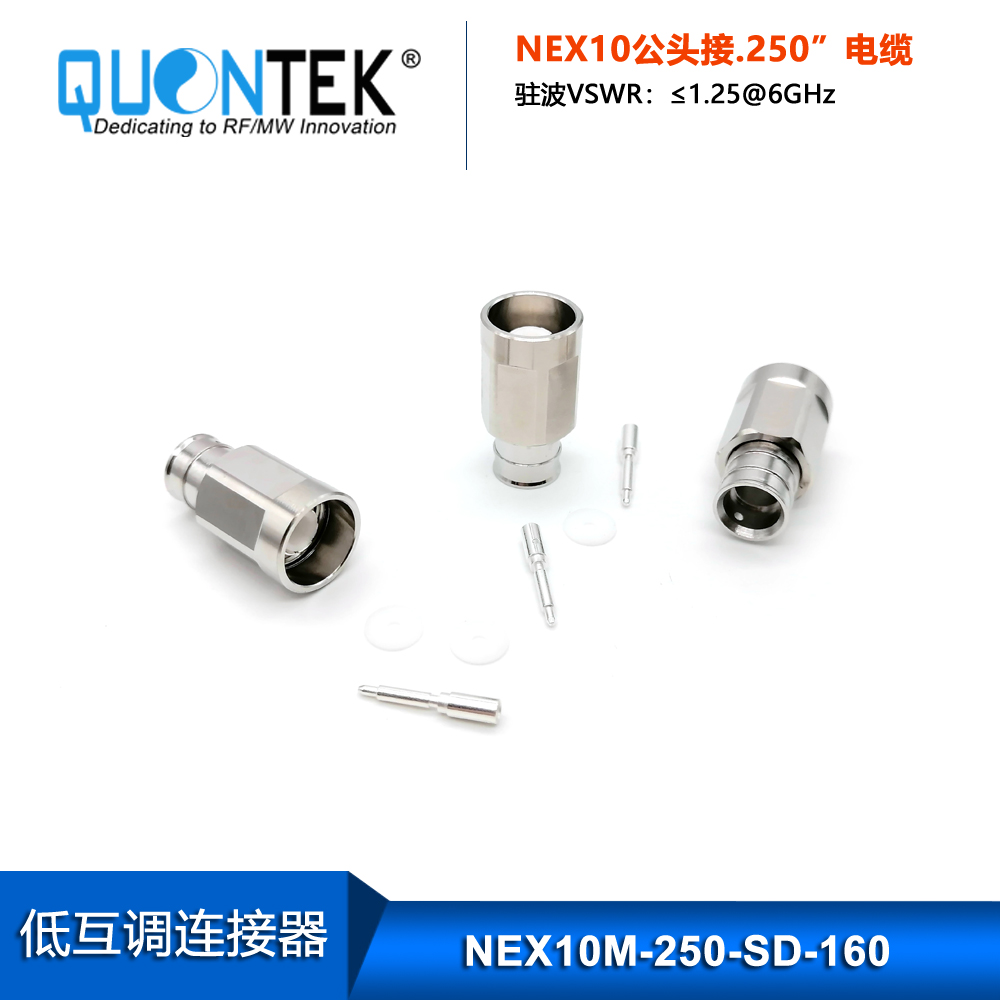

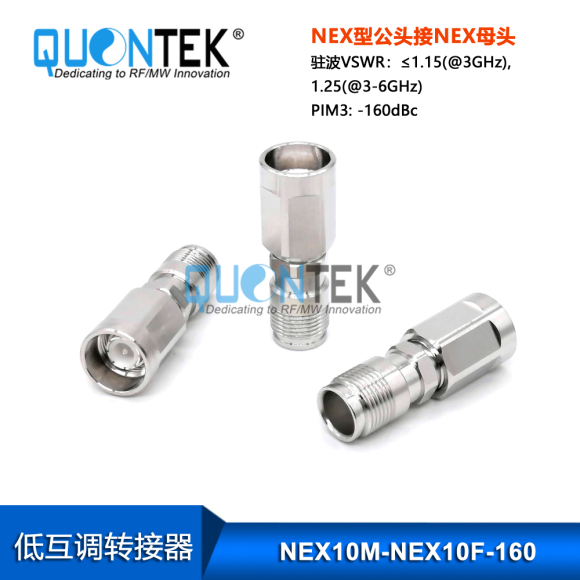

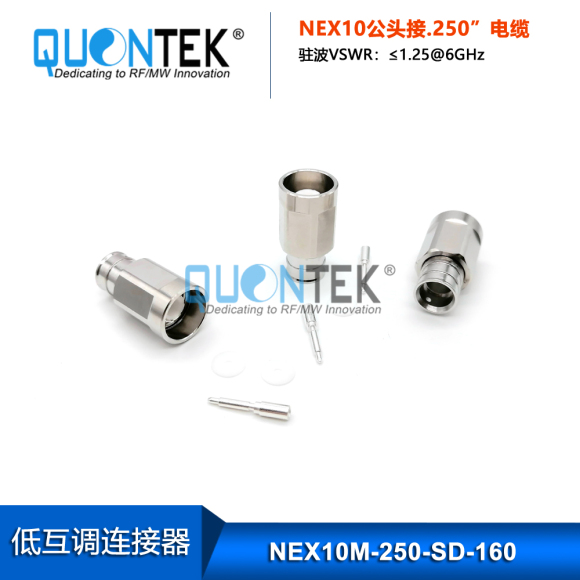

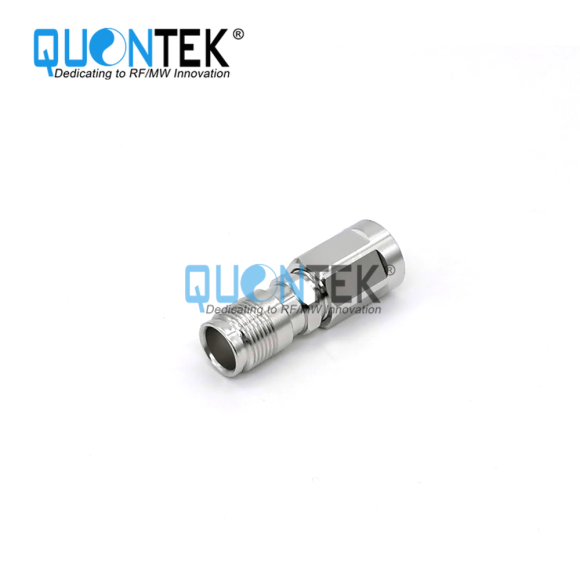

Low PIM adapter,NEX10 male to NEX10 female
Low PIM Adapter,NEX10 Quick-Lock Male to SMA Female
Fixed Attenuator, NEX10 male to NEX10 female,5watt,DC-6GHz
Low PIM Adapter,4.3-10 male to NEX10 female
