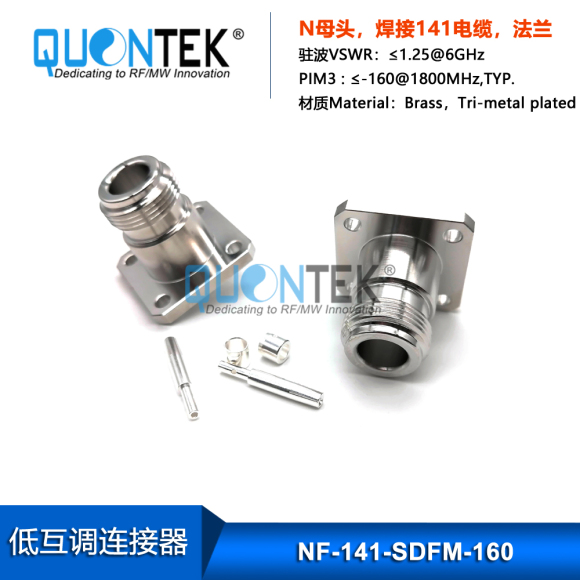

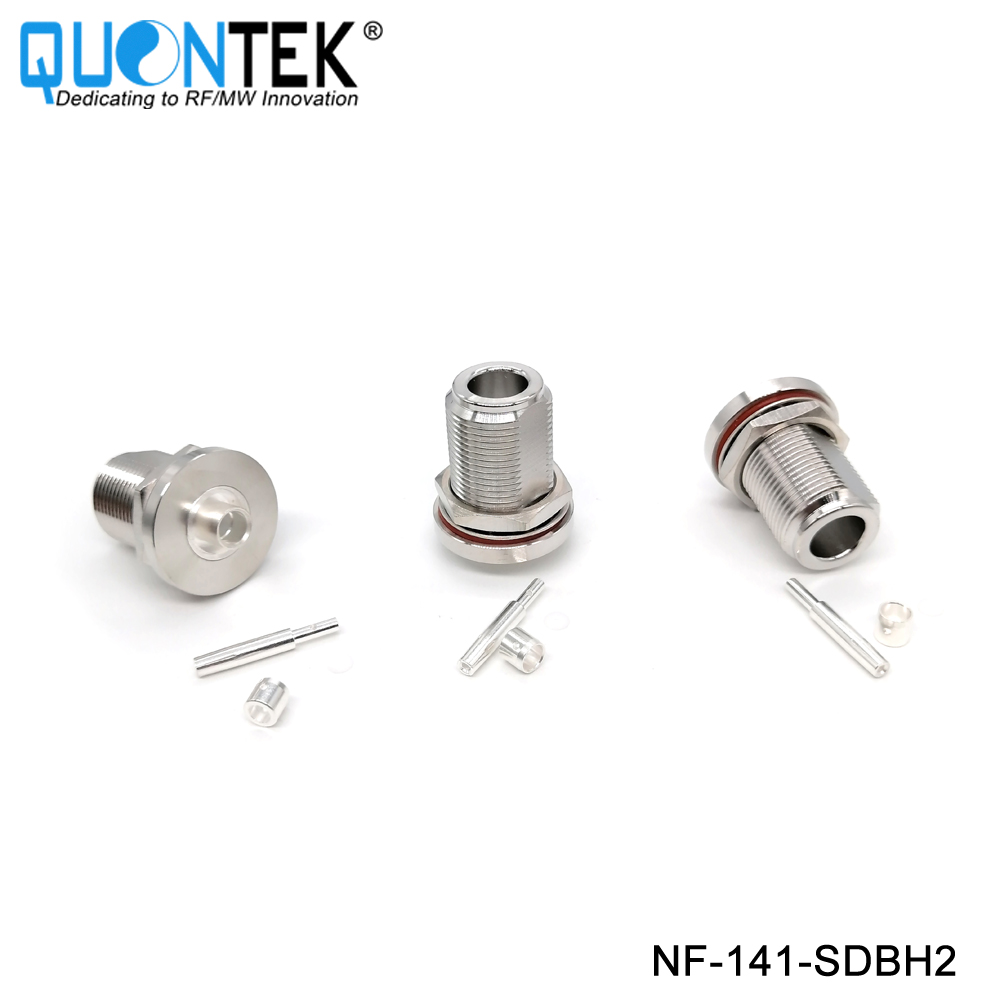

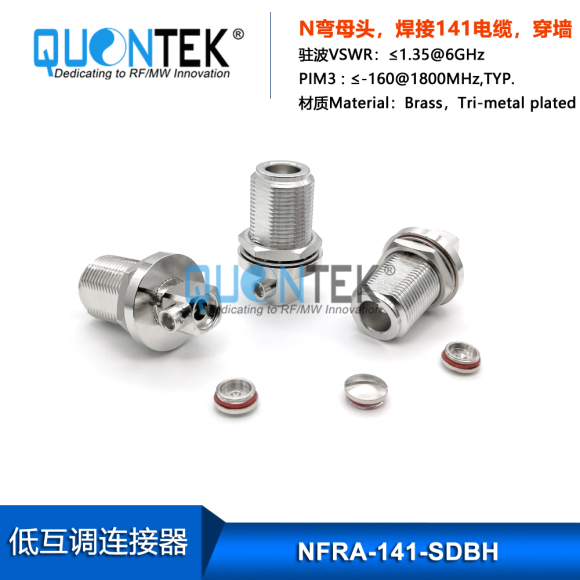

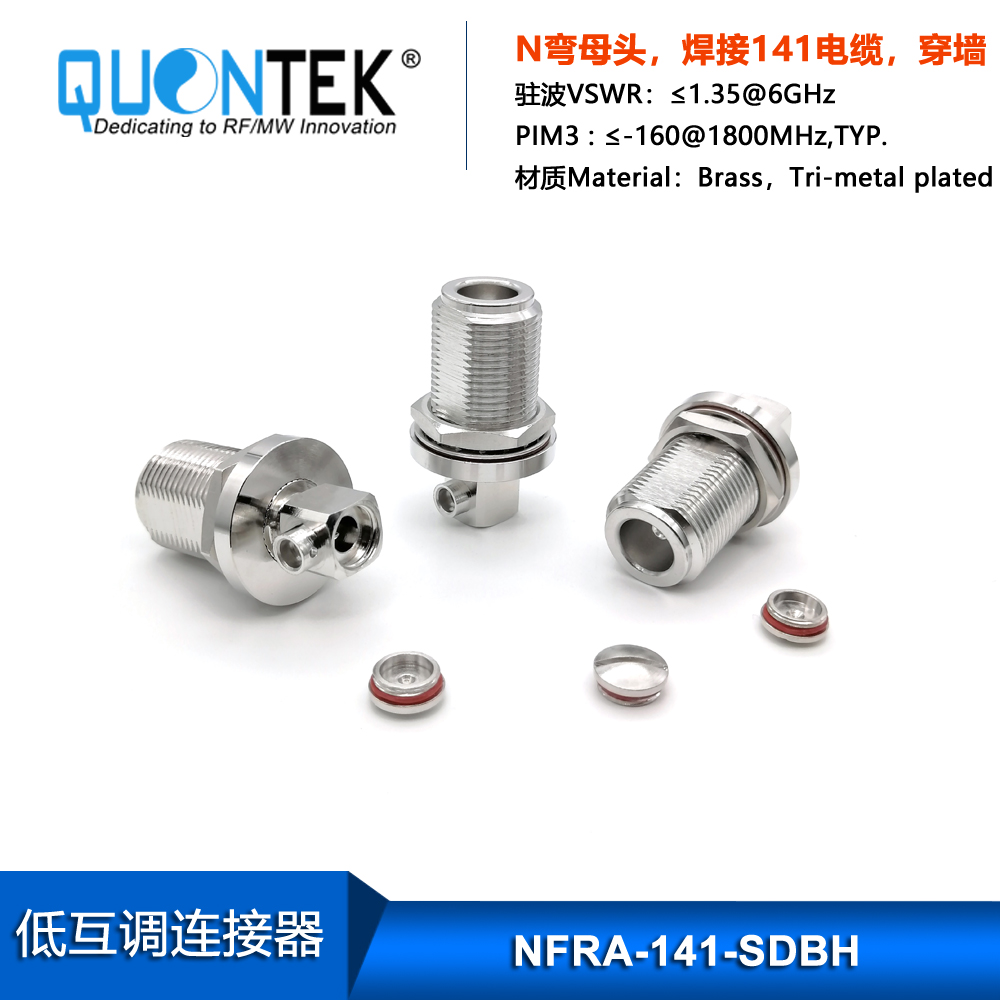

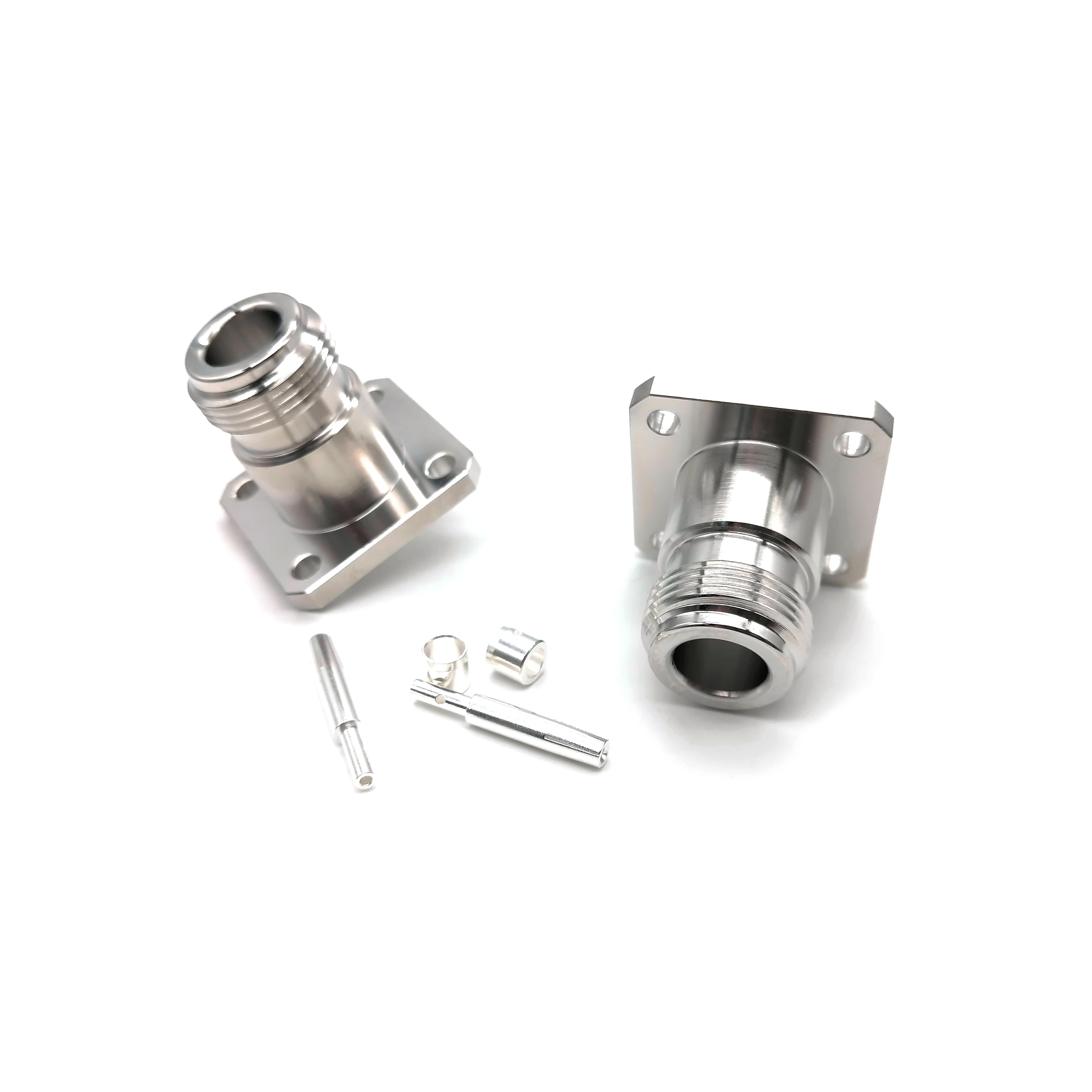

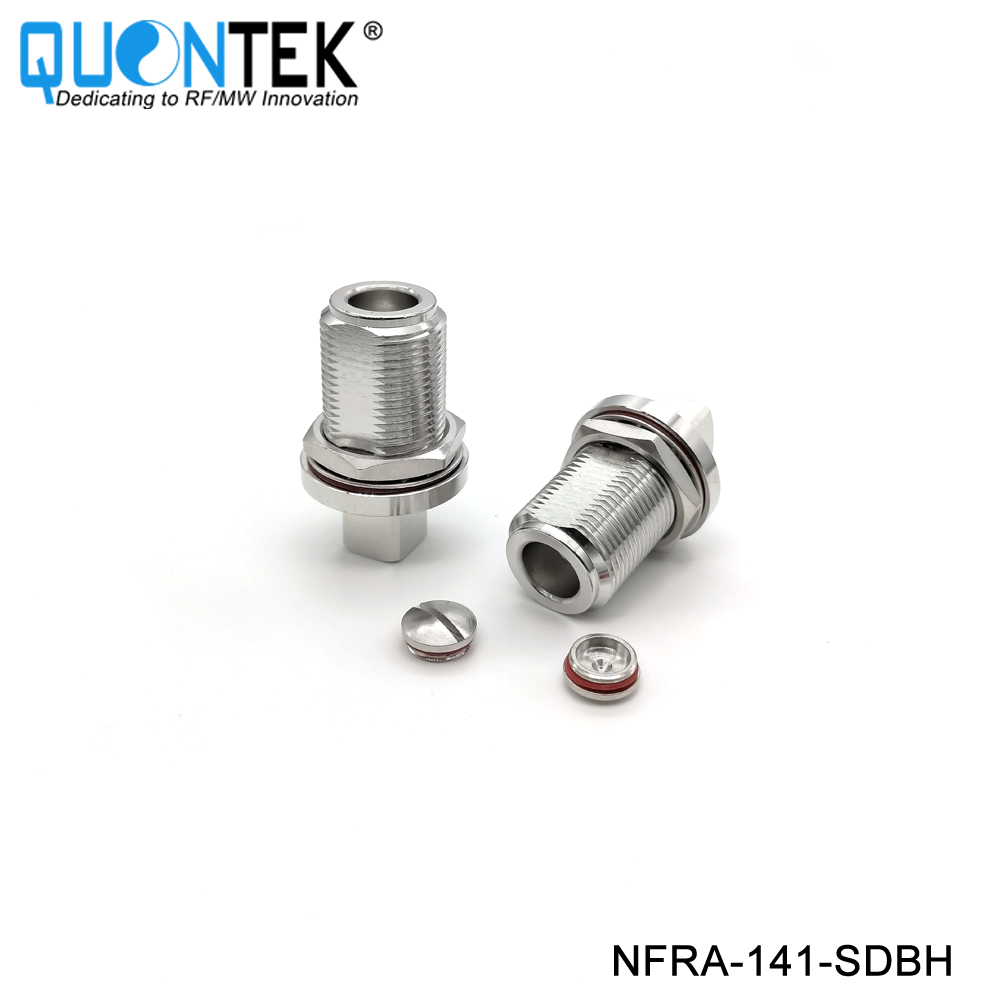

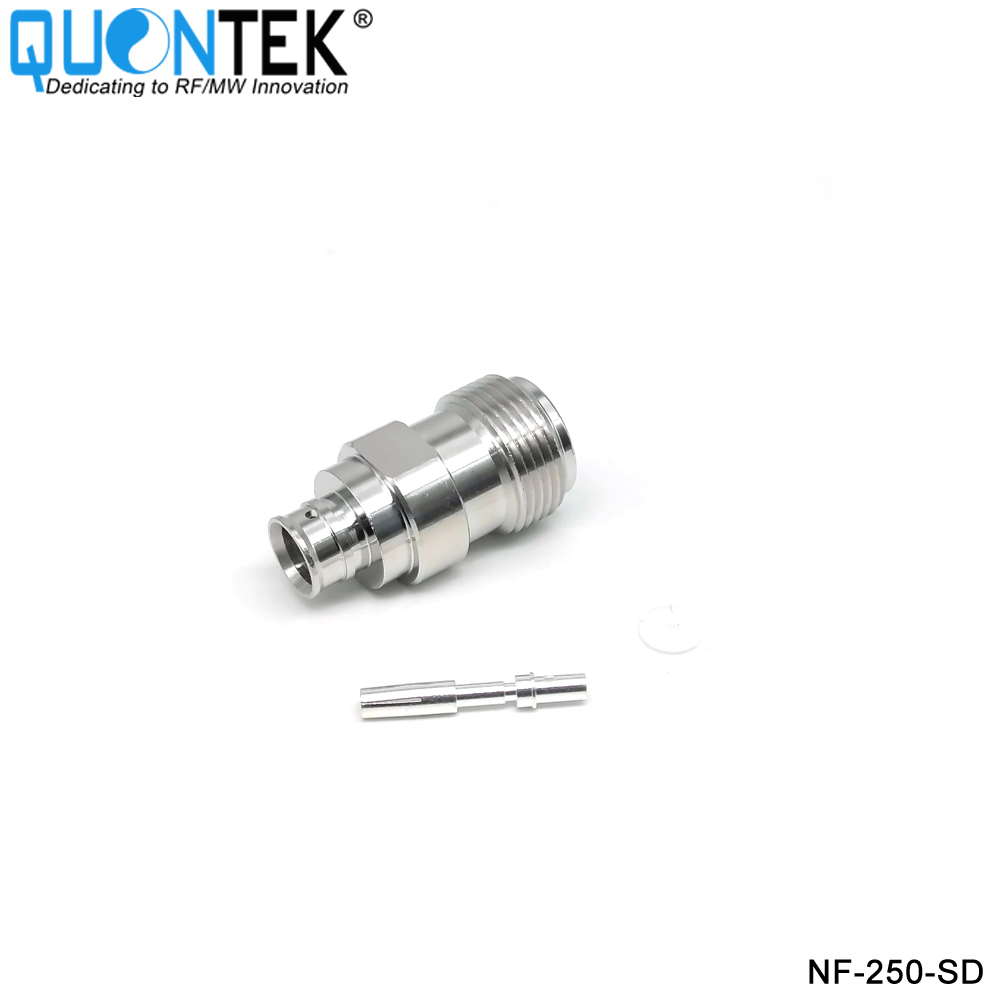

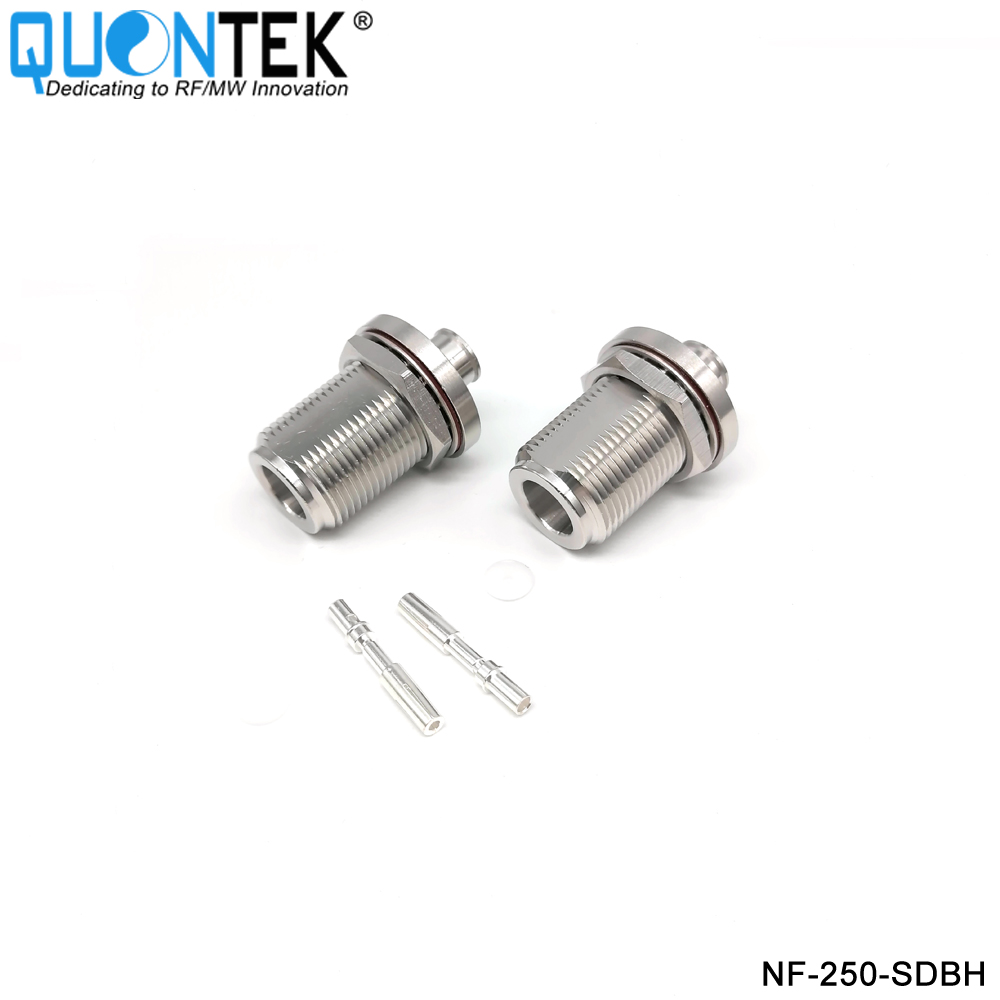

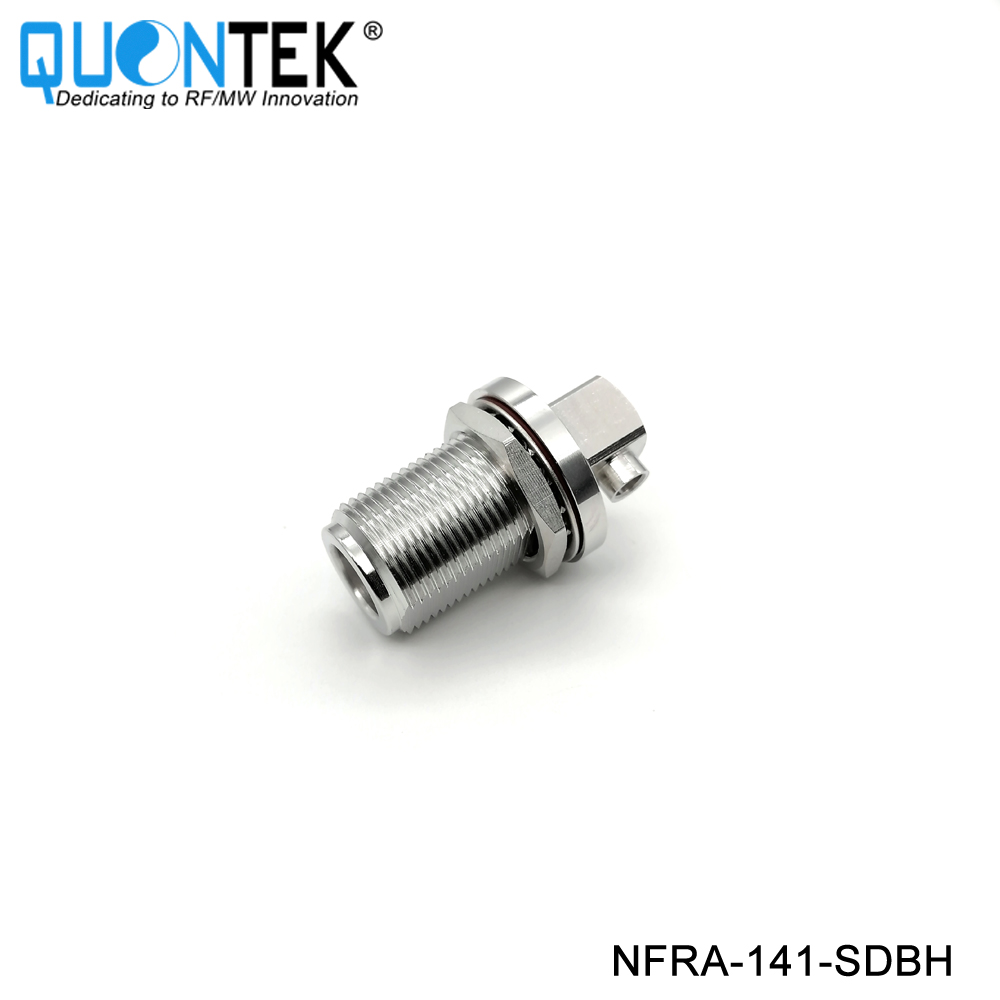

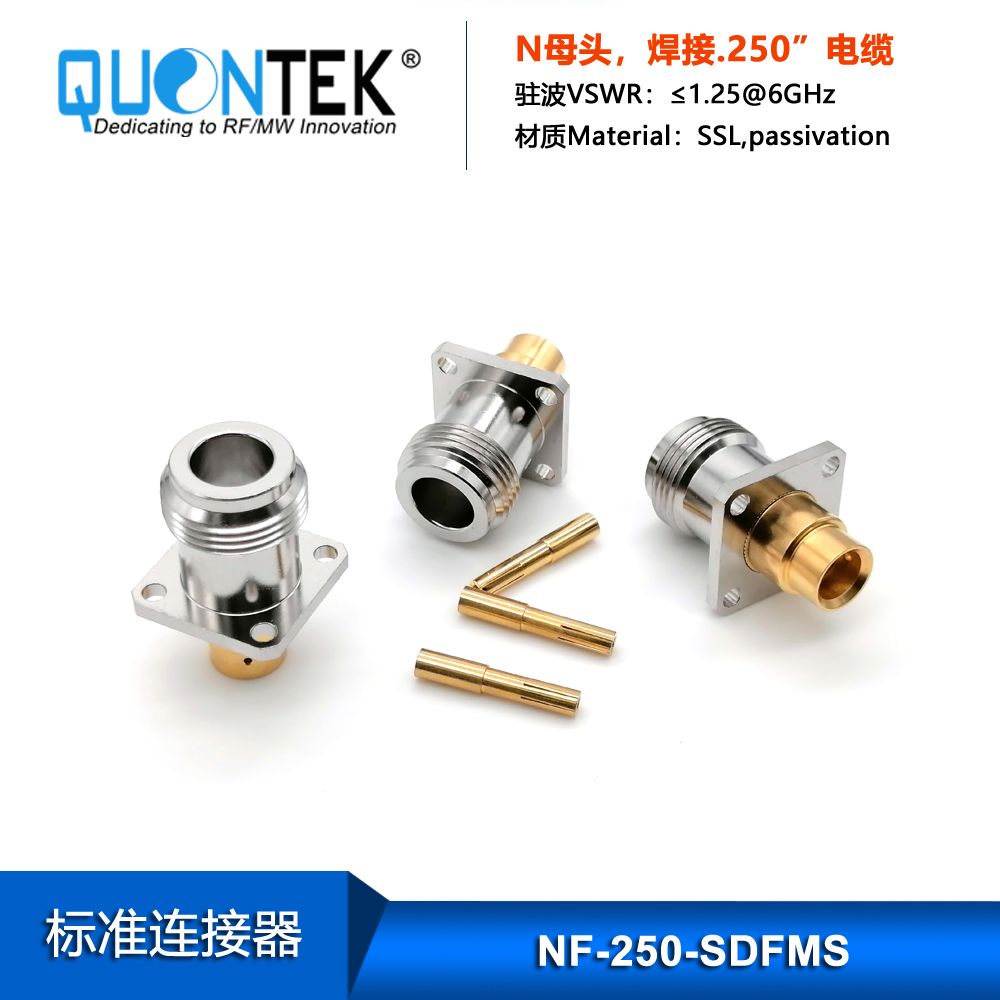

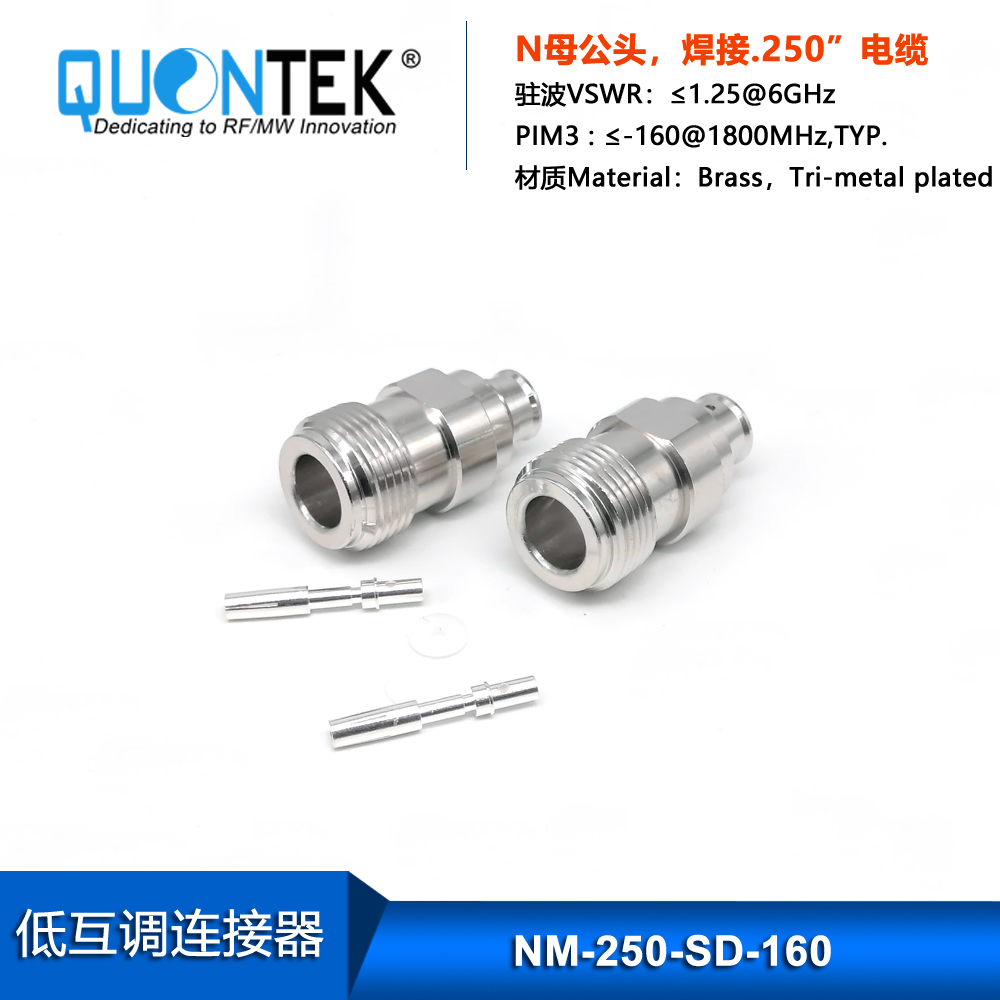

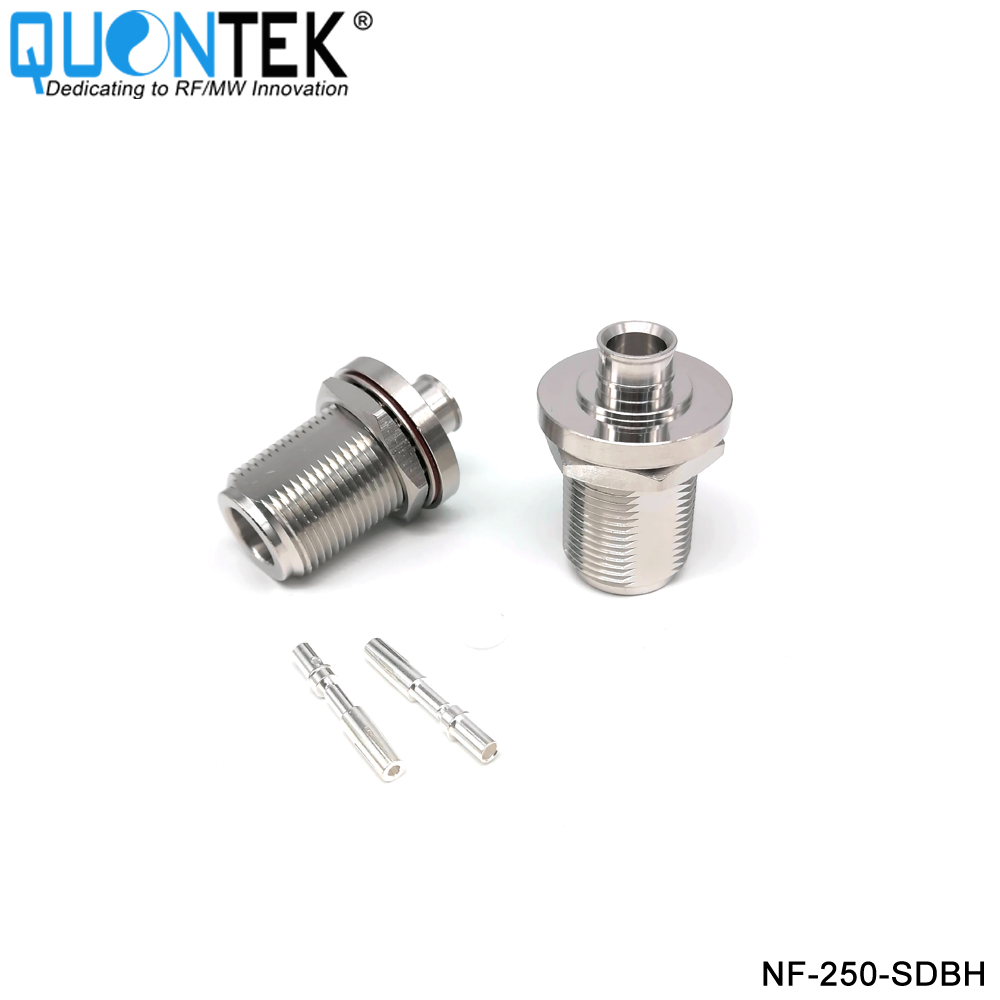

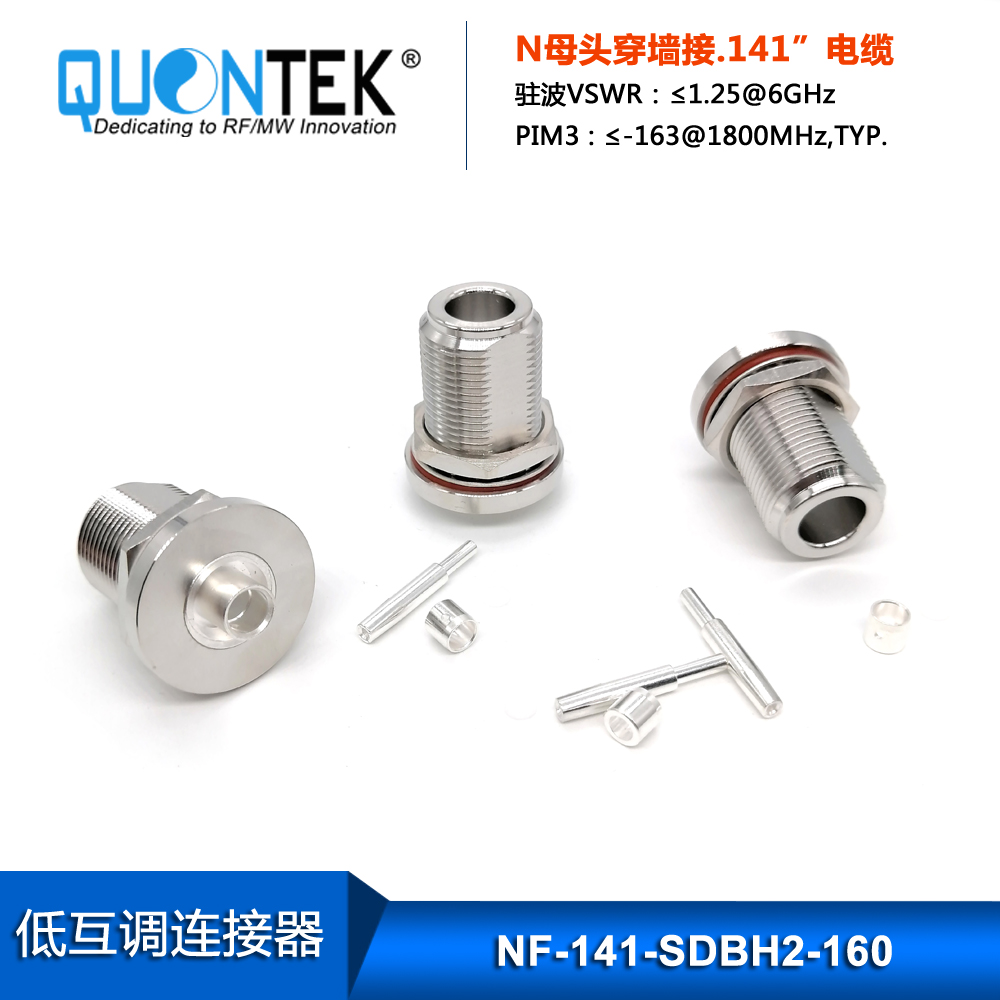

N type Connectors
Description
QUONTEK N connectors are available with 50 Ω and 75 Ω impedance. The frequency range extends to 18 GHz,depending on the connector and cable type. The screw-type coupling mechanism provides a sturdy and reliable connection.

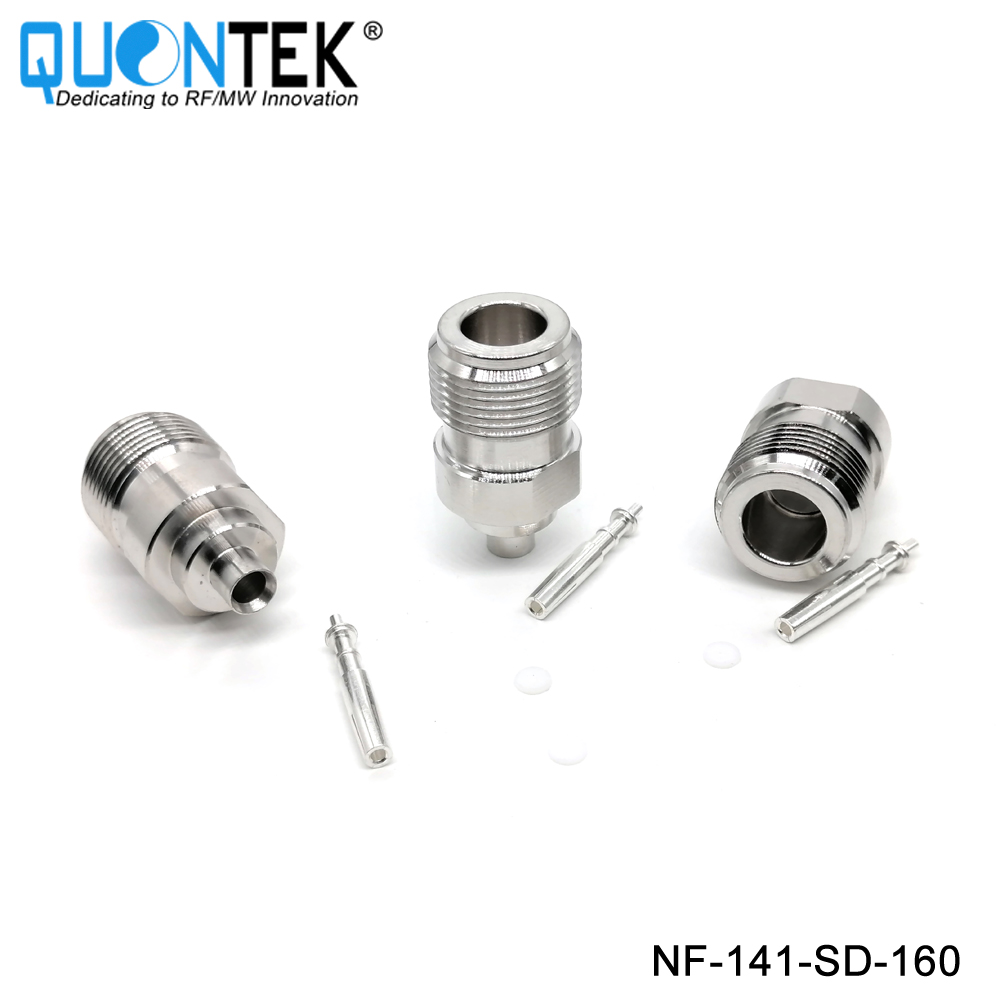

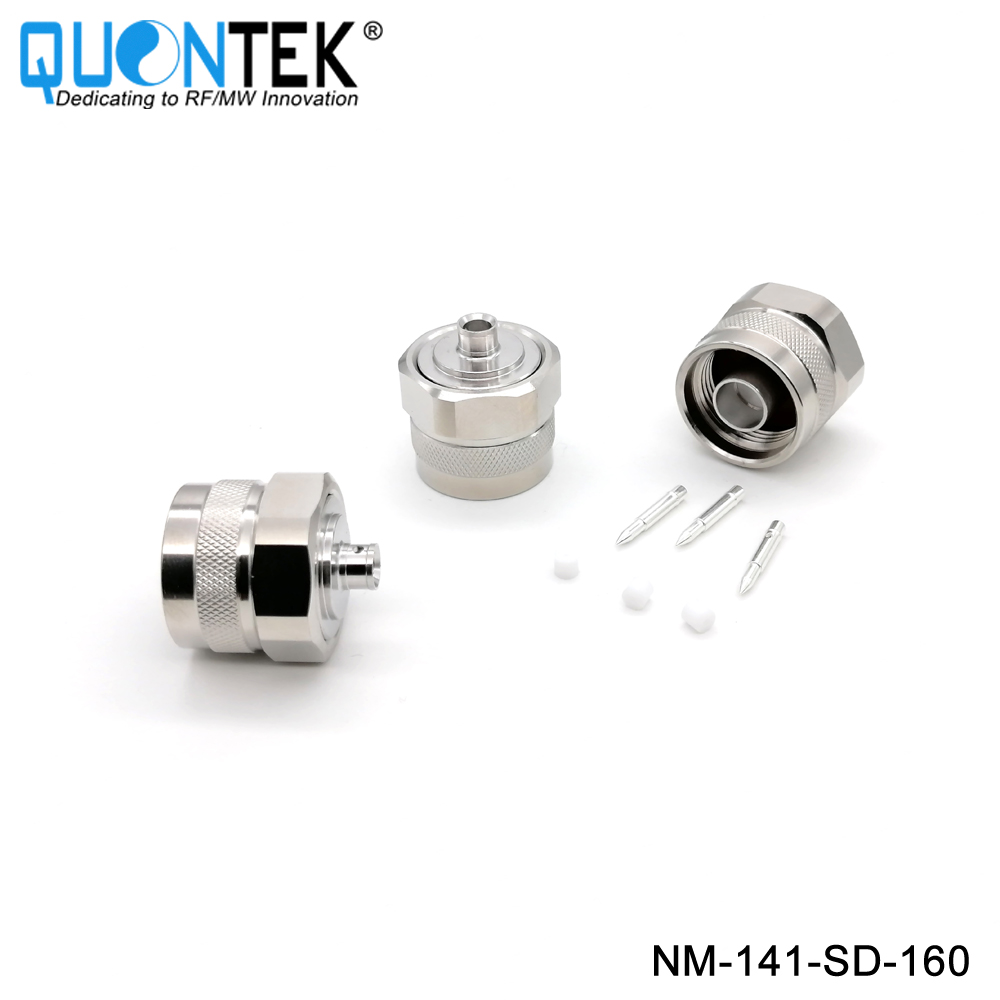

QUONTEK N connectors are available for flexible cables, for semi-rigid cables and for corrugated copper tube cables.
Cable entries: clamp, crimp and solder types available, as well as QUONTEK Quick-Fit for corrugated copper tube cables.
Features
• Frequency range up to 18GHz
• Excellent return loss
• The N interface dimensions conform to the following standards:
International: IEC 61169-16
USA: MIL-PRF-39012 N
Interface MIL-STD-348
Europe: CECC22210

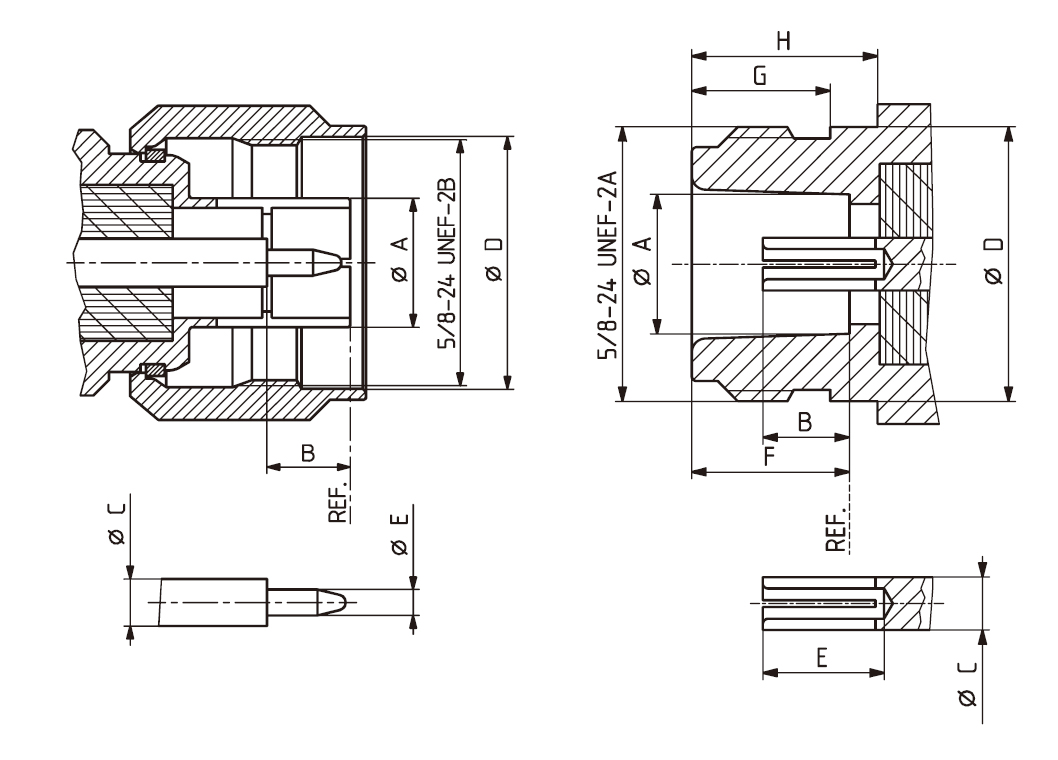

| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | -- | 8.38/0.330 | 8.03/0.316 | 8.13/0.320 |
B | 5.33/0.210 | 5.84/0.230 | 4.75/0.187 | 5.26/0.207 |
C | -- | 3.15/0.124 | -- | 3.15/0.124 |
D | 16.00/0.630 | -- | -- | 15.93/0.627 |
E | 16.00/0.063 | 1.68/0.066 | 5.33/0.210 | -- |
F | -- | -- | 9.04/0.356 | 9.19/0.362 |
G | -- | -- | 6.76/0.266 | -- |
H | -- | -- | 10.72/0.422 | -- |
Low PIM Adapter,N Female to QMA Female,Flange mounted

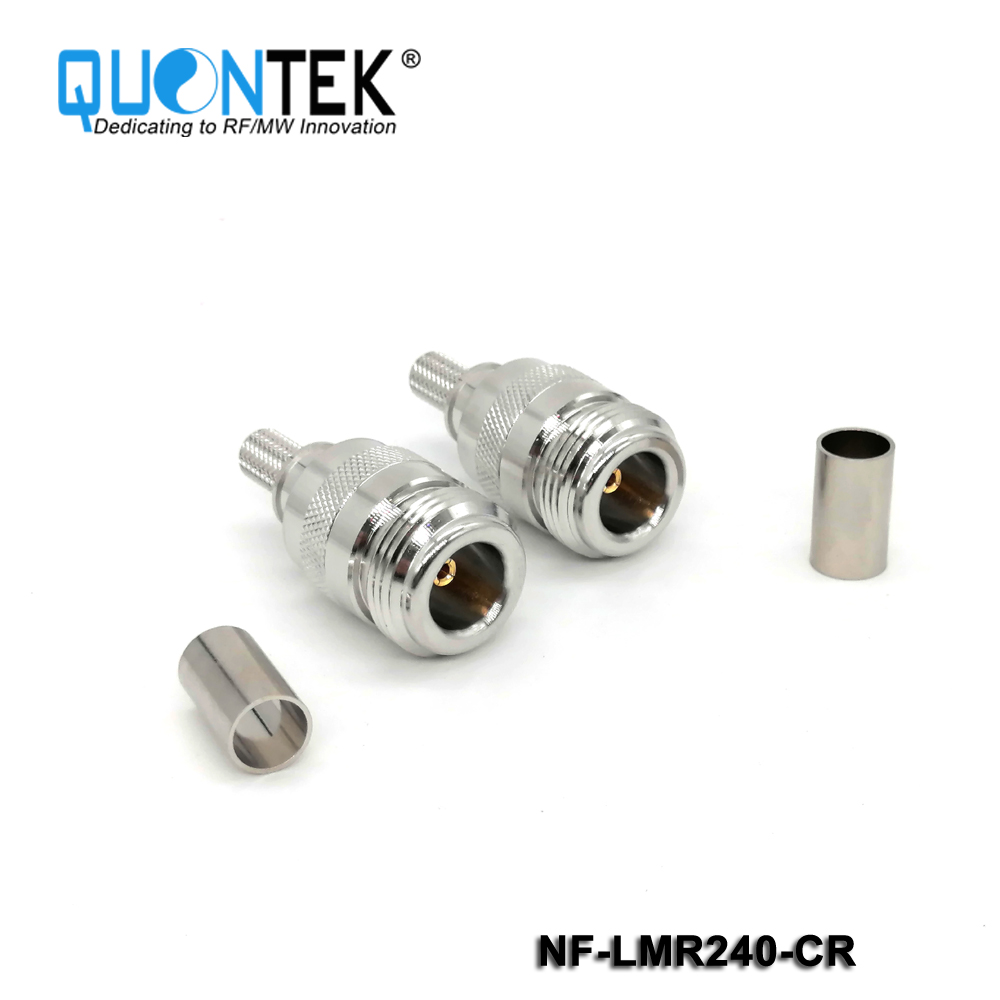

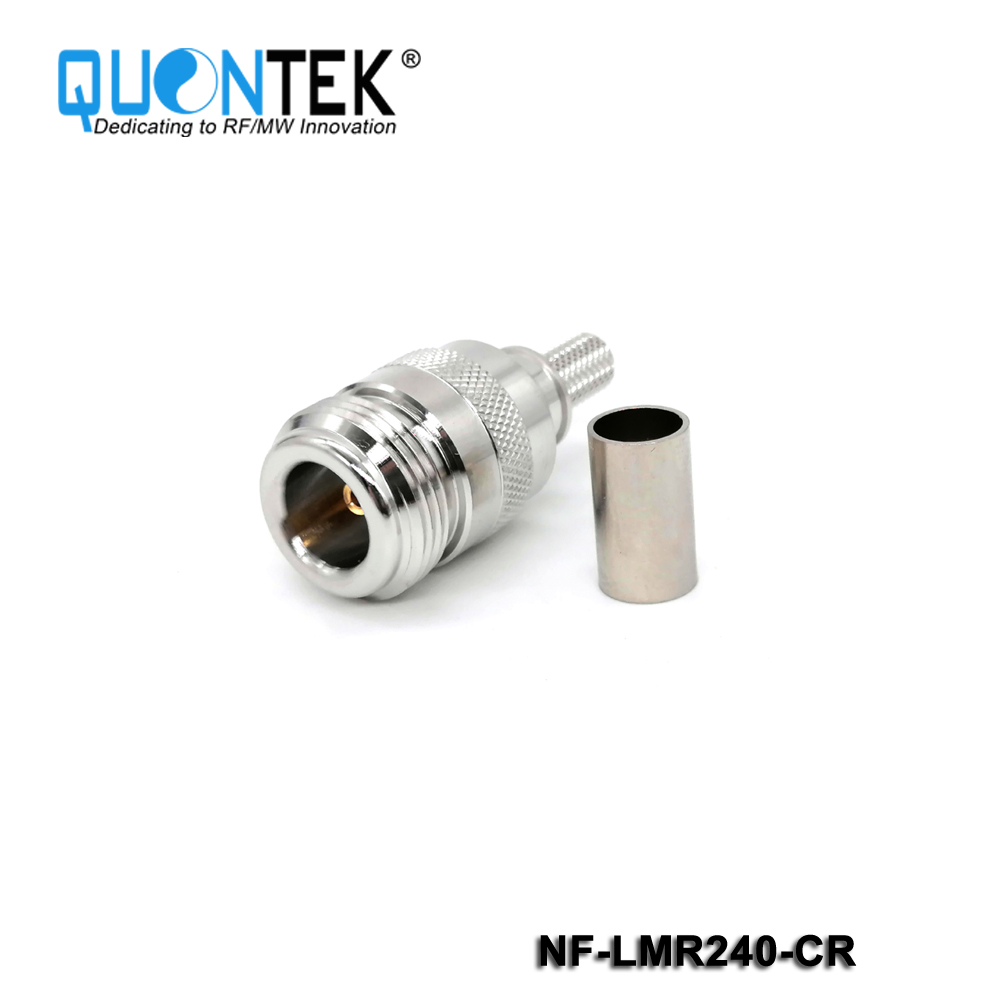

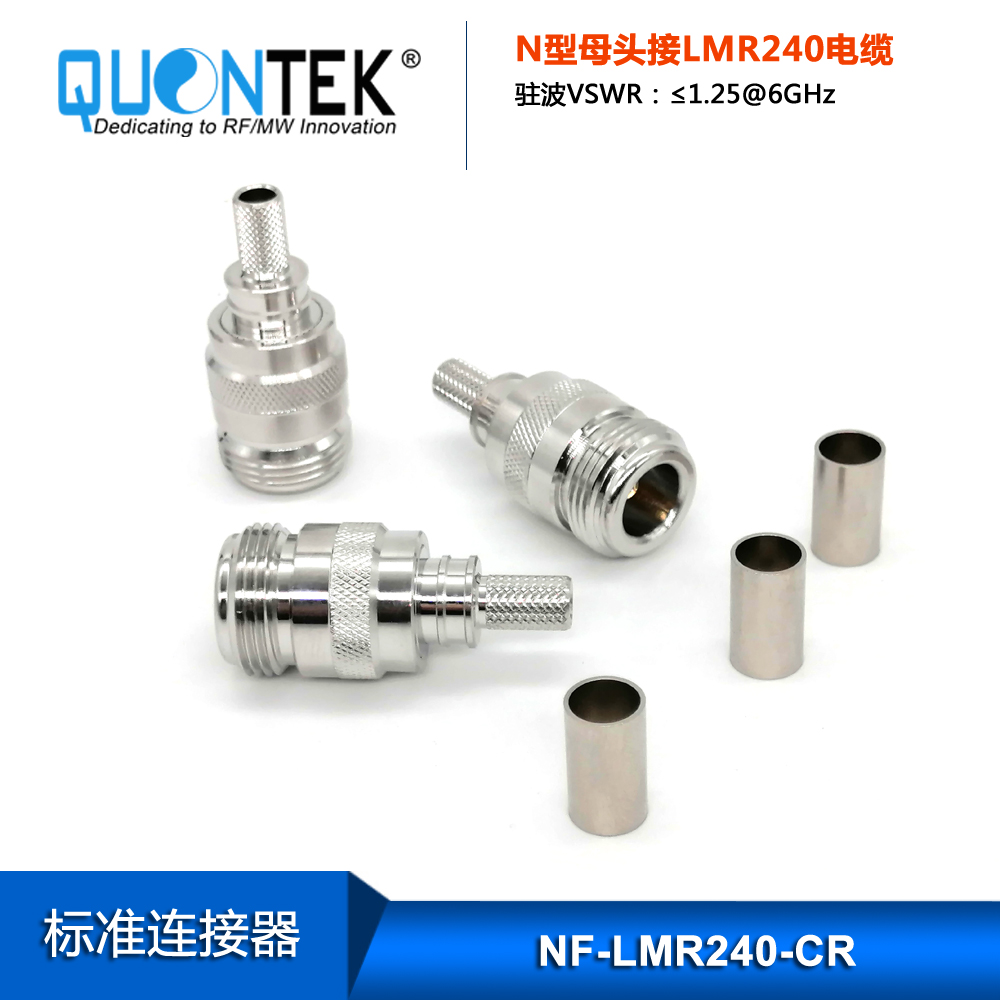

Standard Connector, N Female for LMR240 cable,Crimp type

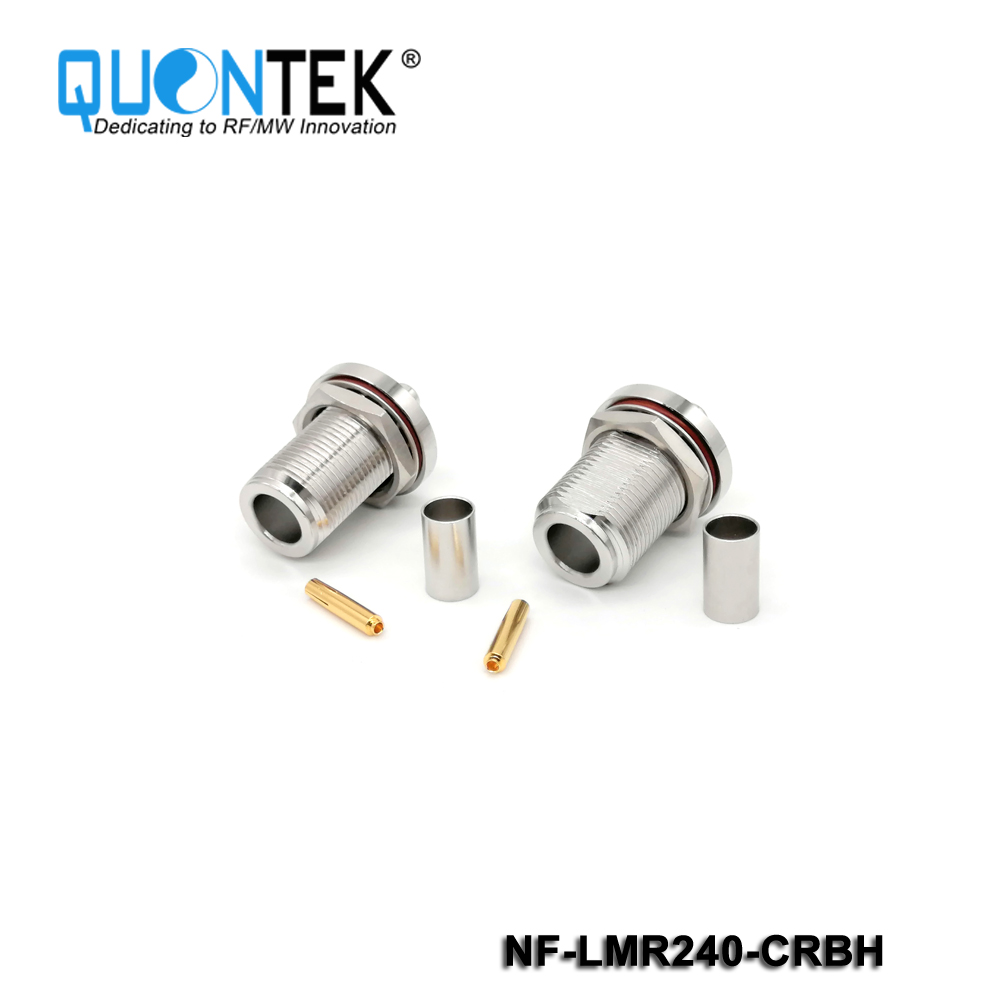

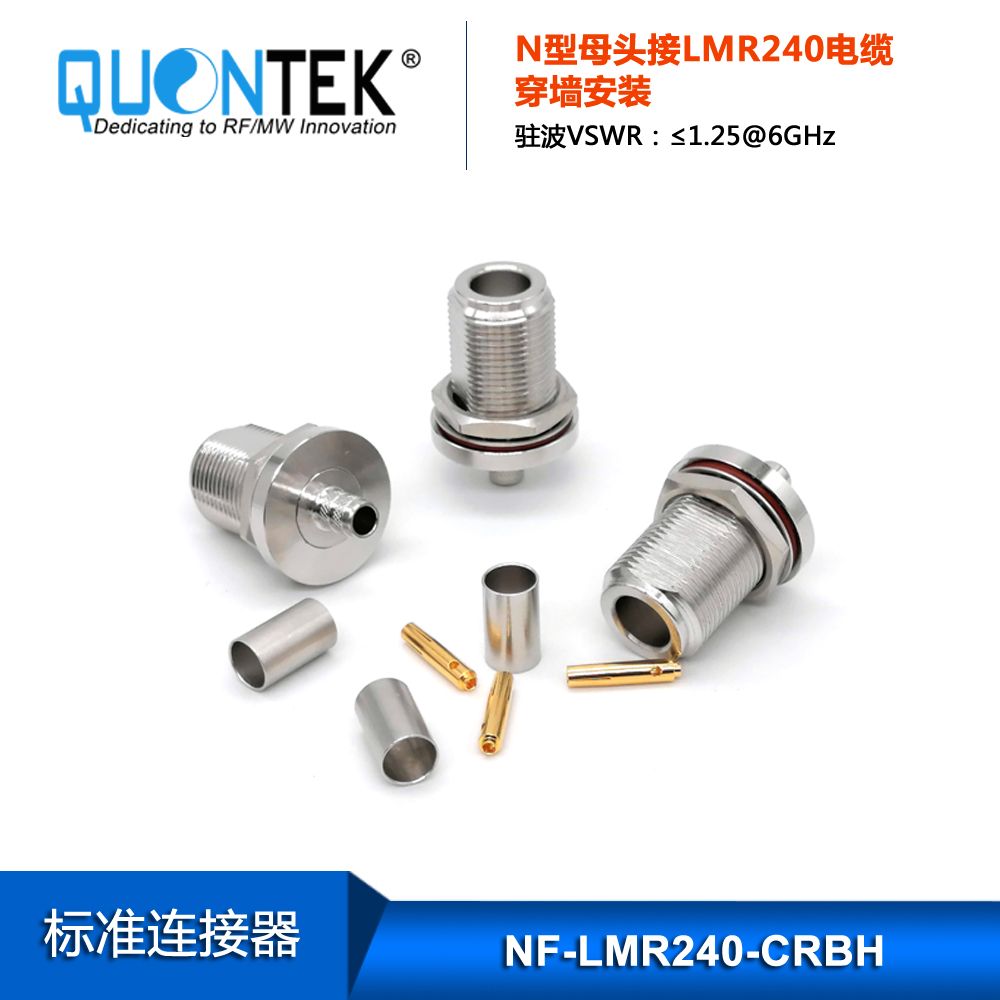

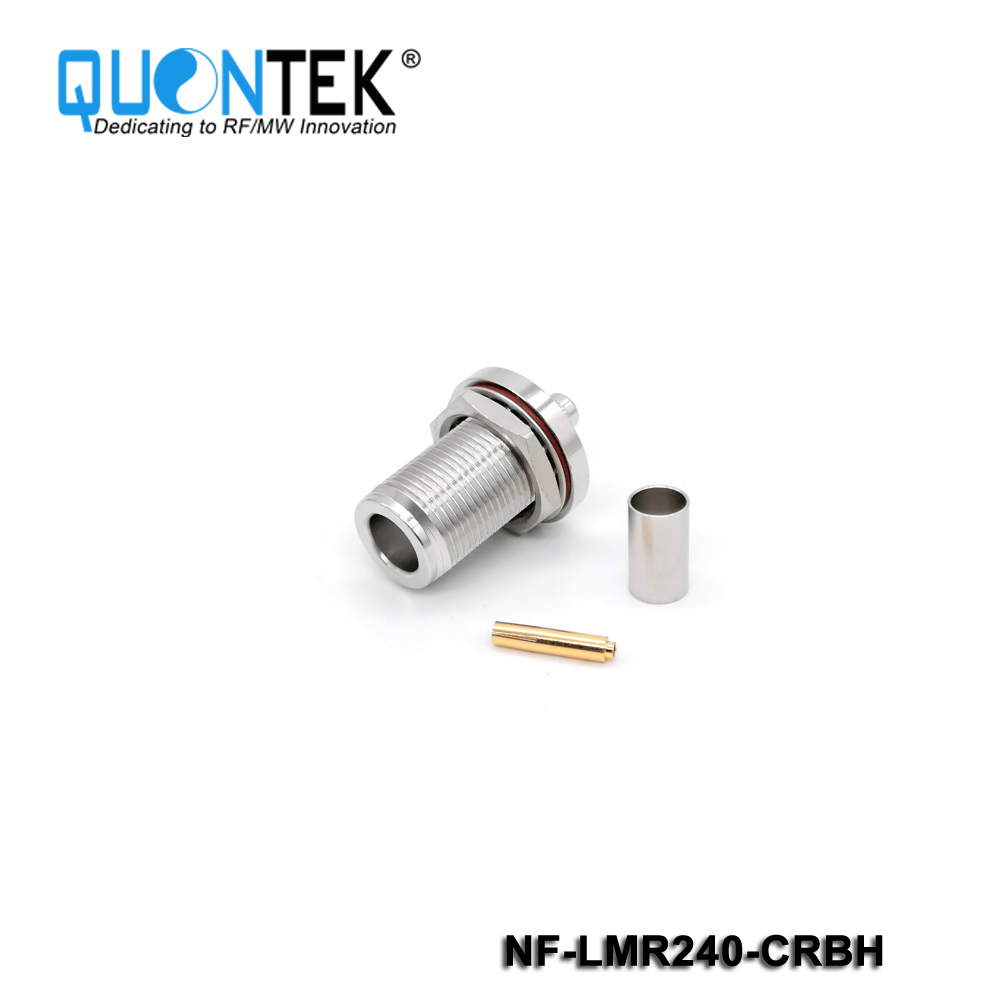

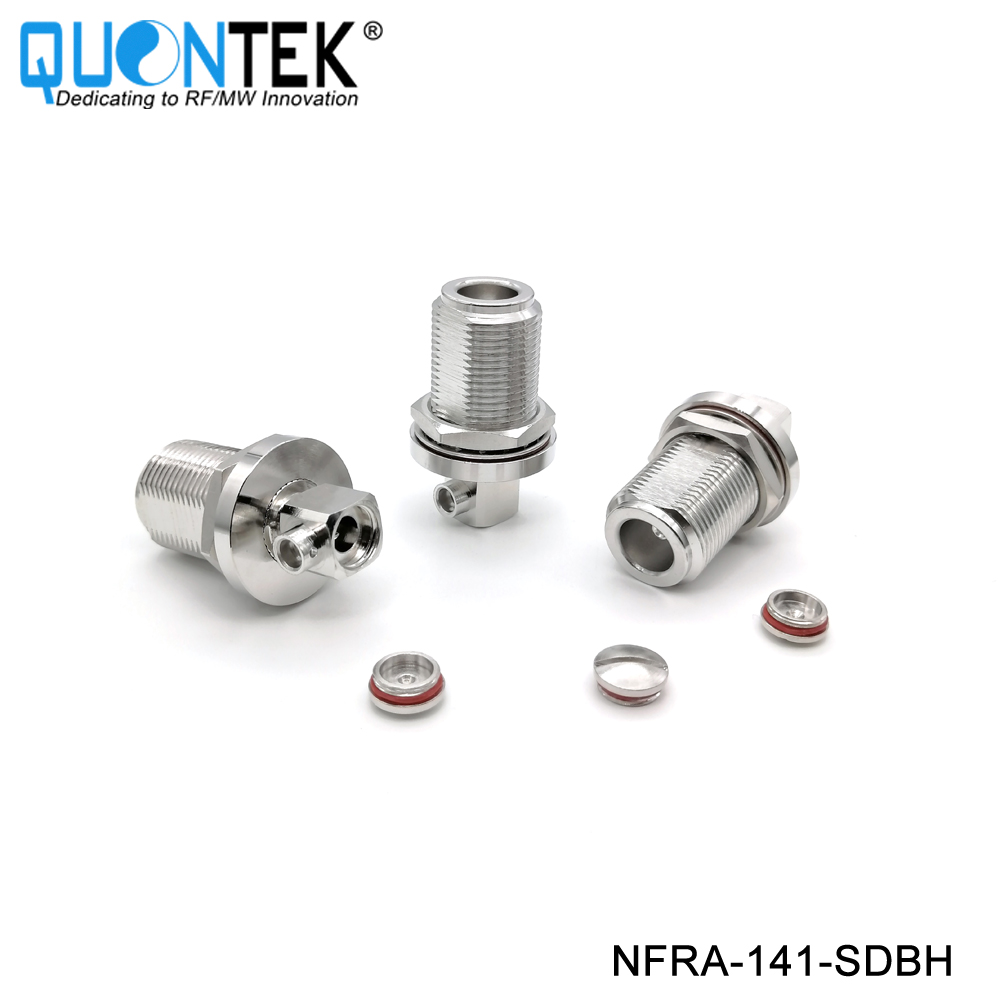

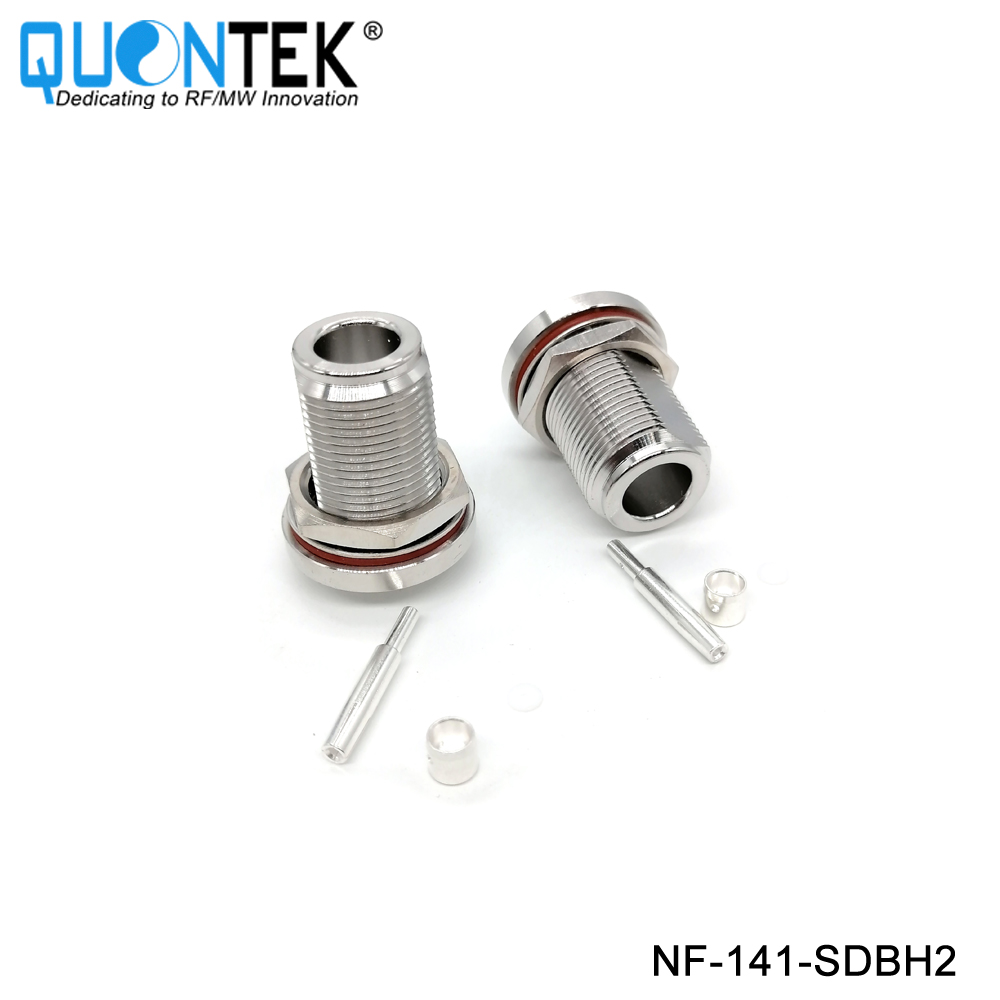

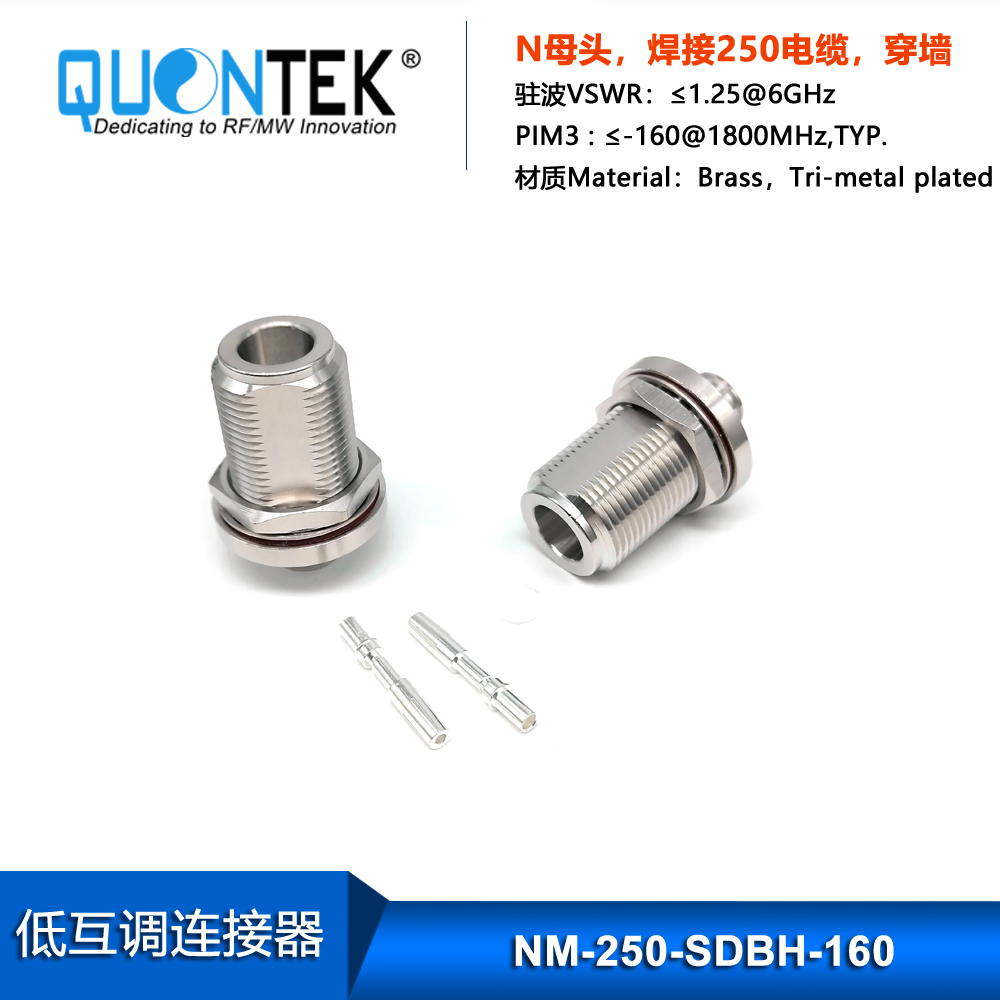

Standard Connector, N Female for LMR240 cable,Crimp type,Bulkhead mounted

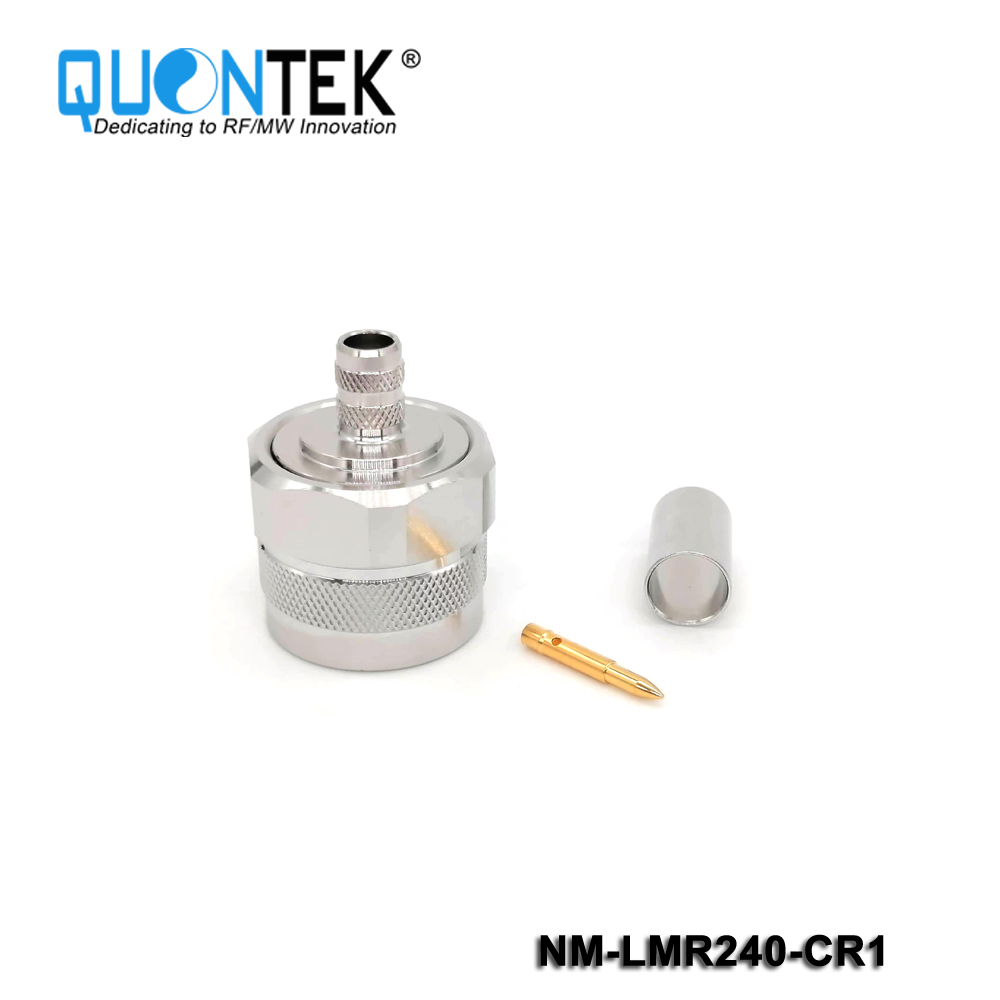

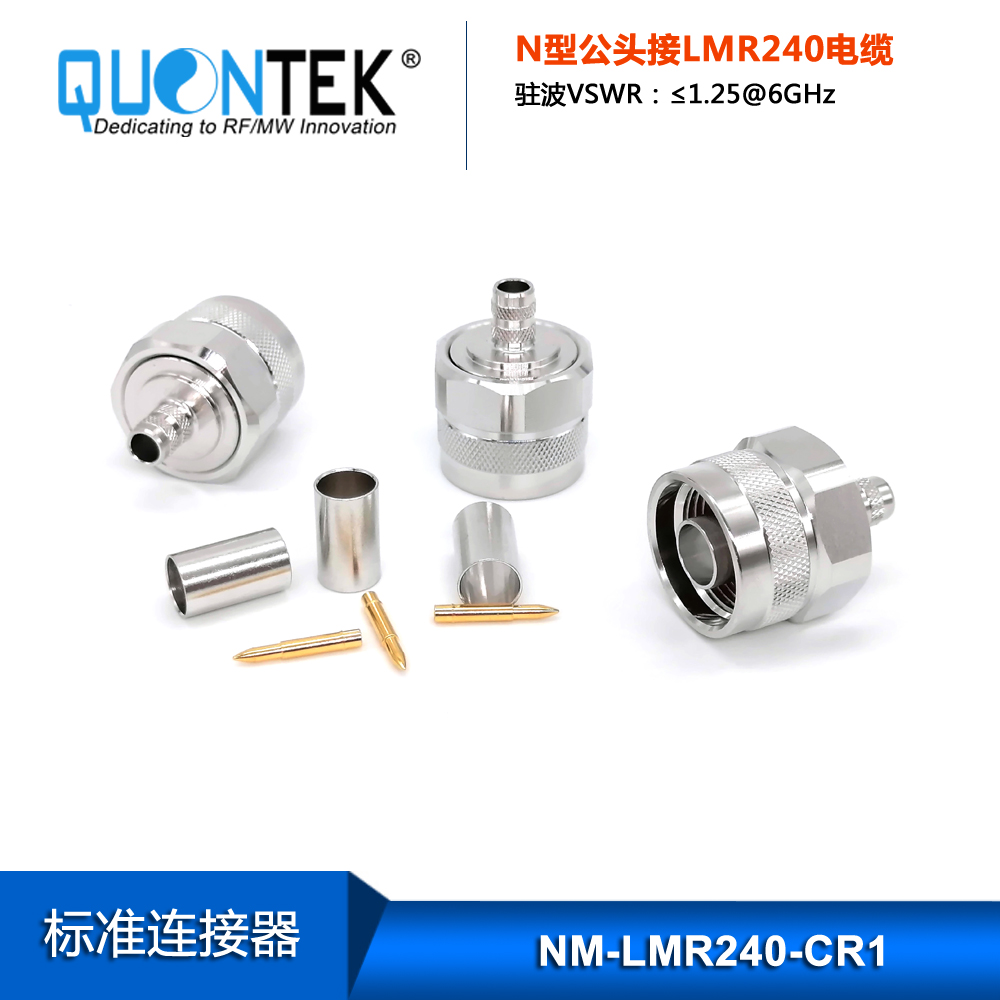

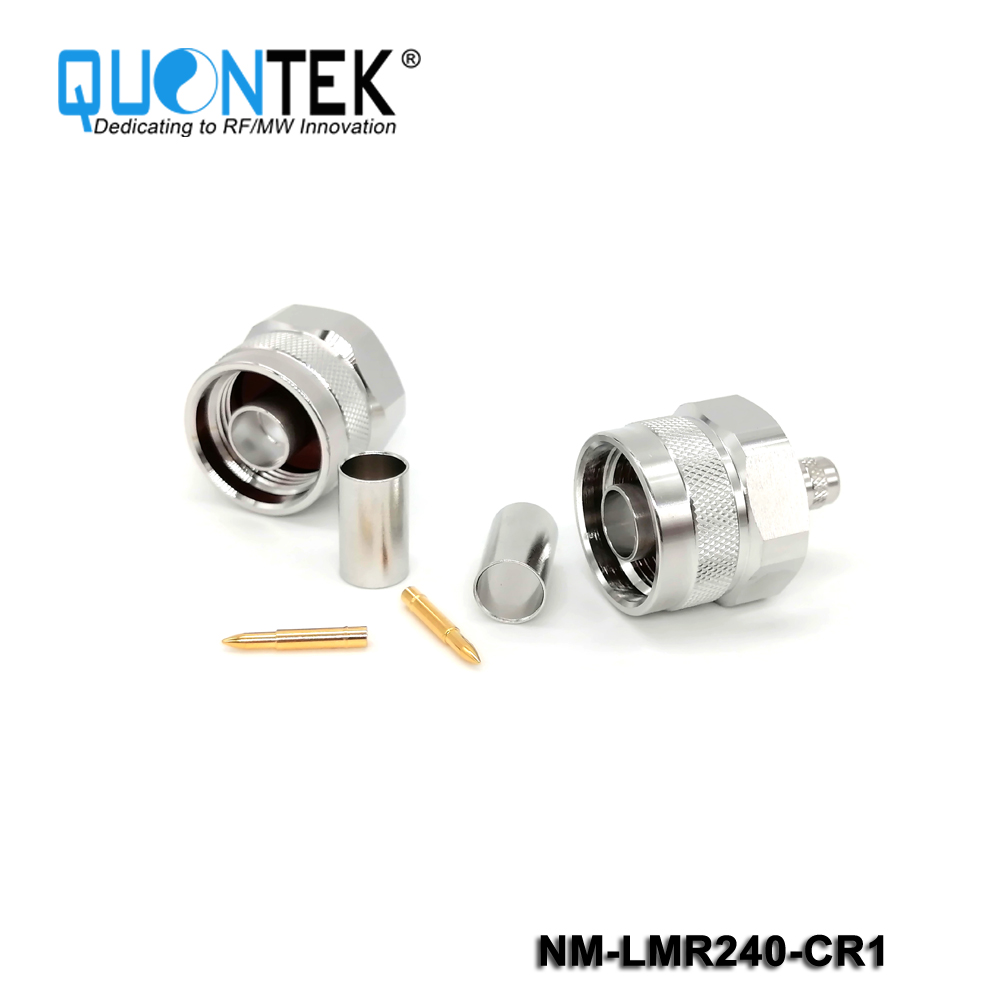

Standard Connector, N male for LMR240 cable,Crimp type

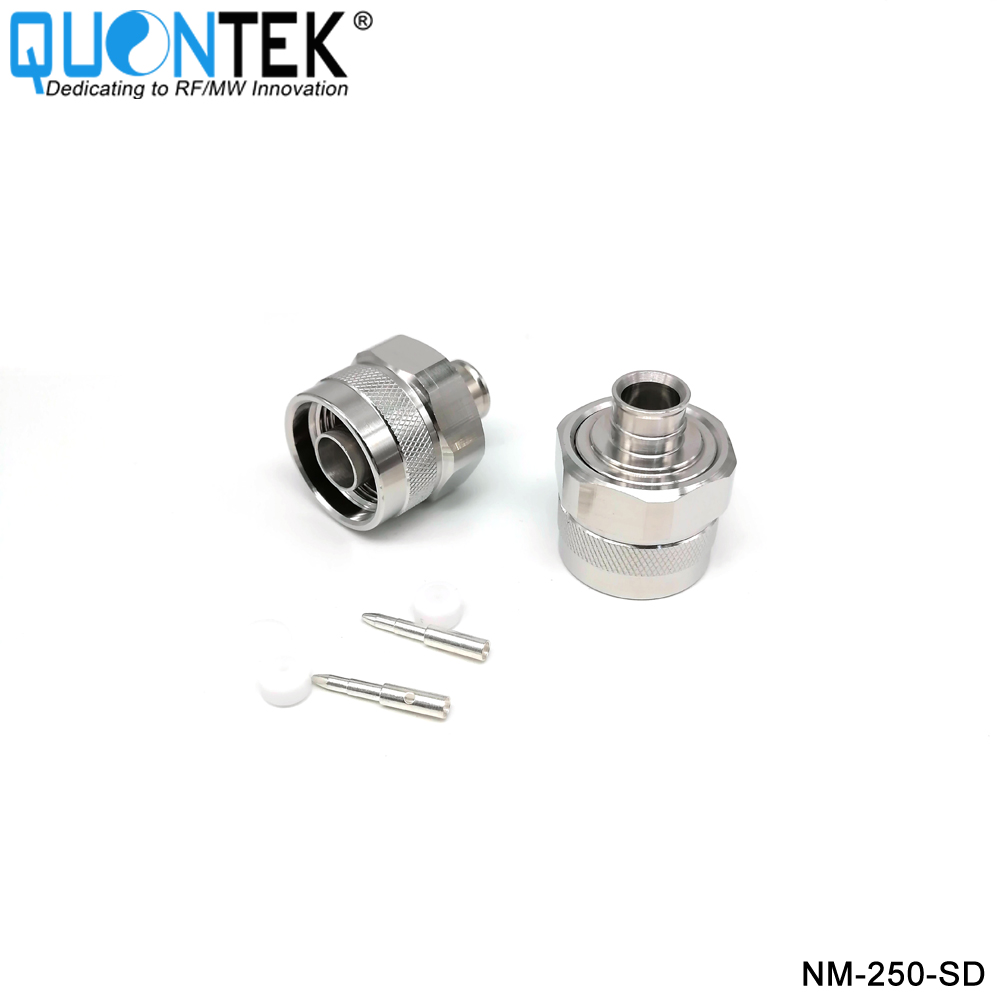

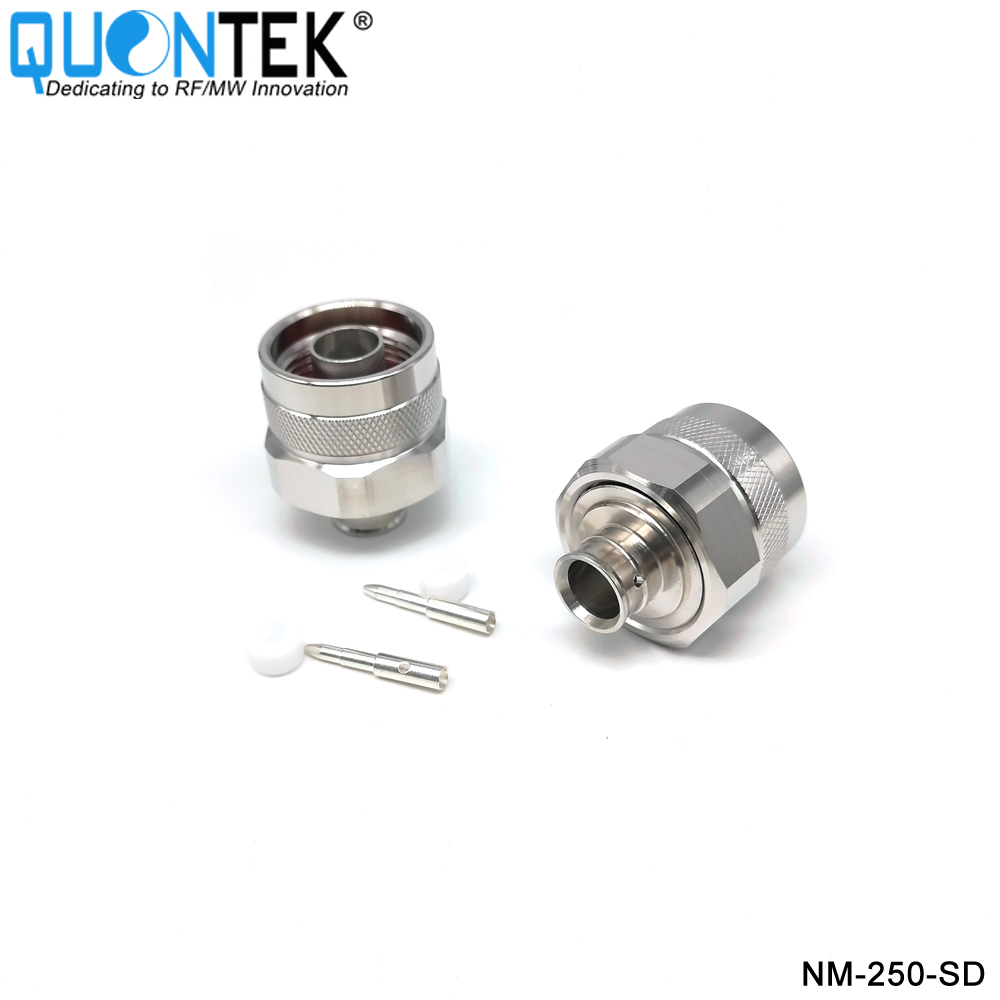

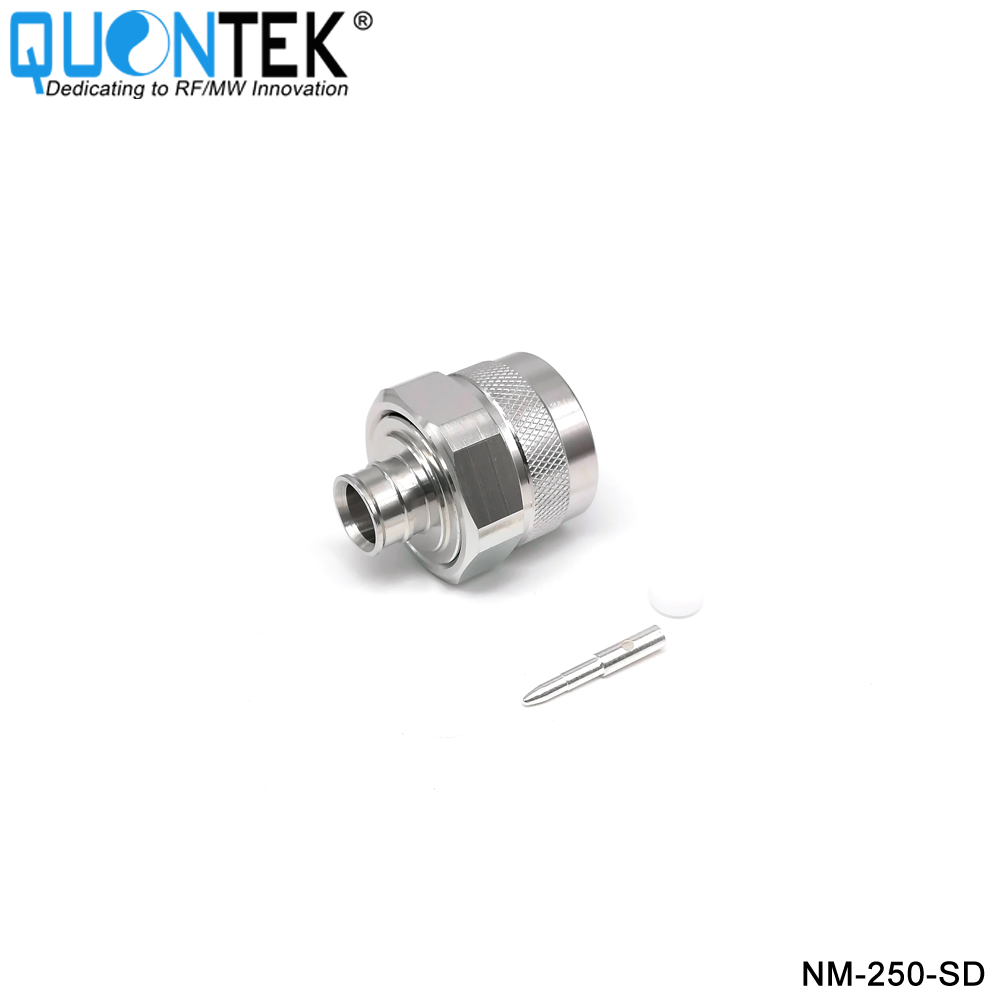

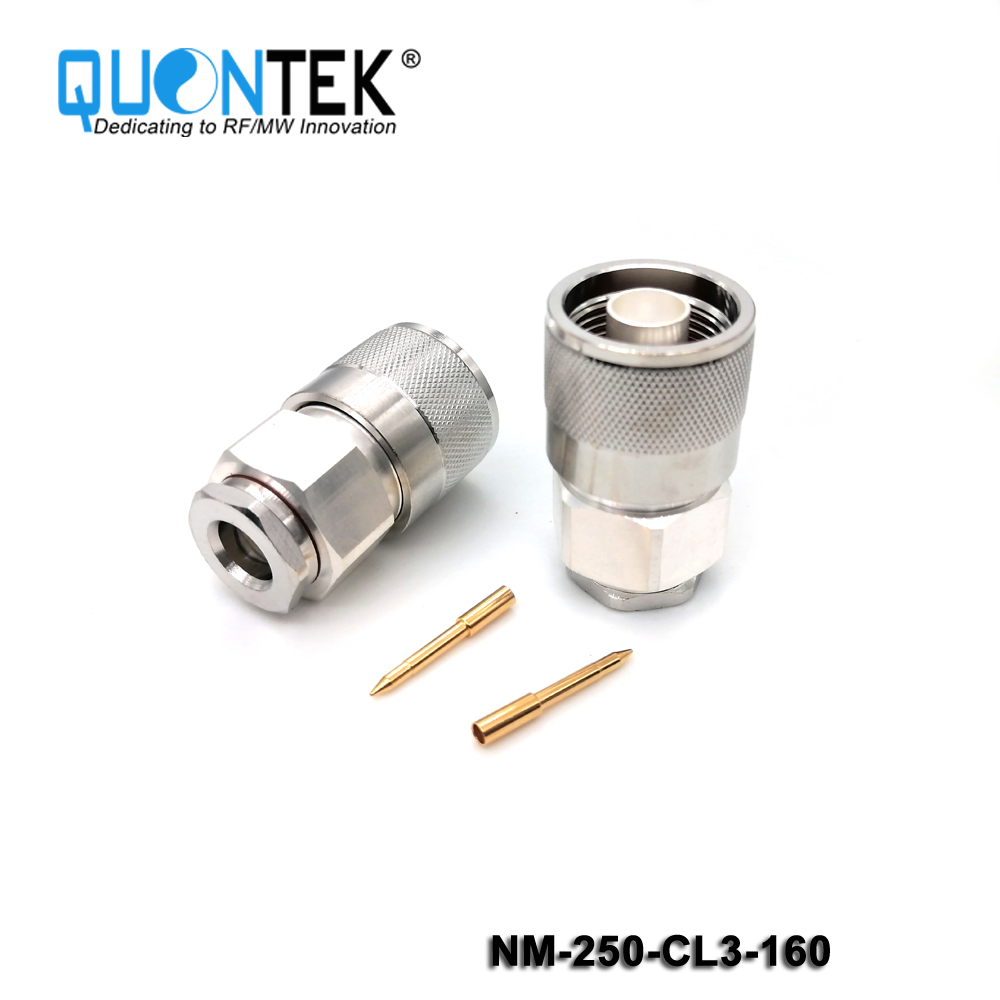

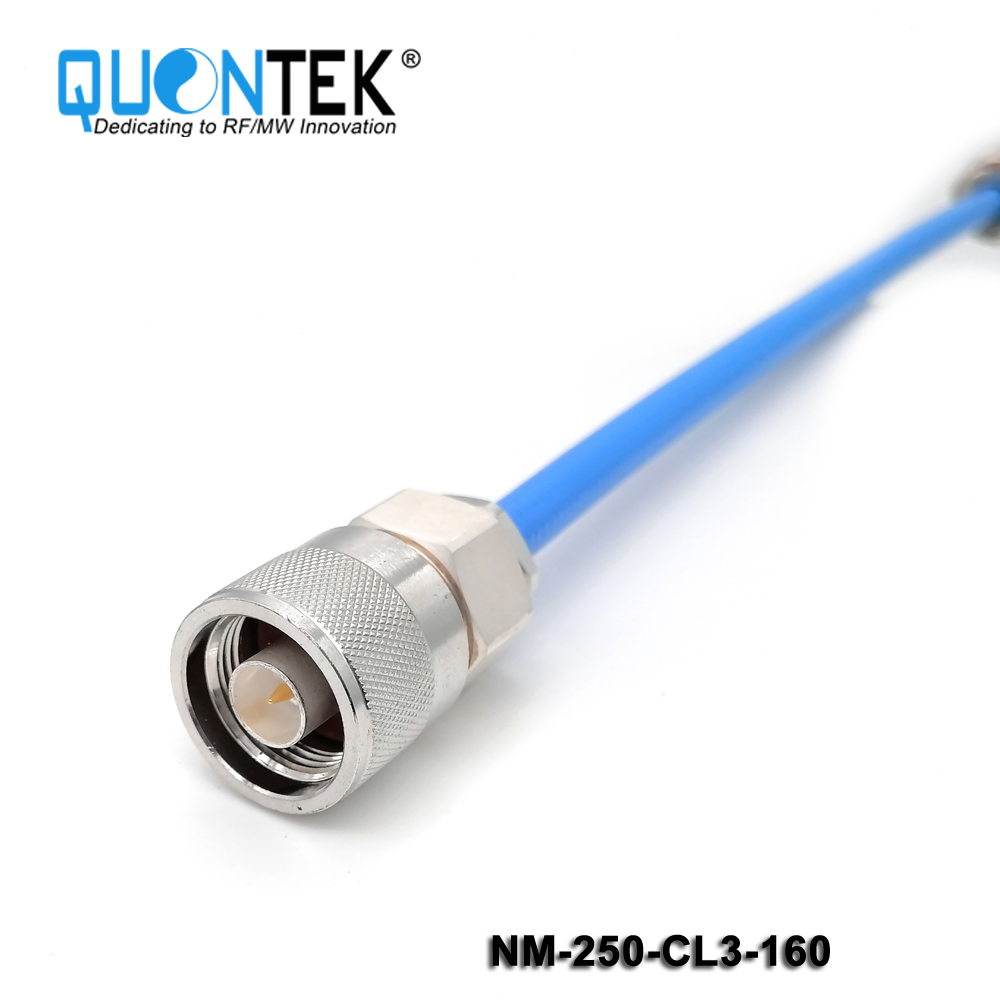

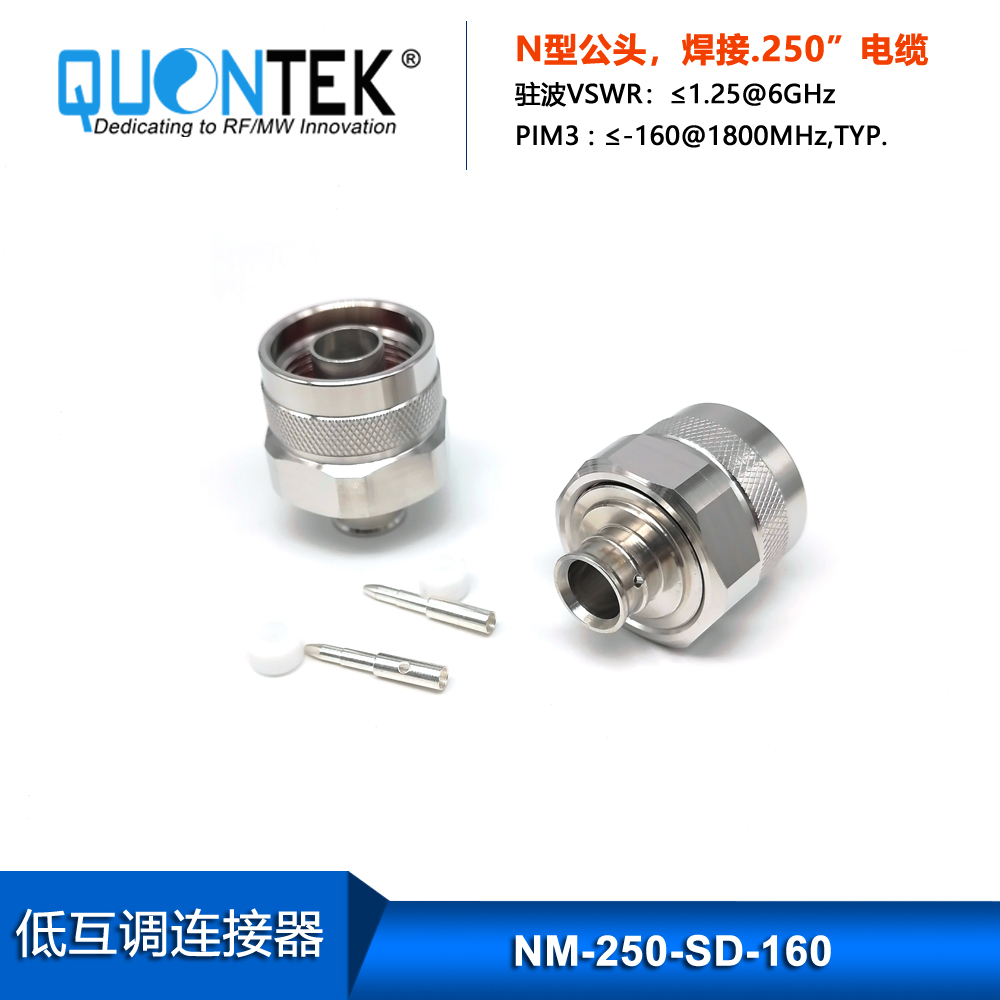

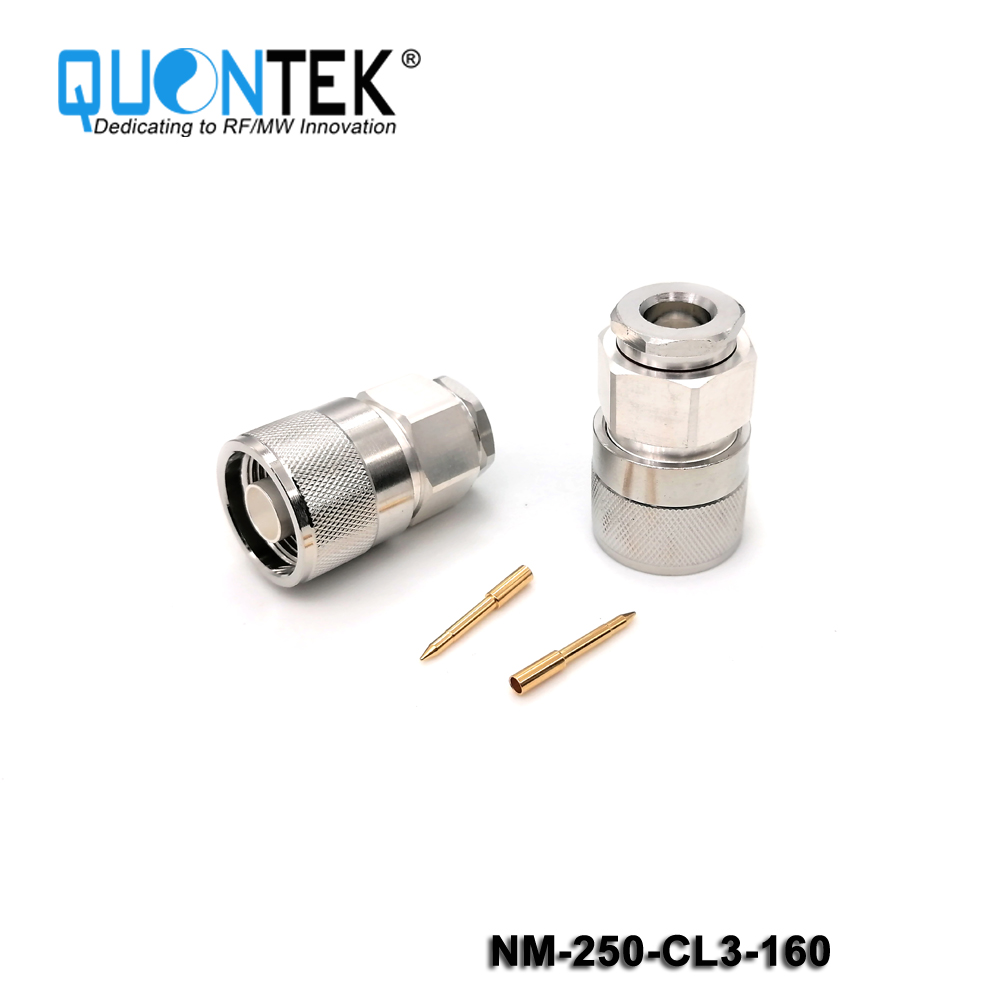

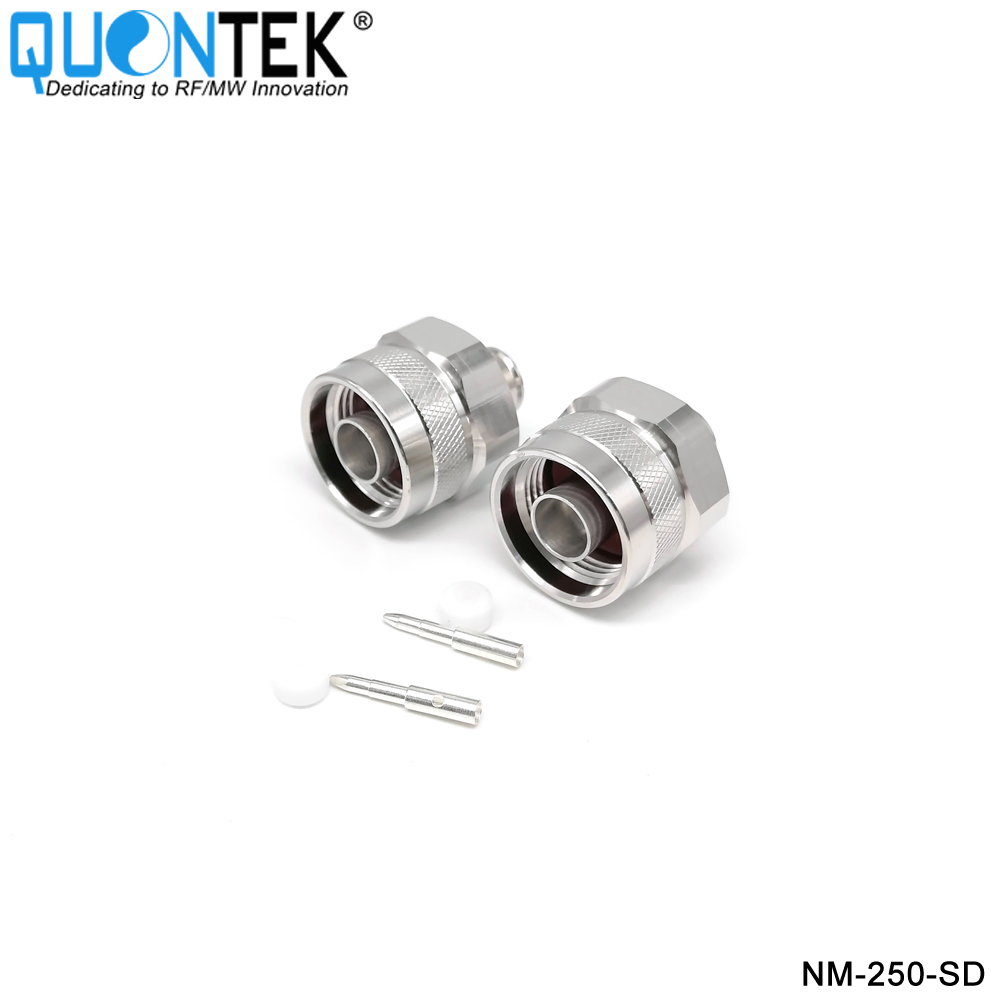

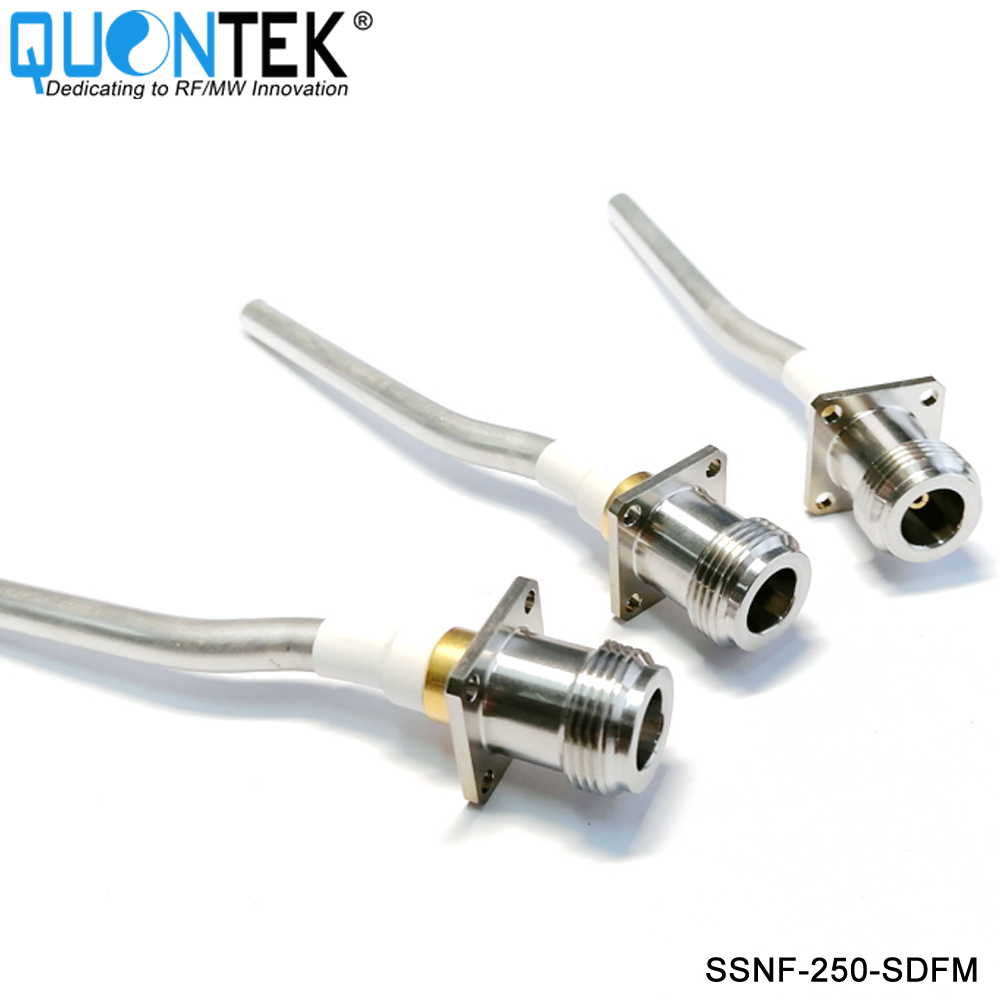

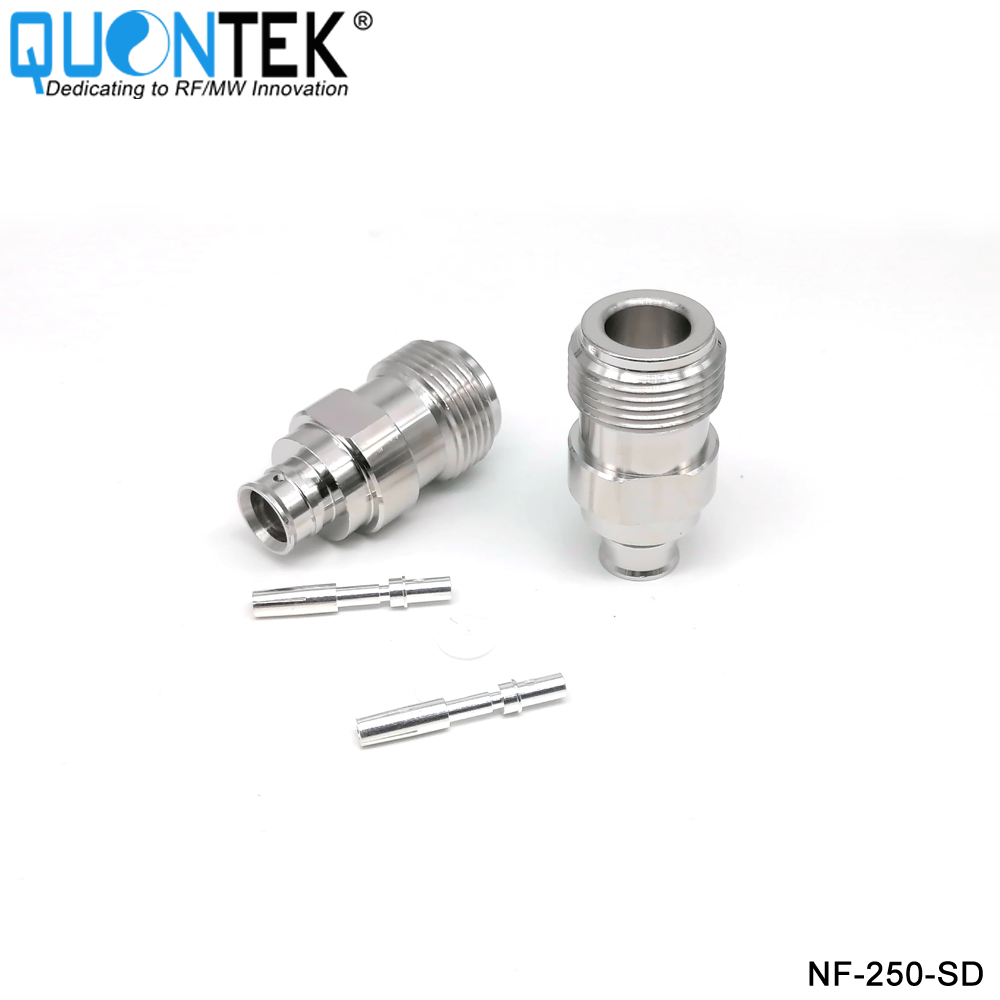

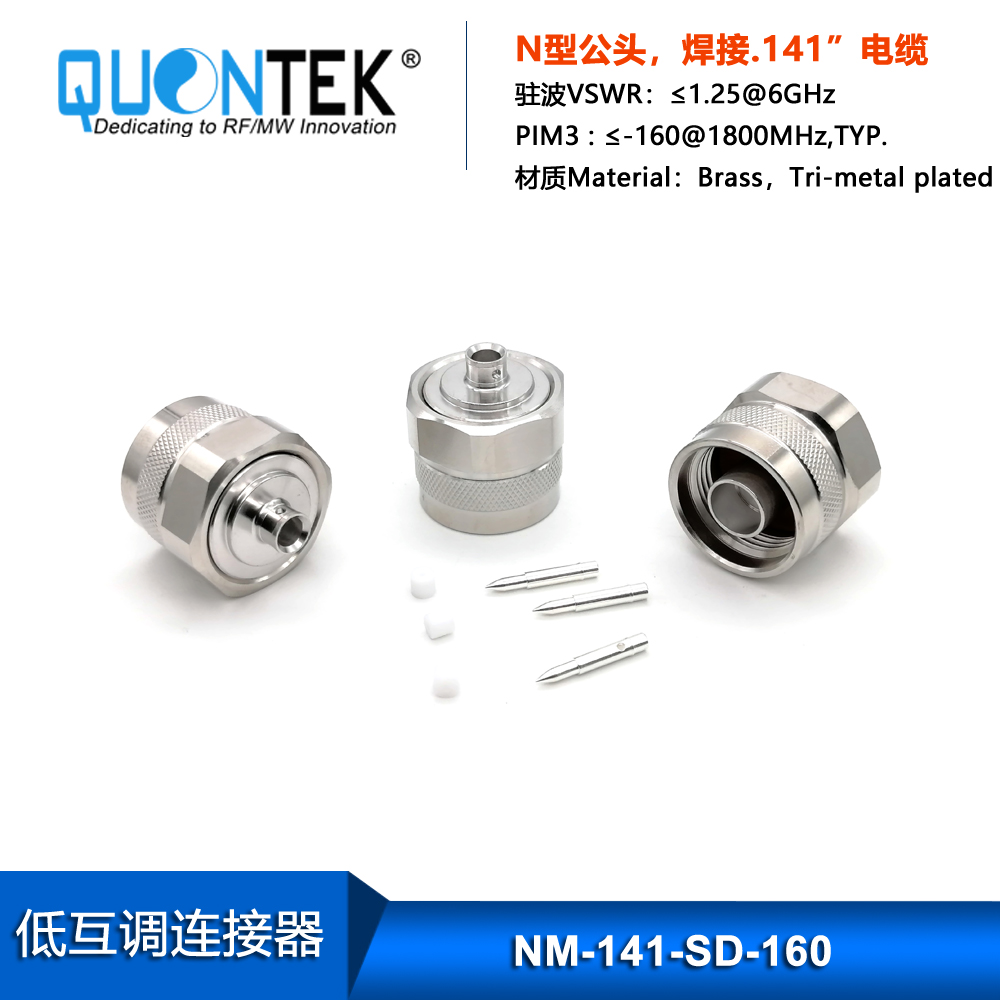

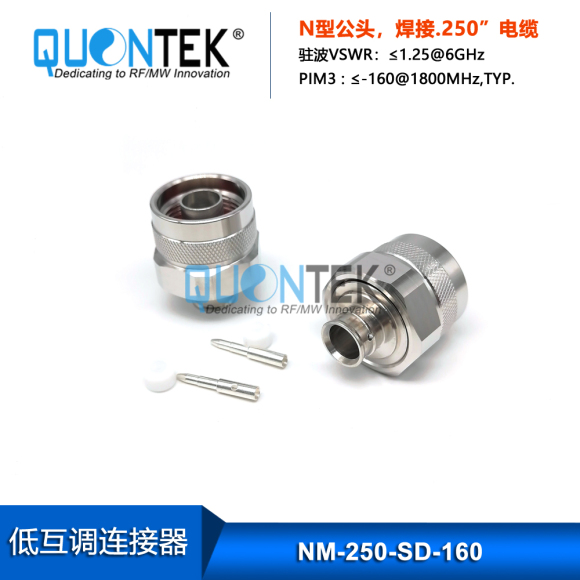

Low PIM Connector,N male,.250“/RG401/SPP250 cable

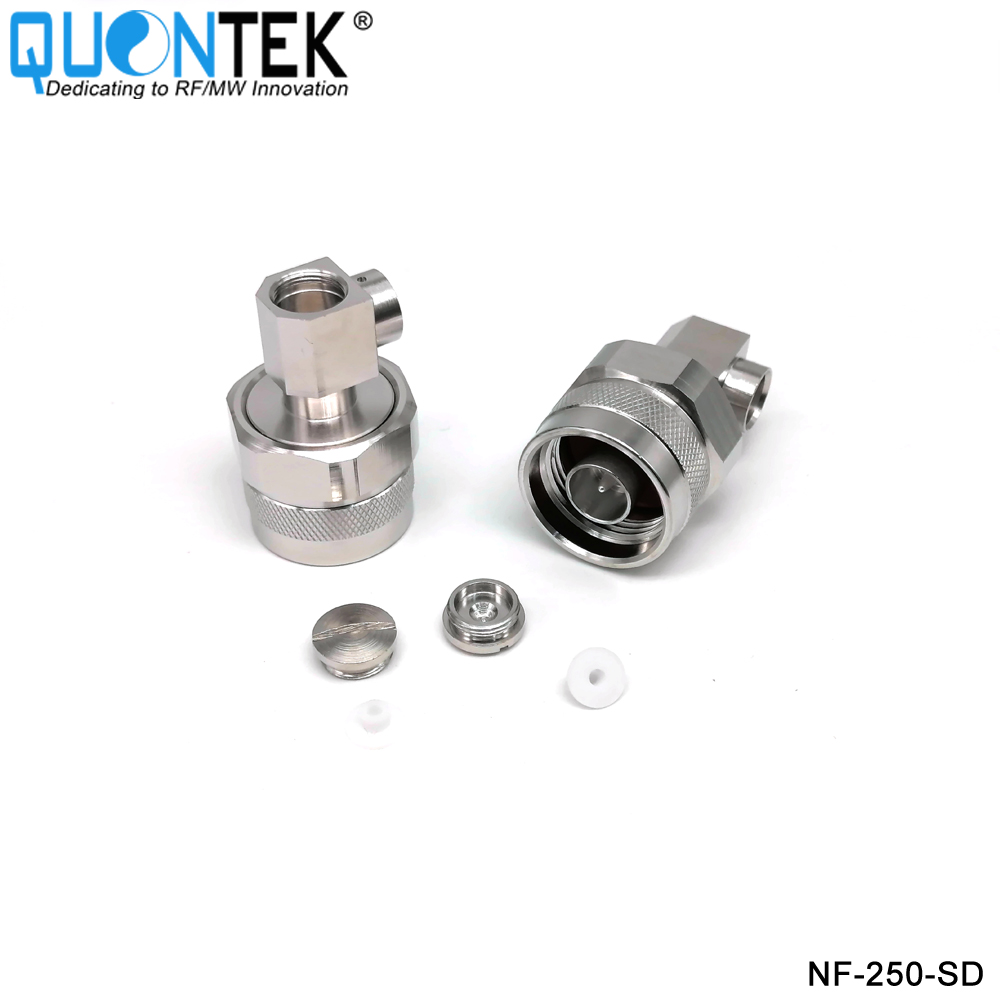

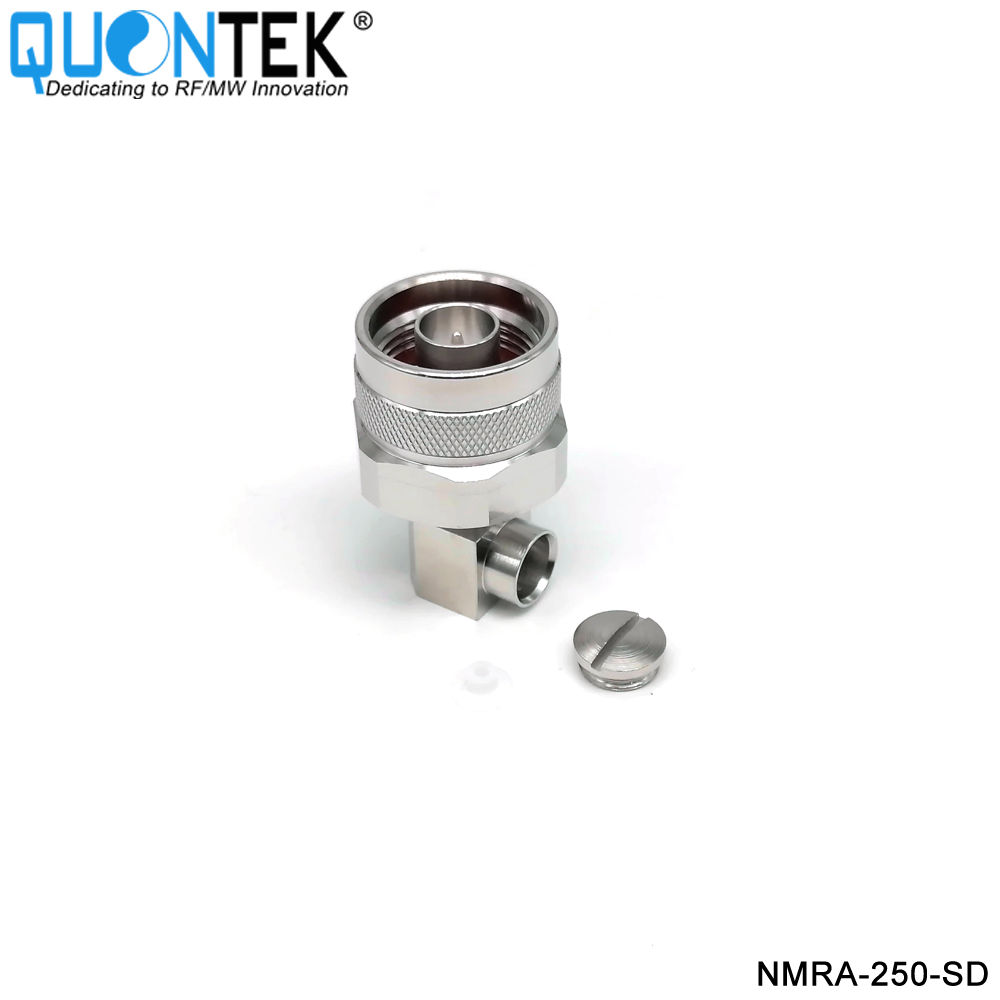

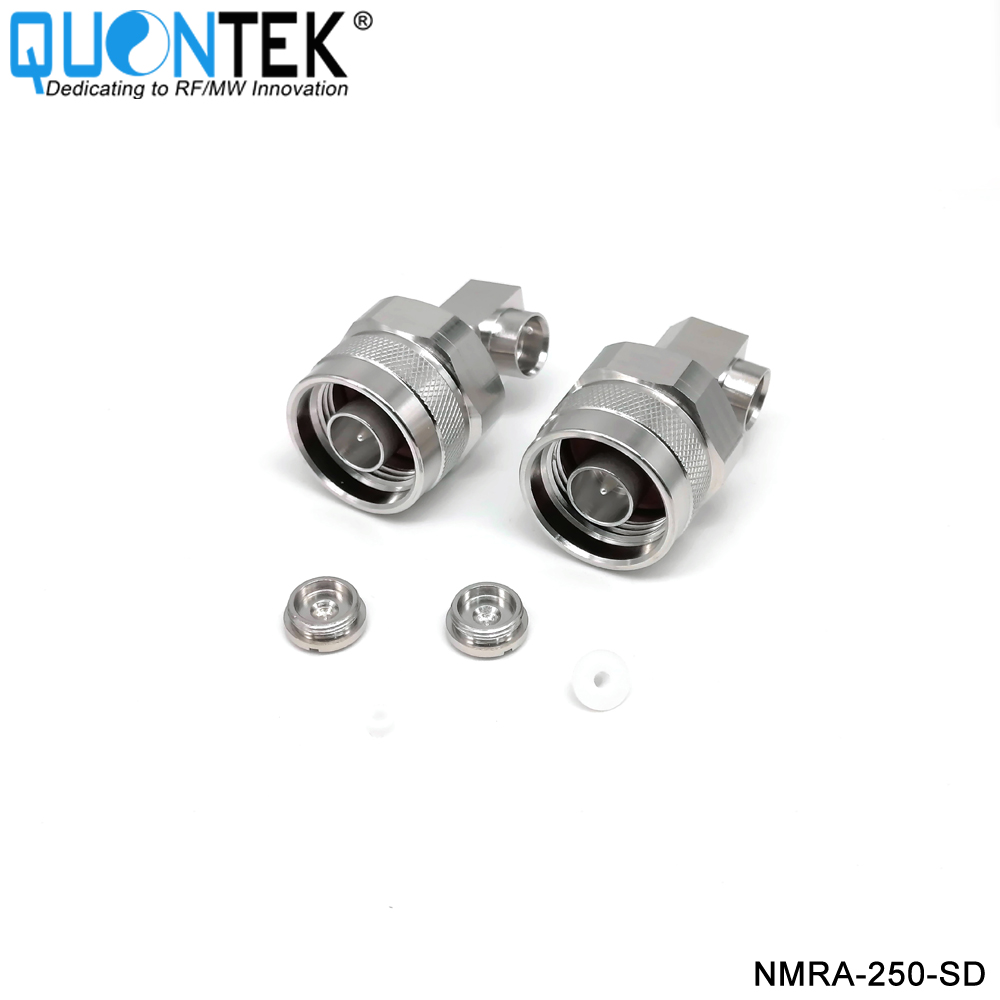

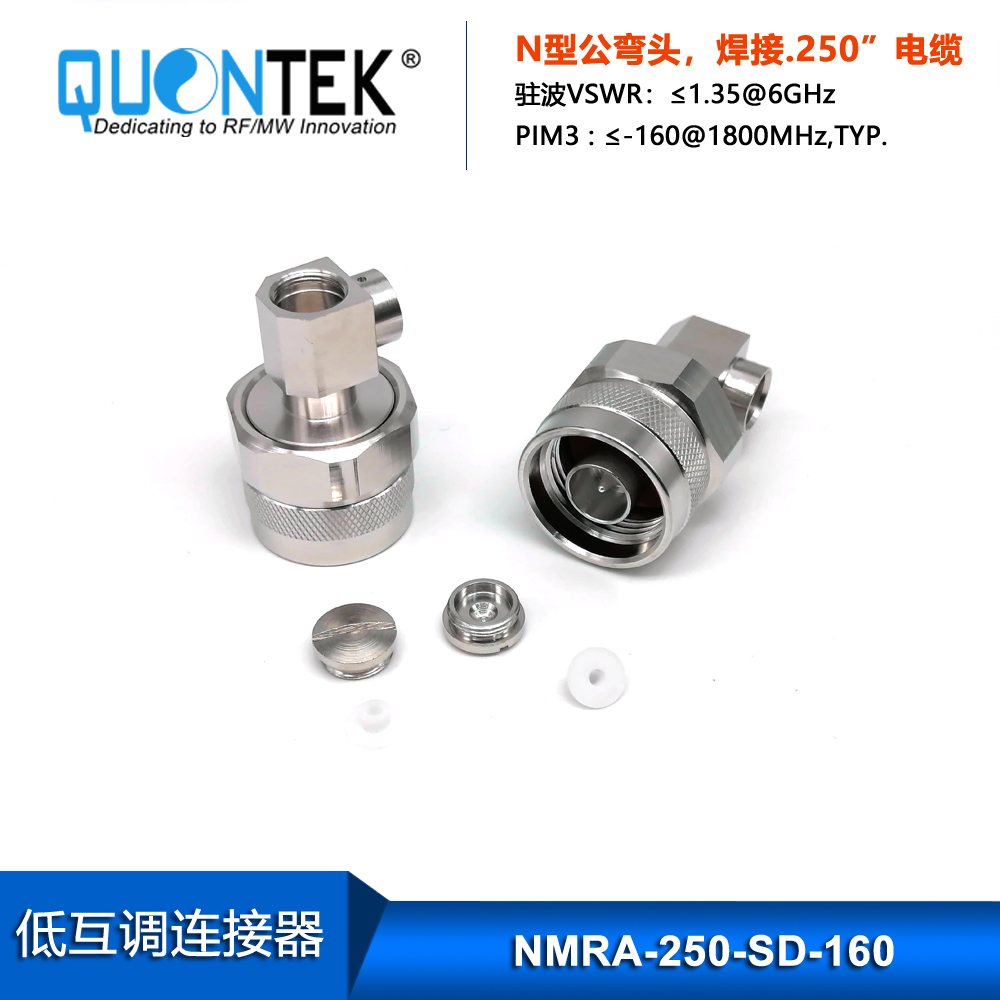

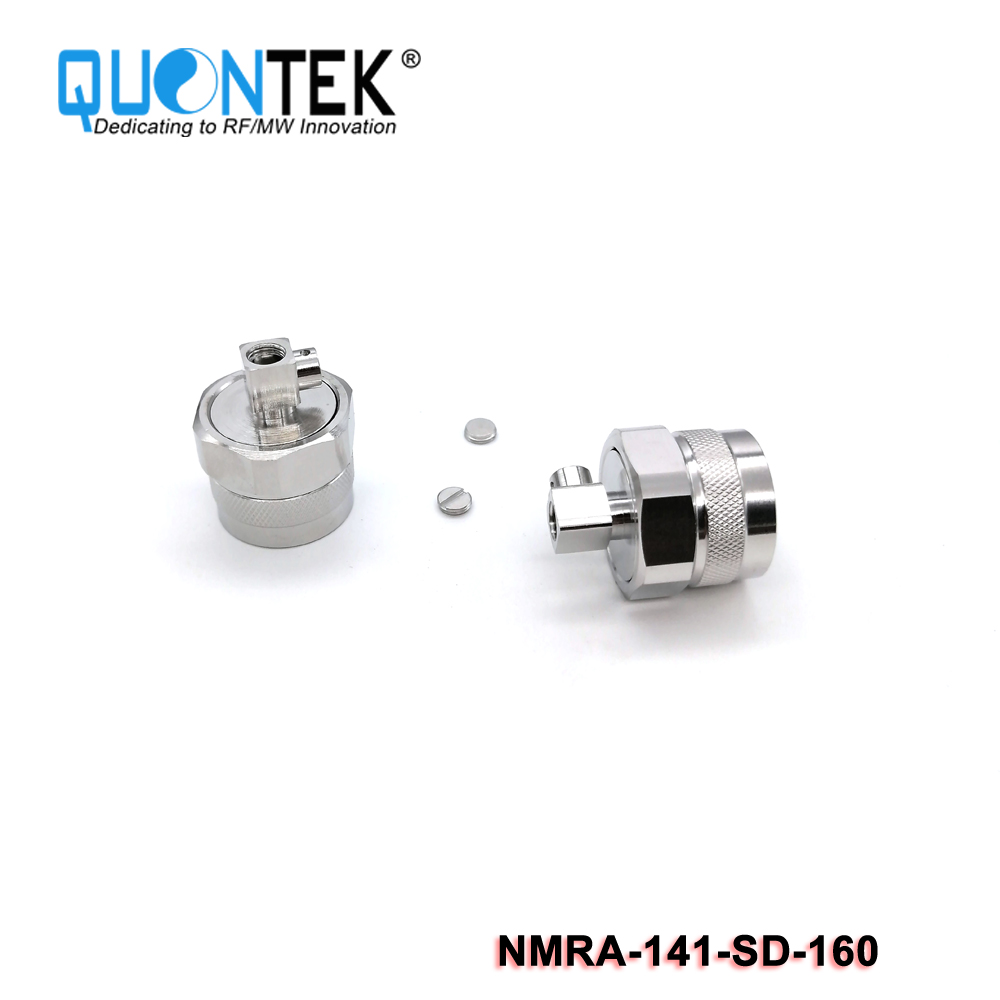

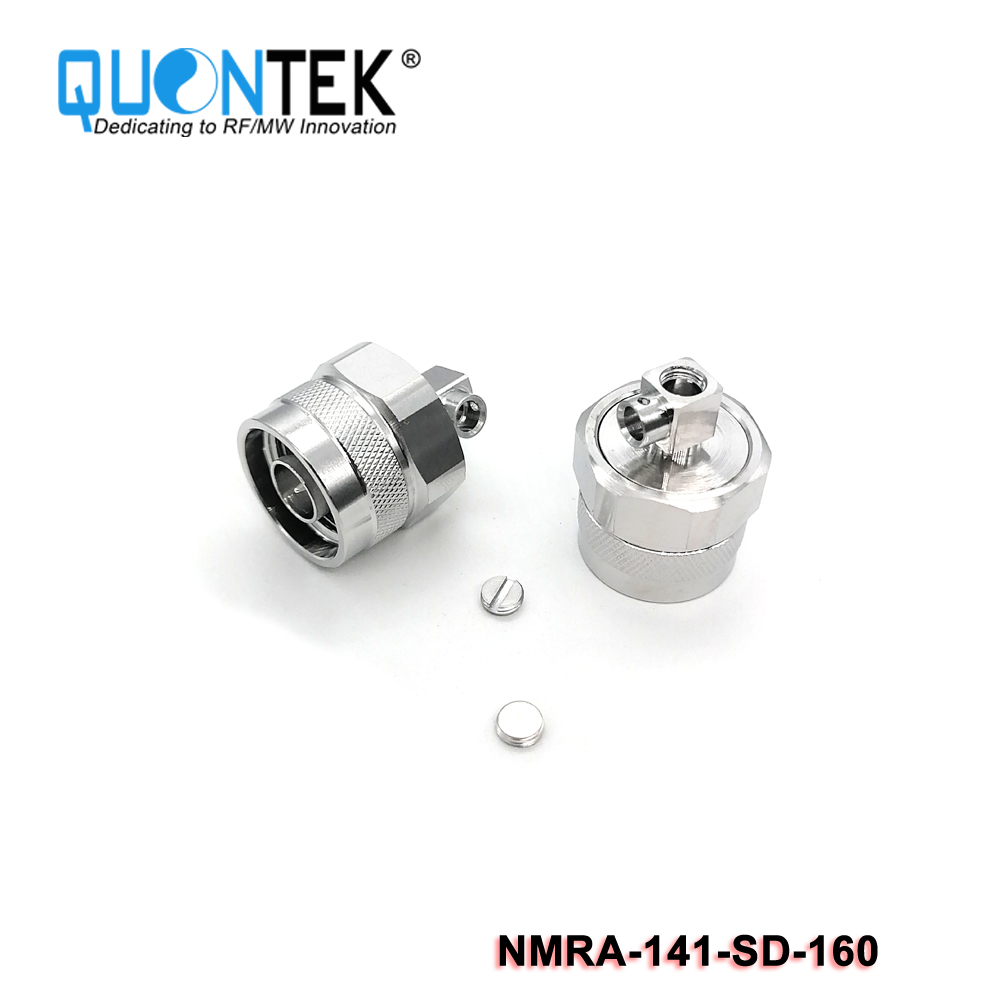

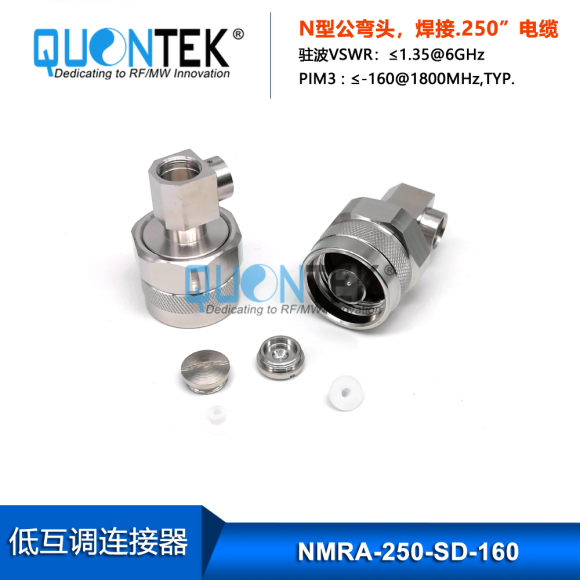

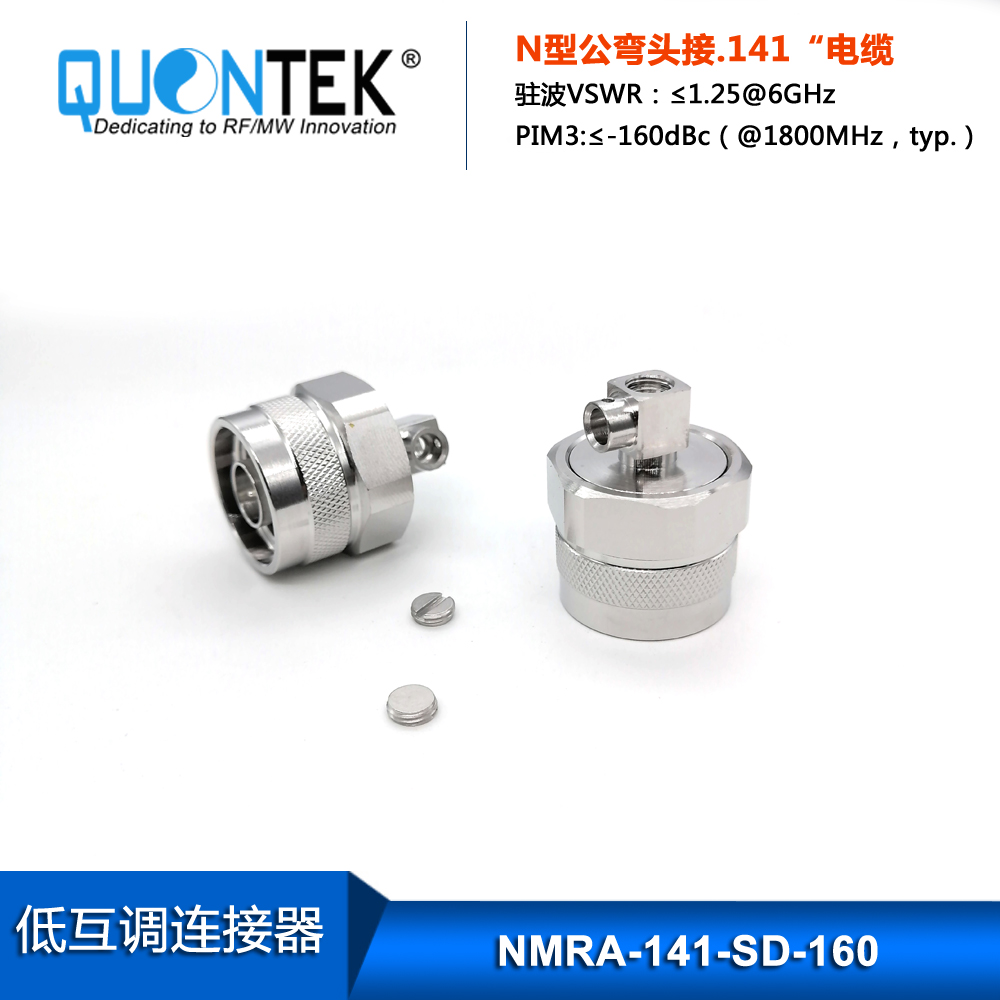

Low PIM Connector,N R/A male,.250“/RG401/SPP250 cable

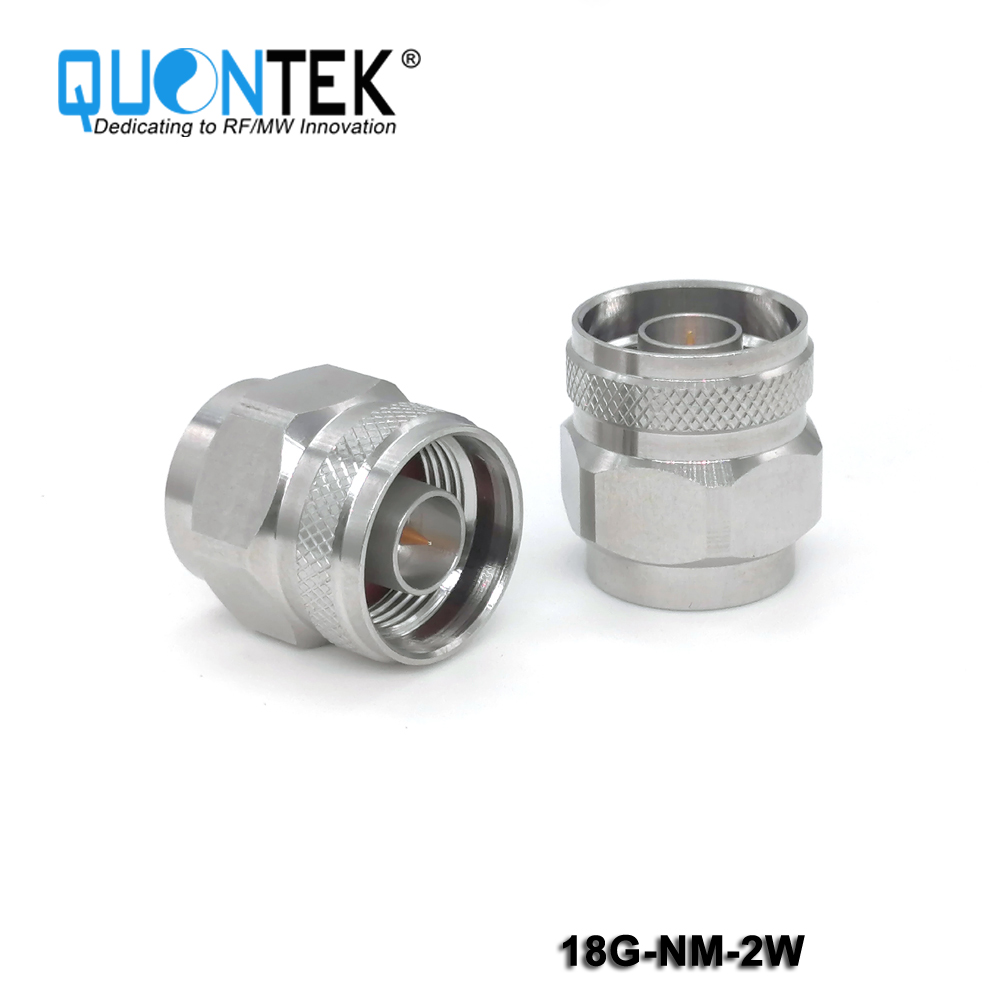

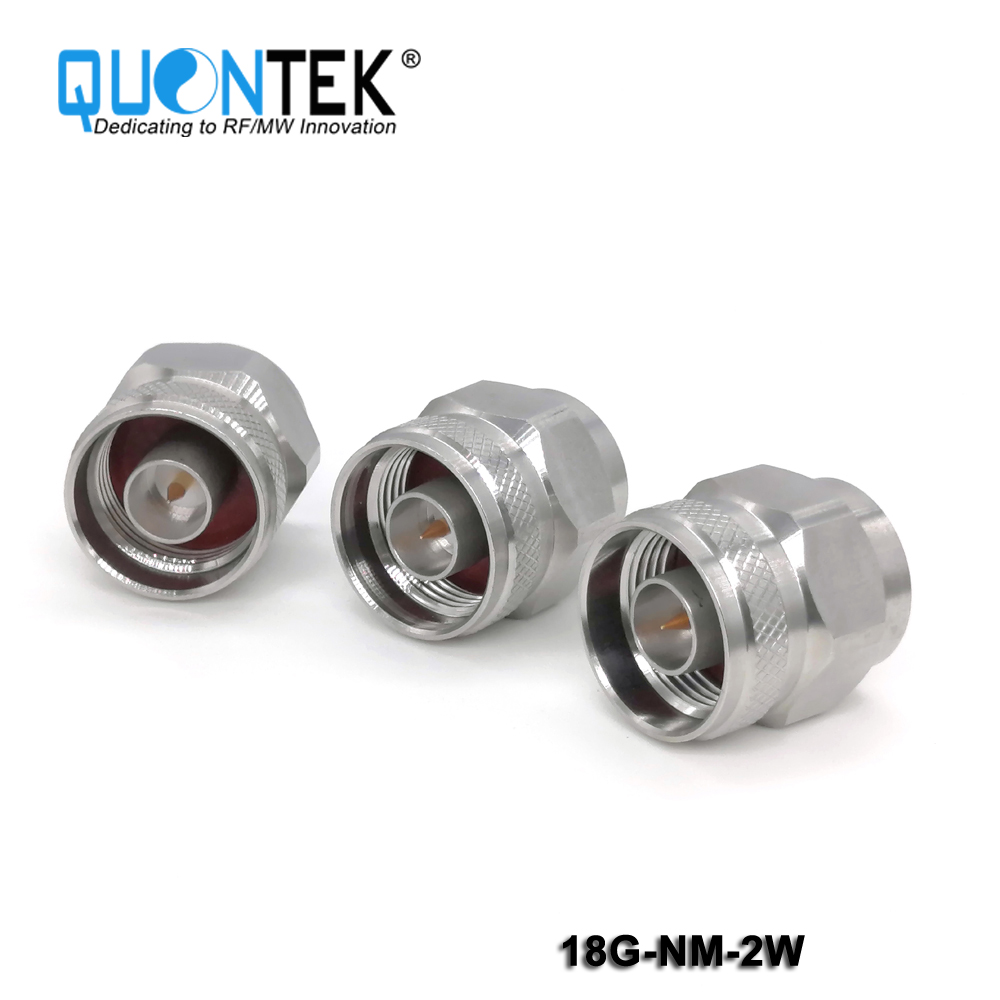

RF Termimation, N male 50 ohm load,2w,18GHz

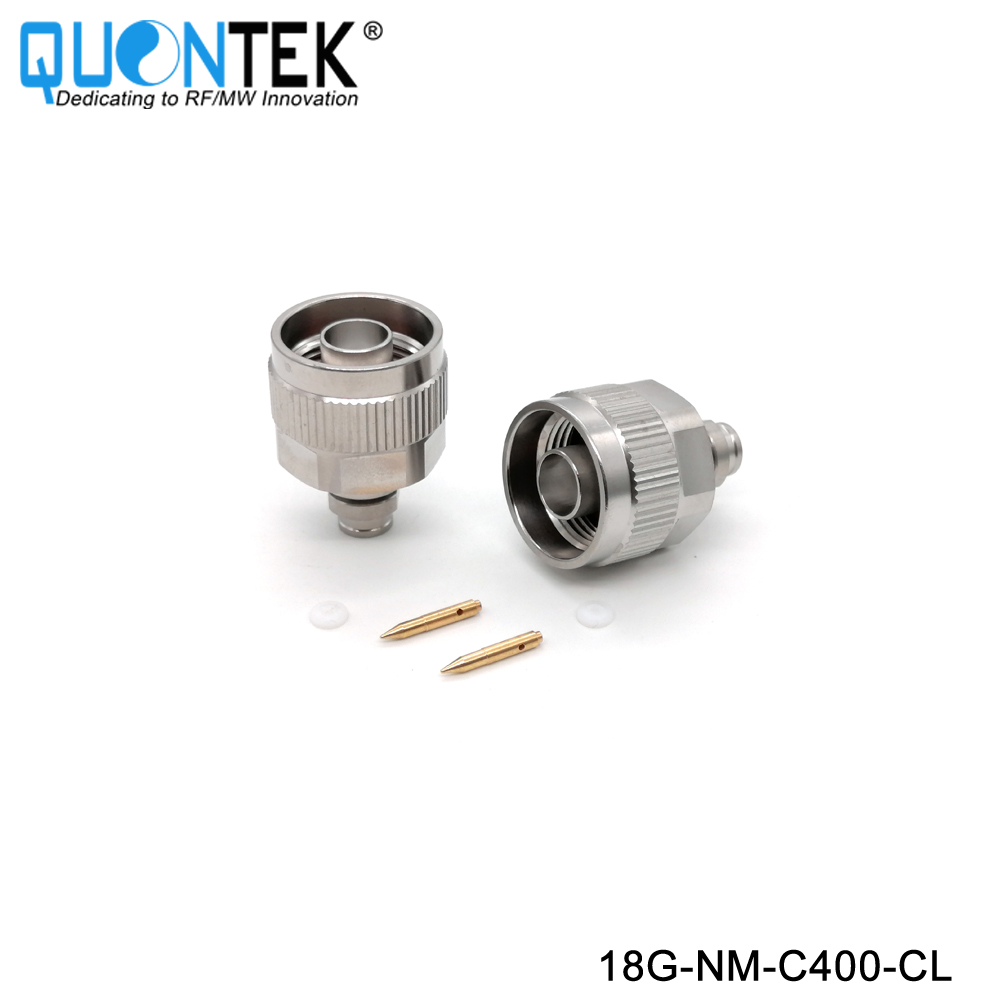

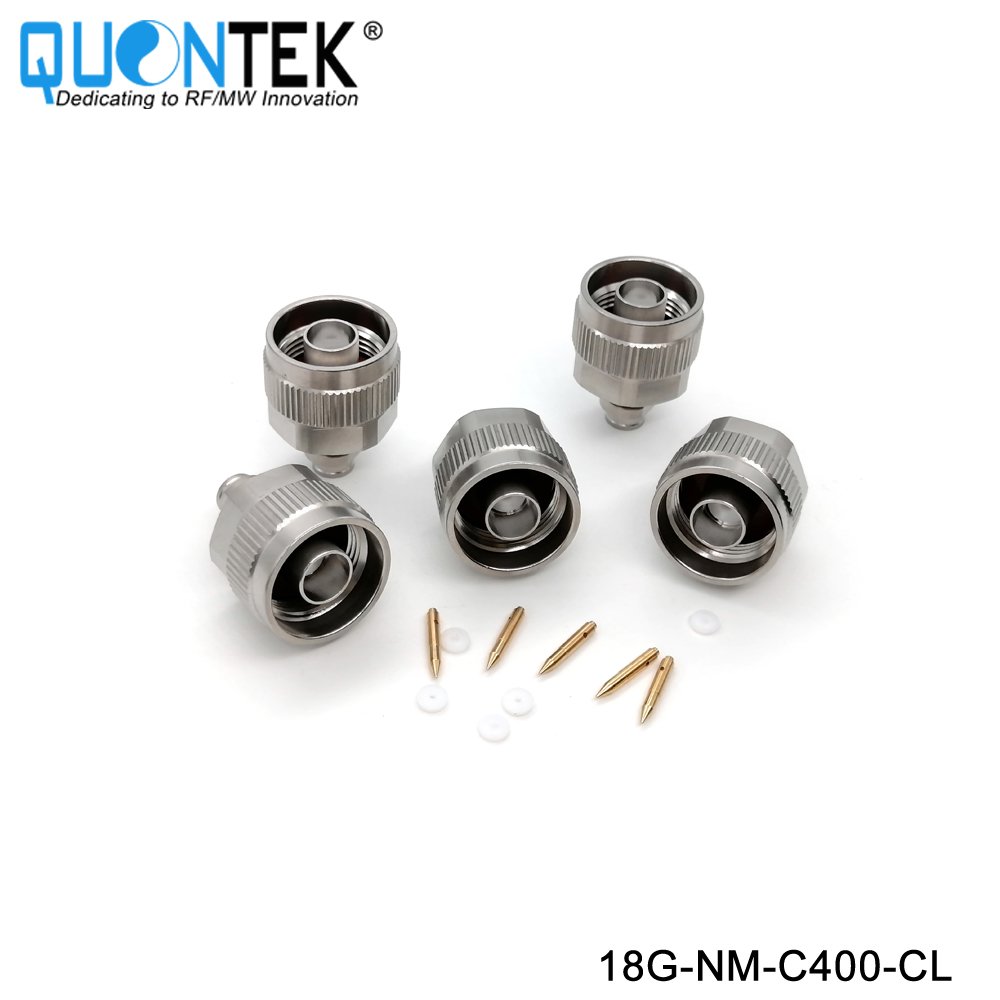

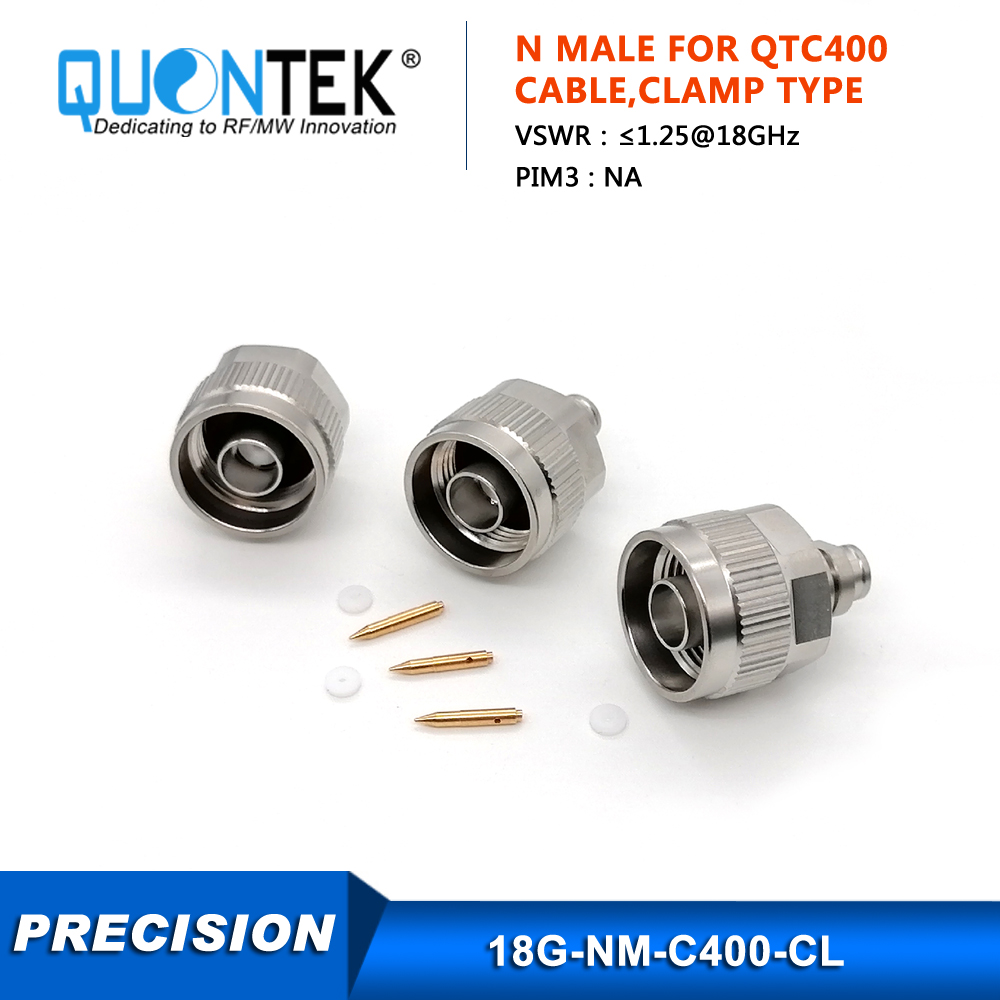

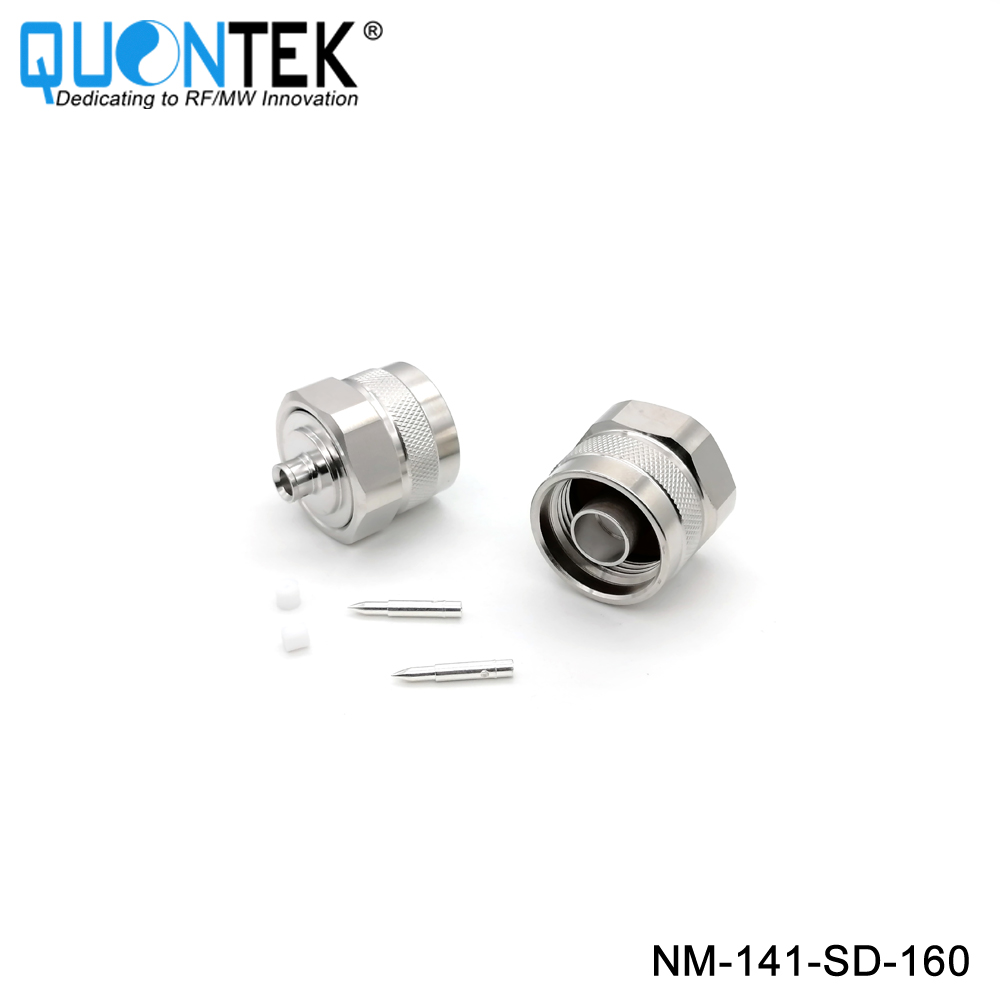

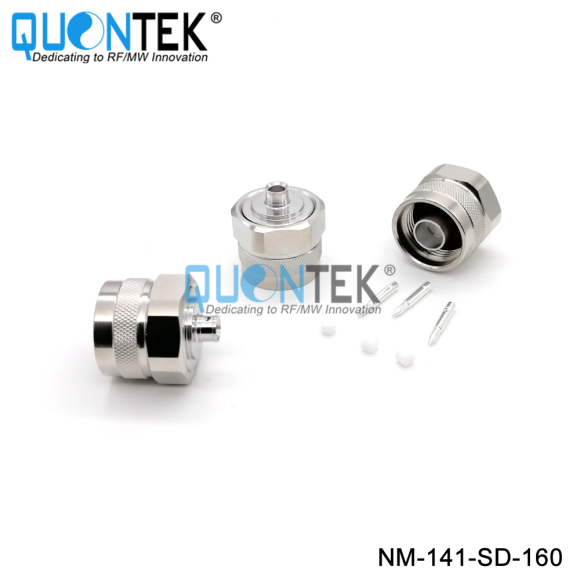

Precision connctor,N Male for QTC400 cable,Clamp type,to 18GHz
