2.4mm type connector -

Description

QUONTEK 2.40mm connectors – high reliability and outstanding repeatability – are designed for precision test & measurement applications up to 50 GHz. With 50 Ω impedance and 2.40 mm outer conductor, they are intermateable with many other 2.40 mm series connectors such as APC-2.40, OS-50, HP-2.40 and V connectors.

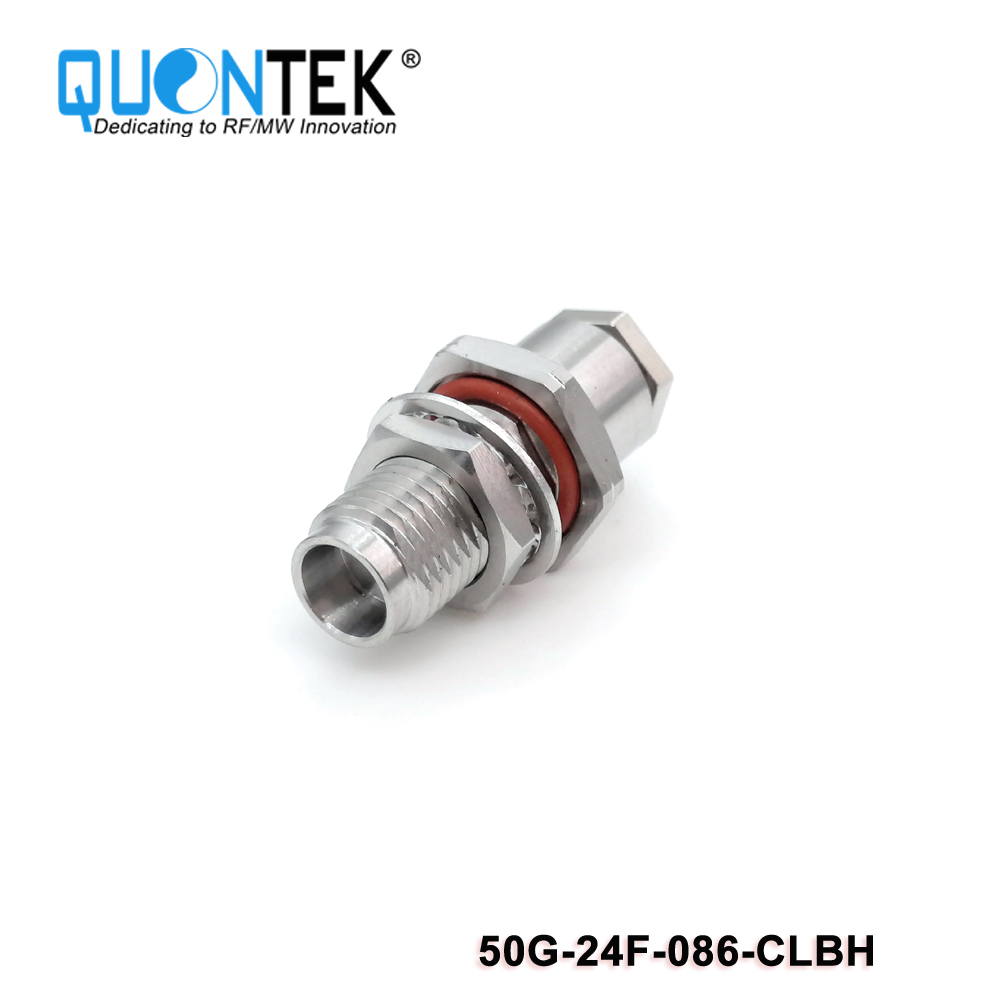

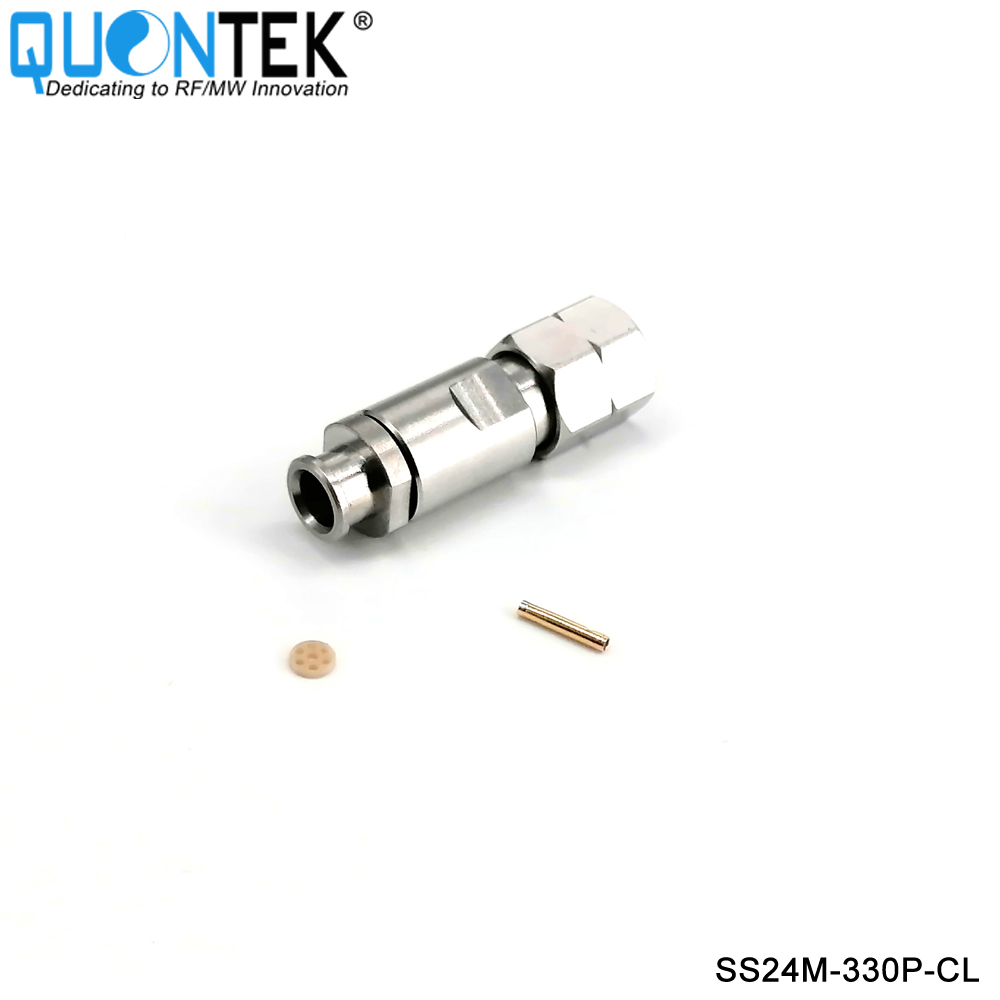

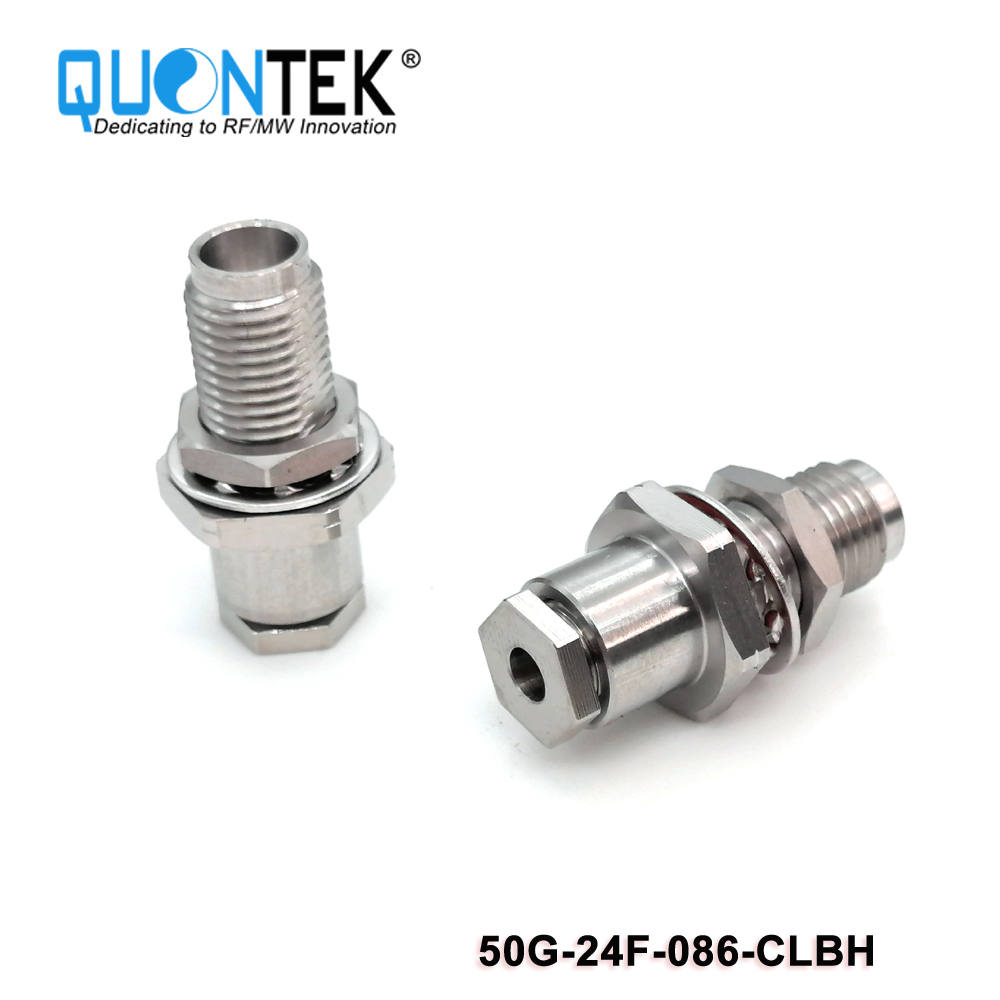

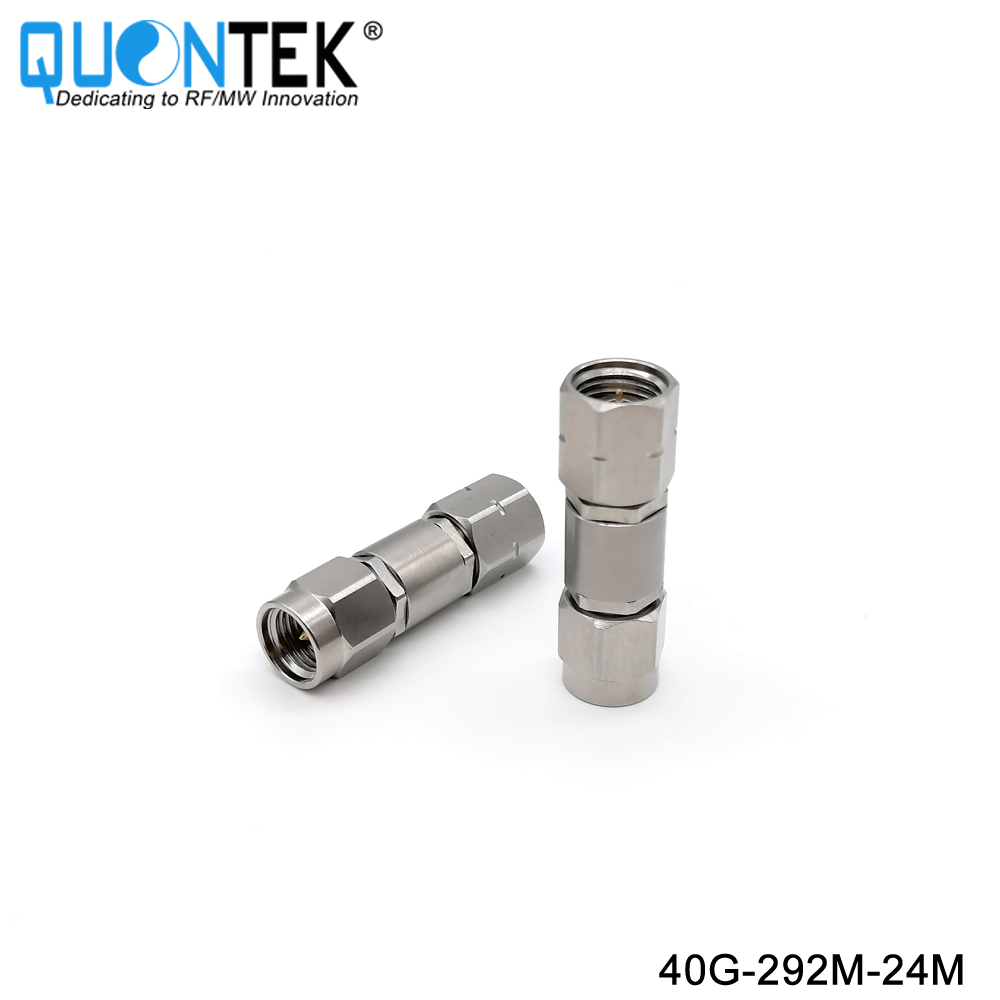

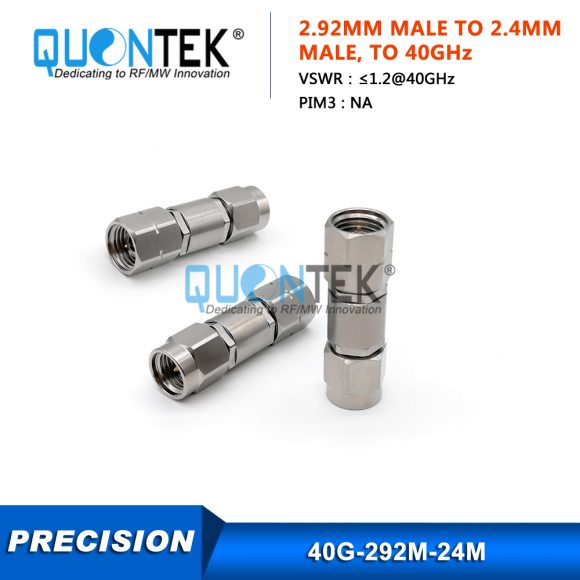

A wide range of 2.40mm cable and PCB connectors, adaptors and interchangeable port connectors is available as well as test & measurement accessories. These include RPC-2.40 calibration kits, test cables and measurement equipment.

Features

Impedance 50 Ω
Interface according to IEC 60169-40
Frequency range DC up to 50 GHz

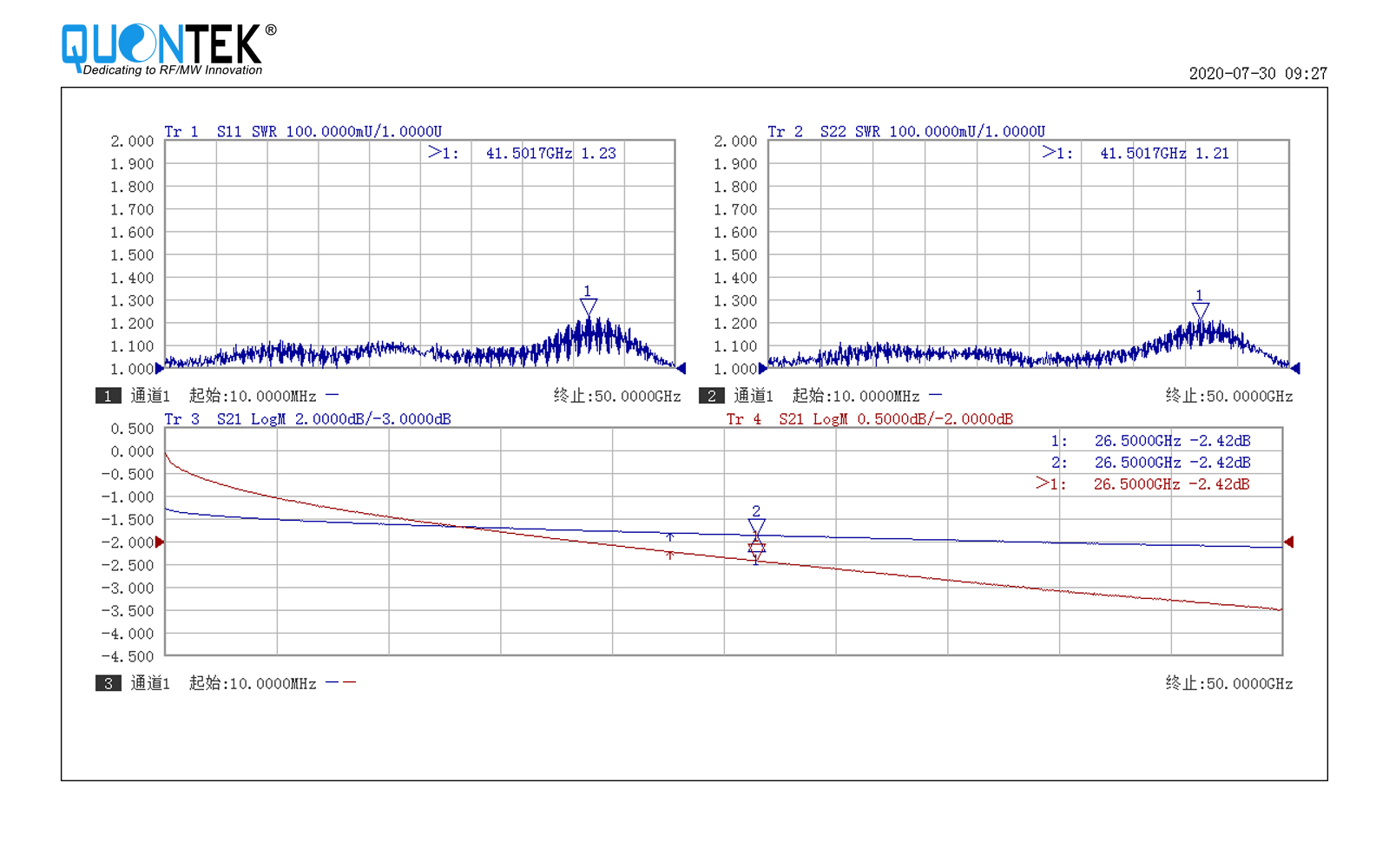

Return loss > 23 dB @ DC – 50 GHz
Mating cycles > 500
Air dielectric with PEEK bead
Stainless steel outer contact

	Male		Female

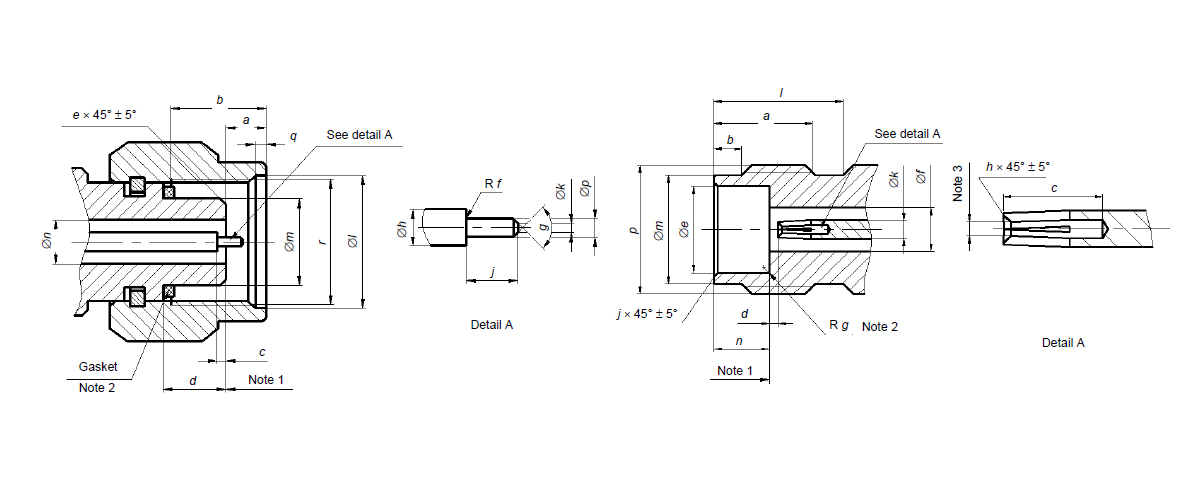

	Min.	Max.	Min.	Max.
a	1.850	2.450	4.800	5.060
b	4.340	4.660	1.370	1.630
c	0.000	0.076	2.650	--
d	3.380	3.480	0.000	0.076
e	0.200	0.400	4.770	4.795
f	--	0.050	2.3875	2.4125
g	56°	64°	--	0.130
h	1.029	1.054	0.100	0.127
j	1.270	1.524	0.100	0.200
k	0.200	0.300	1.029	1.054
l	7.010	7.110	6.000	--
m	4.725	4.750	5.790	5.890
n	2.3875	2.4125	3.000	3.100
p	0.506	0.523	M7*0.75-6g
q	0.510	0.770
r	M7*0.75-6H
