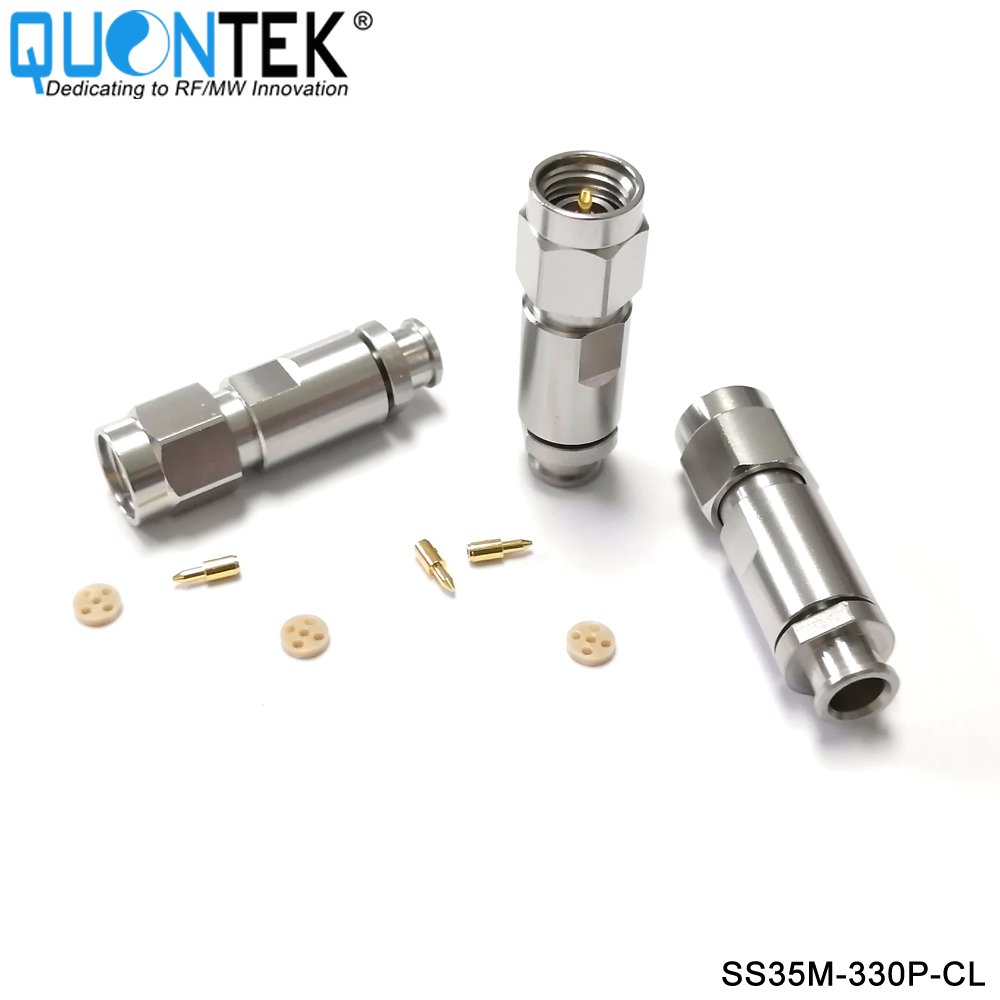

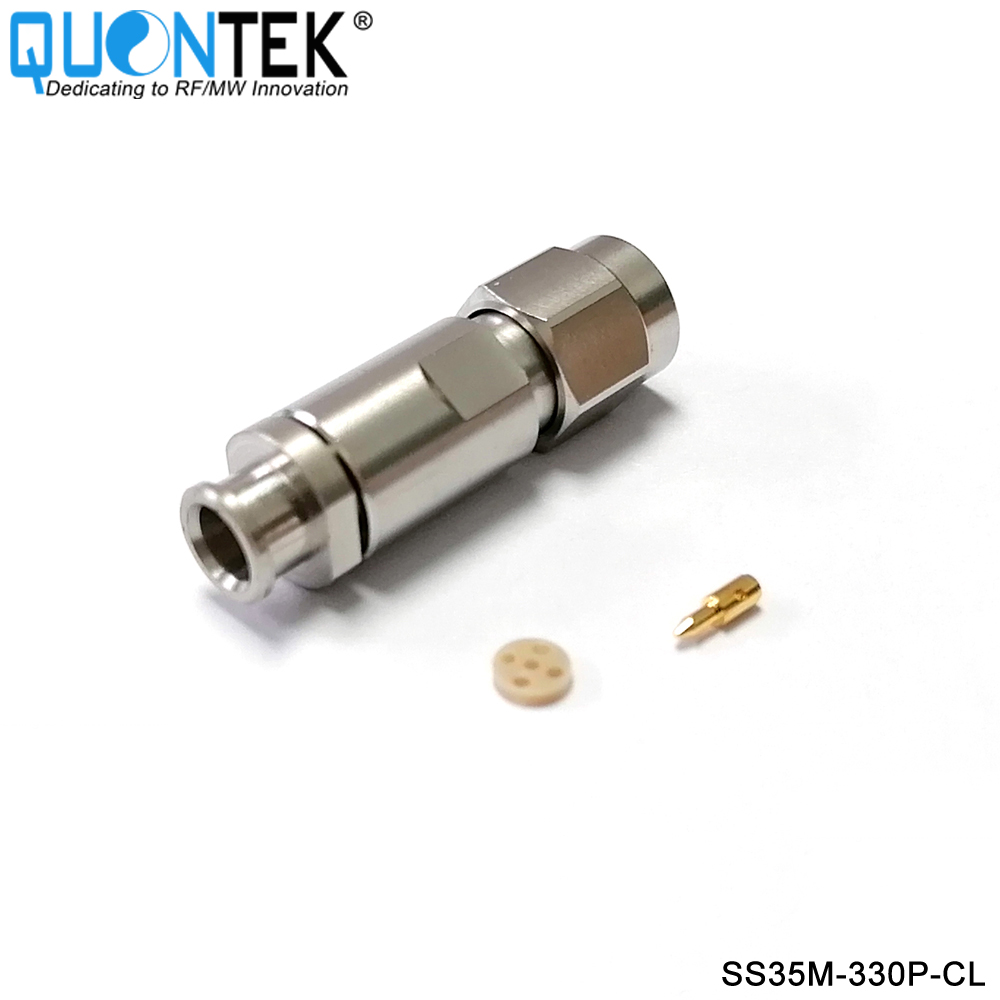

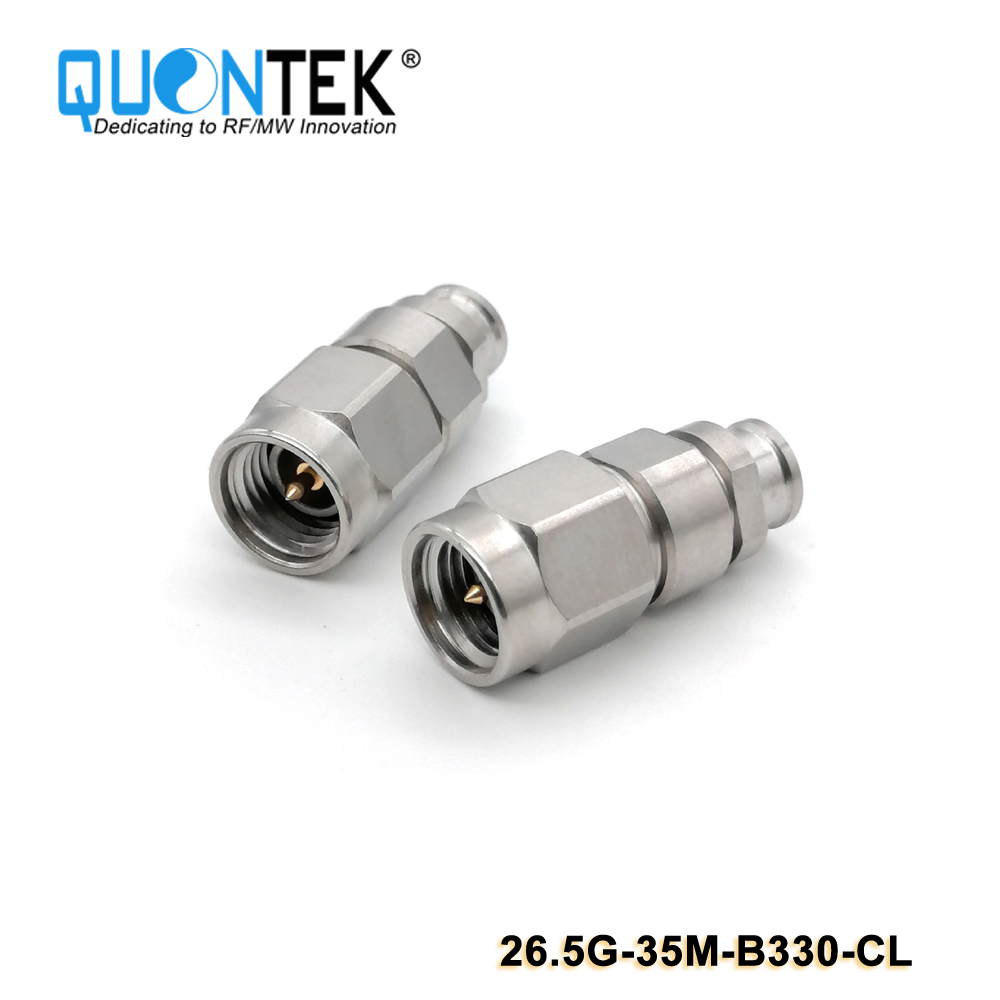

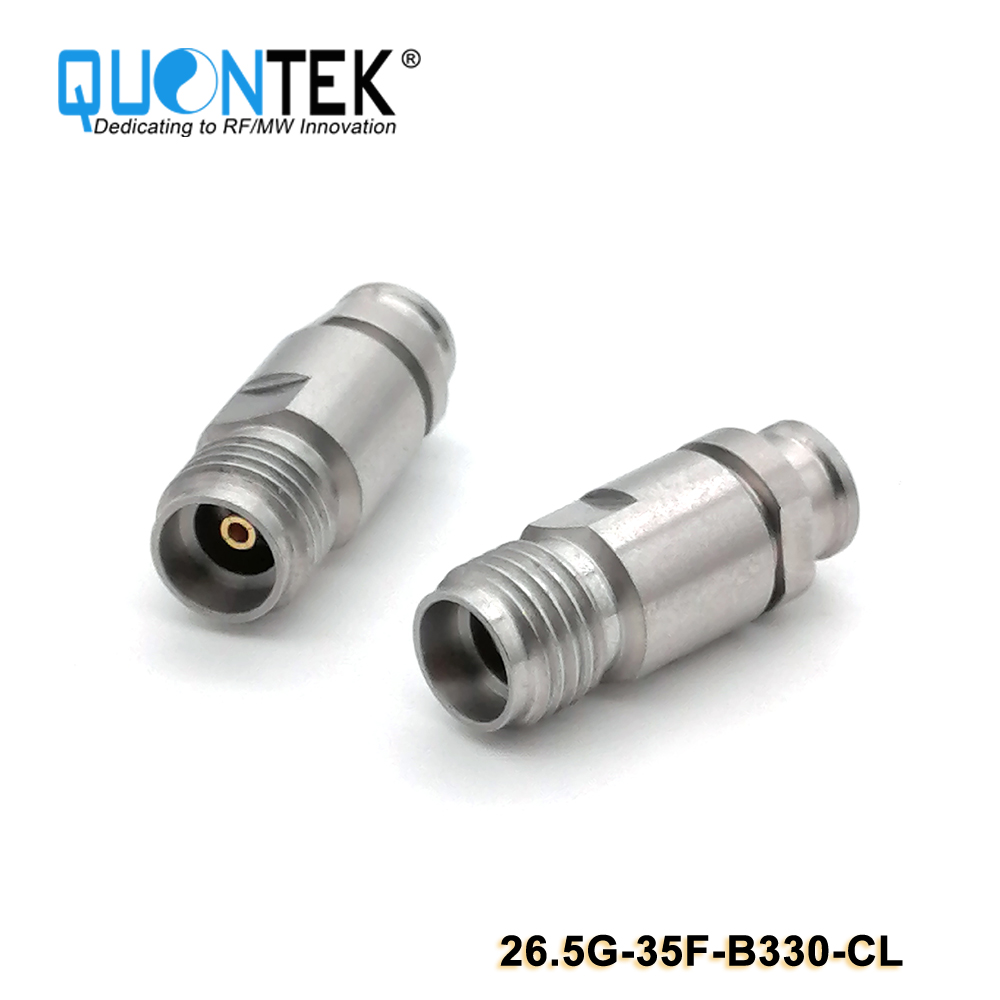

3.5mm type Connectors

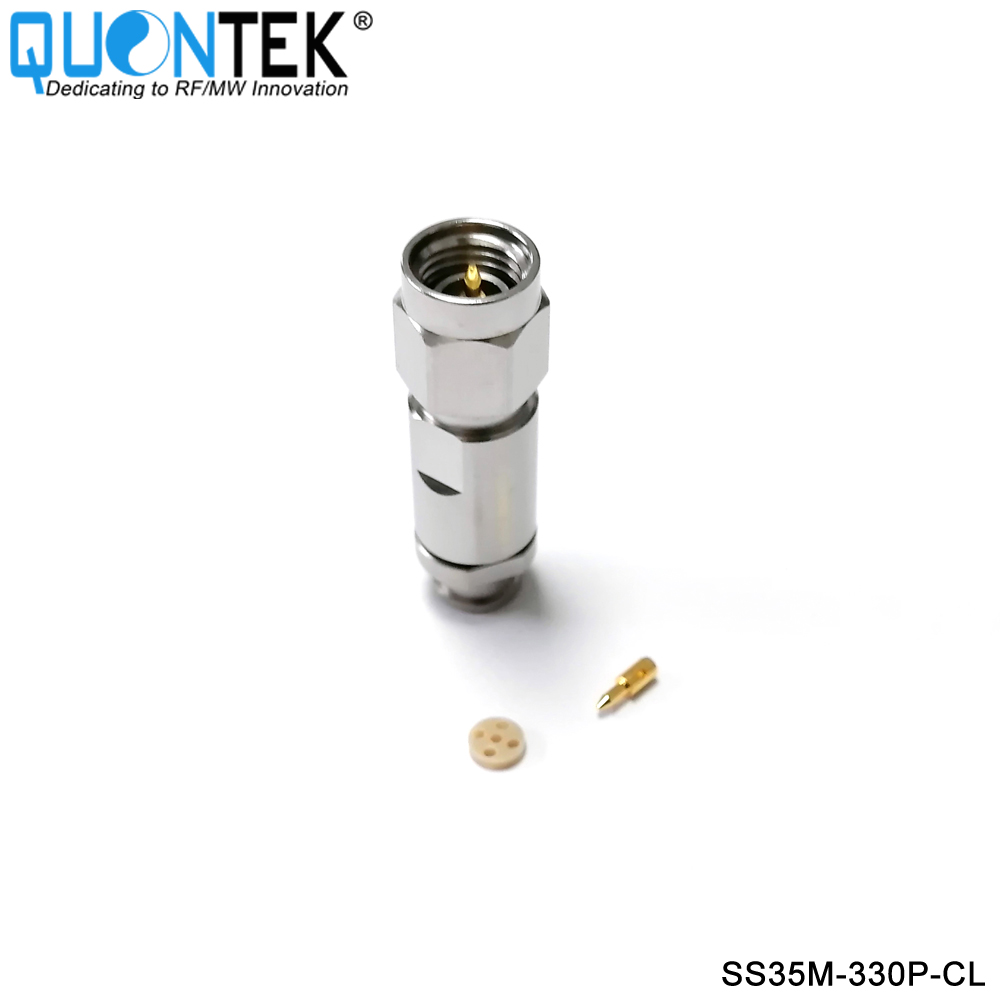

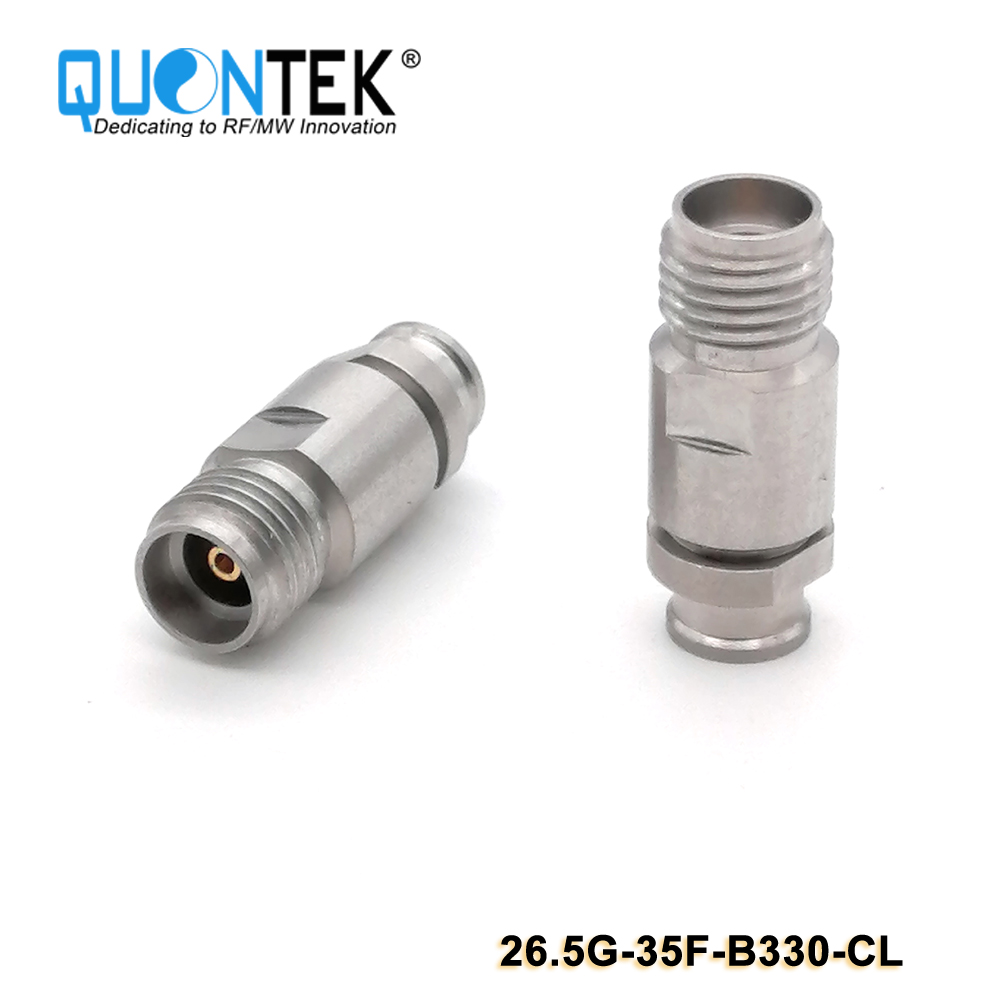

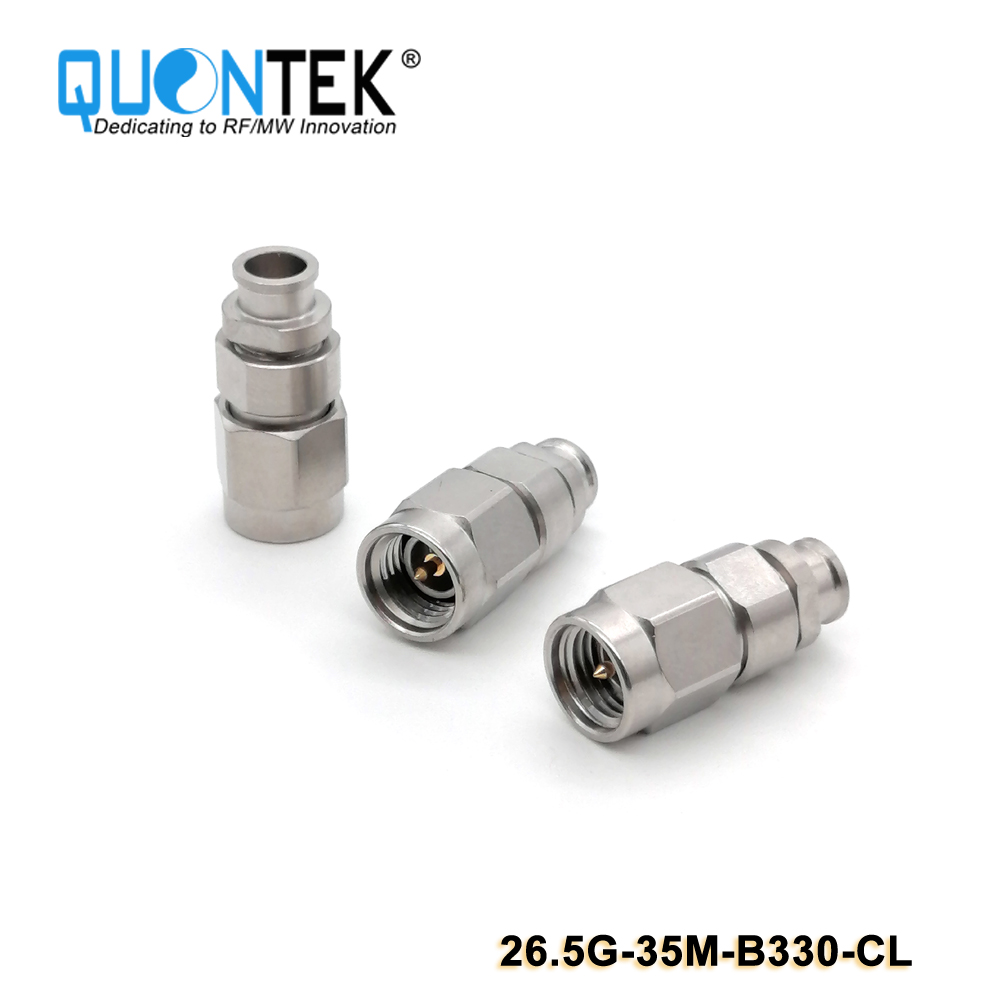

Description
QUONTEK 3.5mm connectors are precision connectors for use in microwave applications up to 26.5 GHz. They are especially suitable for use with semi-rigid cables and microwave components. They are intermate able with SMA and 2.92 mm connectors. Due to an air dielectric interface and
the more durable construction a superior repeatability further enhances the performance.
Features
• Frequency range up to 26.5 GHz

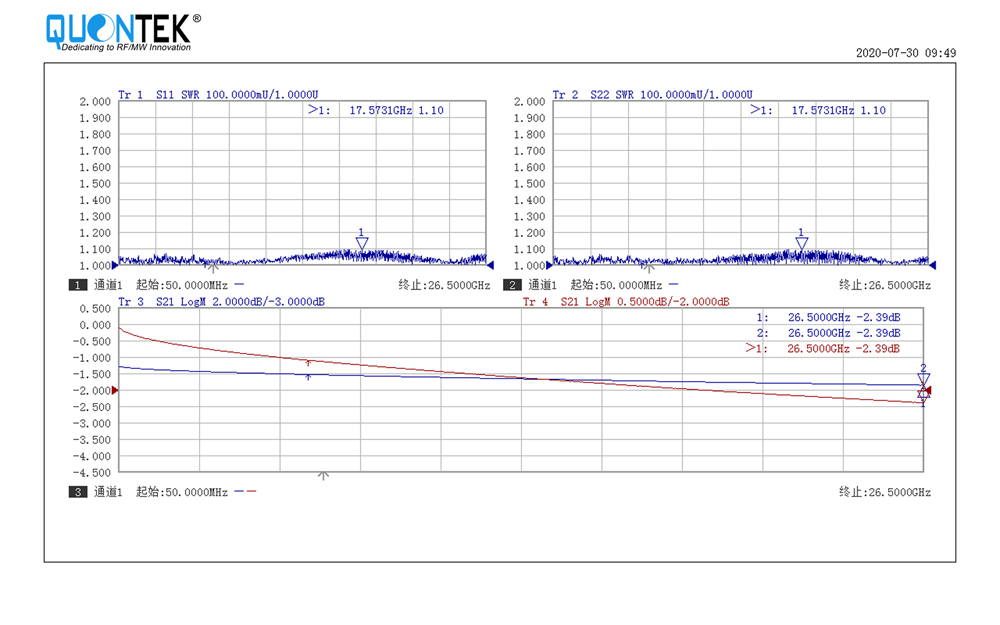

• Excellent return loss
• Intermate able with SMA and 2.92mm
• The 3.5mm interface dimensions conform to the following standards:
International: IEC 61169-23
Europe: CECC 22110
USA: MIL-PRF-39012 3.5mm

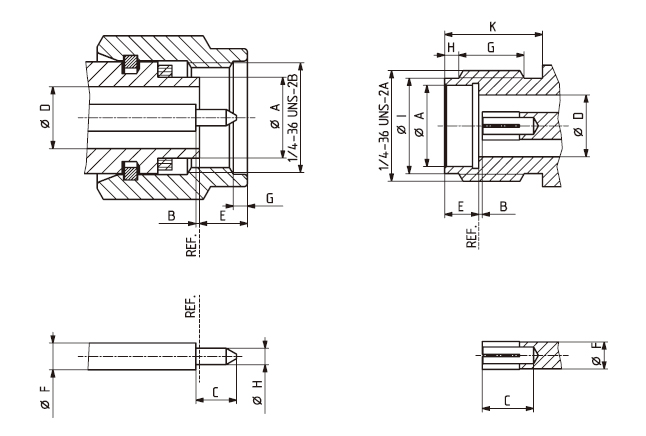

Interface MIL-STD-348/310
| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | 4.55/0.179 | 4.58/0.180 | 4.60/0.181 | 4.63/0.182 |
B | 0.00/0.000 | 0.08/0.003 | 0.00/0.000 | 0.08/0.003 |
C | 2.03/0.080 | 2.29/0.090 | 2.79/0.110 | 3.18/0.125 |
D | 3.49/0.138 | 3.51/0.138 | 3.49/0.138 | 3.51/0.138 |
E | 2.36/0.093 | 3.56/0.135 | 1.88/0.074 | 1.98/0.078 |
F | 1.51/0.060 | 1.52/0.060 | 1.51/0.060 | 1.52/0.060 |
G | 0.38/0.015 | 1.14/0.045 | 3.35/0.132 | 4.62/0.182 |
H | 0.92/0.036 | 0.93/0.037 | 0.38/0.015 | 1.14/0.045 |
I | -- | -- | 5.30/0.209 | 5.40/0.213 |
K | -- | -- | 5.54/0.218 | -- |
