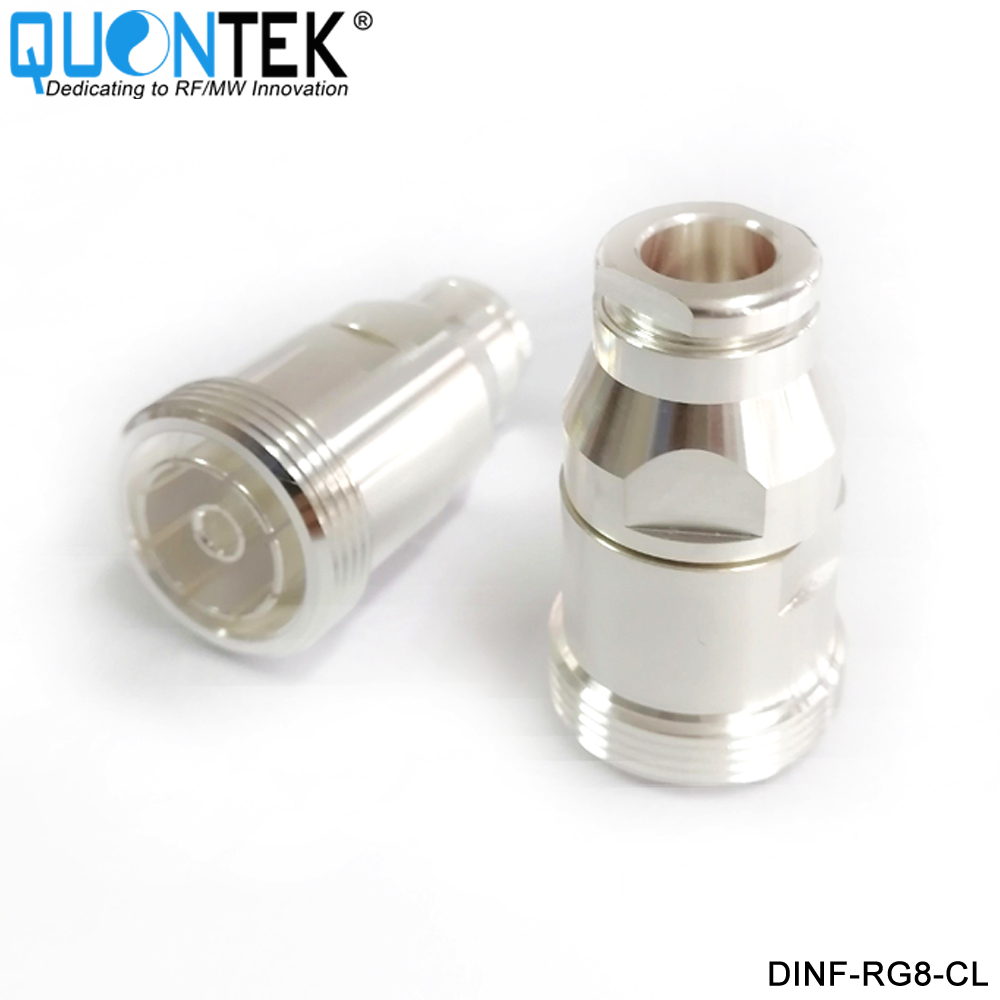

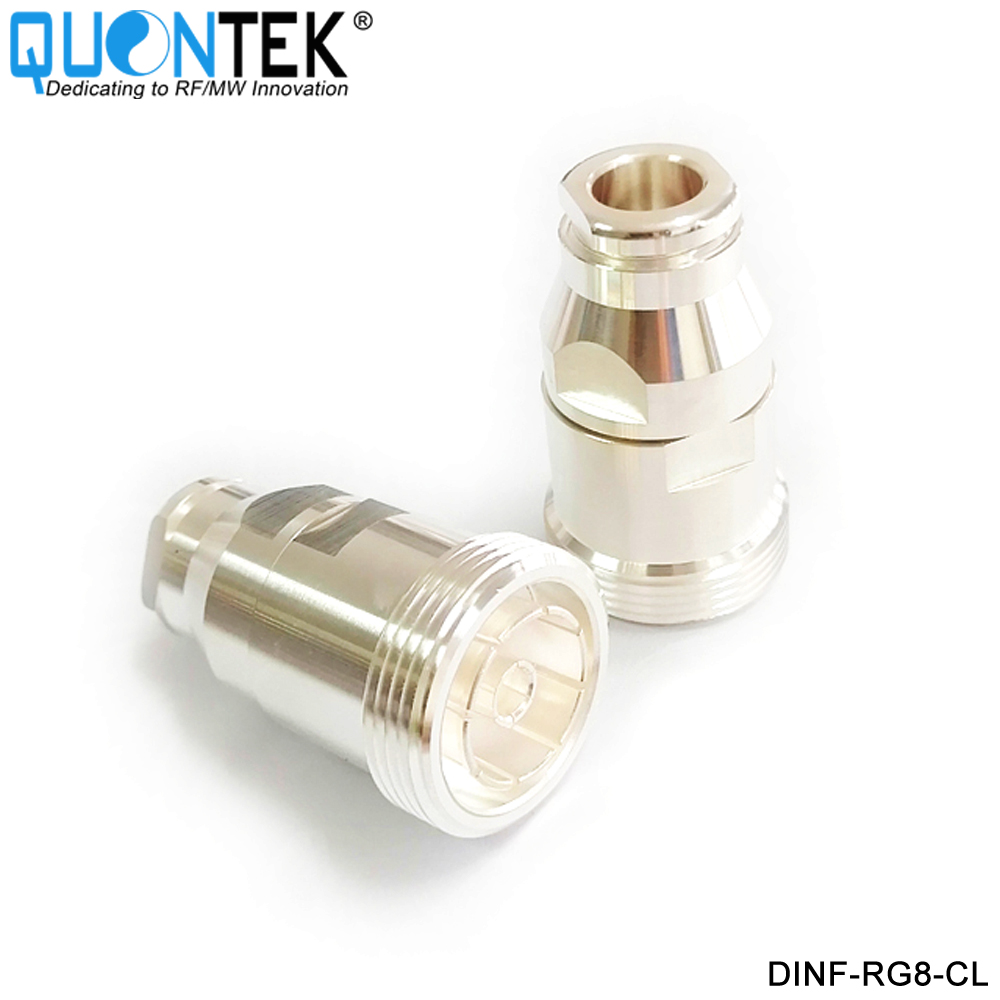

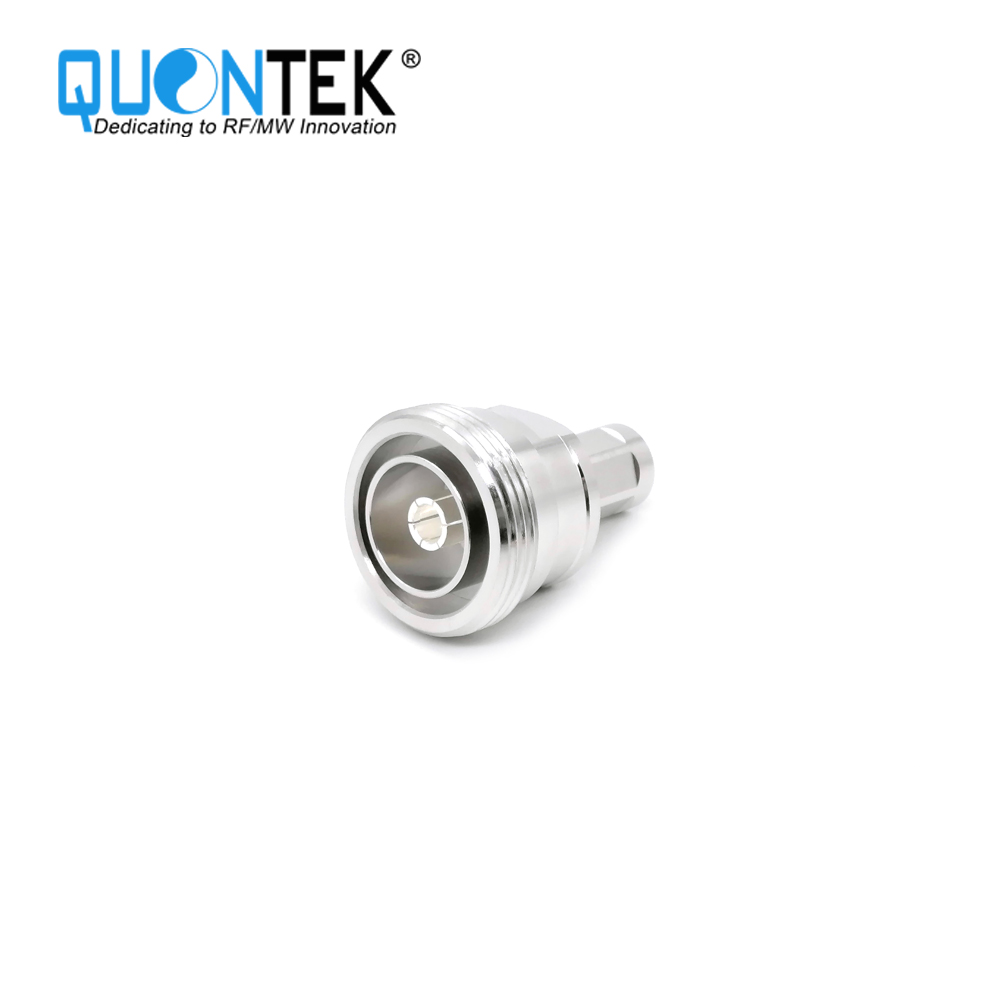

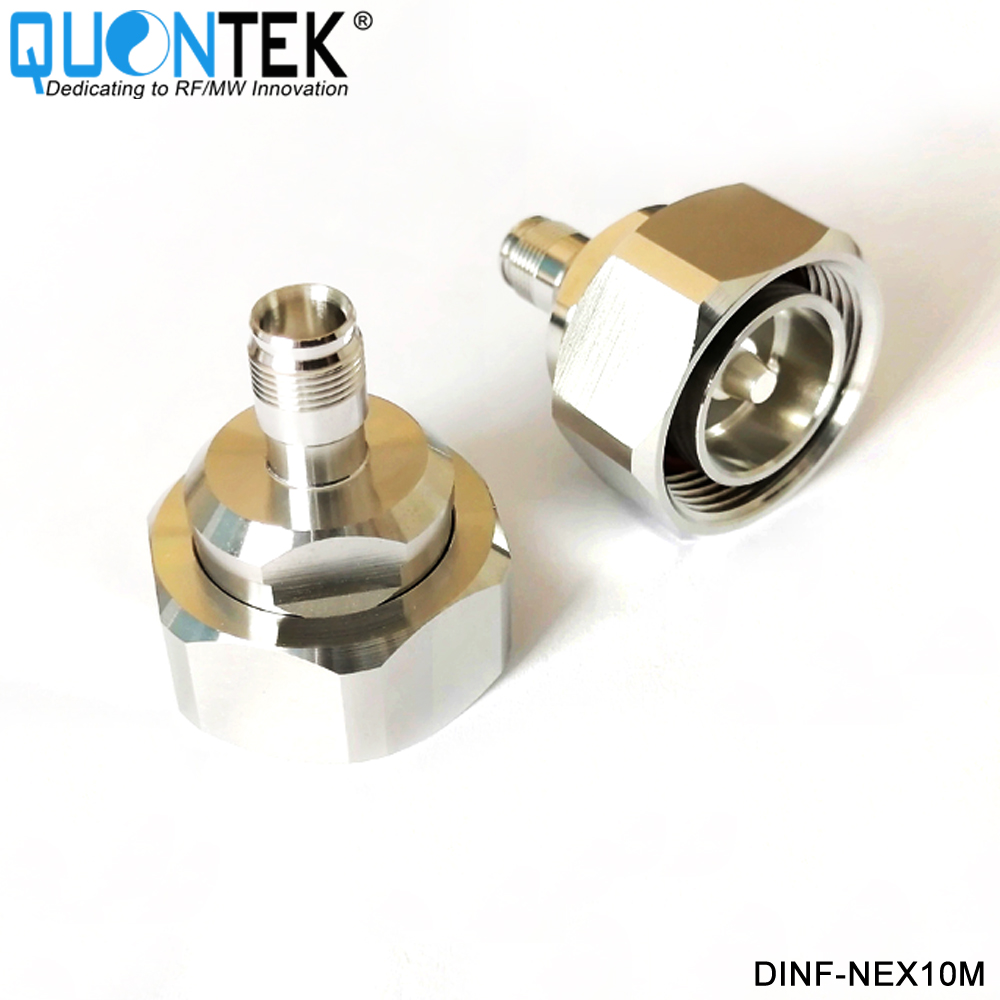

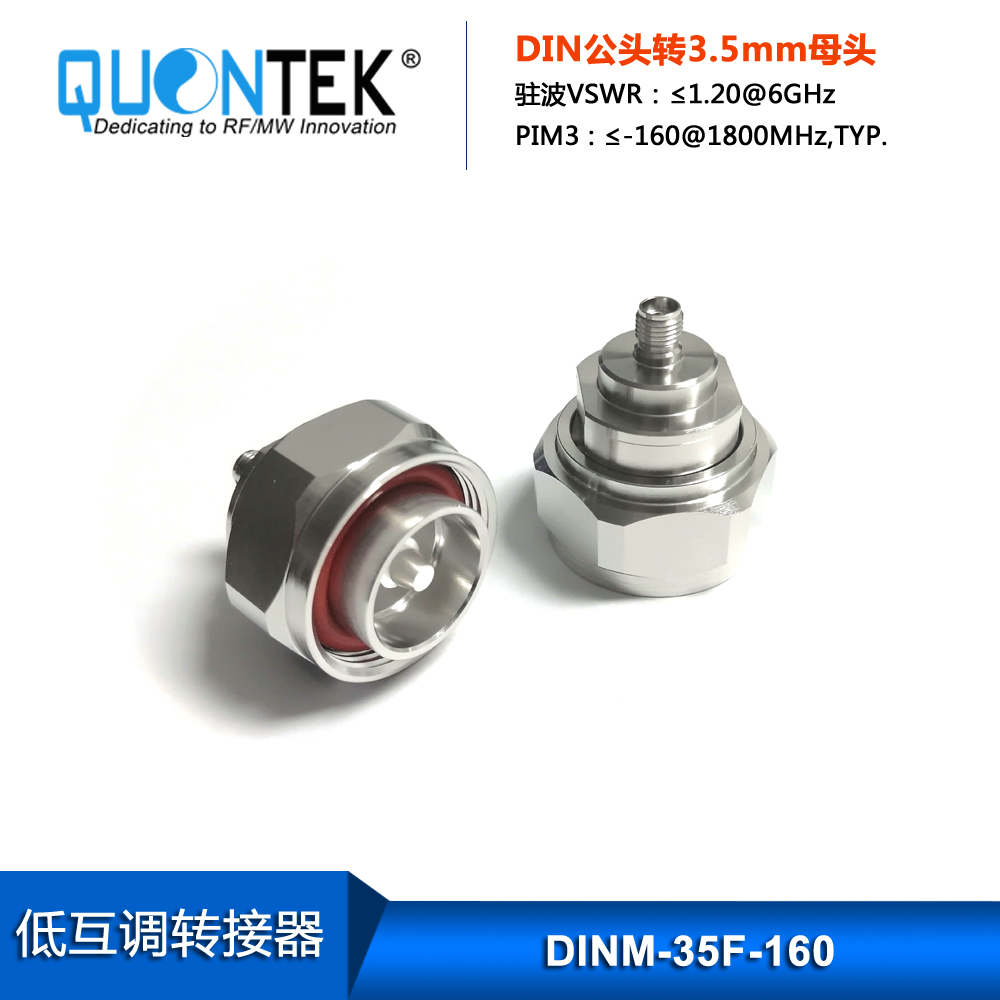

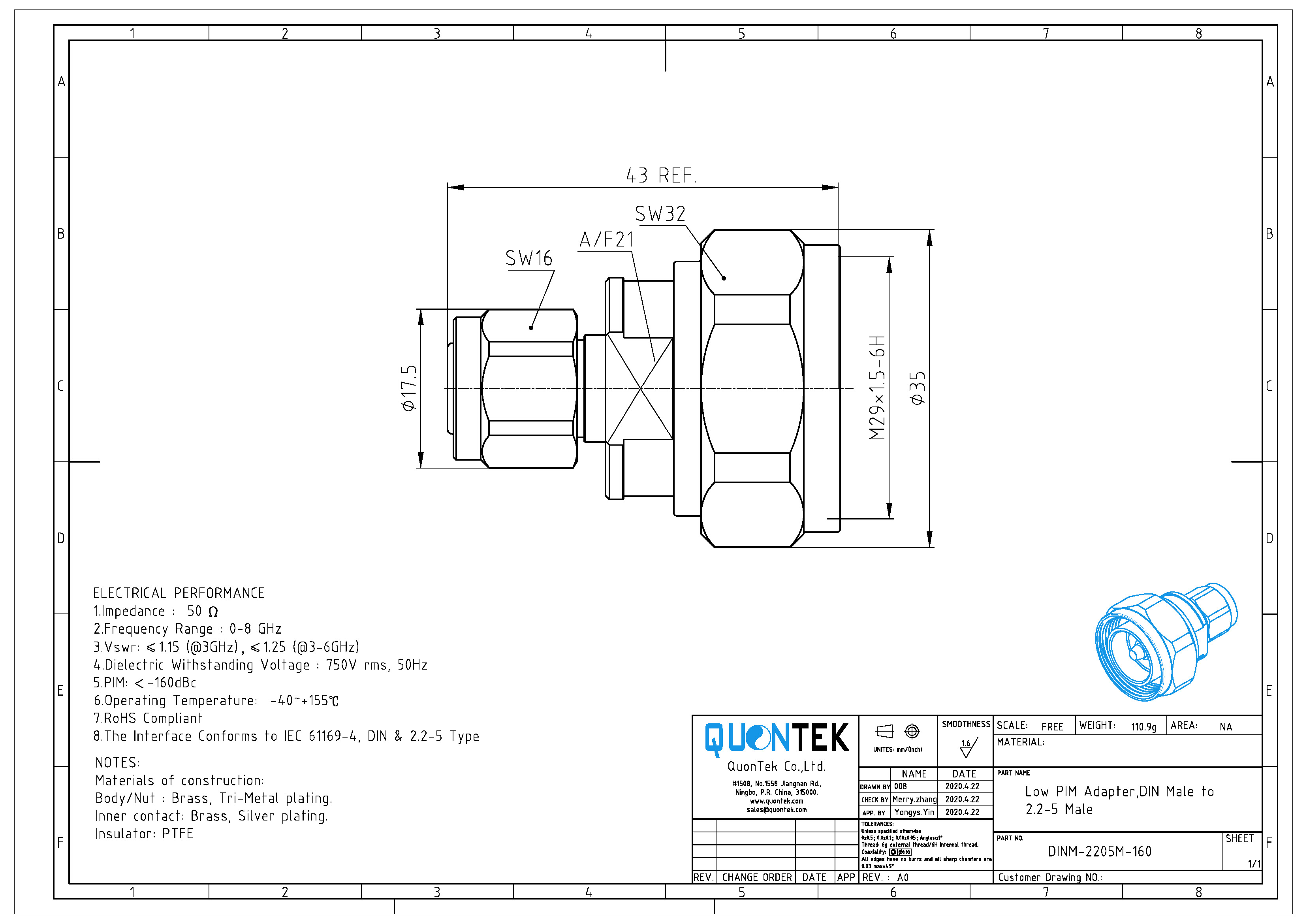

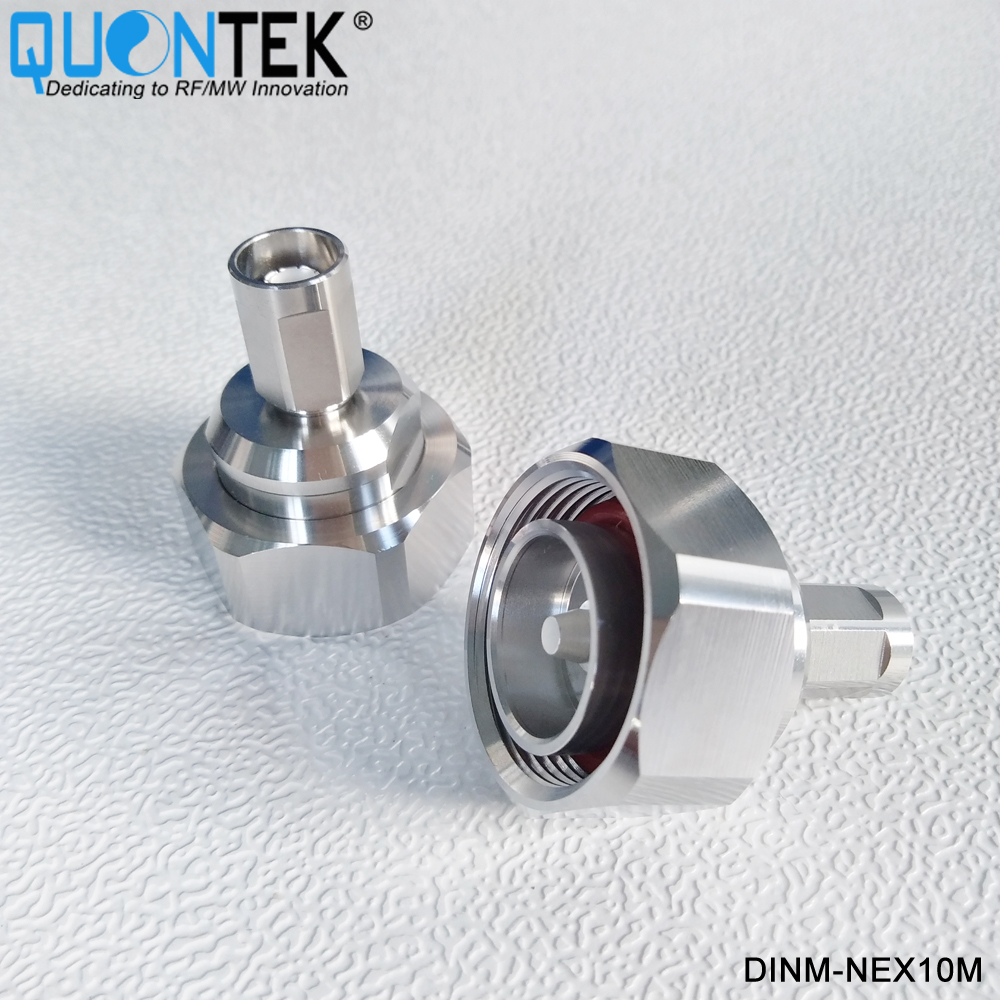

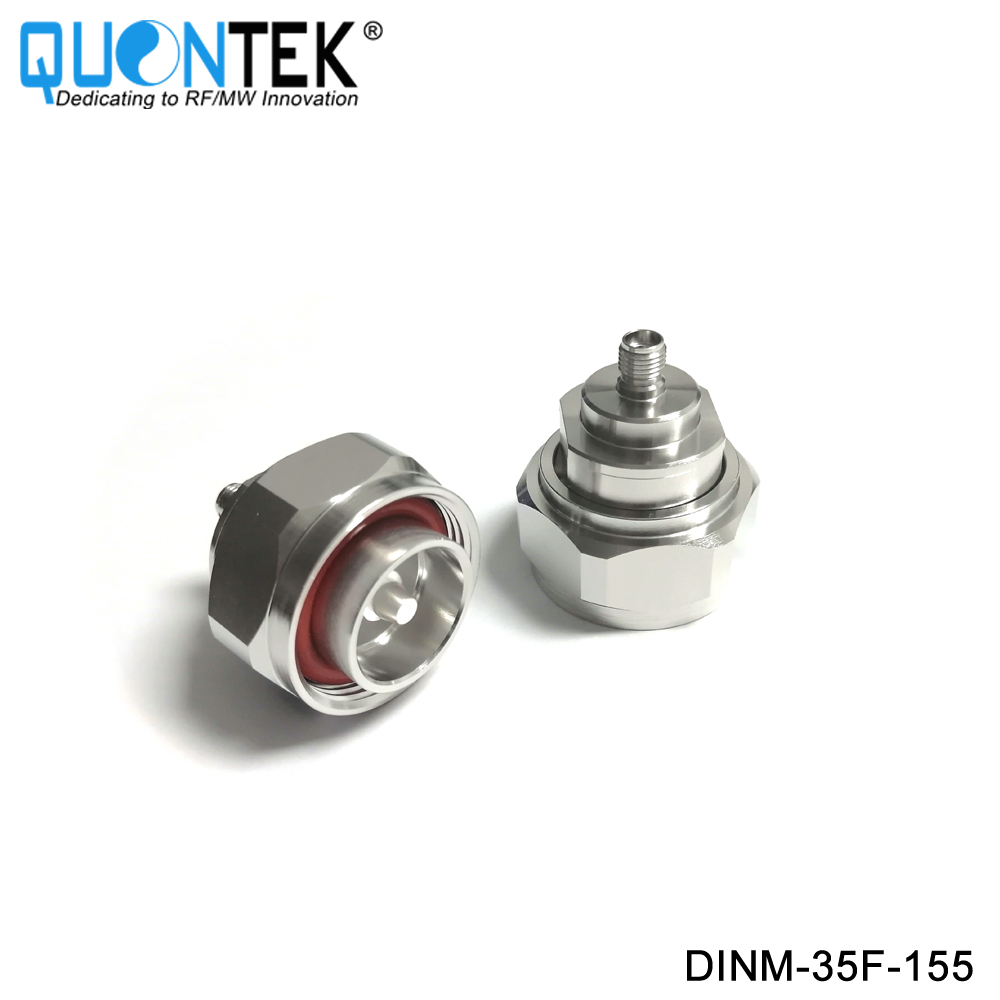

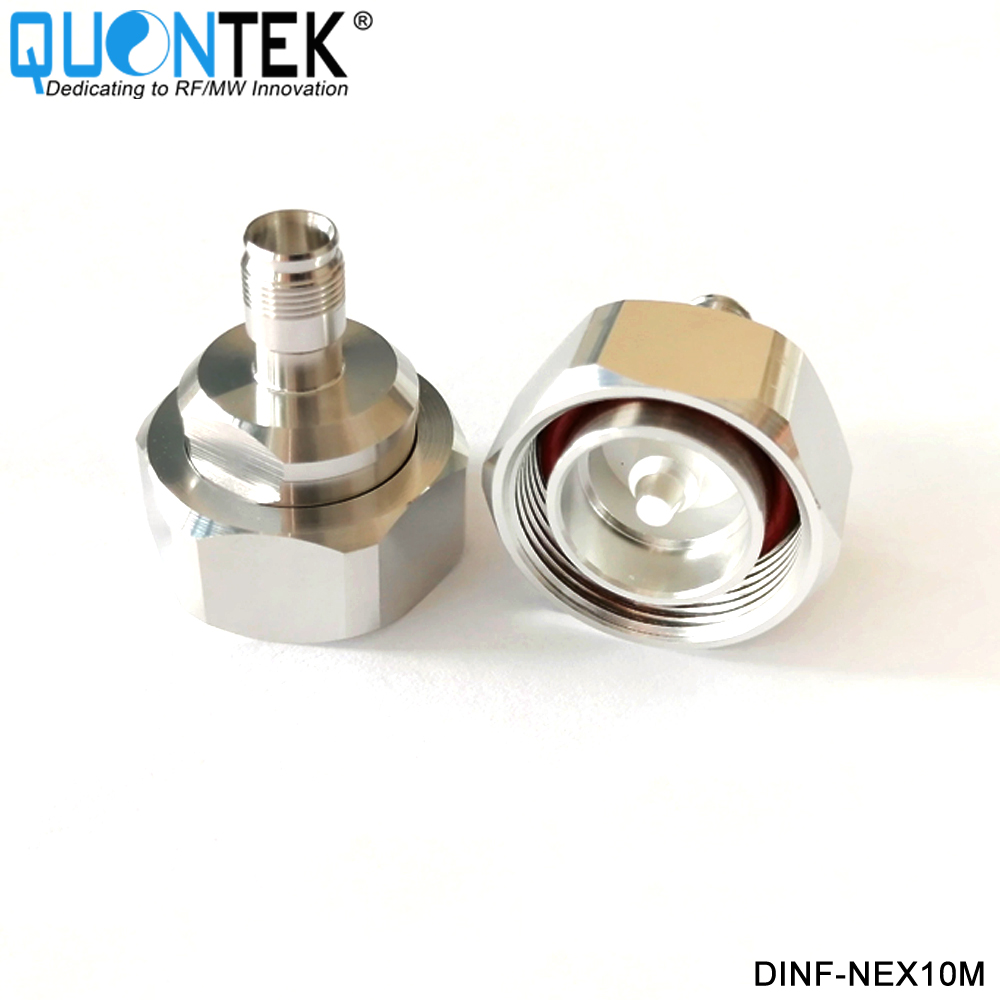

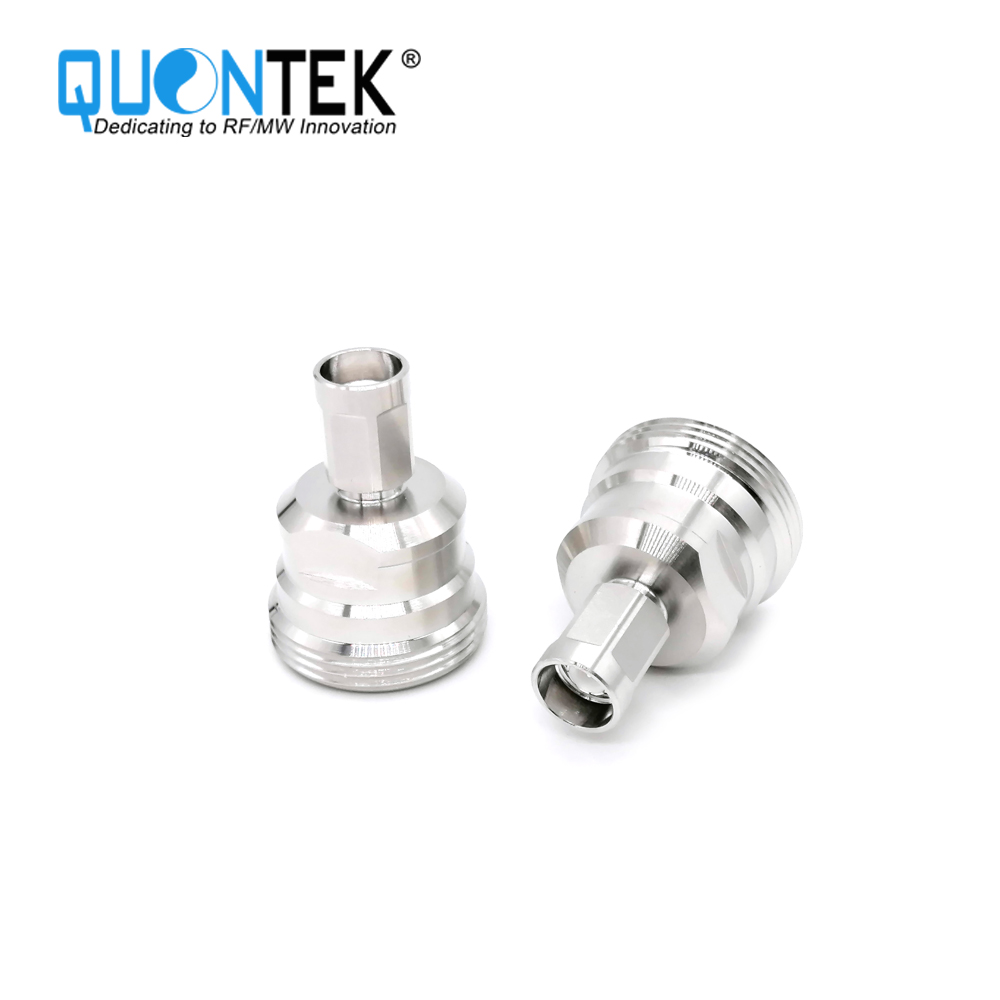

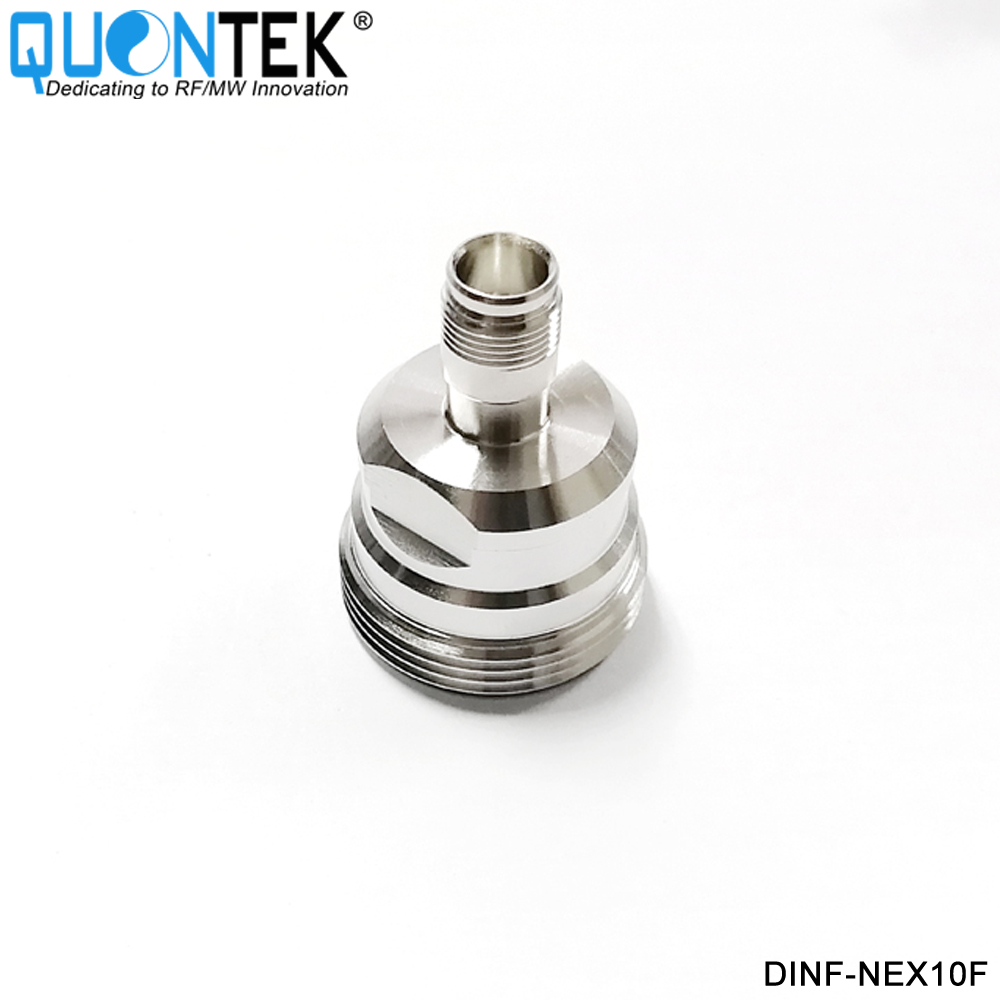

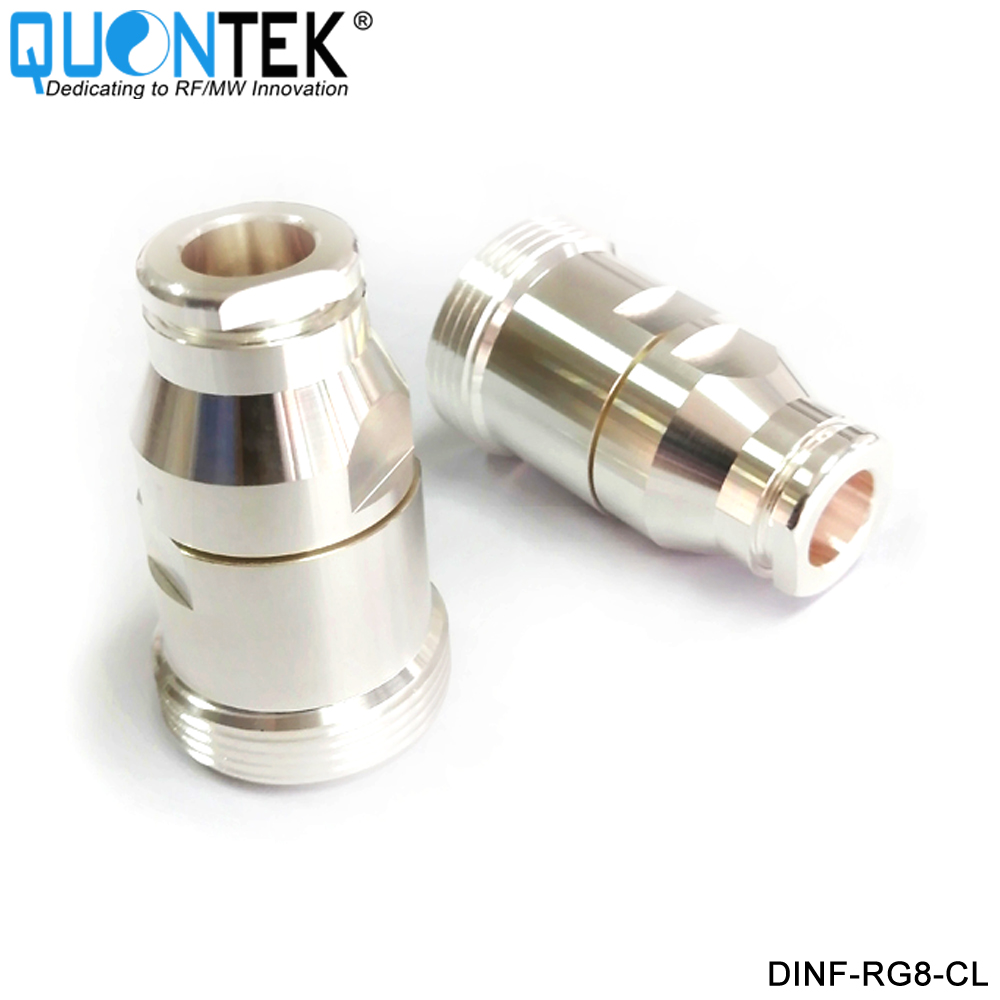

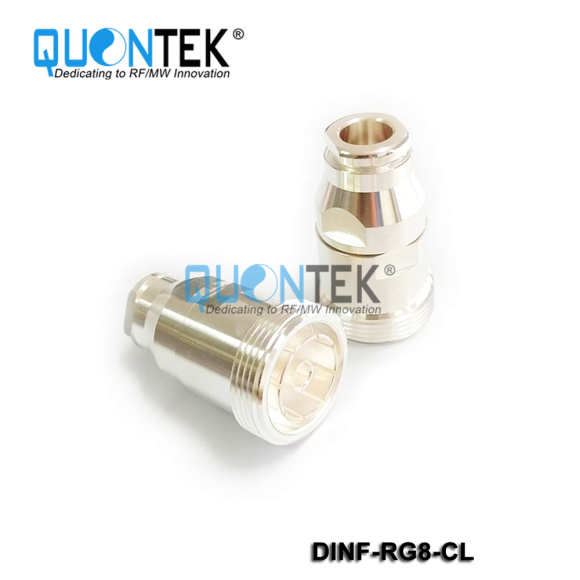

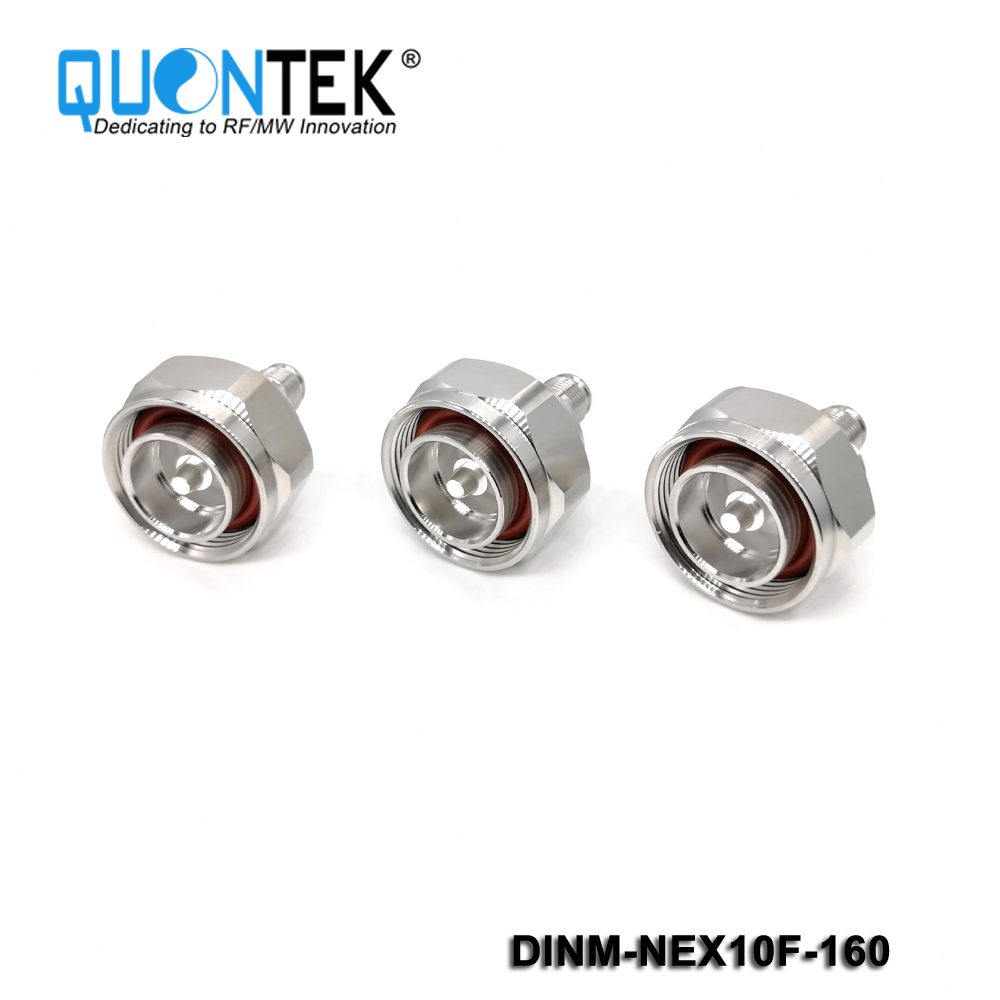

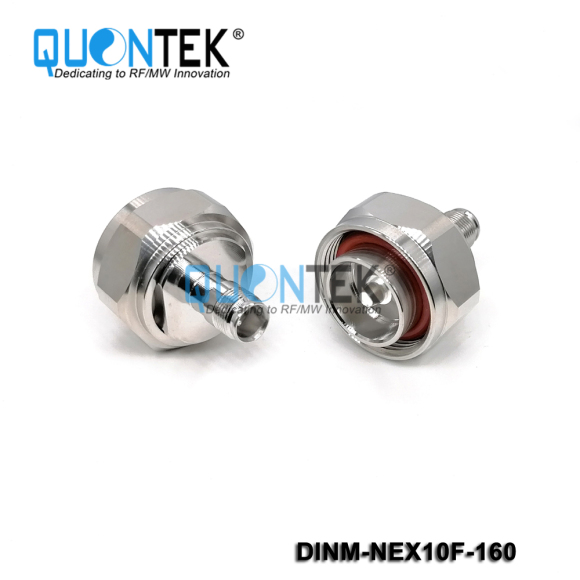

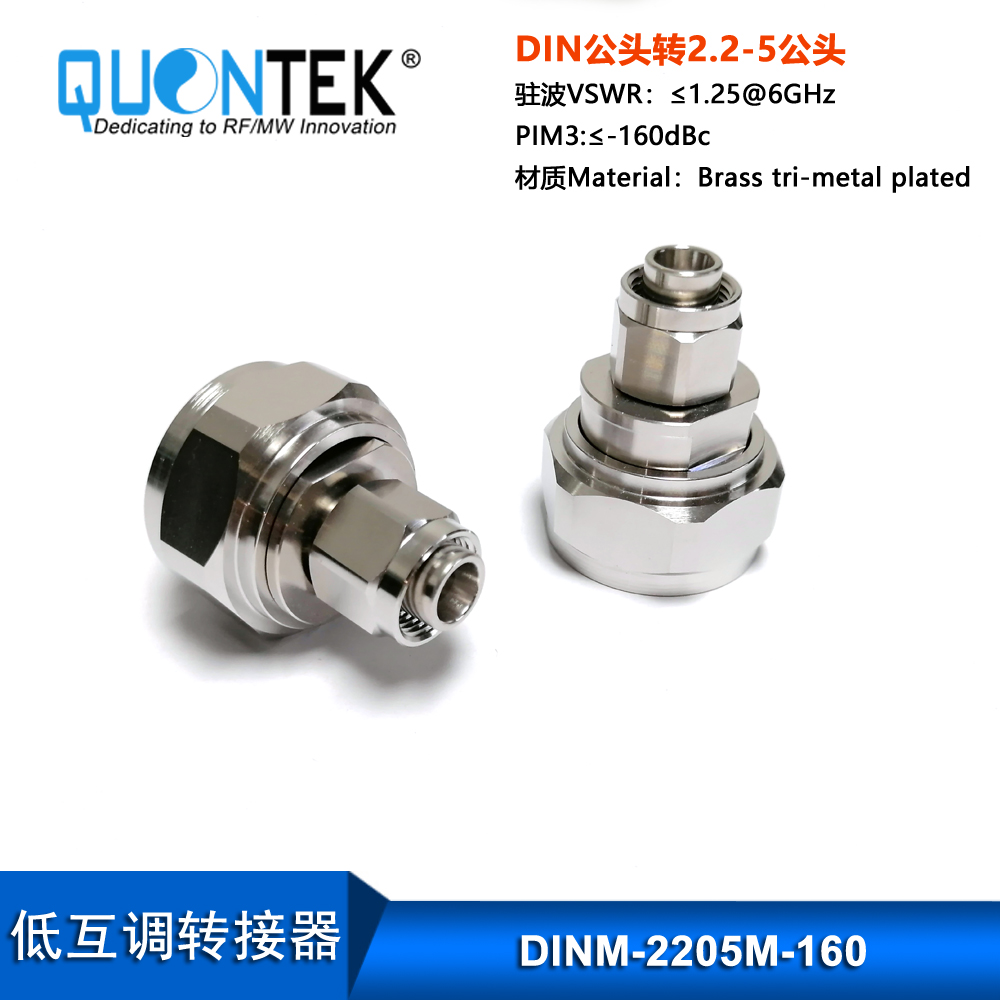

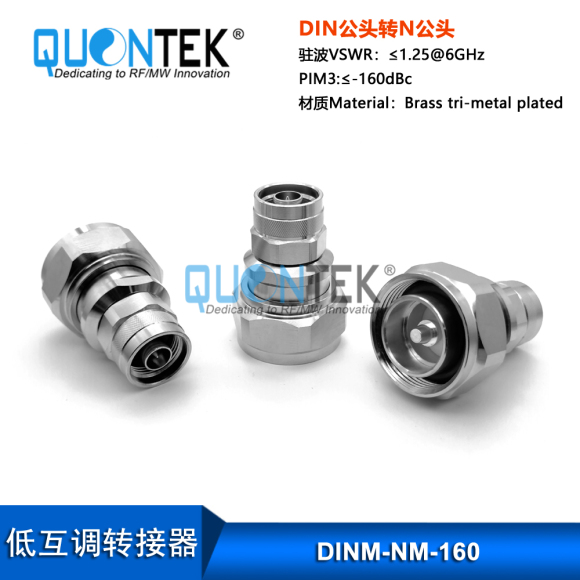

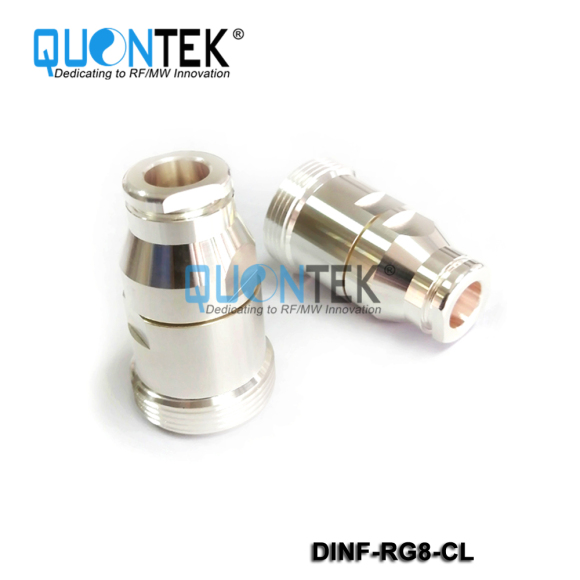

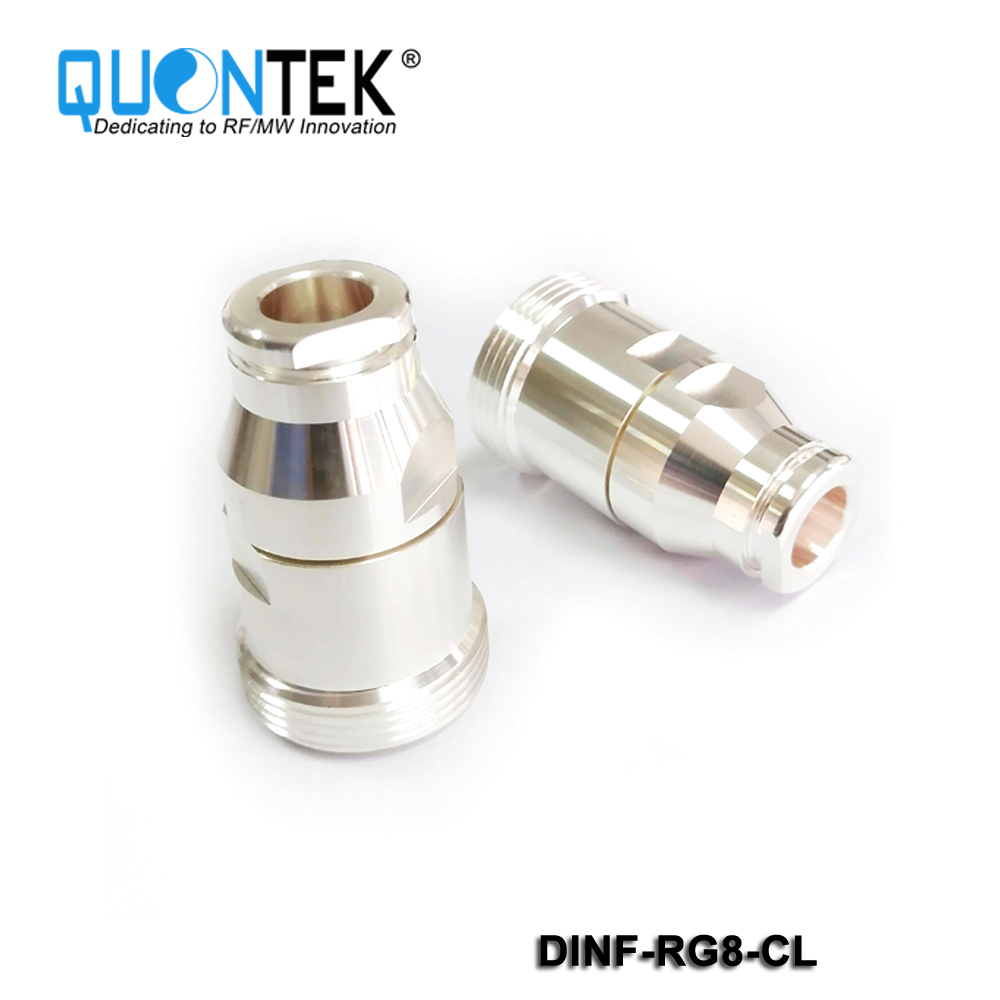

DIN(7-16) type Connectors
Description

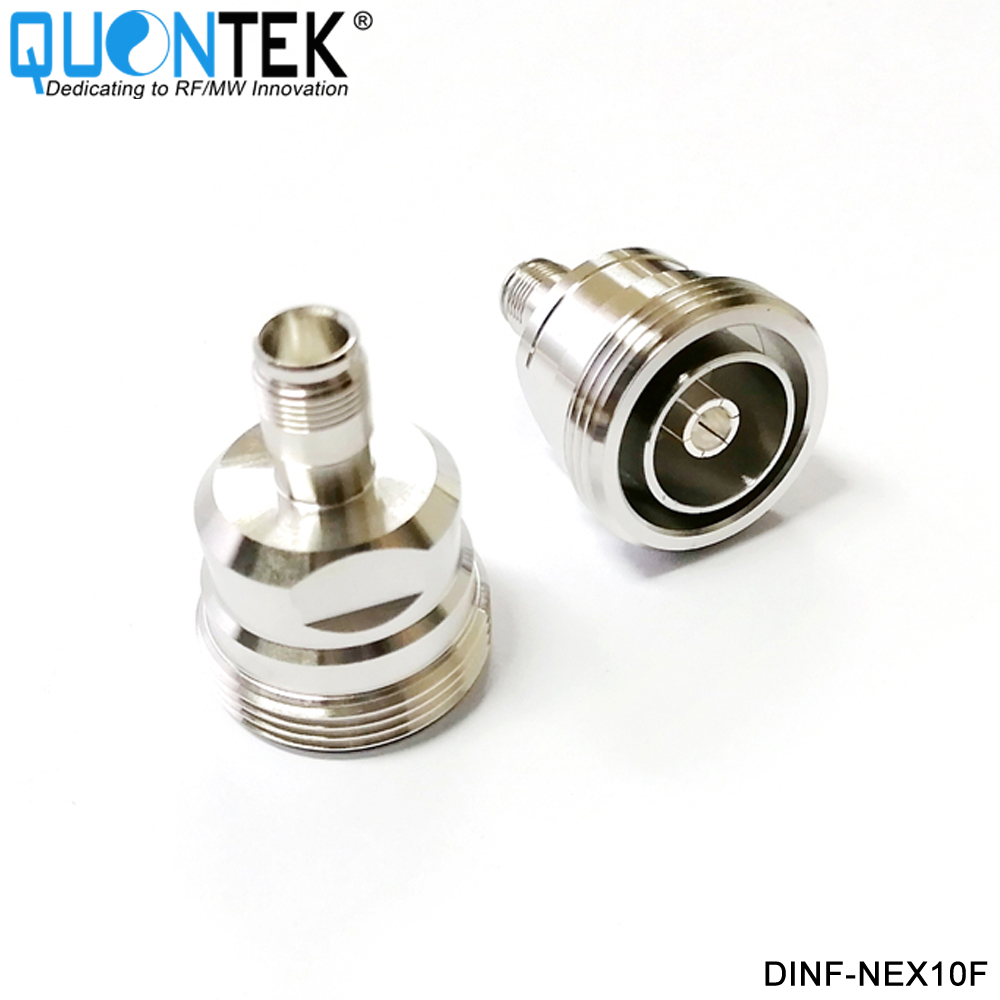

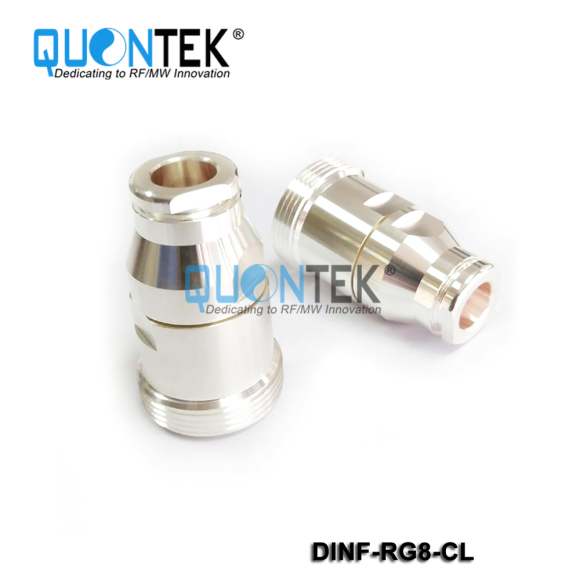

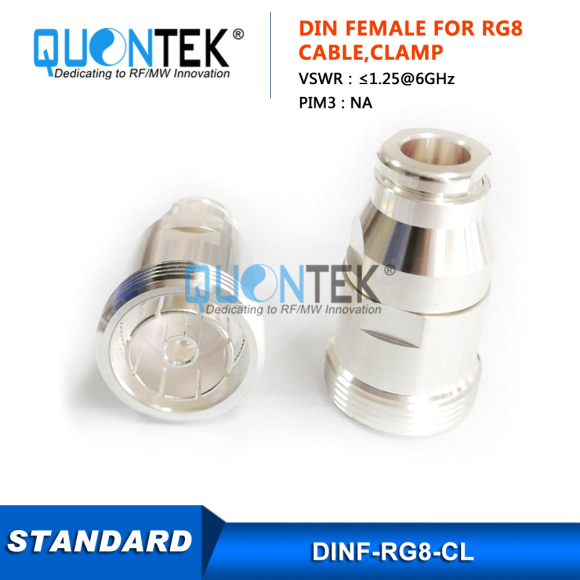

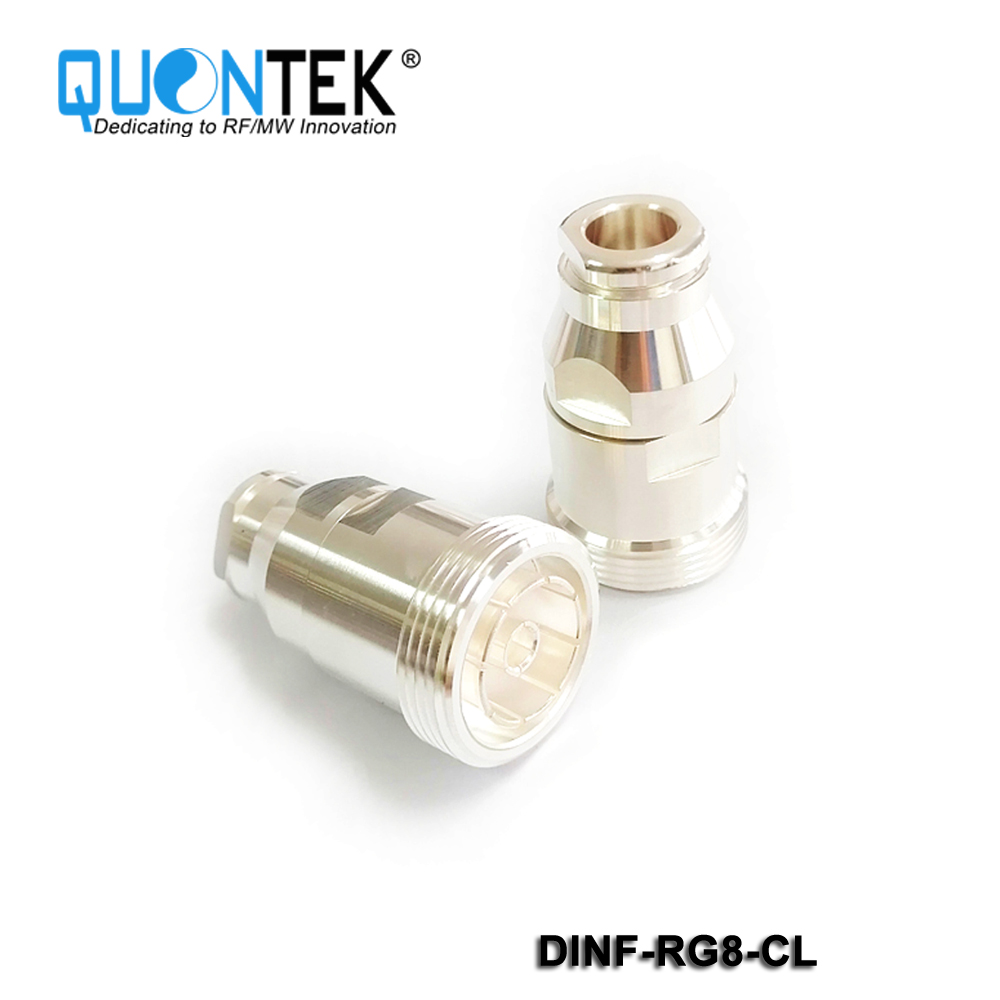

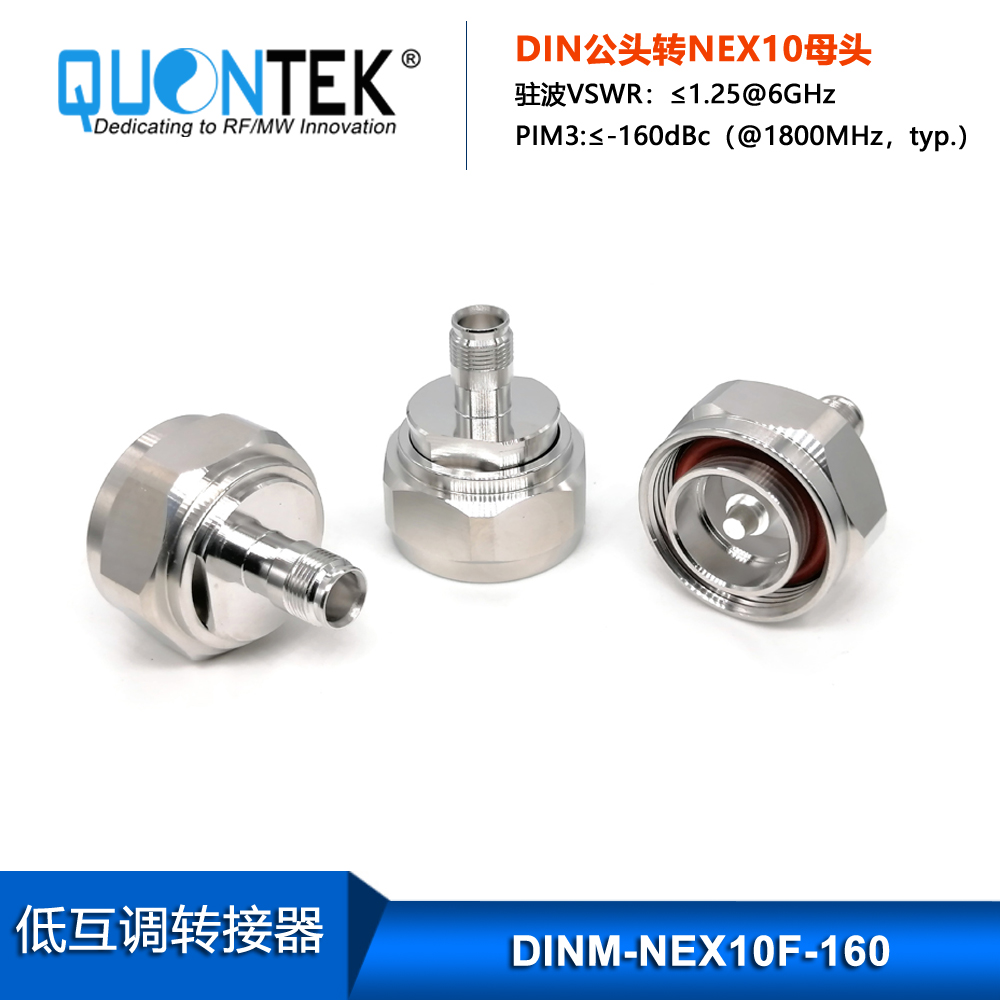

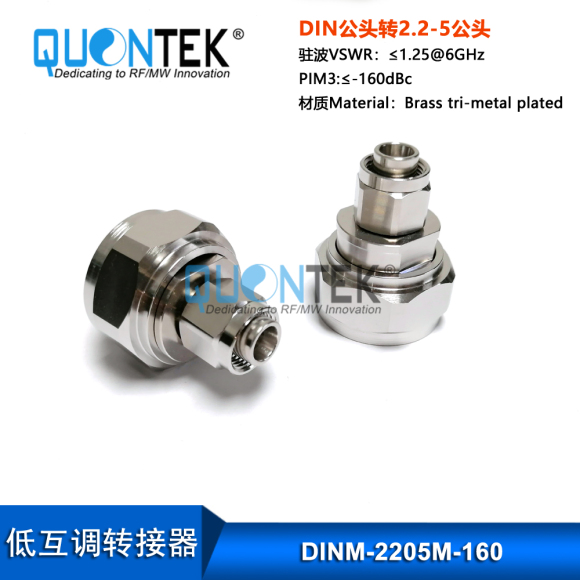

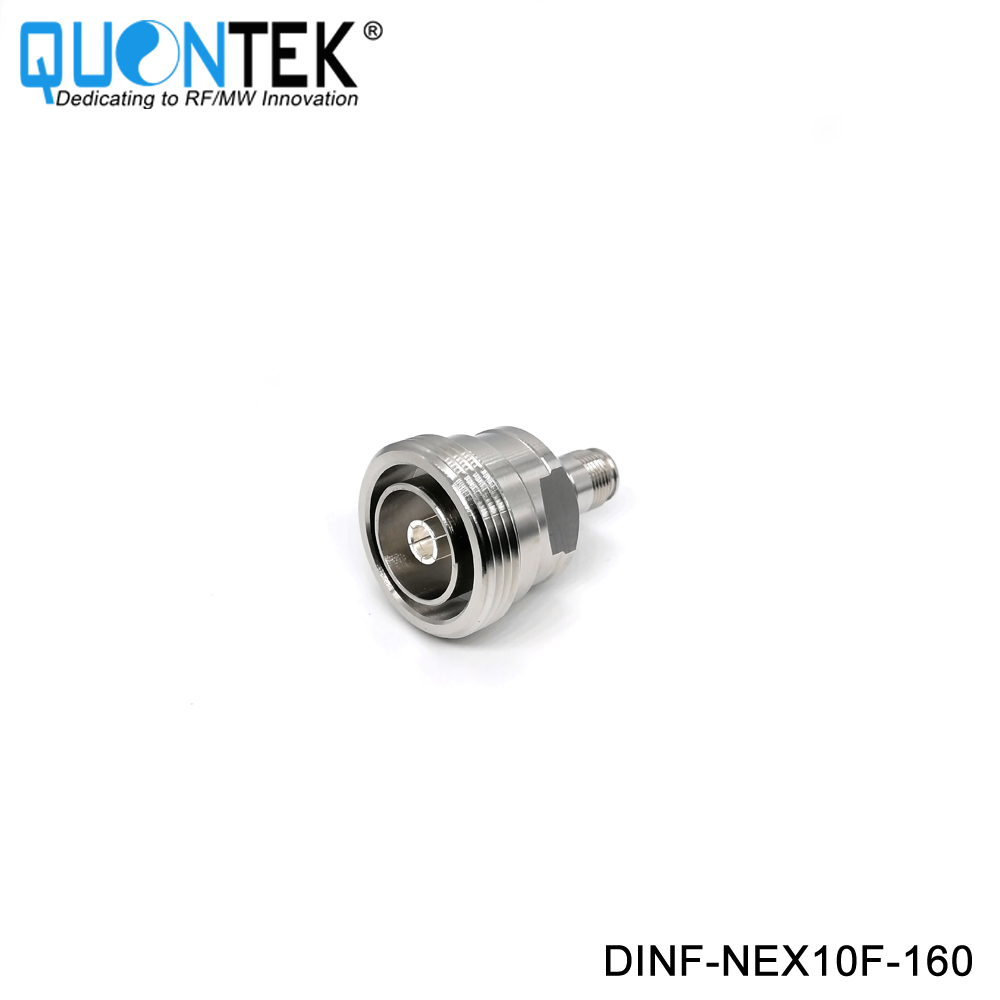

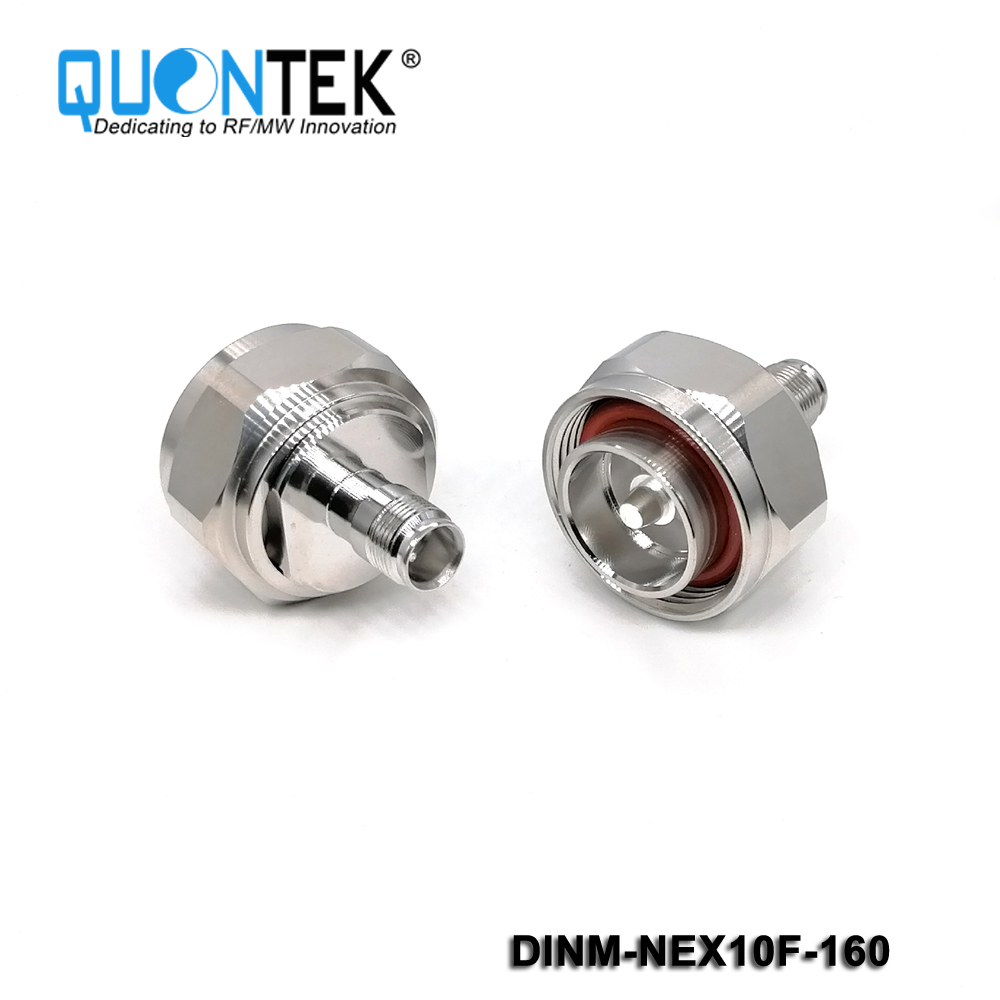

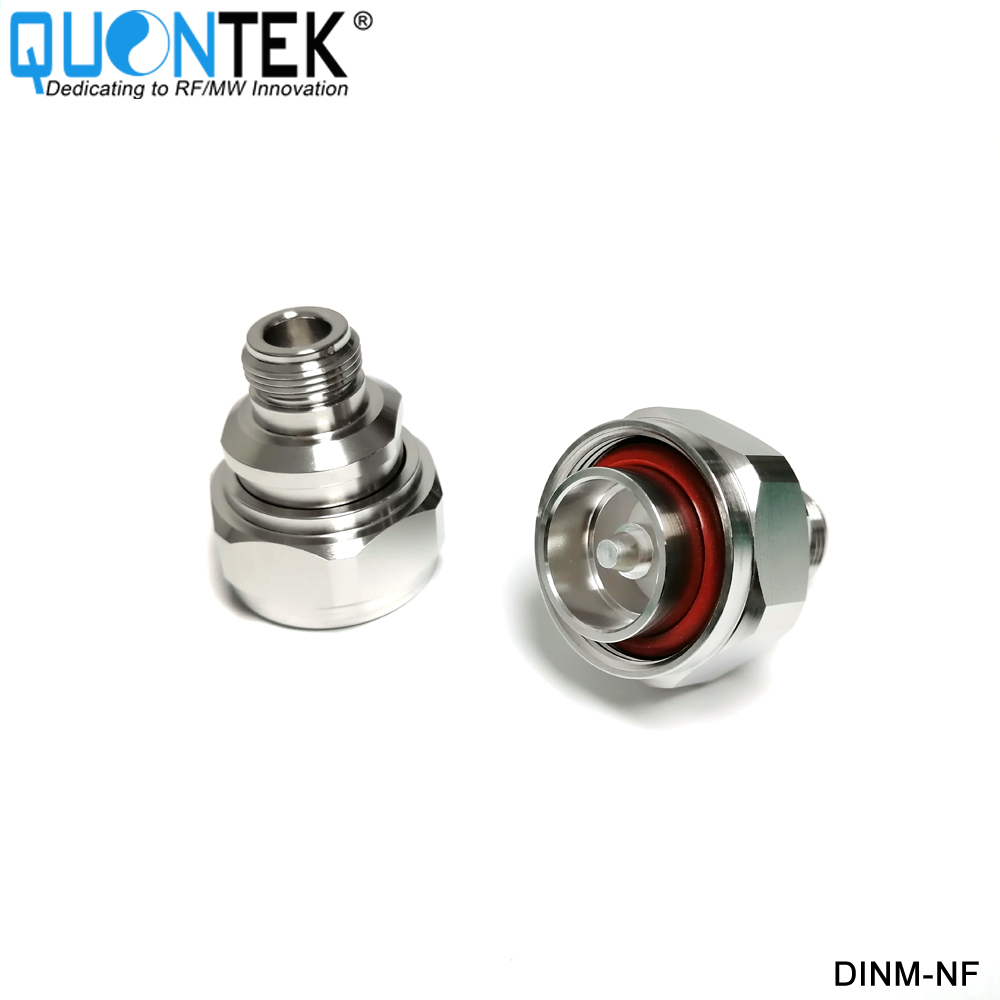

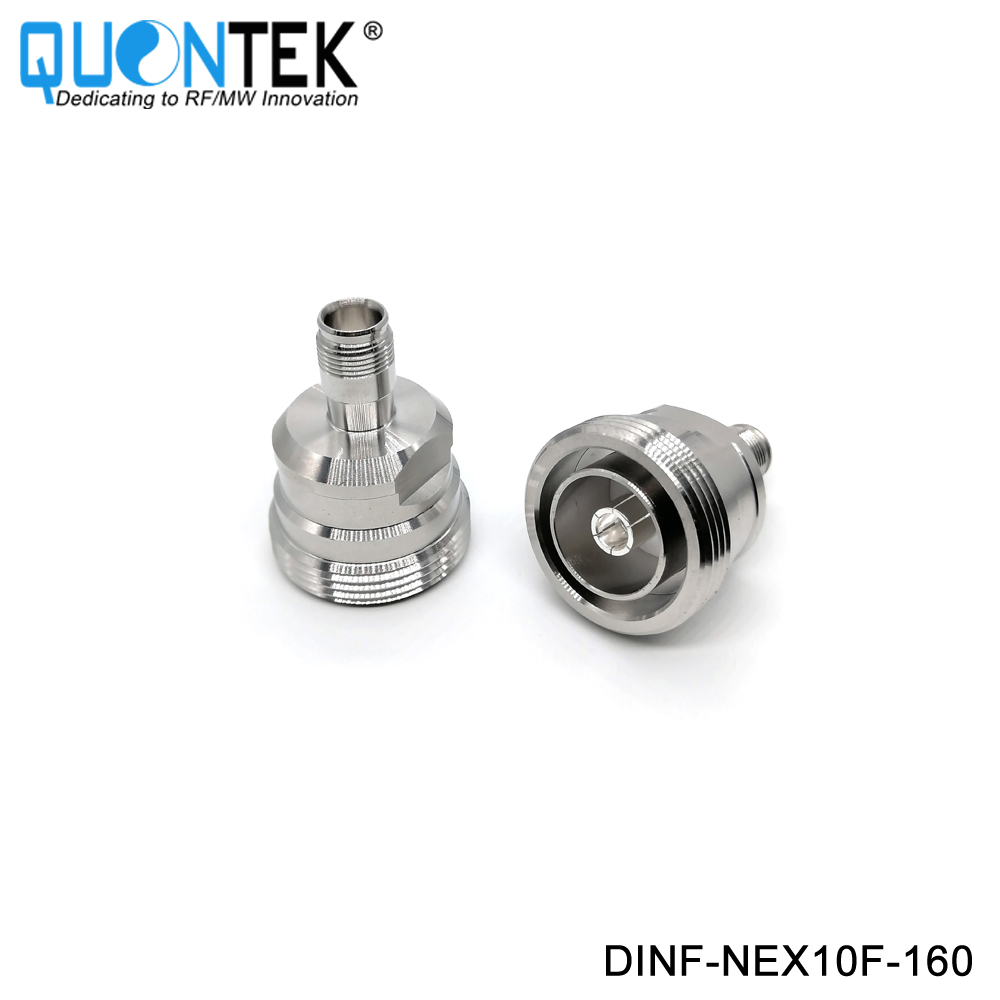

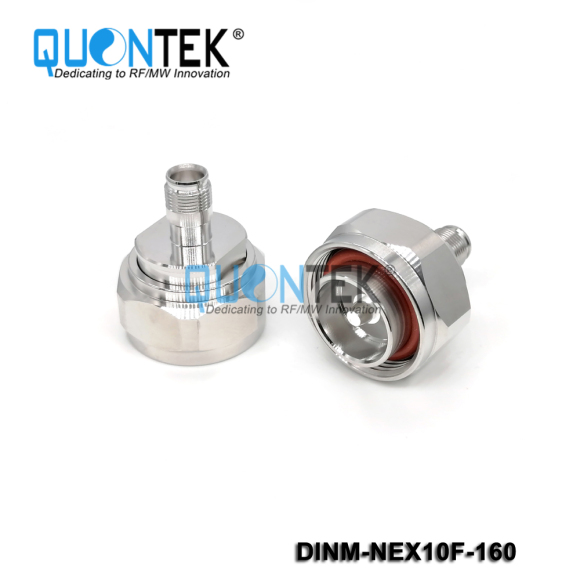

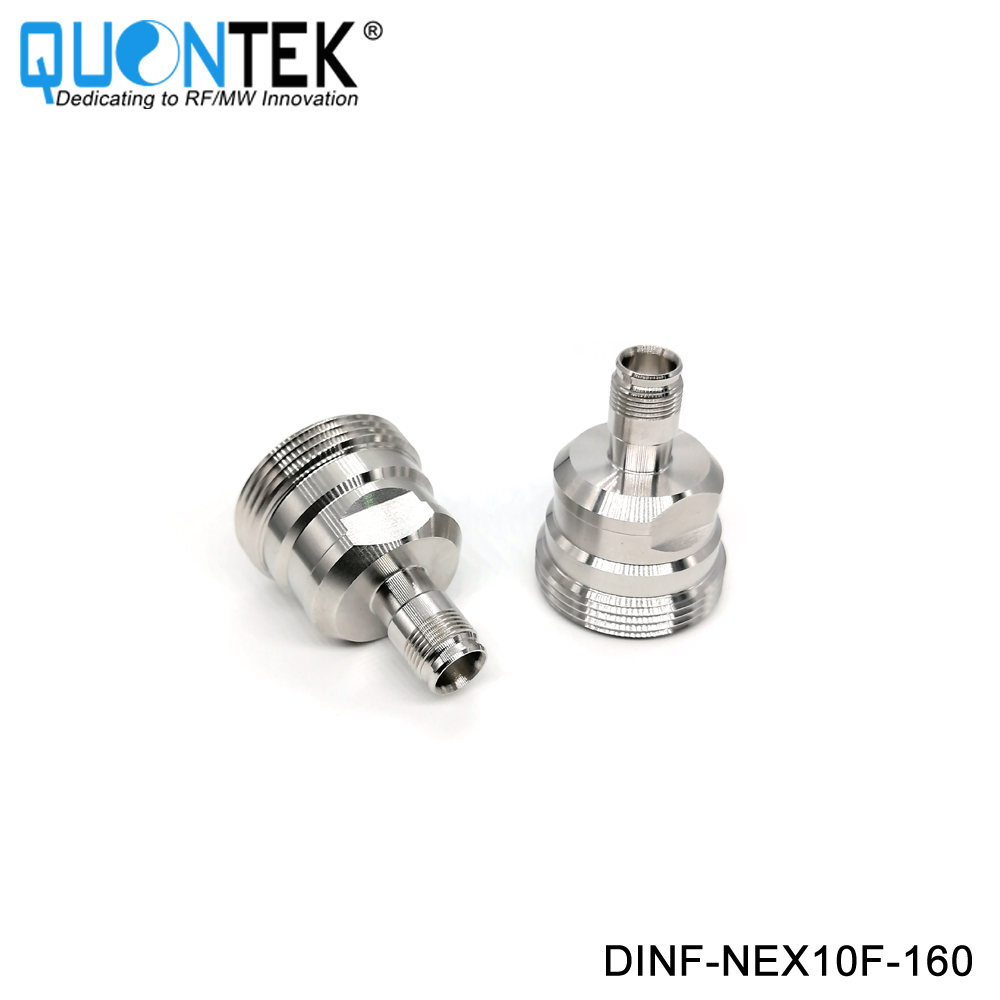

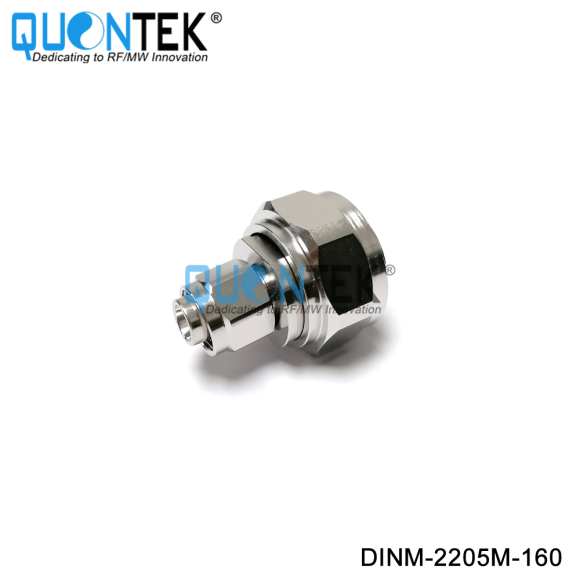

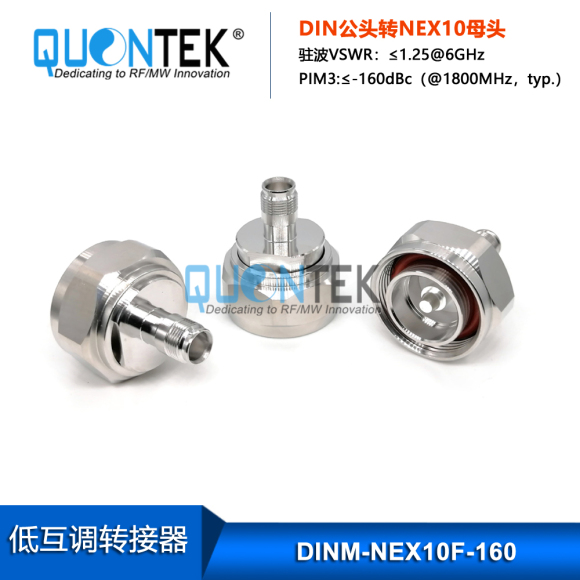

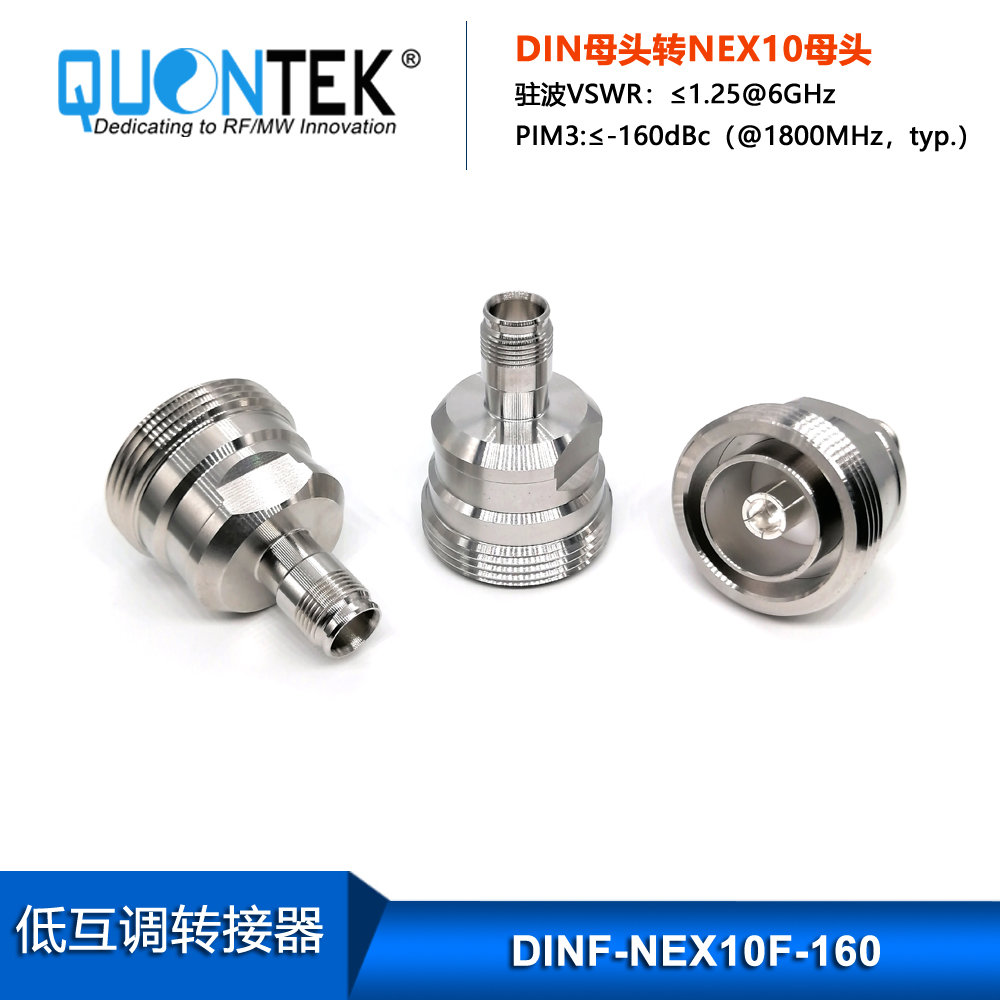

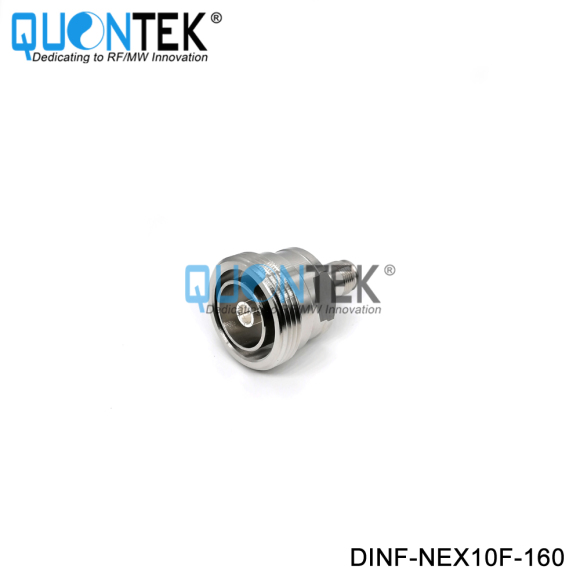

QUONTEK 7/16 connectors are mechanically very rugged coaxial connectors with screw lock. They have a characteristic impedance of 50 Ω and are applicable with excellent electrical properties up to 7.5 GHz.
Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications.
Features
• Frequency range up to 7.5GHz
• Excellent return loss
• The DIN(7/16) interface dimensions conform to the following standards:
International: IEC 61169-4
USA: MIL-PRF-39012 DIN
Interface MIL-STD-348
Europe: CECC22190

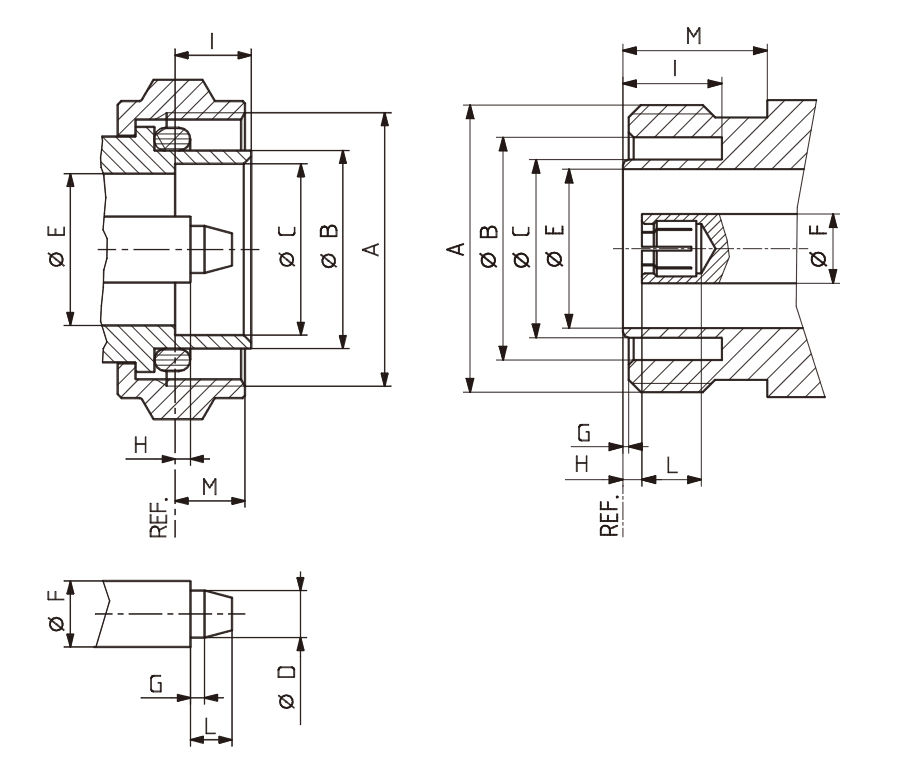

| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | M29*1.5-6H | M29*1.5-6g | ||
B | 20.60/0.811 | 21.40/0.843 | 22.10/0.870 | 22.90/0.902 |
C | 18.03/0.710 | 18.21/0.717 | -- | 18.50/0.709 |
D | 4.96/0.195 | 5.04/0.198 | -- | -- |
E | 15.85/0.624 | 16.25/0.640 | 15.85/0.624 | 16.25/0.640 |
F | 7.00/0.276 nom. | 7.00/0.276 nom. | ||
G | 1.40/0.055 | 1.60/0.063 | 0.50/0.020 | 0.70/0.028 |
H | 1.47/0.058 | 1.77/0.070 | 1.77/0.070 | 2.07/0.082 |
I | 7.00/0.276 | 8.00/0.315 | 8.10/0.319 | -- |
L | -- | 4.50/0.177 | 5.00/0.197 | -- |
M | 7.00/0.276 | 9.00/0.354 | 10.00/0.394 | -- |

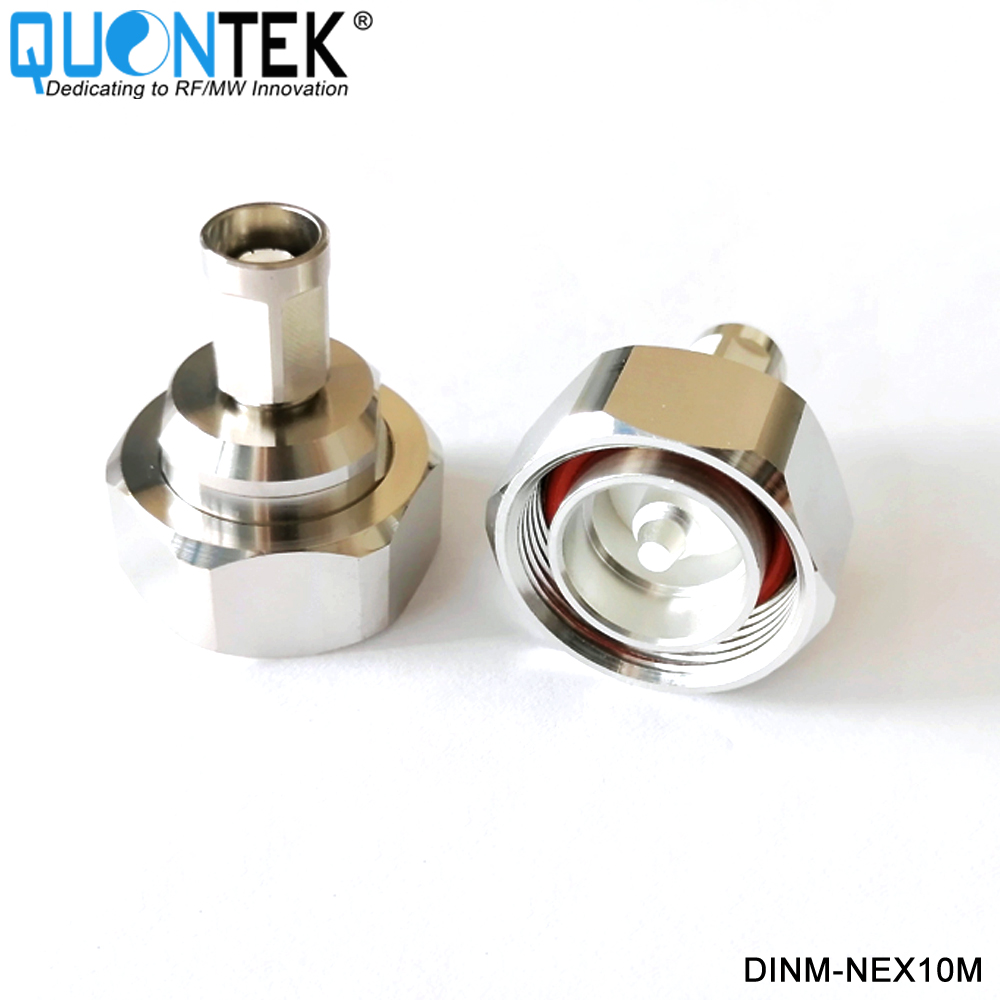

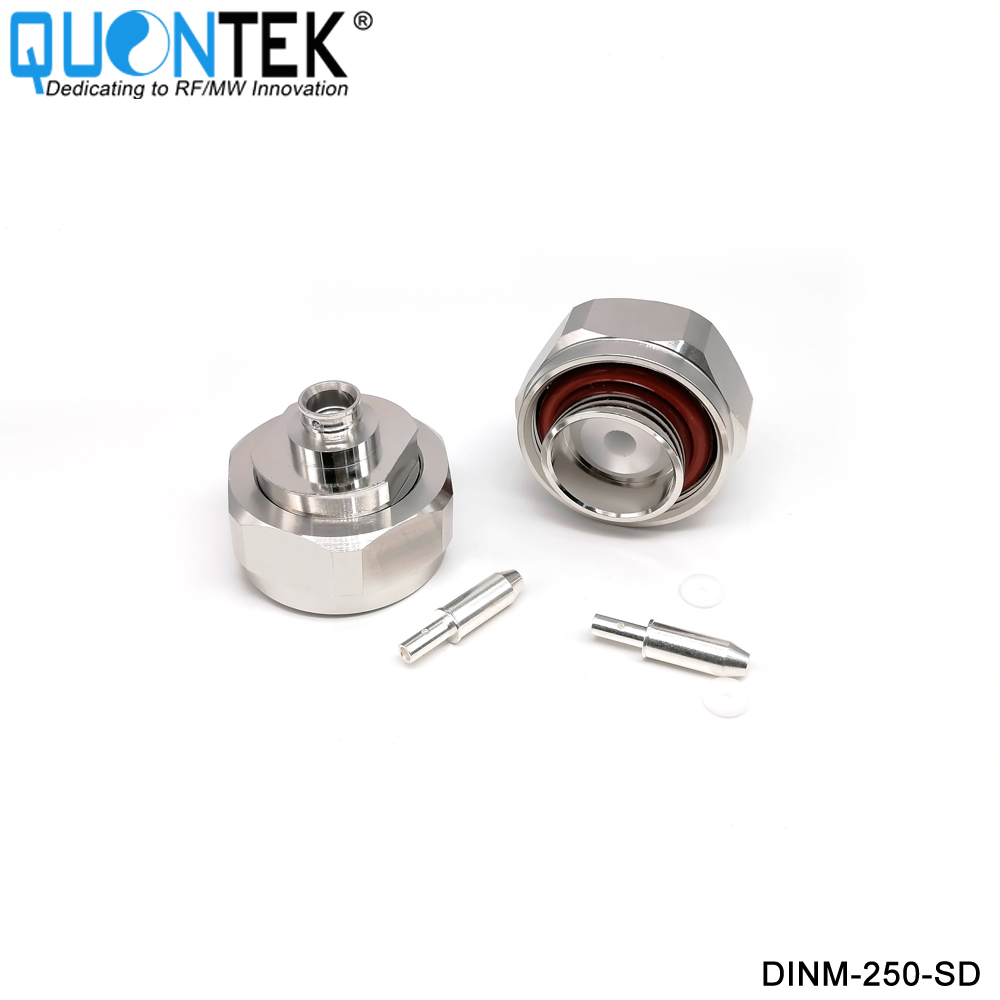

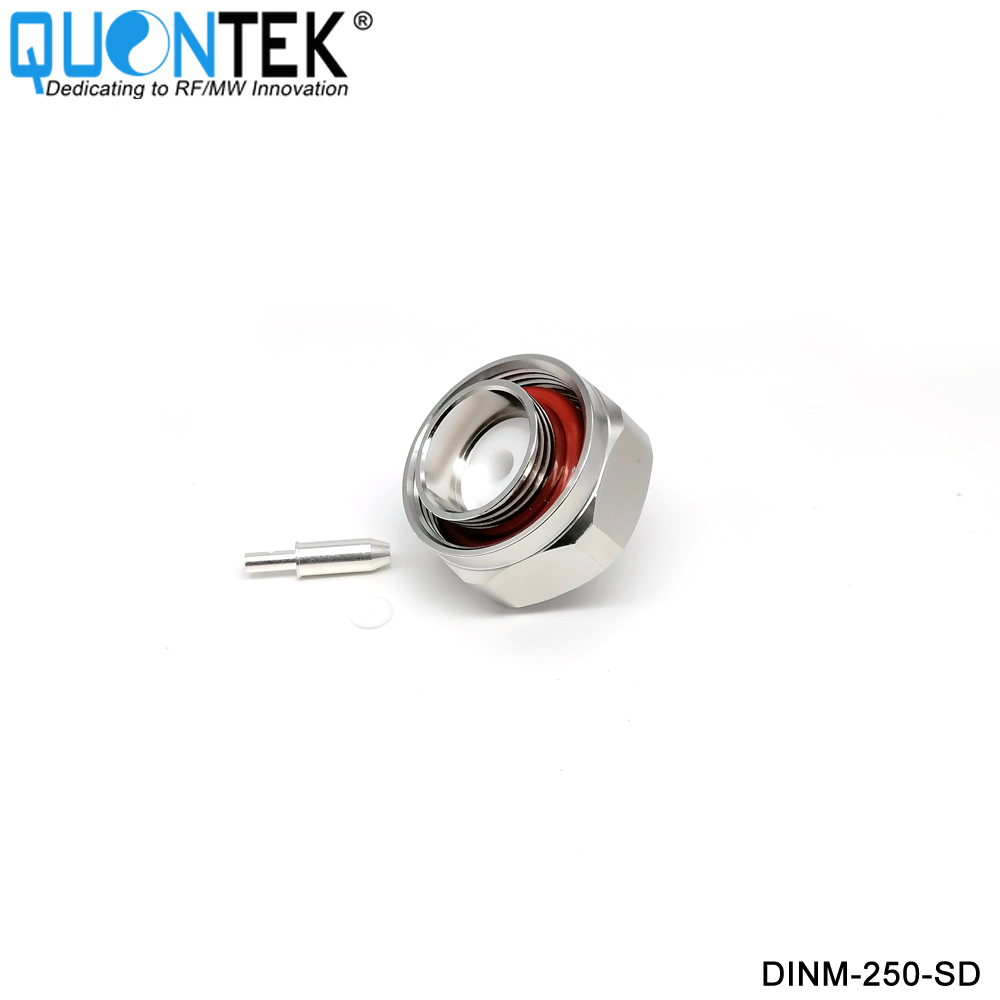

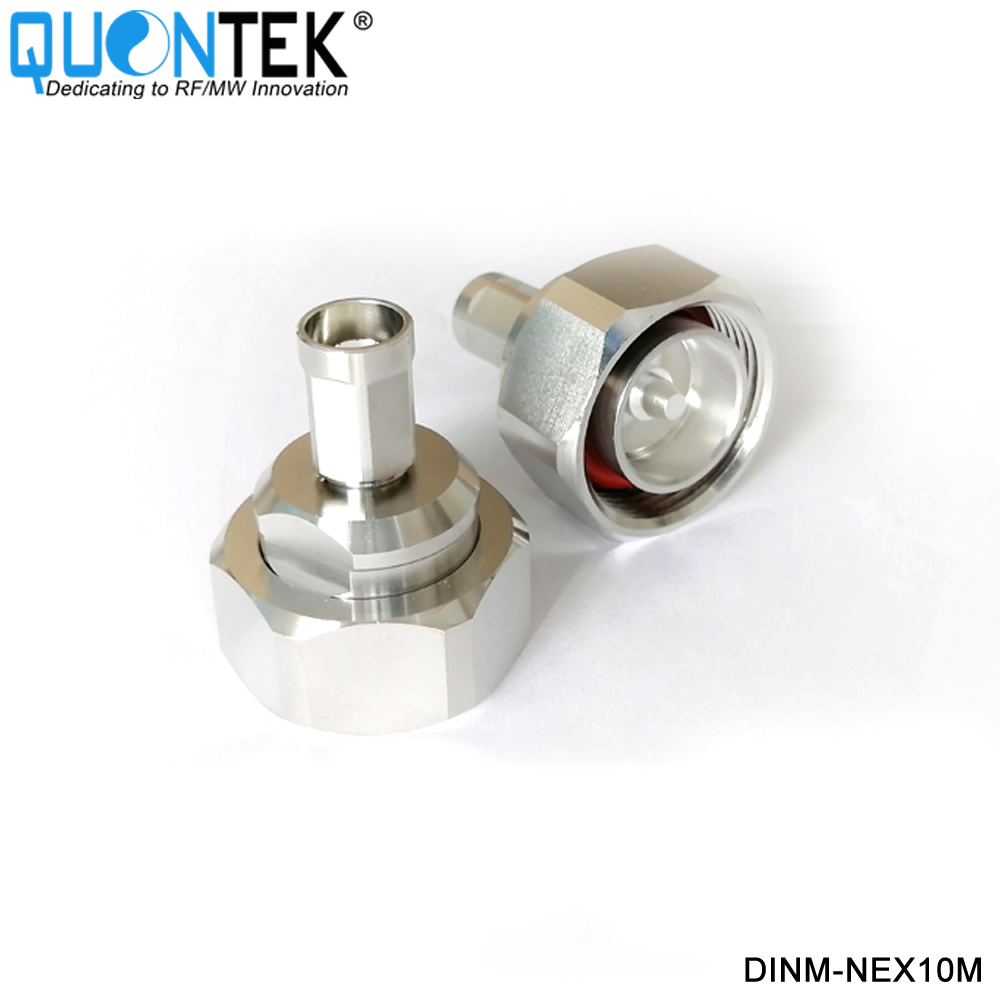

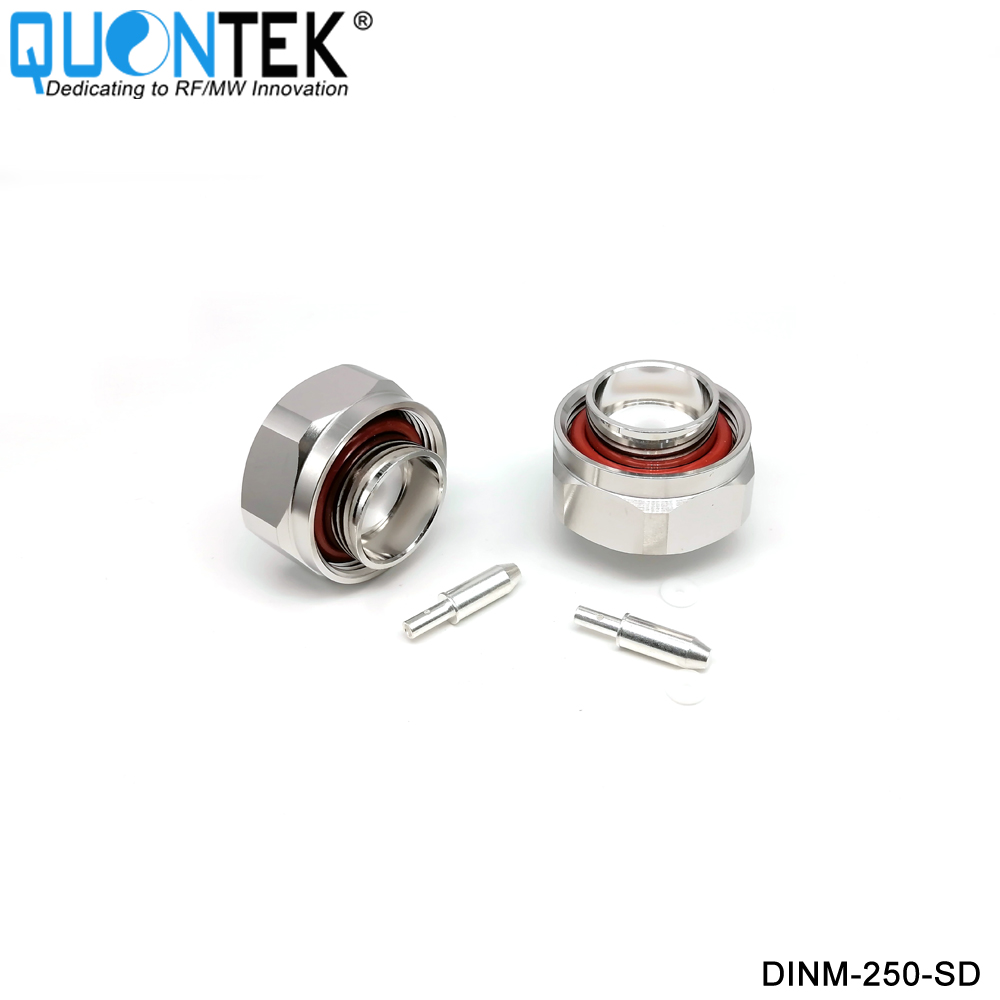

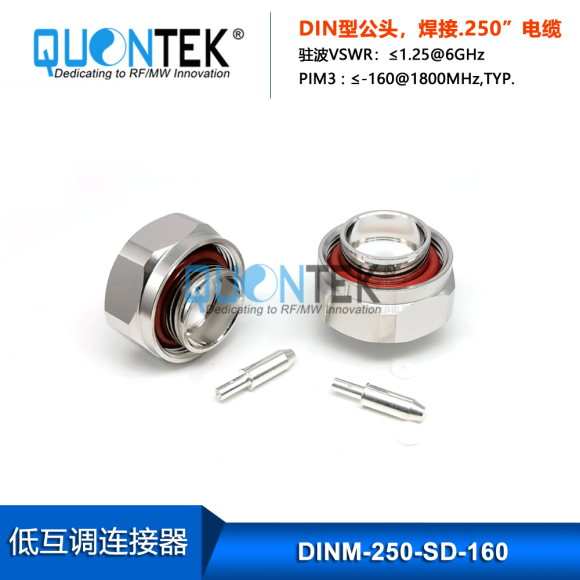

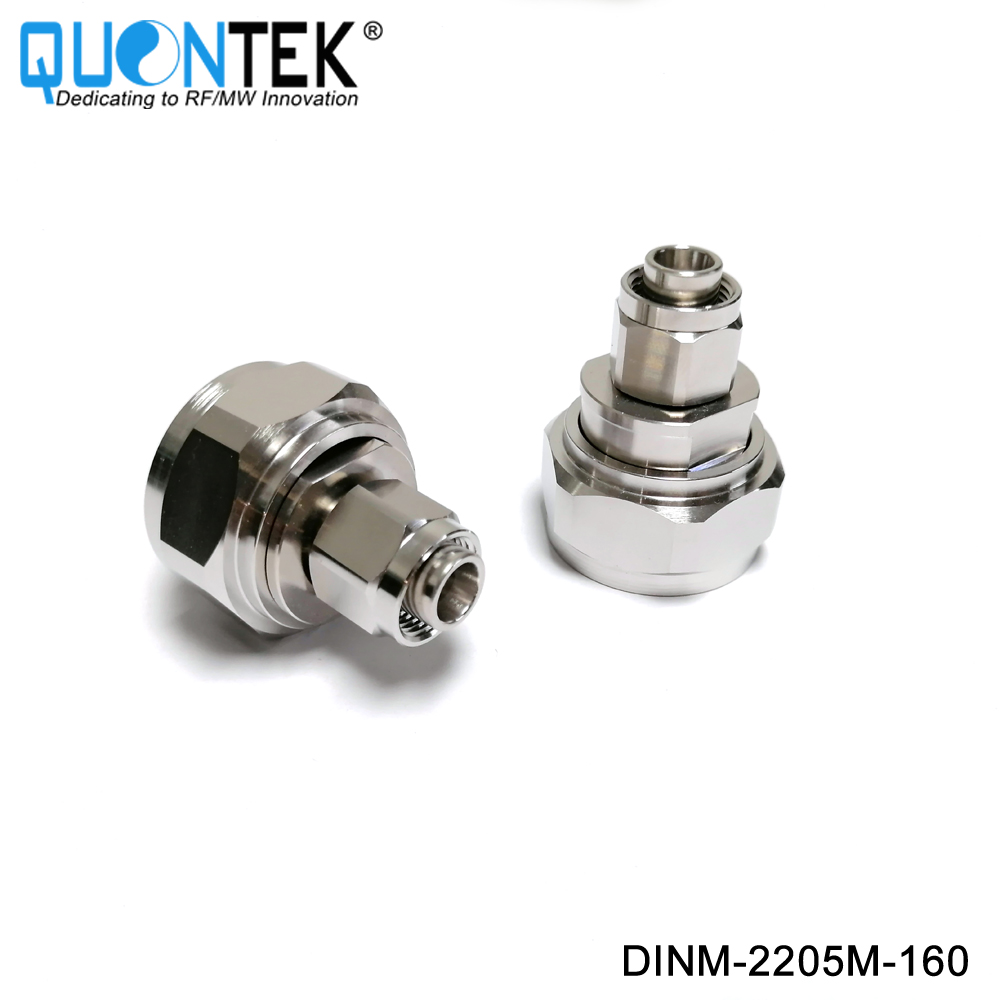

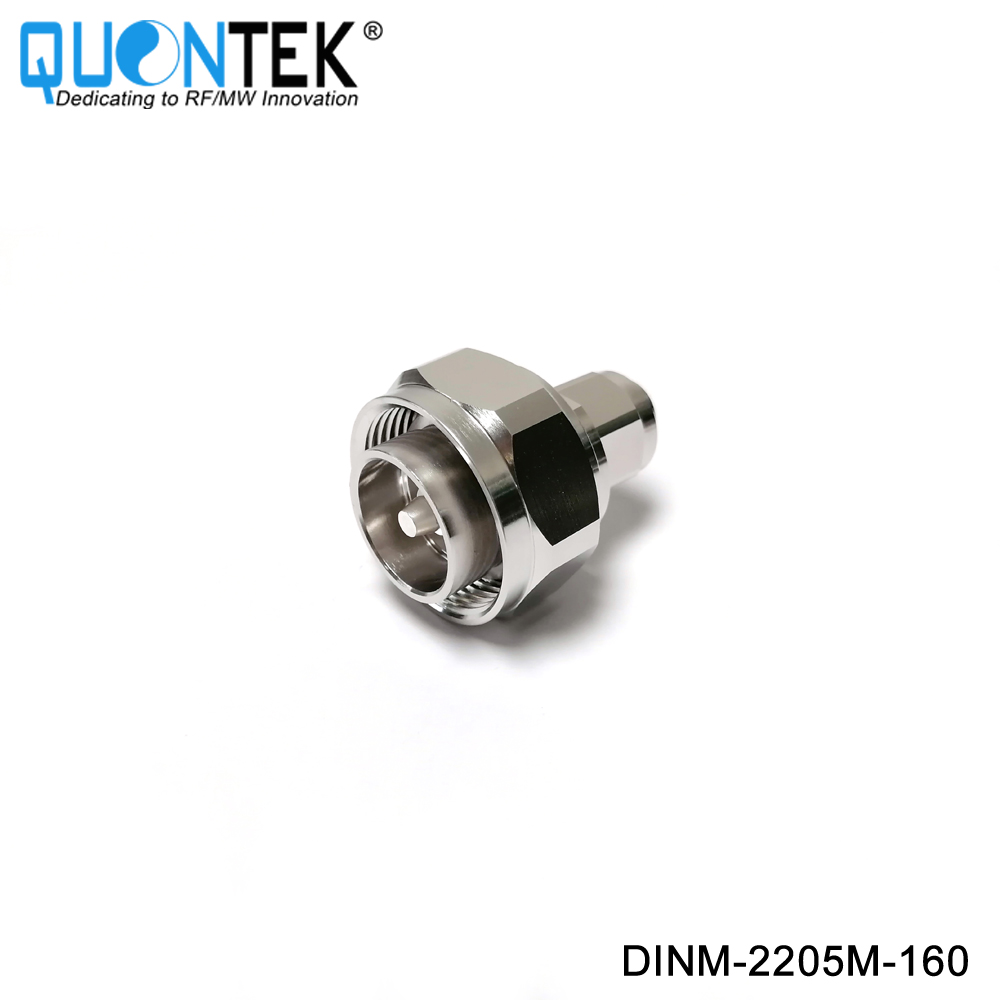

Low PIM Connector,DIN male,.250“/RG401/SPP250 cable

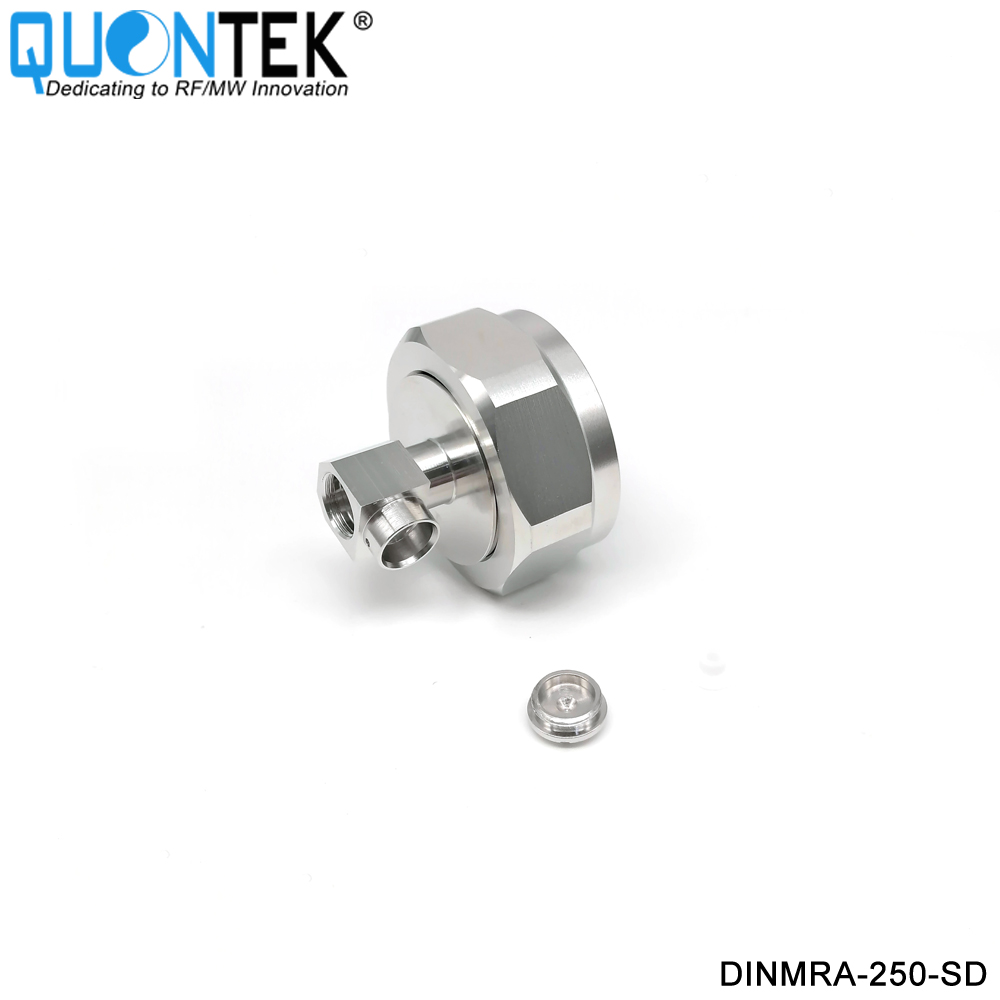

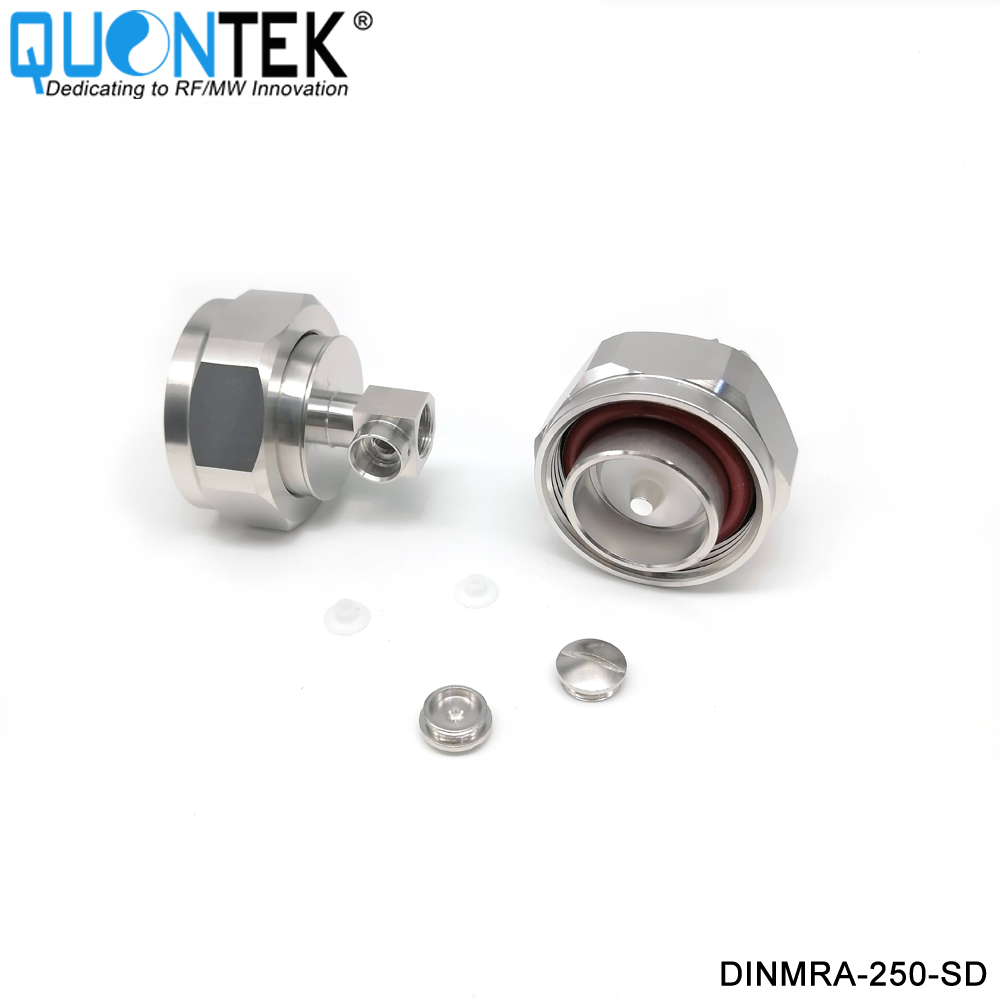

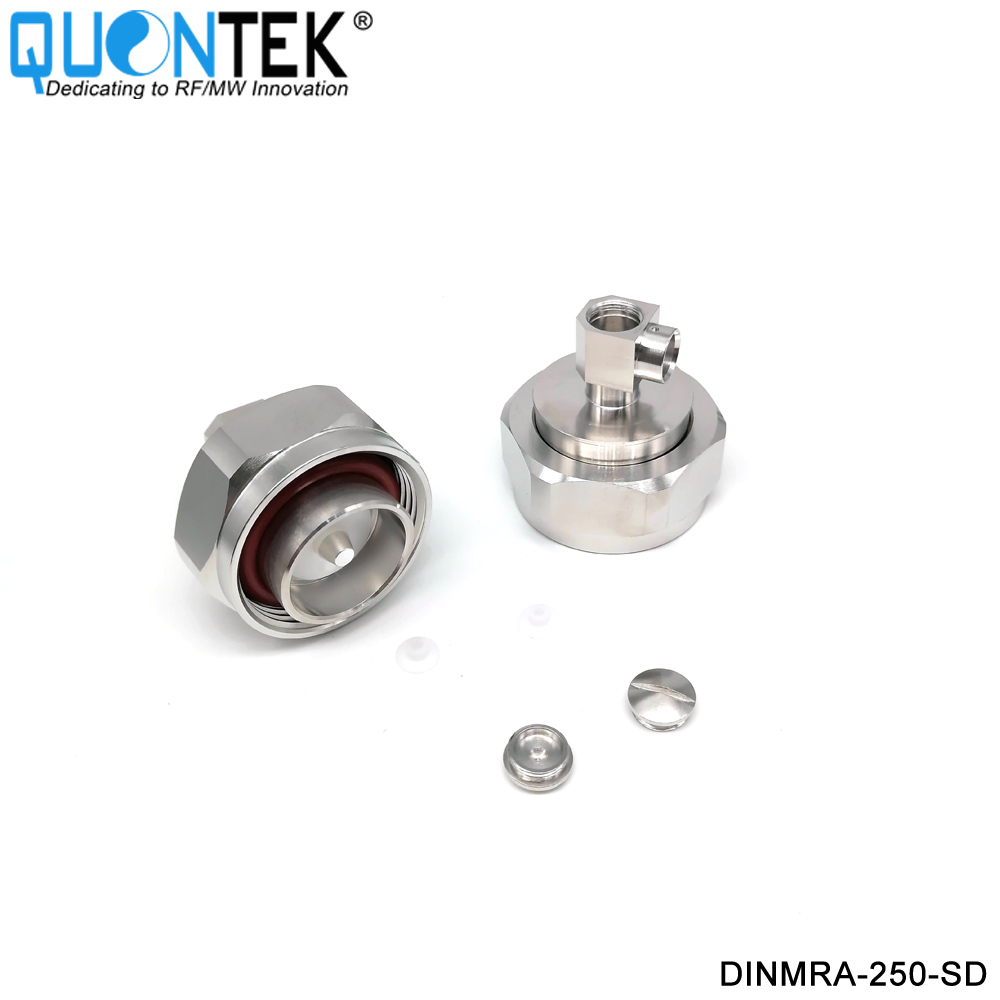

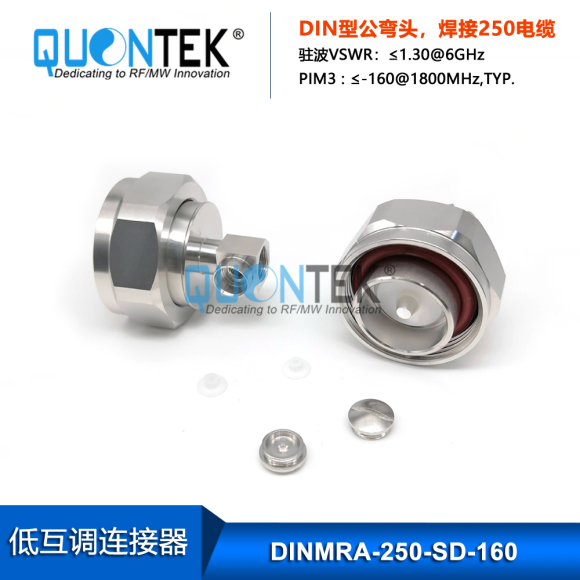

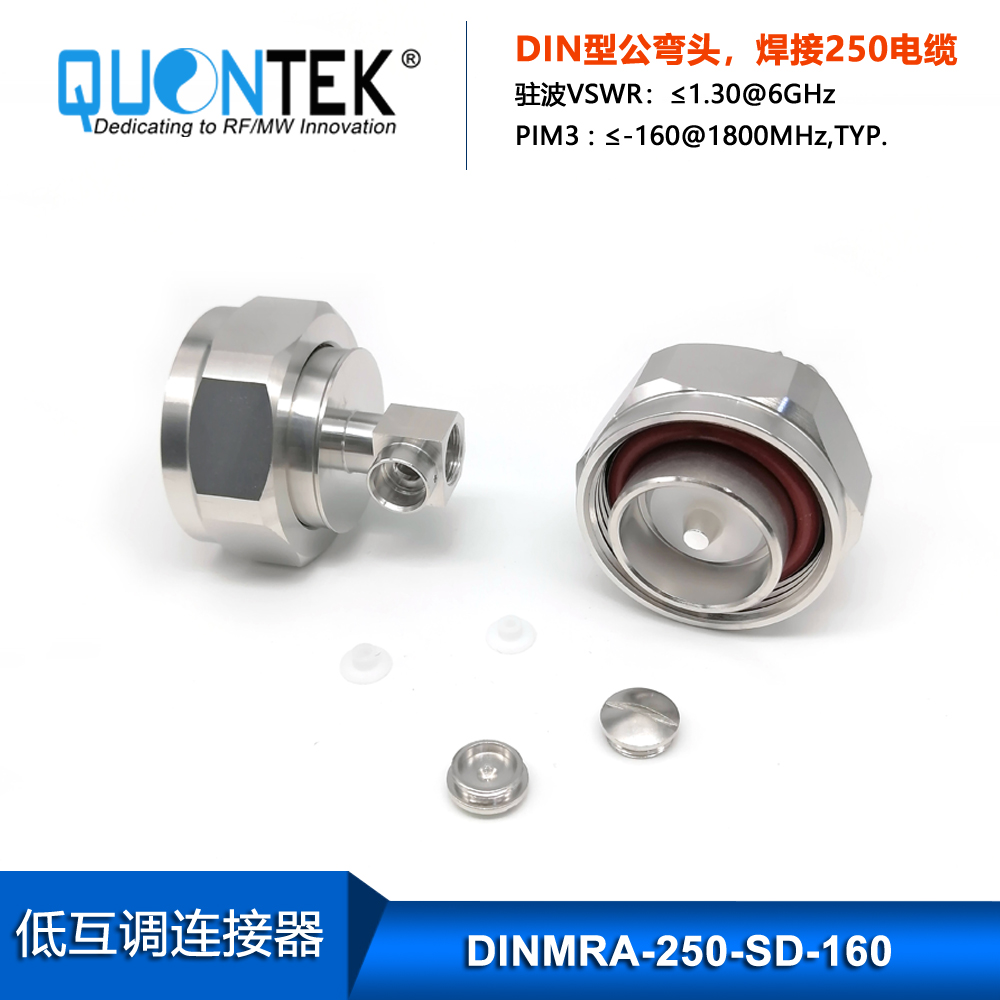

Low PIM Connector,DIN R/A male,.250“/RG401/SPP250 cable

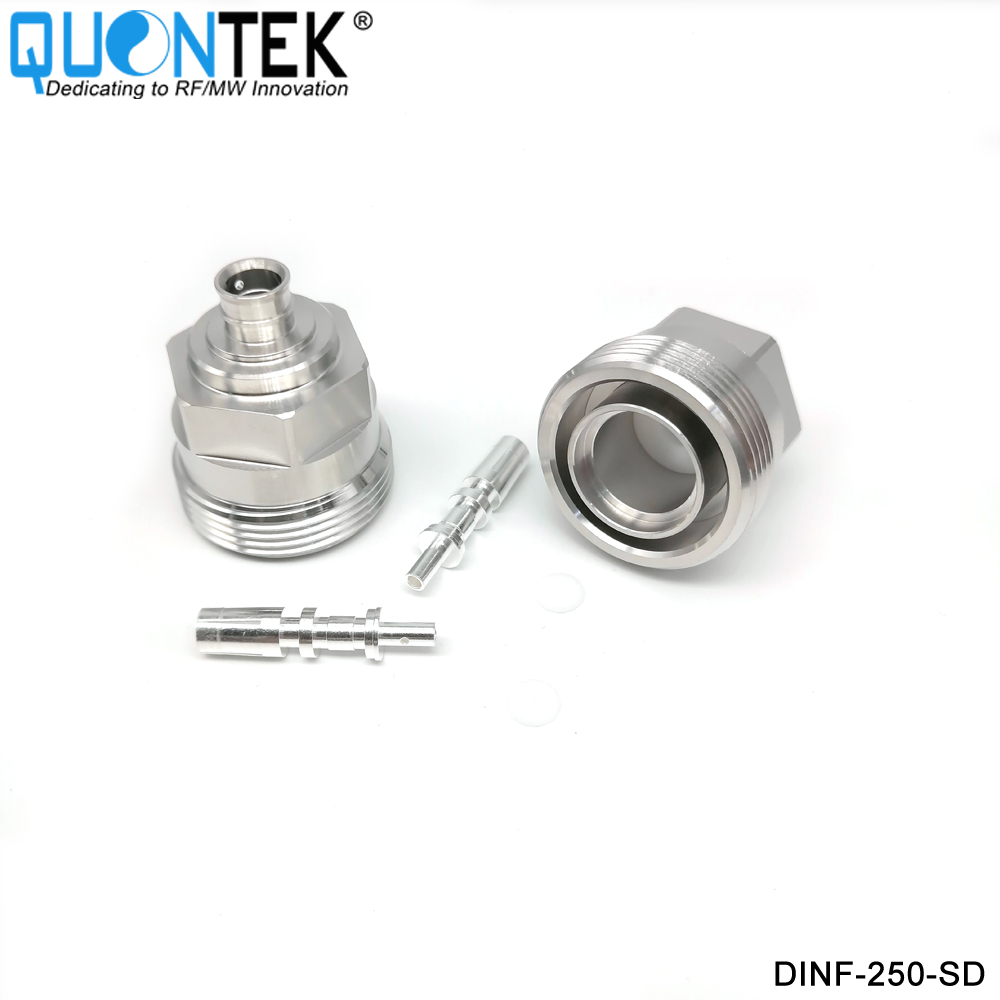

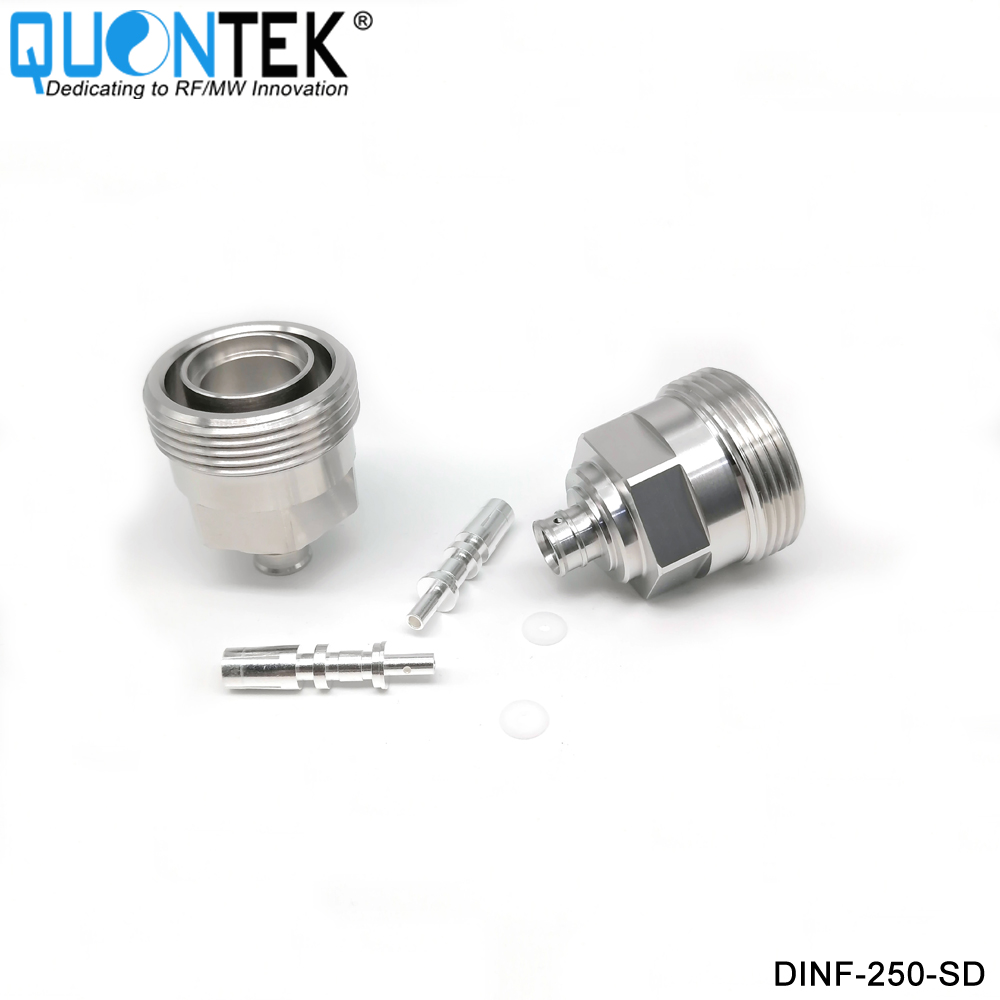

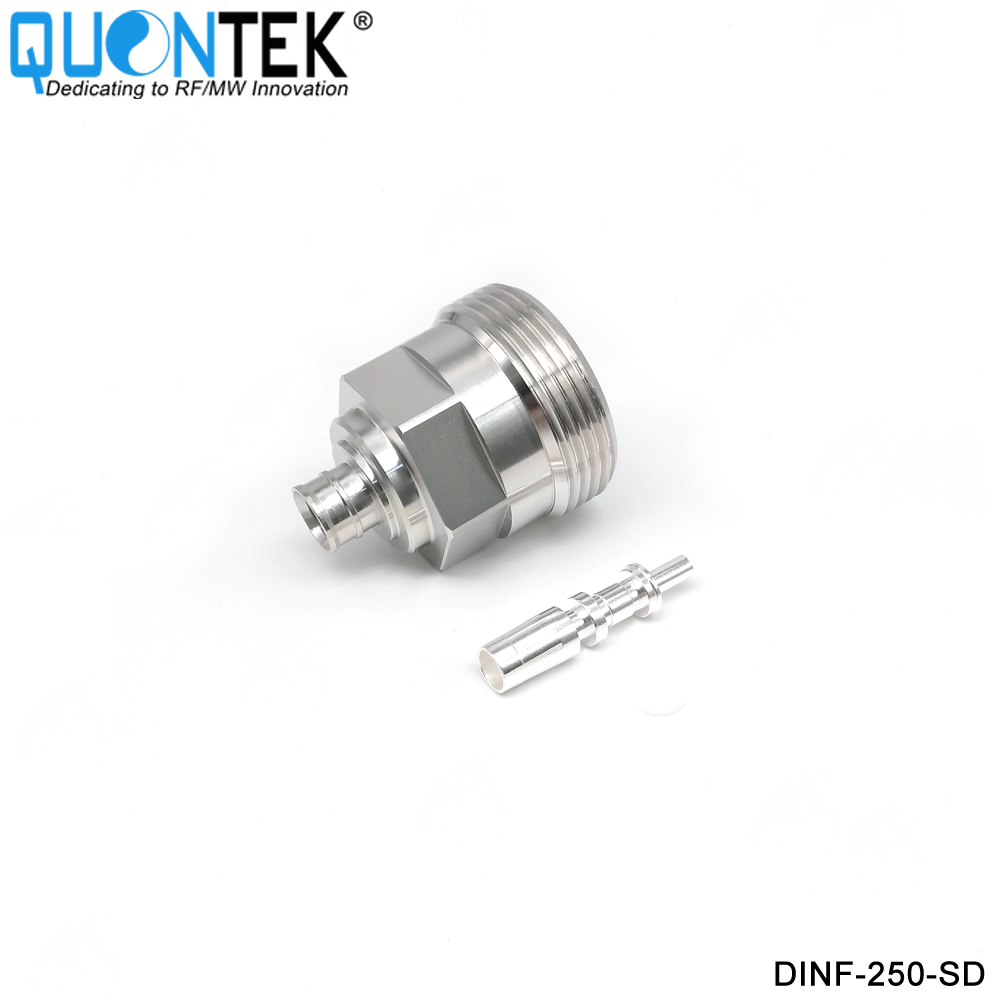

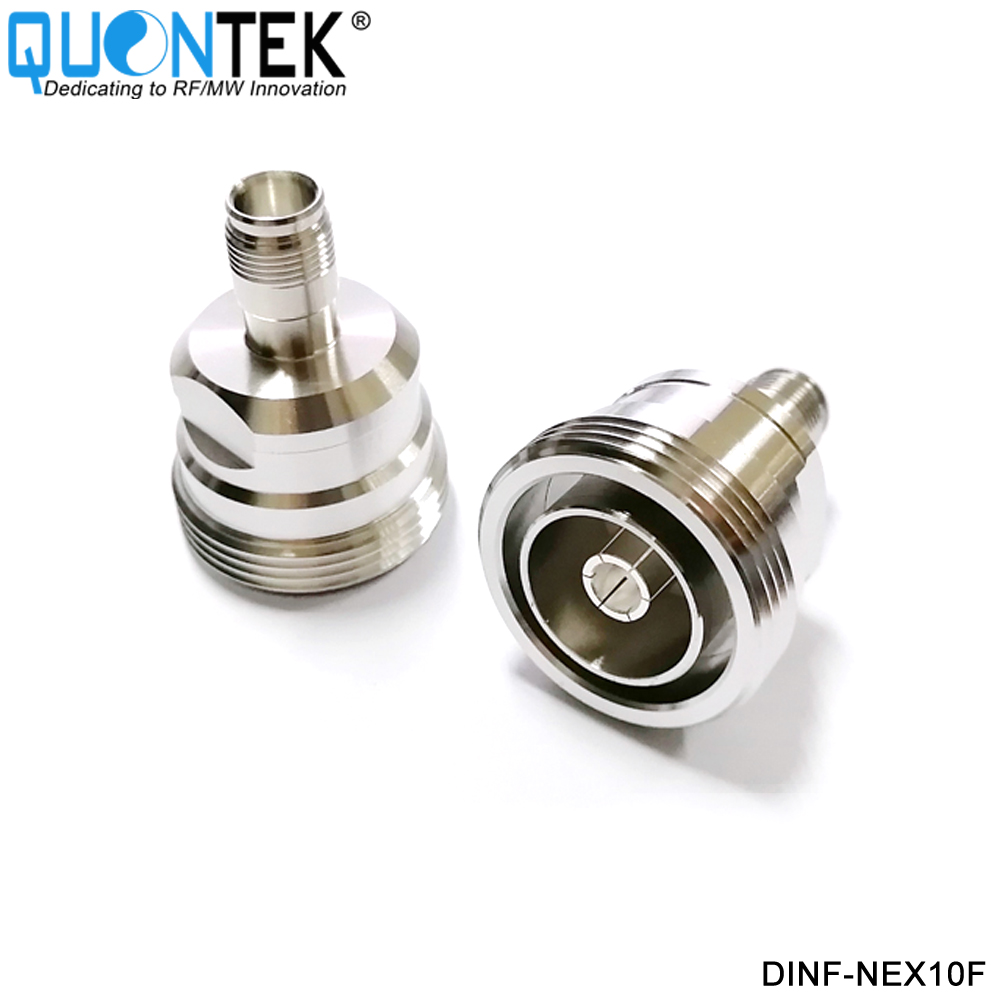

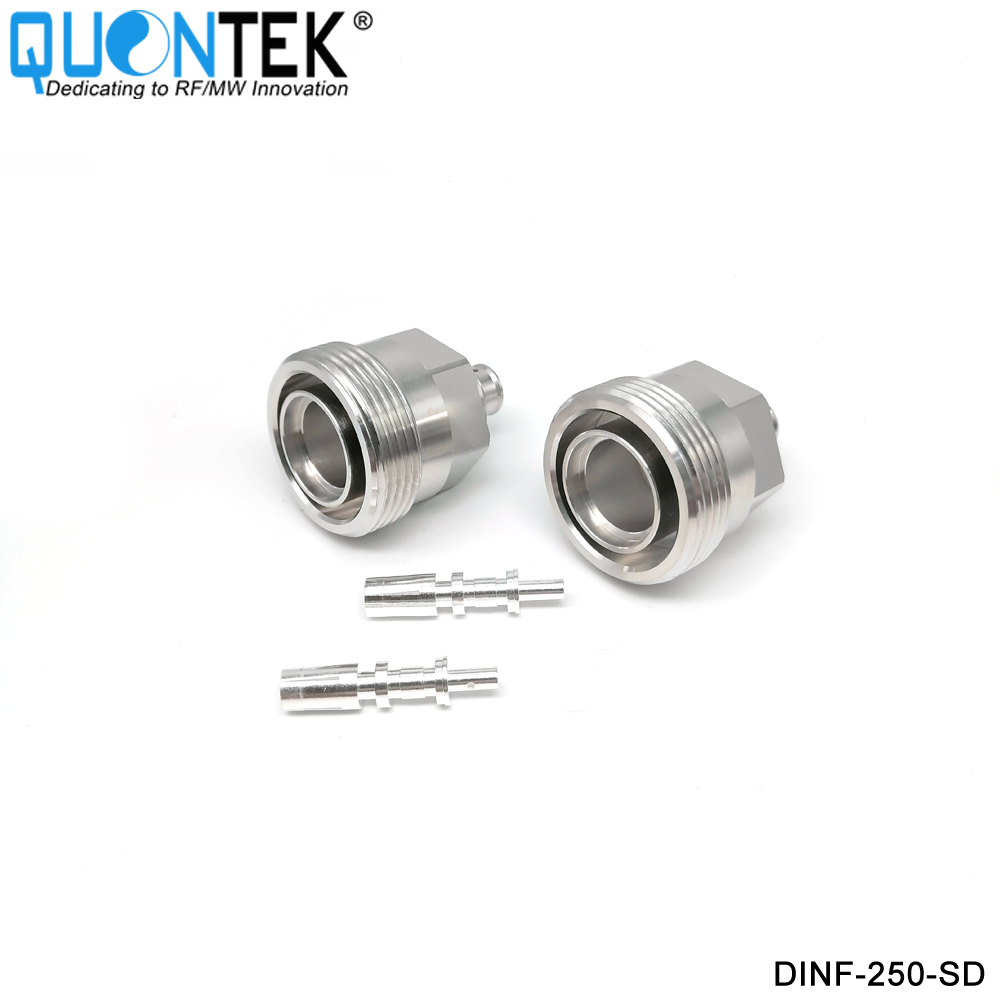

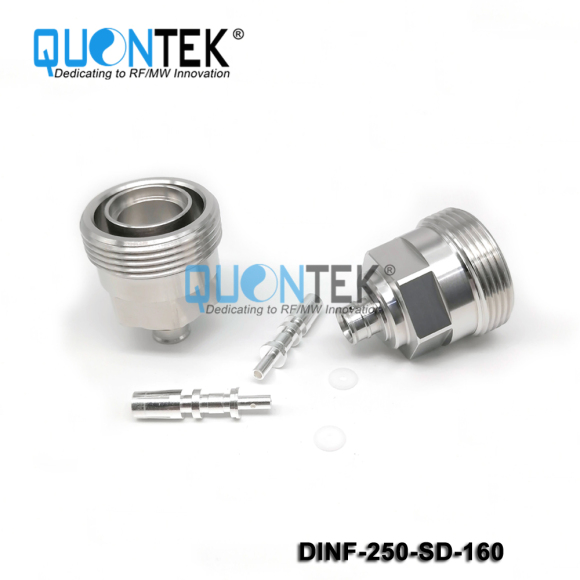

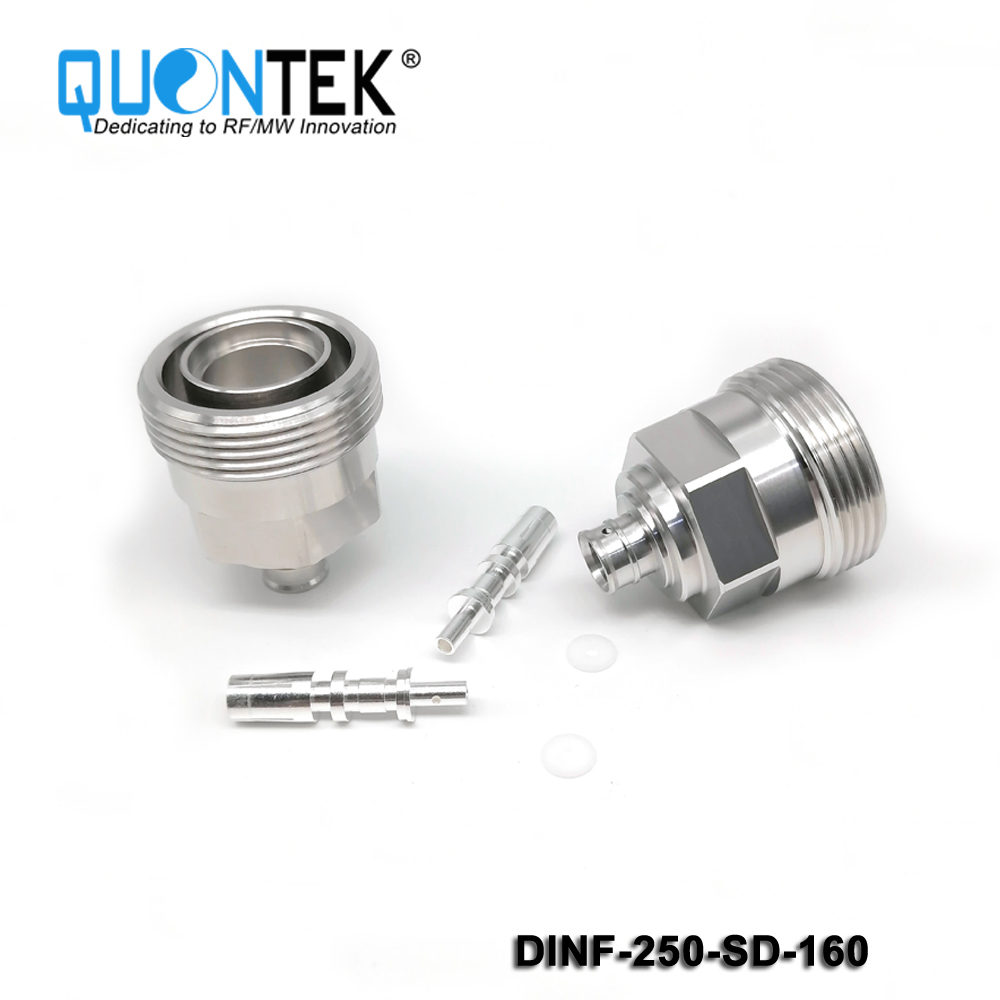

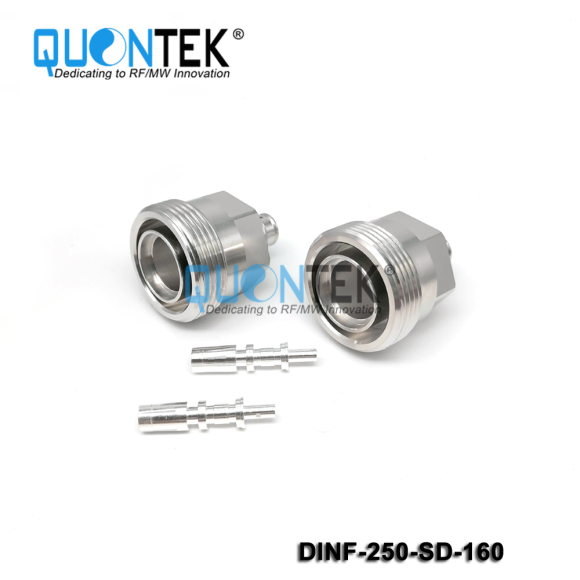

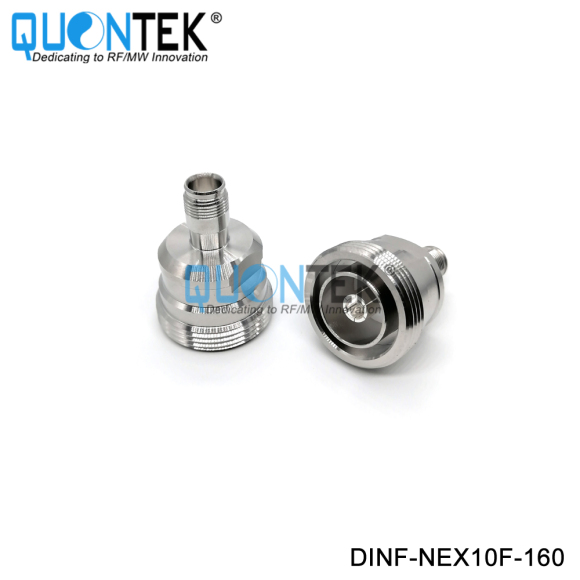

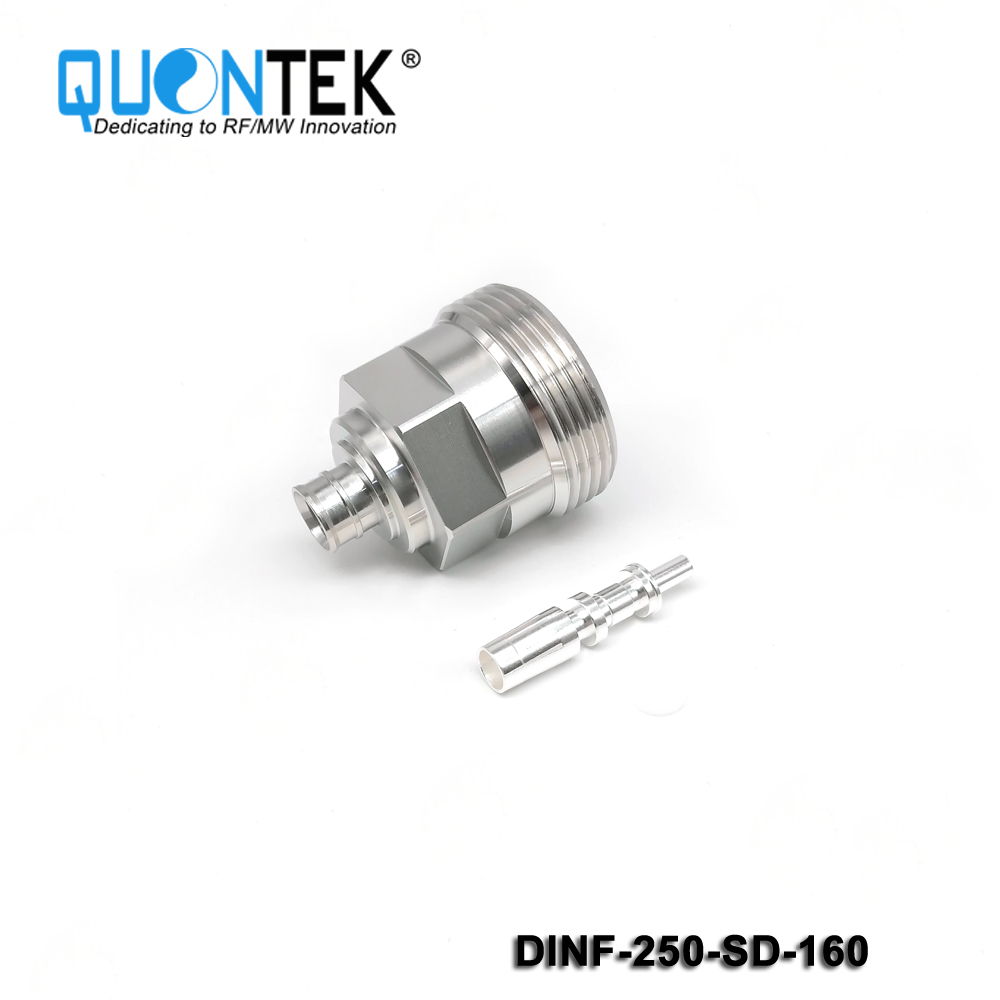

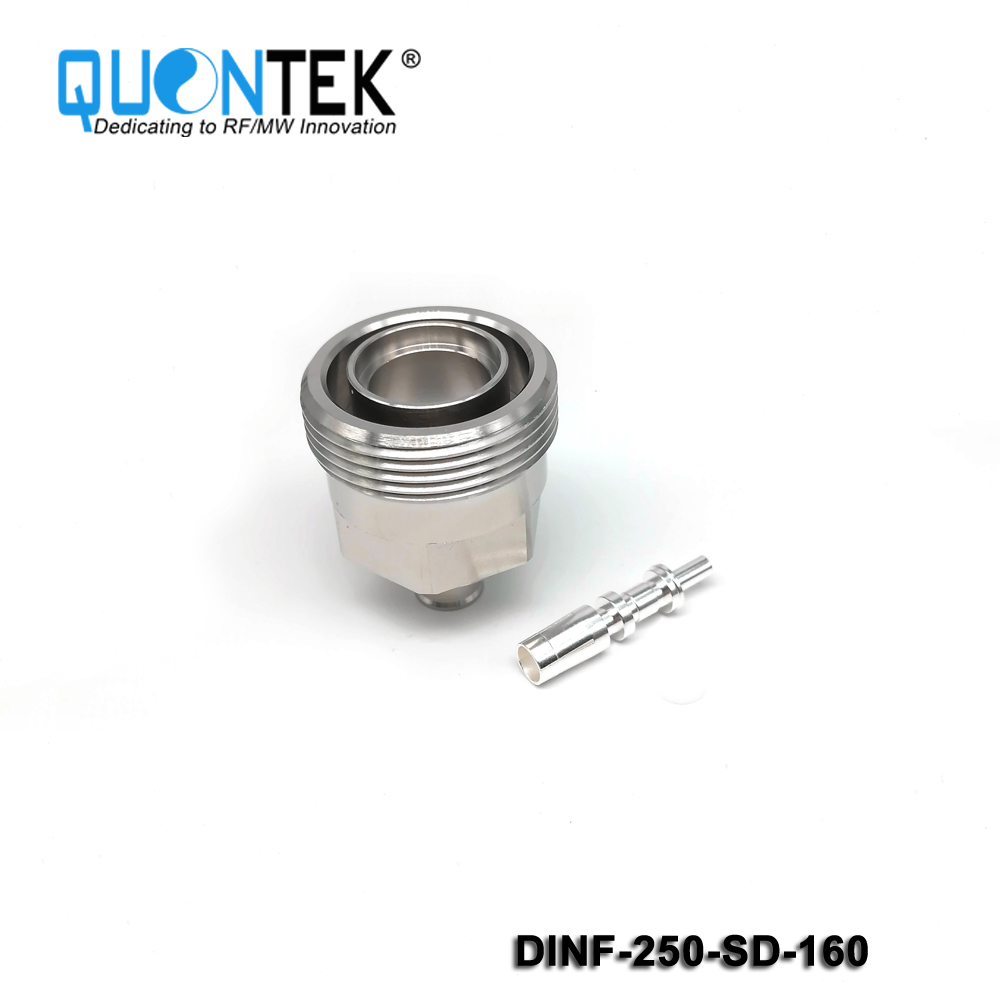

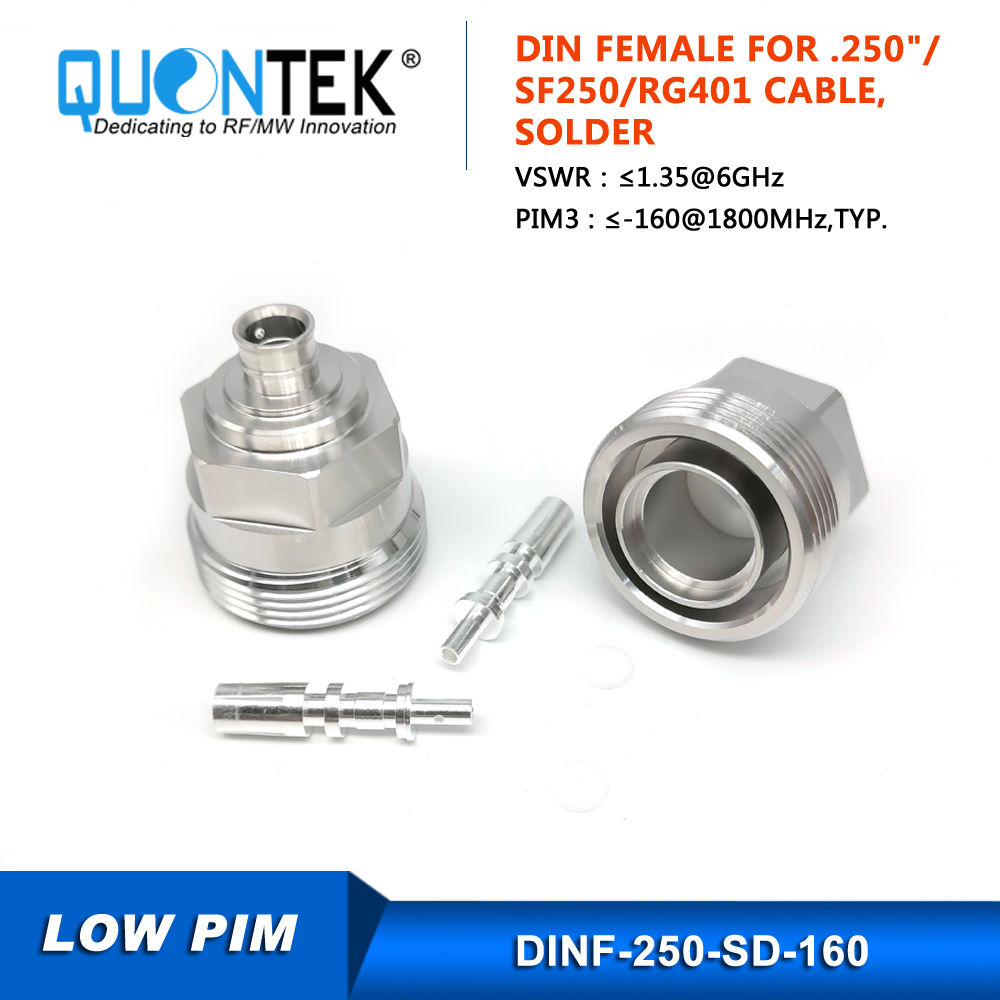

Low PIM Connector,DIN female,.250“/RG401/SPP250 cable

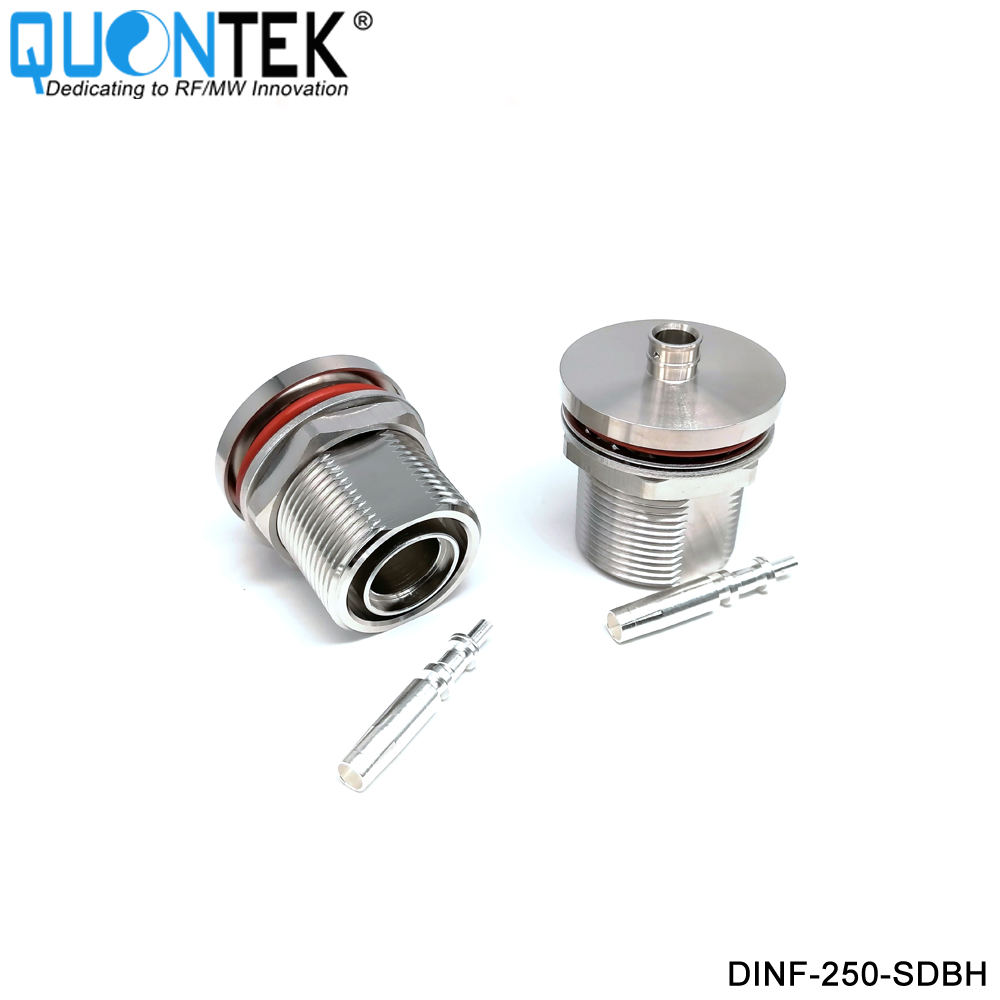

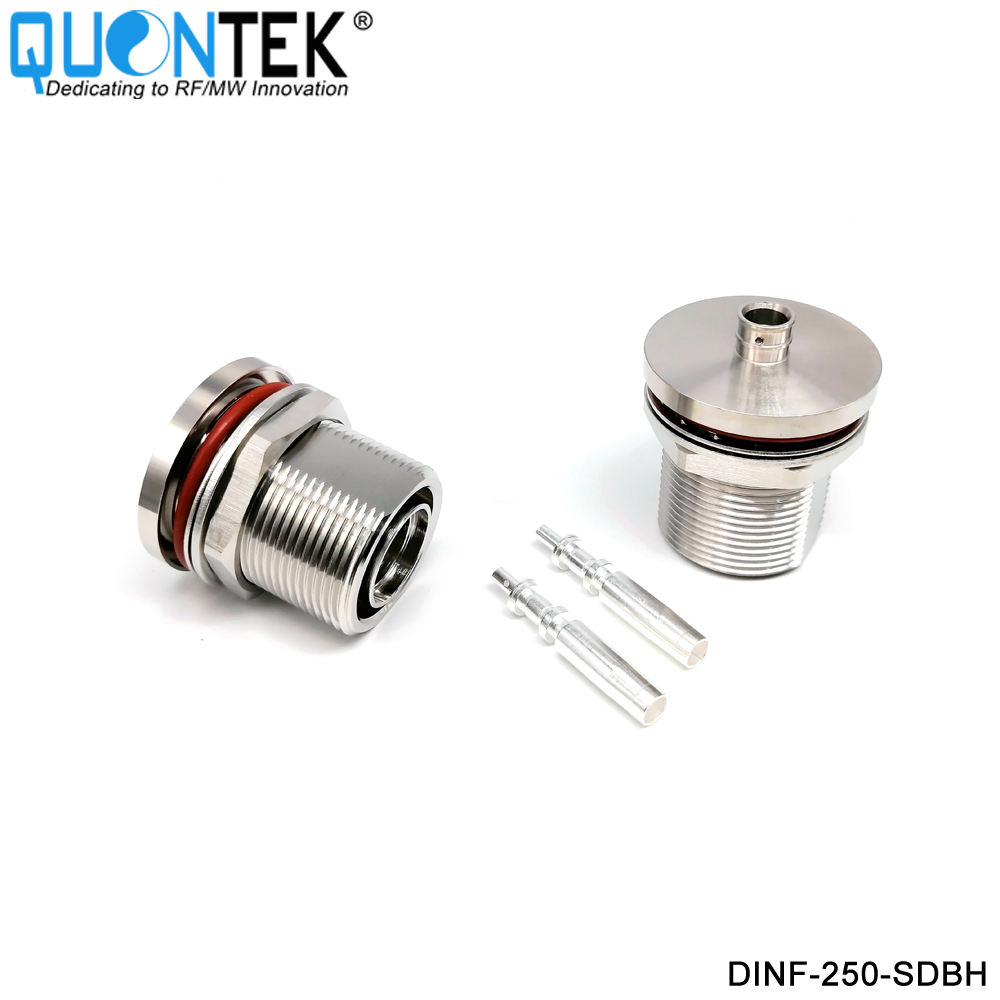

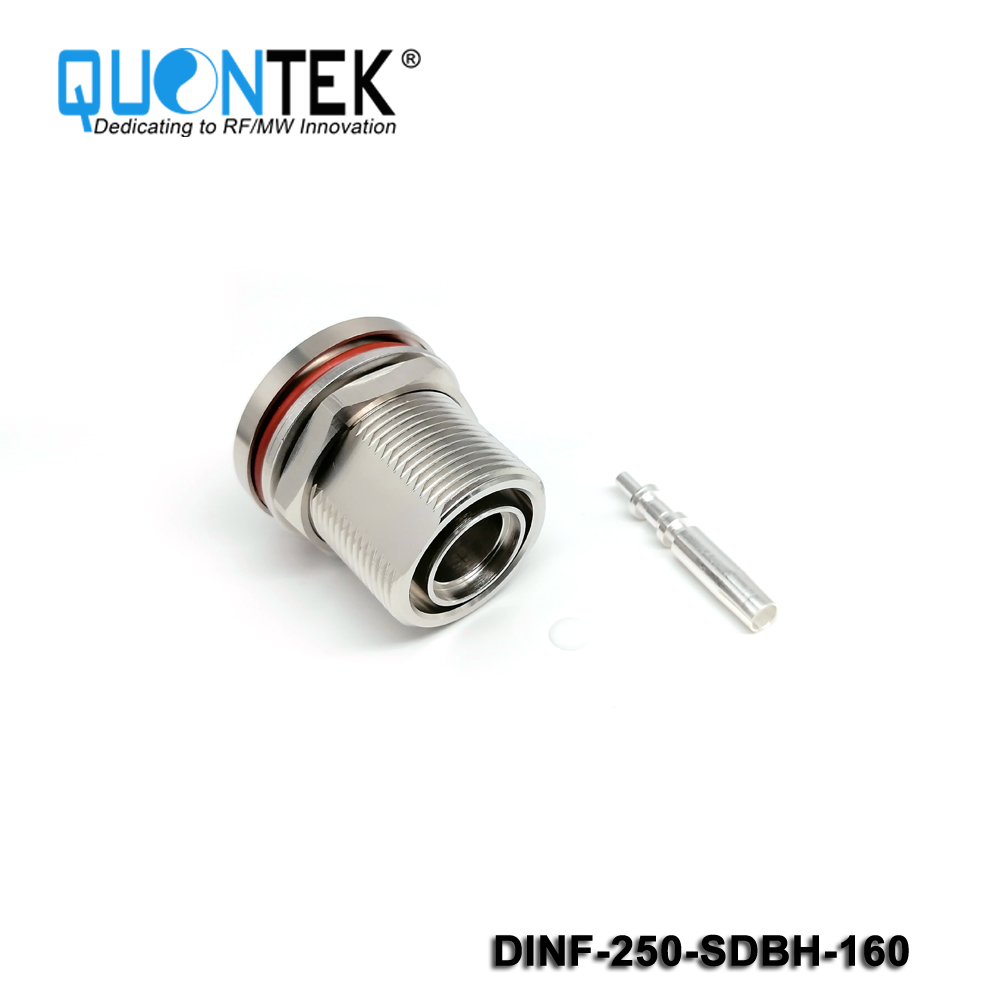

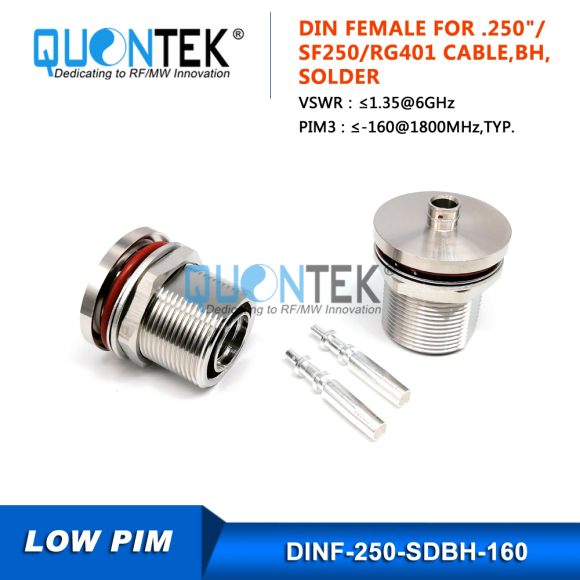

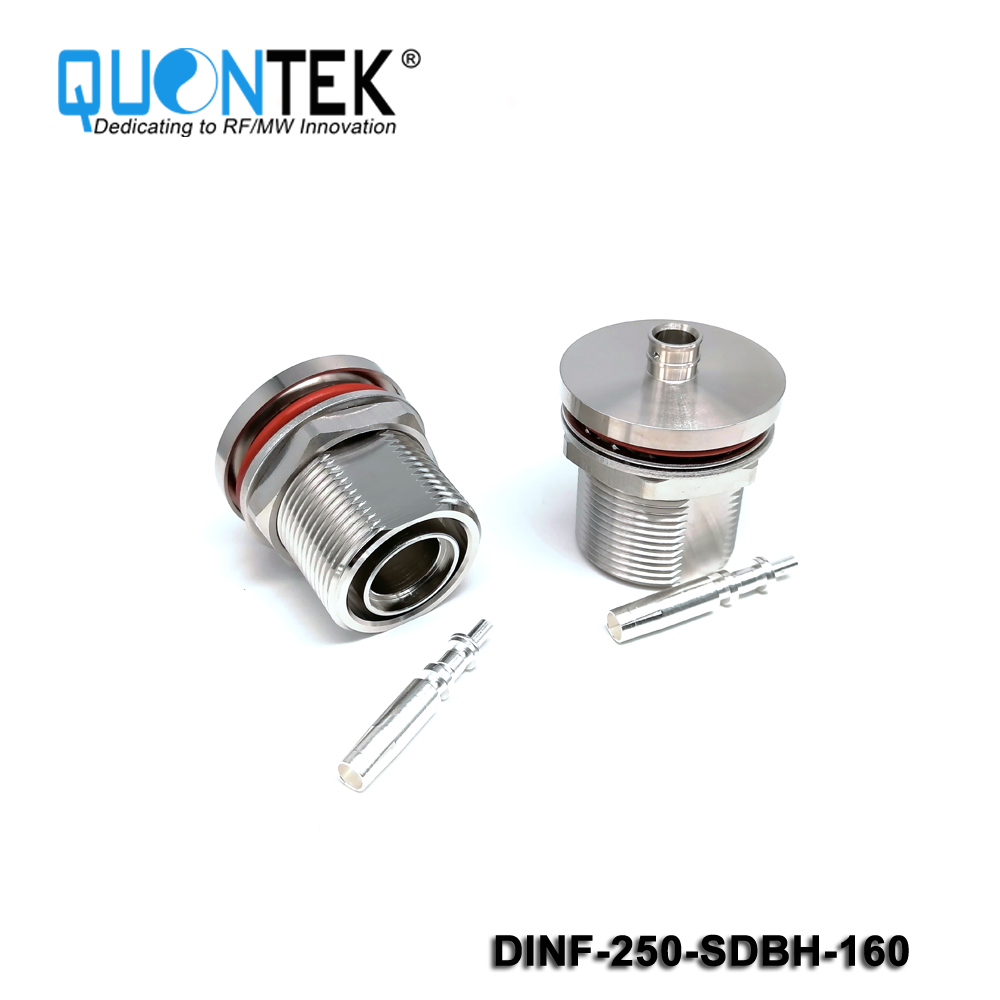

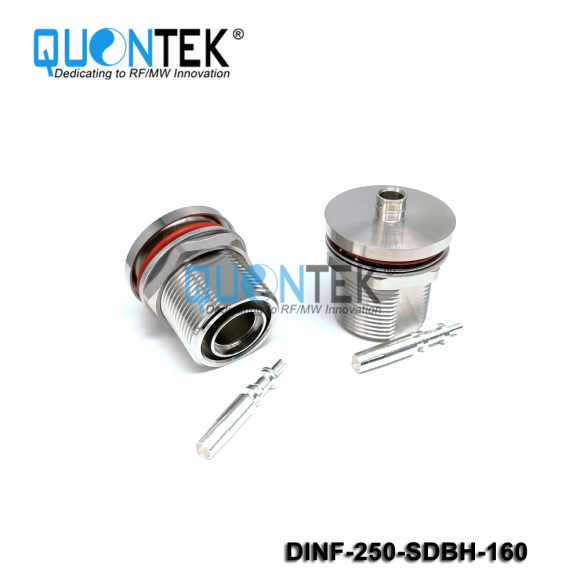

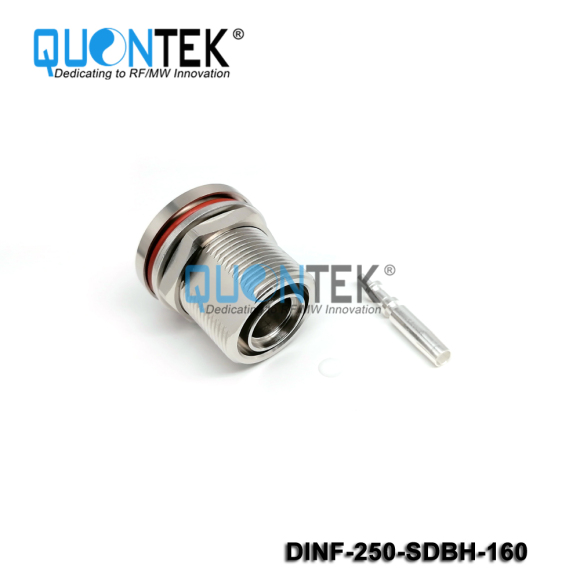

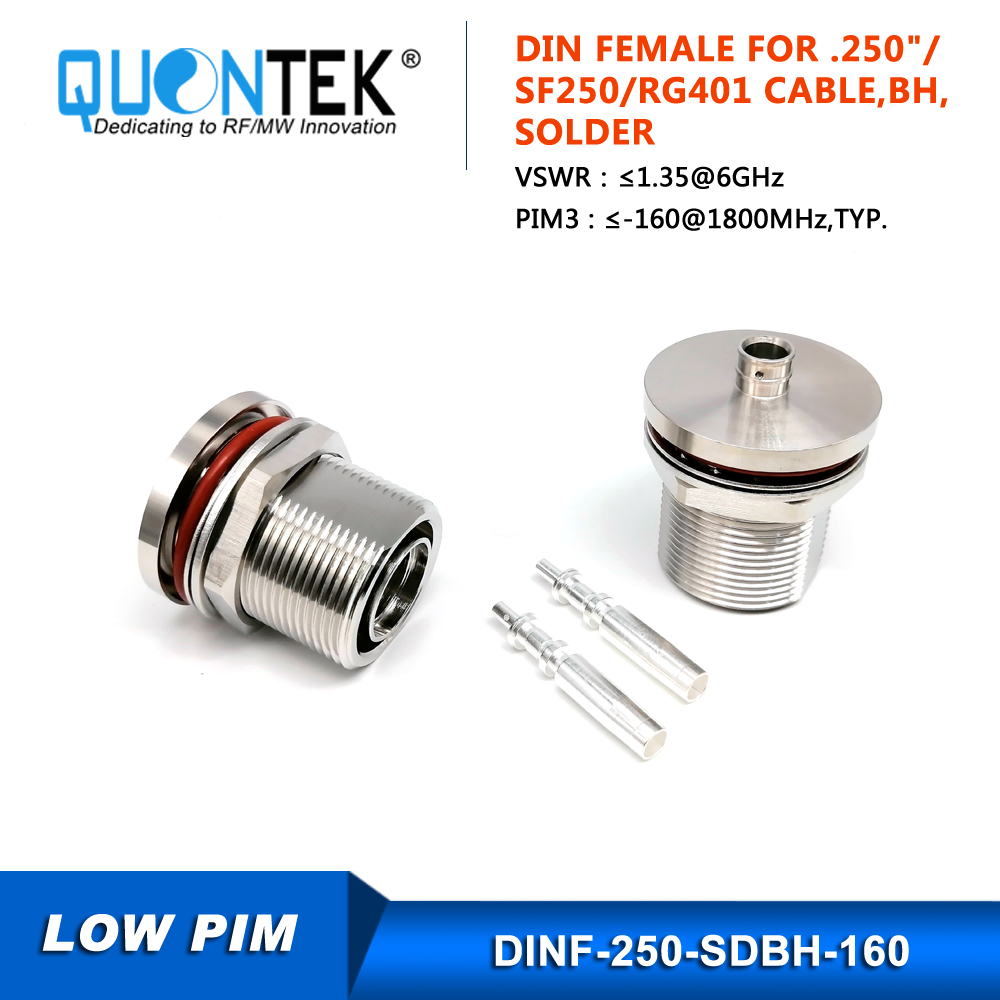

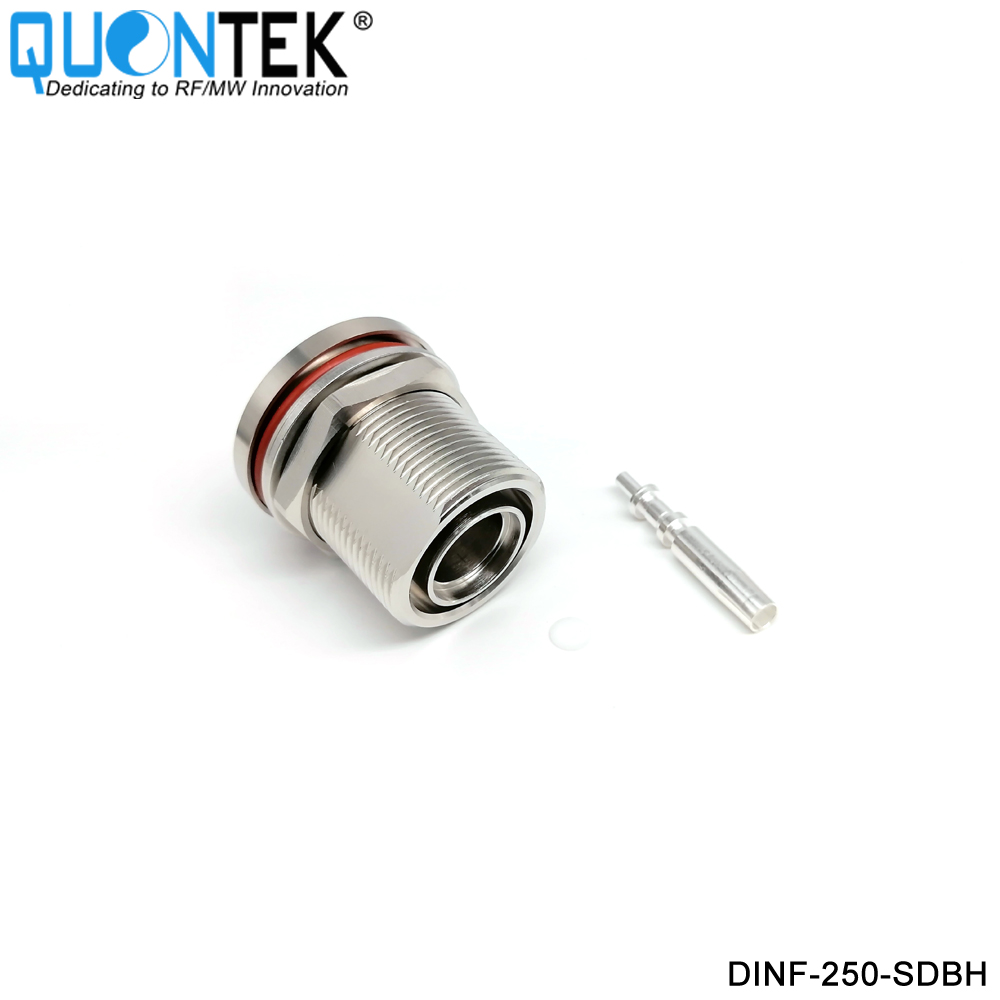

Low PIM Connector,DIN BH female,.250“/RG401/SPP250 cable

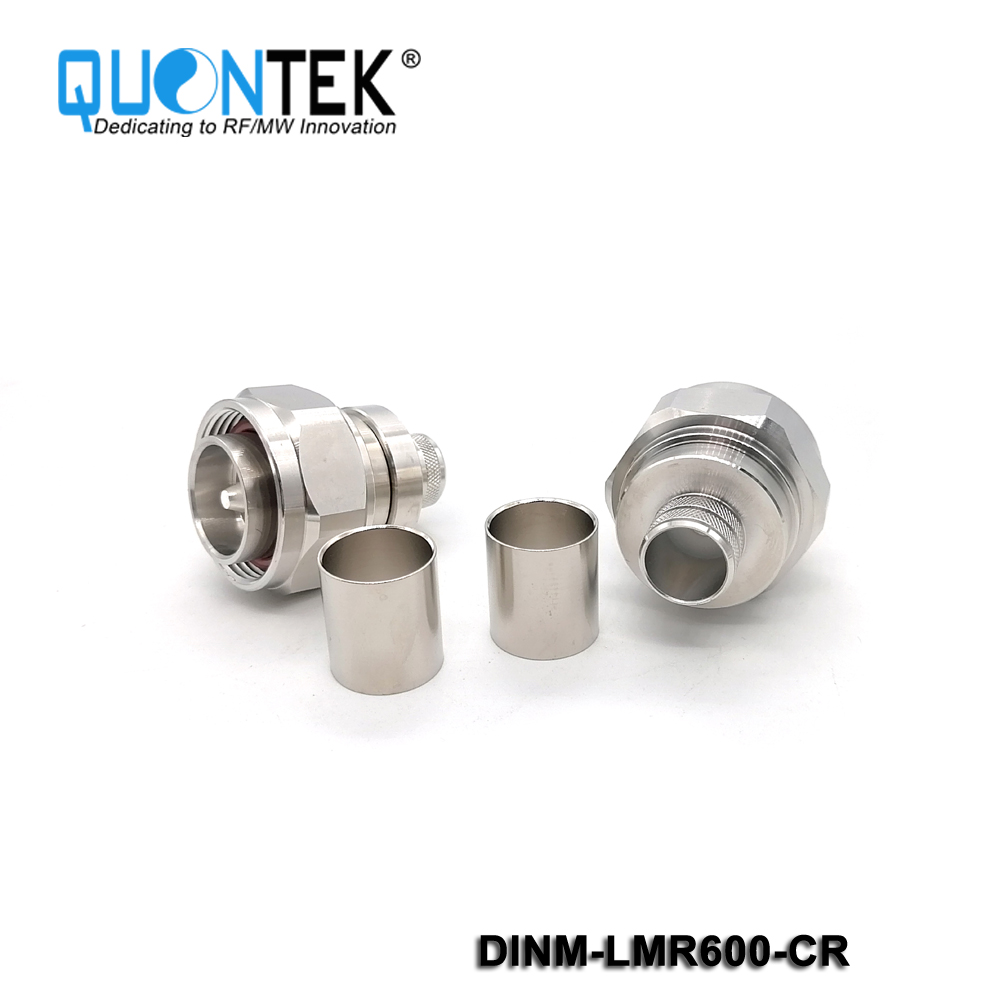

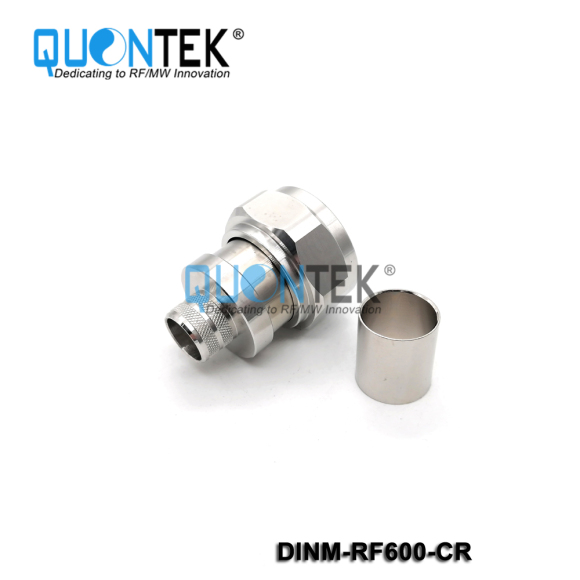

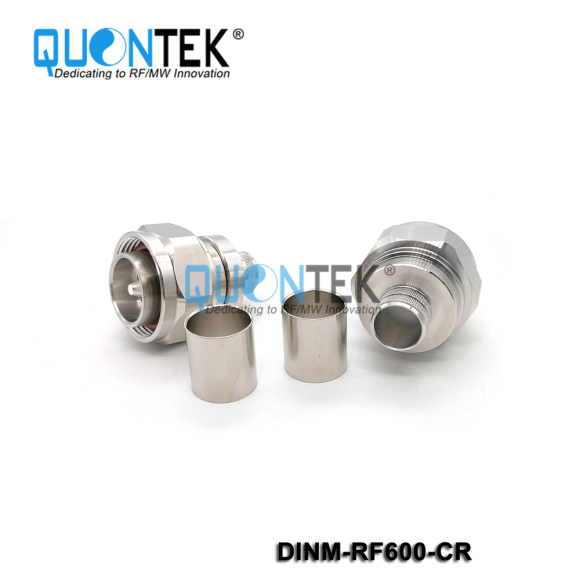

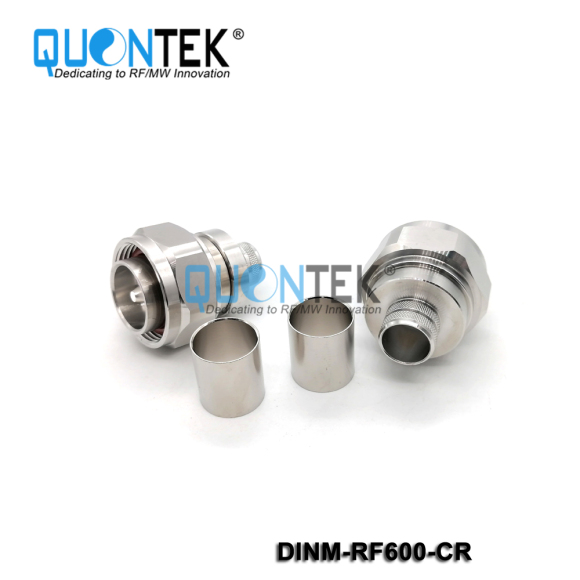

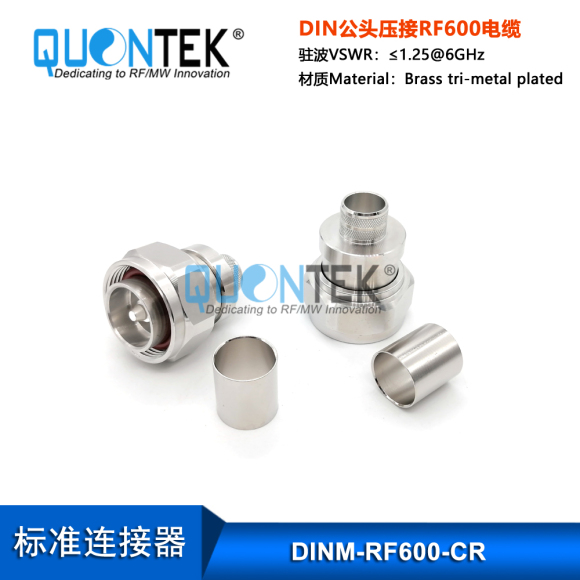

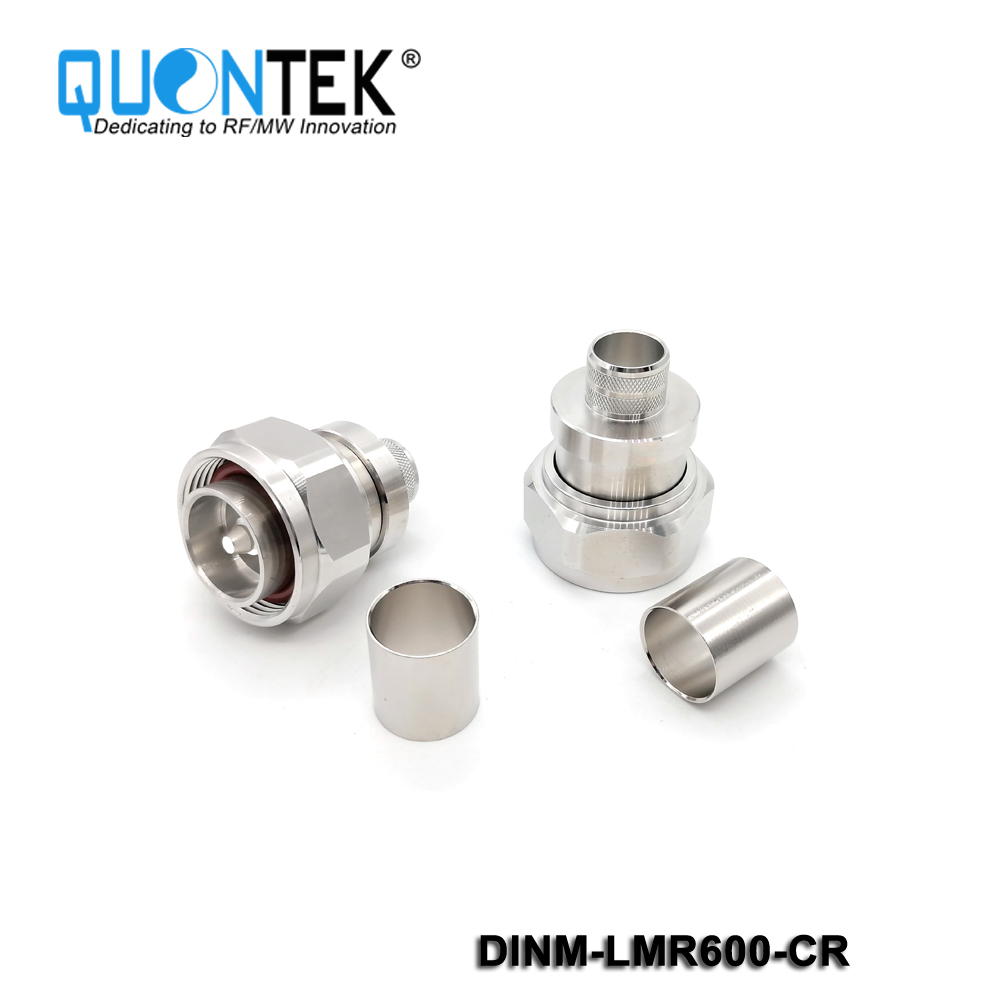

Standard Connector,DIN male for LMR600 cable,Crimp type
