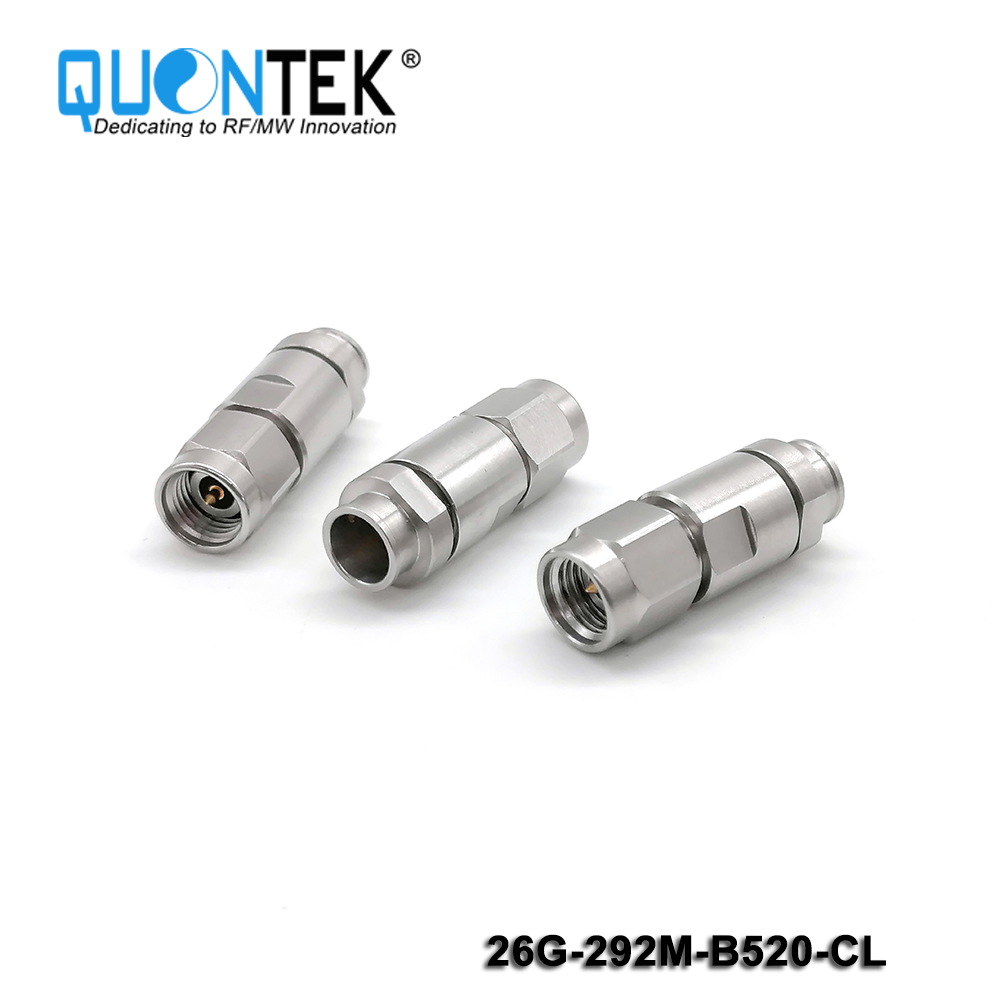

2.92mm type Connectors

Description

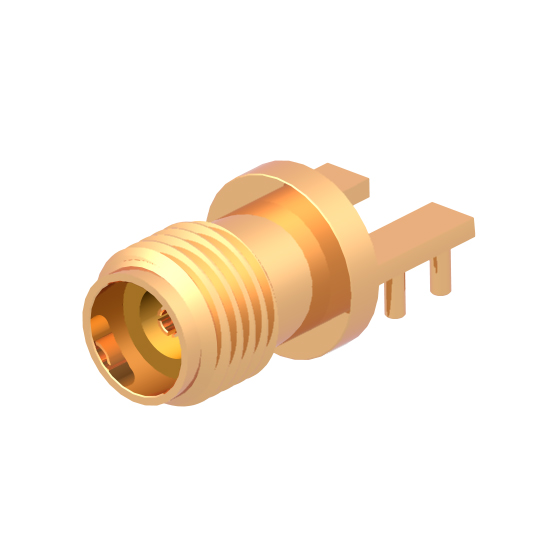

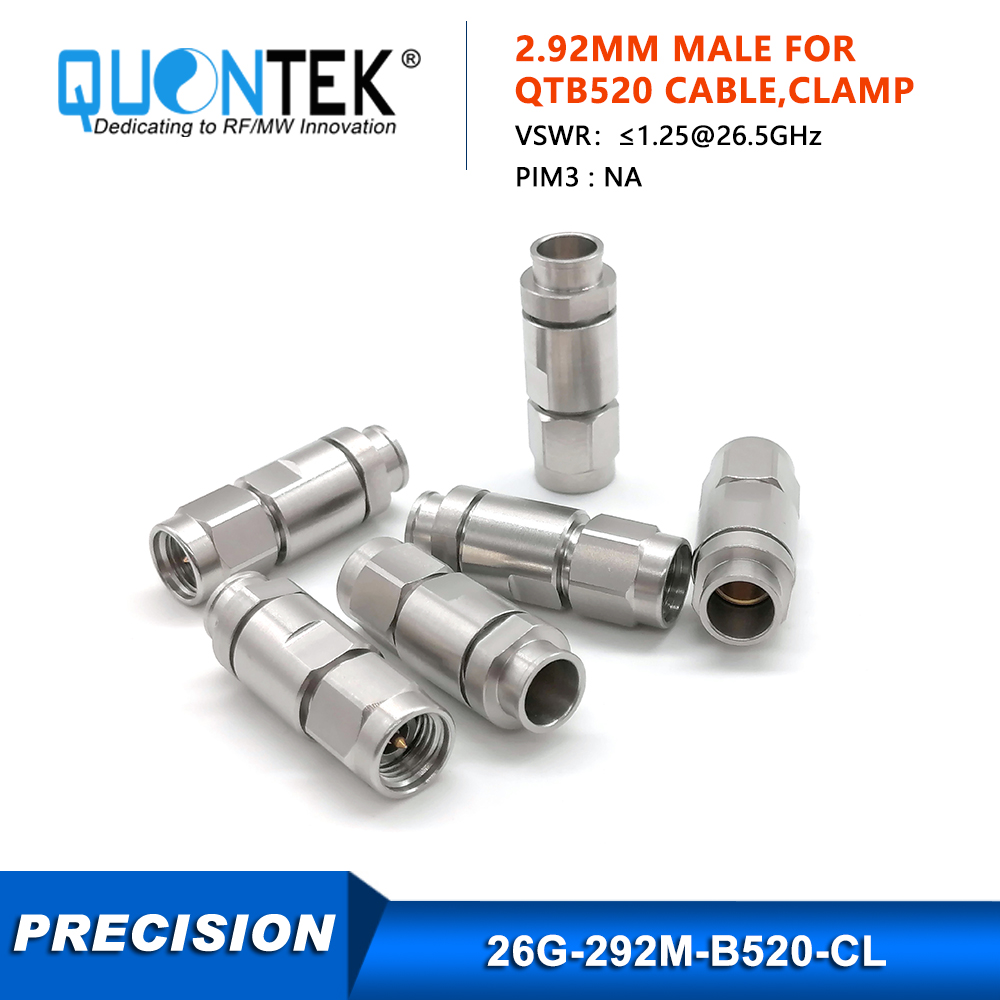

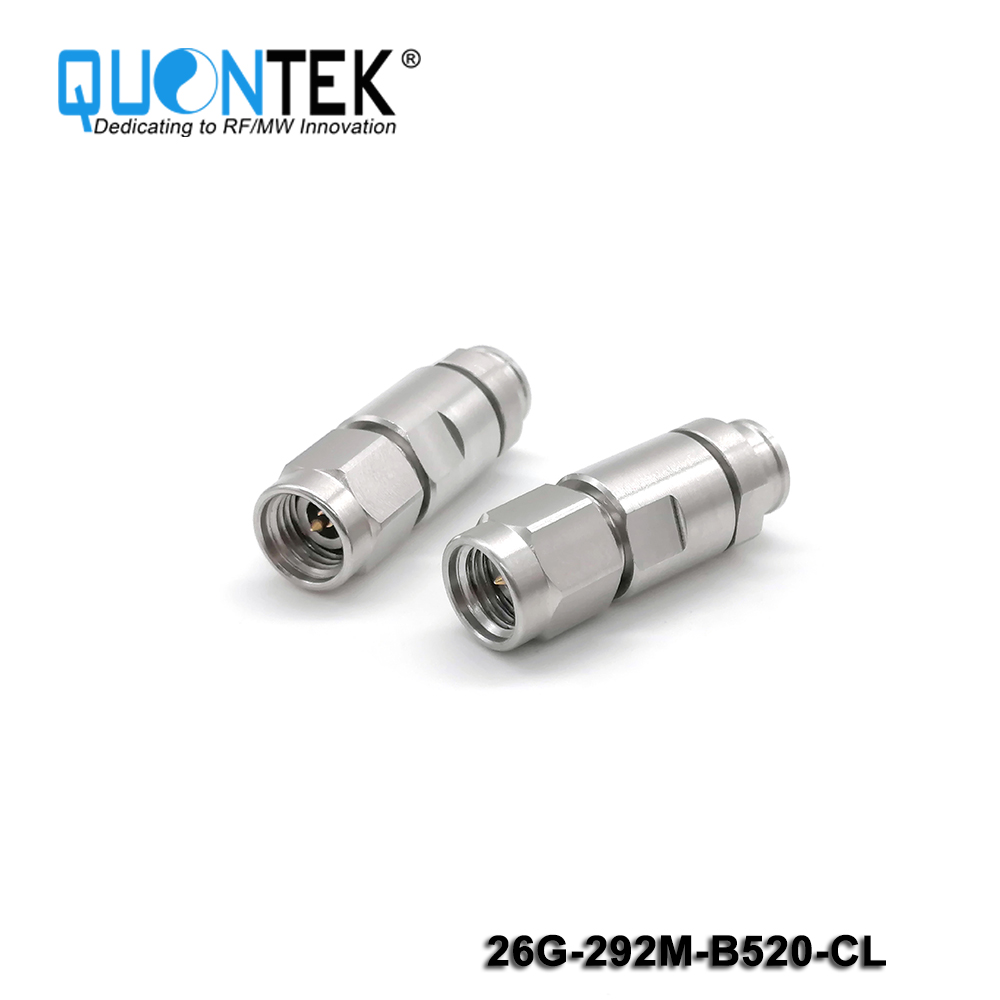

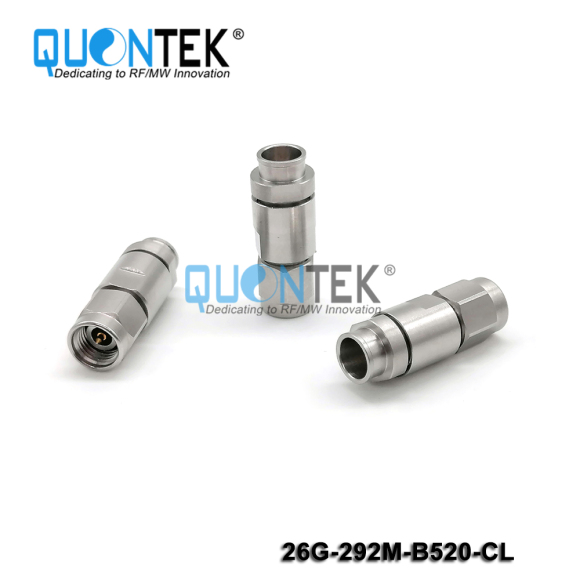

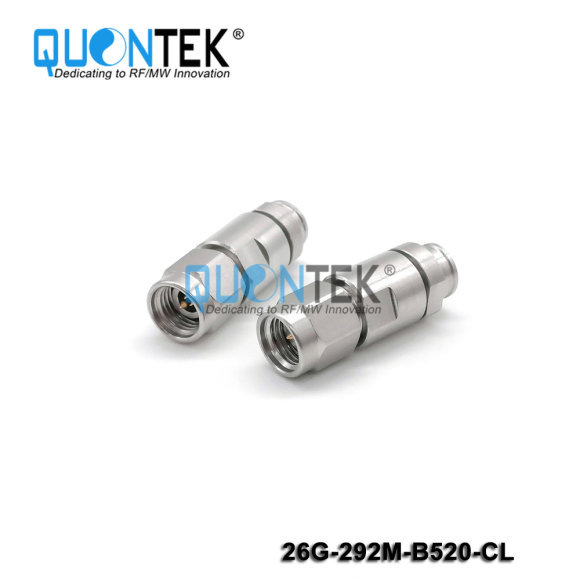

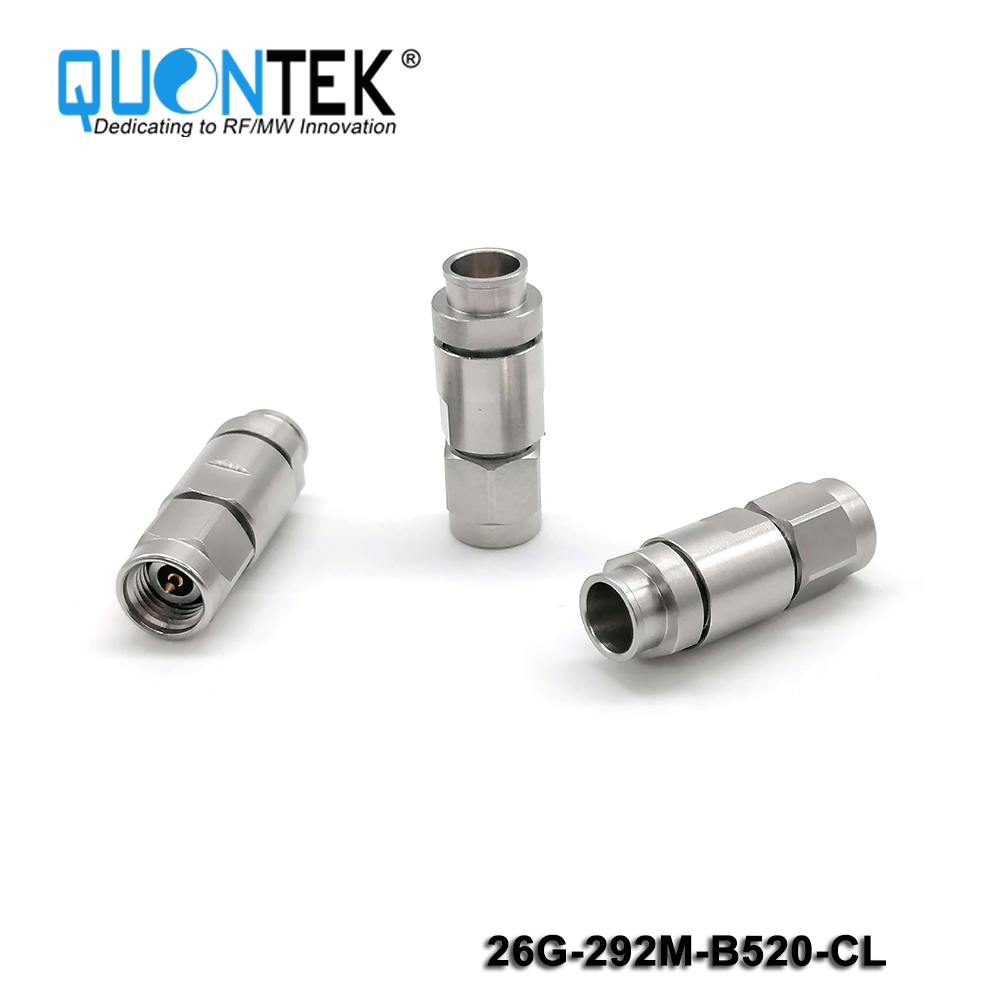

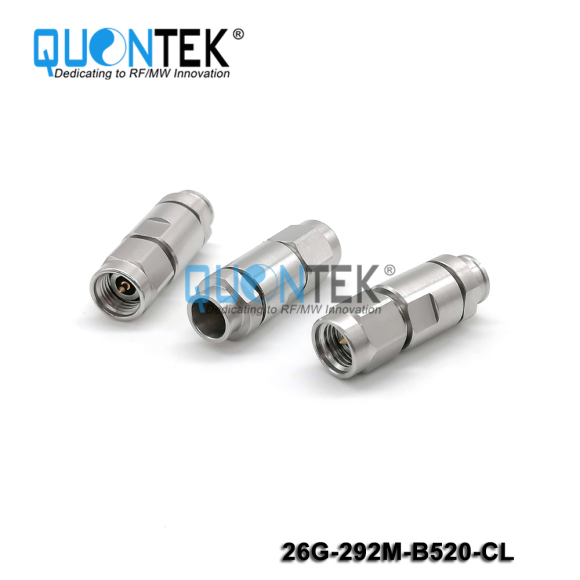

QUONTEK 2.92mm connectors are precision connectors for microwave applications up to 40 GHz.

They are intermateable with series SMA and 3.5mm.

They have a high mechanical stability and an excellent repeatability.

The shortened male pin ensures a non-destructive mating process. The glass beads, when used in conjunction with the 2.92mm launchers, enable the connectors to be replaced without disturbing the hermetic seal.

For a mechanical decoupling between glass bead and internal microwave circuit, stress relief contacts are available.

Features

• Frequency range up to 40 GHz

• Excellent return loss

• Intermate able with 3.5mm and SMA

• The 2.92mm interface dimensions conform to the following standards:

International: IEC 61169-35

Europe: CECC 22110

USA: MIL-PRF-39012 2.92

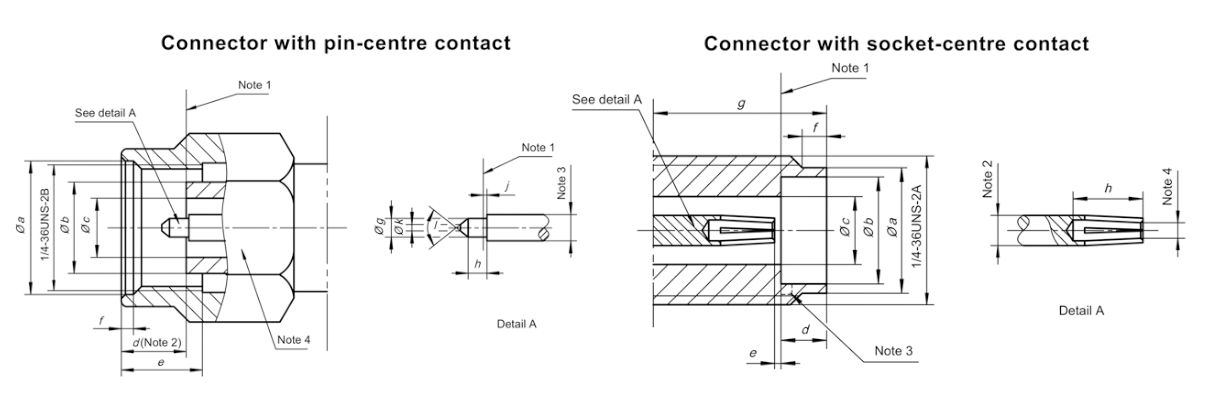

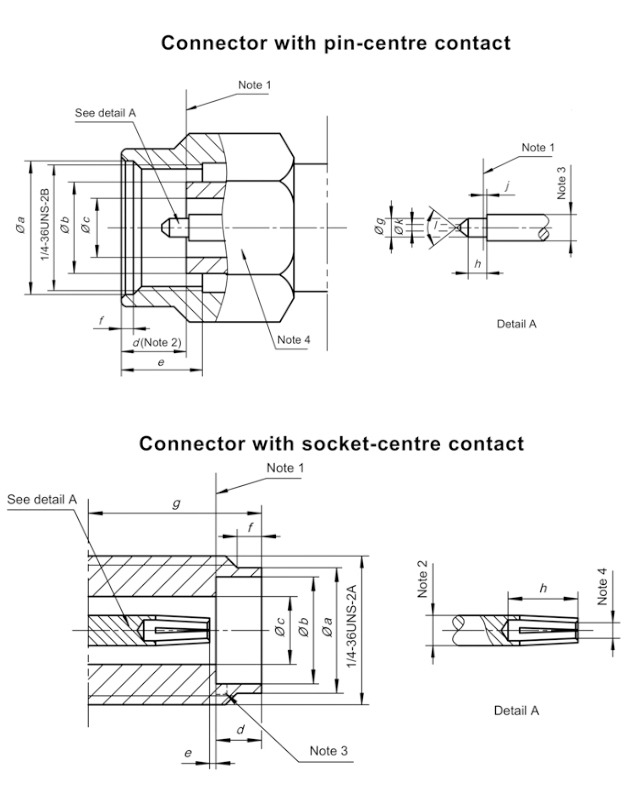

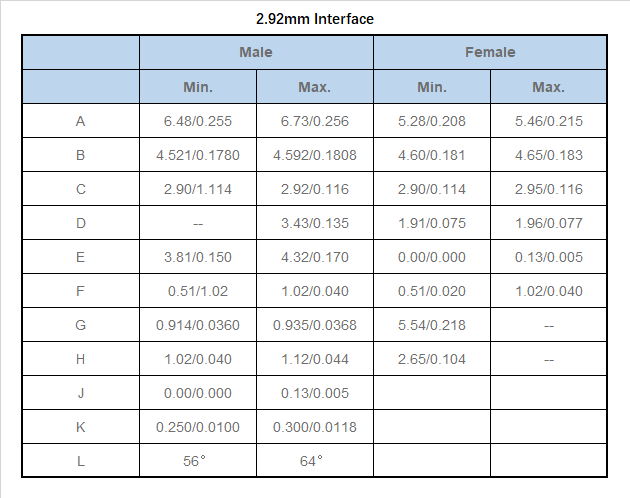

Interface MIL-STD-348/310



Male

Female



Min.

Max.

Min.

Max.

A

6.48/0.255

6.73/0.256

5.28/0.208

5.46/0.215

B

4.521/0.1780

4.592/0.1808

4.60/0.181

4.65/0.183

C

2.90/1.114

2.92/0.116

2.90/0.114

2.95/0.116

D

--

3.43/0.135

1.91/0.075

1.96/0.077

E

3.81/0.150

4.32/0.170

0.00/0.000

0.13/0.005

F

0.51/1.02

1.02/0.040

0.51/0.020

1.02/0.040

G

0.914/0.0360

0.935/0.0368

5.54/0.218

--

H

1.02/0.040

1.12/0.044

2.65/0.104

--

J

0.00/0.000

0.13/0.005





K

0.250/0.0100

0.300/0.0118





L

56°

64°
