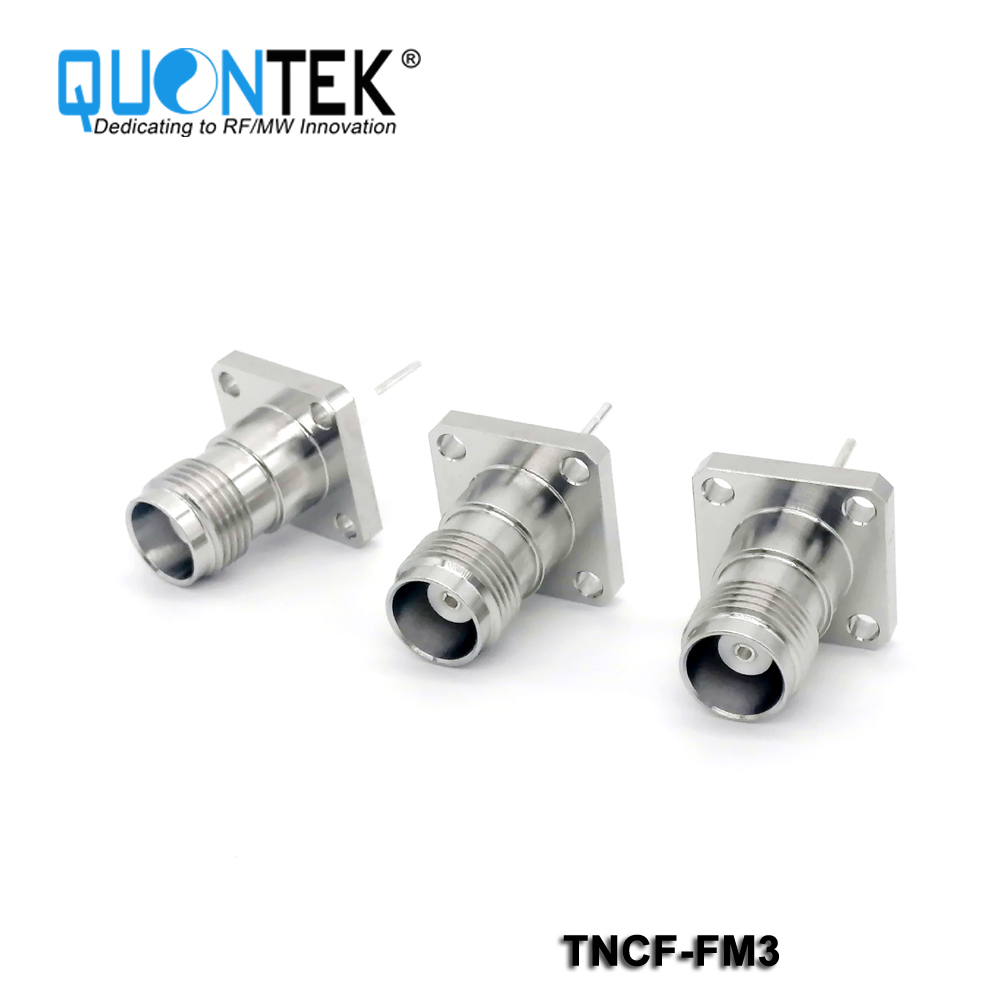

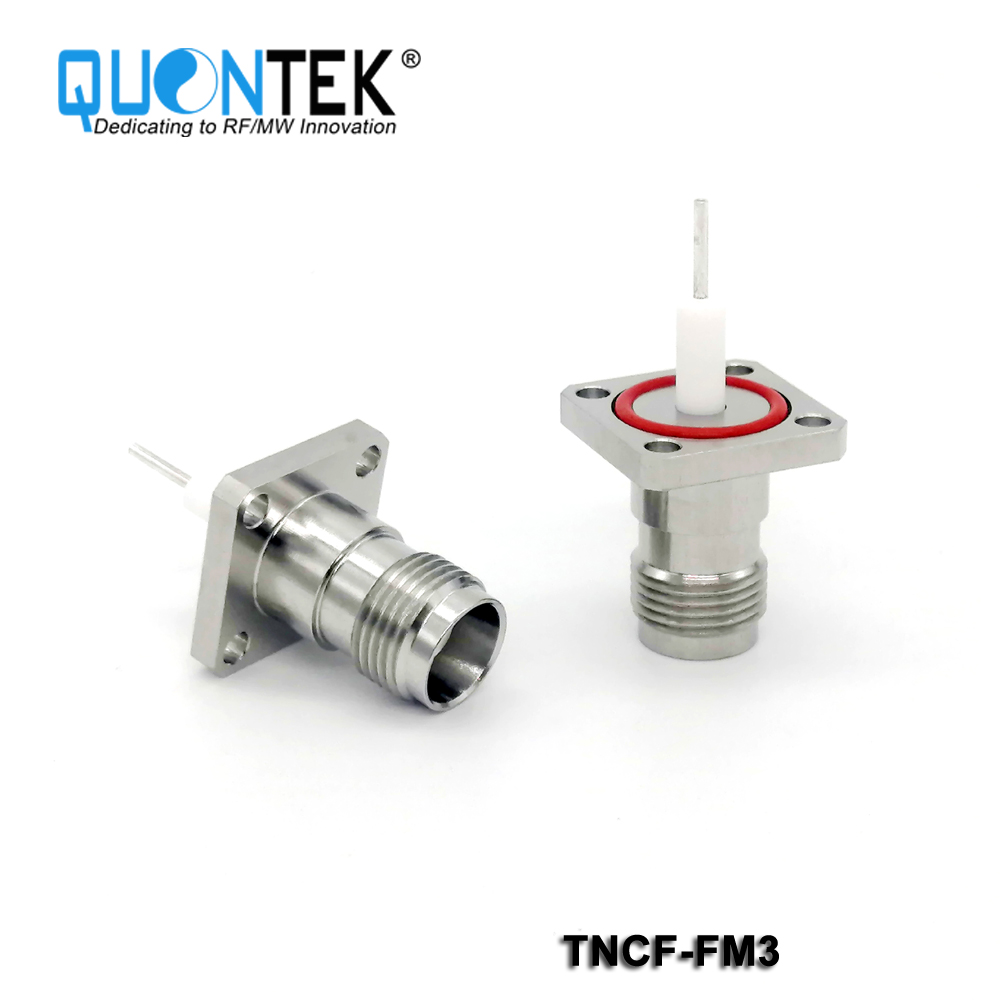

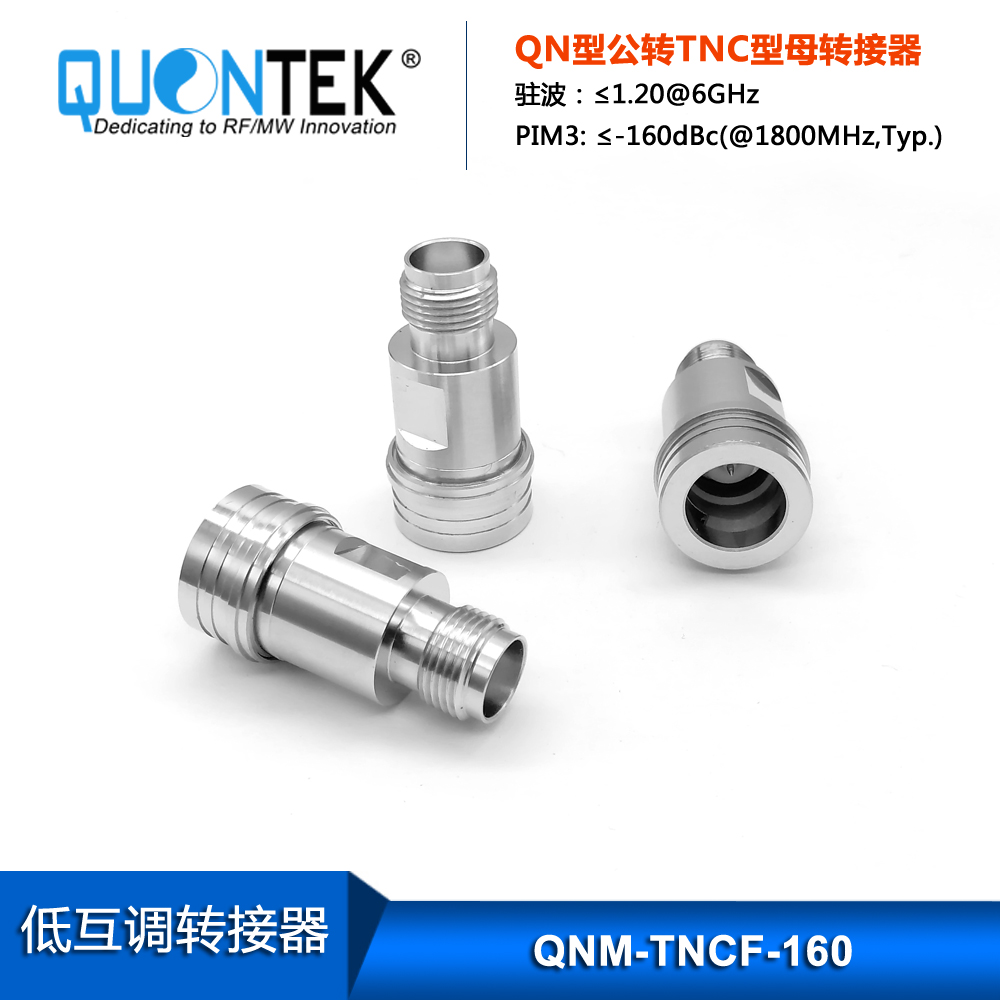

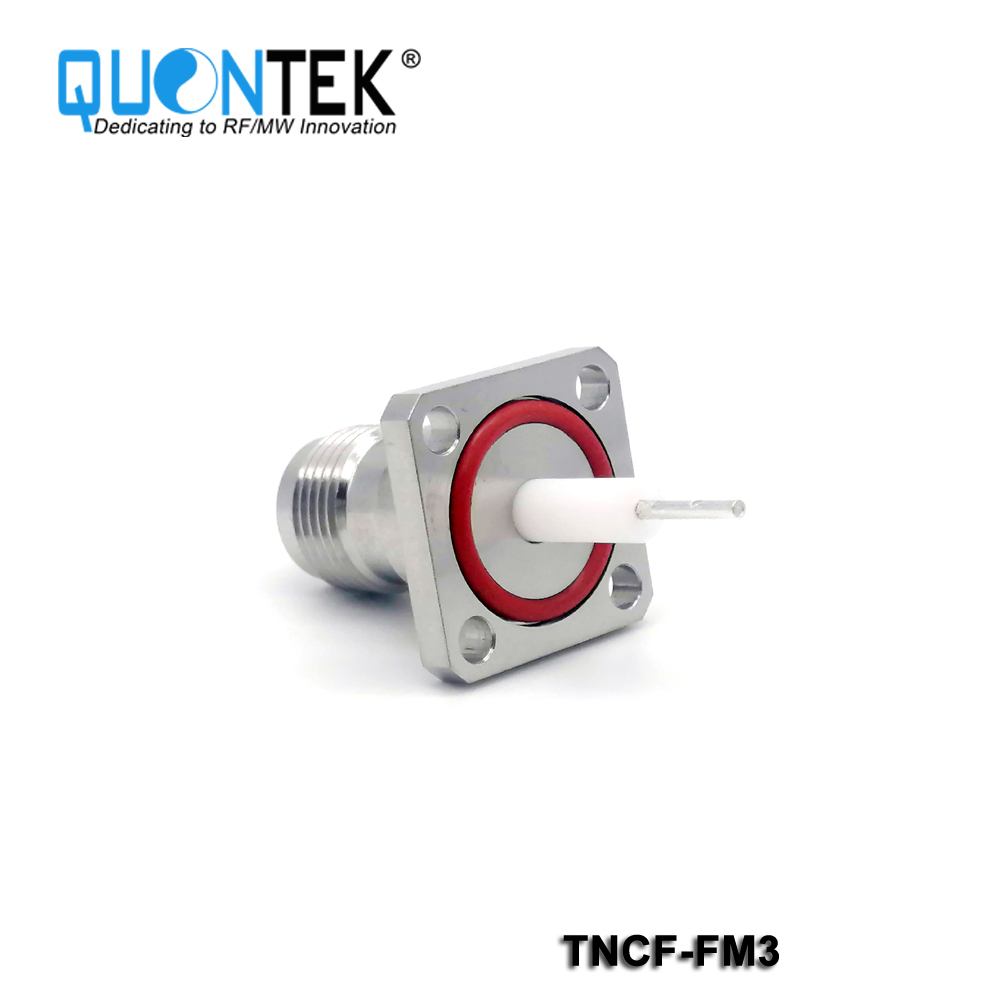

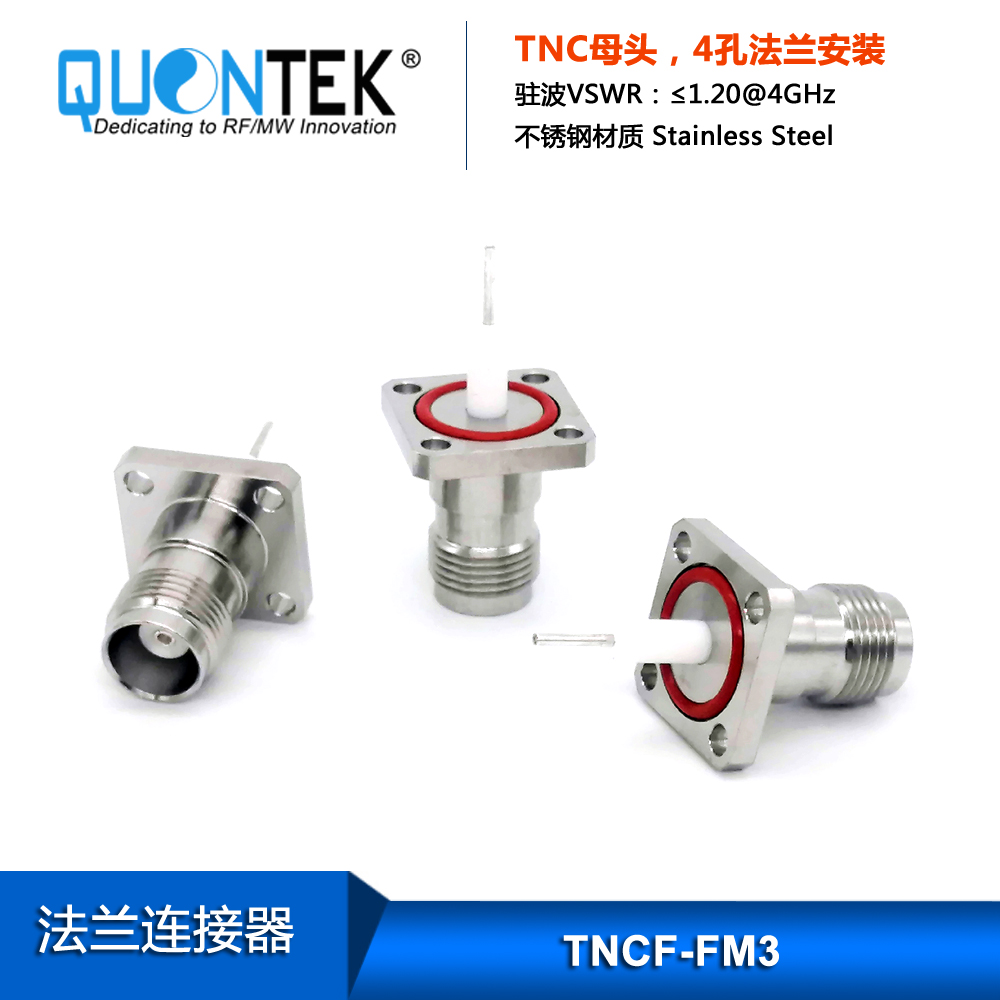

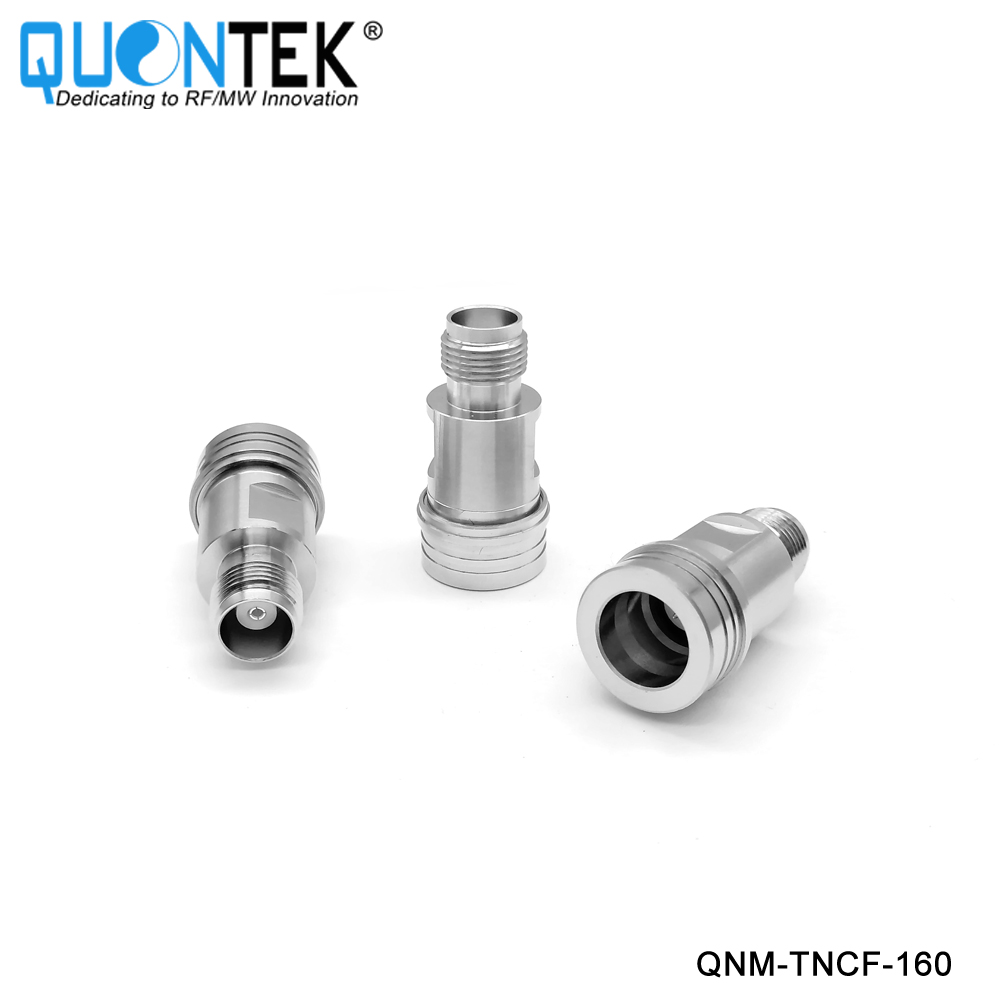

TNC type Connectors
Description
QUONTEK TNC connectors are threaded RF connectors applicable from DC up to 11 GHz. The threaded coupling mechanism improves control over the interface dimensions and allows them to be used under a higher environmental load than BNC, especially under a high vibration load.
Features
• Frequency range up to 11 GHz
• Excellent return loss

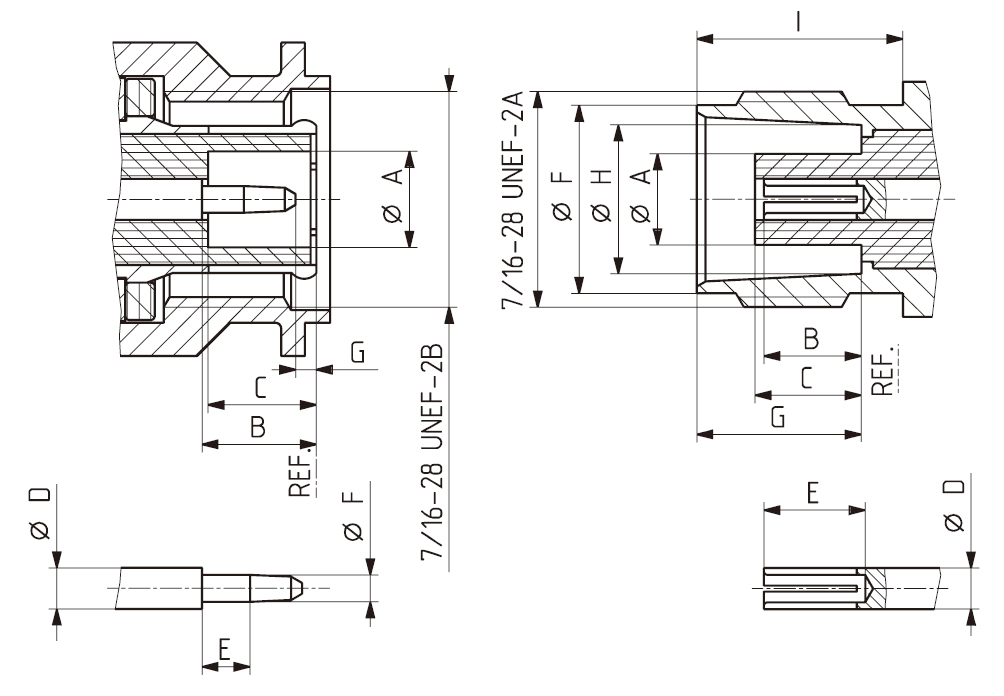

• The TNC interface dimensions conform to the following standards:
International: IEC 61169-17
USA: MIL-PRF-39012 TNC
Interface MIL-STD-348
Europe: CECC22200
| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | 4.83/0.19 | -- | -- | 4.72/0.186 |
B | 5.33/0.210 | 5.84/0.230 | 4.72/0.186 | 5.23/0.206 |
C | 5.28/0.208 | 5.79/0.228 | 4.78/0.188 | 5.28/0.208 |
D | 2.06/0.081 | 2.21/0.087 | 2.06/0.081 | 2.21/0.087 |
E | 1.98/0.078 | -- | 4.95/0.195 | -- |
F | 1.32/0.052 | 1.37/0.054 | 9.60/0.378 | 9.70/0.382 |
G | 0.08/0.003 | -- | 8.31/0.327 | 8.51/0.335 |
H | -- | - | 8.10/0.319 | 8.15/0.321 |
I | -- | -- | 10.52/0.414 | -- |

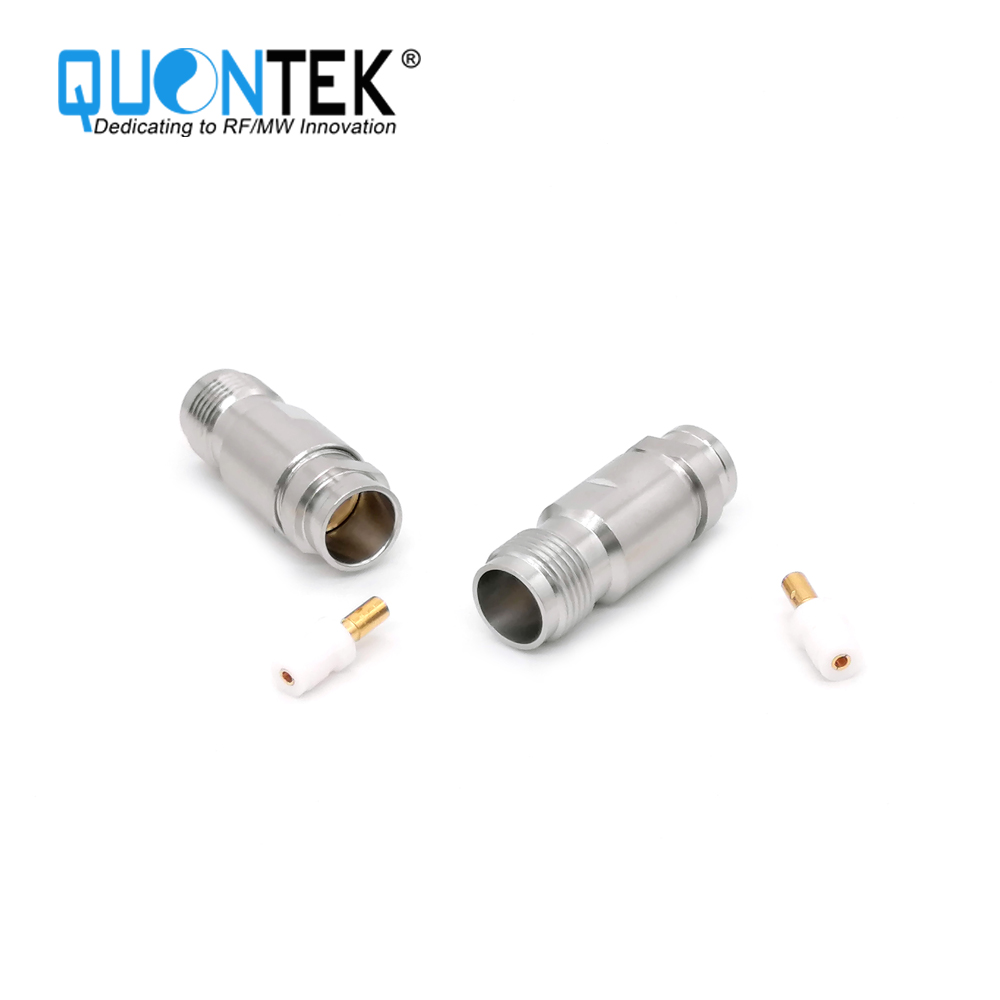

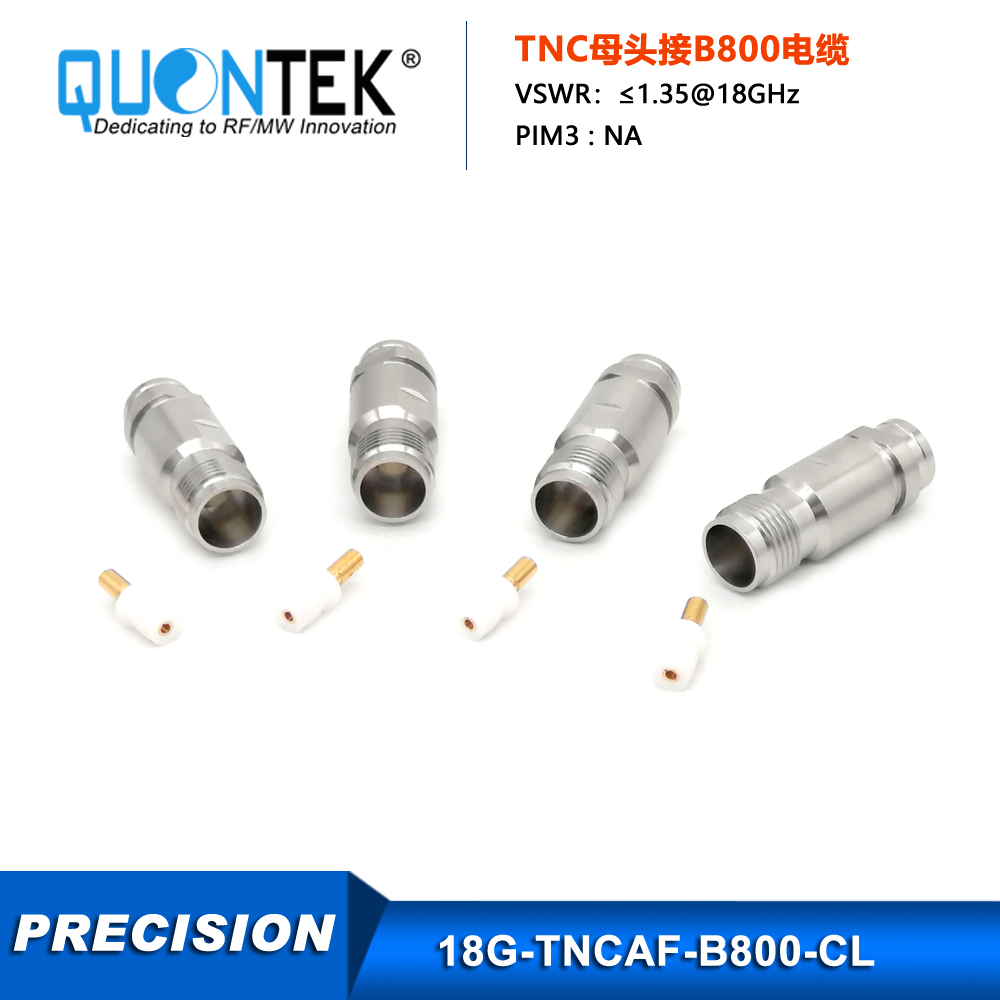

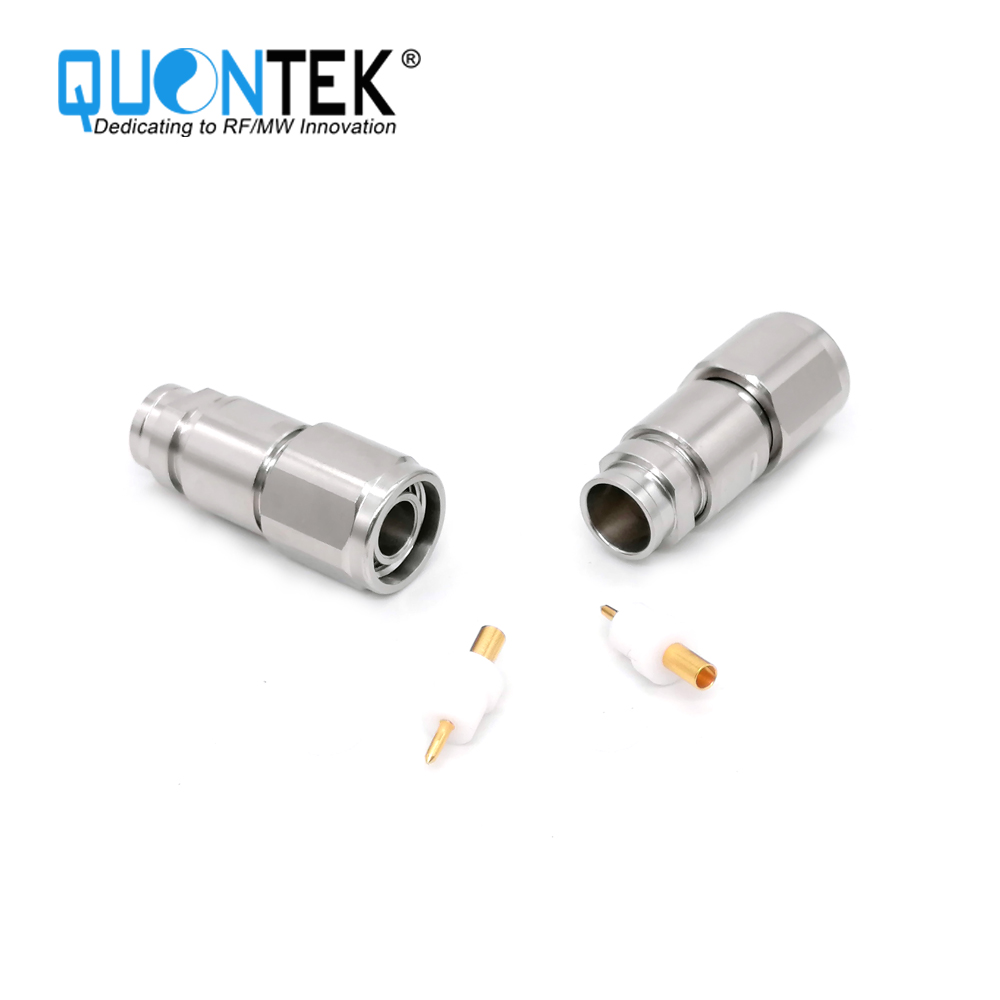

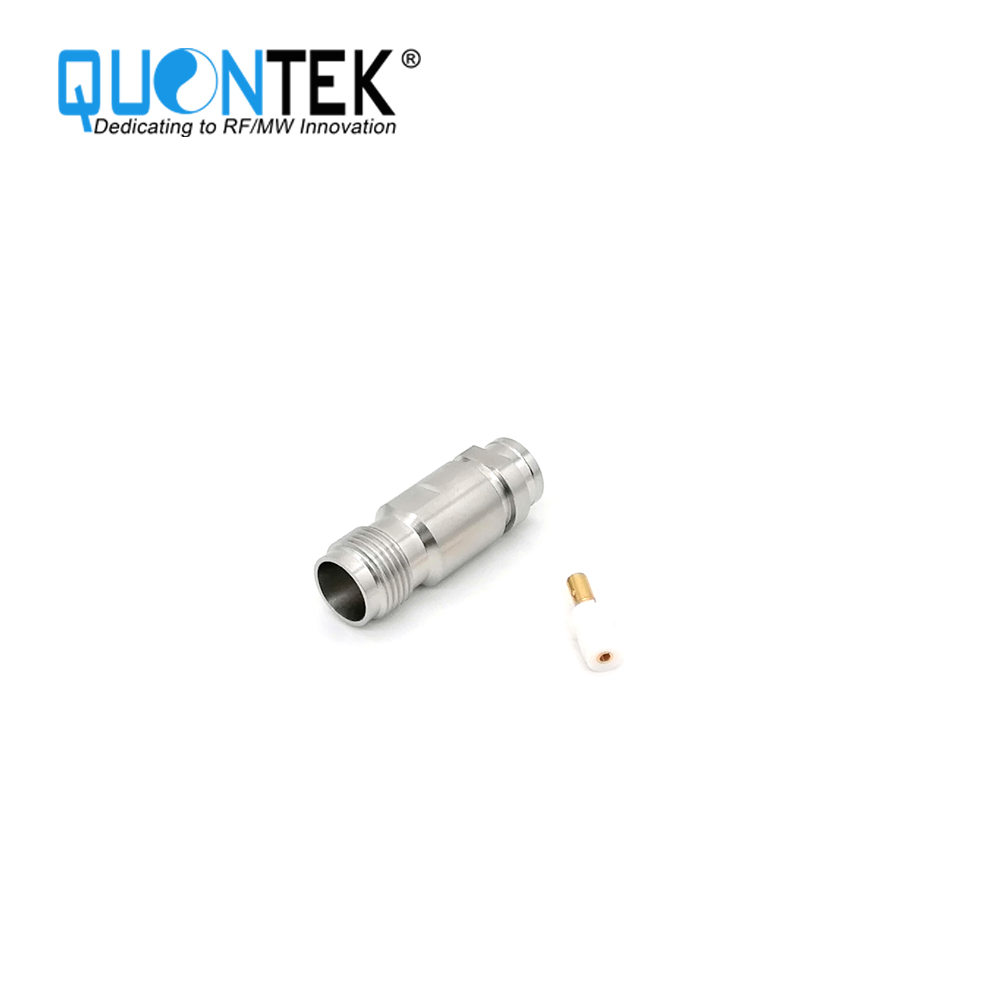

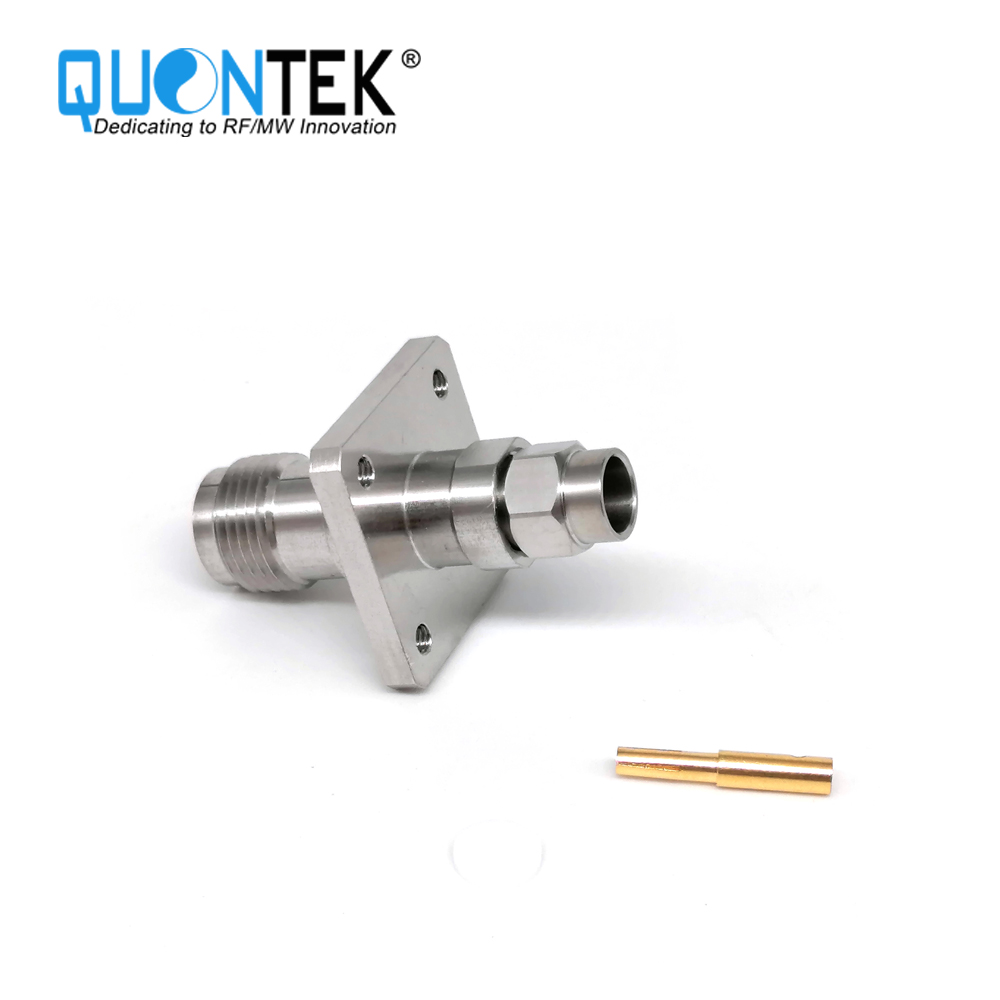

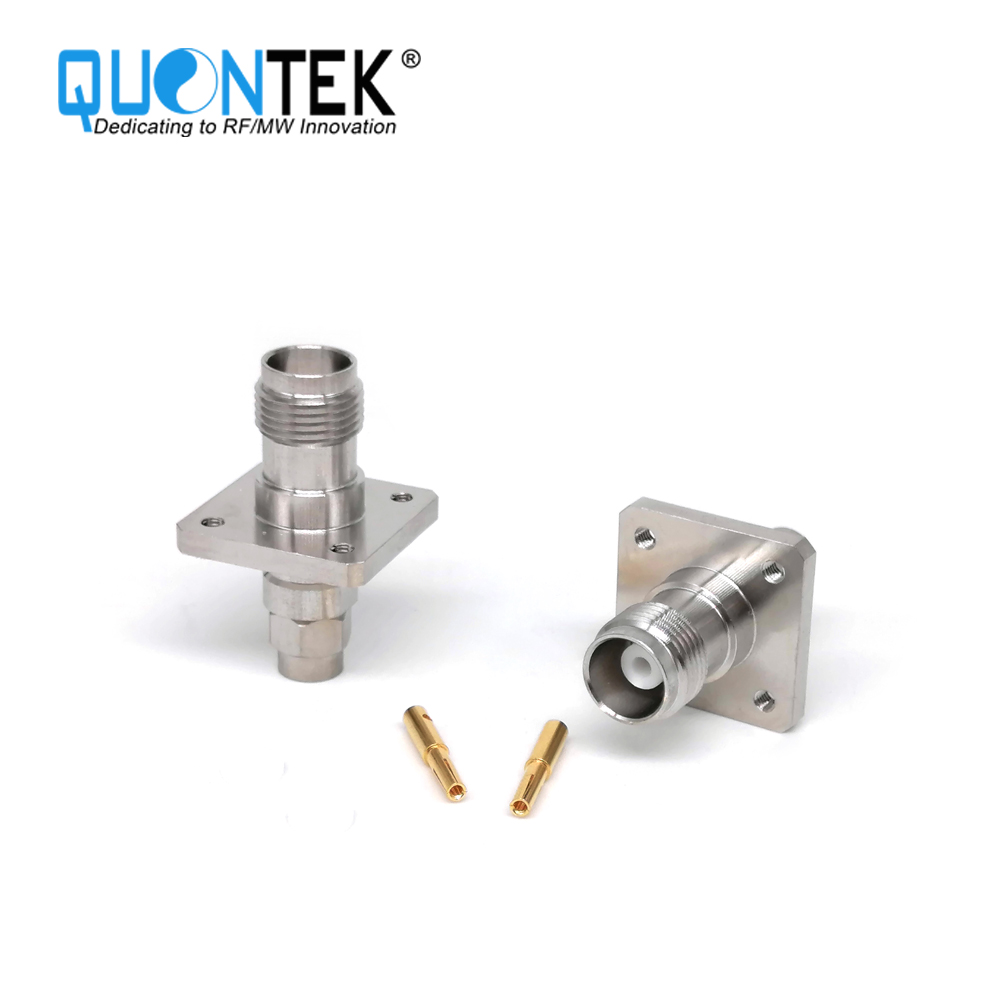

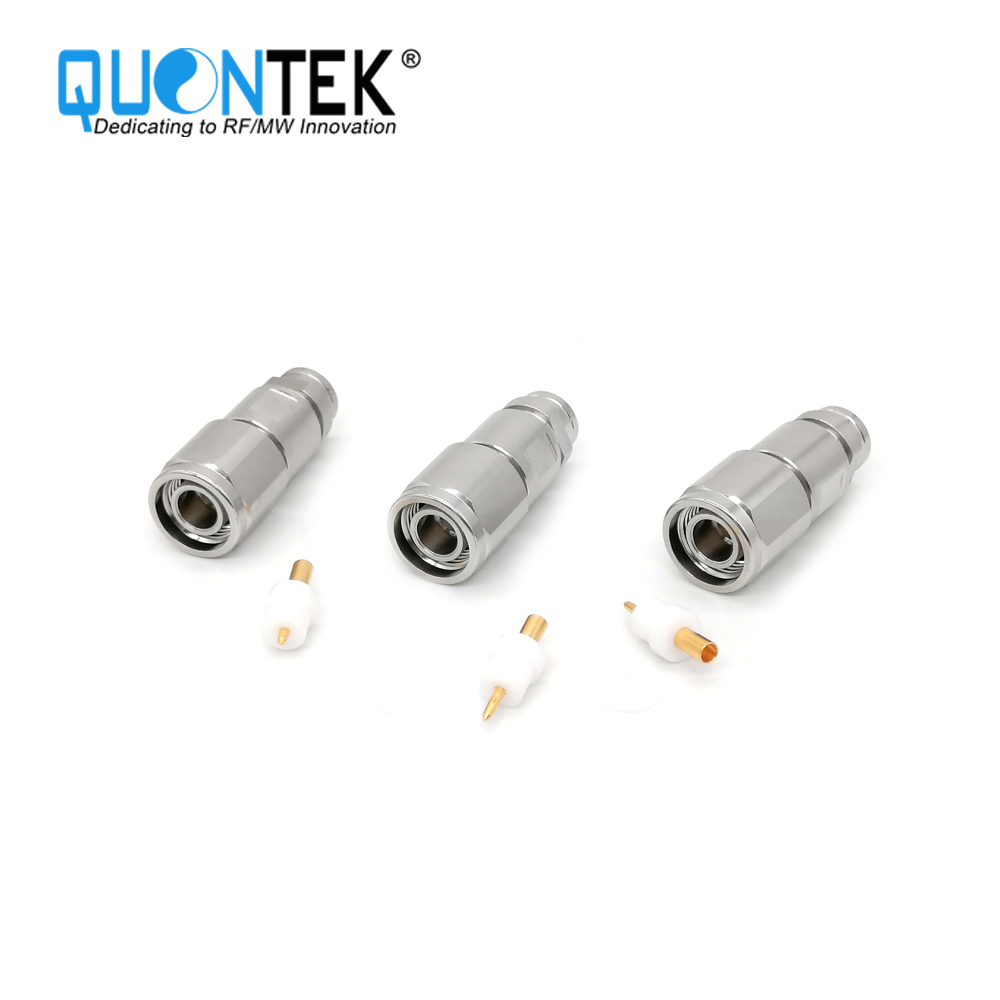

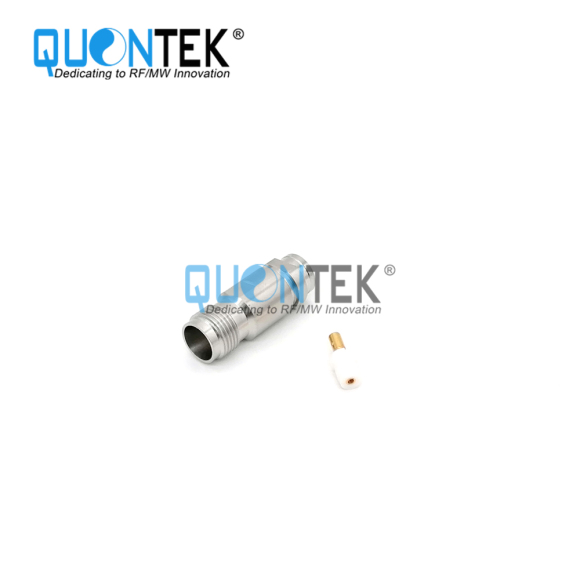

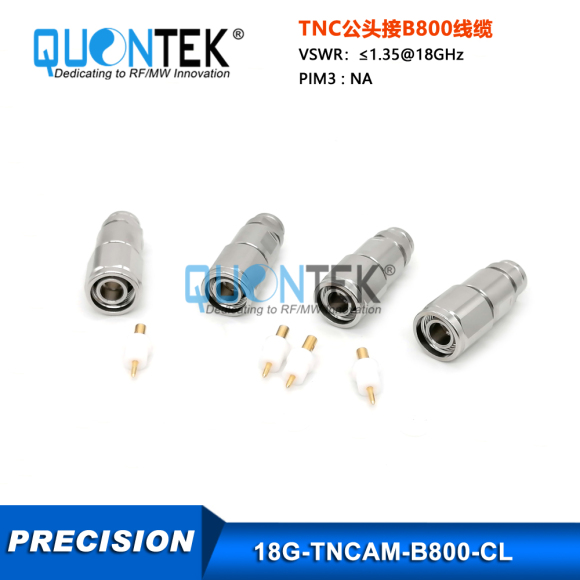

TNCA female for QTB800 Cable,Clamp Type,to 18GHz

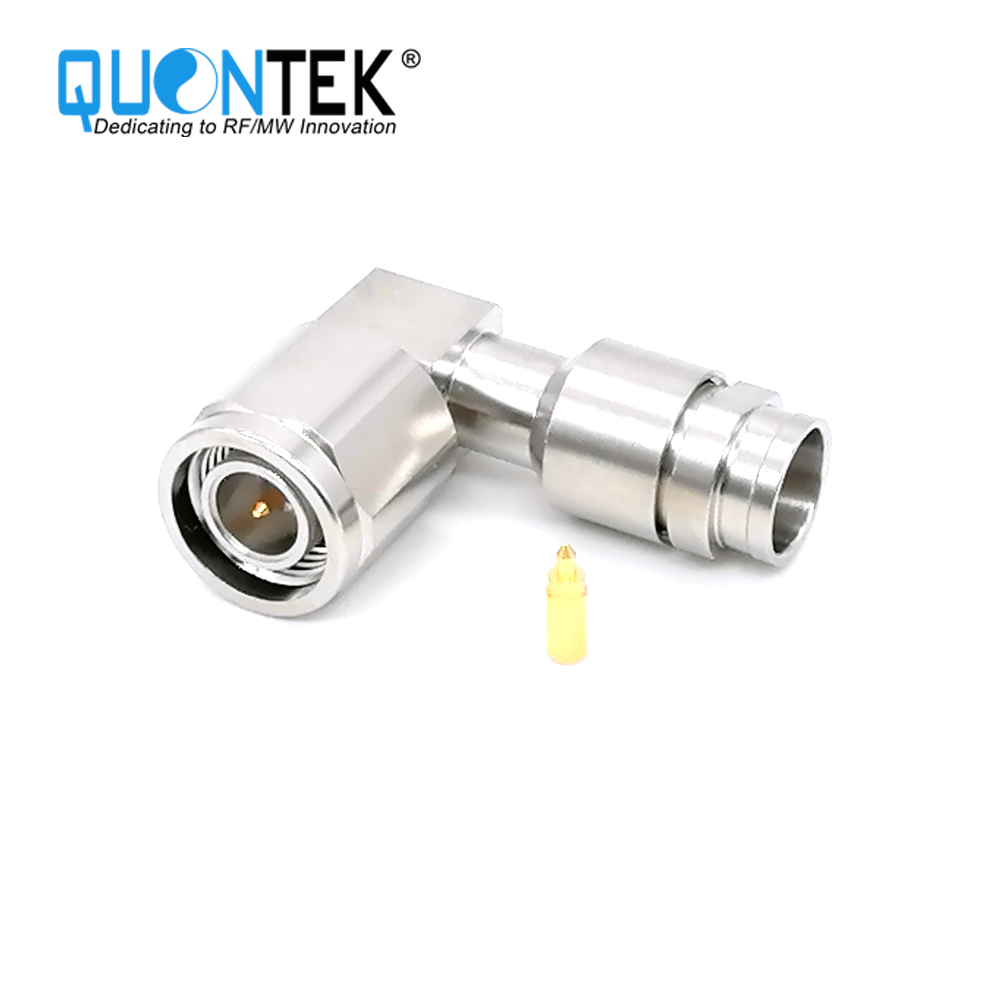

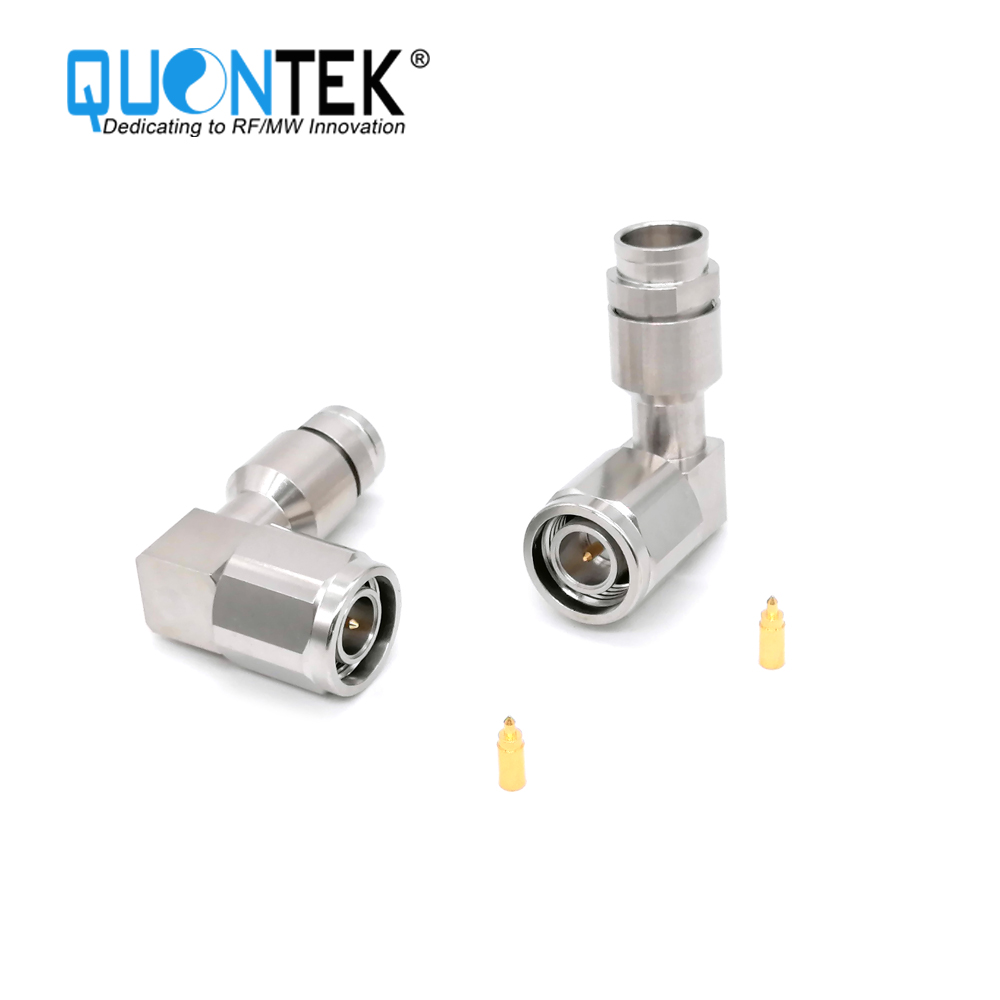

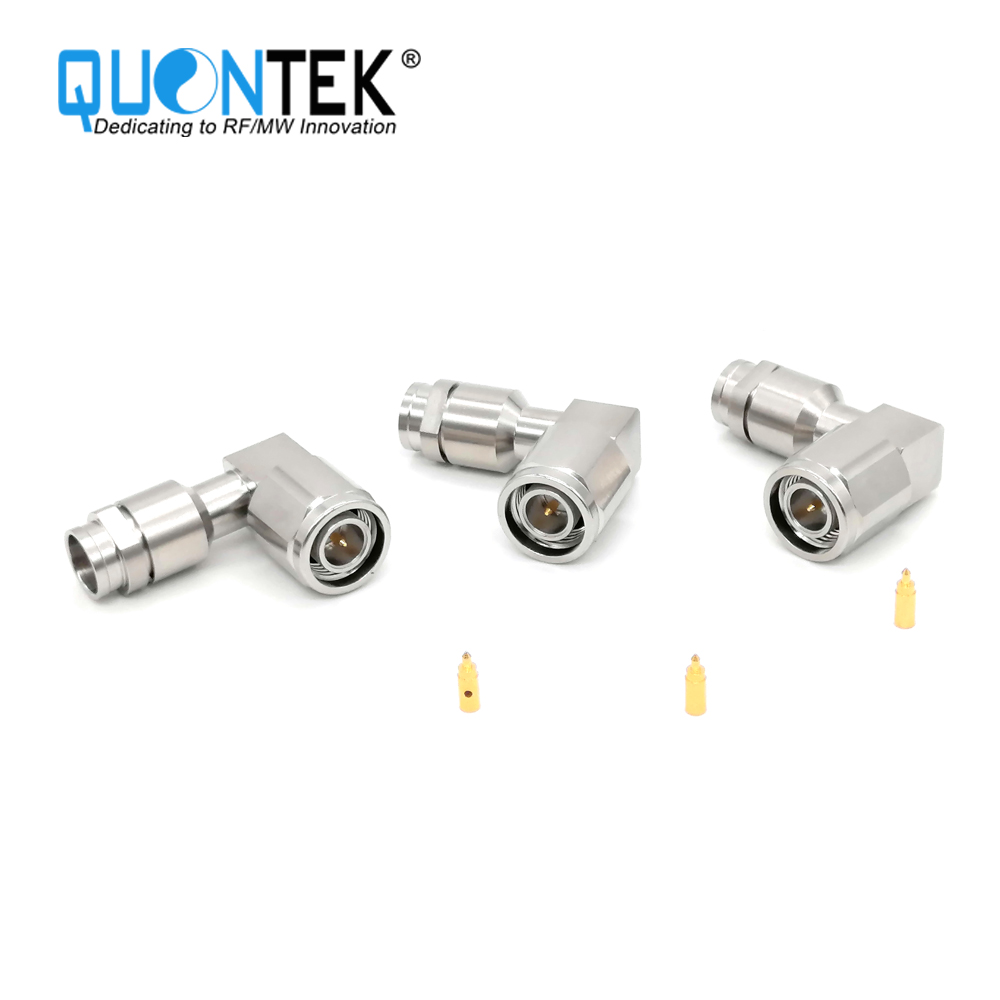

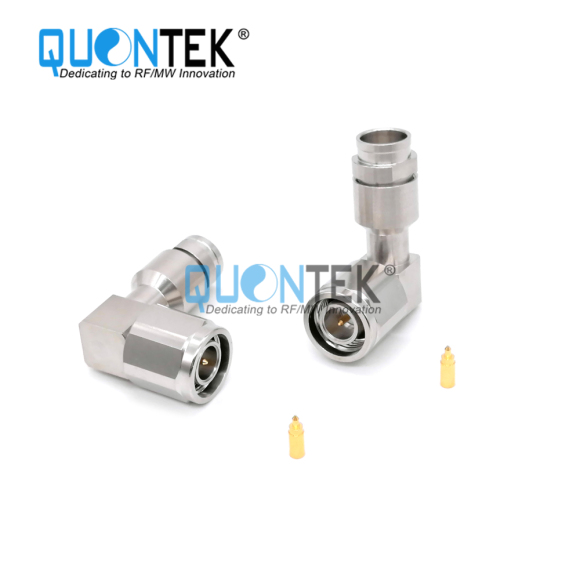

TNCA RA Male for QTB800 Cable,Clamp Type,to 18GHz

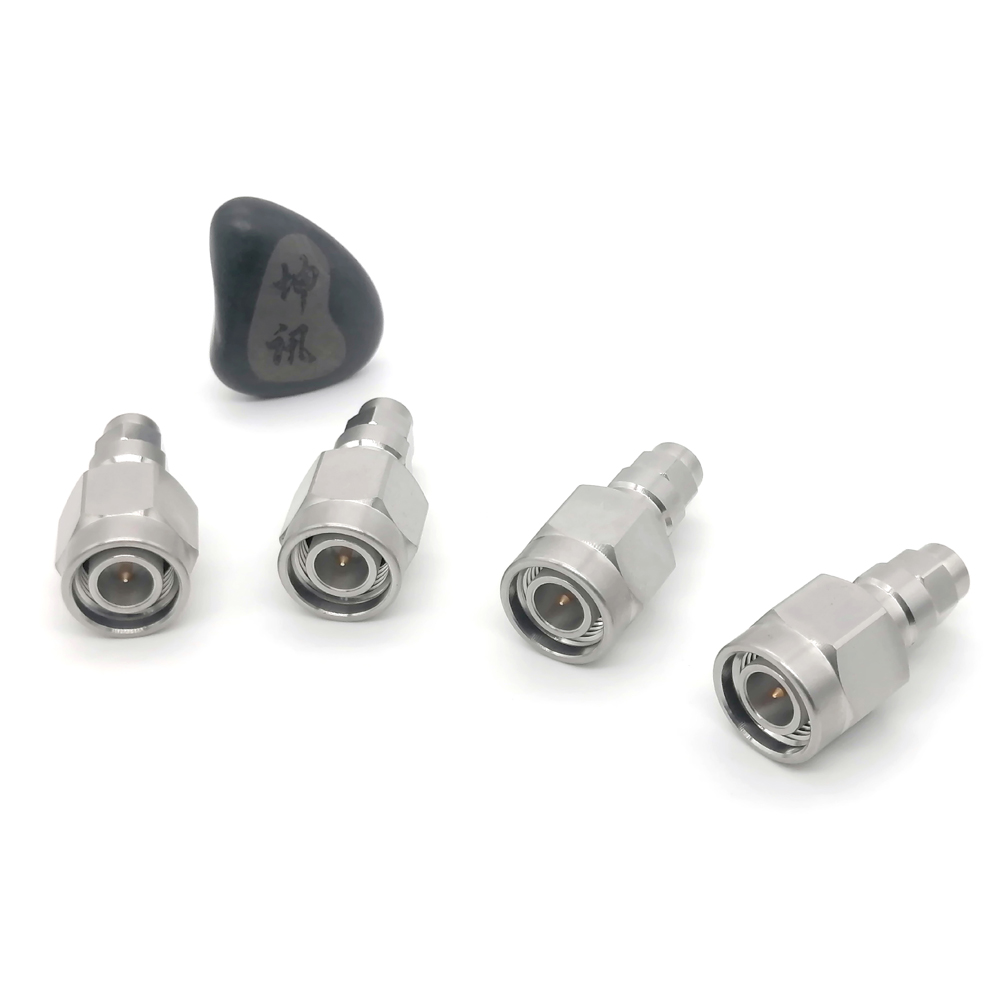

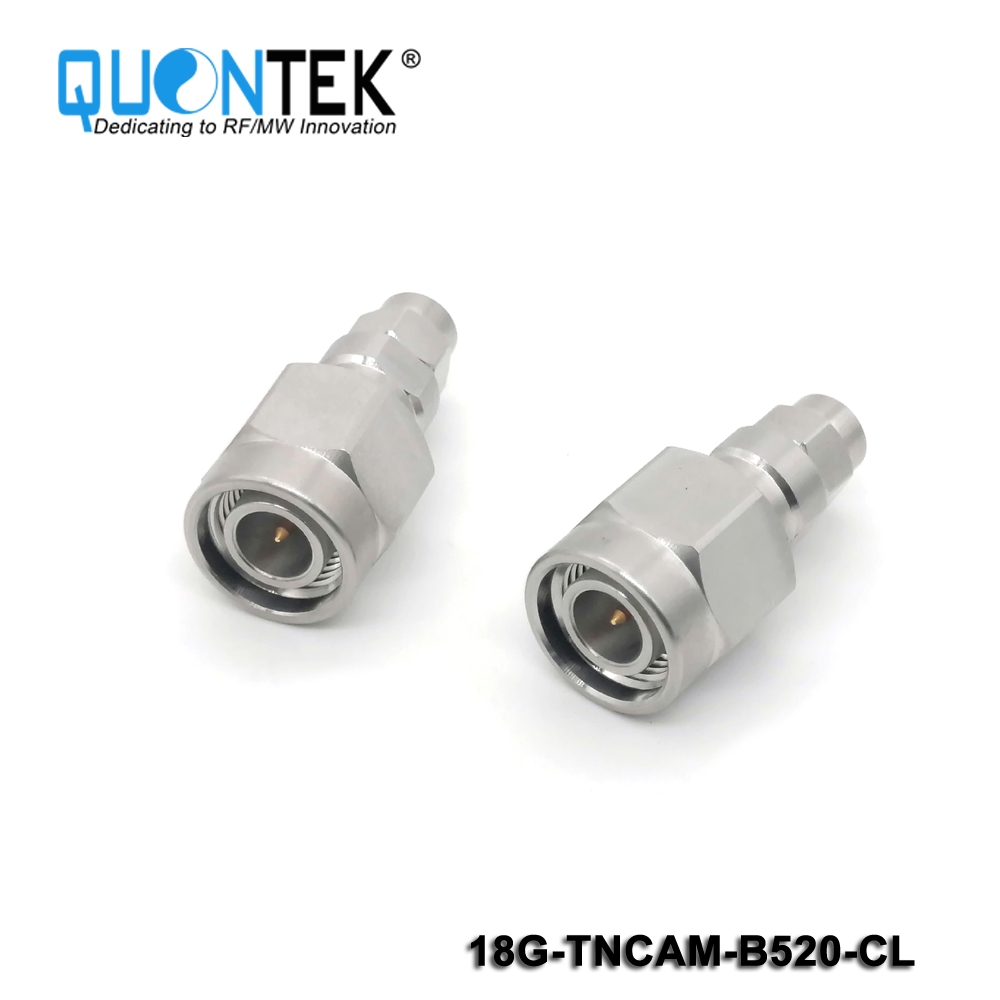

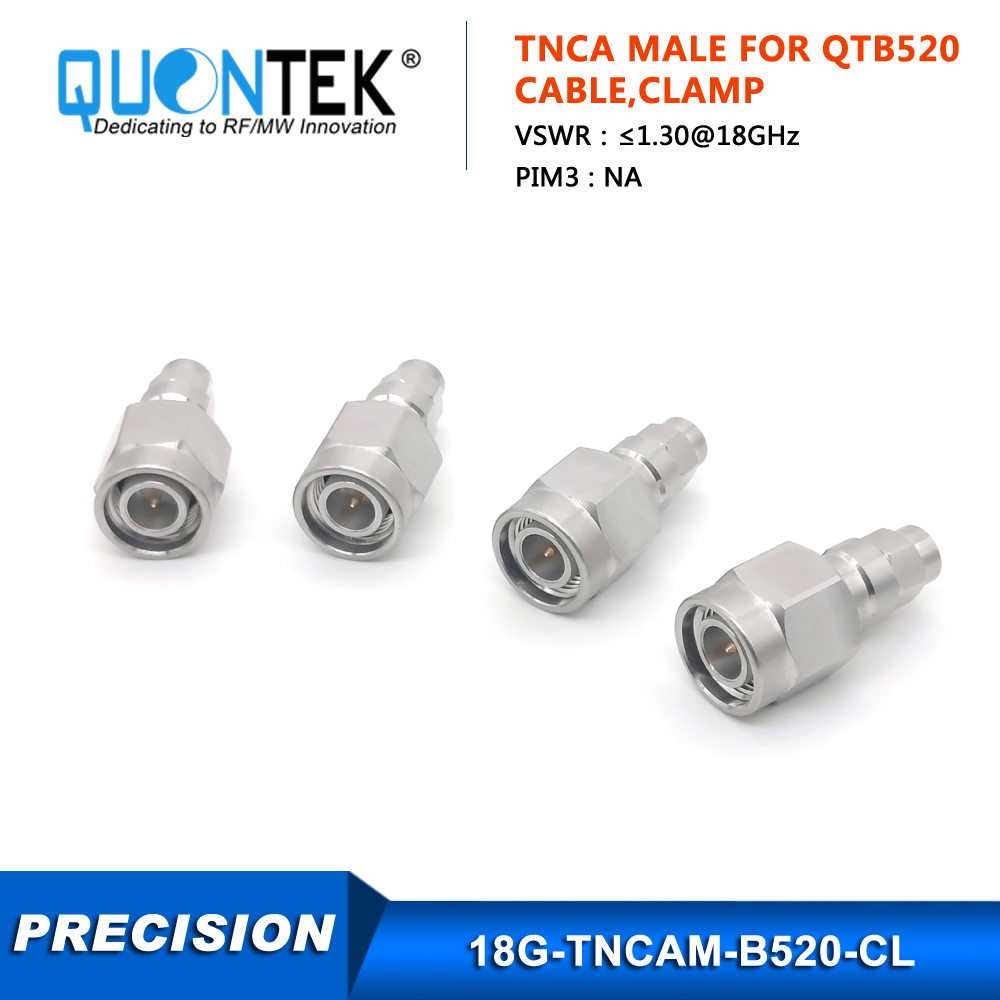

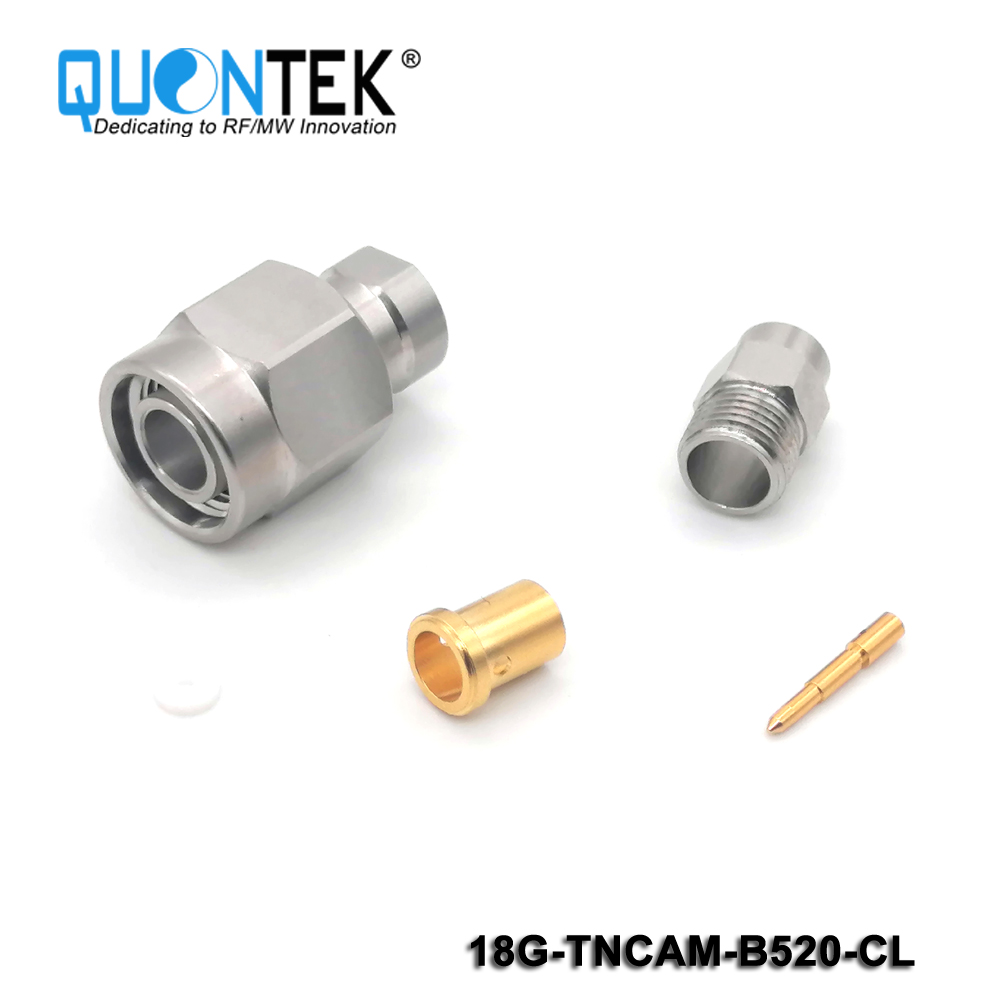

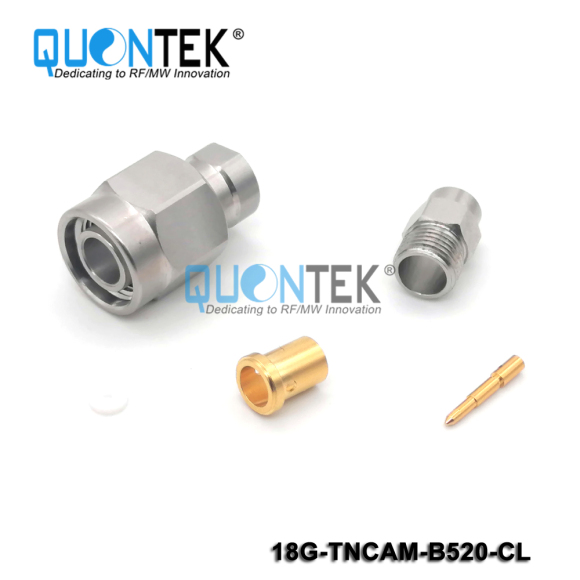

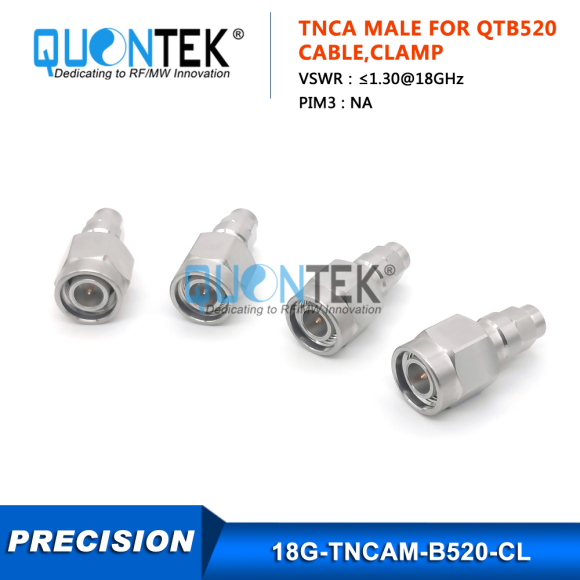

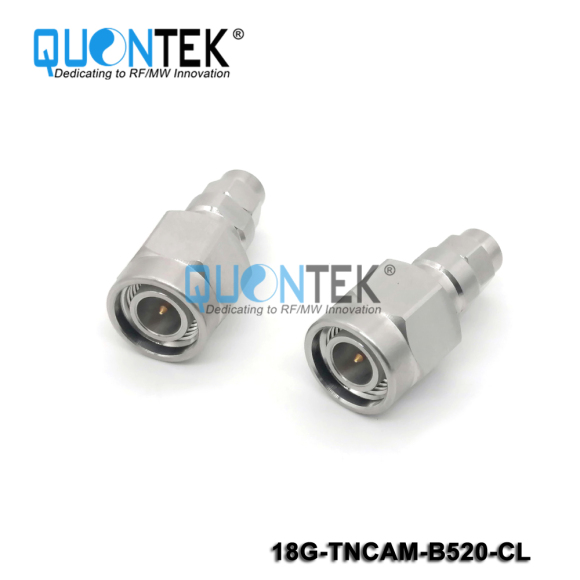

Precision connctor,TNCA male for QTB520 cable,Clamp type,to 18GHz

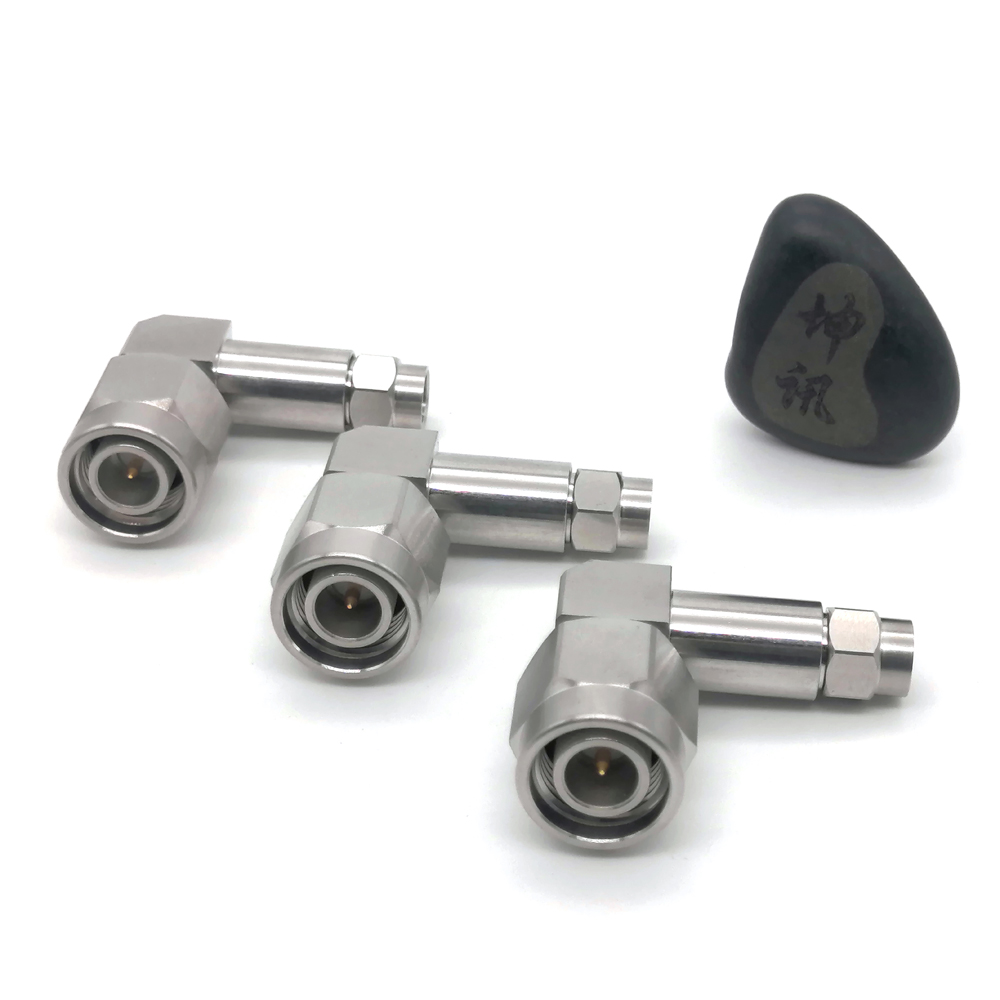

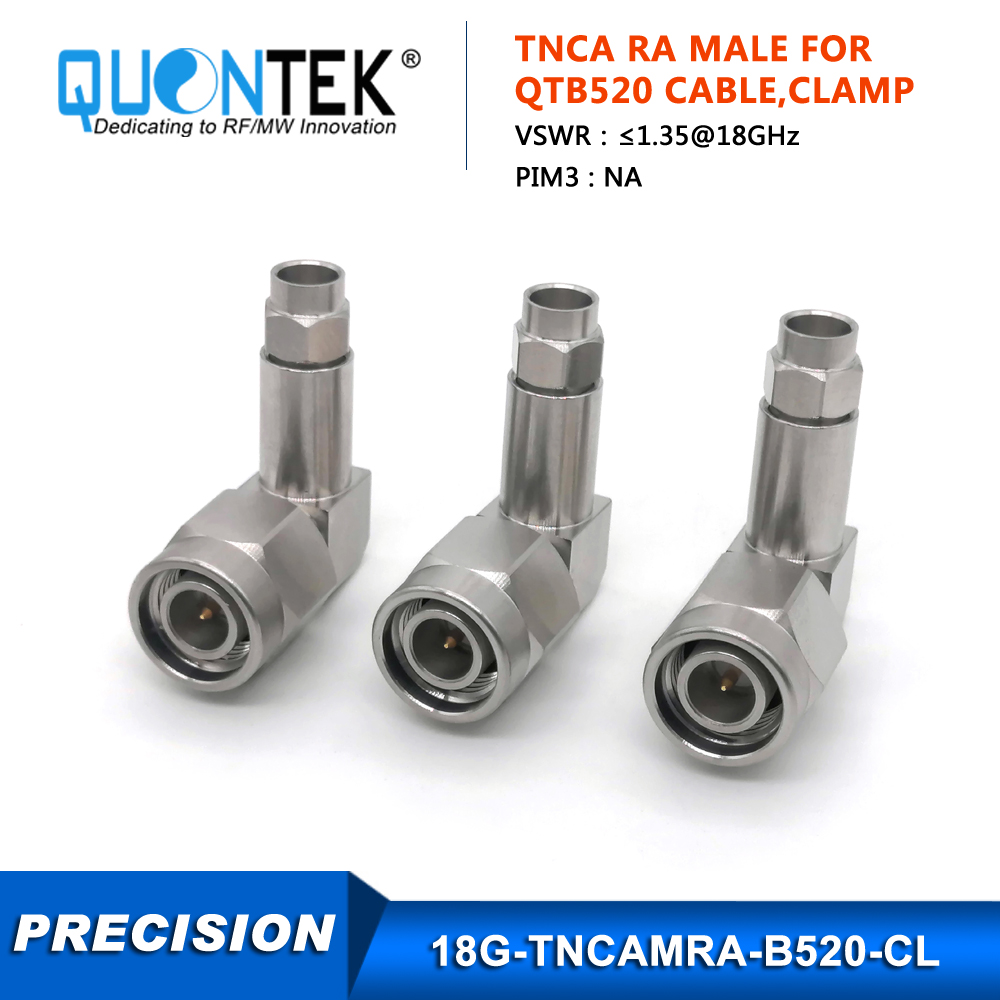

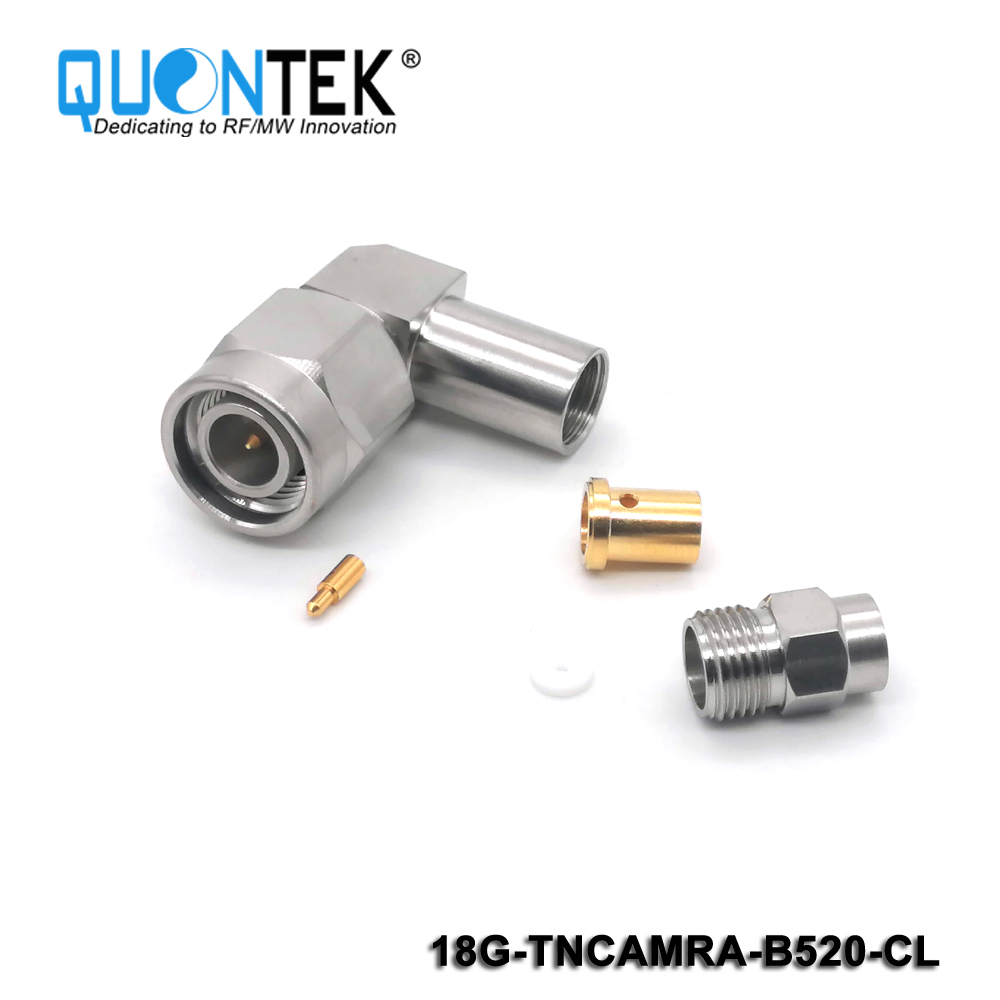

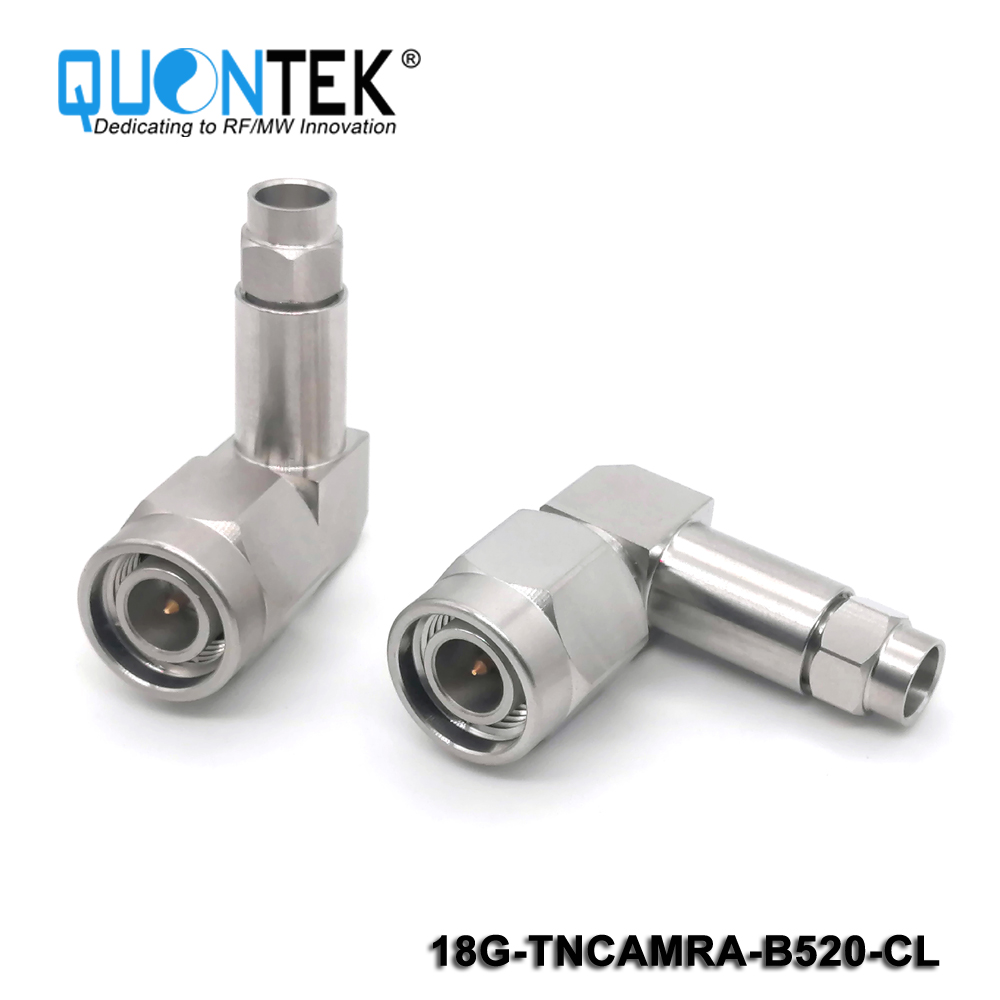

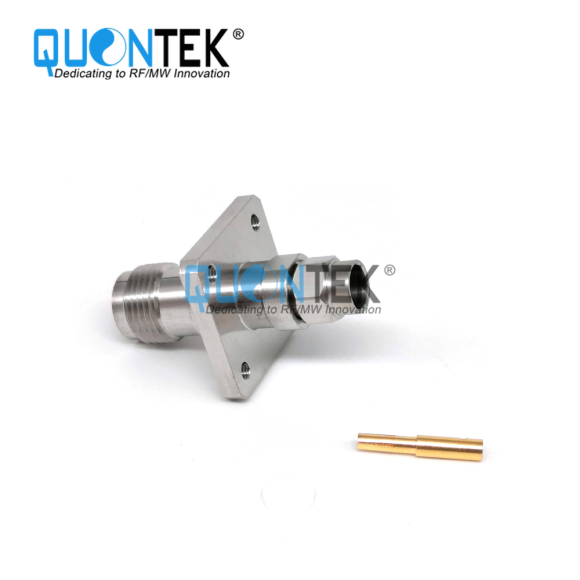

Precision connctor,TNCA RA male for QTB520 cable,Clamp type,to 18GHz

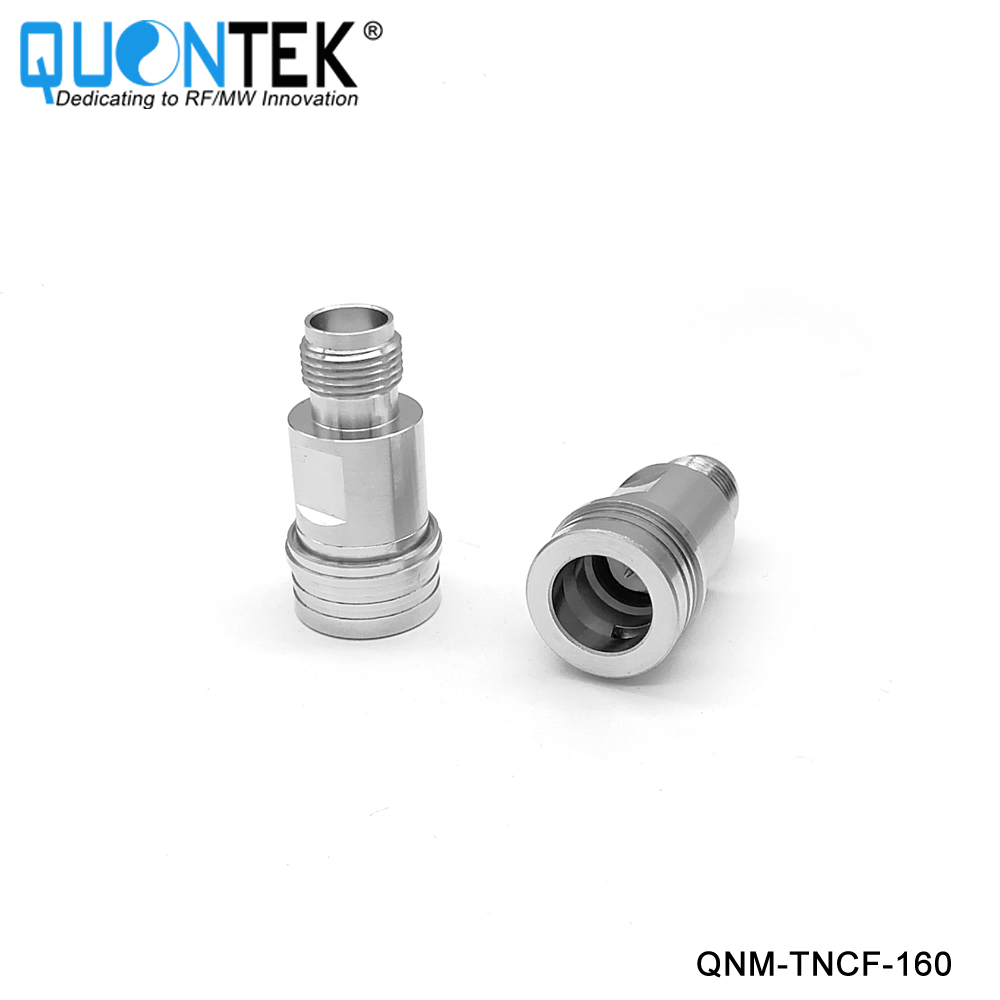

Standard Adapter,TNC Male to MMCX Female,Black zinc treatment

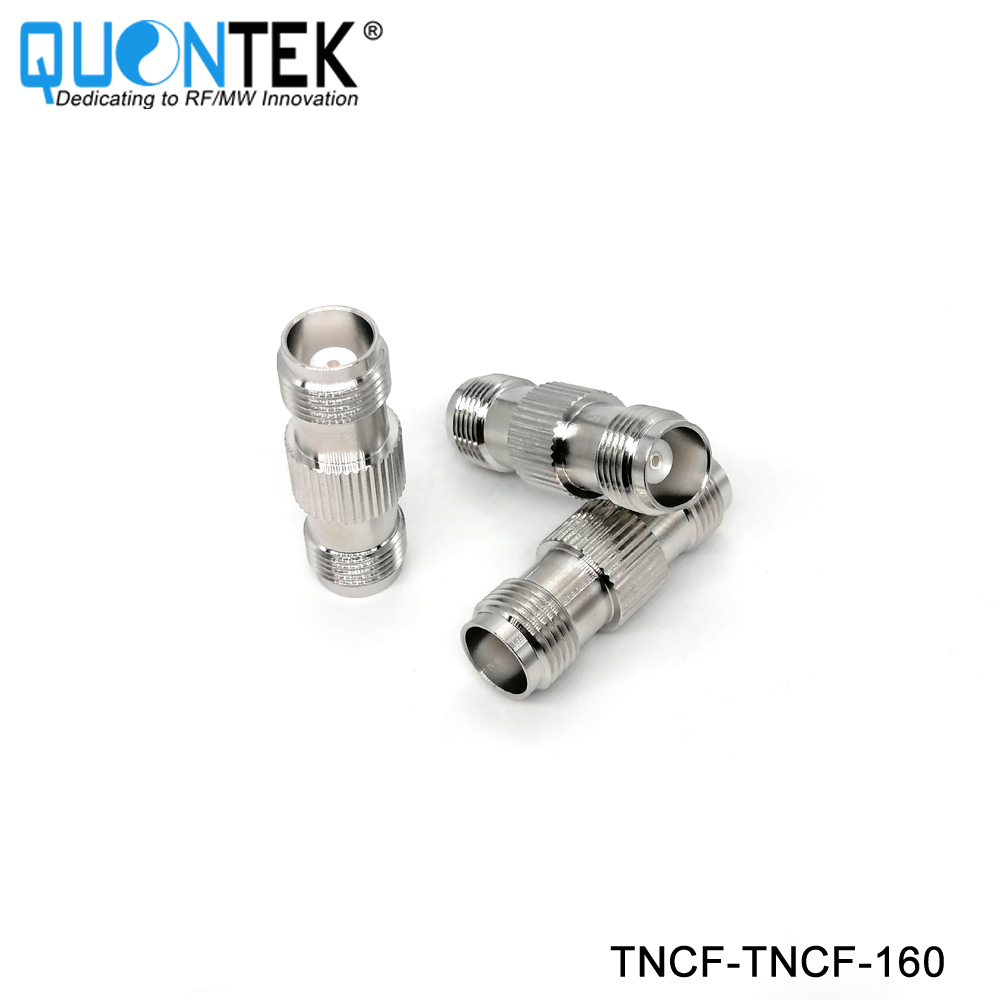

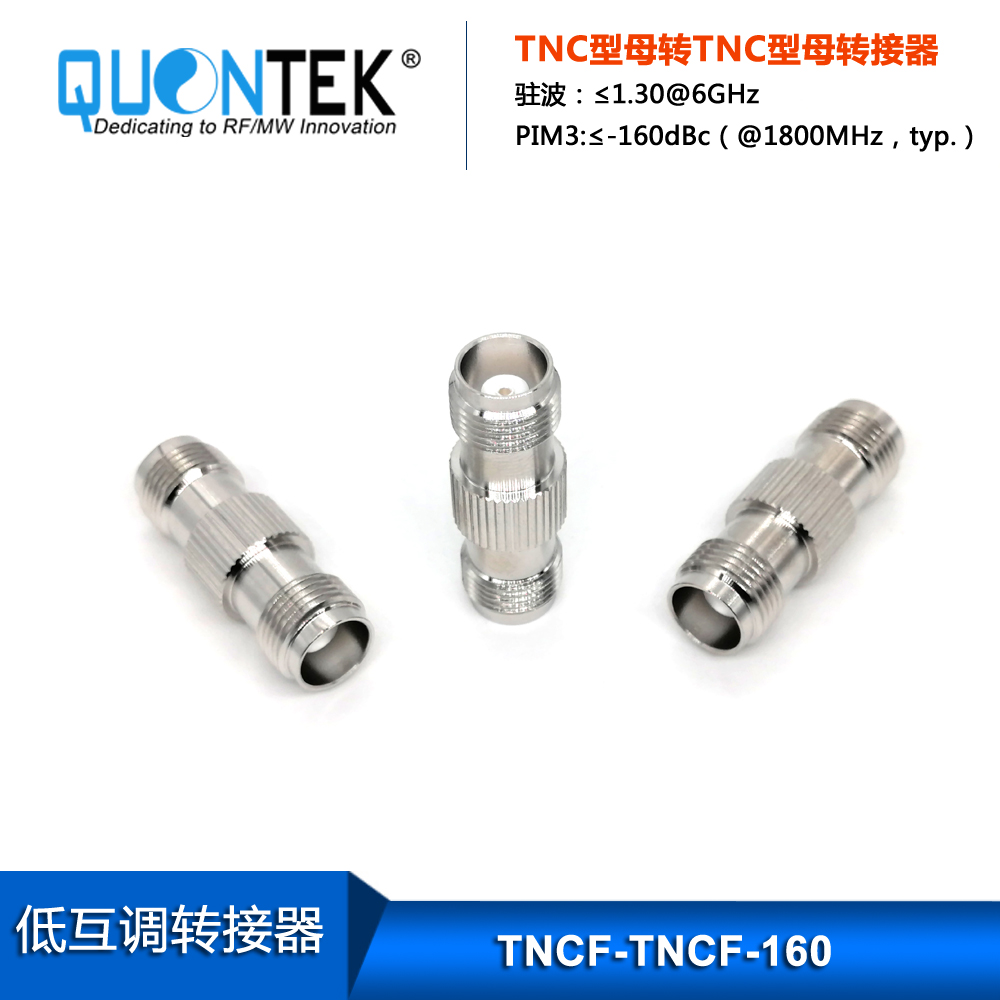

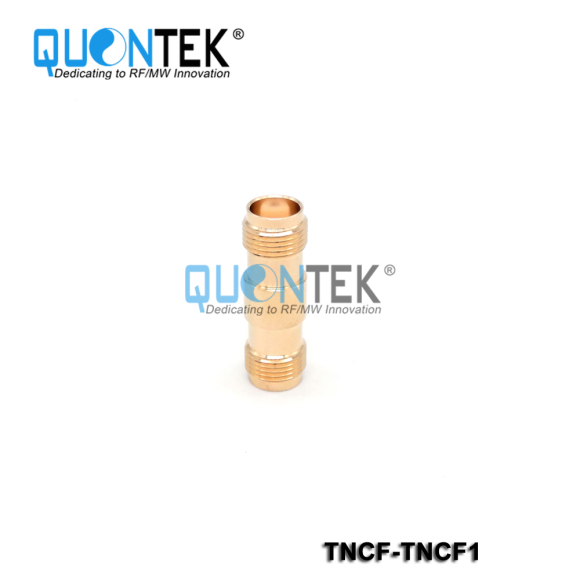

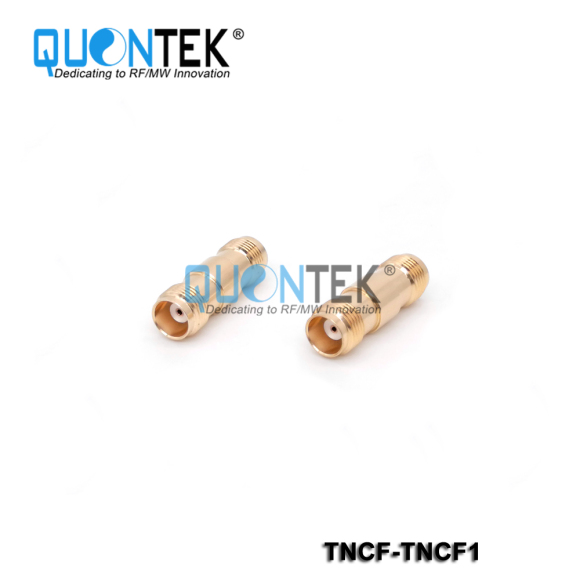

Standard Adapter,TNC female to TNC female,unplated
