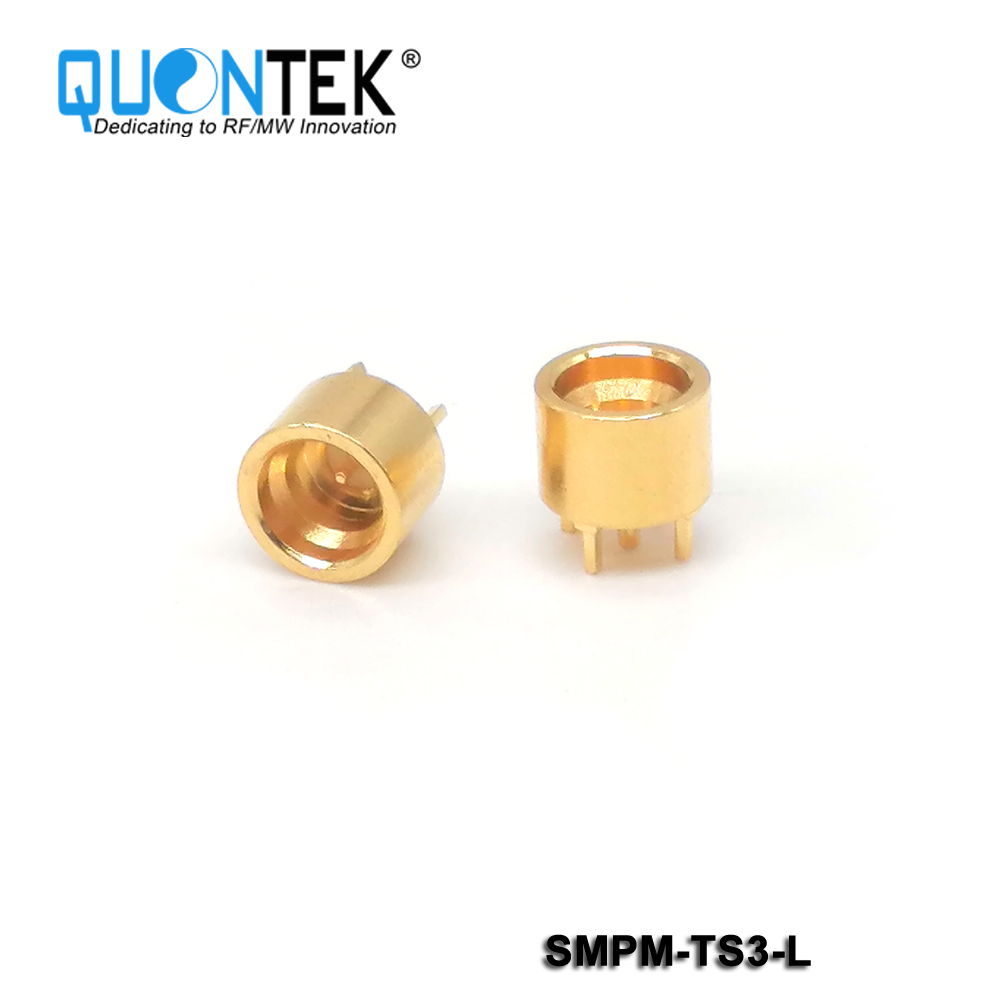

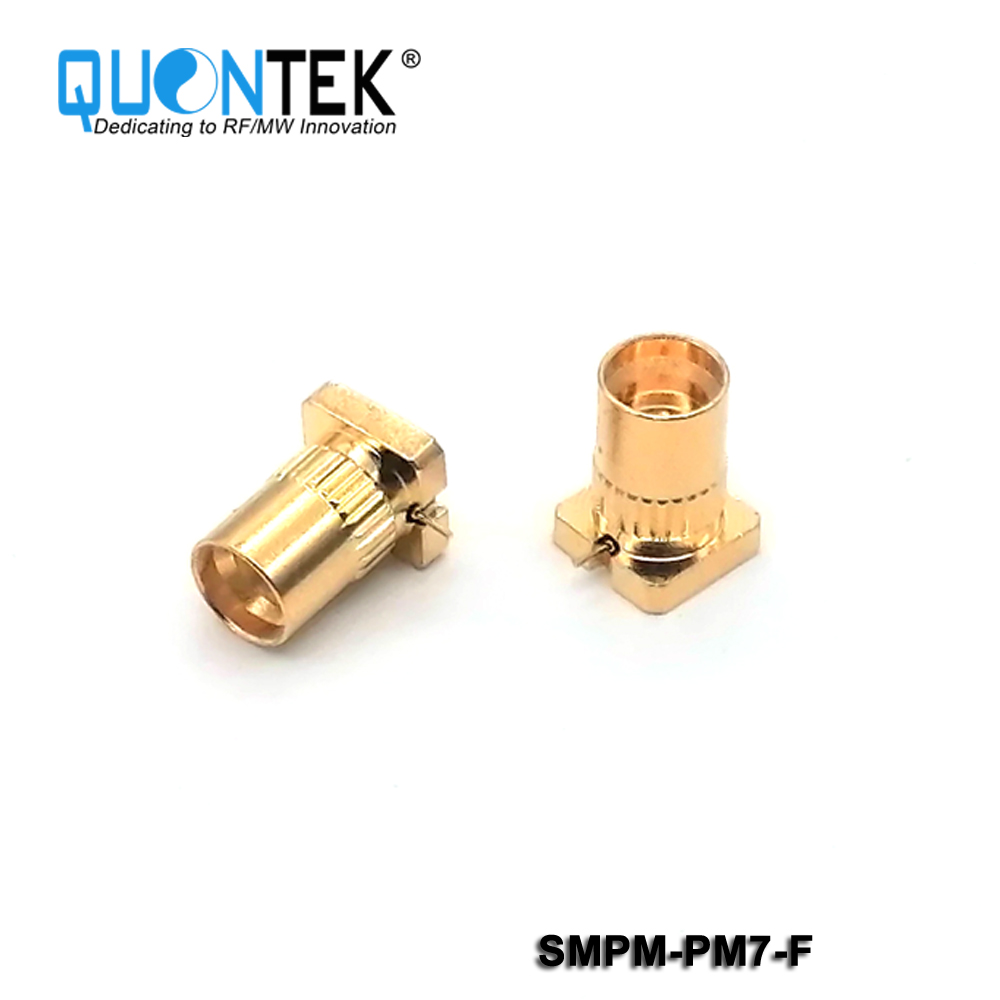

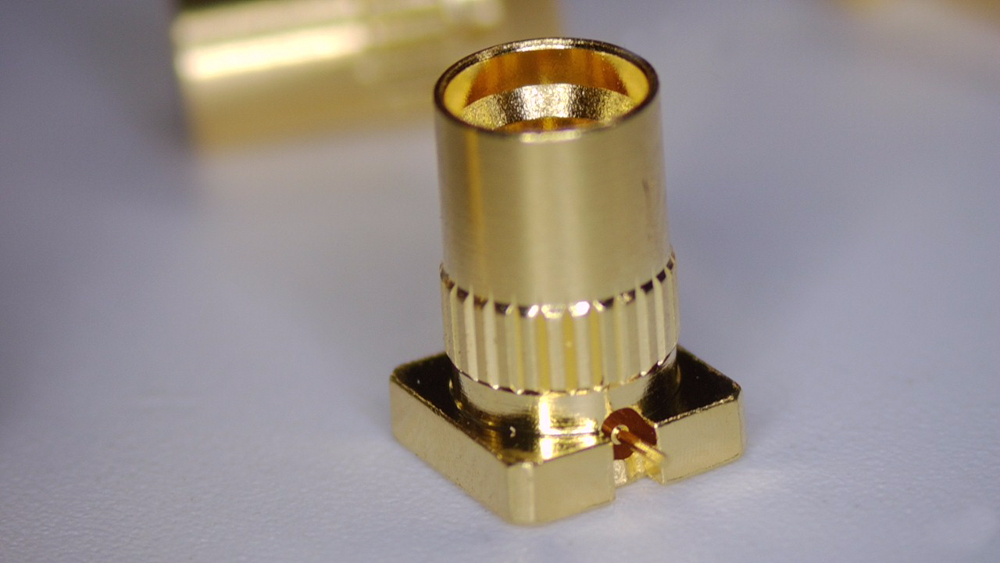

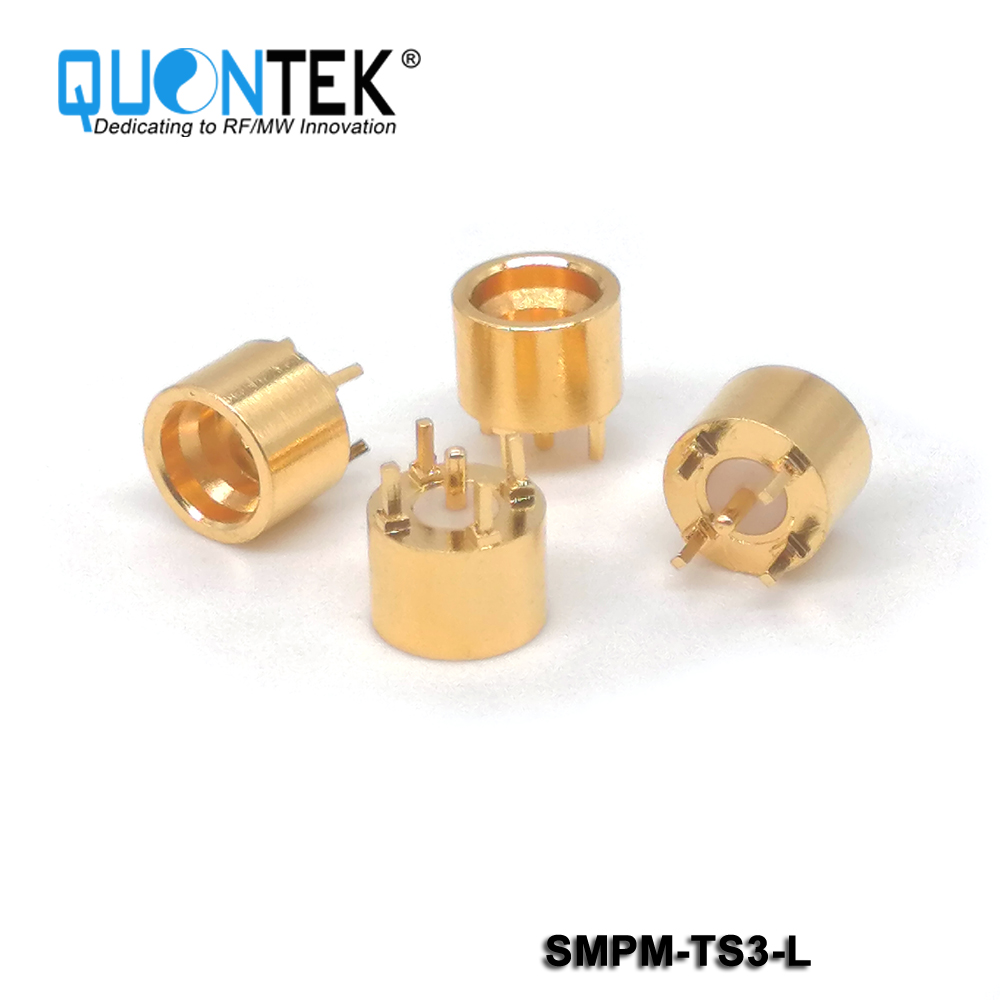

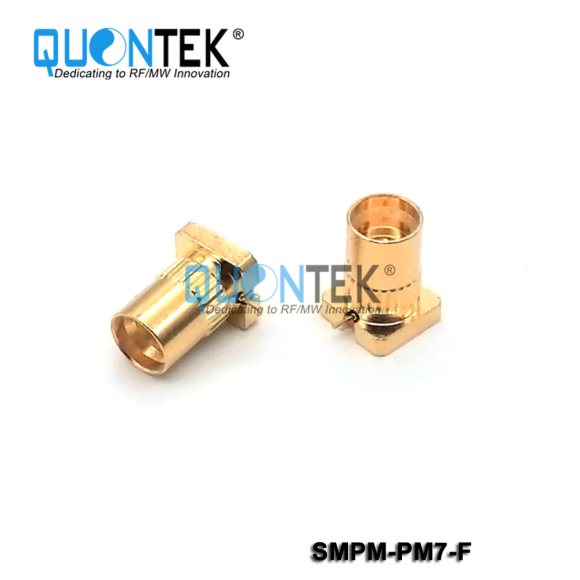

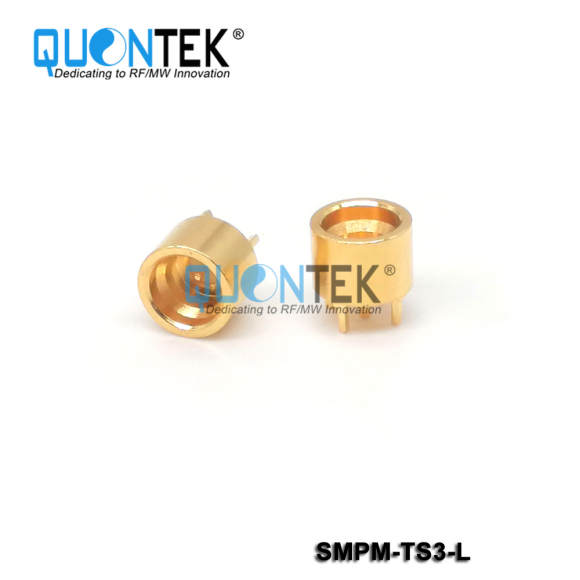

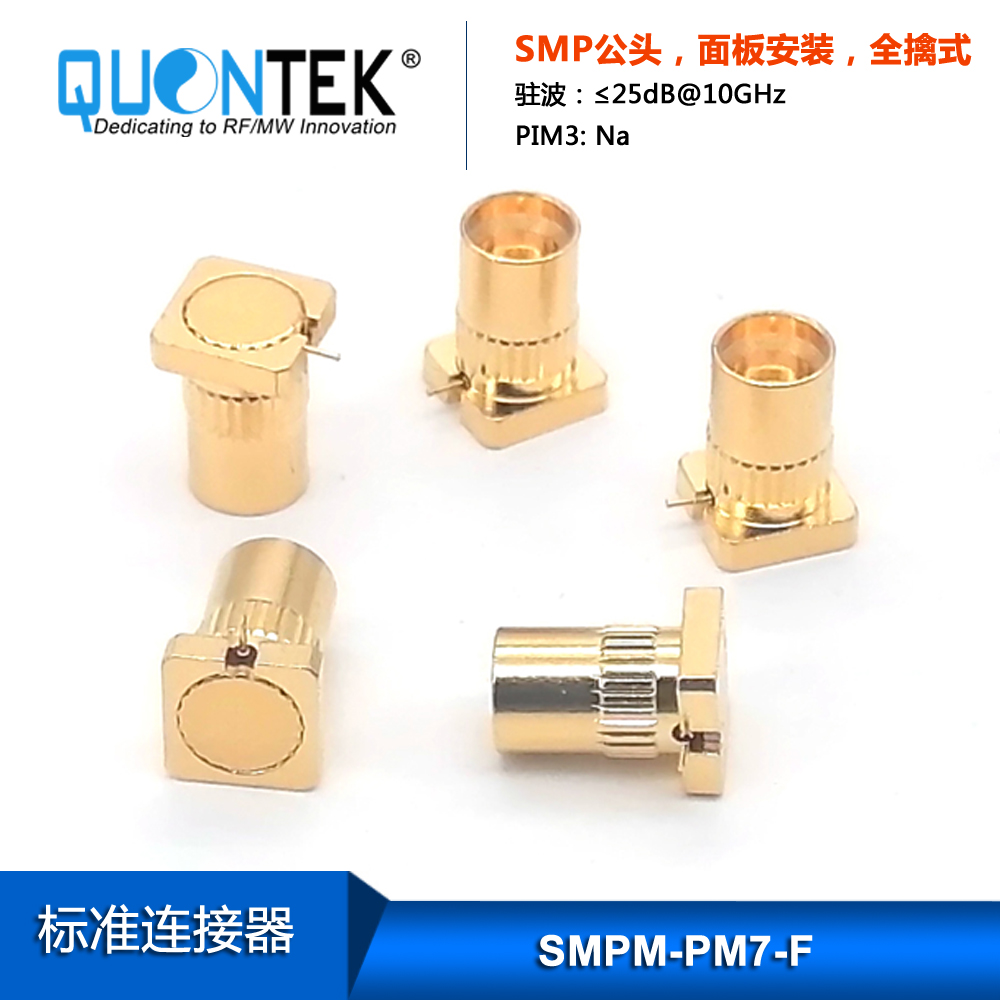

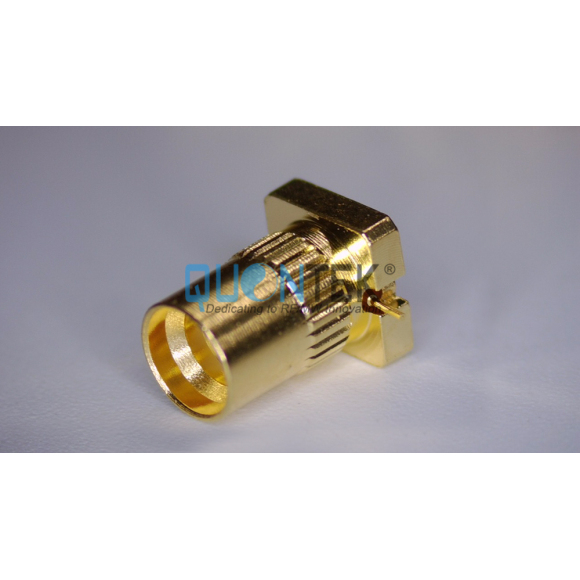

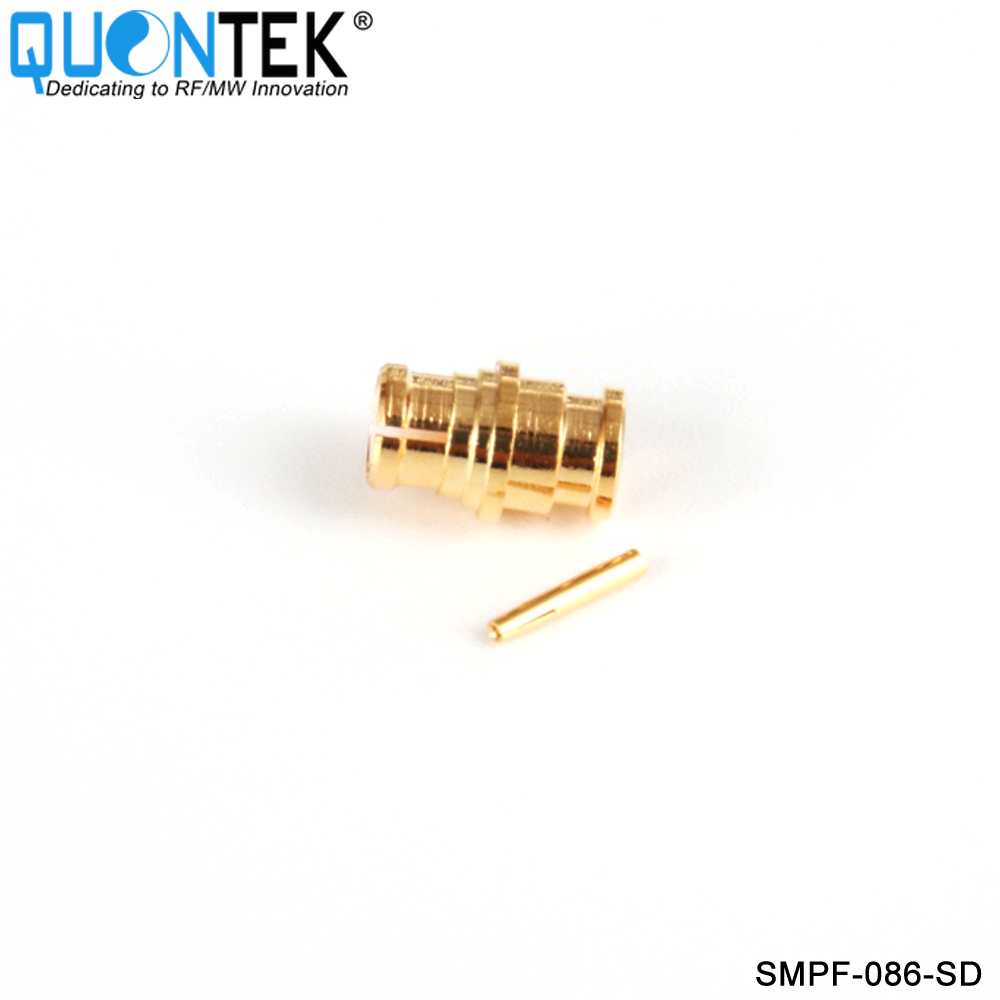

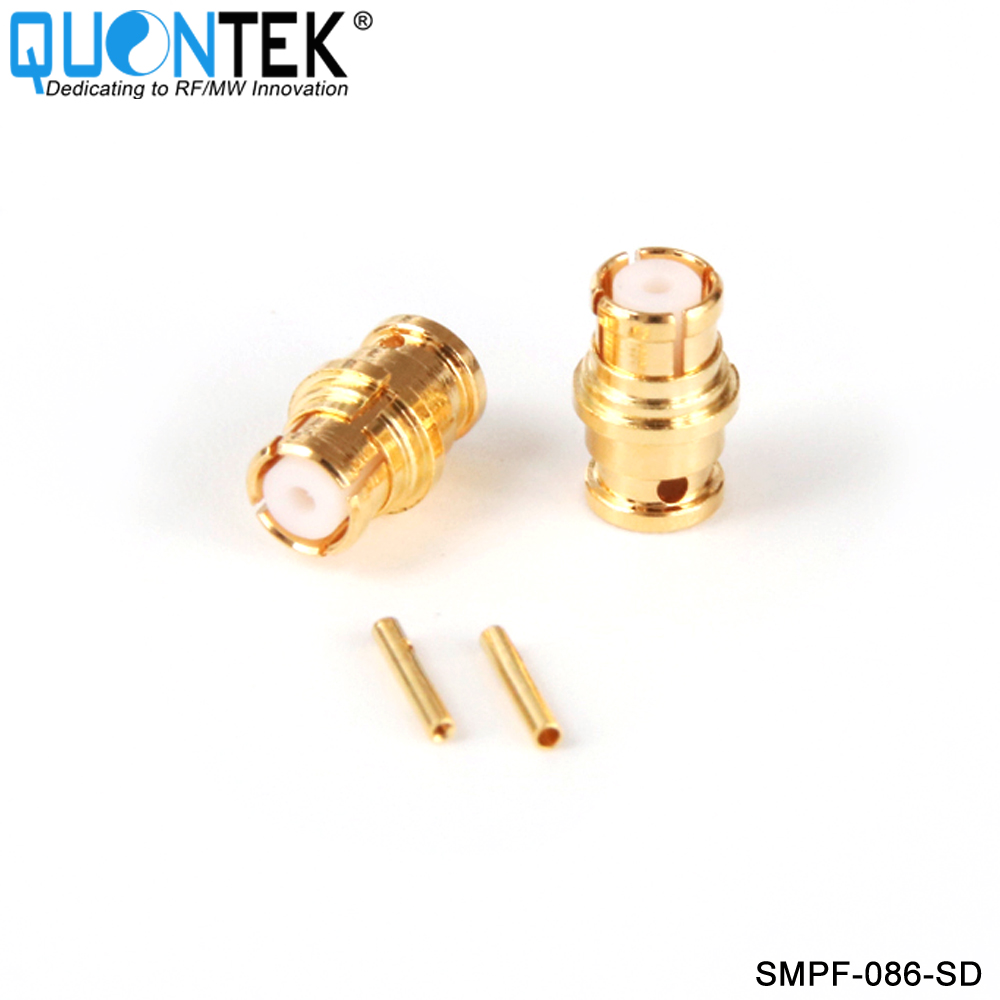

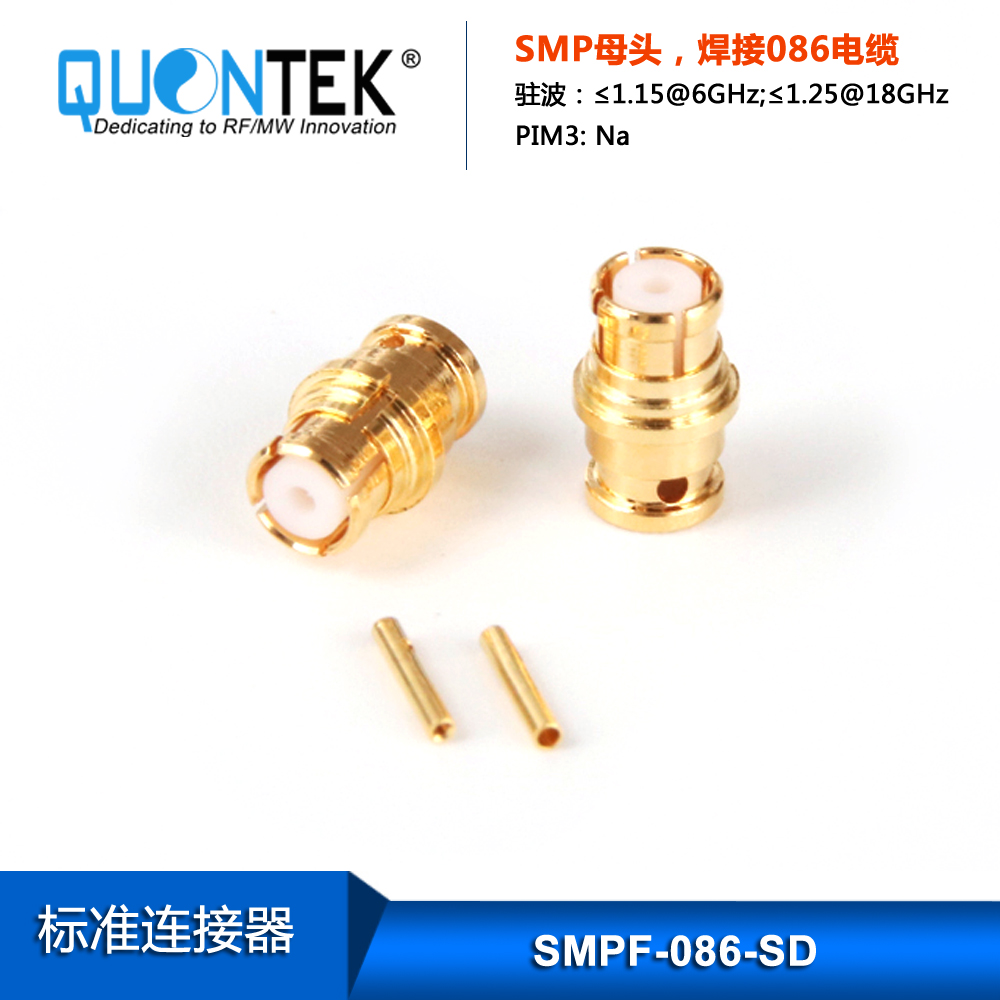

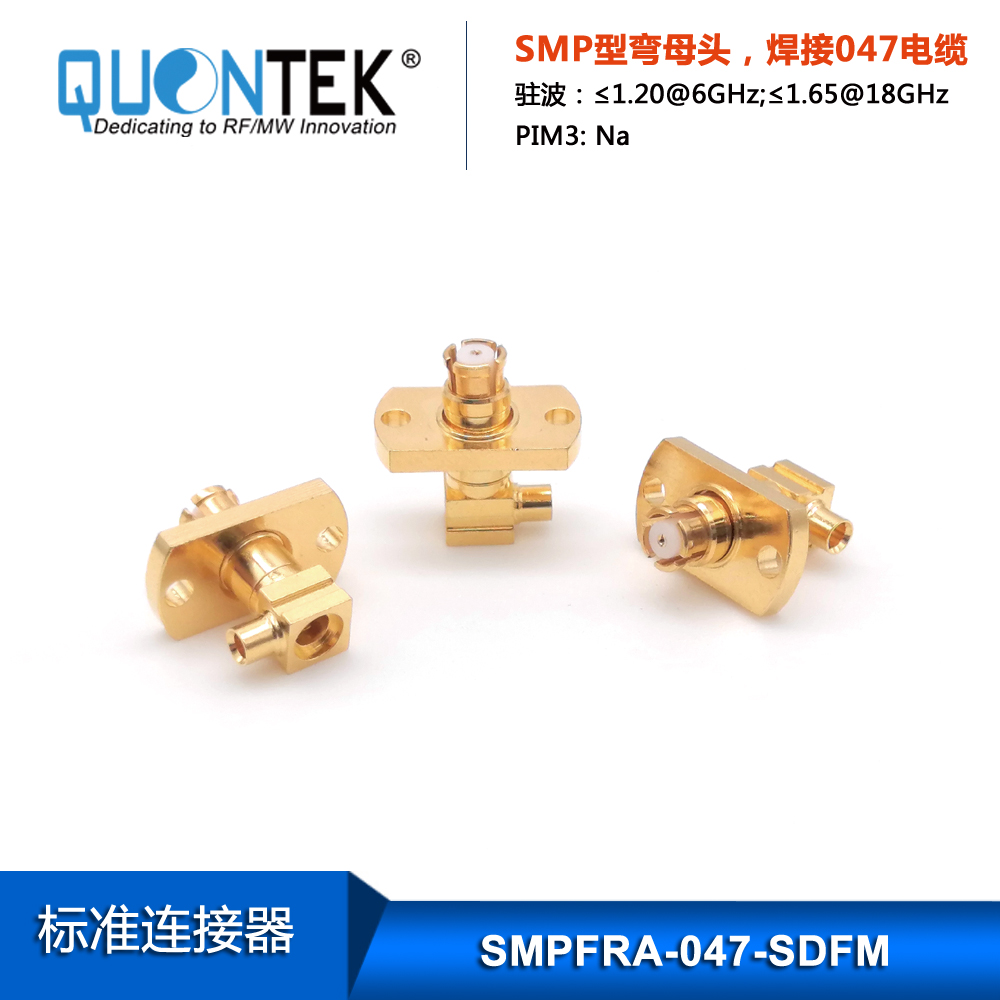

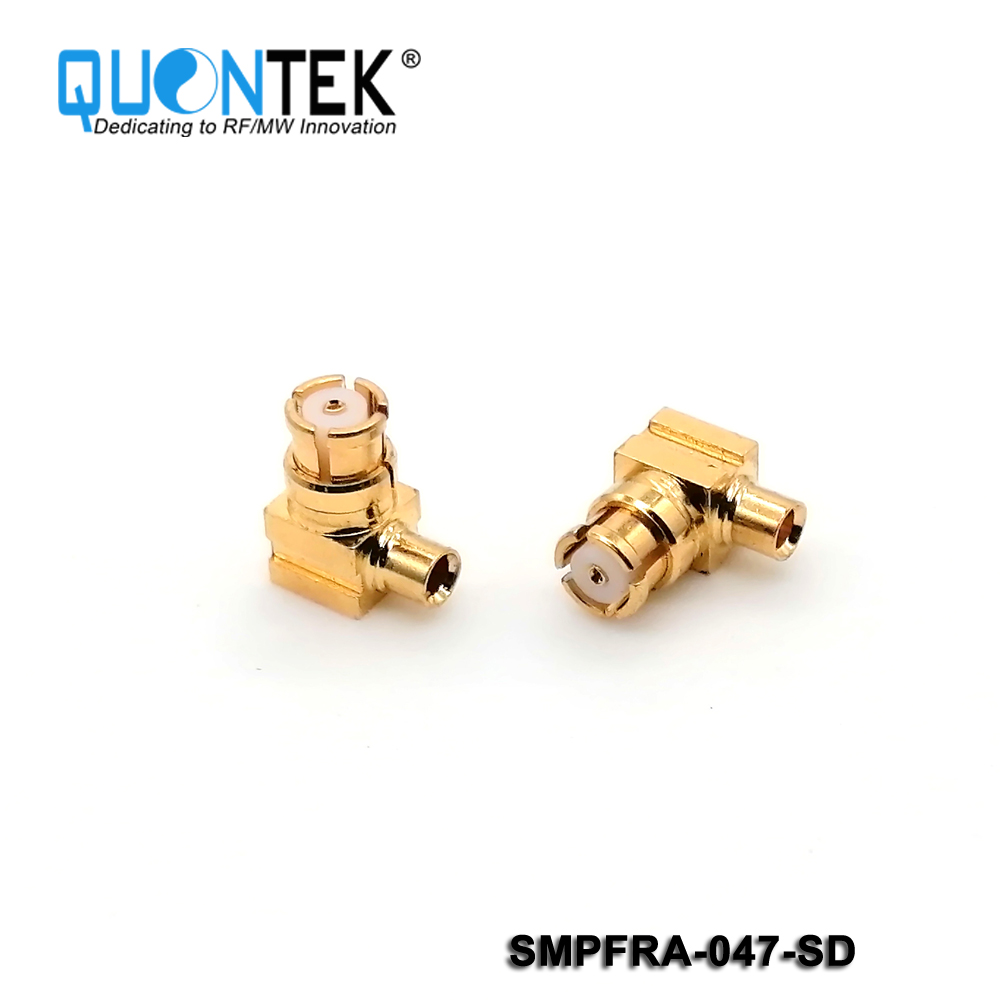

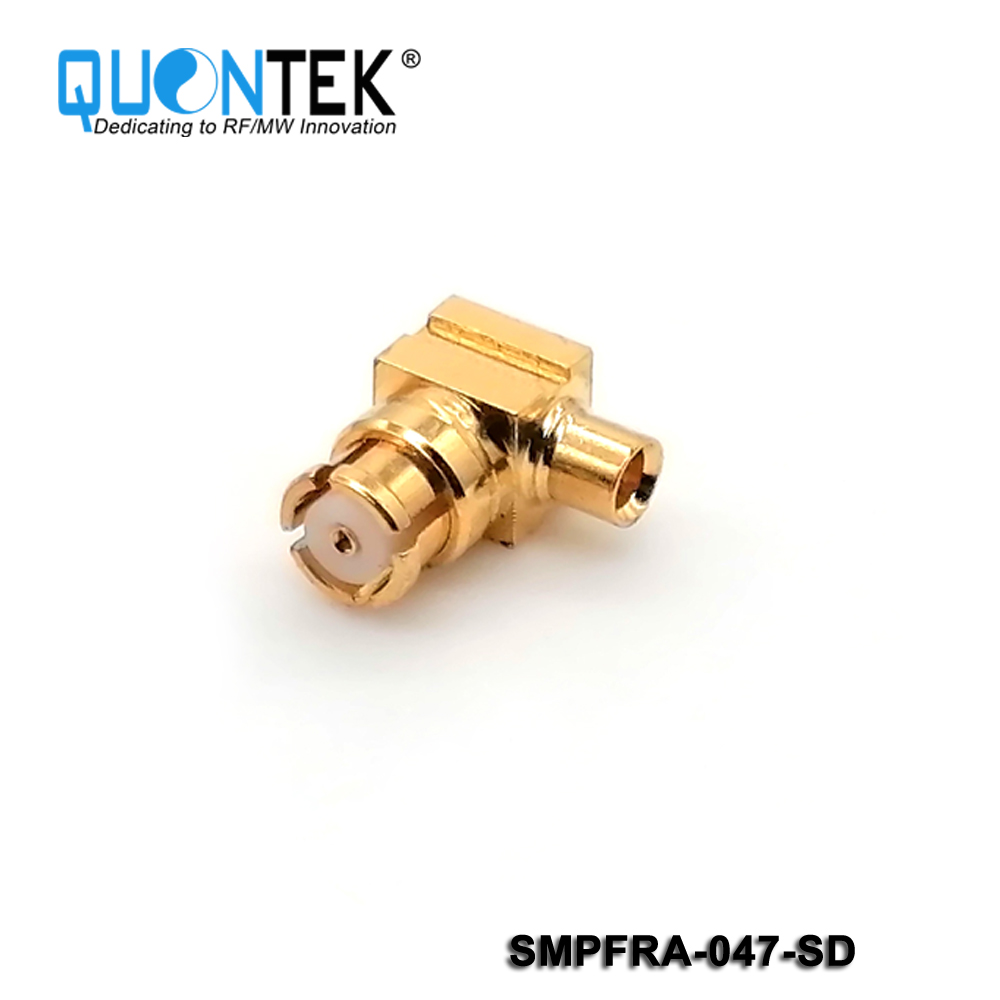

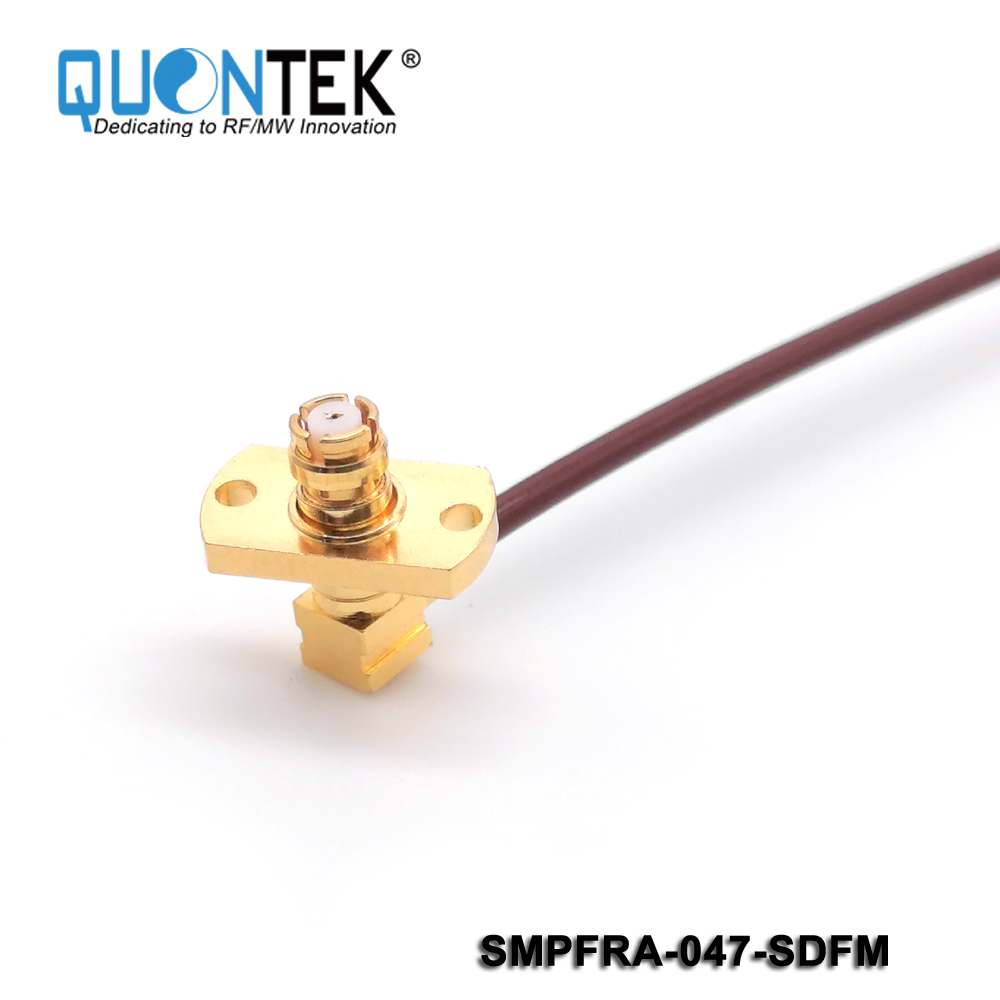

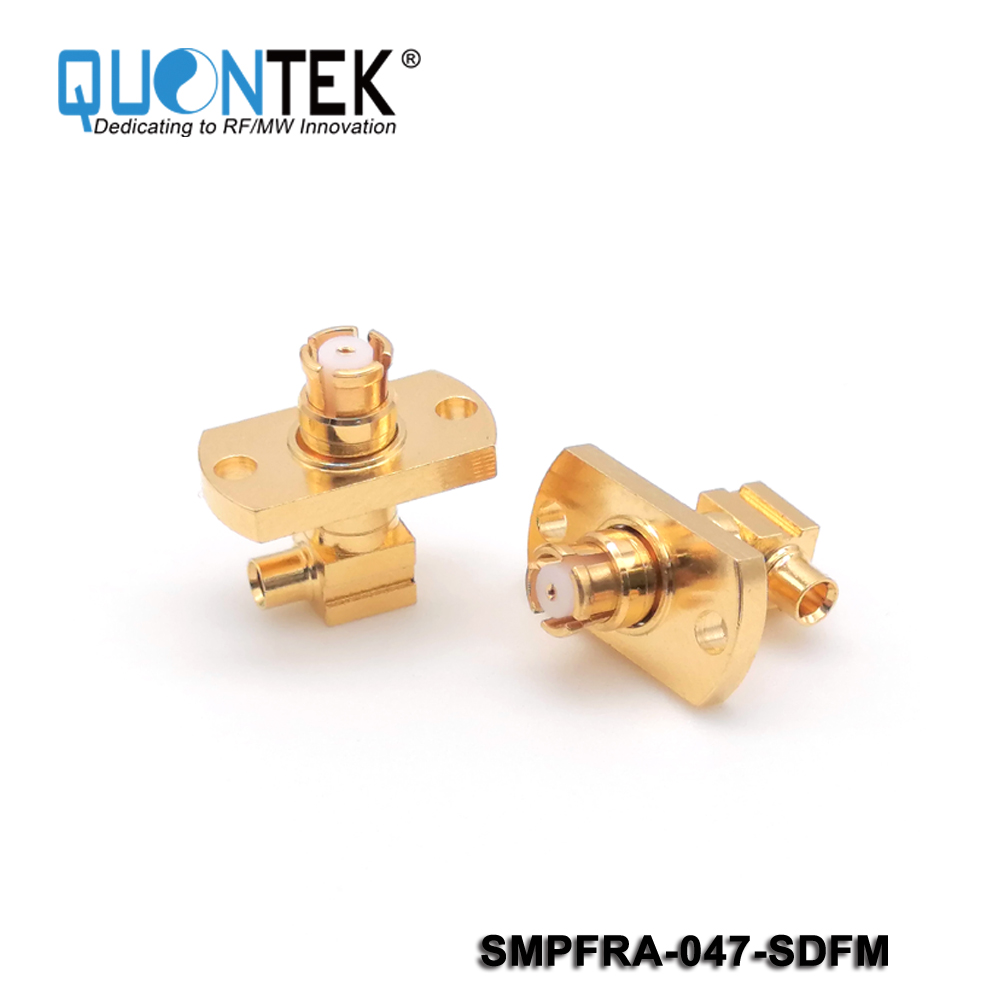

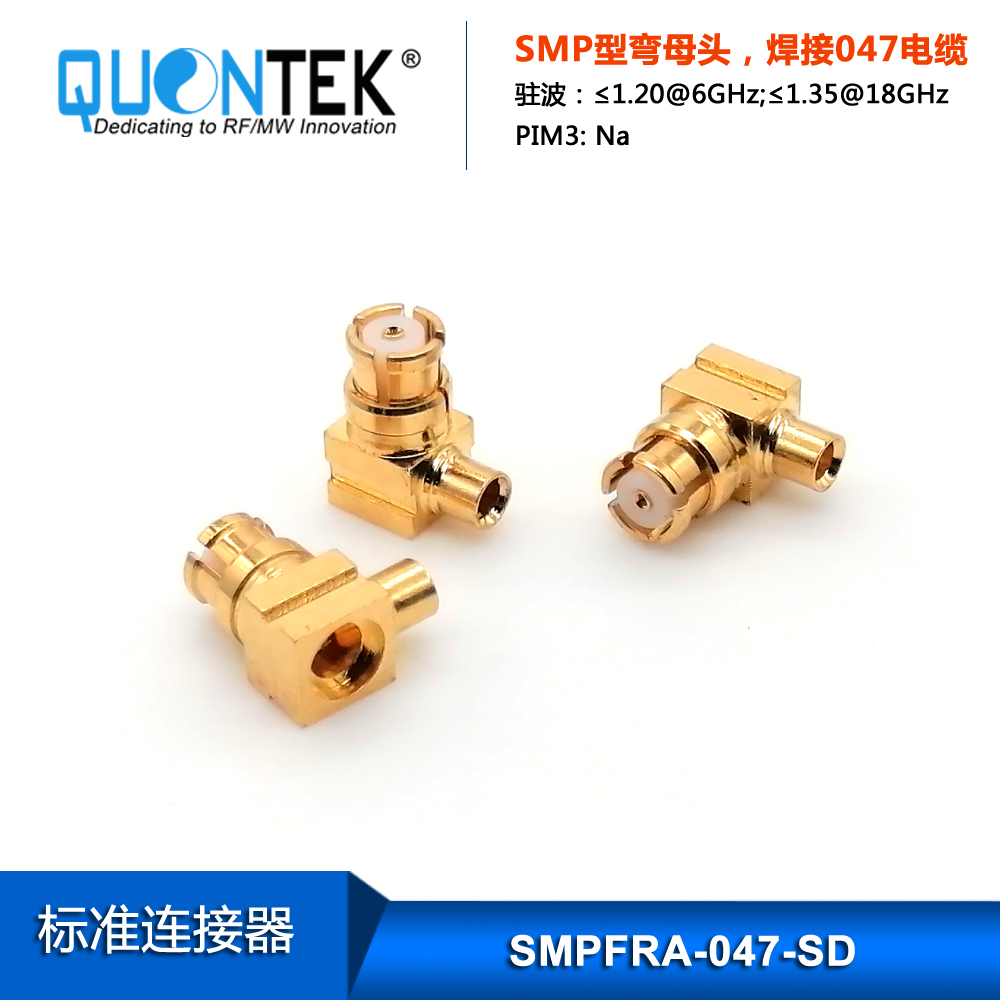

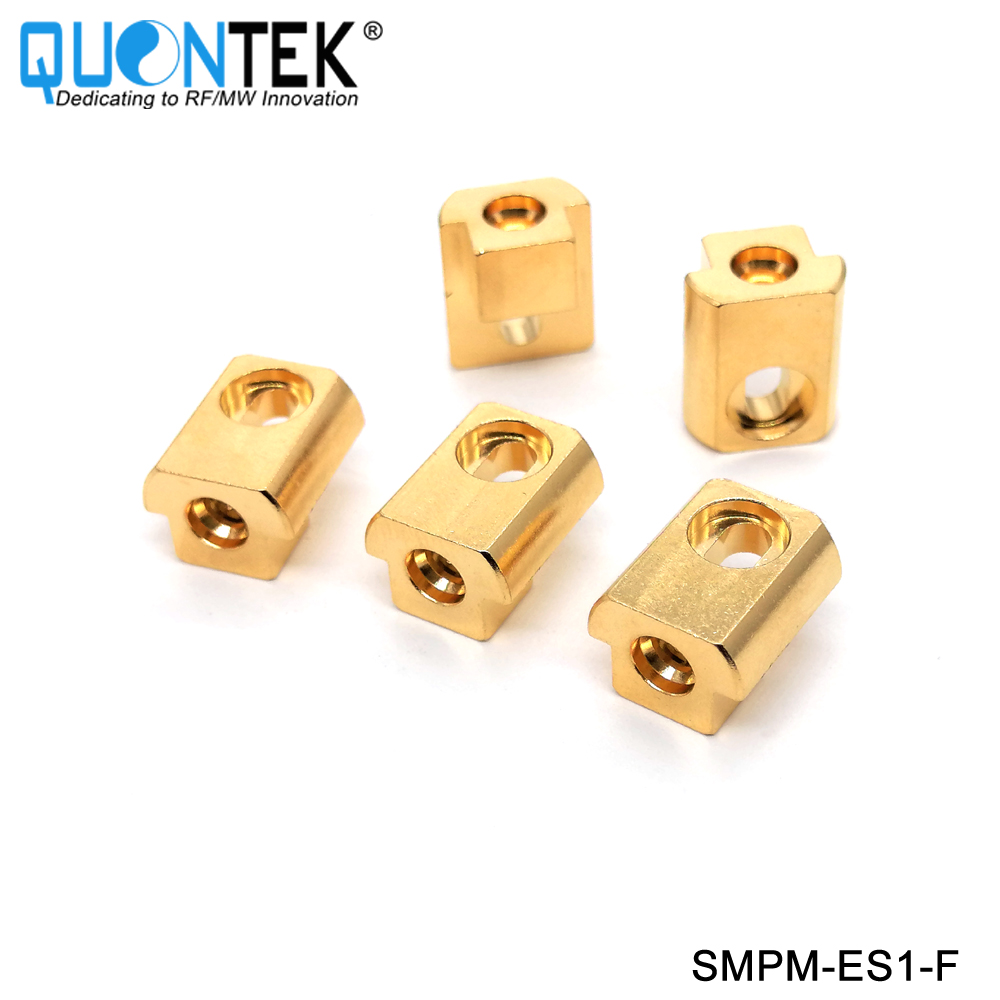

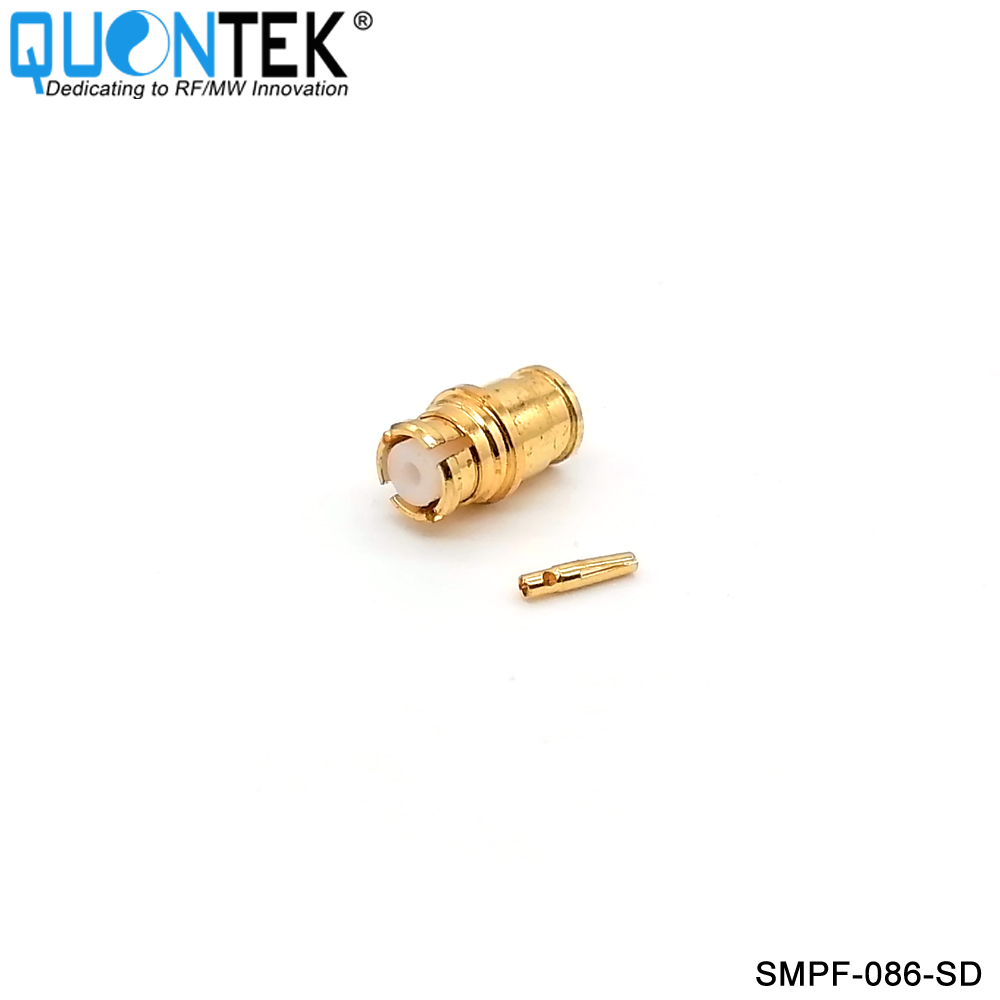

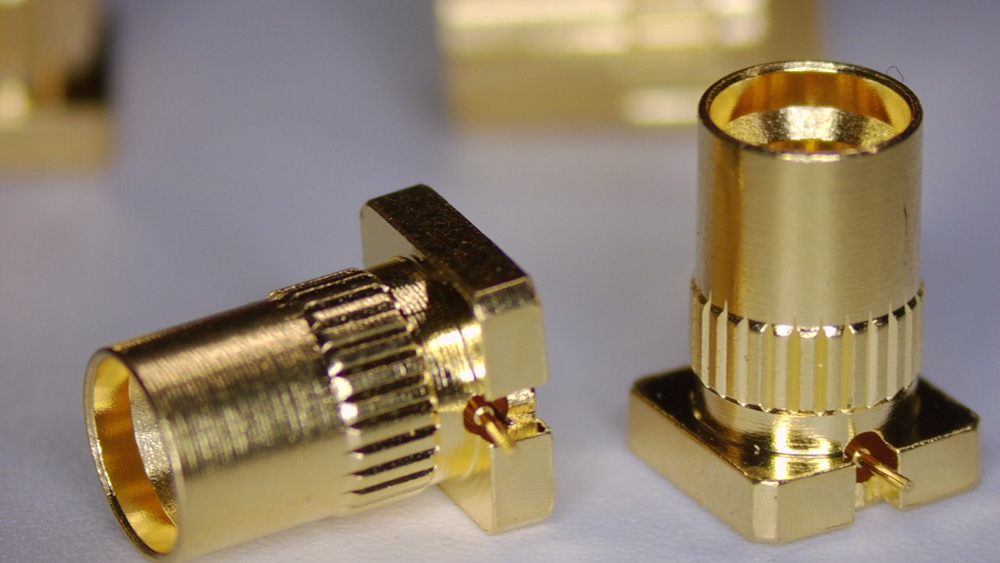

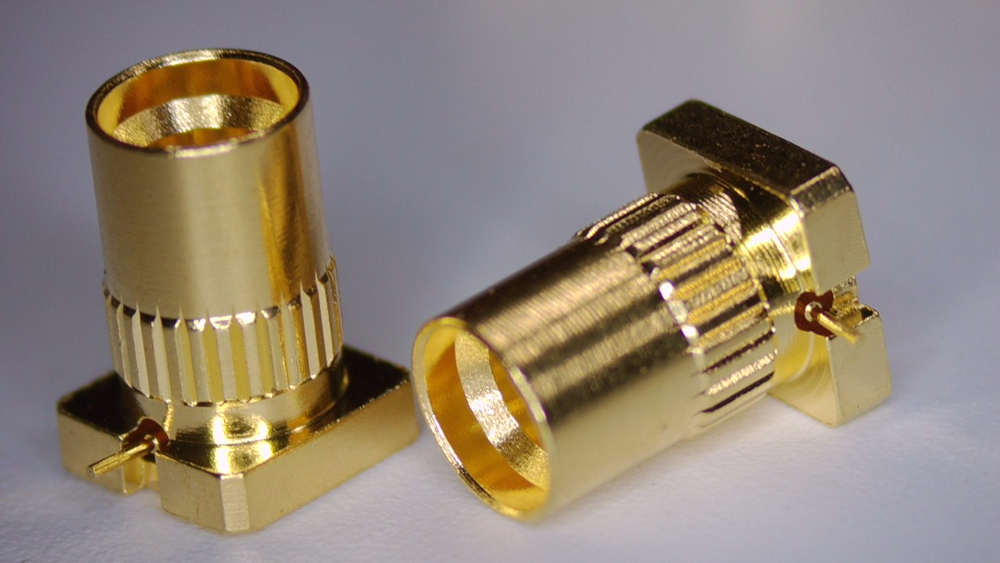

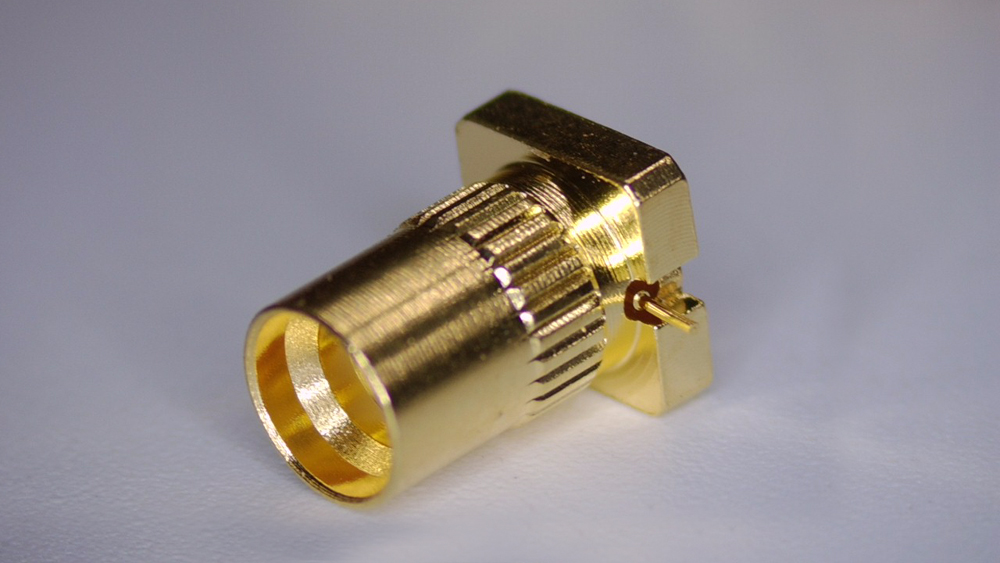

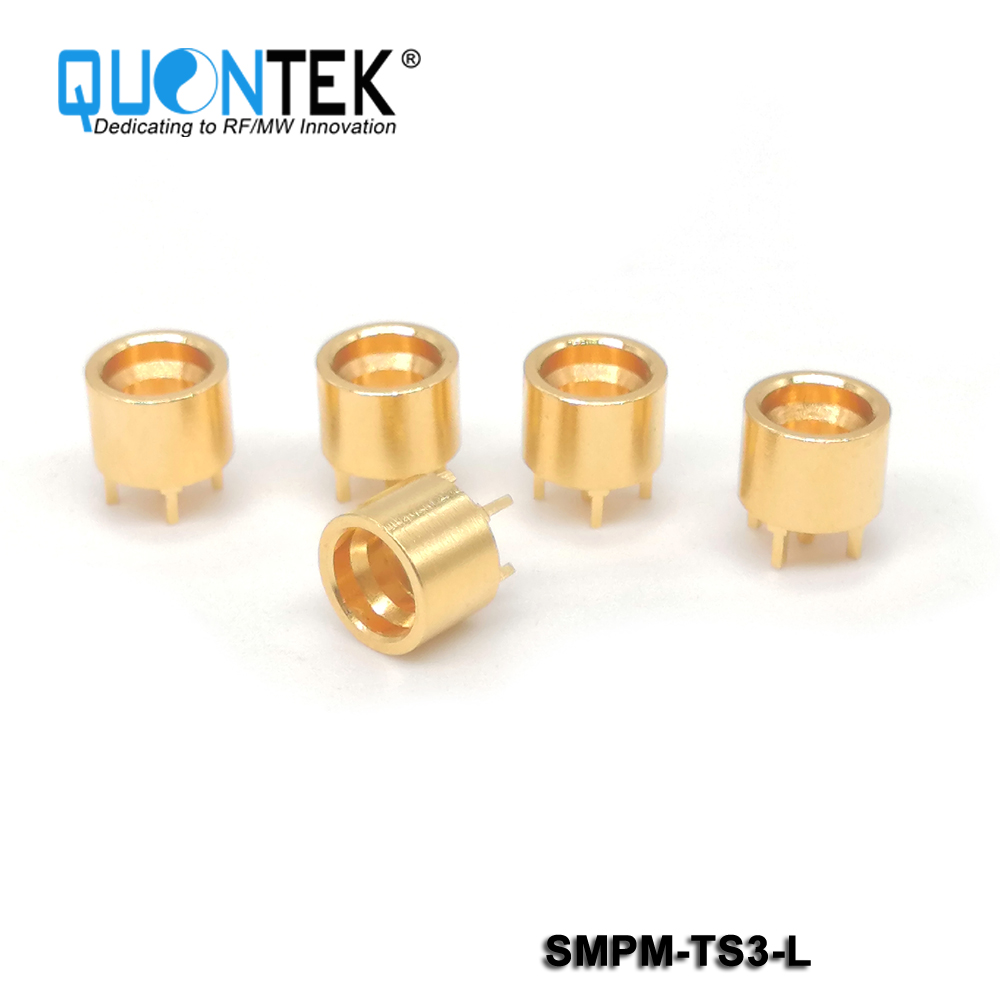

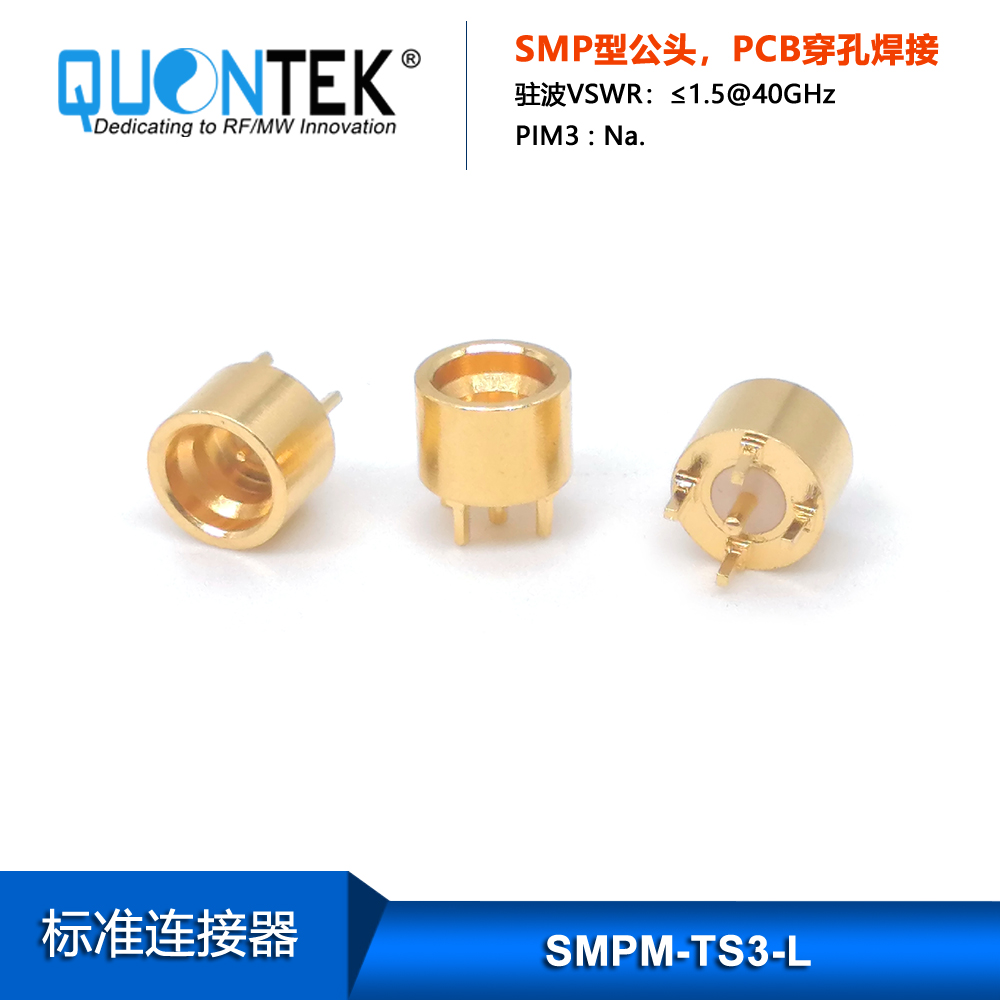

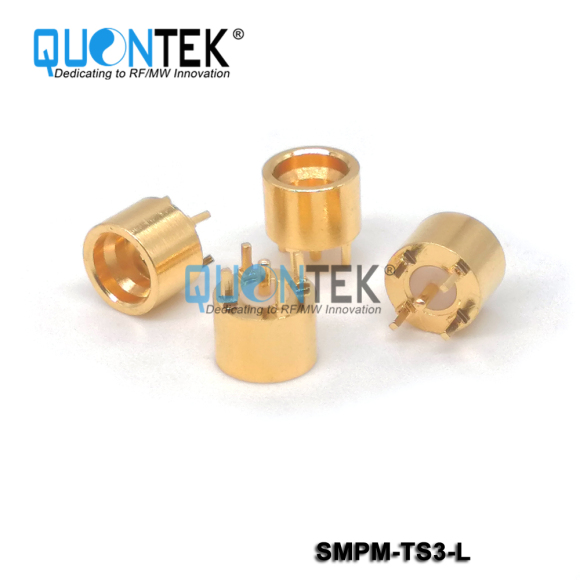

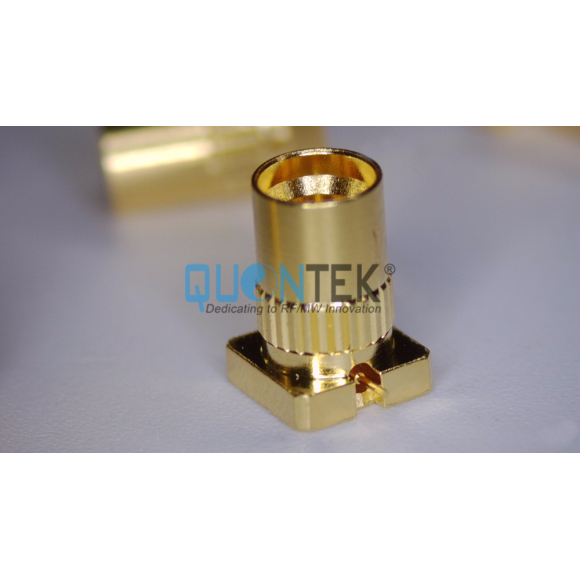

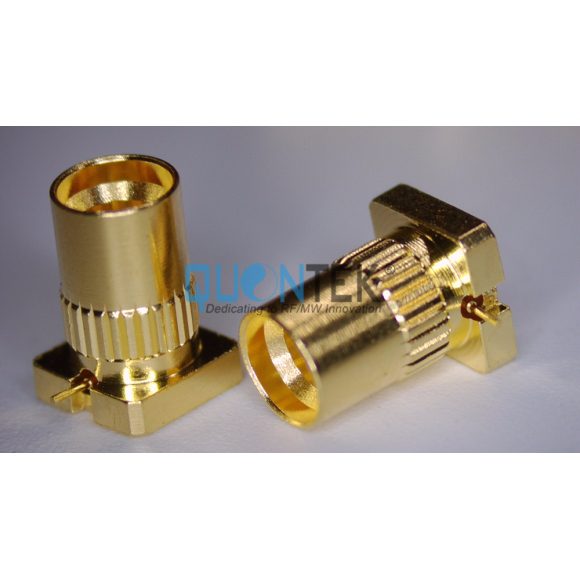

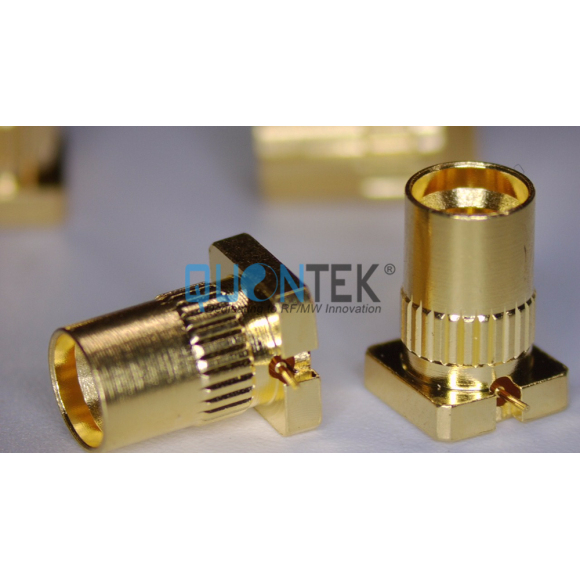

SMP/GPO type Connectors
Description
QUONTEK SMP connectors provide a robust plug-in solution for applications up to 40 GHz. QUONTEK SMP connectors have been IEC qualified for defence and space flight hardware. The design of the interface and material treating provides true compatibility as well as guaranteed
mechanical performance over the mating life of the connector with all IEC61169-44 SMP connectors in the market.
Features
• Frequency range up to 40 GHz
• Excellent return loss
• The SMP interface dimensions conform to the following standards:
International: IEC 61169-44
Europe: CECC 22140
USA: MIL-PRF-31031 SMP
Interface MIL-STD-348
| Male | Notes | Female | Notes | ||
| Min. | Max. |
| Min. | Max. |
|
A | 3.53 | 3.68 | Limited detent/ full detent/Smooth bore | 0.46 | 0.64 | uncabled |
5.84 | -- | Catchers mit | 0.64 | 0.89 | cabled | |
B | 3.15 | 3.20 |
| -- | -- |
|
C | 3.02 | 3.07 | Limited detent | 0.00 | -- |
|
2.92 | 2.97 | Full detent | -- | -- |
| |
5.38 | 5.54 | Catchers mit | -- | -- |
| |
D | 0.38 | 0.41 |
| 0.00 | 0.20 |
|
E | 30°±1° |
| 1.78 | -- |
| |
F | 0.84 | 0.94 |
| -- | 3.43 |
|
G | 0.52 | 0.6 |
| 2.84 | -- |
|
H | 32°±1° |
| -- | -- |
| |
I | 2.74 | 2.84 |
