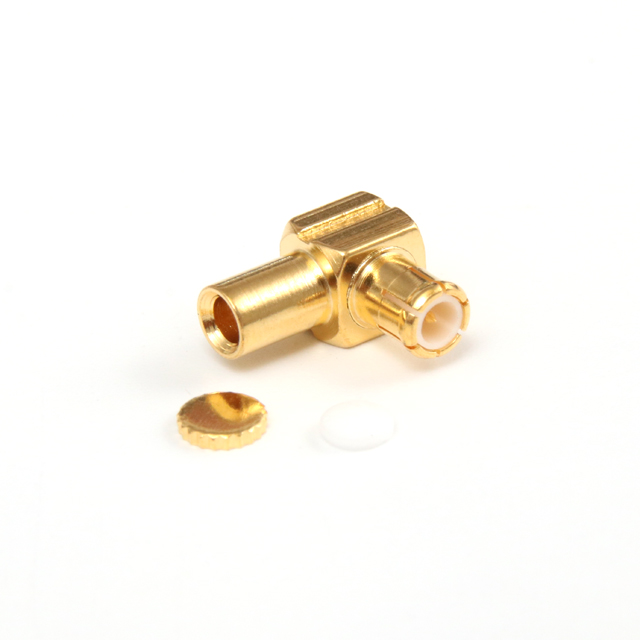

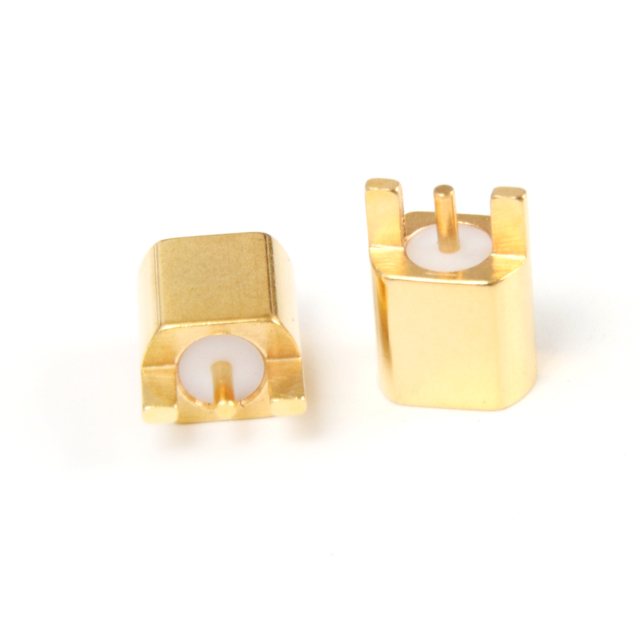

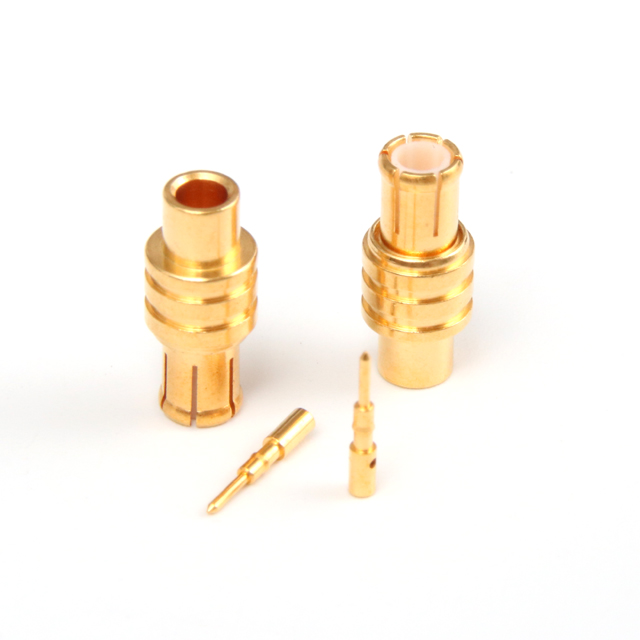

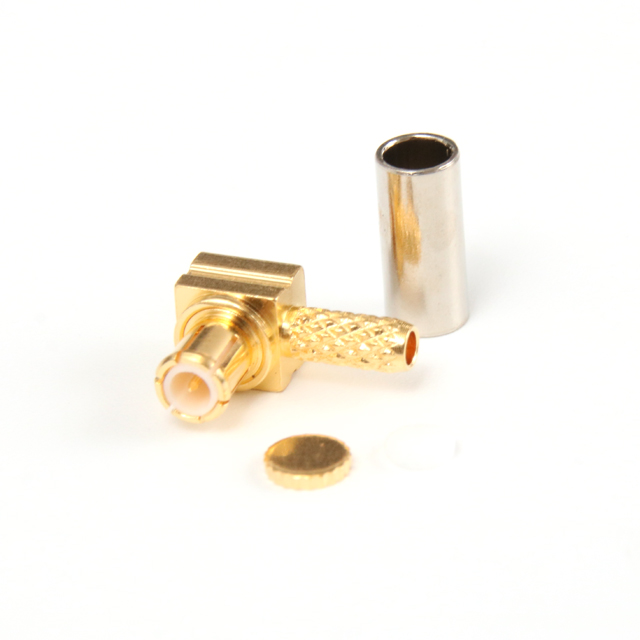

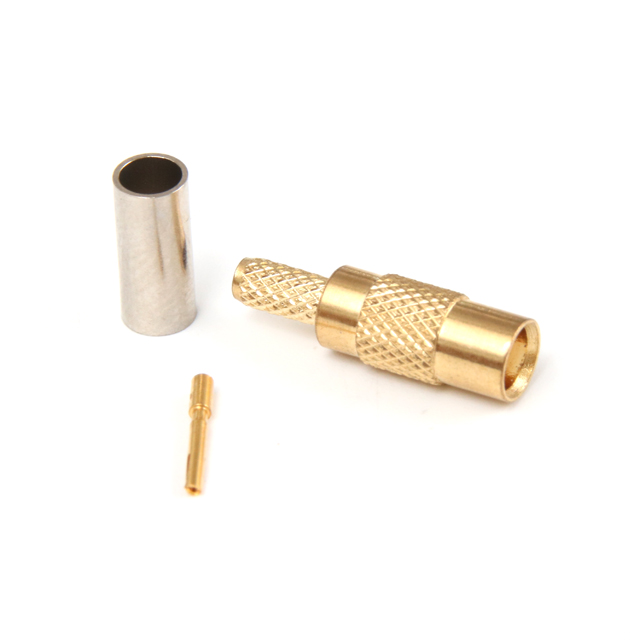

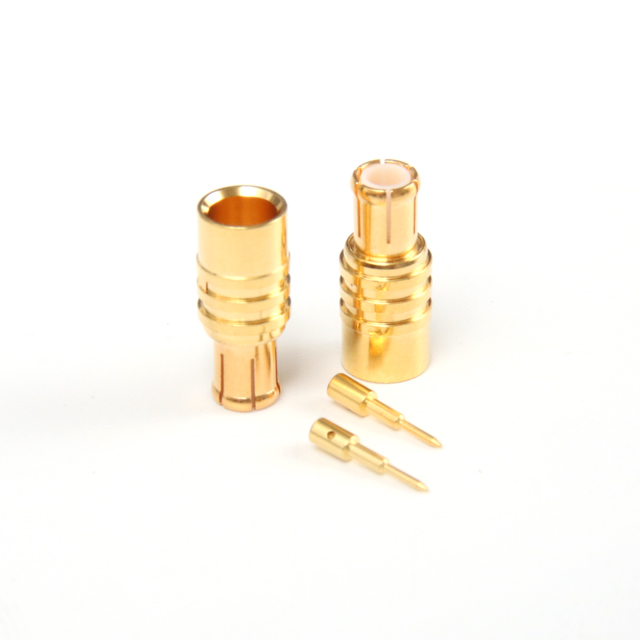

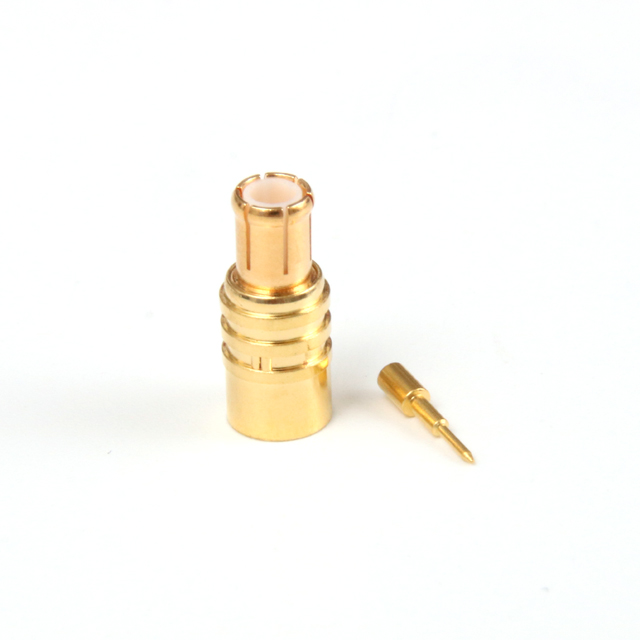

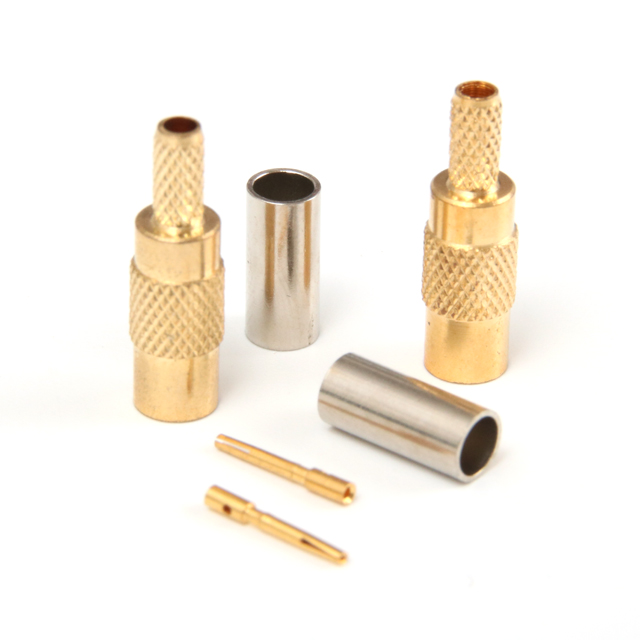

MCX type connector -

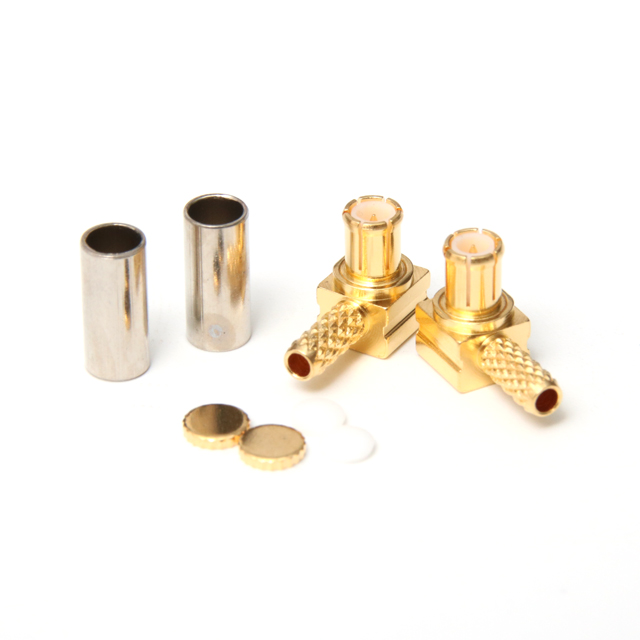

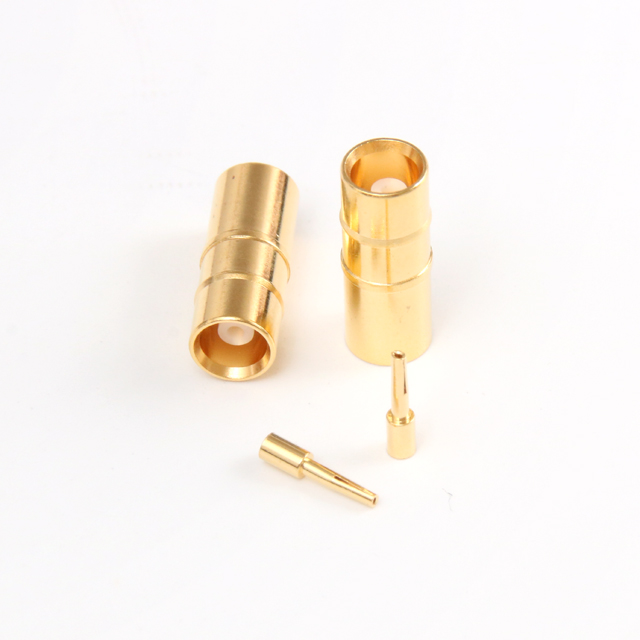

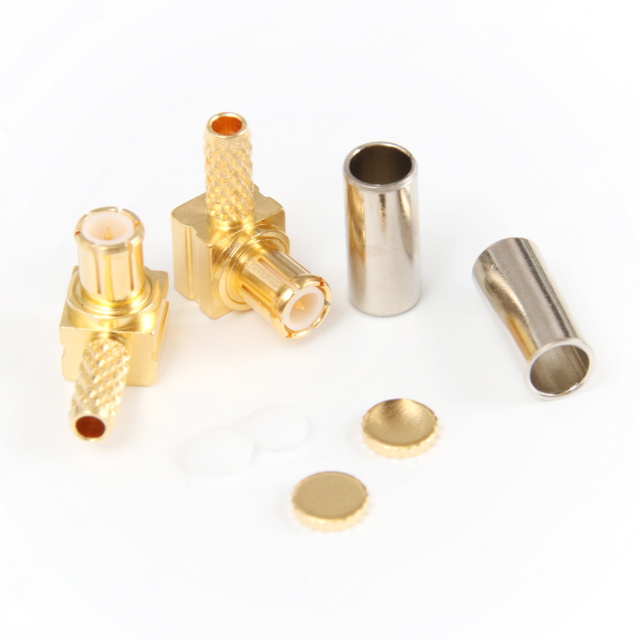

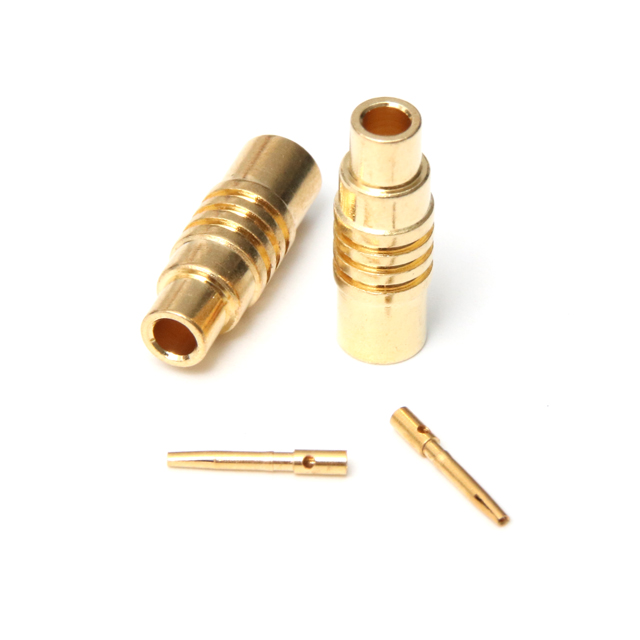

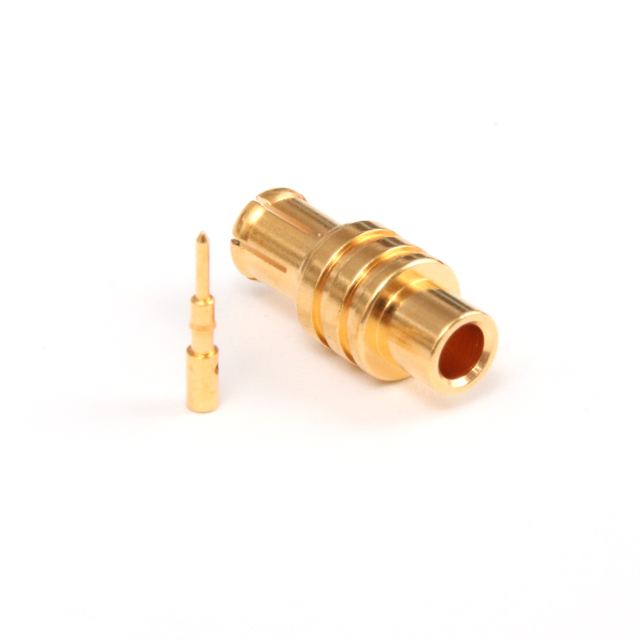

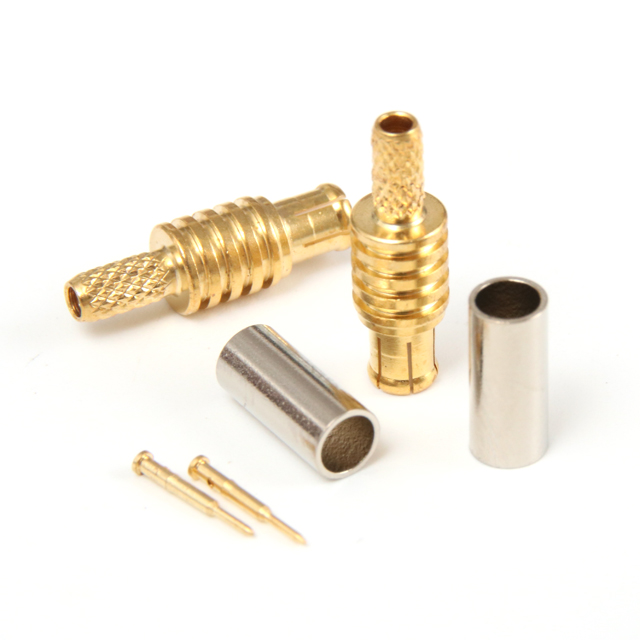

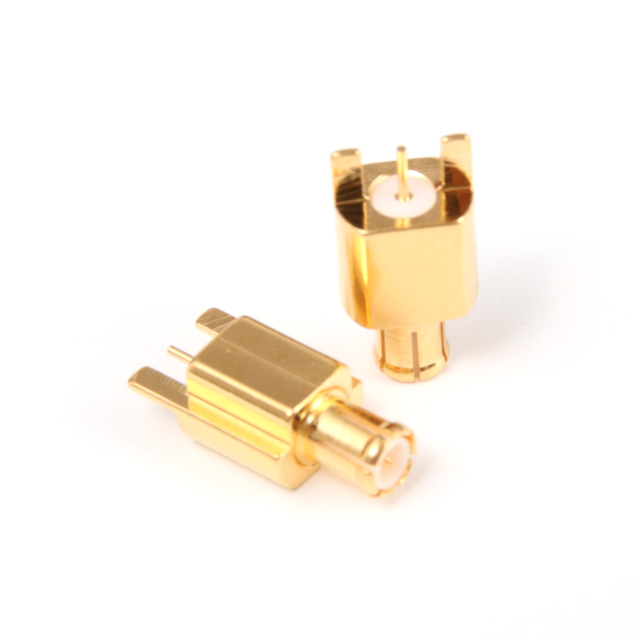

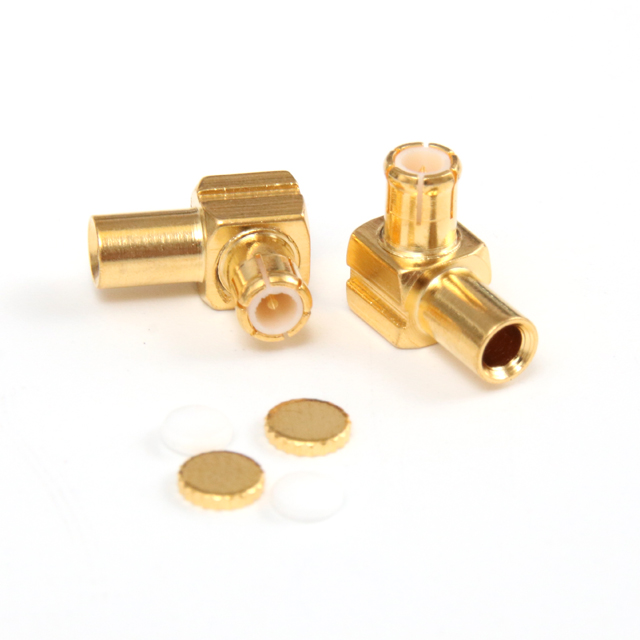

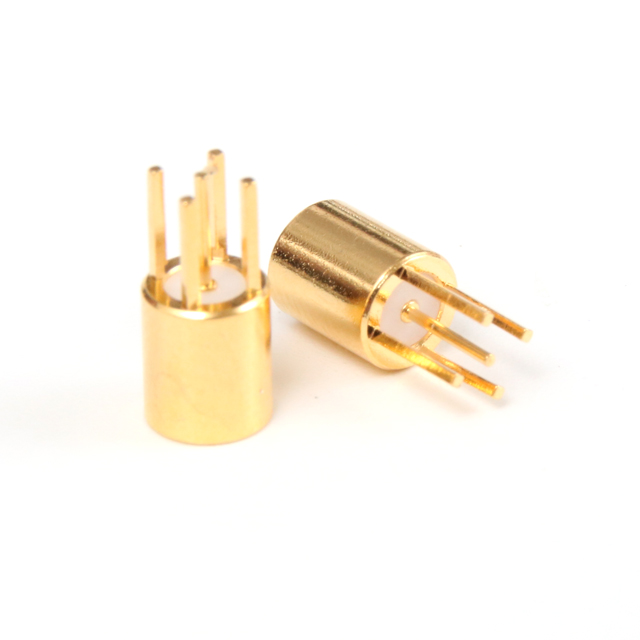

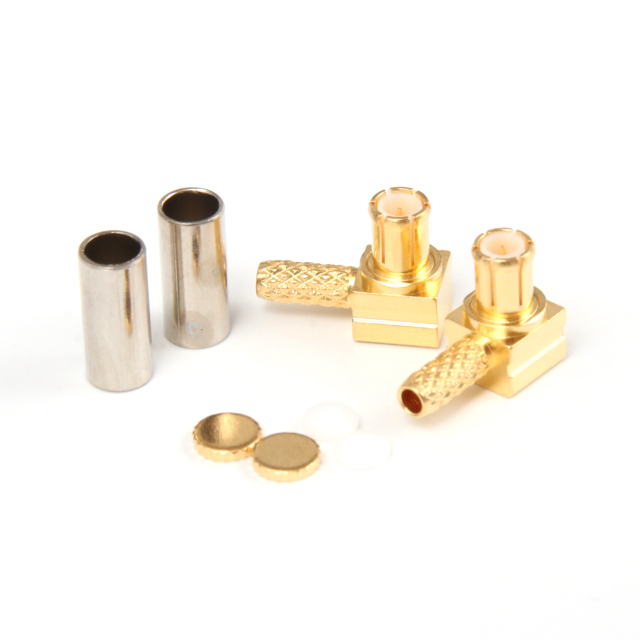

Description

QUONTEK MCX micro miniature snap-on connectors offer you an excellent blend of size,weight, durability and performance for applications such as mobile and fixed telecommunications,in GPS applications and in test+measurement systems for testing instruments and apparatus. They are designed for frequencies up to 6 GHz and are tested according to the international standard IEC61169-36. And they meet all the high requirements that micro coaxial connectors are expected to satisfy today.

Features

• Frequency range up to 6 GHz

• Excellent return loss

• The MCX interface dimensions conform to the following standards:

International: IEC 61169-36

Europe: CECC 22110

USA: MIL-PRF-31031 MCX

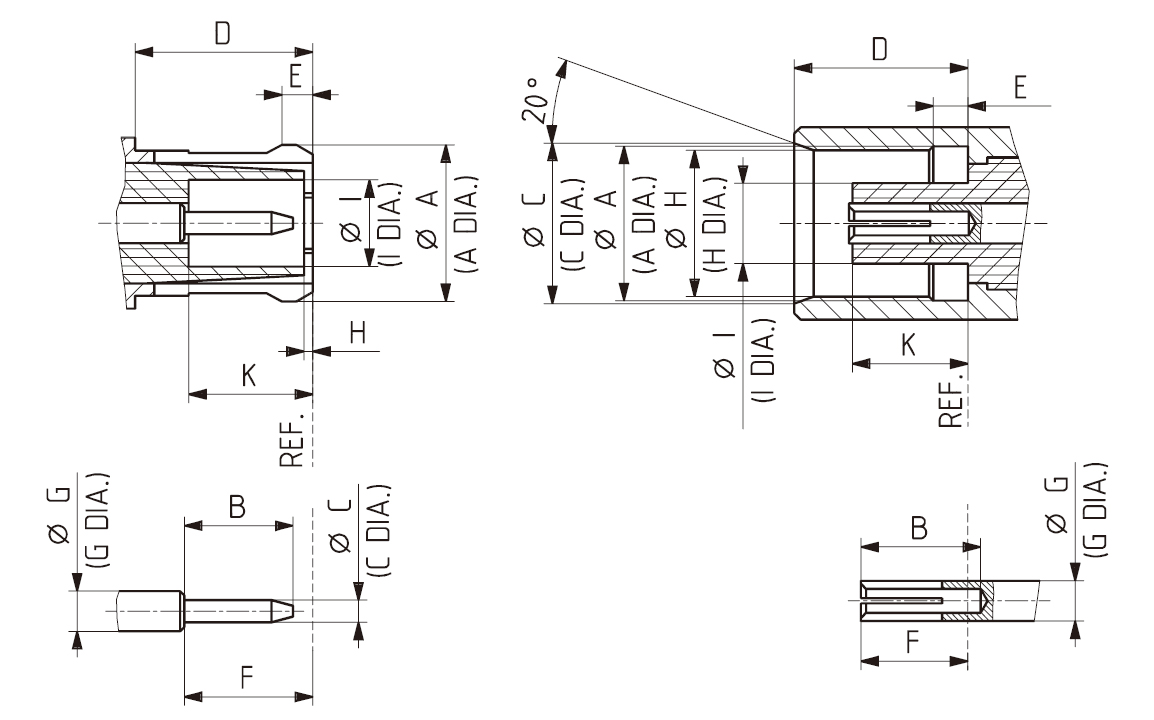

Interface MIL-STD-348

	Male		Female
	Min.	Max.	Min.	Max.
A	3.72/0.146	3.80/0.150	3.60/0.142	3.70/0.146
B	2.49/0.098	2.59/0.102	2.80/0.110	--
C	0.48/0.019	0.53/0.021	3.75/0.148	3.85/0.152
D	4.15/0.163	--	4.00/0.157	4.12/0.162
E	0.70/0.028	0.75/0.030	0.75/0.030	0.85/0.033
F	2.80/0.110	3.20/0.126	2.30/0.091	2.80/0.110
G	0.95/0.0337 nom.		0.95/0.0337 nom.
H	--	0.30/0.012	3.42/0.135	3.48/0.137
I	2.00/0.079	2.07/0.081	1.80/0.071	1.98/0.078
K	2.80/0.110	3.20/0.126	2.60/0.102	2.80/0.110

<
