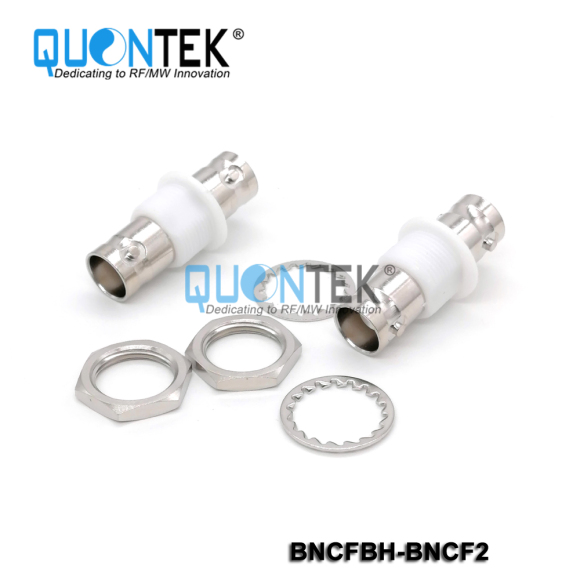

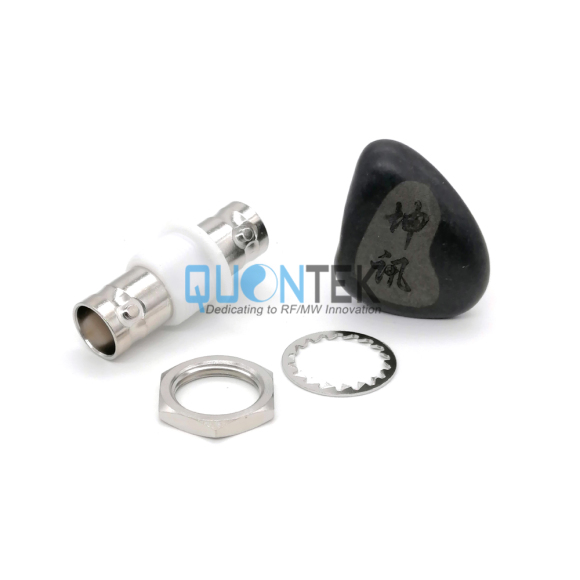

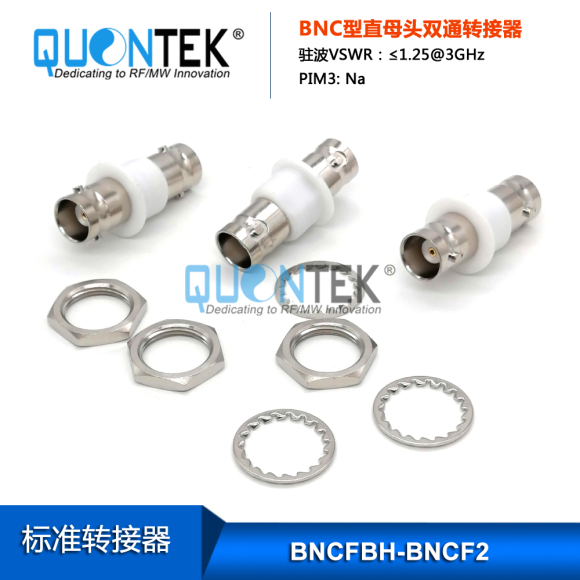

BNC type Connectors
Description
QUONTEK BNC is still a popular connector series,featuring a two stud bayonet coupling mechanism, which is particularly useful for frequently coupled and uncoupled RF connections with frequencies up to 4 GHz.
Features
• Frequency range up to 4 GHz
• Excellent return loss
• The BNC interface dimensions conform to the following standards:
International: IEC 61169-8
USA: MIL-PRF-39012 BNC
Interface MIL-STD-348
Europe: CECC22120

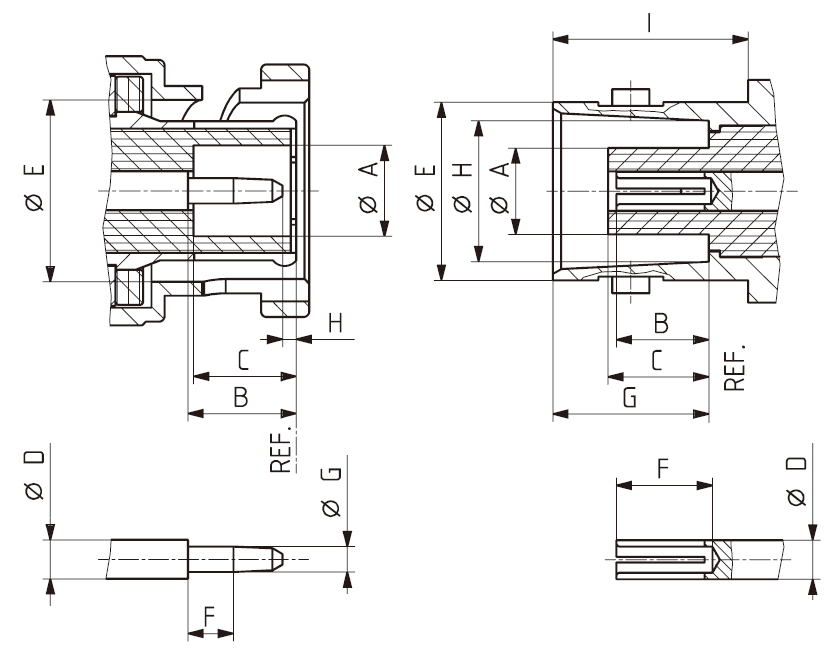

| Male | Female | ||
| Min. | Max. | Min. | Max. |
A | 4.83/0.190 | -- | -- | 4.72/0.186 |
B | 5.33/0.210 | 5.84/0.230 | 4.72/0.186 | 5.23/0.206 |
C | 5.28/0.208 | 5.79/0.228 | 4.78/0.188 | 5.28/0.208 |
D | 2.06/0.081 | 2.21/0.087 | 2.06/0.081 | 2.21/0.087 |
E | 9.78/0.385 | 9.91/0.390 | 9.60/0.378 | 9.70/0.382 |
F | 1.98/0.078 | -- | 4.95/0.195 | -- |
G | 1.32/0.052 | 1.37/0.054 | 8.31/0.327 | 8.51/0.335 |
H | 0.08/0.003 | -- | 8.10/0.319 | 8.15/0.321 |
I | -- | -- | 10.52/0.414 | -- |

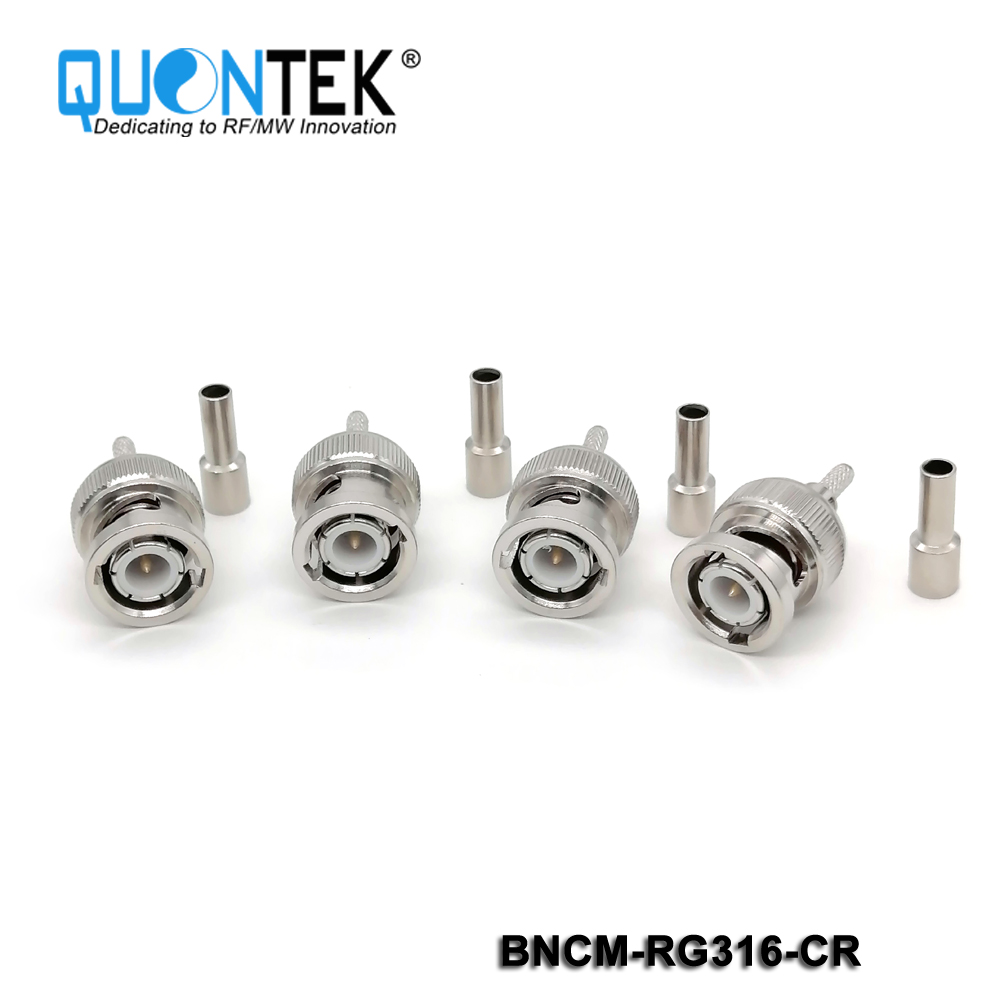

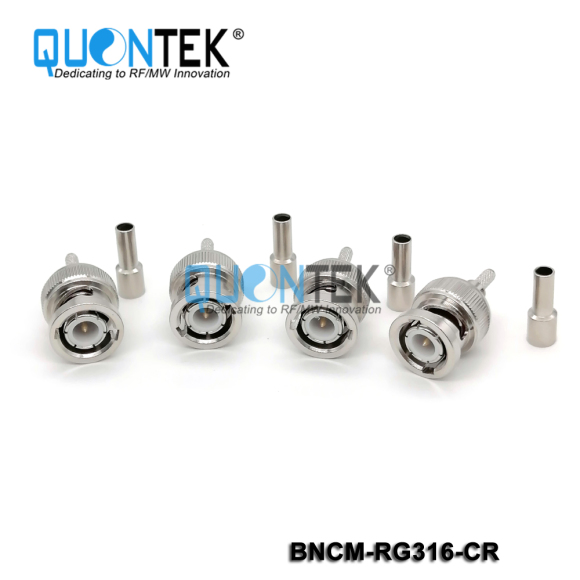

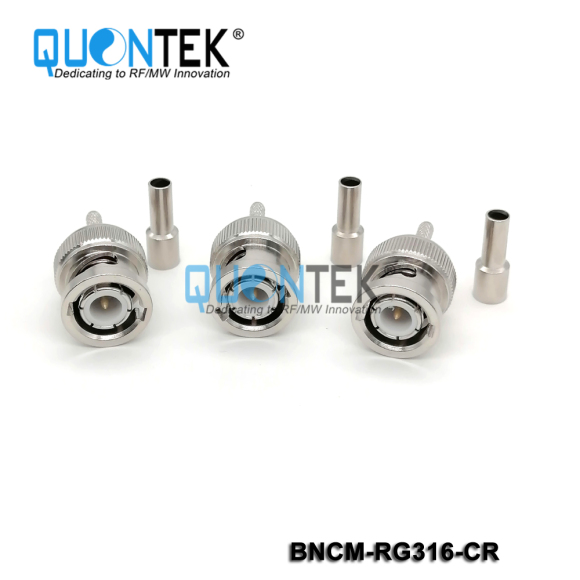

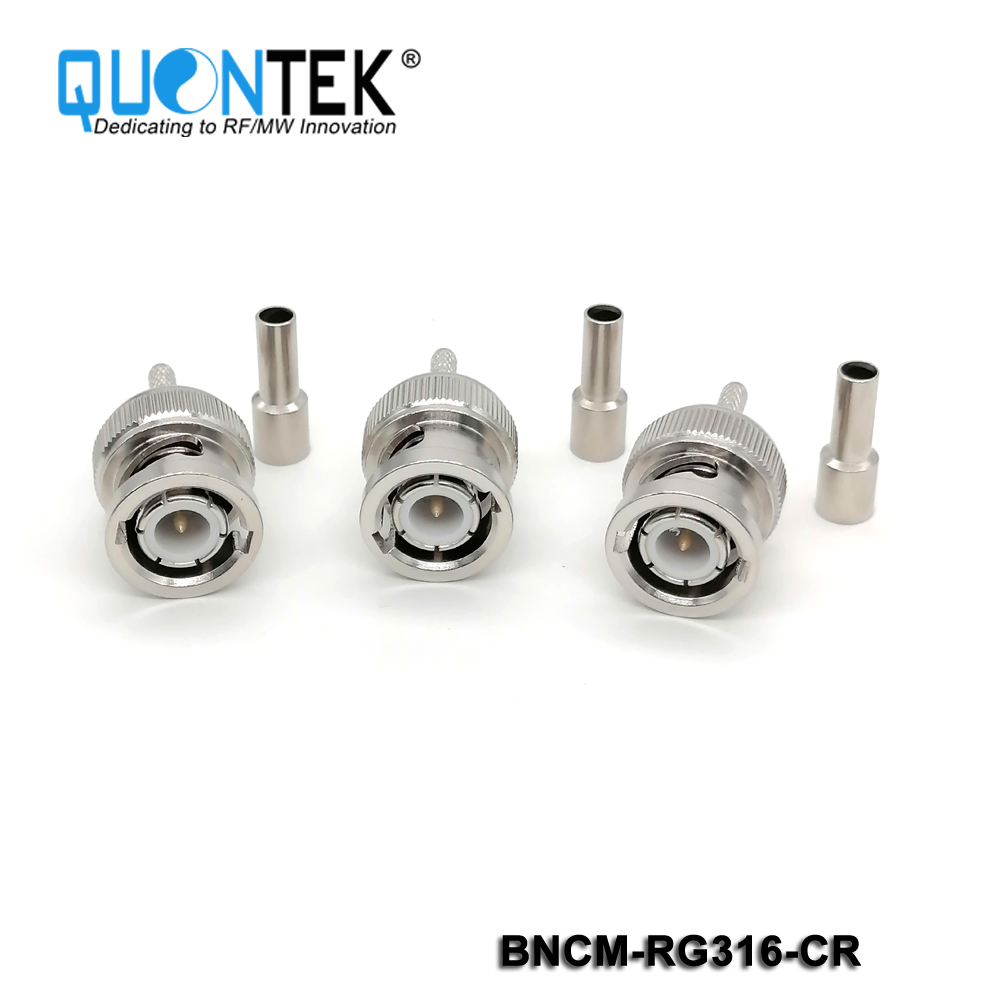

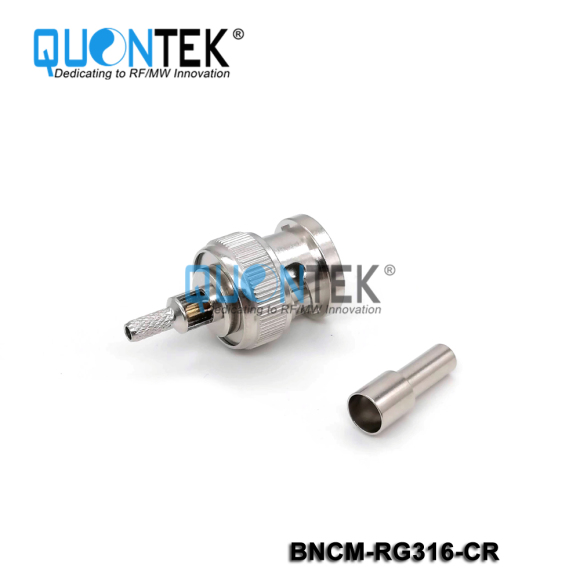

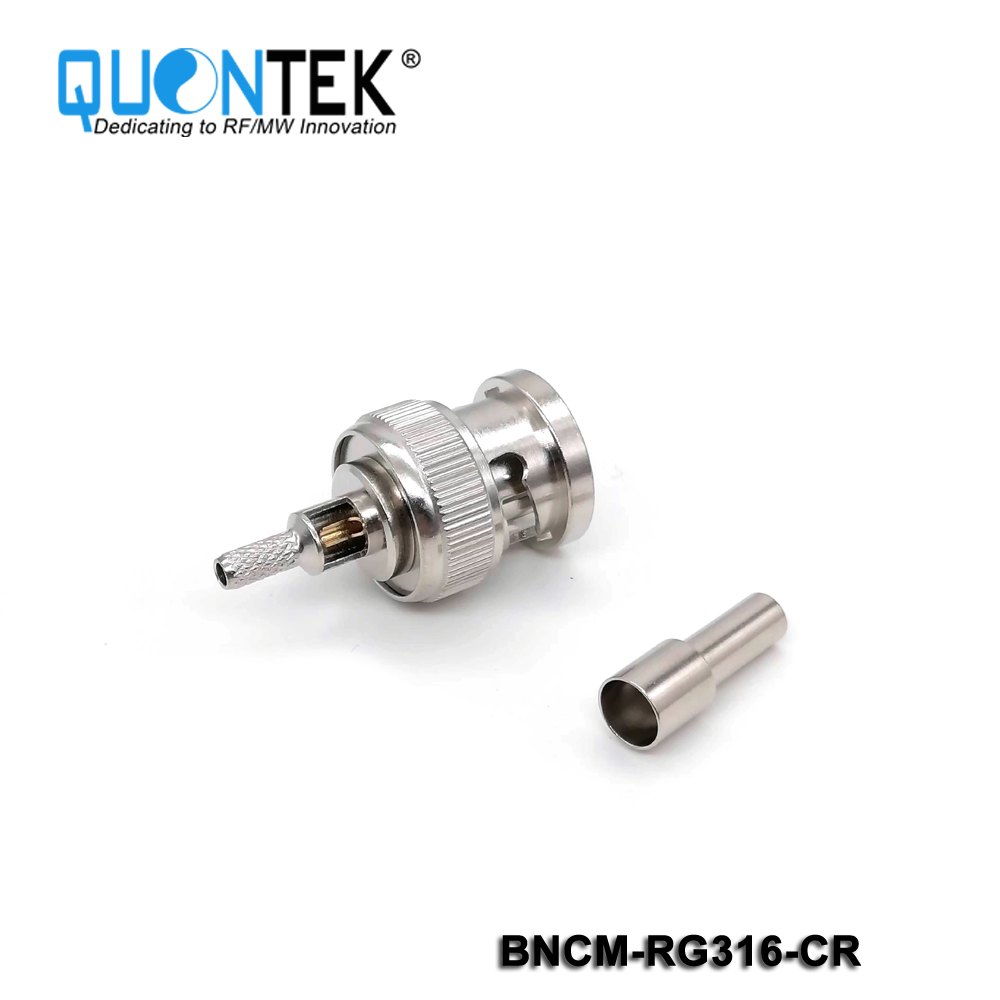

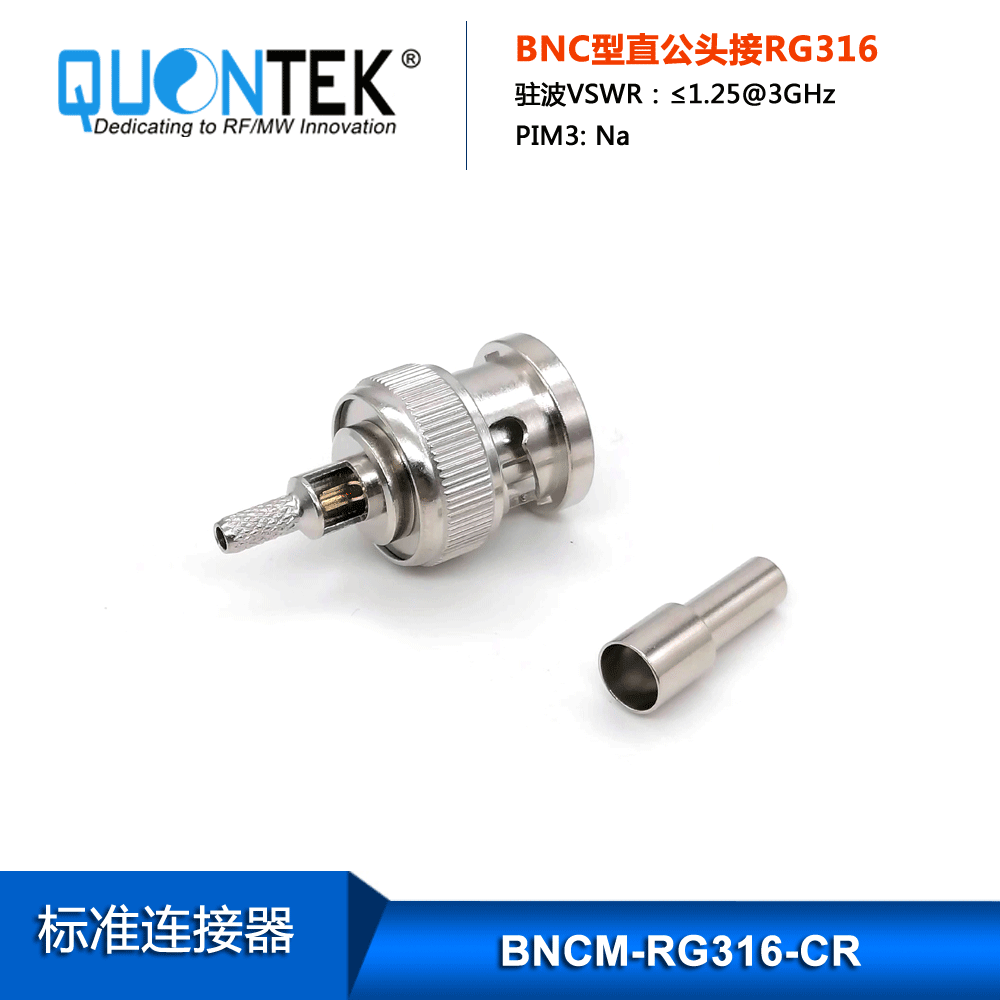

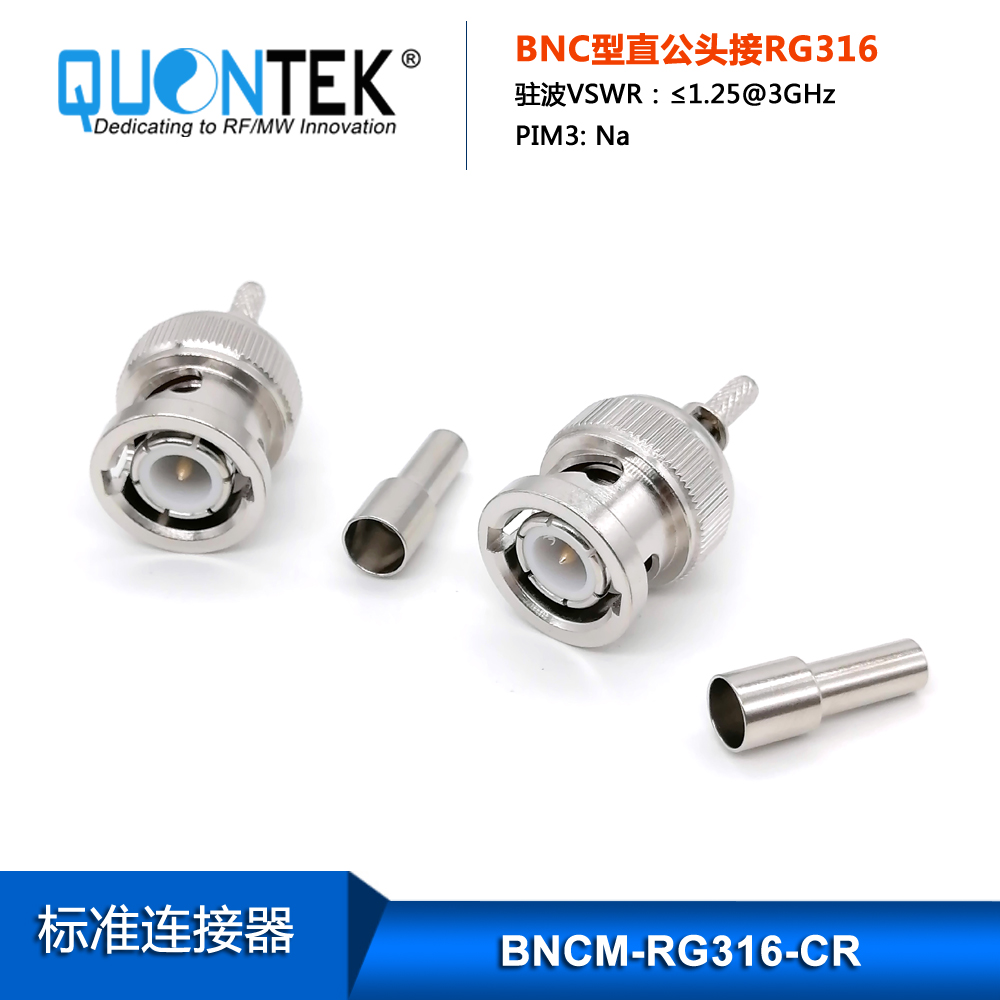

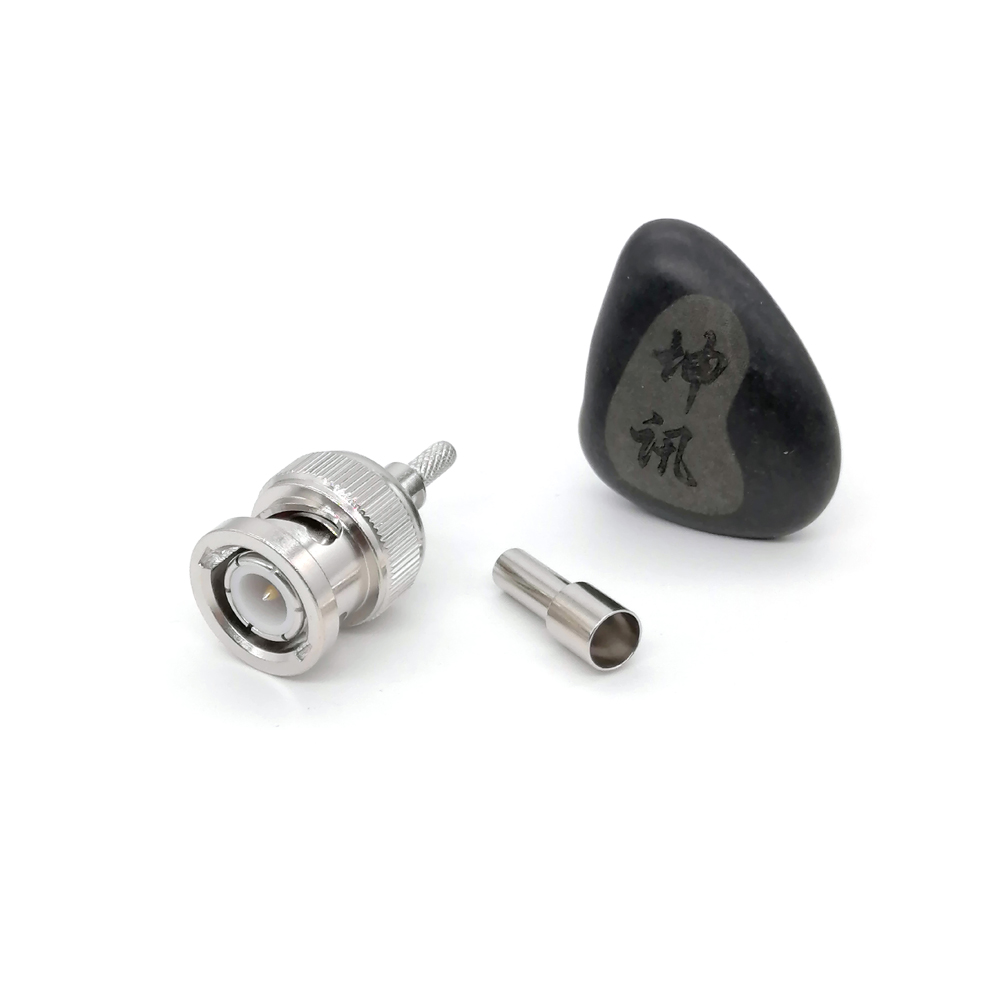

Standard connector,BNC male for RG316,RG174,RF100 cable

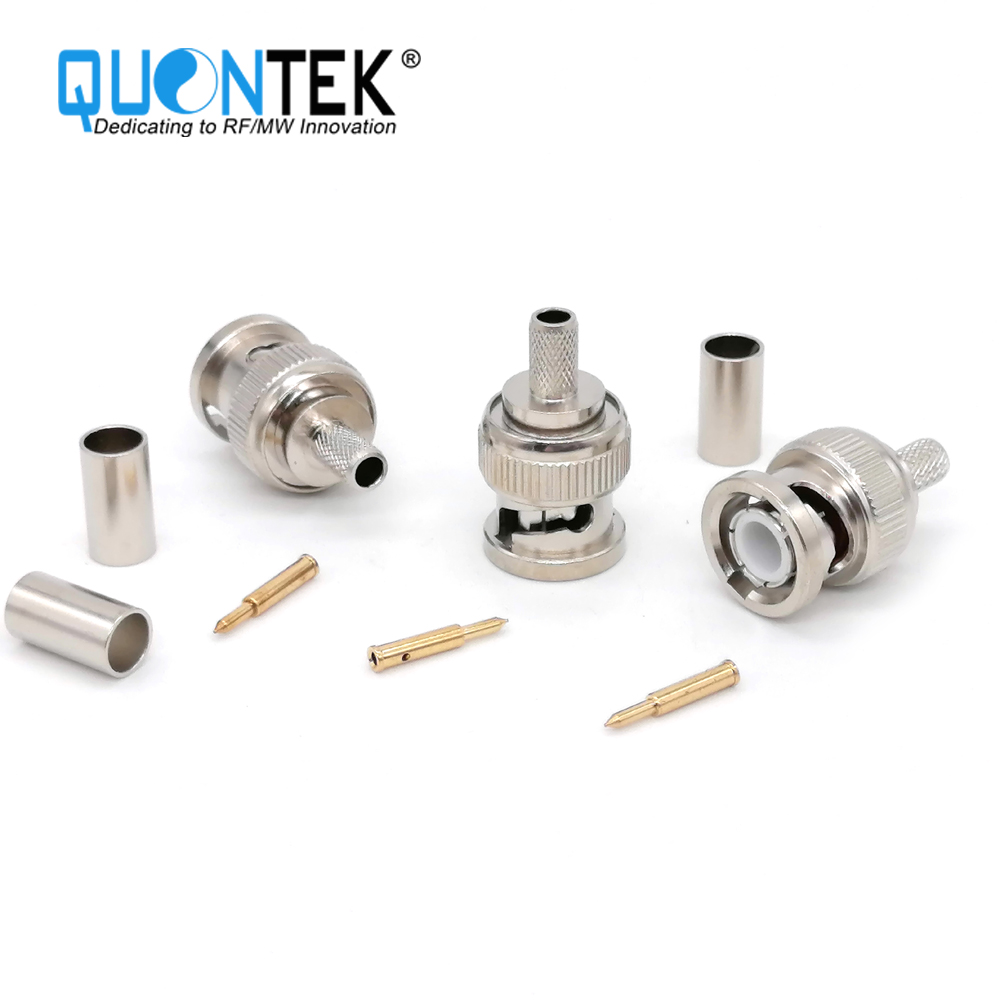

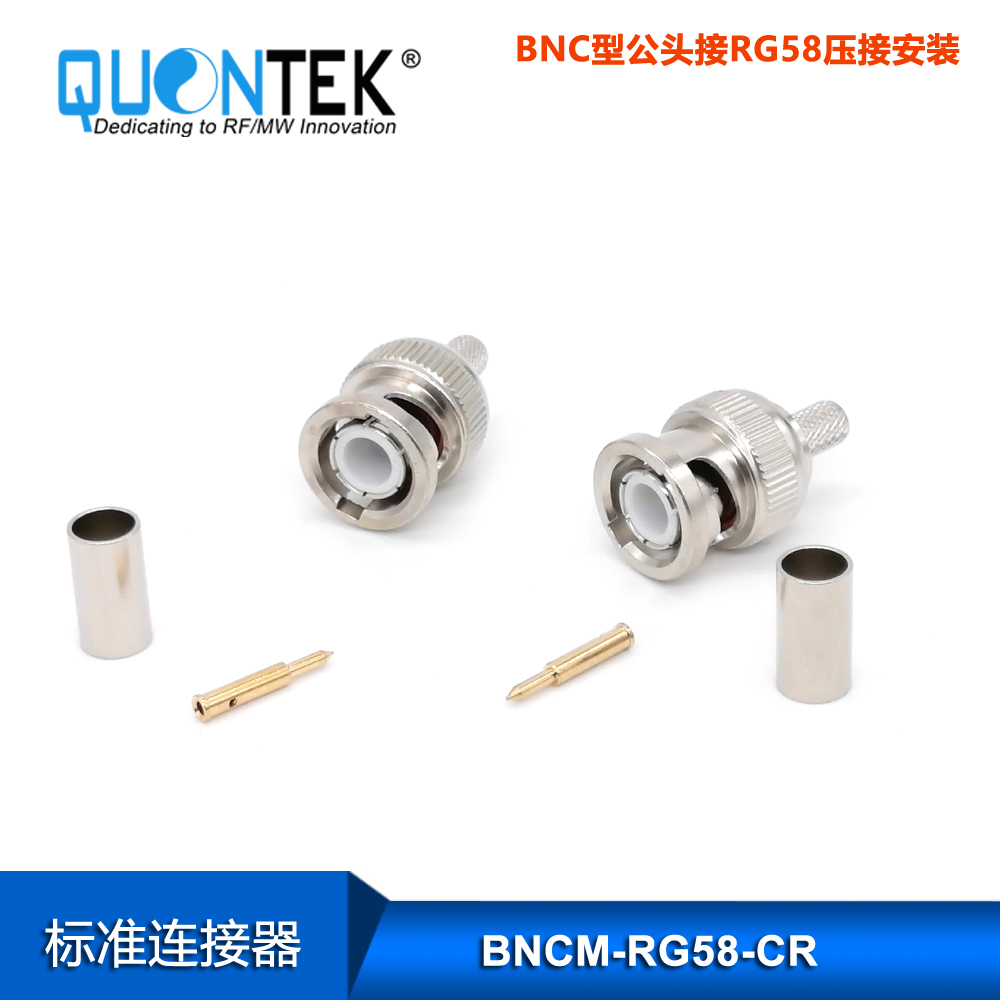

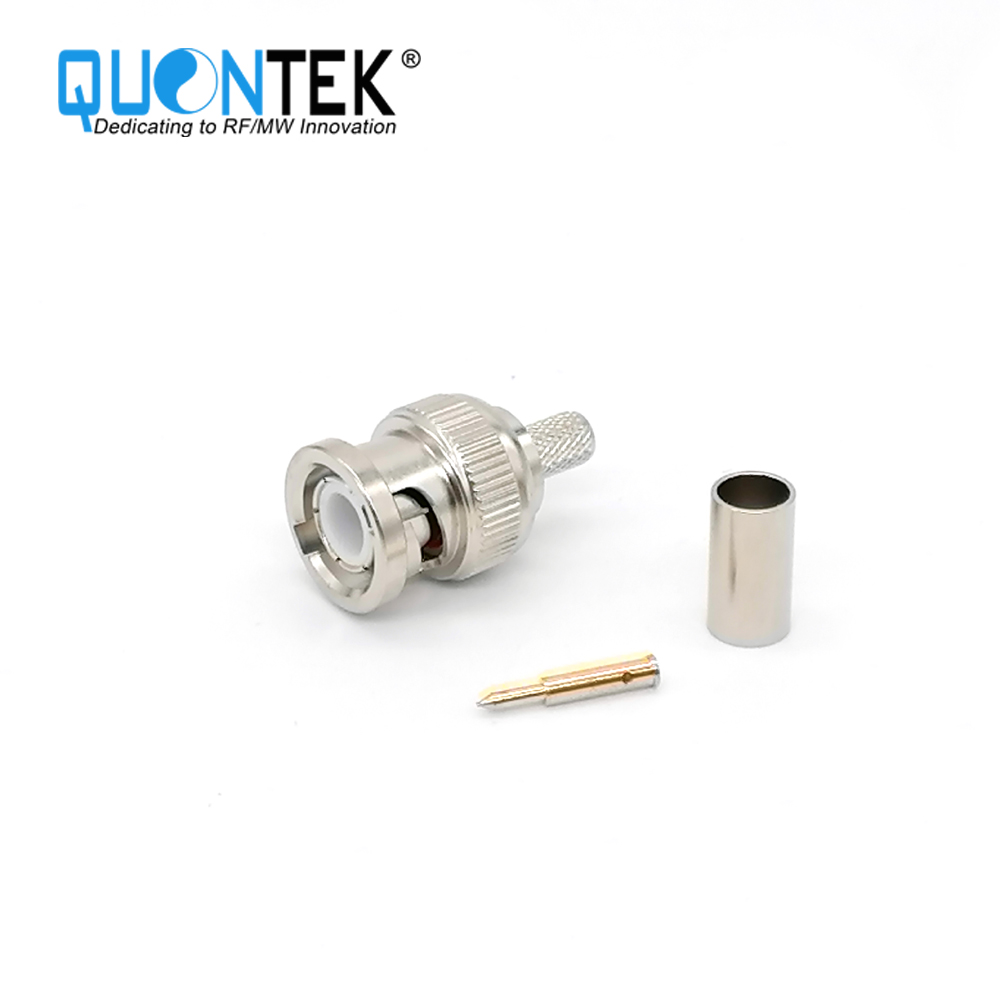

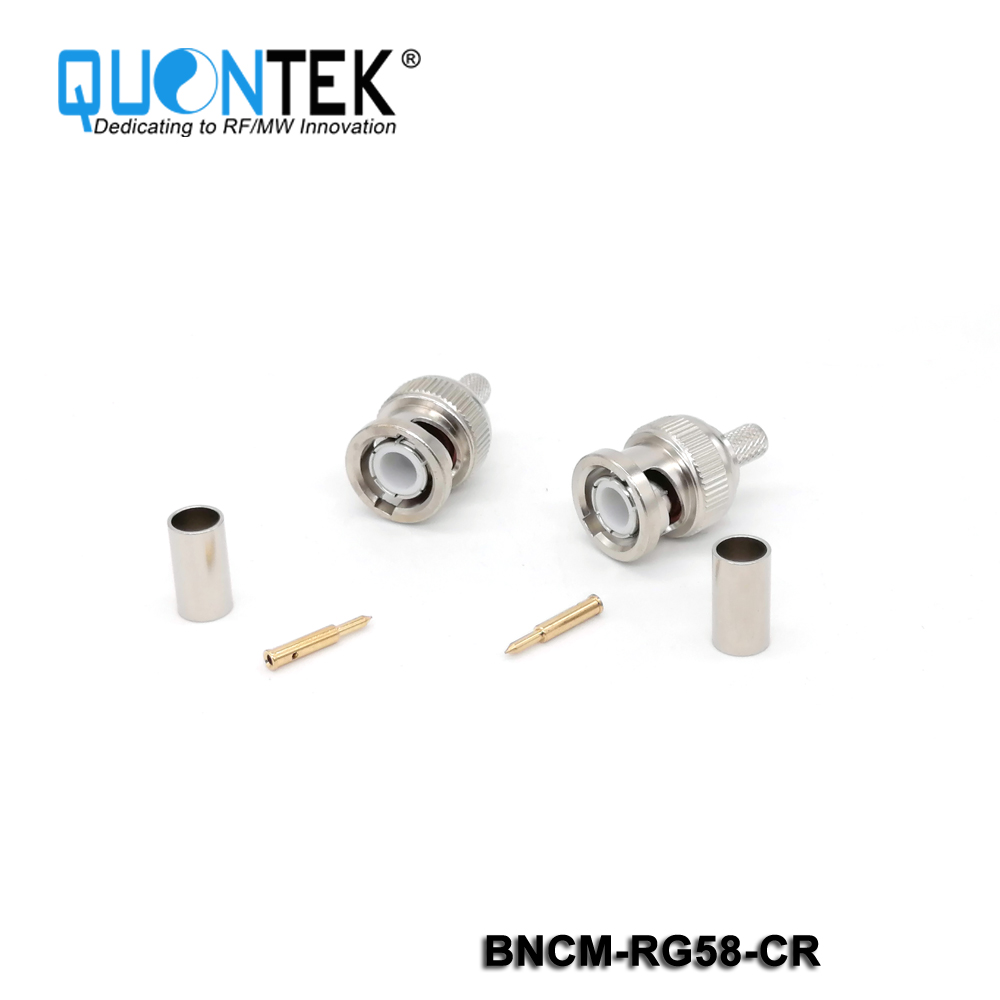

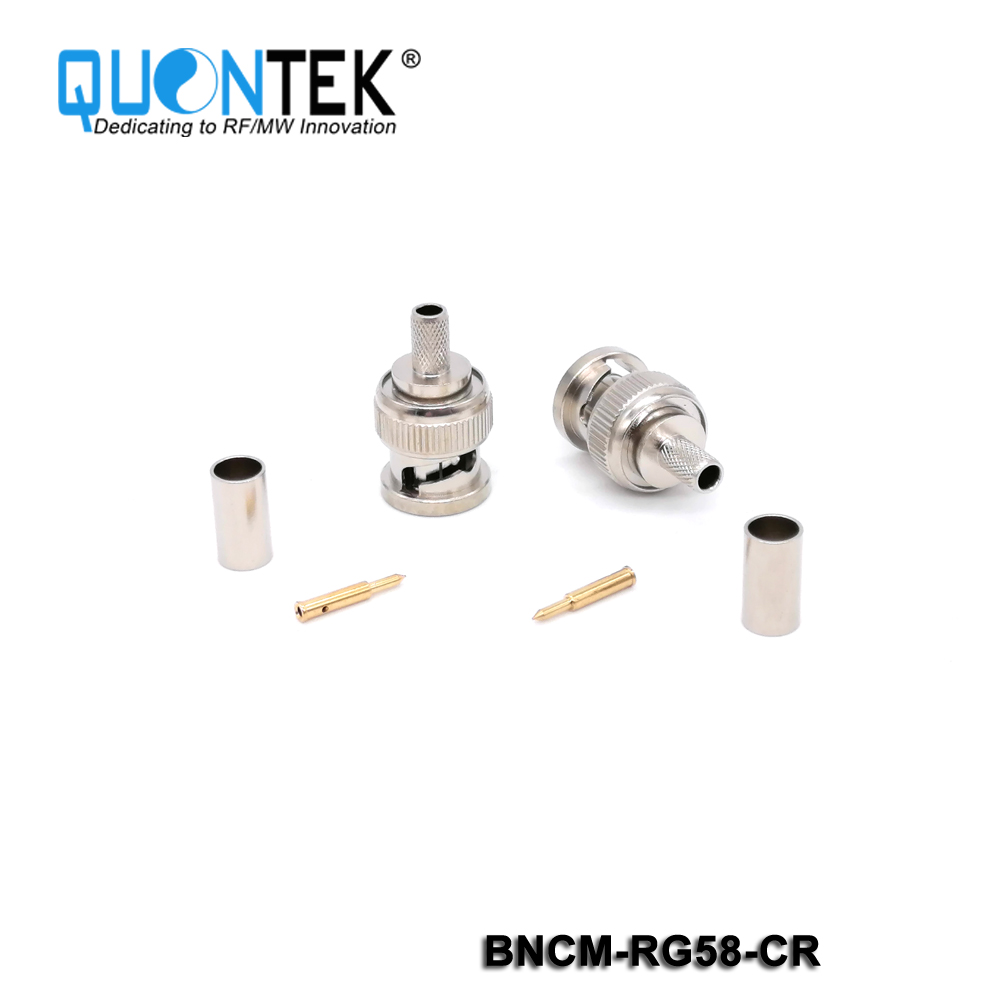

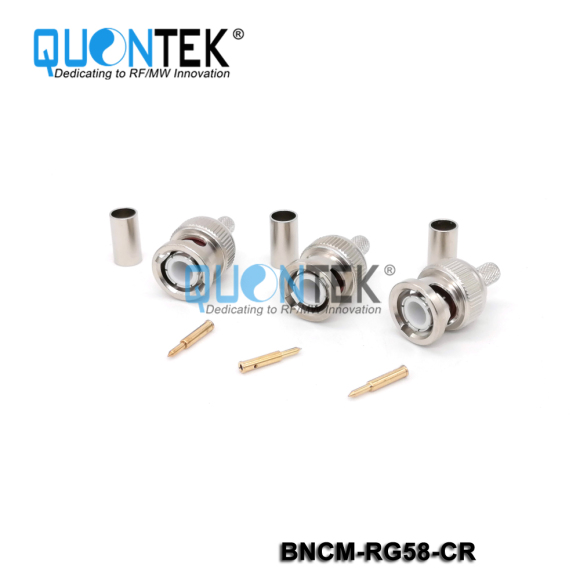

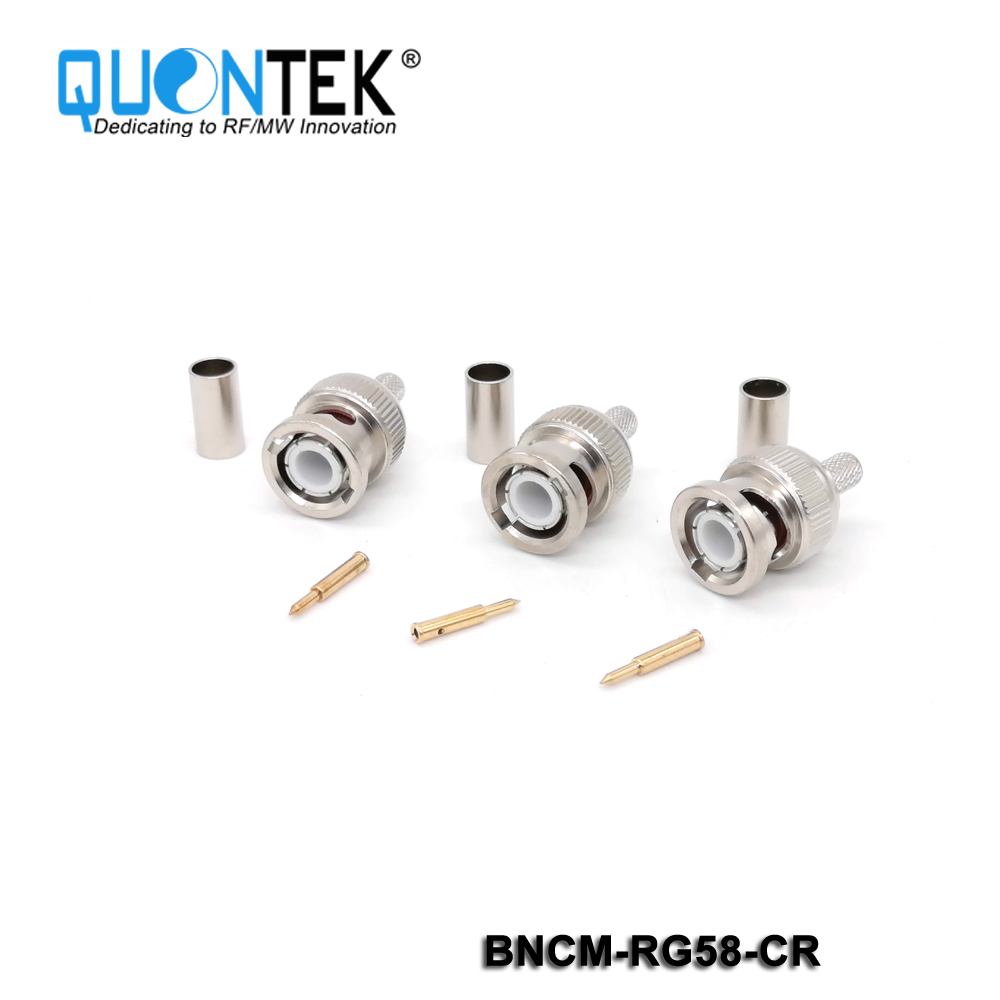

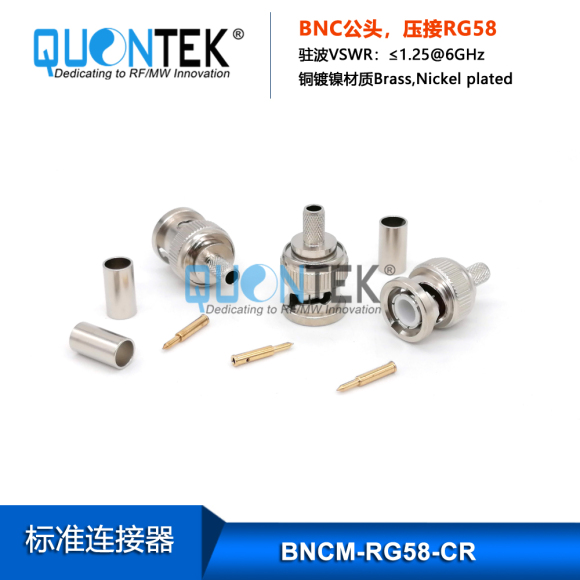

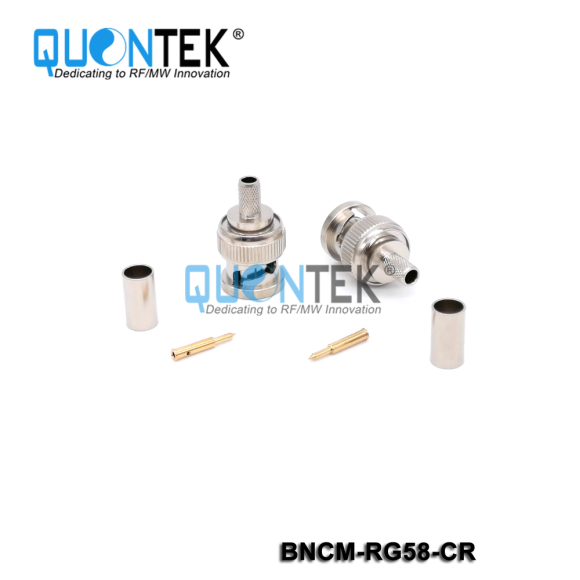

Standard Connector,BNC Male ,Crimp for RG58/RG141/RF195 Cable

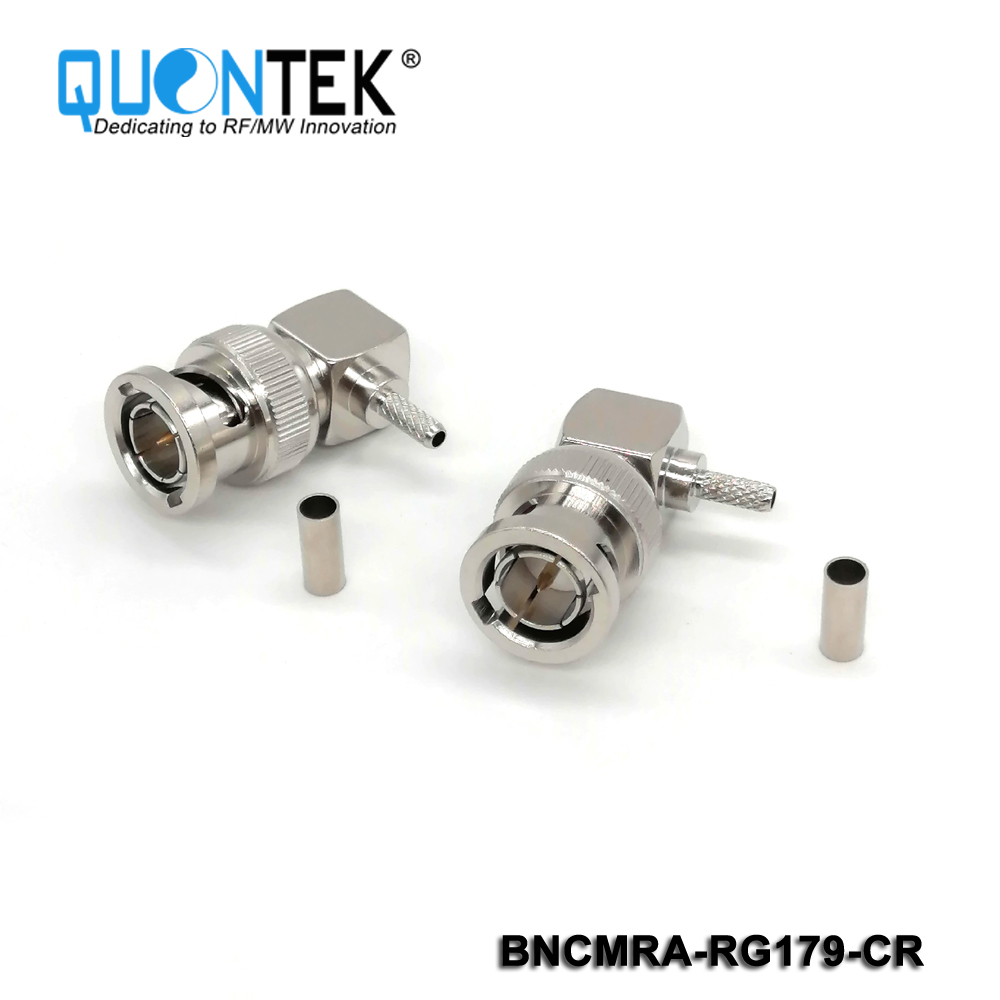

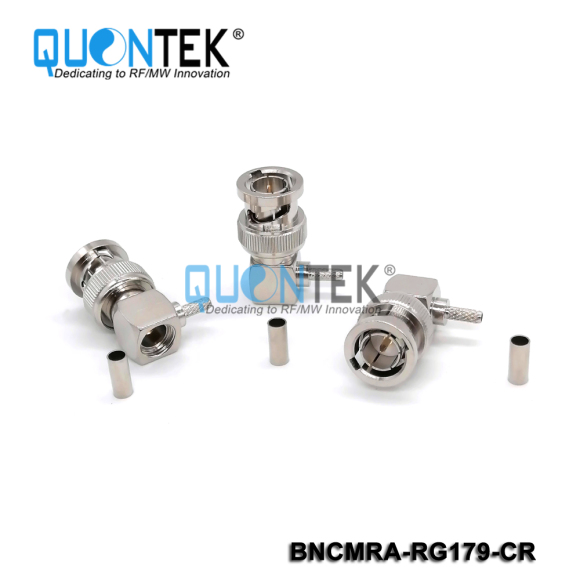

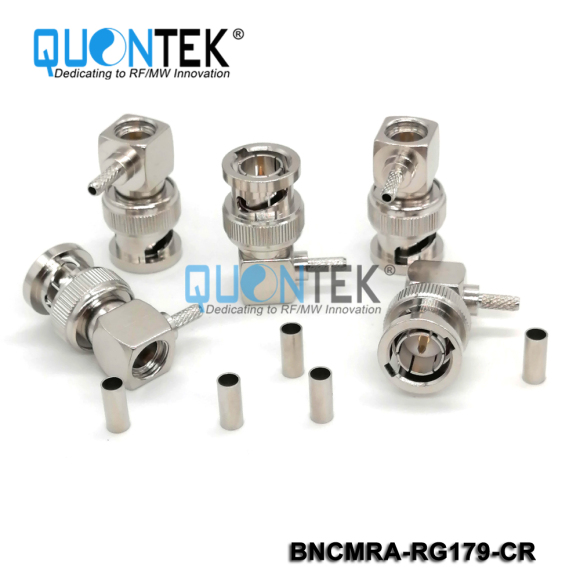

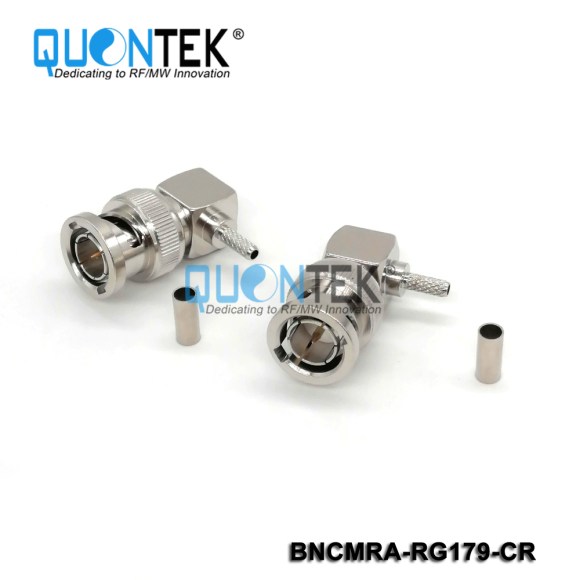

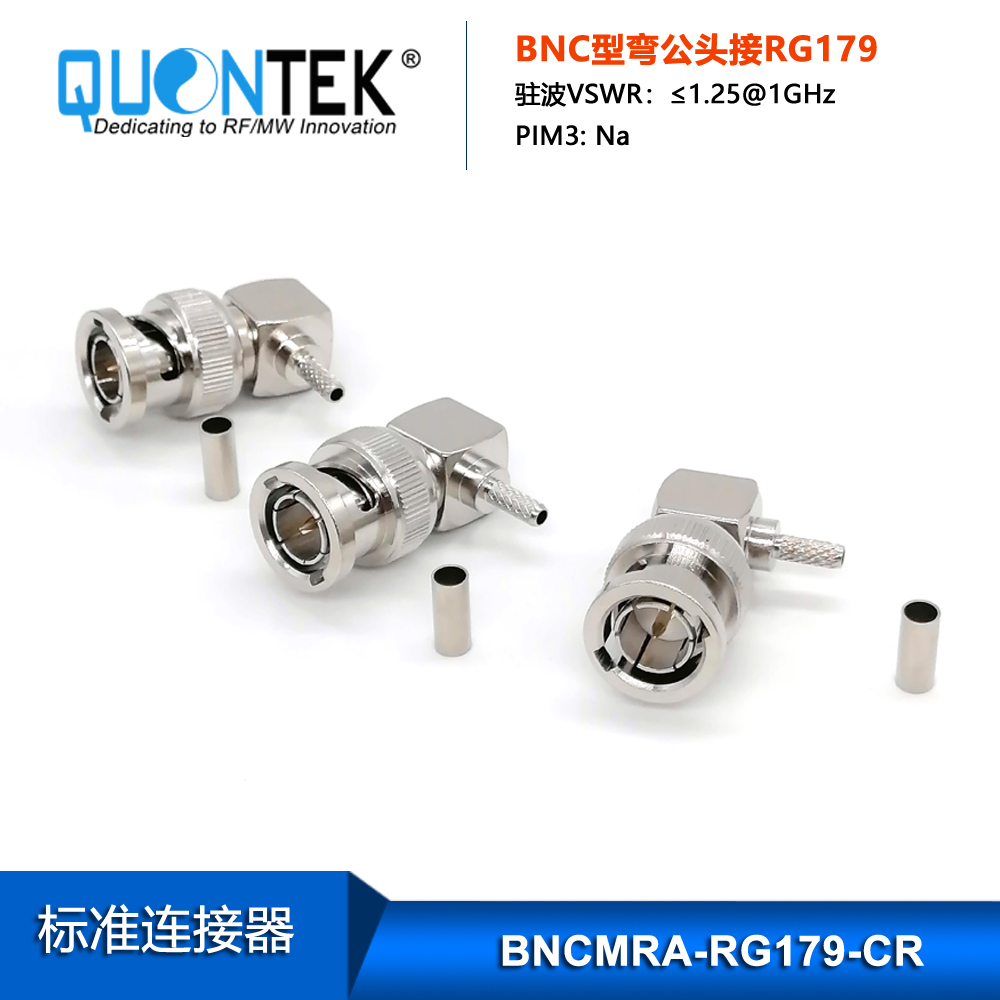

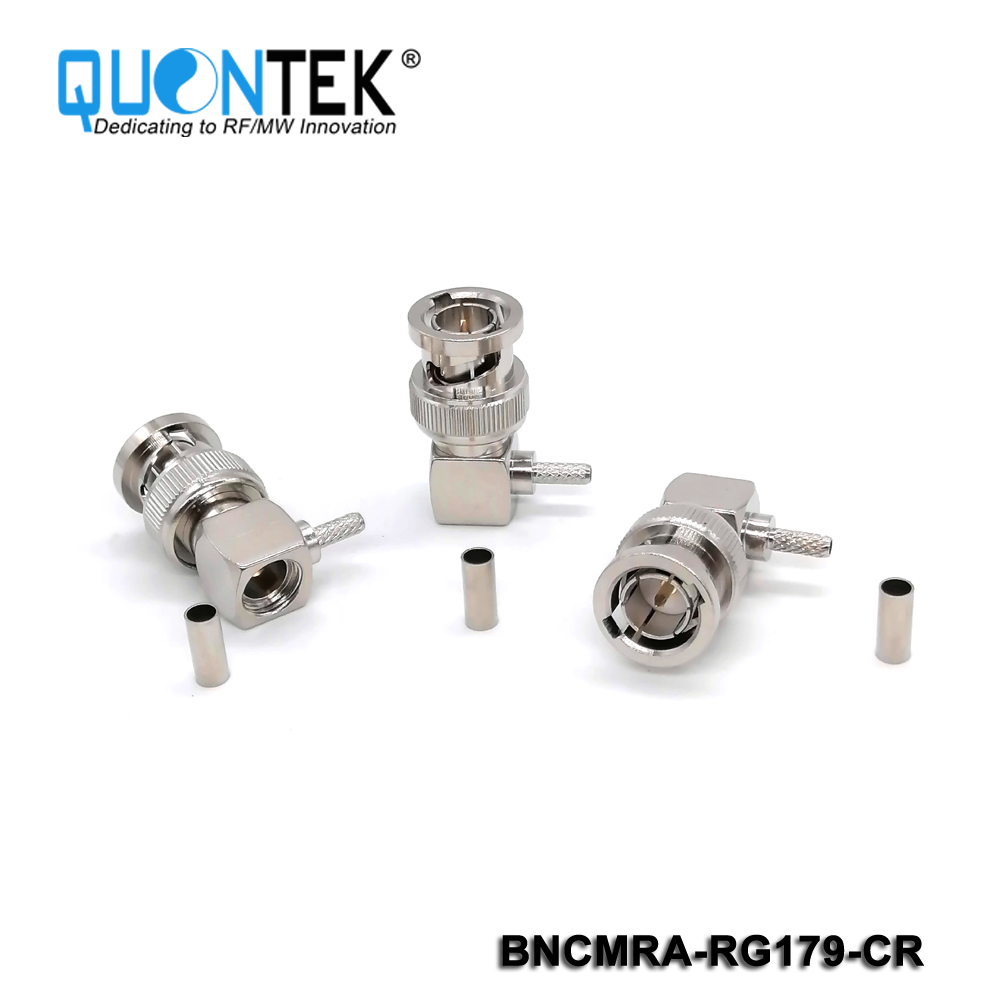

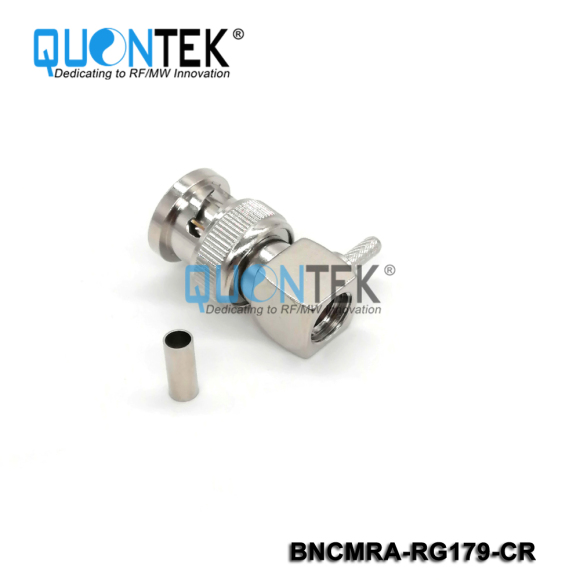

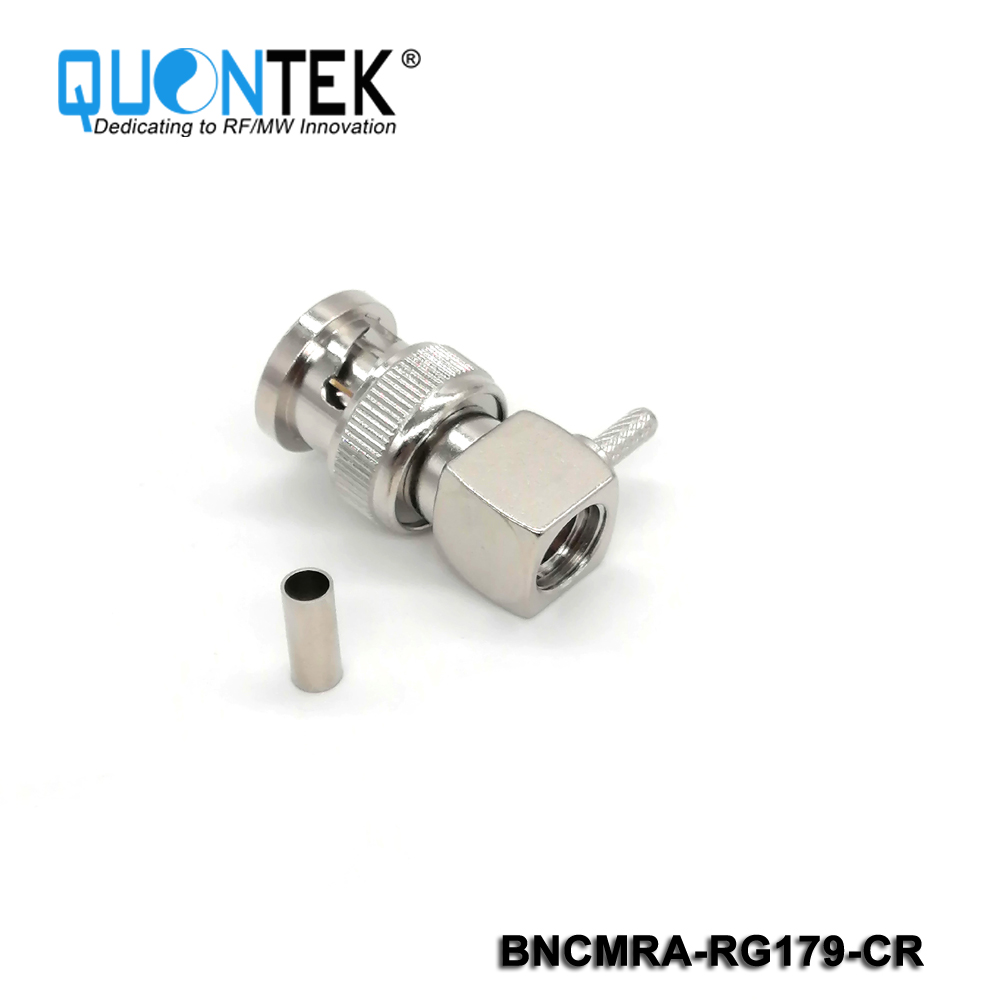

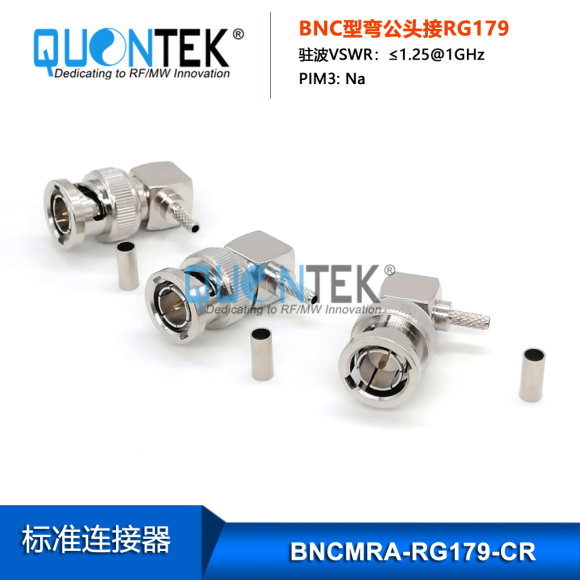

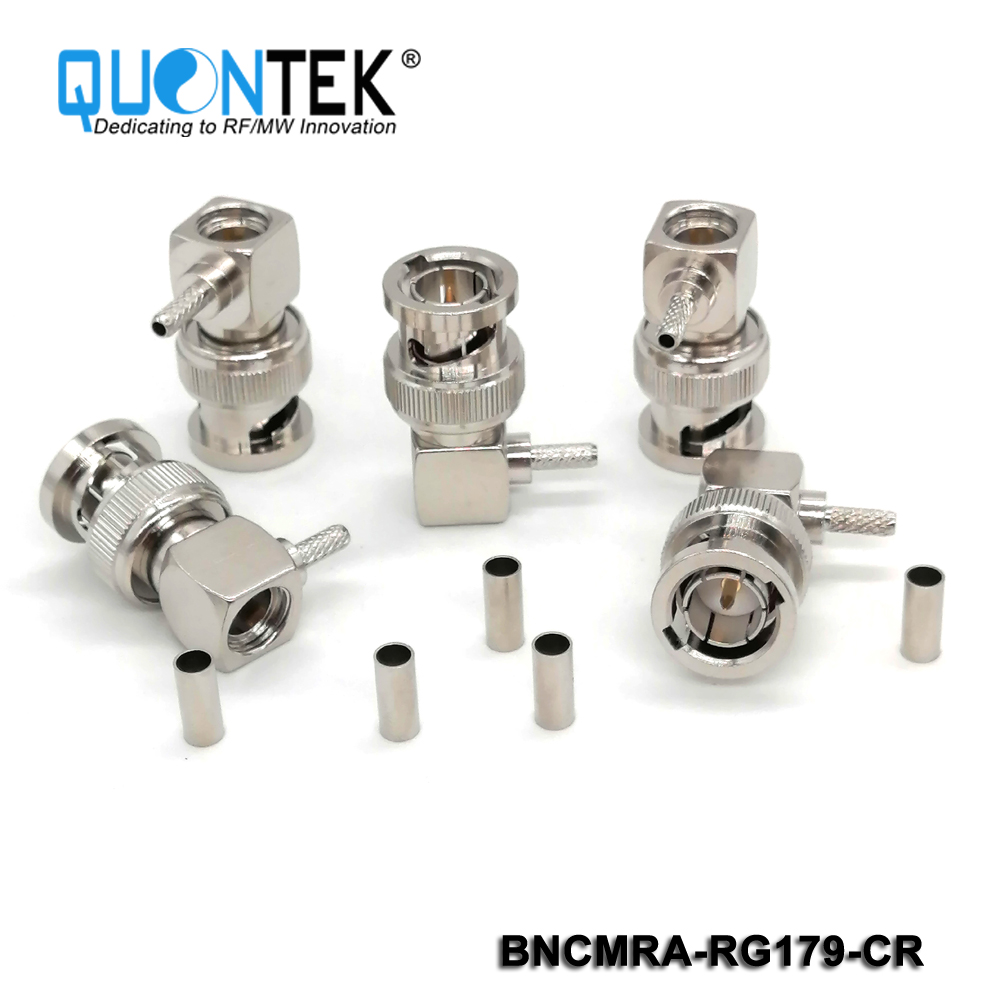

Standard connector,BNC RA male for RG179 cable

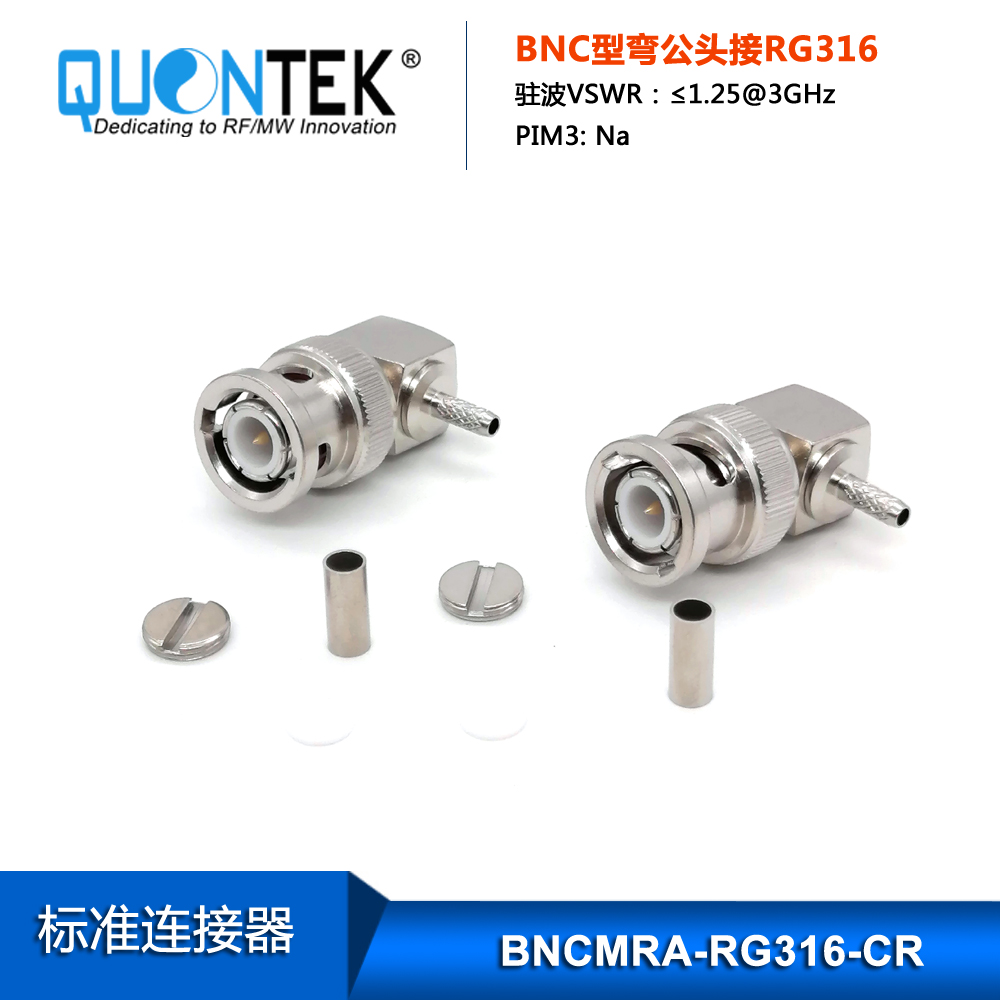

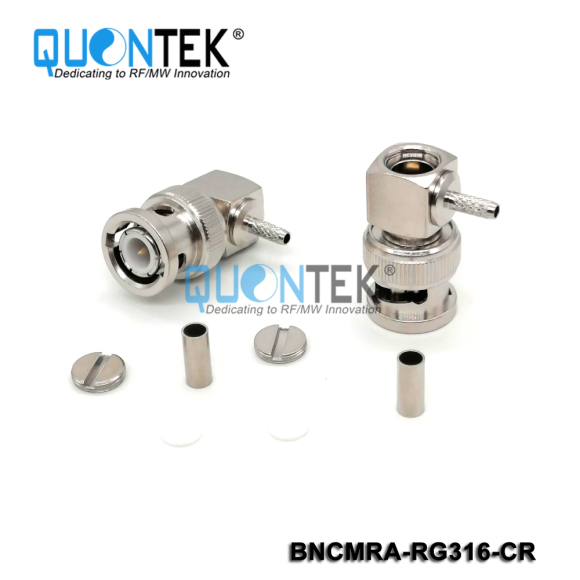

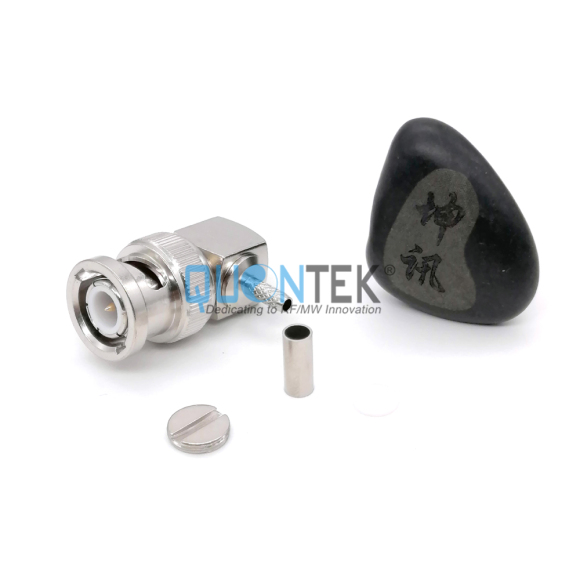

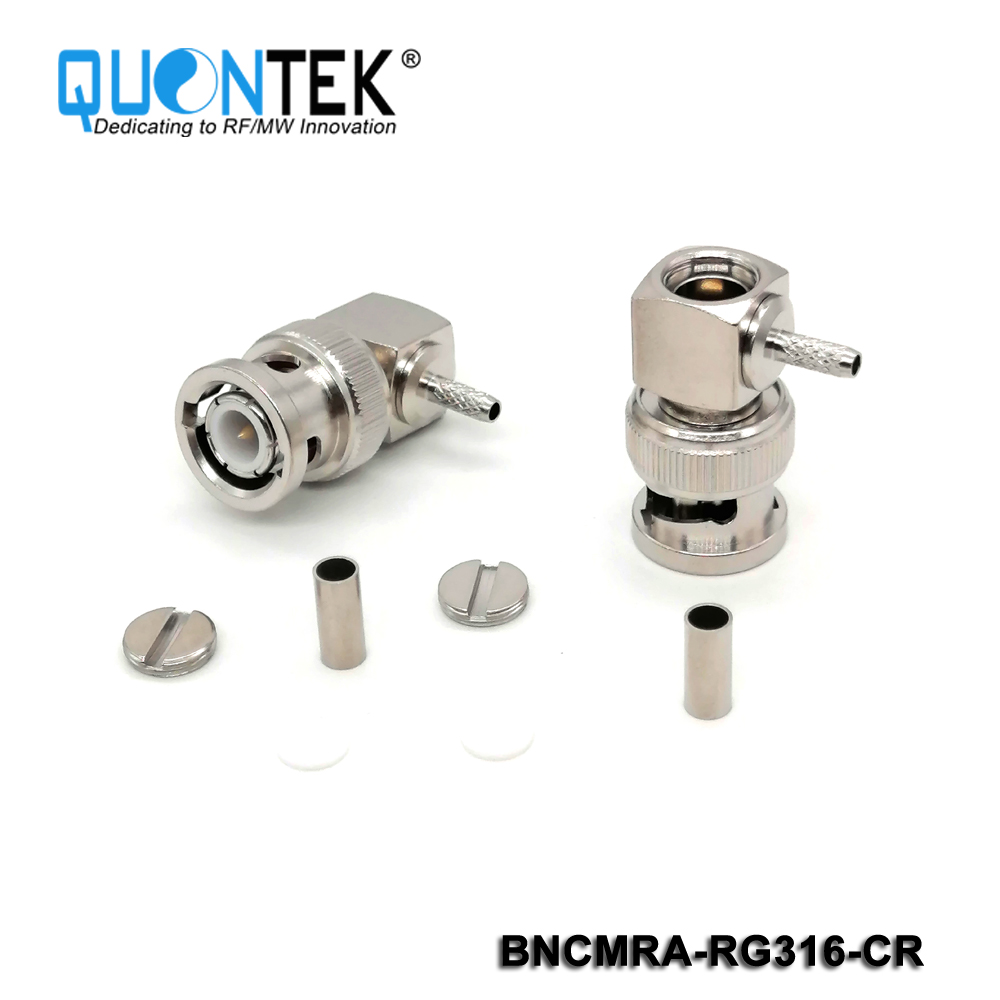

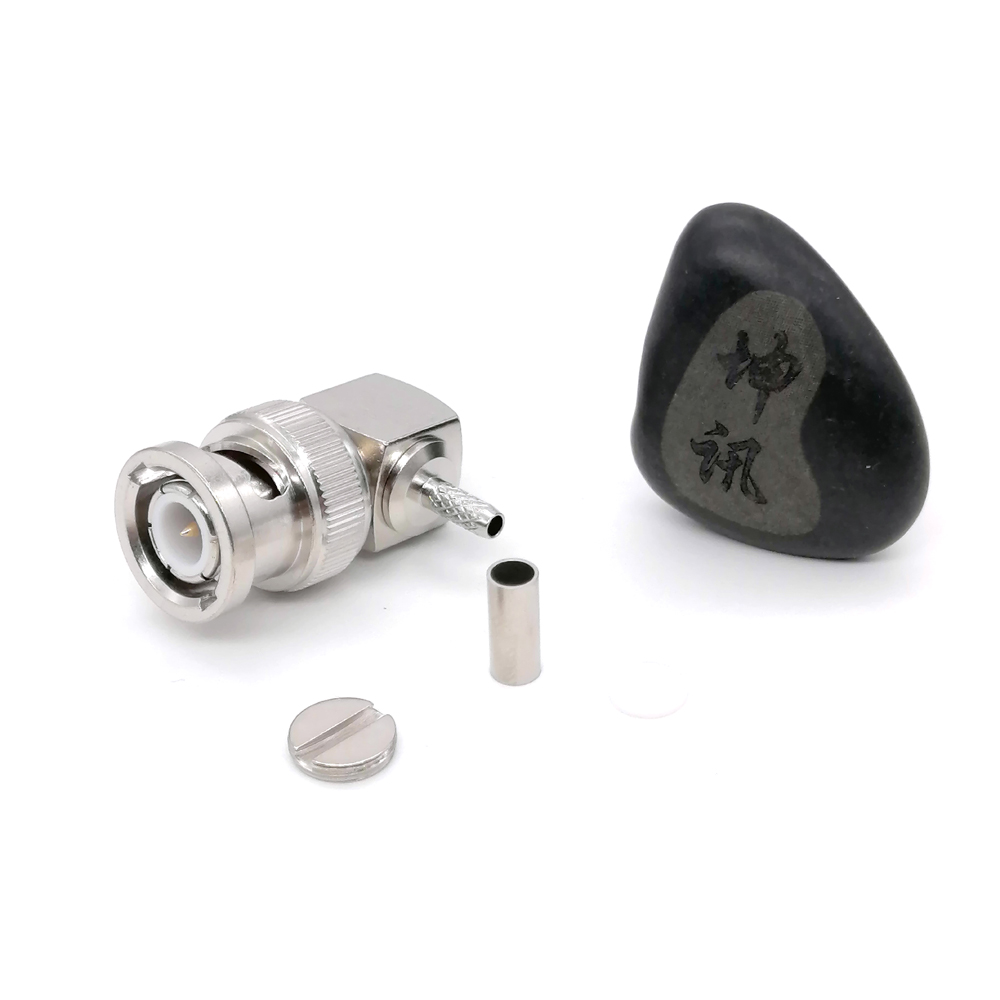

Standard connector,BNC RA male for RG316,RG174,RF100 cable

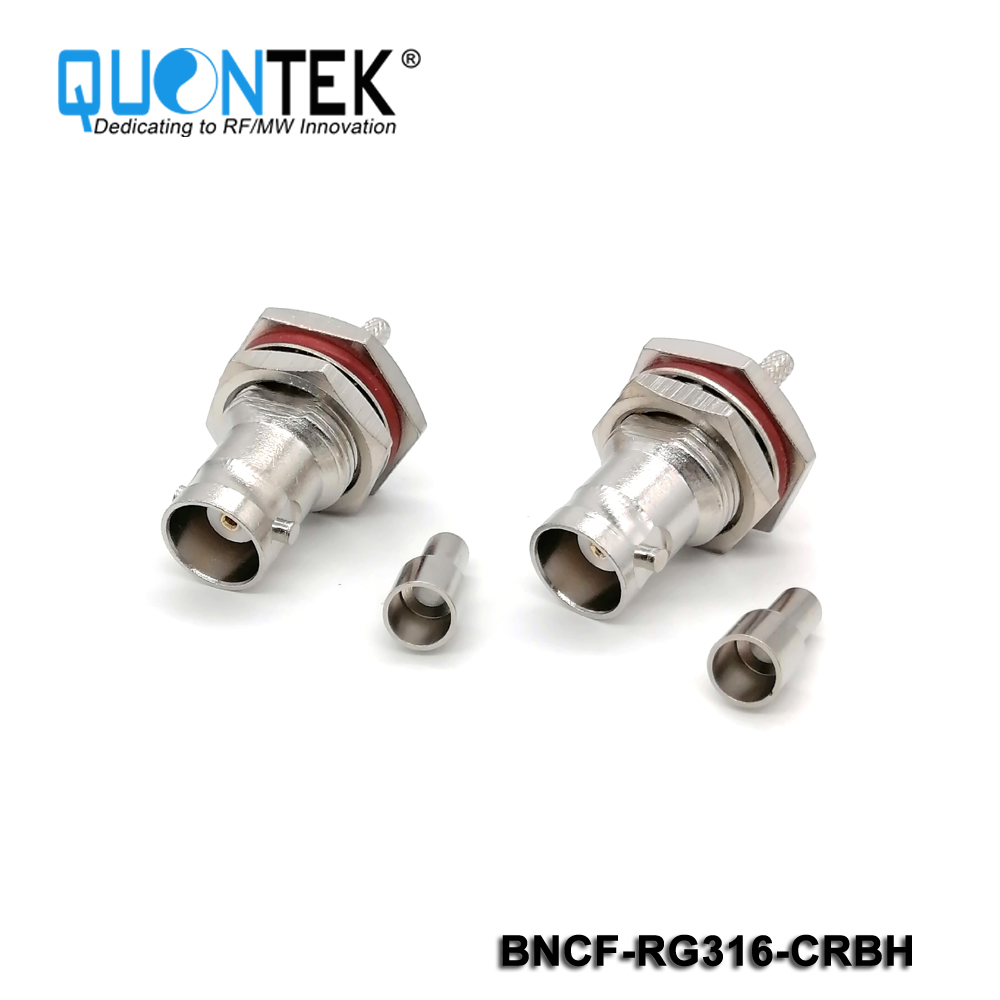

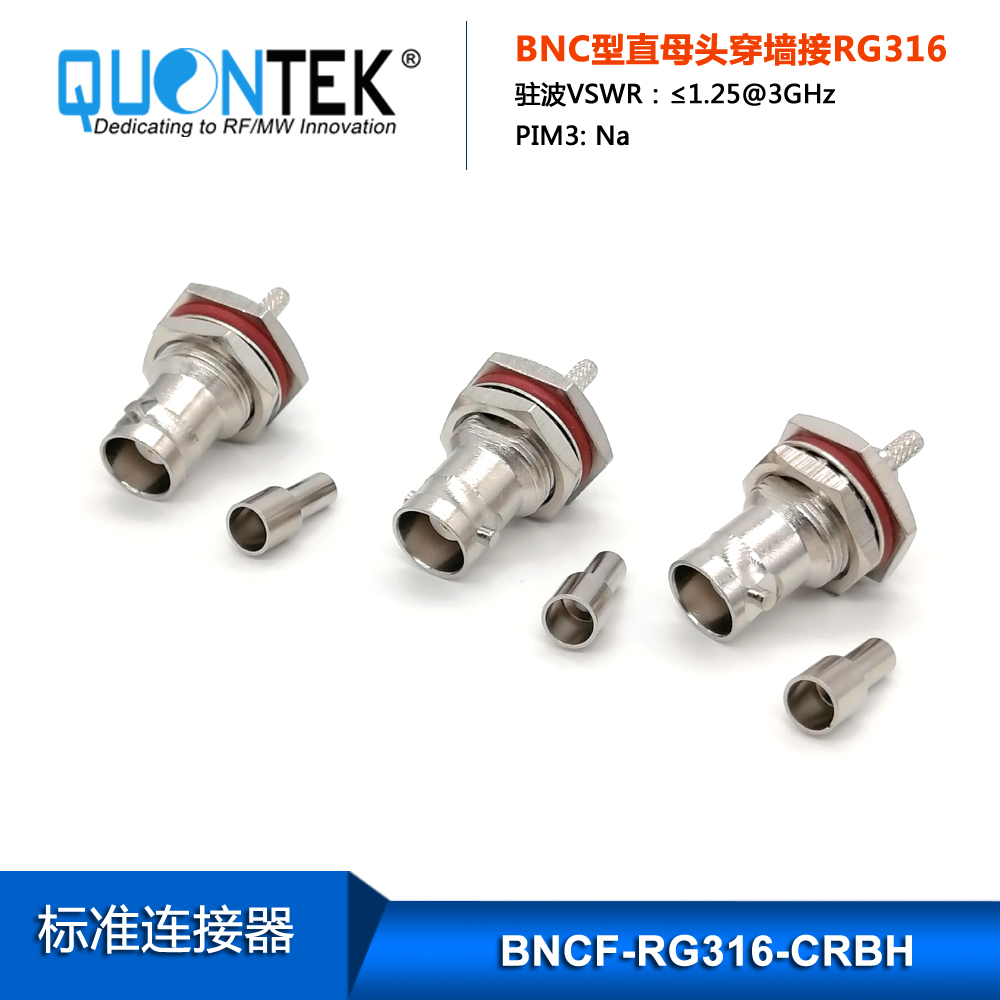

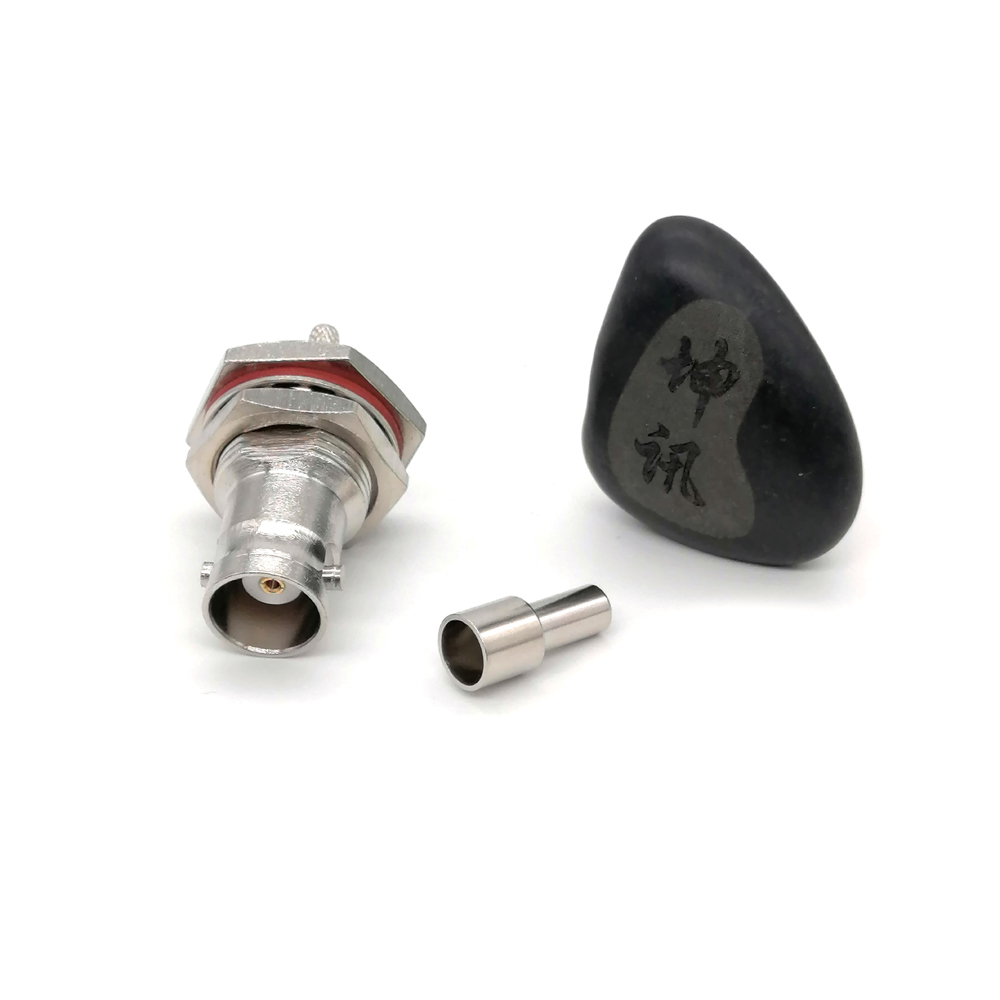

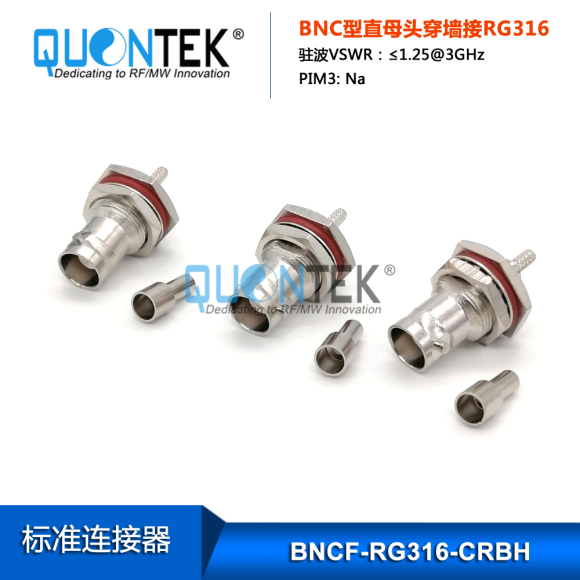

Standard connector,BNC Female,Bulkhead mounted,for RG316/RG174/RF100 cable
